INTRODUCTION
Indicates important information that, if ignored, may result in the mishandling of
the product and cause faulty operation or damage to the product.
Use of this product is unlikely to cause physical injuries or damage to property. However, points that require special
attention are indicated by thick underlining, the word "IMPORTANT" and the symbol below.
•CITY series, or the BLAST CITY cabinet, set the COIN CHUTE TYPE under COIN
ASSIGNMENTS to COMMON. When using a VERSUS CITY or other vs. play cabinets
set the COIN CHUTE TYPE under COIN ASSIGNMENTS to INDIVIDUAL.
Refer the DVD Soft Kit and separately attached manual for details on COIN
ASSIGNMENTS.
•check whether the input mechanisms are functioning correctly using the INPUT
TEST.
•This game is available only with the LINDBERGH system. It is not available with
other hardware.

HANDLING PRECAUTIONS
1
1
•Be sure to disconnect the cabinet power when assembling or removing the IC
board as there is a risk of an electrical shock and of damaging the IC board.
•If any foreign matter gets onto the IC board or any dust builds up on the IC
board, there is a risk that this will short the circuit causing the IC board to heat up
•You must use a cabinet which supports the LINDBERGH*. Failure to do so may
HANDLING PRECAUTIONS1
*: Cabinets that support the LINDBERGH are the LINDBERGH UNIVERSAL CABINET and any of the following
cabinets if modified to support the LINDBERGH power supply – NAOMI CABINETS, NET CITY series
cabinets and BLAST CITY cabinets.
•Ensure that the connection between board and connectors is complete. The IC
board may be damaged if it is not fully inserted.
•Use a logic tester to inspect the IC board circuit. Do not use a standard tester as
there is a risk of damaging the IC board.
•When installing the IC board inside the cabinet or connecting the wire harness
connector to board, take care not to shock the IC board with static electricity.
•When soldering buttons, etc. to the wire harness, remove the wire harness from
the IC board to avoid heating the IC board.
•If the LINDBERGH is used without the shield case, electrical interference may be
produced. Use the LINDBERGH with the shield case provided.
•The monitor for the LINDBERGH is compatible with the resolution of the video
output; 640 x 480 (31kHz) and 1360 x 768. Cabinets using monitors not compatible
with these resolutions cannot be used.
•The IC board’s electronic components can be damaged by static charges
transferred by human contact. Before performing operations involving the IC
board, be sure to take adequate measures to discharge any static buildup in
your body, such as touching a properly-grounded metal surface.
Note: The contents herein described are subject to change without notice.

1
HANDLING PRECAUTIONS
2
“Virtua Tennis 3” can be played using the “VIRTUA TENNIS 3 PLAYER’S CARD” (hereafter called the Card). For
this reason, bear in mind the following points when operating this game with Card use enabled.
Card Use
To play using the Card, insert the Card as indicated below into the Card Reader/Writer insertion slot. Saving
to the Card will not be possible and other problems may result if the procedure is incorrect. Make sure that
individuals involved in operation are familiar with how to use the Card, so that they are able to guide players so
as not to make mistakes, and are able to cope with any problems that may occur.
· Put in the coins and press the Start Button before inserting the Card into the Card insertion slot.
·
The Card has “IN” and a triangular mark on one end. Insert the Card with that end forward into the insertion slot.
·
· Do not insert more than three Cards simultaneously.
·
· Do not use Cards other than the “VIRTUA TENNIS 3 PLAYER’S CARD”.
Cautions During Card Lock
During use, the Card is locked by the Card Reader/Writer.
Even while the Card is locked, it is possible to remove the Card by force. However, if it removed during saving,
the data may be damaged, and the Card may become unusable. For this reason, never remove the Card when it is
locked. Instruct the players likewise.
<Troubleshooting during Card updates>
•There is a restore Card command in the CARD TEST in GAME TEST Mode. However,
there is no guarantee that it will be possible to restore the Card. If the player
wishes to restore the Card, make sure they understand that there is no guarantee
before attempting to start a new game.
•The restore operation is based on update information recorded in the cabinet’s
backup RAM. Restore will not work if information was not recorded in the backup
RAM correctly during Card update, or if there are other problems.
During Operation (Paying Attention To Customers)

SPECIFICATIONS
2
3
(1) ON-SCREEN DISPLAY
[HORIZONTAL]
Resolution of the video output:
· 640 x 480 (31kHz)
· 1360 x 768
SPECIFICATIONS2
(2) CONTROL PANEL
(3) REQUIRED OPERATING ENVIRONMENT
It is recommended that this game be used with the Sega LINDBERGH support cabinet, the LINDBERGH
UNIVERSAL CABINET, or any of the following cabinets if they have been modified to support the
LINDBERGH power supply – NAOMI CABINETS, NET CITY series cabinets and BLAST CITY cabinets.
The Card Reader/Writer Unit Kit (XKT-1538-01) is required for LINDBERGH UNIVERSAL CABINET.
The Card Reader/Writer Attached Control Panel Kit (XKT-1526-01) is also required for NAOMI CABINETS,
NET CITY series cabinets and BLAST CITY cabinets.
Monitor Position:
tenibacehtnisnoitacicepsrotinomehtotgnidroccayltcerroctesebtsumWSPIDHGREBDNILehT:ET
ON that you are using. (Refer to the “LINDBERGH Service Manual”)
START 1P START 2P
1P JOYSTICK
(8 WAYS) 2P JOYSTICK
(8 WAYS)
1P BUTTON 1
(TOP SPIN)
1P BUTTON 2
(SLICE)
2P BUTTON 1
(TOP SPIN)
2P BUTTON 2
(SLICE)

3
GAME DESCRIPTION
4
GAME DESCRIPTION3
3-1 GAME OUTLINE
This is a tennis versus game featuring 12 real-life pro tennis players.
The LINDBERGH board provides the highest quality graphics!
The LINDBERGH board reproduces not only the appearance of the players but also faithfully recreates each of
their individual mannerisms and movements making it almost like watching an actual live match on television,
allowing you to feel like you are actually playing a real game.
Famous Top Ranking Tennis Players!
The greatest male players of the current tennis scene, are all here in “Virtua Tennis 3” Including Roger Federer,
Rafael Nadal, Andy Roddick and Lleyton Hewitt.
Simple control using 1 joystick and 2 buttons!
The simple one joystick and two buttons control system from “Virtua Tennis 2” remains.
With simple game rules too, anyone can soon be enjoying an international level of play.
Addition of the new “Challenge Mode”!
Take on a series of challenges and aim for the million dollar prize! A series of challenges, ranging from the
also possible. Continuing play allows for the creation of a totally unique character.
There are numerous other features designed to increase the player’s desire to play more, including the SPT
criteria.

GAME DESCRIPTION
3
5
3-2 GAME MODES
Pressing the 1P or 2P START button when no one is playing the game will start a single player game. After selecting
a character the following options appear on the Select Game Mode screen.
Tournament Mode
Stage clearing game type.
Enter tennis tournaments taking place across the world and aim to become the champion for that year.
Win a match to proceed to the next match. Losing a match results in game over.
Challenge Mode
Select and take on a challenge game type.
A player can take on 5 challenges in one game.
Success leads to harder challenges being offered, with more prize money.
Single Player Games
Pressing the START button on the unoccupied side when someone is already playing the game will start a two player
game.
The Versus or Team Selection screen will then be displayed, and one of the following two player games can be
selected. The player who joined the game can make the selection.
Versus Singles
The winner may then continue to play the game, but for the loser it is game over.
Doubles Team
The two players form a pair and play against a CPU doubles pair. Matches proceed as in Tournament Mode. The
Win a match to proceed to the next match. Losing a match results in game over.
Two Player Games

3
GAME DESCRIPTION
6
3-3 THE GAME SCREEN (TOURNAMENT, VERSUS SINGLES)
<For “Vs Singles”>
(10)
(7)
(8) (9) (11)
(6)
(12)
(5)(4)(3)(2)(1)

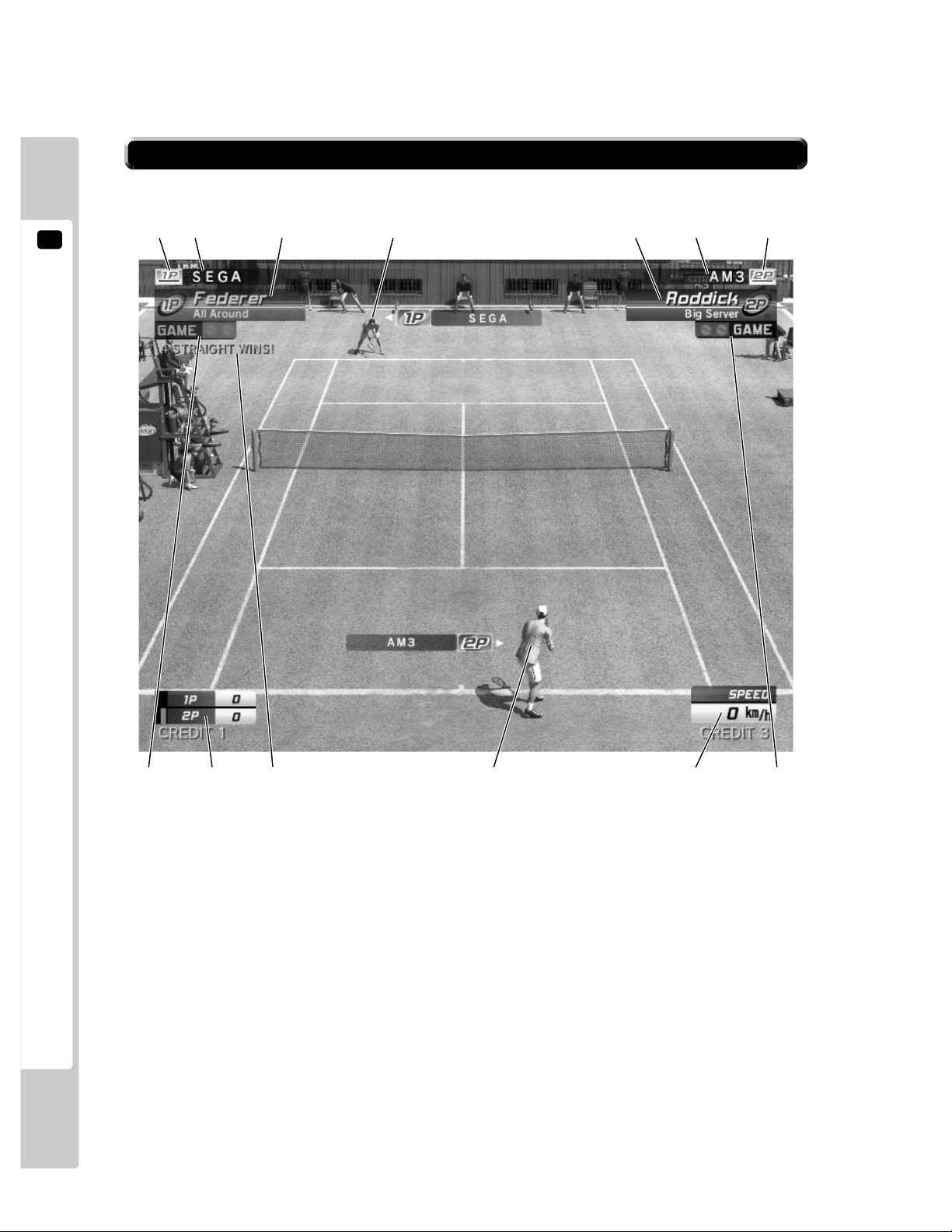

(1) 1P IC Card Icon
(2) 1P IC Card Registered Name
(3) 1P Player Name and Play Style
(4) 1P (Player)
(5) 2P Player Name and Play Style
(6) 2P IC Card Registered Name
(7) 2P IC Card Icon
(8) 1P Games Won
(9) Points and Service
(10) 2P (Player)
(11) Serve Speed
(12) 2P Games Won
(13) Consecutive Wins
White display shows no. of consecutive wins on this play.
Yellow display shows no. of consecutive wins carried over by IC Card.
(13)

GAME DESCRIPTION
3
7
3-4 THE GAME SCREEN (DOUBLES TEAM)
(1) 1P IC Card Icon
(2) IP IC Card Registered Name
(3) 1P / 2P Player Names
(4) COM Pair
(5) COM Pair Player Names
(6) 2P IC Card Registered Name
(7) 2P IC Card Icon
(8) 1P / 2P Pair Games Won
(9) Points and Service
(10) 2P (Player)
(11) 1P (Player)
(12) Serve Speed
(13) COM Pair Games Won
(10)(8) (9) (11) (12) (13)
(7)(6)(5)(4)(3)(2)(1) (4)

3
GAME DESCRIPTION
8
3-5 THE GAME SCREEN (CHALLENGE MODE)

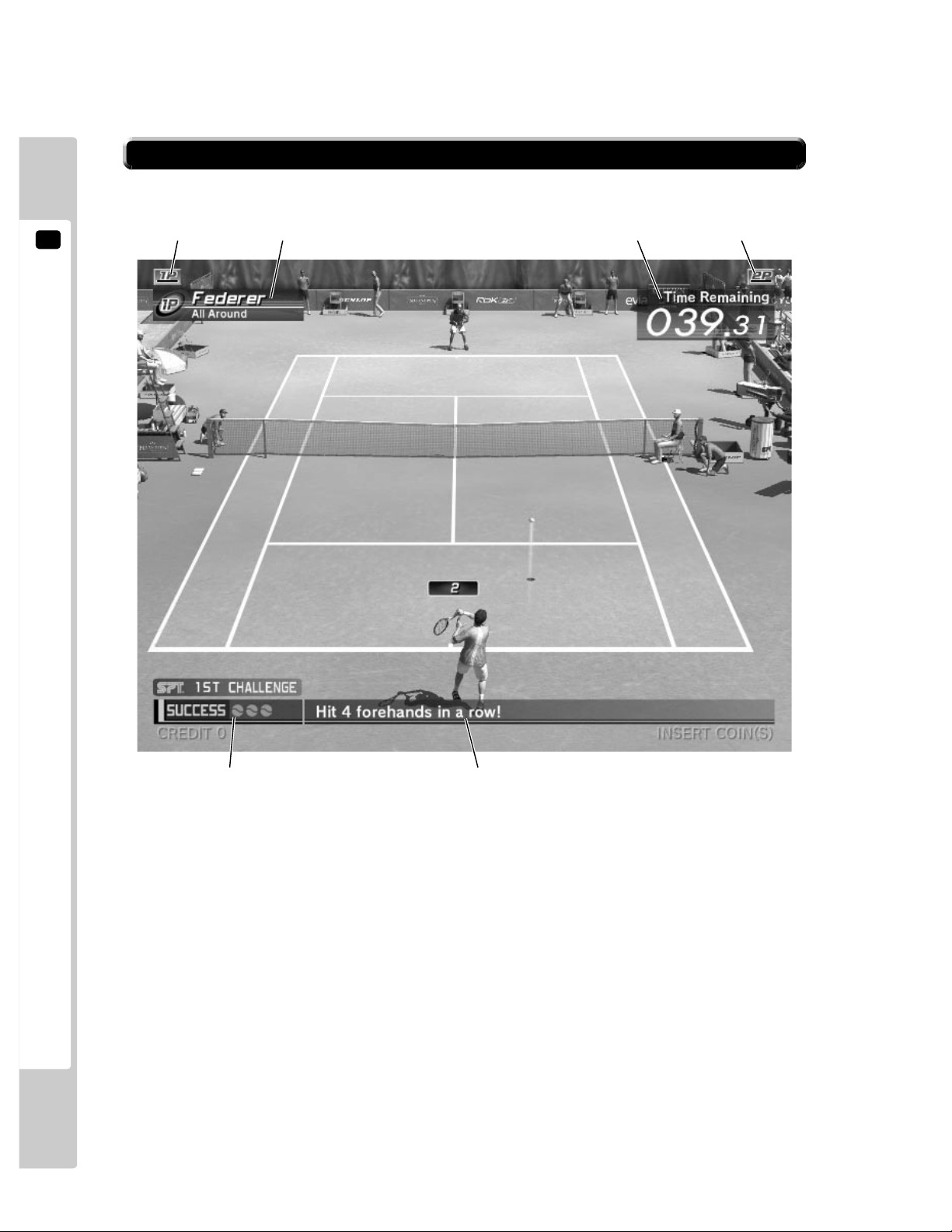

(1) 1P IC Card Icon
(2) Challenging Player Name and Play Style
(3) Time Remaining
(4) 2P IC Card Icon
(5) Success
(6) Challenge
(6)(5)
(3)(2)
(1) (4)

GAME DESCRIPTION
3
9
3-6 CONTROLS

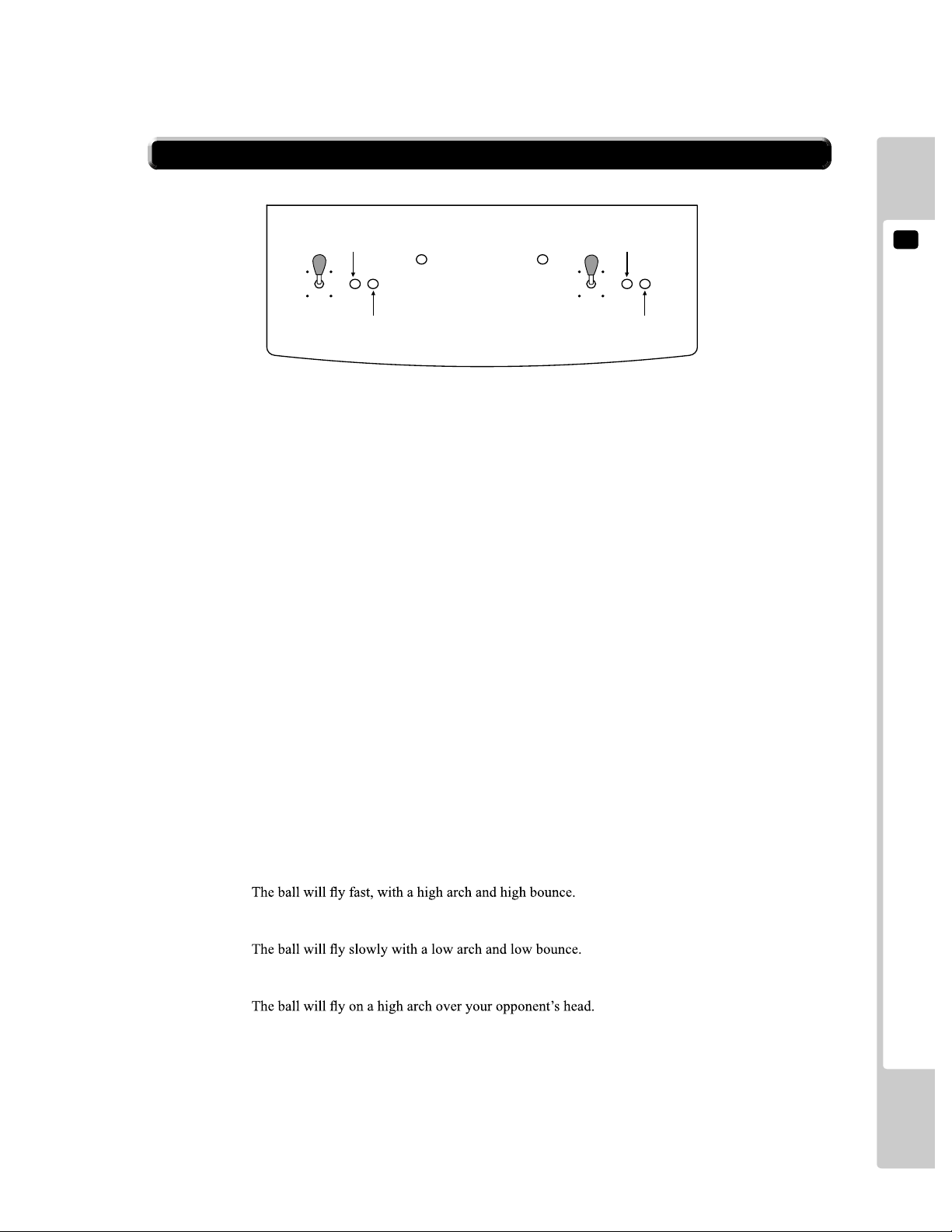

8-way joystick: Move the character and aim a shot
Top spin button: Hit the ball with top spin (groundstroke / volley etc. automatically selected.)
Slice button: Hit the ball with slice spin (groundstroke / volley etc. automatically selected.)
Serve
Use left and right on the joystick to decide where to serve to, and then press the top spin or slice button. The
player will then toss the ball up.
The serve gauge will now appear beside the character. Press the button again when the serve gauge is as close to
MAX as possible.
The closer to MAX the gauge is, the harder the serve will be.
Shots (Stroke/Volley/Smash)
When the opponent returns the ball, anticipate where it is traveling to and move there, then press the top spin or
slice button to hit it back.
The direction of the shot can be changed by moving the joystick after pressing the button, but before the ball is
hit.
The longer the time between pressing the button and actually hitting the ball, the more powerful the shot will be.
Types of Shot
There are three types of shot available, depending on the button pressed.
Top Spin (T): Press the top spin button to hit a shot back with top spin.
Slice (S): Press the slice button to hit a shot back with slice.
Lob (T+S): Press both buttons together to hit a lob.
START 1P START 2P
1P JOYSTICK
(8 WAYS) 2P JOYSTICK
(8 WAYS)
1P BUTTON 1
(TOP SPIN)
1P BUTTON 2
(SLICE)
2P BUTTON 1
(TOP SPIN)
2P BUTTON 2
(SLICE)

3
GAME DESCRIPTION
10
This game uses IC Cards.
Using a card allows a player to record their results, and take part in a World Ranking feature that they can climb by
winning matches.
Players can also customize their character by changing play style, clothing and rackets.

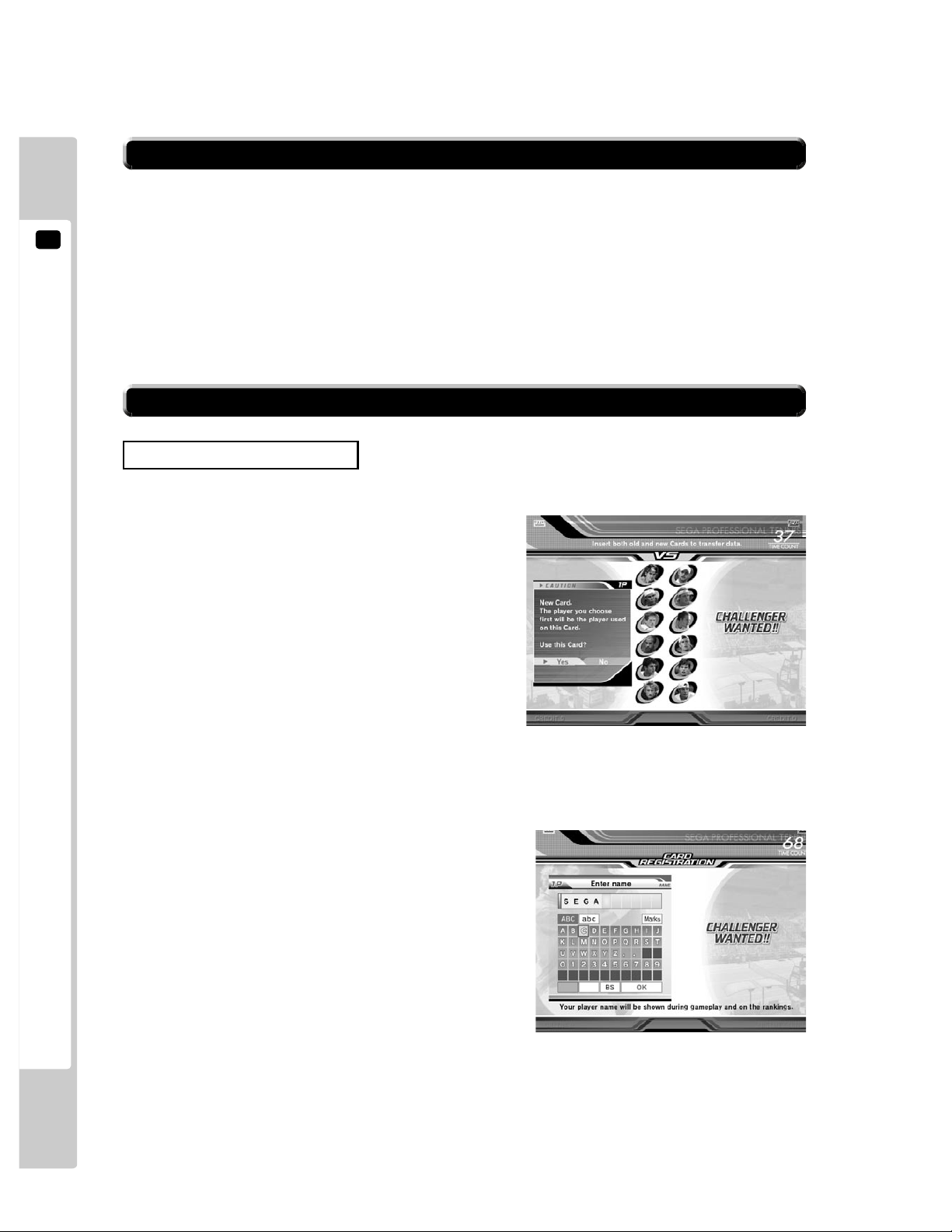

3-8 USING AN IC CARD

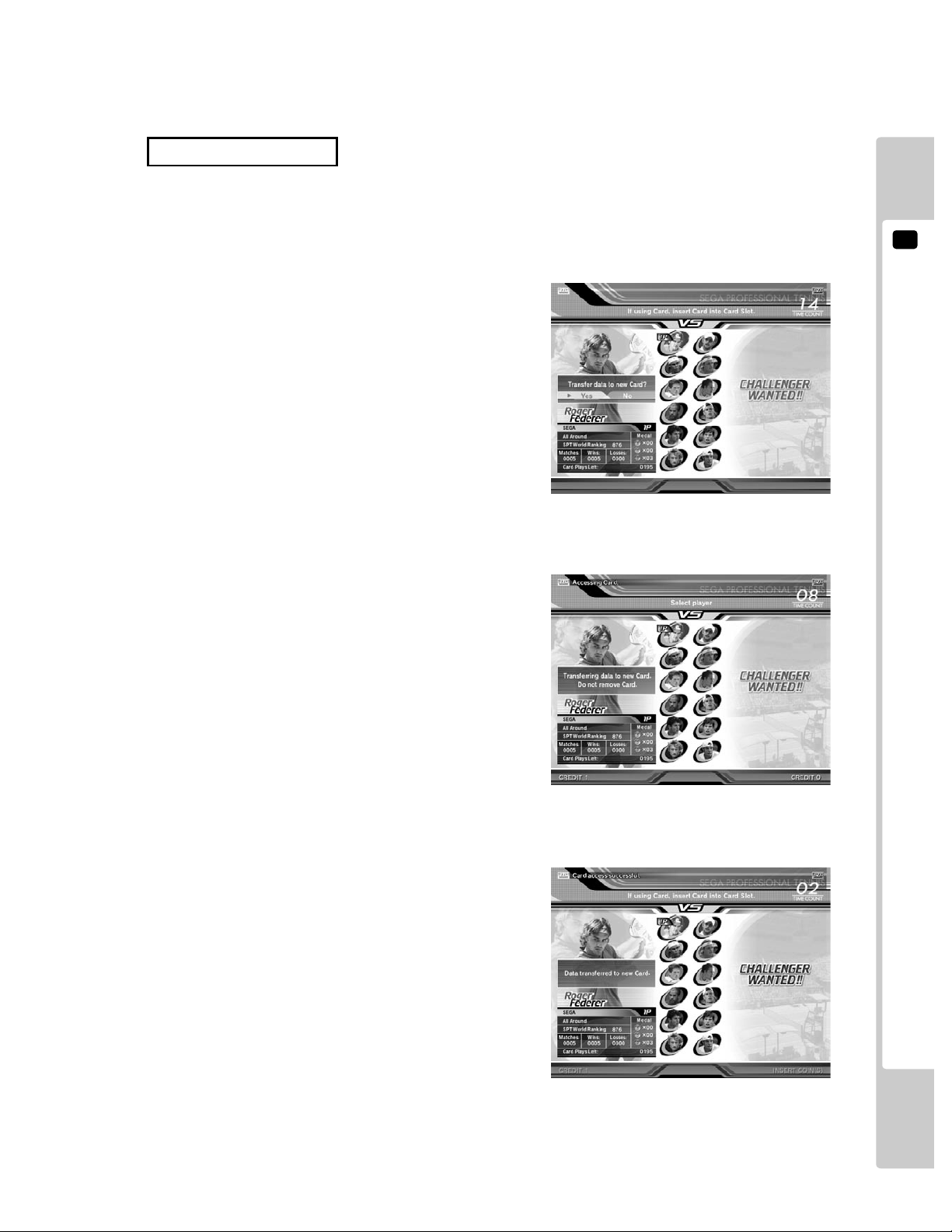

1. Character Select Screen
After buying a new card, insert it when the Character
Select screen is displayed and select a player. The IC
Card will then become a card for that player. It is not
possible to change this selection again.
2. Name Entry Screen
Register a name for the IC Card, up to a maximum of
10 letters.
First Play Using an IC Card
3-7 IC CARD (VIRTUA TENNIS 3 PLAYER’S CARD) OUTLINE
*NOTE: IC CARD SYSTEM IS NOTAVAILABLE IN USA VERSION.

GAME DESCRIPTION
3
11

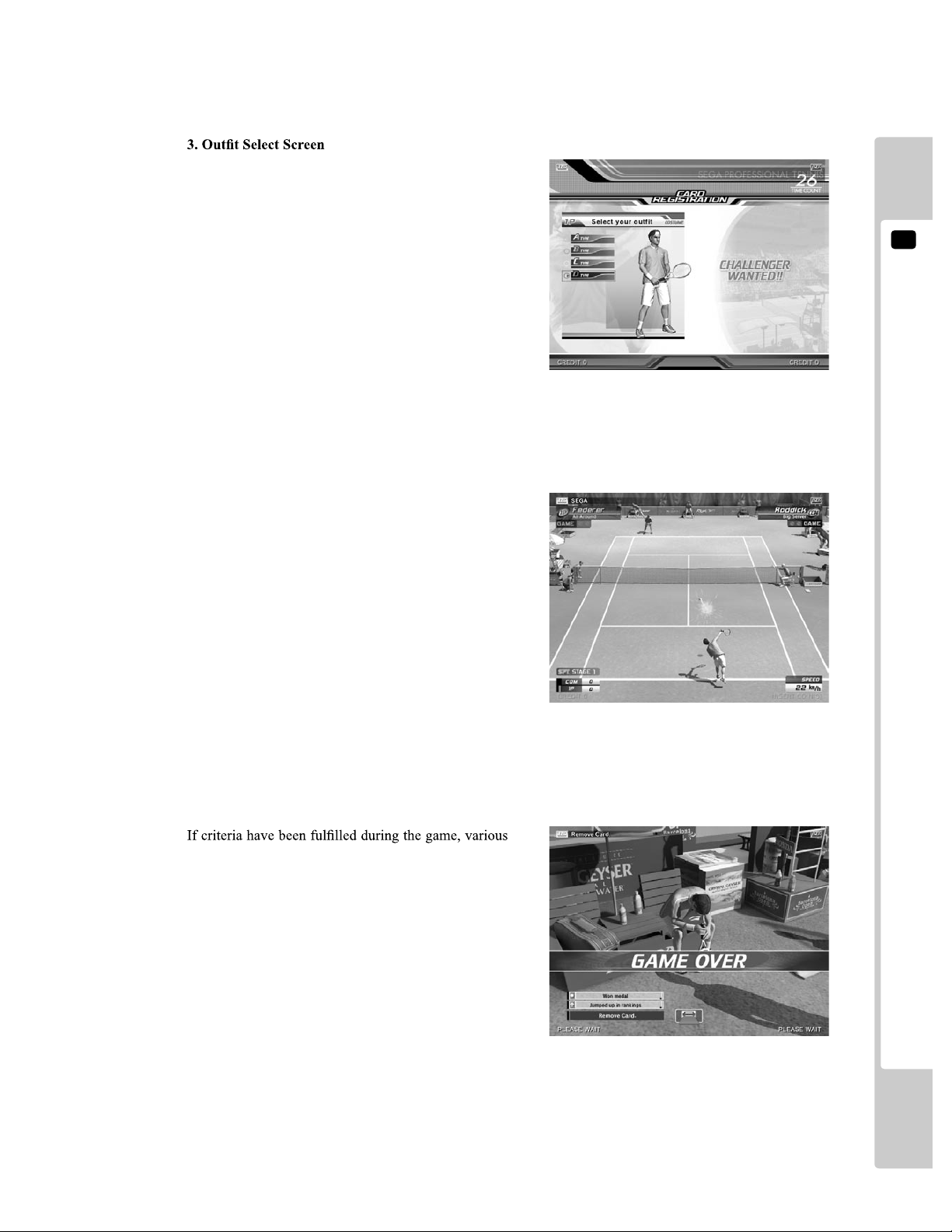

Select from one of four colors for your kit.
The initial registration is now complete.
4. Game Screen
Proceed to enjoy Tournament Mode, Challenge mode
in either Versus or Team play.
5. Game Over Screen
messages may be displayed on the Game Over screen,
such as “Moved up in rankings,” “Won medal” and
“New play style available.”
By how much has my World Ranking gone up?
What medal did I win?
Which play style is now available?
This kind of thing can be checked at the start of the
next game.

3
GAME DESCRIPTION
12
1. Character Select Screen
If you wish to use an IC Card, insert it when the Character
Select screen is displayed.
The player information registered on the Card will be
displayed. If it is correct, select “Yes.”
2. Medal Awards Screen
4. Play Style Change Screen
The game then proceeds as normal.
Every now and then, it may also be proposed to change Play
Style.
Subsequent Plays Using an IC CARD
they will be displayed on this screen.

GAME DESCRIPTION
3
13
An IC Card can be used 200 times, each single player and versus game counting as one time.
When the remaining uses reach 0 the Card can no longer be used and a new Card must be purchased.
The following procedure is used to transfer the data from the old Card to the new one.
1. Character Select Screen
2. During Data Transfer
Do not remove the Cards during the data transfer
process.
3. Data Transfer Complete
This message indicates that the renewal process has
been successfully completed.
The game then proceeds as normal.
IC Card Data Transfer
The data transfer process begins by inserting the old
Card and new Card together when the Character Select
screen is displayed.

4
TEST MODE
14
•The details of changes to Test Mode settings are saved when you exit from Test
Mode by selecting EXIT from the SYSTEM MENU. Be careful because if the power is
turned off before that point, changes to the settings will be lost.
•You may not enter Game Test Mode while the unit is reading from or checking
the GD-ROM. If error messages are displayed when exiting Test Mode, you should
power the unit off and on again.
•When you enter the Test Mode, fractional coin and bonus adder data is erased.
TEST MODE4
4-1 SYSTEM TEST MODE
SYSTEM TEST MENU Screen
1
Use the SERVICE Button to move the cursor to the desired test item. Press the TEST Button to enter the
selected item.
2
Refer to the next and subsequent pages.
3
After the test is complete, move the cursor to EXIT and press the TEST Button to return to the Game
Advertisement Screen.
COIN CHUTE TYPE
Set this to match the cabinet as appropriate.
COIN TO CREDIT RATE
GAME COST SETTING
Refer to the Service Manual supplied with the LINDBERGH Kit for details on System Test Mode.
SYSTEM TEST MENU
SYSTEM INFORMATION
STORAGE INFORMATION
JVS TEST
MONITOR TEST
SPEAKER TEST
COIN ASSIGNMENTS
CLOCK SETTING
NETWORK SETTING
GAME TEST MODE
-> EXIT
SELECT WITH SERVICE AND PRESS TEST
COIN ASSIGNMENTS

TEST MODE
4
15
4-2 GAME TEST MODE
Select GAME TEST MODE from the System Test Menu screen to display the Game Test Menu screen as follows.
GAME TEST MENU Screen
GAME TEST MENU
INPUT TEST
OUTPUT TEST
GAME ASSIGNMENT
CARD TEST
CLOSE SETTING
BOOKKEEPING
BACKUP DATA CLEAR
-> EXIT
SELECT WITH SERVICE BUTTON
AND PRESS TEST BUTTON
1
Use the SERVICE Button to move the cursor to the desired test item. Press the TEST Button to enter the
selected item.
2
After selecting an item, read the explanations below regarding operation.
3
After making changes, be sure to select EXIT and press the TEST Button in order to enable the new settings.
4
Select EXIT and press the TEST Button to end the Game Test Mode and return to the System Test Menu
screen.

4
TEST MODE
16
a. INPUT TEST
Select INPUT TEST to display the following screen and check the status of input devices.
This test should be run periodically to ensure that each input device is functioning correctly.
INPUT TEST
PLAYER 1P 2P
UP OFF OFF
DOWN OFF OFF
RIGHT OFF OFF
LEFT OFF OFF
SHOT1 OFF OFF
SHOT2 OFF OFF
START OFF OFF
CARD INSERTED SW OFF OFF
TEST OFF
SERVICE OFF
PRESS TEST AND SERVICE BUTTON
TO EXIT
INPUT TEST Screen
1
The input buttons are functioning correctly if each respective display changes from “OFF” to “ON” when
pressing the input buttons.
2
Press the SERVICE and TEST Buttons simultaneously to return to the Game Test Mode screen.
START 1P START 2P
1P JOYSTICK
(8 WAYS) 2P JOYSTICK
(8 WAYS)
1P BUTTON 1
(TOP SPIN)
1P BUTTON 2
(SLICE)
2P BUTTON 1
(TOP SPIN)
2P BUTTON 2
(SLICE)

TEST MODE
4
17
b. OUTPUT TEST
OUTPUT TEST
LOCK CARD [1P] OFF
LOCK CARD [2P] OFF
-> EXIT
SELECT WITH SERVICE BUTTON
AND PRESS TEST BUTTON
Select OUTPUT TEST to display the following screen and perform a test of the Card Reader/Writer lock mechanism.
OUTPUT TEST Screen
1
Press the SERVICE Button to move the cursor to the item to be checked.
2
Move the cursor to LOCK CARD [1P] or [2P] and press the TEST Button. The selected Card Reader/Writer
lock mechanism will turn ON, and press the TEST Button again to turn it OFF.
3
Move the cursor to EXIT and press the TEST Button to return to the Game Test Menu screen.
