Sega Hot Racer User manual

Please keep this manual properly for convenient reference as needed.
For safety reasons, please read the manual first before plugging in machine.

2
Safety Introduction – Read before operating
This manual is intended to provide detailed descriptions together with all necessary information covering the
general
operation of electronic assemblies, electromechanical, servicing control, spare parts, etc. for the product:
This manual is intended for the owners, personnel managers in charge of operation of this product.
Operate the product after carefully reading and sufficiently understanding the instructions.
In the unlikely event that the product does not function correctly, DO NOT allow anyone other than a technician
to touch the internal system. Turn off the power to the machine, making sure to unplug the electrical cord from the
outlet, and contact the office listed below or the point-of-purchase for this product.
Use of this product is unlikely to cause physical injuries or damage to property. However, points that require
special attention are indicated on the game cabinet in the form of warning labels.
Warning: Proceed with caution – Only open door/cover if you are a qualified technician
High voltage can cause an electric shock
Turn off before servicing
Danger: Potential immediate danger
High voltage can cause an electric shock
Turn off before servicing
Hot Racers

3
Potential Risk to life or damage to product
If ignored, may result in the mishandling of the product and cause faulty operation or damage to the
product or person(s)
Parts replacement, maintenance inspections and troubleshooting should be carried out by site maintenance
personnel or other qualified professionals. This manual includes directions for potentially dangerous procedures
which should only be carried out by professionals with the appropriate specialised knowledge.
The site maintenance personnel or other qualified professionals mentioned in this manual are defined as follows:
Site maintenance personnel:
Individuals with experience in maintaining amusement equipment, vending machines, etc., working under the
supervision of the owner/operator of this product to maintain machines within amusement facilities or similar
premises by carrying out everyday procedures such as assembly, maintenance inspections, and replacement of
units/expendable parts.
Activities to be carried out by site maintenance personnel:
Amusement equipment/vending machine assembly, maintenance inspection and replacement of units/expendable
parts.
Other qualified professionals:
Persons employed by amusement equipment manufacturers, or involved in design, production, testing or
maintenance of amusement equipment. The individual should have either graduated from technical school or hold
similar qualifications in electrical/electronic/mechanical engineering.
Activities to be carried out by other qualified professionals:
Amusement equipment/vending machine assembly, repair/adjustment of electrical/electronic/mechanical parts.
Definition of 'Site Maintenance Personnel’ or Other Qualified individuals. d
Individuals
STOP IMPORTANT
Procedures not described in this manual or marked as ‘to be carried out by site
maintenance personnel or other qualified professionals should not be carried
out by personnel without the necessary skill or technological experience. Work
carried out by unqualified persons may cause serious accidents, including
electrocution.

4
BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:
To maintain safety:
To ensure the safe operation of this product, be sure to read the following before usage:
The following instructions are intended for the users, operators and the personnel in charge of the operation of the
product. After carefully reading and sufficiently understanding the warning displays and cautions, handle the
product
appropriately. Be sure to keep this manual close to the product or in a convenient place for future reference.
• Perform work in accordance with the instructions herein stated. Instructions for work
are explained by paying attention to the aspect of accident prevention. Failing to perform work as per
the instructions can cause accidents. In the case where only those who have technical expertise should
perform the work to avoid hazardous situation, the instructions herein state that the site maintenance
personnel should perform such work.
• Be sure to turn off the power before working on the machine. To prevent an electric shock, be sure
to turn off the power before carrying out any work that requires direct contact with the interior of the
product. If the work is to be performed in the power-on status, the Instruction Manual herein always states
to that effect.
• Be sure to ground the Earth Terminal (This is not required in the case where a power cord with earth is
used).
• This product is equipped with the Earth Terminal. When installing the product, connect the Earth
Terminal to the "accurately grounded indoor earth terminal" by using an earth wire. Unless the product is
grounded appropriately, the user can be subject to an electric shock. After performing repair, etc. for the
control equipment ensure that the Earth Wire is firmly connected to the control equipment.
• Ensure that the Power Supply used is equipped with an Earth Leakage Breaker. This product does
not incorporate the Earth Leakage Breaker. Using a power supply which is not equipped with the Earth
Leakage Breaker can cause a fi re when earth leakage occurs.
• Be sure to use fuses which meet the specified rating (only for the machines which use fuses). Using
fuses exceeding the specified rating can cause a fire and an electric shock (only for the machines which
use fuses). Using fuses exceeding the specified rating can cause a fire and an electric shock.
Specification changes (removal of equipment, conversion and/or addition) not designated by SEGA are not
allowed. The parts of the product include warning labels for safety, covers for personal protection, etc. It
is hazardous to operate the product by removing parts and/or modifying the circuits. Should doors, lids and
protective parts be damaged or lost, refrain from operating the product, and contact where the product was
purchased from or the office herein stated. SEGA shall not be held responsible for any accidents, compensation
for damage to a third party, resulting from the specifications not designated by SEGA.

5
• Ensure that the product meets the requirements of appropriate electrical specifications. Before installing
the product check for electrical specifications. SEGA products have a nameplate on which electrical
specifications are described. Ensure that the product is compatible with the power supply voltage and frequency
requirements of the location. Using any electrical specifications different from the designated specifications can
cause a fire and an electric shock.
• Install and operate the product in places where appropriate lighting is available, allowing warning labels
to be clearly read. To ensure safety for the customers, labels and printed instructions describing potentially
hazardous situations are applied to places where accidents can be caused. Ensure that where the product is
operated has sufficient lighting allowing the warnings to be read. If any label is peeled off, apply it again
immediately. Please place an order with where the product was purchased from or the office herein stated.
• When transporting or reselling this product, be sure to attach this manual to the product.
• Descriptions herein contained may be subject to improvement changes without notice.
• The contents described herein are fully prepared with due care. However, should any question arise, or errors be
found, please contact SEGA.
INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE
LOCATION
Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately after
transporting to the location. Nevertheless, an irregular situation may occur during transportation. Before turning
on the power,check the following points to ensure that the product has been transported in a satisfactory status.
• Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet?
• Are casters and adjusters damaged?
• Do the power supply voltage and frequency requirements meet with those of the location?
• Are all wiring connectors correctly and securely connected? Unless connected in the correct way, connector
connections cannot be made accurately. Do not insert connectors forcibly.
• Do power cables have cuts and dents?
• Are all accessories available?
• Can all doors and lids be opened with the accessory keys? Can doors and lids be firmly closed?

Thank you for choosing SEA Animation Technology's
double-screen racing game . It's a racing game
mainly for children, but also for parents to play with their
children. With high recognition, classic police theme and
interesting big eyes in demo mode. You can choose
ticket, capsule or play for fun game modes.
hot racers
INTRODUCTION
TABLE OF CONTENTS
CAUTION & WARNING STICKERS----------5
INSTALLATION---------------------------2,3
PART DESCRIPTIONS----------------- -----4
SETTINGS & OPTIONS-------------------6,7
INPUT / OUTPUT TESTS-------------------8
ERROR CODES-----------------------------8
CONTROLLER MECHANISM---------------9
WIRING DIAGRAM-----------------------10
PRODUCT SPECIFICATION----------------------1
DESIGN RELATED PARTS-----------------11
BOOKKEEPING---------------------------8
SPARE PARTS------------------------------9

PRODUCT SPECIFICATION
Indoor Only
370W
150kg
Location
Dimension
Rated Voltage、Frequency
Power Consumption
Weight
AC220V 50HZ /60HZ
AC110V 50HZ /60HZ
* 110V voltage can be set through the power supply. Please contact the distributor for details.
NOTE:The contents herein described are subject to change without notice.
1700(W)X1500(D)X2080(H)mm
2080
1500
1700
1

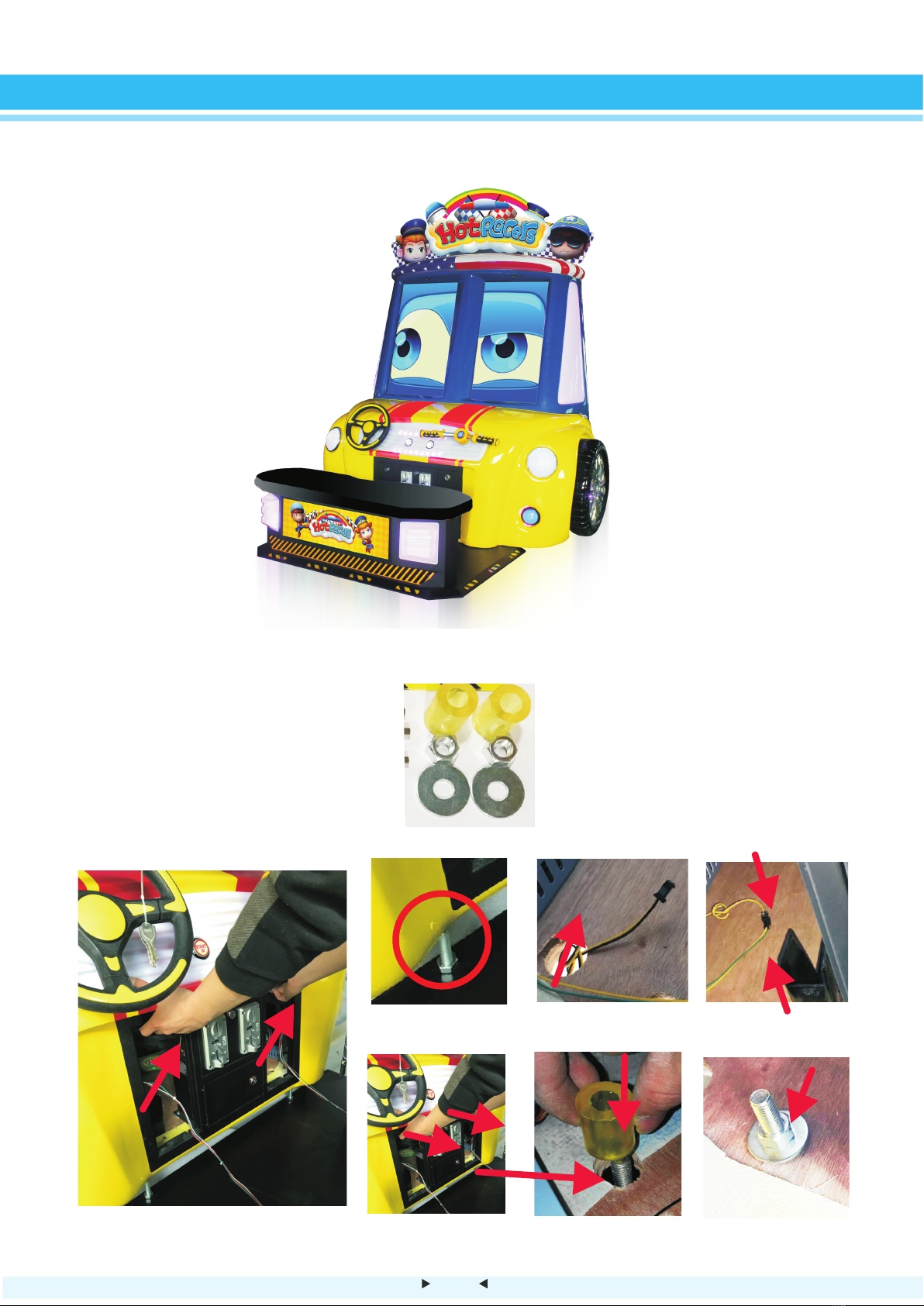

Pass Seat LED harness
through floor hole
Fit rubber bush Fit the lock nut
Connect harness
lift
Installation accessories
parts
Installation complete
INSTALLATION
2
Lift main cabinet to
locate floor hole
Pass floor bolt
through cabinet hole

1
2
3
45
1
Pass wires from light
box into cabinet
2
3
45
Connect light box
wire harnesses Connect fan
wire harness
Fit left & right
character heads
to light box
Gasket
Install light box
0pen access door Remove screws from
back door that hold
the light box
Remove the light box from
the door
parts
INSTALLATION
3

Ticket door
Coin door
LCD
Game-machine frame
Game-Seat
Light box
Control panel
access doorSeat
Power inlet and filter
Access door
Motorcycle handles
Steering wheel
PARTS NAME
4

3A
CAUTION & WARNING STICKERS
5

Choose the mode of operation.
n.b. if you change to a different option, the
bookkeeping data and previous settings will be
erased and return to default
------Check accounts for tickets paid and coins in
------Test all io functions
------Set number of coins/pulses to start a game
------Set length of each game (seconds)
----Set to time the boss will enter the game. only for single player mode
------Set the number of hits the player needs to defeat the boss
------Number of points the player achieves when beating the boss
-----Set the time given to the player to select a link play game (2 player)
------Set the time given to the player to select a level
----Set the continue option (1= no continue, 2= 1 free game if beat boss,
3= 2 free game if beat boss, 4 = 3 free games if beat boss
--Use this option to change the time for auto select
of game and level. can be turned off so player can
choose with the start button
--Set level for demo sound
------Go back to last page
Up and down buttons can directly
adjust the game volume in the game
interface. Press “ENTER”to enter
the background debugging interface
Background Debugging—1SETTINGS & OPTIONS
6
-----Set the speed of the car
------ Restore all game settings to factory settings
------Go back to last page

------Set length of each game
SETTINGS & OPTIONS
7
------Set number of coins/pulses to start a game
------Set length of each game
----Set to time the boss will enter the game. only for single player mode
------Set the number of hits the player needs to defeat the boss
------Number of points the player achieves when beating the boss
-----Set the time given to the player to select a link play game (2 player)
------Set the time given to the player to select a level
----Set the continue option (1= no continue, 2= 1 free game if beat boss,
3= 2 free game if beat boss, 4 = 3 free games if beat boss
-----Set the speed of the car
------ Restore all game settings to factory settings
------Go back to last page

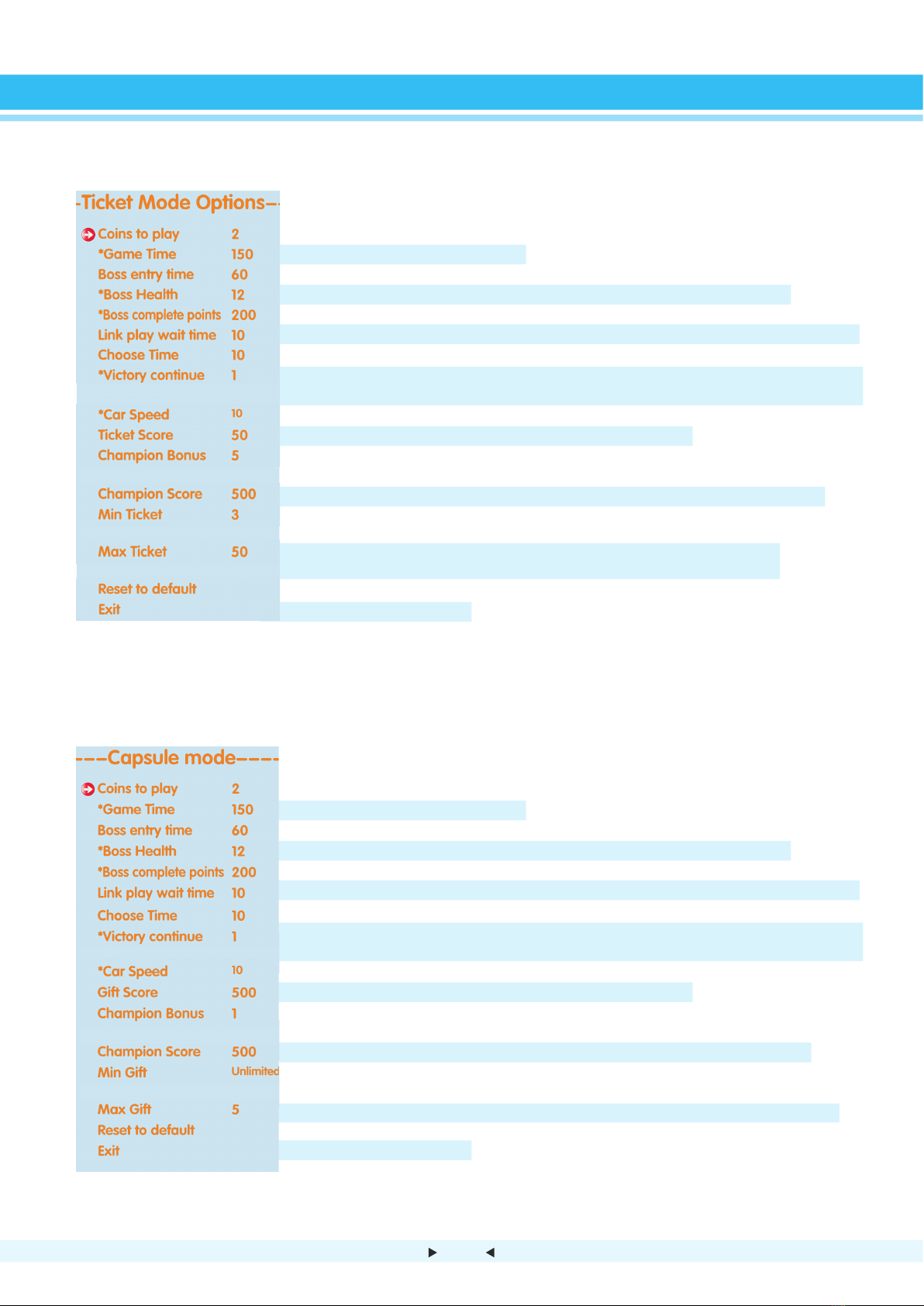

-----Set the number of points required to win 1 ticke
-----Number of tickets achieved by the winner in 2 player mode if
championship score is reached
------ Score for player to reach to win championship bonus tickets
------ Mercy ticket option. if a player does not achieve a score high
enough for any tickets
----Max ammount of tickets paid regardless of score or other
ticket settings
------Set number of coins/pulses to start a game
----Set to time the boss will enter the game. only for single player mode
------Set the number of hits the player needs to defeat the boss
------Number of points the player achieves when beating the boss
-----Set the time given to the player to select a link play game (2 player)
------Set the time given to the player to select a level
----Set the continue option (1= no continue, 2= 1 free game if beat boss,
3= 2 free game if beat boss, 4 = 3 free games if beat boss
-----Set the speed of the car
------ Restore all game settings to factory settings
------Go back to last page
-----Set the number of points required to win 1 gift
-----Number of gifts won by the winner in 2 player mode if
championship score is reached
------ Score for player to reach to win championship bonus gifts
--- Mercy gift option. if a player does not achieve a score high
enough for any gift (wet mode)
----Max ammount of gifts paid regardless of score or other settings

Out of tickets / gifts will be displayed on screen
when it is out or malfunction with the dispenser has occurred,
the top header LEDs will also flash to denote an error
Operate game hardware to check input response to io system
Select output device to test
INPUT/OUTPUT TESTS
ERROR CODES
8
--- Clear current credits on game
---Clear tickets owed
---Clear gifts owed
---Clear all ranking data (leaderboard)
---Clear all accounting data (ticets, coins, gifts)
— Clear all data
---Go back to last page
BOOKKEEPING

CONTROLLER MECHANISM
9
Replacement of inductor and spring
Spare parts
4
1
3
2
23
HR -01
steering
wheel
sensor
HR-02
steering
spring
HR-03
start
button
HR-04
lock
HR-06
fuse-3A
HR-05
Warning
plastic

WIRING DIAGRAM
10

Left character right character
Start button artwork Speedometer artwork
seat edge Pattern
Seat door artwork
Warning plastic
Light box
11
PRINTING PATTERN

Part NO. Parts name pictures
HR-01 steering wheel sensor
HR-02 steering spring
HR-03 start button & Switch
HR-04 lock
HR-06 Bike handle grips
HR-07 power supply
HR-08 PC Fan
HR-09 IO board
Spare parts lists

HR-10 computer
HR-11 screen
HR-12 seat cover
HR-13
steering wheel Column（the car)
HR-14
steering wheel Column (the bike)

SPARES AND SERVICE CONTACT INFORMATION
