BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:
TABLE OF CONTENTS
INTRODUCTION
1HANDLING PRECAUTIONS
LINDBERGH RED SPECIFICATIONS
2-1 CABINET
2-2 PARTS DETAILS
LINDBERGH RED COMPONENTS
SYSTEM TEST MODE
ERROR CODES DISPLAY
REPLACING THE BUTTON BATTERIES
2
3
4
5
6
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙1
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙3
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙4
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙4
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙5
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙9
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙10
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙24
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙28

ii
TABLE OF CONTENTS
This product uses GPL/LGPL software.
This means that customers who purchase this product can freely obtain, alter and pass-on the source code for this
software (hereafter referred to as “the source code”).
Downloaded this software is an indication of the customer’s agreement to the GPL/LGPL contract of use and thus
the download and all subsequent use of the source code is the full responsibility of the customer.
Furthermore this source code and the download service are provided totally as-is, with no guarantees of
effectiveness, completeness, usefulness or reliability, and our company offers no support concerning this source
code.
GPL/LGPL Contract Site
URL: http: //www.fsf.org/licenses/gpl.html
URL: http: //www.fsf.org/licenses/lgpl.html
Customers using this product who wish to obtain this source code should enter the following password on the
website below to download it.
URL: http: //amproduct-softlicense.sega.jp/
ID: amsoftwebdl
Password: segaamhd1
(1) Use of GPL/LGPL software
At the web site given above, the Company gives notice of information on licensed software other than GPL/LGPL
based on stipulations by the copyright holders. Please note, however, that the Company cannot answer inquiries
pertaining to this software.
(2) Licensed Software Other Than GPL/LGPL

1
INTRODUCTION
Indicates important information that, if ignored, will result in the mishandling of the
product and cause faulty operation and damage to the product.
This manual is intended to provide detailed descriptions together with all the necessary information covering the
general operation of electronic assemblies, electro-mechanicals, servicing control, spare parts, etc. for the product,
"LINDBERGH RED."
This manual is intended for the owners, personnel and managers in charge of operation of the product. Operate the
product after carefully reading and sufciently understanding the instructions.
In the unlikely event that the product does not function correctly, DO NOT allow anyone other than a technician to
touch the internal system. Turn off power to the machine, making sure to unplug the electrical cord from the outlet,
and contact the ofce listed in the manuals for each game or the point-of-purchase for this product.
Use of this product is unlikely to cause physical injuries or damages to property. However, points that require special
attention are indicated by thick underlining, the word "IMPORTANT" and the symbol below.
SEGA AMUSEMENTS EUROPE, LTD.
Suite 3a, Oaks House 12-22, West Street, Epsom, Surrey, KT18 7RG, United Kingdom
Telephone: [phone] Facsimile: [phone]
e-mail: [email protected] http://www.sega-amusements.co.uk
INTRODUCTION

2
INTRODUCTION
Denition of 'Site Maintenance Personnel or Other Qualied Individuals'
Procedures not described in this manual or marked as 'to be carried out by site
maintenance personnel or other qualified professionals' should not be carried
out by personnel without the necessary skill or technology. Work carried out by
unqualied persons may cause serious accidents, including electrocution.
Parts replacement, maintenance inspections and troubleshooting should be carried out by site maintenance personnel
or other qualied professionals. This manual includes directions that potentially dangerous procedures should only
be carried out by professionals with the appropriate specialized knowledge.
The 'site maintenance personnel or other qualied professionals' mentioned in this manual are dened as follows:
Site maintenance personnel:
Persons with experience in maintaining amusement equipment, vending machines, etc., working under the
supervision of the owner/operator of this product to maintain machines within amusement facilities or similar
premises by carrying out everyday procedures such as assembly, maintenance inspections, and replacement of units/
expendable parts.
Activities to be carried out by site maintenance personnel:
Amusement equipment/vending machine assembly, maintenance inspection and replacement of units/expendable
parts.
Other qualied professionals:
Persons employed by amusement equipment manufacturers, involved in design, production, testing or maintenance
of amusement equipment. Should have graduated from technical school or hold similar qualications in electrician/
electronics/mechanical engineering.
Activities to be carried out by other qualied professionals:
Amusement equipment/vending machine assembly, repair/adjustment of electrical/electronic/mechanical parts.

HANDLING PRECAUTIONS
1
3
• To prevent electric shock or IC Board malfunctioning, be sure to turn off the
power for the cabinet when installing or removing the IC Board.
• Extraneous matter such as dust on the IC Board can cause the IC Board to
generate heat and result in a re due to short circuit, etc. Ensure the IC Board
surfaces are always kept clean.
• Keep the IC board well cooled. The LINDBERGH RED board case is provided with
ventilating fans. Do not block the air outlets of these fans. Also do not place
anything closely to the LINDBERGH RED board case. Failure to observe these
instructions may cause an overheating and re.
• Use the LINDBERGH RED board with the SEGA specied cabinet and the power
cable. Using it with the non-specied cabinet or the power cable may cause an
overheating and re.
HANDLING PRECAUTIONS1
• Be sure to connect the IC Board and connectors completely. Insufcient
insertion can damage IC Board, etc.
• For the IC Board circuit inspection, only the use of Logic Tester is permitted. The
use of ordinary testers is not permitted as these can damage the IC Board.
• Do not subject the IC Board to static electricity when installing the IC Board in
the cabinet or when connecting wire harness connectors to the IC Board.
• When soldering buttons, etc. to the wire harnesses, be sure to remove the wire
harnesses from the IC Board so as not to subject the IC Board to heat.
• Using LINDBERGH RED without the Shield Case can cause electric wave trouble.
Be sure to use LINDBERGH RED together with the accessory Shield Case.
• Some parts are the ones designed and manufactured not specically for
this game machine. The manufacturers may discontinue, or change the
specications of, such general-purpose parts. If this is the case, Sega cannot
repair or replace a failed game machine whether or not a warranty period has
expired.

2
LINDBERGH SPECIFICATIONS
4
LINDBERGH RED SPECIFICATIONS2
2-1 CABINET
- Use the LINDBERGH RED board with the SEGA specied cabinet.
- When using the NAOMI CABINET, NET CITY, NEW NET CITY or BLAST CITY cabinets, you must acquire
the correct kits, including the special power supply, and modify the cabinet correctly for LINDBERGH RED use.
Cabinet Required Kit
NAOMI CABINET NAOMI NET CITY series power supply modication kit (XKT-1516-EX1)
FAN motor kit (XKT-0856)
NET CITY NAOMI NET CITY series power supply modication kit (XKT-1516-EX1)
NEW NET CITY NAOMI NET CITY series power supply modication kit (XKT-1516-EX1)
BLAST CITY BLAST CITY series power supply modication kit (XKT-1516-01-EX1) <Others>
BLAST CITY series power supply modication kit (XKT-1516-01-EX2) <Taiwan>
NOTE: The contents herein described are subject to change without notice.

LINDBERGH SPECIFICATIONS
2
5

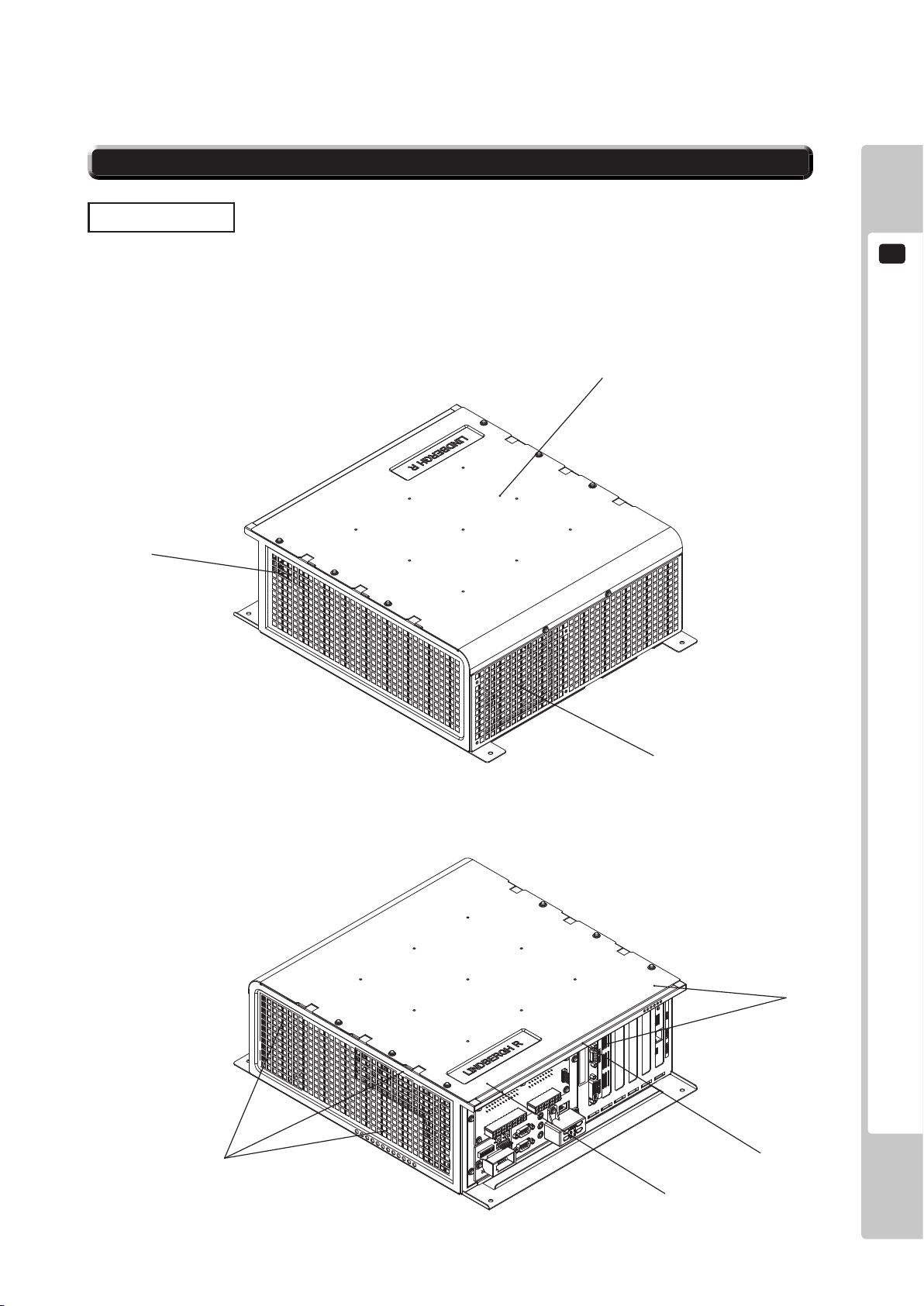

(1) Shield case
(2) Intake vent (Do not block or cover.)
(3) Exhaust vent (Do not block or cover.)
(4) Board number
(5) Board serial number (1)
(3)
(2)
(2)
(5)
(4)
(2)
2-2 PARTS DETAILS
BOARD CASE

2
LINDBERGH SPECIFICATIONS
6
(1) Power connector 1
(2) Power connector 2
(3) DVD Drive power connector
(4) Video output 0
(5) Video output 1
(6) JVS I/O
(7) LAN port 2
(8) Serial port 3
(9) LAN port 1
(10) USB Port 1 - 4 (USB Mini A)
(11) Front lineout
(12) Rear lineout
(13) Centre/Woofer lineout
(14) Serial port 2 (RS232C)
(15) Serial port 1 (RS232C)
(16) Key chip socket
(17) Serial port 2 (MIDI) …used instead of (14) Serial port 2 (RS232C)
(18) DIP SW (Dip switches)
(19) Service button
(20) Test button
(5)(4)(3)(2)(1)
(15) (14) (13) (12) (11) (10) (9)
(6)
(7)
(8)
(20)
(19)
(18)
(17)
(16)
CONNECTORS AND SWITCHES
Do not connect components to (6) JVS I/O or (8) Serial port 3 that are not
designated by SEGA. Connecting unspecified components could cause an
accident such as an electric shock or re.

LINDBERGH SPECIFICATIONS
2
7
Terminal
No.
Signal
Name
Terminal
No.
Signal
Name
1 +3.3V 13 +3.3V
2 +3.3V 14 N.C
3 GND 15 GND
4+5V 16 PS_ON#
5GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 PWR_ON 20 NC
9+5SB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND
(1) Power Connector 1
Terminal
No.
Signal
Name
Terminal
No.
Signal
Name
1 +12V 10 GND
2 +12V 11 GND
3+5V 12 GND
4 +12V 13 GND
5 +5V 14 GND
6+12V 15 GND
7+5V 16 GND
8 +12V 17 GND
9
3.3VRS(SENCE)
18 +3.3V
(2) Power Connector 2
Terminal
No.
Signal
Name
1 +12V
2 +12V
3+5V
4+5V
5GND
6GND
(3) DVD DRIVE Power Connector
Terminal
No.
Signal
Name
1 DCD
2RXD
3TXD
4 DTR
5GND
6DSR
7 RTS
8 CTS
9 RI
(14) Serial port 2 (RS232C)
(15) Serial port 1 (RS232C)

2
LINDBERGH SPECIFICATIONS
8
(18) DIP SW
No. 1, No. 2: Use differs depending on game software. Set according to the service manual provided with the game
software itself.
No. 3: Changes the facing of the monitor. Use differs depending on game software. Set according to the service
manual provided with the game software itself. If no specic directions are given set to horizontal display
(OFF).
OFF: Horizontal display
ON: Vertical display
No. 4, No. 5 and No. 6: Set the resolution of the video output.
Resolution No. 4 No. 5 No. 6
640 x 480 OFF OFF OFF
800 x 600 OFF OFF ON
1024 x 768 OFF ON OFF
1280 x 1024 OFF ON ON
800 x 480 ON OFF OFF
1024 x 600 ON OFF ON
1280 x 768 ON ON OFF
1360 x 768 ON ON ON
No. 7, No. 8: Use differs depending on game software. Set according to the service manual provided with the game
software itself.
The factory settings when a game board (LINDBERGH RED) is purchased as a stand-alone unit.
No. 1 No. 2 No. 3 No. 4 No. 5 No. 6 No. 7 No. 8
OFF OFF OFF OFF OFF OFF OFF ON

LINDBERGH COMPONENTS
3
9
3 TABLE 01 ACCESSORIES
DESCRIPTION SERVICE MANUAL
Part No. (Qty) 420-7032-01 (1)
Notes This manual
Figures
Parts not labeled with part numbers are as yet unregistered or
cannot be registered. Be sure to handle all parts with care, as
some parts are not available for purchase separately.
LINDBERGH RED COMPONENTS3
Conrm that the accessories listed in the table below are present when setting up the product.
TAPPING SCREW
011-P00412 (4)
Used for securing the LINDBERGH
LINDBERGH RED BOARD
845-0001D-01 (1): USA
845-0001D-02 (1): OTHERS

4
SYSTEM TEST MODE
10
SYSTEM TEST MENU
SYSTEM INFORMATION
STORAGE INFORMATION
JVS TEST
MONITOR TEST
SPEAKER TEST
COIN ASSIGNMENTS
CLOCK SETTING
NETWORK SETTING
GAME TEST MODE
->EXIT
SELECT WITH SERVICE AND PRESS TEST
SYSTEM TEST MODE4
1
Press the TEST Button after powering on the unit to display the following SYSTEM TEST MENU.
System Test Mode can be used to check the information or the operation of the LINDBERGH RED board, adjust
Monitor color, and perform coin/credit settings.
a
b
c
d
e
f
g
h
i
The details of changes to Test Mode settings are saved when you exit from Test
Mode by selecting EXIT from the SYSTEM TEST MENU. Be careful because if the
power is turned off before that point, changes to the settings will be lost.
2
Use the SERVICE Button to move the cursor to the desired test item. Press the TEST Button to enter the
selected item. After selecting an item, read the explanations below regarding operation.
3
Press the TEST Button when GAME TEST MODE is selected to change to the Test Menu specic to the
game.
4
After the test is complete, move the cursor to EXIT and press the TEST Button to return to the Game
Advertisement screen.
SYSTEM TEST MENU

SYSTEM TEST MODE
4
11
The SYSTEM INFORMATION screen displays system information.
a. SYSTEM INFORMATION
The following information is displayed on this screen.
• MOTHER BOARD
- SERIAL NO.: The serial number of the game board.
- KERNEL VERSION: The system’s OS version.
- BOOT VERSION: The boot program version.
- REGION: The region setting.
- MODEL TYPE: The model type.
- MEMORY SIZE: The onboard memory size.
- CPU MODEL: The CPU model.
• STORAGE DEVICE
- STORAGE SIZE: The total capacity of the program installer device.
• BASE BOARD
- SERIAL NO.: The serial number.
- FIRM VERSION: The rmware version.
• GRAPHIC BOARD
- DEVICE ID: The graphic board’s ID.
- BIOS VERSION: The VBIOS version.
Press the TEST Button to return to the System Test Menu screen.
SYSTEM INFORMATION
MOTHER BOARD
SERIAL NO. AAH*-*************
KERNEL VERSION *.*.**_*****
BOOT VERSION *.**(BUILD ****)
REGION **
MODEL TYPE *
MEMORY SIZE *******
CPU MODEL *.**
STORAGE DEVICE
STORAGE SIZE ***** MB
BASE BOARD
SERIAL NO. A80*-*************
FIRM VERSION *.**
GRAPHIC BOARD
DEVICE ID ******
BIOS VERSION **.**.**.**.**
PRESS TEST TO EXIT

4
SYSTEM TEST MODE
12
STORAGE INFORMATION
*******
GAME ID ****
PROGRAM TYPE CLIENT
0) ****:*.** yyyy/mm/dd
UNINSTALL
-> EXIT
SELECT WITH SERVICE AND PRESS TEST
The STORAGE INFORMATION screen displays information on the game contained within the program installer
device. This screen is also used when uninstalling the game contained within the program installer device.
Until preparations to launch the game are complete, a “now checking” screen will be displayed and uninstall
cannot be performed. If the program installer device does not contain any game data, the game information will be
displayed in grey and uninstall cannot be performed.
NOTE: If an uninstall is performed, an install will then have to performed before the game board can be used again.
Do not needless perform an uninstall.
b. STORAGE INFORMATION
The following information is displayed on this screen.
b - 1. GAME TITLE
b - 2. GAME ID
b - 3. PROGRAM TYPE
b - 4. INSTALLED IMAGE LIST
- IMAGE NUMBER
- GAME ID
- VERSION
- DATE OF RELEASE
b - 5. UNINSTALL
When preparations to launch the game are complete, it is possible to uninstall the game stored in the program
install device. Select UNINSTALL and then select “YES” to uninstall all game programs stored in the
program install device. Performing this operation will also mean that GAME TEST will disappear from the
main menu.
Move the cursor to EXIT and press the TEST Button to return to the System Test Menu screen.
b - 1
b - 2
b - 3
b - 4
b - 5

SYSTEM TEST MODE
4
13
JVS TEST
INPUT TEST
NEXT NODE
-> EXIT
NODE 1/*
NAME SEGA ENTERPRISES,LTD.
I/O BD JVS
837-13551
Ver1.00
CMD VER 1.1
JVS VER 2.0
COM VER 1.0
SWITCH 2 PLAYER(S) 13 BITS
COIN 2 SLOT(S)
ANALOG 8 CH
ROTARY 0 CH
KEYCODE 0
SCREEN X:0 Y:0 CH:0
CARD 0 SLOT(S)
HOPPER OUT 0 CH
DRIVER OUT 6 CH
ANALOG OUT 0 CH
CHARACTER CHARA:0 LINE:0
BACKUP 0
SELECT WITH SERVICE AND PRESS TEST
The JVS TEST screen displays information on the connected JVS I/O boards.
(The display screen varies in the connected I/O board.)
Select INPUT TEST to display input data for the currently displayed JVS I/O board. (See “c-1 JVS INPUT TEST”)
Select NEXT NODE to display information on the next NODE.
If no JVS I/O boards are connected, the message “NO JVS NODE” will be displayed
c. JVS TEST
The following information is displayed on this screen.
NODE: The currently displayed NODE number and the total number of connected NODEs
NAME: Name of the connected I/O board, etc.
CMD VER: Command format version
JVS VER: JVS standard version
COM VER: Communication version
SWITCH: Number of players and number of 1P switches
COIN: Number of coin slots
ANALOG: Number of analog channels
ROTARY: Number of encoders
KEYCODE: Keycode input active/inactive
SCREEN: Screen position input (X axis, Y axis, number of channels)
CARD: Number of card slots
HOPPER OUT: Number of hoppers
DRIVER OUT: Number of standard output drivers
ANALOG OUT: Number of analog output channels
CHARACTER: Number of characters/lines displayed
BACKUP: Backup present/absent
Move the cursor to EXIT and press the TEST Button to return to the System Test Menu screen.

4
SYSTEM TEST MODE
14
JVS TEST
INPUT TEST
NODE 1/*
SYSTEM 00
PLAYER 1 0000
PLAYER 2 0000
COIN 1 0000
COIN 2 0000
ANALOG 0 0000
ANALOG 1 0000
ANALOG 2 0000
ANALOG 3 0000
ANALOG 4 0000
ANALOG 5 0000
ANALOG 6 0000
ANALOG 7 0000
PRESS TEST AND SERVICE TO EXIT
Use the JVS INPUT TEST to test the JVS input.
The hexadecimal input information from the JVS I/O board will be displayed in real time.
The following information is displayed on this screen.
SYSTEM: System switch input data
PLAYER: Player number and player switch input data
COIN: Slot number and coin input data
ANALOG: Channel number and analog input data
Press the SERVICE and TEST Buttons simultaneously to return to the JVS Test screen.
c - 1. JVS INPUT TEST

SYSTEM TEST MODE
4
15
Use MONITOR TEST to check the output of the monitor.
Enter MONITOR TEST and the following color bars will be displayed.
d. MONITOR TEST
Press the TEST Button and the screen will change to the following cross-hatch screen.
Press the TEST Button to return to the System Test Menu screen.
MONITOR TEST 2/2
P R E S S T E S T T O E X I T
M O N I T O R T E S T 1 / 2
P R E S S T E S T T O N E X T
13 2

4
SYSTEM TEST MODE
16
SPEAKER TEST
RIGHT SPEAKER OFF
LEFT SPEAKER OFF
REAR RIGHT SPEAKER OFF
REAR LEFT SPEAKER OFF
CENTER SPEAKER OFF
WOOFER SPEAKER OFF
->EXIT
SELECT WITH SERVICE AND PRESS TEST
Use SPEAKER TEST to check the output of each speaker by having them each emit a test sound.
Select each speaker with the cursor and press the TEST Button to turn that speaker ON or OFF.
When set to ON a test sound will be emitted from that speaker.
It is possible to set multiple speakers to emit the test sound at the same time.
Some of these options may not be displayed depending on the cabinet being used.
e. SPEAKER TEST
The speakers available to test are as follows.
RIGHT SPEAKER
LEFT SPEAKER
REAR RIGHT SPEAKER
REAR LEFT SPEAKER
CENTER SPEAKER
WOOFER SPEAKER
Move the cursor to EXIT and press the TEST Button to return to the System Test Menu screen.

SYSTEM TEST MODE
4
17
COIN ASSIGNMENTS
COIN CHUTE TYPE COMMON
SERVICE TYPE INDIVIDUAL
COIN CHUTE #1 COIN TO CREDIT RATE
1 COIN(S) COUNT AS 1 CREDIT(S)
COIN CHUTE #2 COIN TO CREDIT RATE
1 COIN(S) COUNT AS 1 CREDIT(S)
DETAIL SETTING
GAME COST SETTING
->EXIT
SELECT WITH SERVICE AND PRESS TEST
f - 1
f - 2
f - 3
f - 4
f - 5
f - 6
Use COIN ASSIGNMENTS to alter the credit settings.
The game will award players the number of credits determined here. Settings will only be saved if they have been
changed.
f. COIN ASSIGNMENTS
COMMON Allow all credits to be used by all players.
INDIVIDUAL Treat each player’s credits individually.
f - 1. COIN CHUTE TYPE
The following information is displayed on this screen.
COMMON
When the COIN CHUTE TYPE is set to COMMON, the number of credits
available to all players will increase by 1.
When the COIN CHUTE TYPE is set to INDIVIDUAL, each player’s
credits will increase by 1.
INDIVIDUAL
When the COIN CHUTE TYPE is set to COMMON, the number of credits
available to all players will increase by 1.
When the COIN CHUTE TYPE is set to INDIVIDUAL, the player
corresponding to the SERVICE Button’s credits will increase by 1.
f - 2. SERVICE TYPE (Service Button Type)
1 COIN(S) COUNT AS 1 CREDIT(S) 1 coin counts as 1 credit
2 COIN(S) COUNT AS 1 CREDIT(S) 2 coins count as 1 credit
3 COIN(S) COUNT AS 1 CREDIT(S) 3 coins count as 1 credit
4 COIN(S) COUNT AS 1 CREDIT(S) 4 coins count as 1 credit
5 COIN(S) COUNT AS 1 CREDIT(S) 5 coins count as 1 credit
1 COIN(S) COUNT AS 2 CREDIT(S) 1 coin counts as 2 credits
1 COIN(S) COUNT AS 3 CREDIT(S) 1 coin counts as 3 credits
1 COIN(S) COUNT AS 4 CREDIT(S) 1 coin counts as 4 credits
1 COIN(S) COUNT AS 5 CREDIT(S) 1 coin counts as 5 credits
FREE PLAY Free play (no coins required)
DETAIL SETTING More detailed settings
f - 3. COIN CHUTE #1 COIN TO CREDIT RATE (Coin and credit conversion rate 1)
