1
Bluetooth USB Adapter
Parani-UD100
User Guide
Version 1.0.2
2011-05-16

2
User Guide for the Parani-UD100
Document Version 1.0.2
Firmware version 1.0.X
Printed in Korea
Copyright
Copyright 2011, Sena Technologies, Inc. All rights reserved.
Sena Technologies reserves the right to make changes and improvements to its product without providing notice.
Trademark
Parani™is a trademark of Sena Technologies, Inc.
Windows® is a registered trademark of Microsoft Corporation.
Ethernet® is a registered trademark of XEROX Corporation.
Notice to Users
When a system failure may cause serious consequences, protecting life and property against such consequences with a backup system or safety device
is essential. The user agrees that protection against consequences resulting from system failure is the user's responsibility.
This device is not approved for life-support or medical systems.
Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's authority to operate this device.
Precautions and Safety
Do not drop or subject the device to impact. Damage to your products may result from improper use.
Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your products may result from improper use.
Do not use excessive force onthe buttons or attempt to disassemble the device. Damage to your products may result from improper use.
Do not place heavy objects onthe product. Damage to your products may result from improper use.

3
Revision History
Revision Date Name Description
V1.0.0 2009-01-29 CP Moon Initial Revision History
V1.0.1 2009-06-01 CP Moon Update product specification
Add using Bluetooth stereo headset
V1.0.2 2011-05-16 WJ Kim Add note

Contents
1. Introduction 5
1.1. Overview............................................................................................................................... 5
1.2. Package Check List .............................................................................................................. 5
1.3. Product Specification............................................................................................................. 6
2. Installing the Bluetooth Software 7
3. Using the Bluetooth Adapter 10
3.1. Using Bluetooth Serial Port ..................................................................................................11
3.2. Using Dial-up Network (DUN)..............................................................................................16
3.3. Using Bluetooth Stereo Headset.......................................................................................... 20
Appendix A. Mechanical Drawing 24
Appendix B. Warranty 25
B.1. GENERALWARRANTY POLICY........................................................................................25
B.2. LIMITATION OF LIABILITY ................................................................................................. 25
B.3. HARDWARE PRODUCT WARRANTY DETAILS................................................................. 25
B.4. SOFTWARE PRODUCT WARRANTY DETAILS ................................................................. 26
B.5. THIRD-PARTY SOFTWARE PRODUCT WARRANTY DETAILS .........................................26
Appendix C. Contact Information 27

5
1. Introduction
1.1. Overview
Thank you for purchasing Parani-UD100. Parani-UD100 is a Bluetooth-USB adapter with replaceable external antenna. Parani-UD100 supports
Bluetooth2.0+EDR class 1 with working distance up to 300 meters. In addition, working distance can be further extended using optional dipole or patch
antennas. Parani-UD100 supports USB 2.0 for the computer interface and can be used with Windows using Bluetoothstack driver included in the CD or
MAC OS X using MAC OS X Bluetoothstack driver.
1.2. Package Check List
Parani-UD100
Stub Antenna
Quick Start Guide
CD-ROM including Windows Bluetooth driver, User Guide and Data sheet

6
1.3. Product Specification
Standards Bluetooth2.0+EDR Class 1
USB 2.0
Max Transfer Rate 3 Mbps (EDR)
Frequency Range 2.402 ~ 2.480GHz
Transmit Output Power +19dBm (+6dBm EDR) E.I.R.P
Receive Sensitivity Basic 1Mbps: -88 dBm EDR2Mbps: -87dBm
EDR3Mbps: -82dBm
Antenna Connector RP-SMA
Antenna Gain Default Stub Antenna: 1 dBi Optional Dipole Antennas: 3 dBi & 5 dBi
Optional Patch Antenna: 9 dBi
Working Distance
(InOpen Field)
Stub antenna – Stub antenna: 300 m
Dipole (3 dBi) – Dipole (3 dBi) : 400 m
Dipole (5 dBi) – Dipole (5 dBi): 600 m
Patch antenna – Patch antenna: 1 km
* working distance can vary depending on install environment
Bluetooth Stack Software Toshiba
Bluetooth Profiles DUN, FAX, LAP, SPP, HID, HCRP, FTP, OPP, A2DP, AVRCP, GAVDP, HSP,
HFP, PAN, BIP
Computer OS Support Windows 2000/XP/Vista (32/64bit) Linux (3rd party driver required)
MACOS X (MACOS X driver required)
Size 72(L) x22(W) x 10(H) mm
Operating Temperature -20 ~ +70℃
Storage Temperature -40 ~ +85℃
Humidity 90% Non-condensing
RegulatoryApprovals FCC, CE, TELEC, KCC, Bluetooth SIG
Warranty 1 year limited warranty
Note *:
Bluetooth v2.0 supports improved AFH function. AFH function is to mitigate the interference between WiFi and Bluetooth radios by
automatically avoiding the active WiFi channel from Bluetooth link. However, AFH does not provide a complete solution making WiFi and
Bluetooth work together in harmony. It is highly recommended for users to test their wireless system enough before deployment since the
overall system performance is affectedby various environmental factors such as distance between them.

7
2. Installing the Bluetooth Software
This chapter describes how to install and set up the Bluetoothsoftware on your computer when you plug the Parani-UD100 to your computer for the first
time.
Before connecting the Parani-UD100, you must install the Bluetooth software. You should also uninstall any kind of Bluetooth driver or utility
already installed on your computer such as Widcomm BTW or Toshiba, if any.
a. Insert the installation software CD.
b. Click on “Install Bluetooth Utility / Driver”
c. The InstallSheld wizard is started. Click the Next button. (Figure 2.1)
d. Read the License and click the “I accept the terms in the license agreement”radio button. Then click the Next button. (Figure 2.2)
Figure 2.1: InstallShield wizard Figure 2.2: License Agreement

8
e. Click the Install button to begin the installation. (Figure 2.3)
f. During installation, you should plug in the Parani-UD100 to USB port. After plugging in it, click the OK button. (Figure 2.4)
Figure 2.3: Ready to install
Figure 2.4: Plug in the Bluetooth device

9
g. Installationis completed. Click the Finish button.
h. Click the Yes buttonto restart your PC.

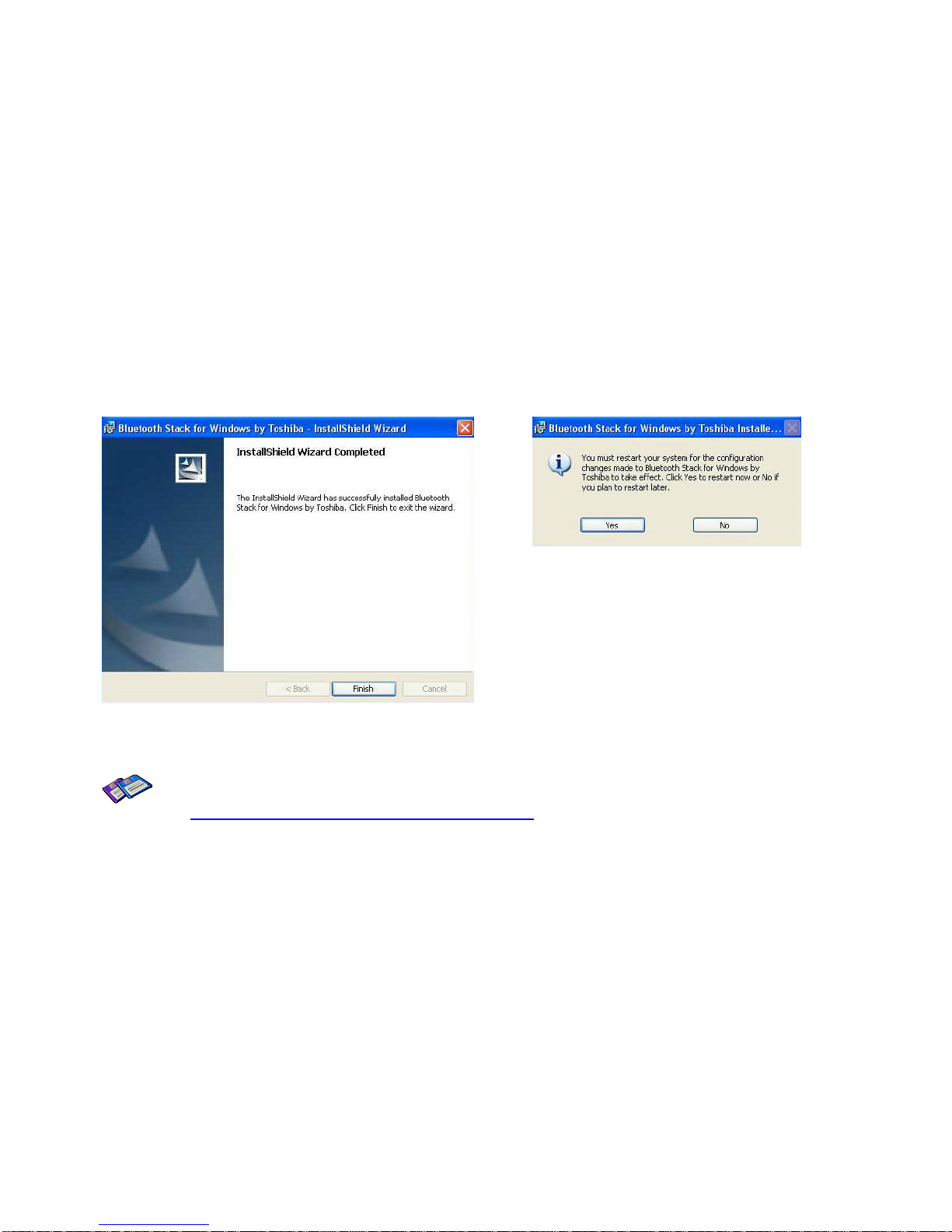

Figure 2.5: InstallShield wizard complete
Figure 2.6: restart your PC
Note: Latest Toshiba Device Driver
http://aps2.toshiba-tro.de/bluetooth/index.php?page=download-toshiba

10
3. Using the Bluetooth Adapter
This chapter describes how you can use Parani-UD100 to make use of SPP and DUN services. For more information on other Bluetooth services, please
refer to the online Help provided by the Bluetooth Manager software. To open the Bluetooth Manager Help, please right-click on the Bluetooth Manager
icon on the tray, and thenclickon“Help”(Figure 3.1).

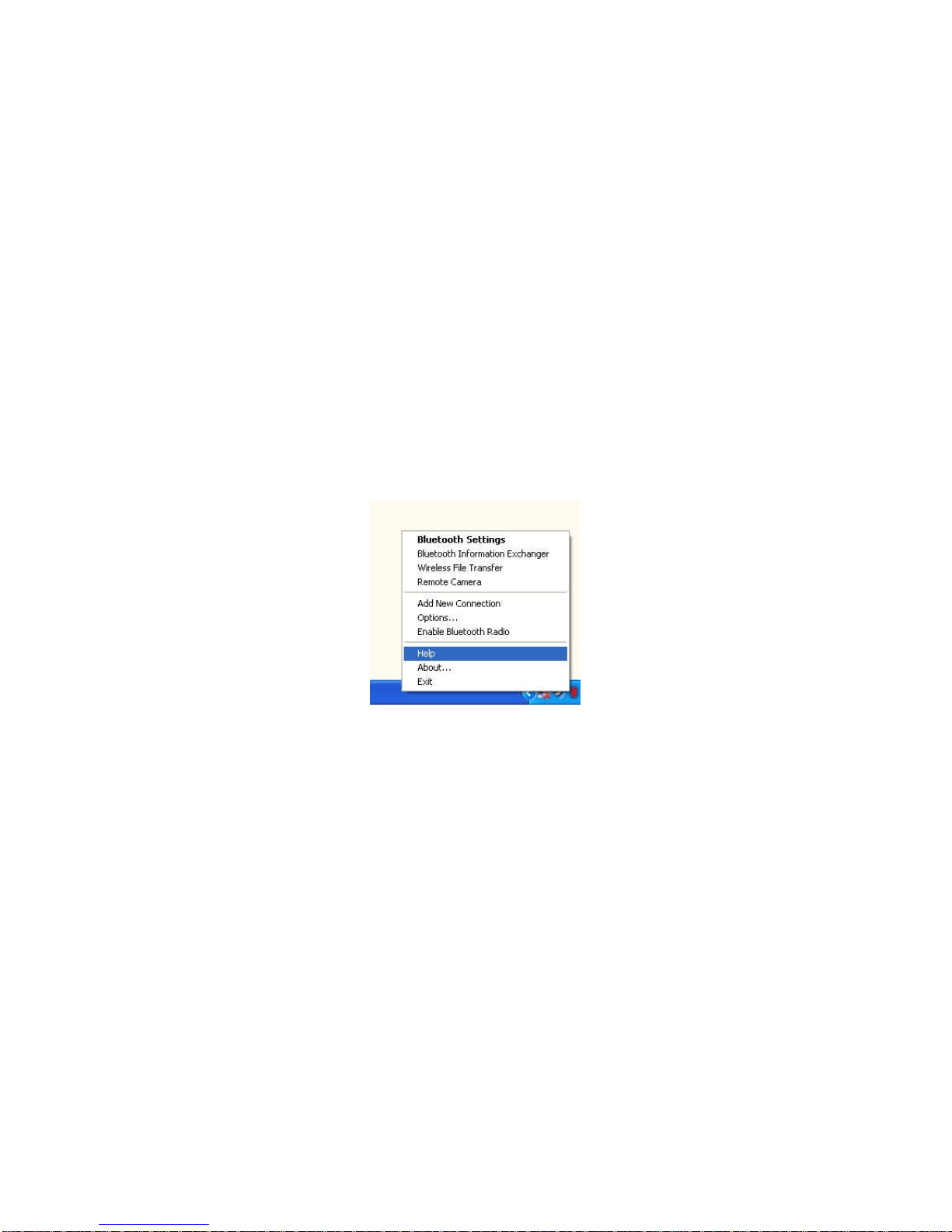

Figure 3.1: Getting Help File

11
3.1. Using Bluetooth Serial Port
This section describes how to use the Bluetooth serial port.
The Bluetooth Serial Port (SPP) provides a virtual serial port via Bluetooth. Any program that uses a standard serial port can use the Bluetooth serial port.
ABluetooth passkey (PIN code) is requiredfor to connect to. Please confirm your Bluetooth PIN code.
a. Right-click on the Bluetooth Manager iconin the tray, and thenclick on“Add New Connection” (Figure 3-2)
b. Select the “Custom Mode”, and then click the “Next”button(Figure 3-3)
Figure 3.2: Add New Connection
Figure 3.3: Select the “Custom Mode”

12
c. Select the device name, and then click the “Next”button. (Figure 3.4)
d. Select "Serial Port”, and then clickthe “Next”button(Figure 3.5)
Figure 3.4: Select the Device Figure 3.5: Select “Serial Port”

13
e. Select a COM port to use, and click the “Next”button. (Figure 3.6)
f. Click the “Next” button(Figure 3.7)
Figure 3.6: Select a COM port Figure 3.7: COM port setting

14
g. Enter a connection Name and change an icon. (Figure 3.8)
h. Click the “Finish”button. (Figure 3.9)
Figure 3.8: Enter a name and select an icon. Figure 3.9: Complete the Connection Wizard

15
i. Double-click the SPP connection icon just configured. (Figure 3.10)
j. The connection is established successfully. Youcan use Bluetooth serial port. (Figure 3.11)
k. To disconnect the connection, right-click onthe connection icon. And then click “Disconnect”
Figure 3.10: Connect SPP Figure 3.11: Complete the Connection

16
3.2. Using Dial-up Network (DUN)
This section describes how to connect to the Internet using a mobile telephone.
You must have already signed up with a provider and obtained a connectionID and password. Please ensure you have confirmed the ID, password and
telephone number of your provider's access point before you beginthe set-up process.
ABluetooth passkey (PIN code) is requiredfor to connect to. Please make a note of your Bluetoothpasskey.
a. Right-click on the Bluetooth Manager iconin the tray, and thenclick on“Add New Connection” (Figure 3.12)
b. Select the “Custom Mode”, and then click the “Next”button(Figure 3.13)

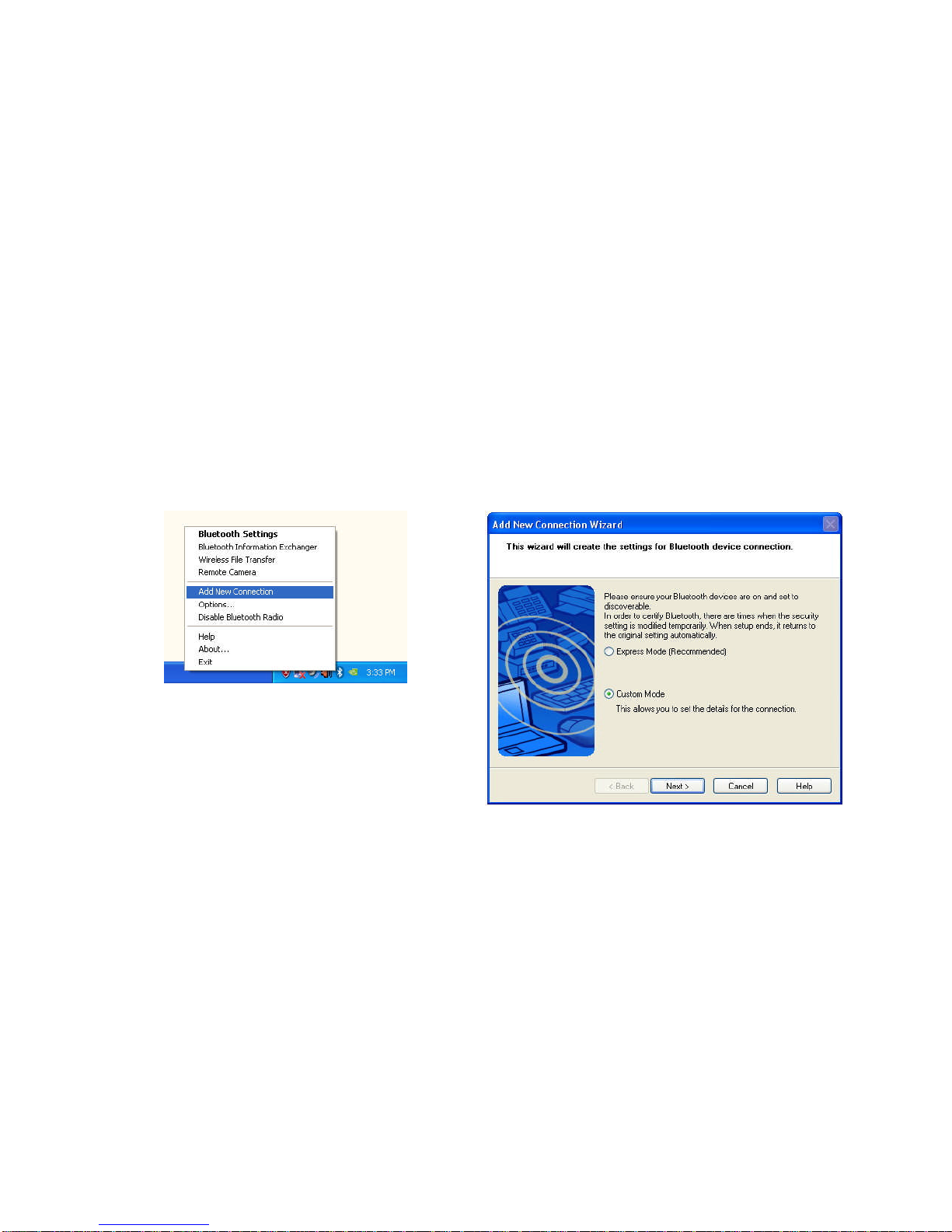

Figure 3.12: Add New Connection
Figure 3.13: Select the “CustomMode”

17
c. Select the device name of the mobile telephone, and then click the“Next”button. (Figure 3.14)
d. Select "Dial-up Networking”, and then click the “Next”button (Figure 3.15)

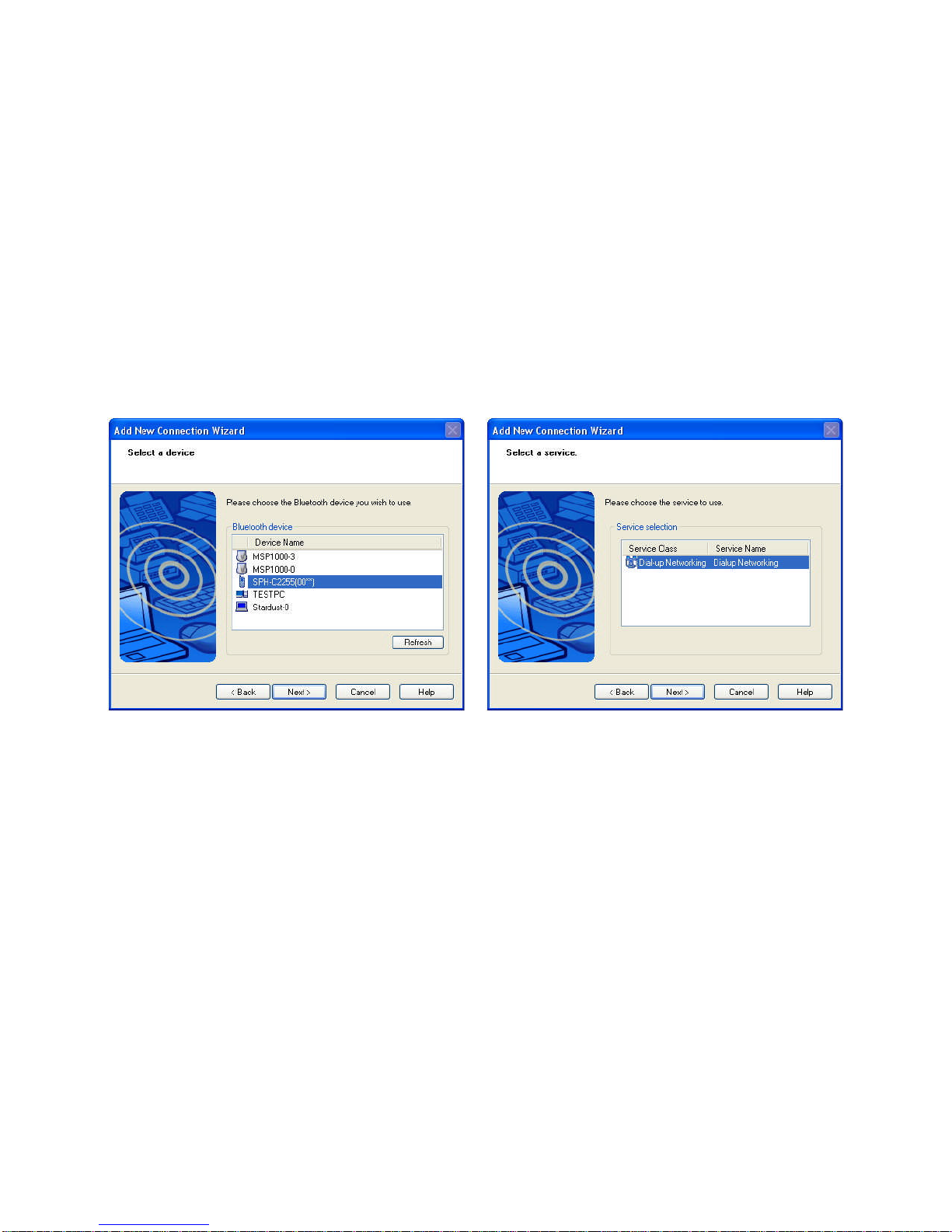

Figure 3.14: Select the Mobile Telephone Figure 3.15: Select the “Dial-up Networking”

18
e. If youare connecting to the wireless modem station for the first time, type the BluetoothPasskey (PIN Code). And then click the“OK” button (Figure
3.16)
f. Certain modems require you to configure initialization commands separately. Please refer to the modemor mobile phone instruction manual for
further details onthe initialization commands. Once the configuration is done or if it’s not needed, click the “Next”button(Figure 3.17).

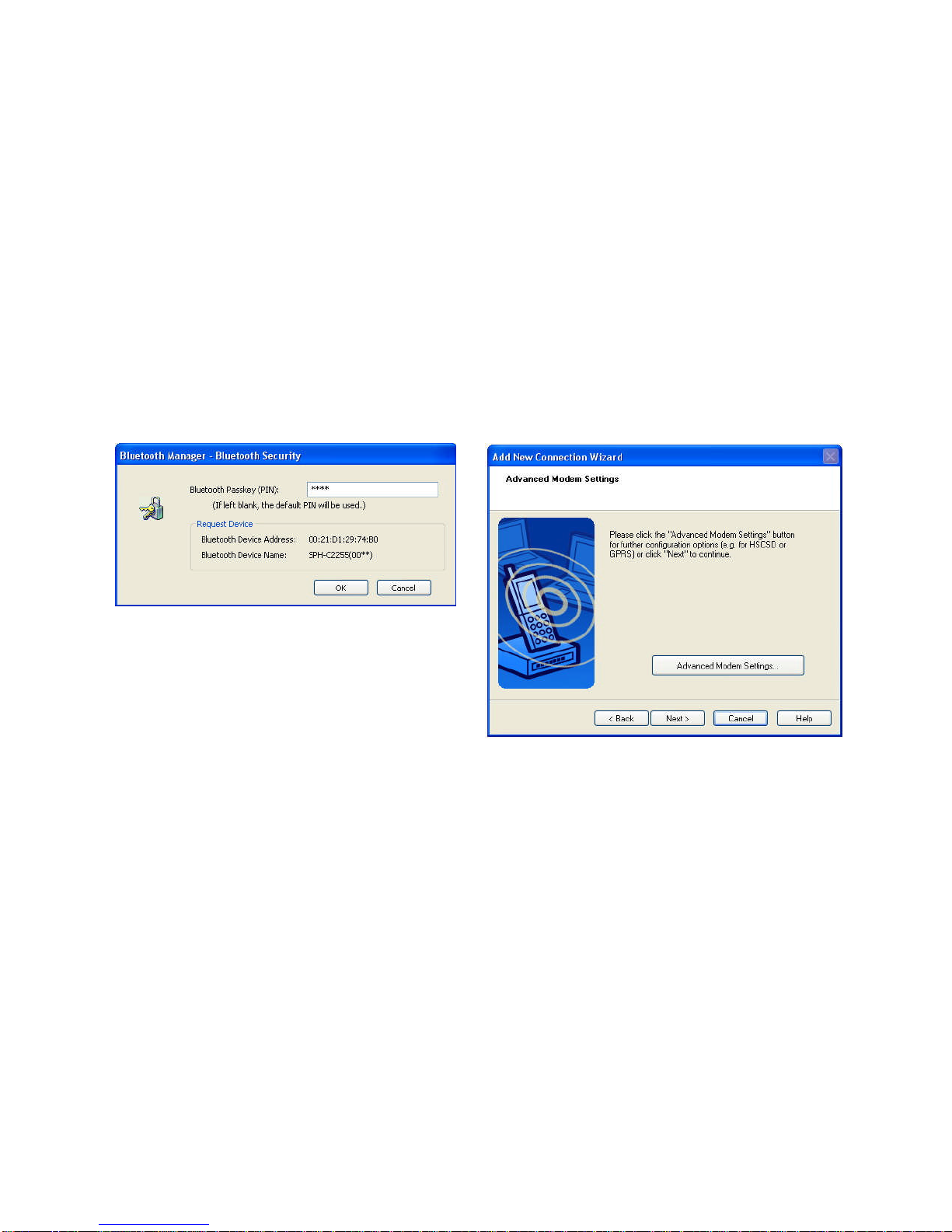

Figure 3.16: Type the PINCode
Figure 3.17: Advanced Modem Setting

19
g. Type your own telephone number, ID and password accordingto the arrangement with your provider. And then click the “Finish”button. The settings
will be registered, and the connection icon will appear in the “Bluetooth Settings”window. (Figure 3.18)
h. Start your network application, then the “Dial-up Connection” window will appear. Click the “Connect” button. Once you have connected to the
Internet, a message and a connection icon will appear in the task tray (Figure 3.19)
i. To disconnect the connection, right-click onthe connection icon. And then click “Disconnect”.
Figure 3.18: Create Dial-up Connection Figure 3.19: Dial-up Connection

20
3.3. Using Bluetooth Stereo Headset
This section describes how to usethe Bluetooth stereo headset to listento yourstereo music.
ABluetooth passkey (PIN code) is requiredfor to connect to. Please confirm your headset PIN code.
a. Right-click on the Bluetooth Manager iconin the tray, and thenclick on“Add New Connection” (Figure 3-20)
b. Turn your headset on andactivate "Discoverable" mode.
c. Select the “Custom Mode”, and then click the “Next”button(Figure 3-21)
Figure 3.20: Add New Connection
Figure 3.21: Select the “CustomMode”
