1. INTRODUCTION
Thank you for choosing the Sena SR10. The SR10 is a Bluetooth
two-way radio adapter and mobile phone handsfree gateway
based on Bluetooth 2.1+EDR technology. Users can connect
various two-way radios in the market with the SR10 and connect
wirelessly to a variety of Bluetooth communication headsets. At the
same time, as a Bluetooth mobile phone handsfree gateway, the
SR10 lets users connect Bluetooth headsets to mobile phones as
well. With the SR10, users can use a handheld two-way radio and
a Bluetooth mobile phone simultaneously with a single Bluetooth
headset.
The SR10 has two AUX input ports for wired connection of non-
Bluetooth devices such as GPS, radar detector, laser detector, or
non-Bluetooth mobile phone. Along with the SR10, users can talk
by phone or by two-way radio at the same time, listen to the radar
detector alarm or GPS voice guidance.
The SR10 can cover such a variety of applications including
motorcycle CB communications, outdoor sports activities, event
security, hunting, motorsports pit crew and other forms of intercom
communications.

English
7
Please read this user’s guide carefully before using the SR10.
Also refer to www.sena.com for the latest version of the user’s
guide and additional information related to Sena Bluetooth
products.
Features:
•Bluetooth handsfree adapter for two-way radios
•Bluetooth handsfree gateway for Bluetooth mobile phones
•Connect a two-way radio and a mobile phone simultaneously
•Compatible with standard stereo or mono Bluetooth headsets
•Two AUX inputs for wired connection of non-Bluetooth devices;
GPS, radar detector, laser detector or non-Bluetooth mobile
phone
•Motorcycle handlebar mount and belt clip
•12V bike-powered kit with on/off control by ignition switch
•Water resistant for use in inclement weather
•Firmware upgradeable
•Two-year limited warranty

8
TechnicalSpecications:
•Bluetooth 2.1+EDR
•Supportingproles:HeadsetProle,Hands-Free Prole(HFP)
•Operating time: 12 hours
•Standby time: 10 days
•Battery charging time: 3.5 hours
•Lithium polymer battery
•Dimensions:108mm×52mm×29mm(4.3in×2.0in×1.1in)
•Weight:81g(2.86oz)
•CE, FCC, TELEC, IC

English
9

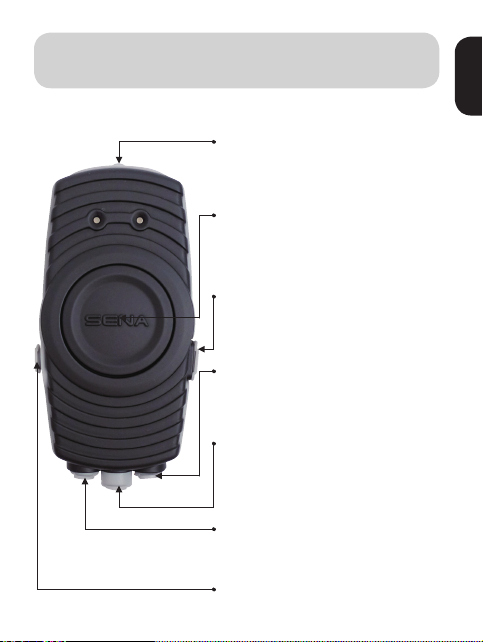

2. PACKAGE CONTENTS
Pairing Button
• Bluetooth Headset Pairing Mode
• Mobile Phone Pairing Mode
AUX1 Port
• GPS Navigation or Radar/Laser Detector
2.5mm Jack for Wired PTT Button
AUX2 Port
• Mobile Phone, GPS Navigation,
Radar/Laser Detector
PTT Button
• Transmit Radio
• Open Audio Channel
DC Power Charging &
Firmware Upgrade Port
Main
Port
• 6-pin Hirose Connector for Two-way
Radio Devices
• Main Unit

10
• USB Power & Data Cable
• 3.5mm Audio Jack Cable
• Wired PTT Button Extension
• Belt Clip Kit
• Handlebar Mounting Kit
• 12V cigarette charger type
bike-powered kit

English
11

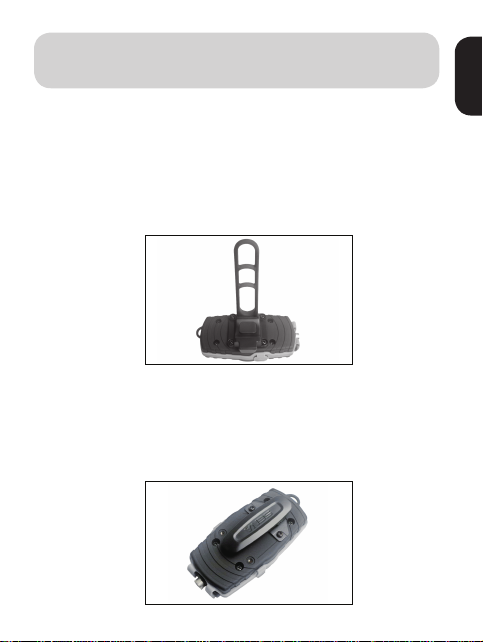

3. INSTALLING THE SR10
3.1 Installing on the Handle Bar
1. Place the rubber on the back of the main unit.
2. Put the joint pad on top of the rubber, and tighten the screw.
3. Place the main unit on the handle bar, wind the rubber band,
and hang it on the hook.
3.2 Placing on the Belt/Pocket
1. Place the belt-clip on the back of the main unit, and tighten
the screw.
2. Place the main unit on the belt with belt-clip.

12
To power on and off the adapter, you don’t need to press and hold
any button for several seconds. Just short press the Pairing Button
and the PTT Button simultaneously, and you will get quick on-and-
off convenience.
4.1 Powering On
Press and hold the Pairing Button and the PTT Button at the same
time for about 1 second to turn the power on. When the power is
on, the blue LED light turns on.
4.2 Powering Off
Press the Pairing Button and the PTT Button at the same time for
about 1 second to turn the power off. The red LED light turns on for
about 3 seconds. The SR10 is now powered off.
4.3 Charging
The red LED light is visible while charging. It takes about 3.5 hours
to be completely charged. When it is completely charged, the LED
turns to blue.
4. POWERING ON/OFF AND
CHARGING

English
13
4.4 Bike-powered Charger Kit
If the motorcycle has key-on power outlet, the SR10 is
automatically powered on and off by using the 12V cigarette
charger type bike-powered kit.
4.5 Low Battery Warning
Whenthebatteryisrunninglow,theredLEDlightwillash.

14
5.1 Bluetooth Headset Pairing
1. Turn on your Bluetooth headset and enter pairing mode,
following the Bluetooth headset manual.
2. Turn on the SR10 and press and hold the Pairing Button for 5
secondsuntiltheLEDashesredandbluealternatively.
3.Whenthepairingissuccessful,theblueLEDashesslowly.
5.2 Bluetooth Mobile Phone Pairing
1. Turn on the SR10 and press and hold the Pairing Button for
8 seconds until the red LED is rapidly ashing. Search for
Bluetooth devices on your mobile phone. The SR10 will be listed
on your mobile phone.
2.Enter 0000 for the PIN. (Some mobile phone may not ask for
thePIN.)
3.TheSR10will bepaired as“headset”. This prole isnormally
recommended for most mobile phones.
4.Whenpairingisdone,theredLEDashesslowly.
5. PAIRING THE SR10 WITH
BLUETOOTH DEVICES

English
15
6. USING THE SR10
6.1 Using Two-way Radios
1. When SR10 is turned on and connected with a hand held two-
way radio, the audio from the two-way radio will be directly
sent to your Bluetooth headset. You can use the Bluetooth
headset as a handsfree device for the two-way radio.
2. To talk using the two-way radio through SR10, press and hold
thePTTButtonuntilyounishtalking.

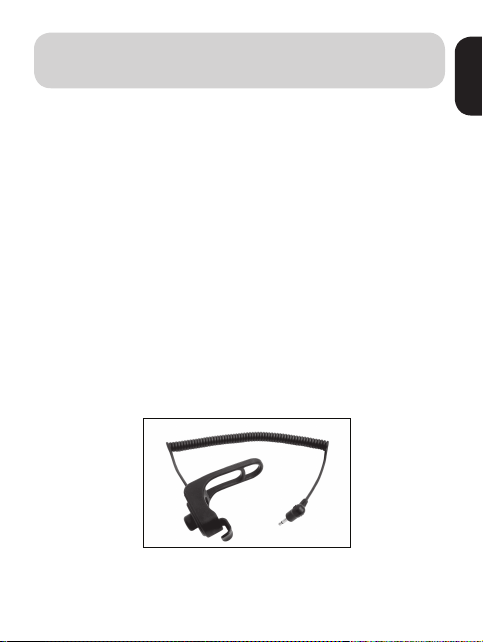

6.2 Installing Wired PTT Button
1. Place the PTT Button on the motorcycle handlebar grip or any
other place where you can easily reach it.
2. Wind up the rubber band on the handlebar grip and hang it
on the hook.

16
6.3 Ports and Cables
The SR10 has one Main Port and two AUX ports for wired
connection with other devices.
Below is a list of compatible cables and devices:
•Main:6-pinHiroseconnectortypetwo-wayradiocable*
•AUX1:3.5mm3-poleaudiojackcableforGPS,radardetectors
orlaserdetectors**
•AUX2:3.5mm3-poleaudiojackcableforGPS,radardetectors
or laser detectors, or 3.5mm 4-pole mobile phone cables for
mobilephones*
Forinformationonmodelspecic6-pinHiroseconnectortypetwo-
way radio cables, please visit www.sena.com.
--------------------------------
*Notincludedinthepackage.Mustbepurchasedseparately.
**Includedinthepackage.

English
17
6.4 Using Mobile Phone
6.4.1 For Bluetooth Wireless Connection
When the SR10 is paired with a Bluetooth headset and a
Bluetooth mobile phone, the Bluetooth headset will provide
Hands-Free Prole for your mobile phone. The SR10 redirects
mobile phone calls and two-way radio communications to the
Bluetooth headset simultaneously so that a Bluetooth headset
could be used for both the mobile phone and hand held two-way
radio.
6.4.2 For Wired Connection
Users can connect a mobile phone to the AUX2 Port by wire
in order to use Bluetooth handsfree. In this case, the SR10
combines audio from the Main Port and the AUX2 Port together
and redirects to the Bluetooth headset. For information on mobile
phones and cable compatibility, please visit support.sena.com.
6.5 Audio Channel Open and Close
Assoonasincomingaudiosignalfromthewireddevices(two-
way radio, mobile phone, GPS or radar detector) is detected
by the SR10, the SR10 immediately makes a connection to the
Bluetooth headset and consequently users can hear a certain
sound. The examples of triggering audio signals are sound of
the two-way radio incoming signal, GPS voice instruction, radar
detector alarm or mobile phone ringtone. If there is no incoming

18
sound from the wired devices for a certain period of time, the SR10
disconnects itself from the Bluetooth headset.
Even if there is no incoming sound from the wired devices, users
can also connect the SR10 manually to the Bluetooth headset by
double tapping the PTT Button. Users can also double tap the
PTT Button while the SR10 is already connected to the Bluetooth
headset to prevent it from disconnecting itself automatically. To
disconnect the SR10 from the Bluetooth headset in this case, the
user needs to double tap the PTT Button again.
When users need to keep the audio channel to be closed for a
certain time, they can triple tap the PTT Button to disconnect the
SR10 to the Bluetooth headset for 3 minutes. Locking the audio
channel is maintained during the time even if there is an incoming
sound from the wired devices. But the locking becomes released
when users double tap the PTT on the SR10 or wait for 3 minutes.
6.6 Reset to Factory Default Settings
Action Current Condition Result
Double Tapping the PTT
Button
If audio channel is not open Audio channel will be open
until manually closed
If audio channel is already
open by incoming audio
Keeping audio channel
open until manually closed
If audio channel is already
open by PTT double
tapping
Close audio channel
Triple Tapping the PTT
Button
When users need to keep
the audio channel closed
for a certain time
Disconnect the SR10 from
the Bluetooth headset for
3 minutes

English
19
1. To restore the SR10 to factory default settings, press and hold
the Pairing Button for 12 seconds until the LED shows solid
red.
2.Within 5 seconds, press the Pairing Button again to conrm
reset. The SR10 will be restored to factory settings and
switchedoffautomatically afterthe blueLEDashes several
times.
3. If you don't press the Pairing Button within 5 seconds, the reset
attempt is canceled and the SR10 returns to standby mode.
6.7 Fault Reset
If the SR10 is not working properly or is in a faulty status for any
reason, you may reset by pushing the small reset button at the
top of the SR10 main unit. By using a paper clip or a pencil tip,
lightly press and hold the reset button for 1 second. The SR10 will
be switched off. Turn the SR10 back on to use it. However, this will
not restore the SR10 to factory default settings.
6.8 Firmware Upgrade
The SR10 supports rmware upgrade function. Please visit
Sena Bluetooth web site at www.sena.com to check the latest
software downloads.

20
7. QUICK REFERENCE
Button Description Duration LED
Pairing Button
+ PTT Button
Power-on On Solid blue
Power-off 1 sec Solid red
Pairing Button
Bluetooth headset
pairing 5 sec Blue & red alternativelyashing
Mobile phone
pairing 8 sec Redashing
Factory reset 12 sec Solid red
Factory reset
conrm Tapping Blueashing
PTT Button Two-way radio
transmitting audio -Solid blue
LED Description
Blue Flashing Every 2 Seconds No headset connected
Slow Blue Flashing Headset connected and standby
Slow Red Flashing Mobile phone connected and standby
Blue Double Flashing Headset audio channel is opened
Red Double Flashing Bluetooth phone call is in progress
Rapid Blue Flashing Probing paired headset
Rapid Red Flashing Low battery
Solid Blue PTT Button pushed
LED Description
Solid Red Charging
Solid Blue Fully charged
• Buttons
• LED Status
• LED Status While Charging
