Sena Parani-UD100 User manual

Bluetooth USB Adapter
Parani-UD100
User Guide
Version 3.0.0

2
Parani-UD100 User Guide
Document Version 3.0.0
Firmware version 3.0.X
Printed in Korea
Copyright
Copyright 2011~2013, Sena Technologies, Inc. All rights reserved.
Sena Technologies reserves the right to make changes and improvements to its product without providing notice.
Trademark
Parani™ is a trademark of Sena Technologies, Inc.
Windows® is a registered trademark of Microsoft Corporation.
Ethernet® is a registered trademark of XEROX Corporation.
Notice to Users
When a system failure may cause serious consequences, protecting life and property against such consequences with a backup system or safety device
is essential. The user agrees that protection against consequences resulting from system failure is the user's responsibility.
This device is not approved for life-support or medical systems.
Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's authority to operate this device.
Precautions and Safety
Do not drop or subject the device to impact. Damage to your products may result from improper use.
Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your products may result from improper use.
Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your products may result from improper use.
Do not place heavy objects on the product. Damage to your products may result from improper use.

3
Contents
1. Introduction 4
1.1. Overview .......................................................................................................................................... 4
1.2. Package Check List ......................................................................................................................... 4
1.3. Product Specification ....................................................................................................................... 5
2. Installing the Bluetooth Software 6
3. Using the Bluetooth Adapter 10
3.1. Starting Bluetooth Adapter ............................................................................................................ 10
3.2. Searching for Bluetooth Devices .................................................................................................. 11
3.3. Using Bluetooth Serial Port ........................................................................................................... 12
3.4. Using Dial-up Network (DUN) ....................................................................................................... 15
3.5. Using Bluetooth Stereo Headset .................................................................................................. 19
3.6. Using Other Bluetooth Services ................................................................................................... 22
Appendix A. Mechanical Drawing 23
Appendix B. Warranty 24
B.1. GENERAL WARRANTY POLICY ................................................................................................ 24
B.2. LIMITATION OF LIABILITY .......................................................................................................... 24
B.3. HARDWARE PRODUCT WARRANTY DETAILS ....................................................................... 24
B.4. SOFTWARE PRODUCT WARRANTY DETAILS ........................................................................ 25
B.5. THIRD-PARTY SOFTWARE PRODUCT WARRANTY DETAILS .............................................. 25
Appendix C. Contact Information 26

4
1. Introduction
1.1. Overview
Thank you for purchasing Parani-UD100. Parani-UD100 is a Bluetooth-USB adapter with replaceable external antenna. Parani-UD100 supports
Bluetooth 4.0 class 1 with working distance up to 300 meters. In addition, working distance can be further extended using optional dipole or patch
antennas. Parani-UD100 supports USB 2.0 for the computer interface and can be used with Windows using Bluetooth stack driver included in the CD or
MAC OS X using MAC OS X Bluetooth stack driver.
1.2. Package Check List
 Parani-UD100
 Stub Antenna
 Quick Start Guide
 CD-ROM including Windows Bluetooth driver, User Guide and Data sheet

5
1.3. Product Specification
Standards
Bluetooth
4
.0 Class 1
USB 2.0
Max Transfer Rate
3 Mbps (EDR)
Frequency Range
2.4
02
~ 2.48
0
GHz
Transmit Output Power
+19dBm (+6dBm EDR) E.I.R.P
Receive Sensitivity
Basic 1Mbps:
-
90
dBm
EDR 2Mbps: -88 dBm
EDR 3Mbps: -86 dBm
Antenna Connector
RP
-
SMA
Antenna Gain
Default Stub Antenna
:
1 dBi
Optional Dipole Antennas: 3 dBi & 5 dBi
Optional Patch Antenna: 9 dBi
Working Distance
(In Open Field)
Stub antenna
–
Stub antenna: 300 m
Dipole (3 dBi) – Dipole (3 dBi) : 400 m
Dipole (5 dBi) – Dipole (5 dBi): 600 m
Patch antenna – Patch antenna: 1 km
* working distance can vary depending on install environment
Bluetooth
S
tack
S
oftware
BlueSoleil
Bluetooth Profiles
DUN, FAX, SPP, HID, FTP, OPP, A2DP, AVRCP, HSP, HFP, PAN, BPP
Computer OS Support
Windows
XP/Vista
/7
/8
(32/64bit)
Linux (3rd party driver required)
MAC OS X (MAC OS X driver required)
Size
72(L) x 22(W) x 10(H) mm
Operating Temperature
-
20 ~ +70℃
Storage Temperature
-
40 ~ +85℃
Humidity
90% Non
-
condensing
Regulatory Approvals
FCC, CE, TELEC, KCC
, Bluetooth SIG
Warranty
1 year limited warranty
Note *:
Bluetooth v4.0 supports improved AFH function. AFH function is to mitigate the interference between WiFi and Bluetooth radios by
automatically avoiding the active WiFi channel from Bluetooth link. However, AFH does not provide a complete solution making WiFi and
Bluetooth work together in harmony. It is highly recommended for users to test their wireless system enough before deployment since the
overall system performance is affected by various environmental factors such as distance between them.

6
2. Installing the Bluetooth Software
This chapter describes how to install and set up the Bluetooth software on your computer.
Before connecting the Parani-UD100, you must install the Bluetooth software. You should also uninstall any kind of Bluetooth driver or utility
already installed on your computer such as Widcomm BTW or Toshiba, if any.
a. Insert the installation software CD.
b. Click on “Install Bluetooth Utility / Driver”
c. The Choose Setup Language dialog box appears. Select a language and click the OK button. (Figure 2.1)
d. The InstallSheld wizard is started. Click the Next button. (Figure 2.2)
Figure 2.1: Select the language
Figure 2.2: InstallShield wizard

7
e. Read the License and click the “I accept the terms in the license agreement” radio button. Then click the Next button. (Figure 2.3)
f. Click the Next button. If you want to change the destination folder, click Browse and select the destination folder of your choice. (Figure 2.4)

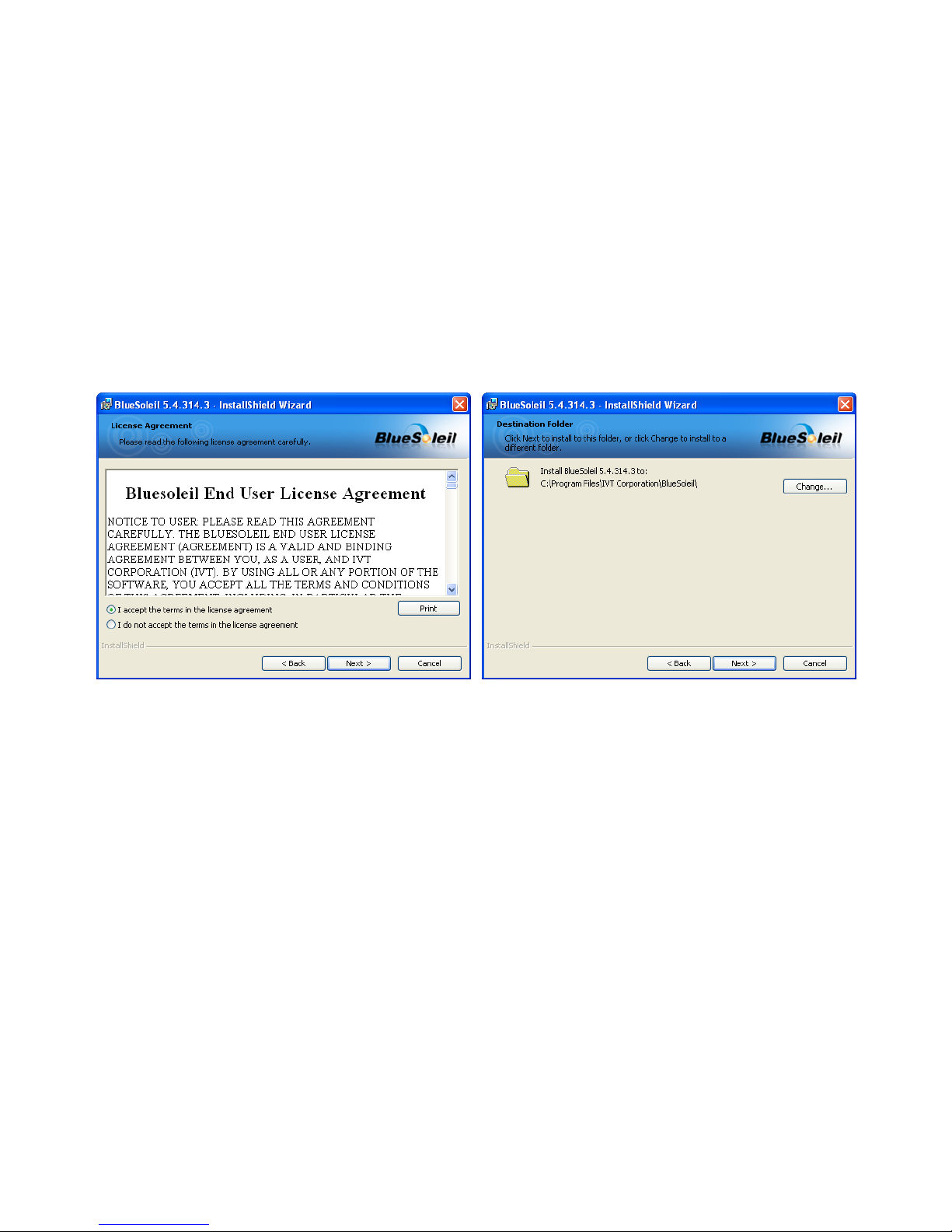

Figure 2.3: License Agreement
Figure 2.4: Destination folder

8
g. Click the Install button to begin the installation. (Figure 2.5)
h. Installation is completed. Click the Finish button. (Figure 2.6)

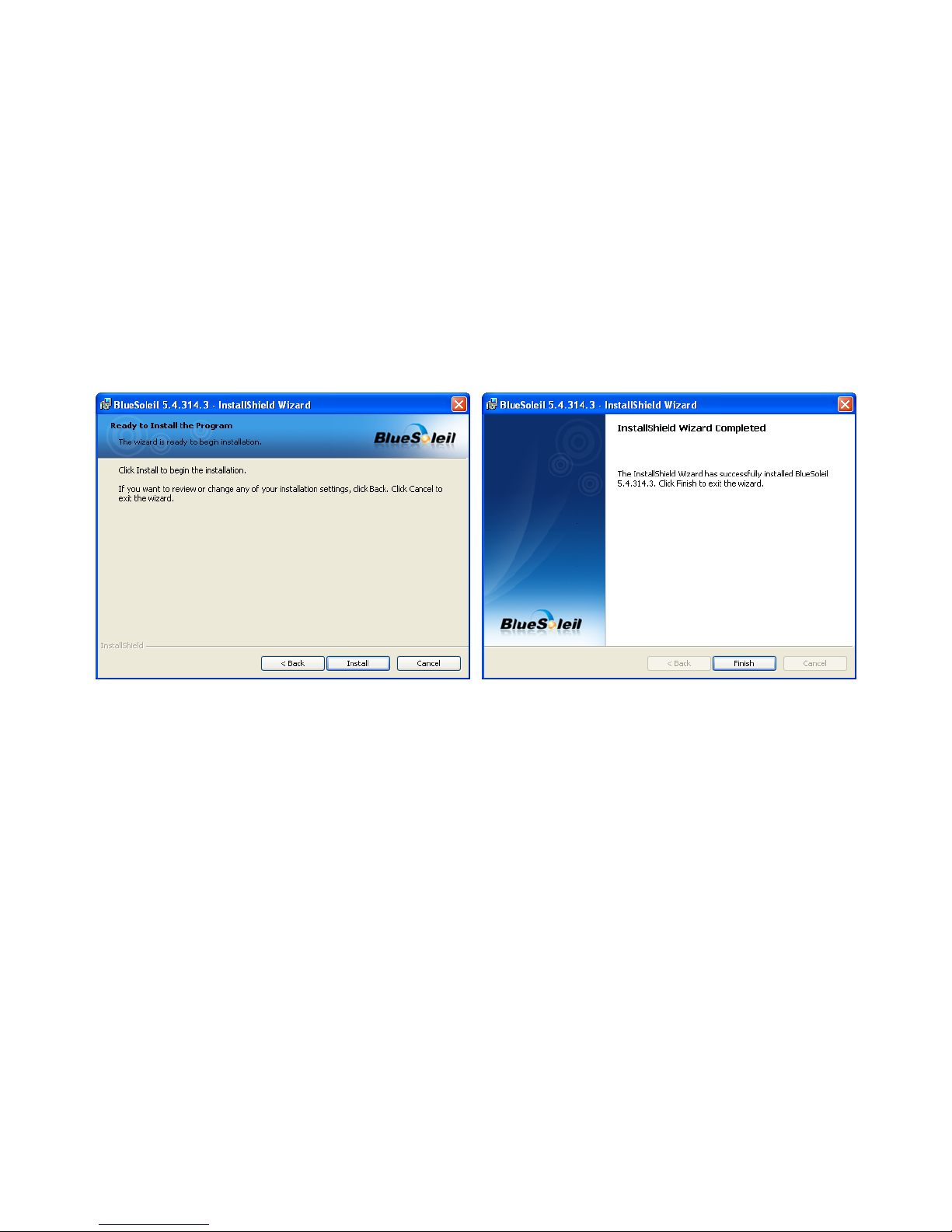

Figure 2.5: Ready to install
Figure 2.6: InstallShield wizard complete

9
i. Click the Yes button to restart your PC.

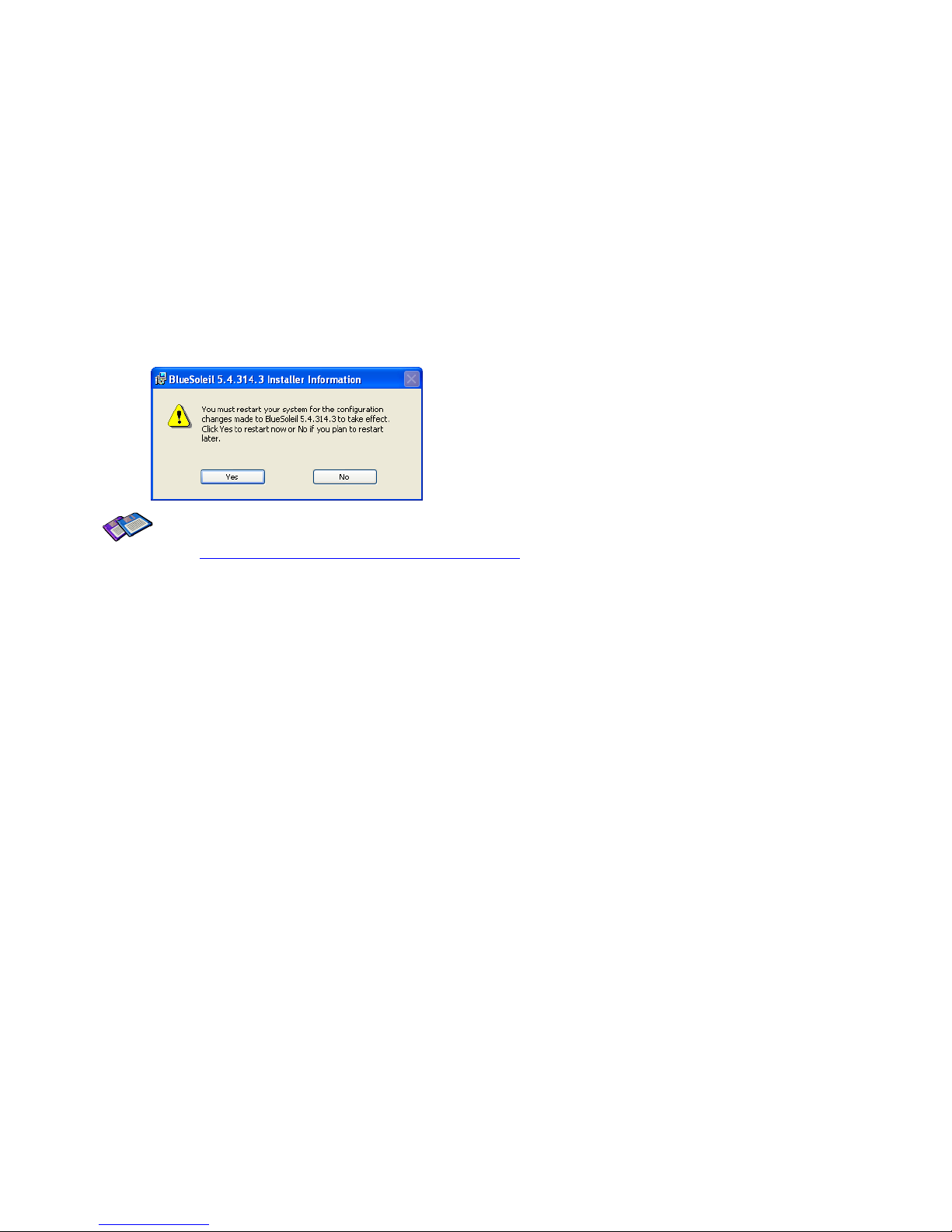

Figure 2.7: restart your PC
Note *: Latest BlueSoleil Device Driver
http://www.bluesoleil.com/products/S0001201008080001.html

10
3. Using the Bluetooth Adapter
This chapter describes how you can use Parani-UD100 to make use of SPP, DUN, stereo headset and other Bluetooth services.
3.1. Starting Bluetooth Adapter
a. Plug in the Parani-UD100 to USB port.
b. Right-click on the Bluetooth icon on the tray, and then click on “Turn on Bluetooth” (Figure 3.1).

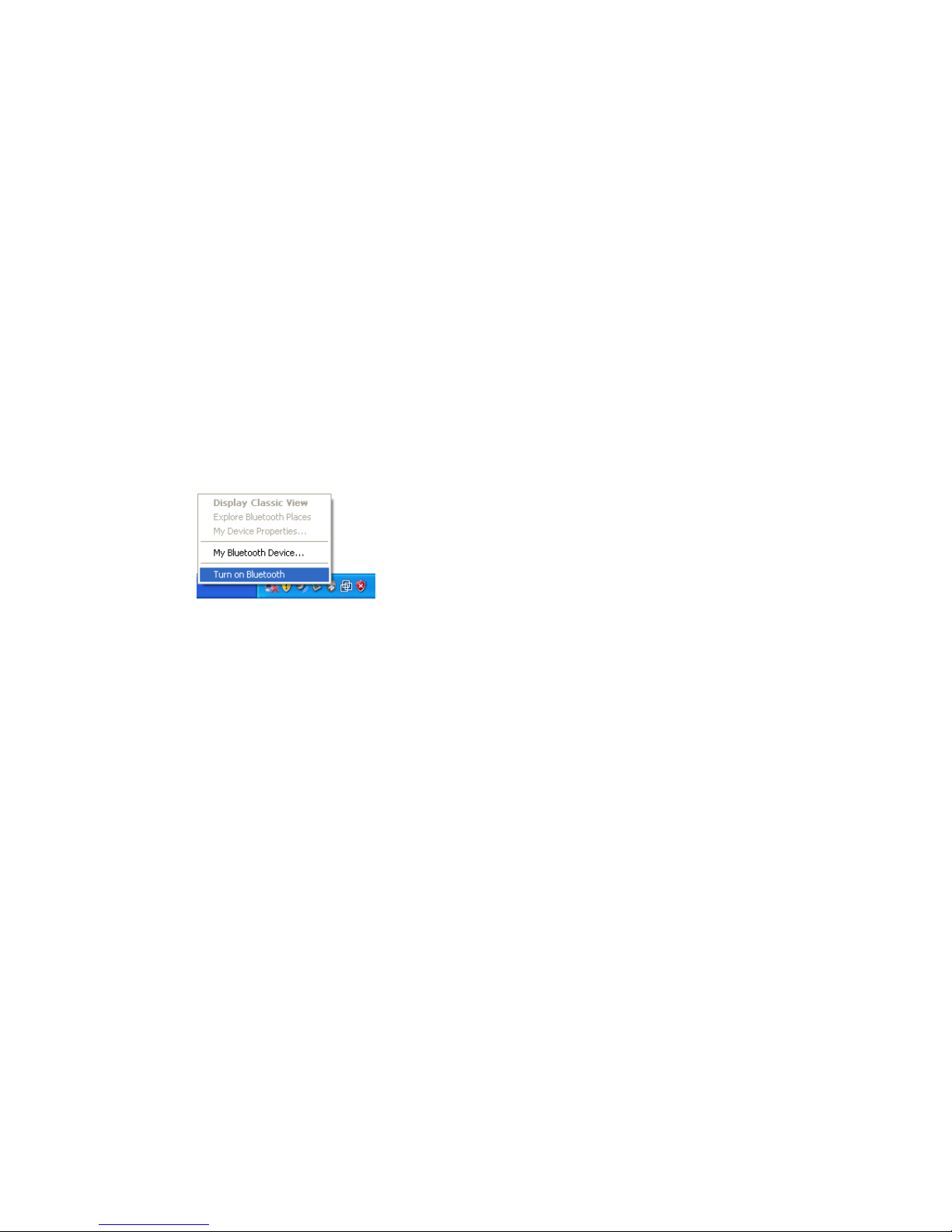

Figure 3.1: Turn on Bluetooth

11
3.2. Searching for Bluetooth Devices
To establish a Bluetooth connection, you need to find the Bluetooth devices first.
a. Make the remote device discoverable.
b. Double-click on the Bluetooth icon on the tray, then BlueSoleil window pops up. (Figure 3.2).
c. Double-click on the My Device icon, namely, the orange ball in the center of the window.
d. Bluetooth devices will appear in the window after a while. (Figure 3.3)

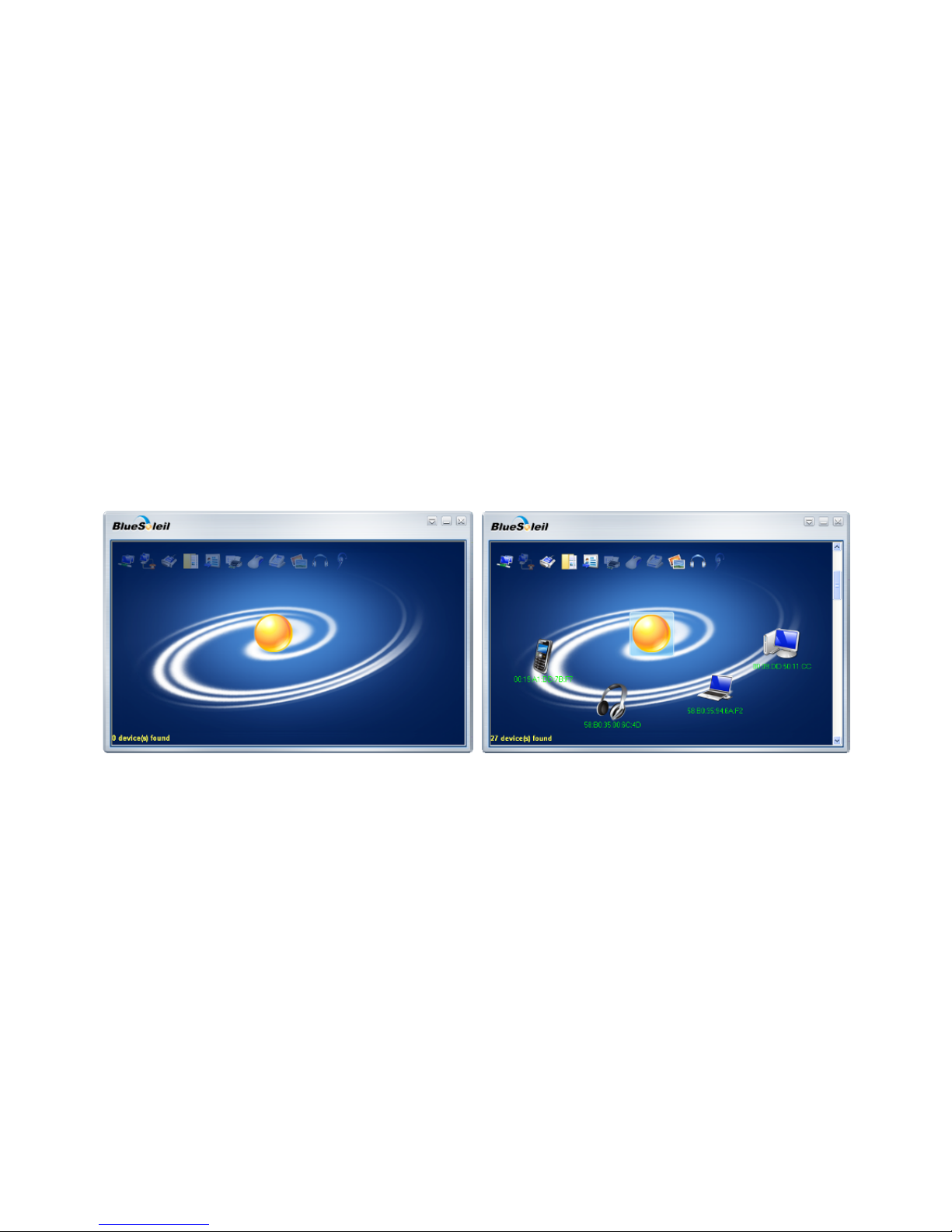

Figure 3.2: BlueSoleil Window
Figure 3.3: Search Devices

12
3.3. Using Bluetooth Serial Port
This section describes how to use the Bluetooth serial port. The Bluetooth Serial Port (SPP) provides a virtual serial port via Bluetooth. Any program that
uses a standard serial port can use the Bluetooth serial port. A Bluetooth passkey (PIN code) is required for to connect to. Please confirm your Bluetooth
PIN code.
a. To search for your device, double-click on the My Device icon, namely, the orange ball in the center of the window. (Figure 3.4)
b. Click and right-click on your device icon, and then click on “Search Services” (Figure 3.5)
Figure 3.4: Search for the device
Figure 3.5: Search Services

13
c. Right-click on your device icon, and then click on “Connect Bluetooth Serial Port” (Figure 3.6)
d. The connection is established successfully. You can use Bluetooth Serial Port. (Figure 3.7)
Figure 3.6: Connect Bluetooth Serial Port
Figure 3.7: Complete the Connection

14
e. To disconnect the connection, right-click on your device icon. And then click “Disconnect Bluetooth Serial Port” (Figure 3.8)
Figure 3.8: Disconnect the Connection

15
3.4. Using Dial-up Network (DUN)
This section describes how to connect to the Internet using a mobile telephone. You need to have already signed up with a provider and obtained a
connection ID and password. Please ensure you have confirmed the ID, password and telephone number of your provider's access point before you
begin the set-up process. A Bluetooth passkey (PIN code) is required for to connect to. Please make a note of your Bluetooth passkey.

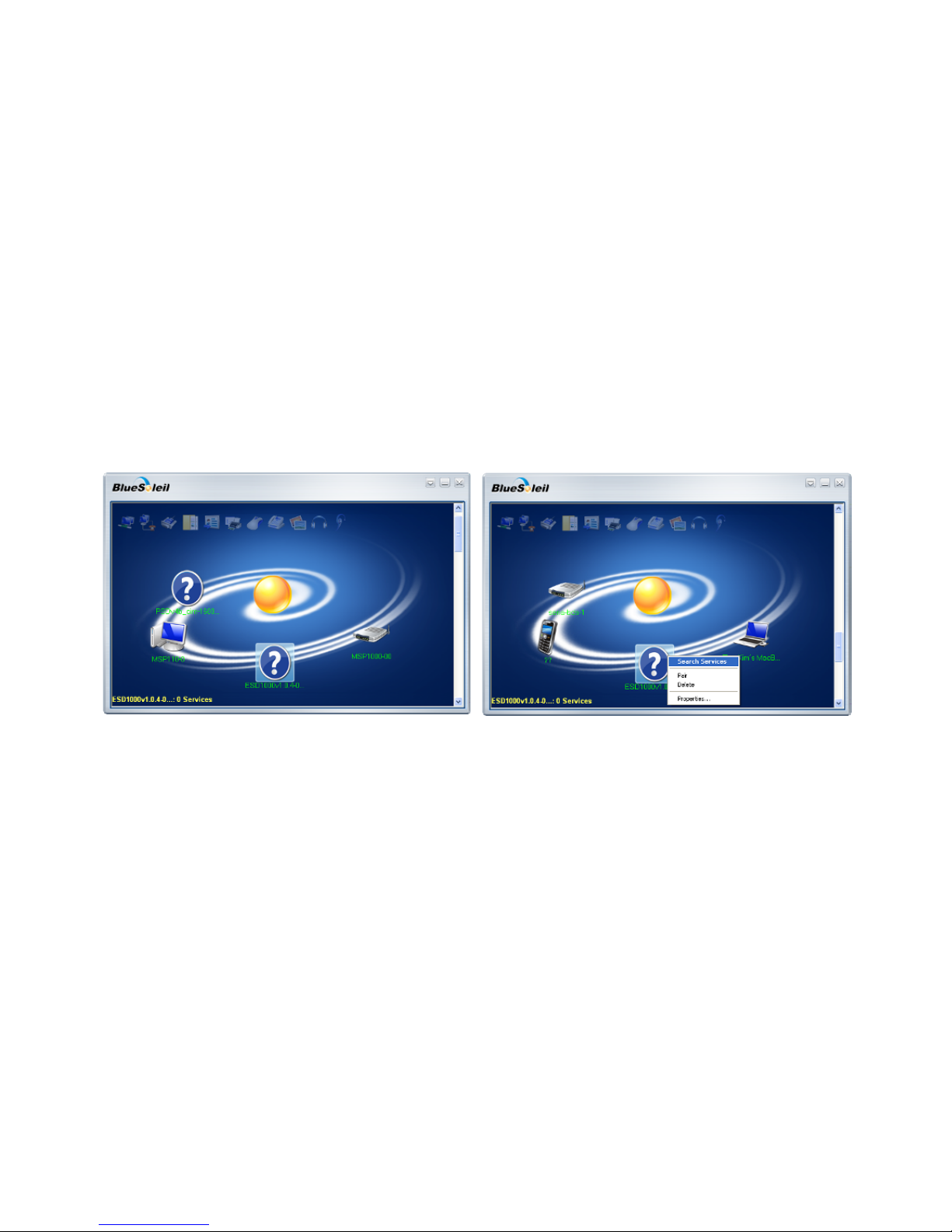

a. To search for your device, double-click on the My Device icon, namely, the orange ball in the center of the window. (Figure 3.9)
b. Click and right-click on your device icon, and then click on “Search Services” (Figure 3.10)

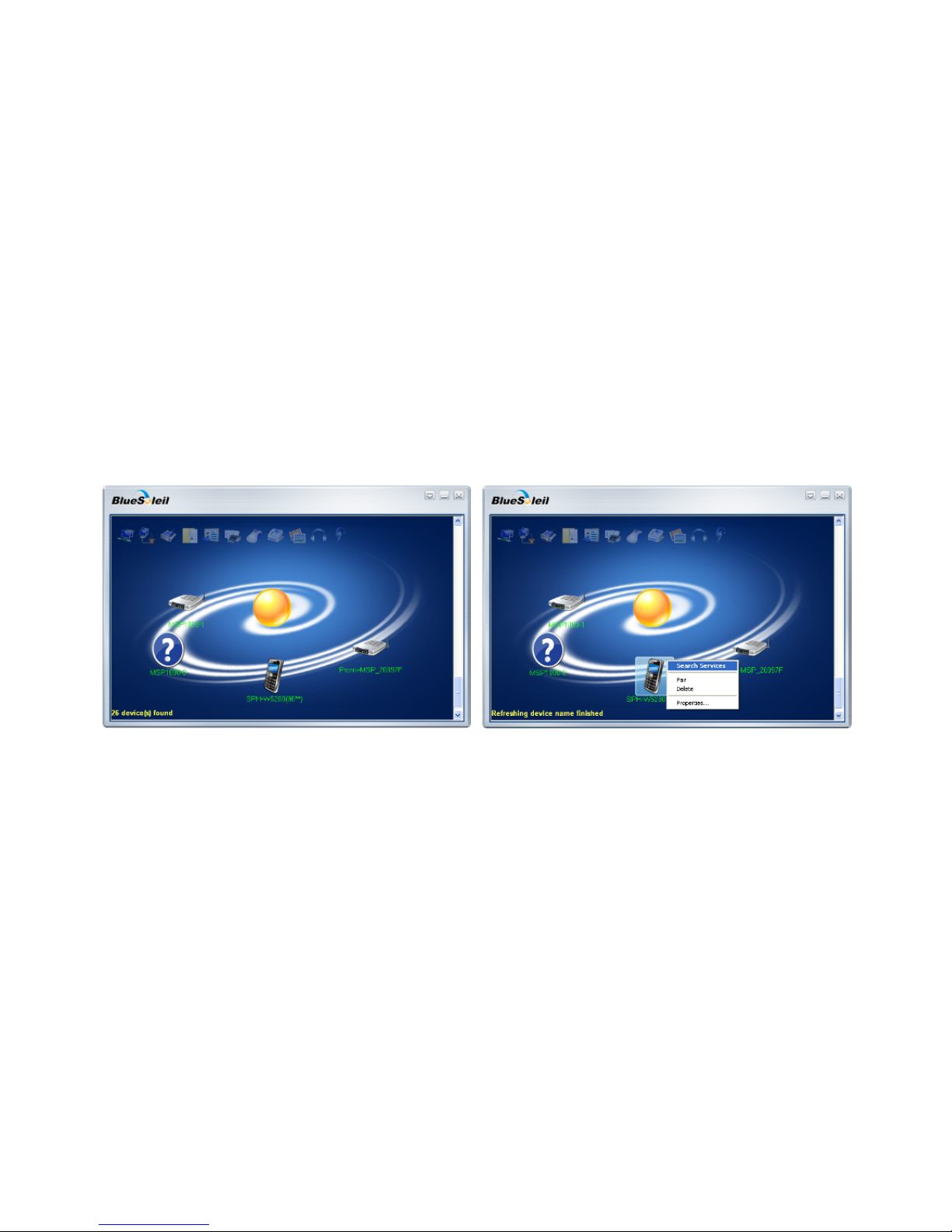

Figure 3.9: Search for the device
Figure 3.10: Search Services

16
c. Right-click on your device icon, and then click on “Connect Bluetooth Dial-Up Networking” (Figure 3.11)
d. Type the Bluetooth Passkey (PIN Code). And then click the “OK” button (Figure 3.12)

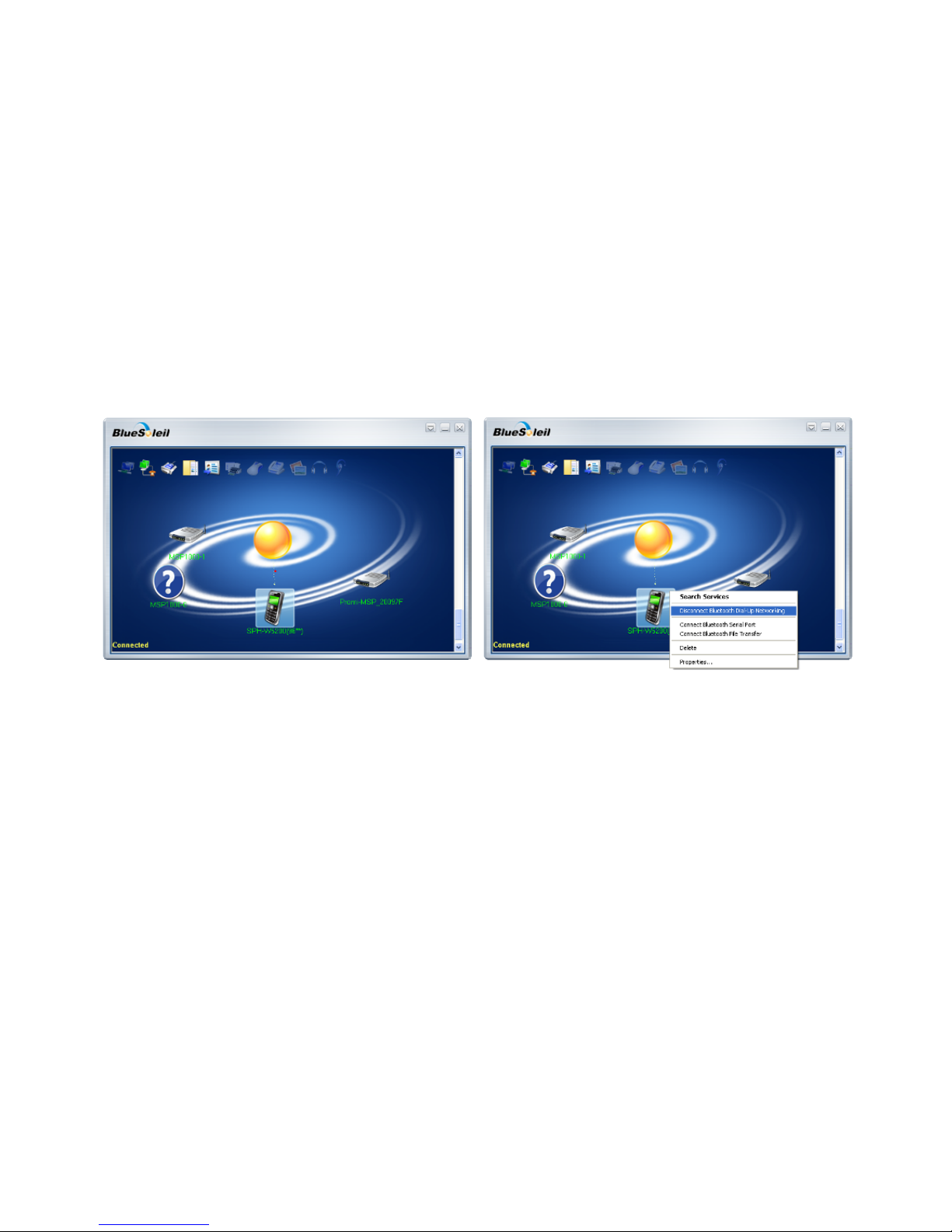

Figure 3.11: Connect Dial-Up Networking
Figure 3.12: Type the PIN Code

17
e. Click the Dial-up Connection icon on your taskbar then pop up the window. (Figure 3.13)
f. Type your ID and password according to the arrangement with your provider. And then click the “Dial” button. (Figure 3.14)

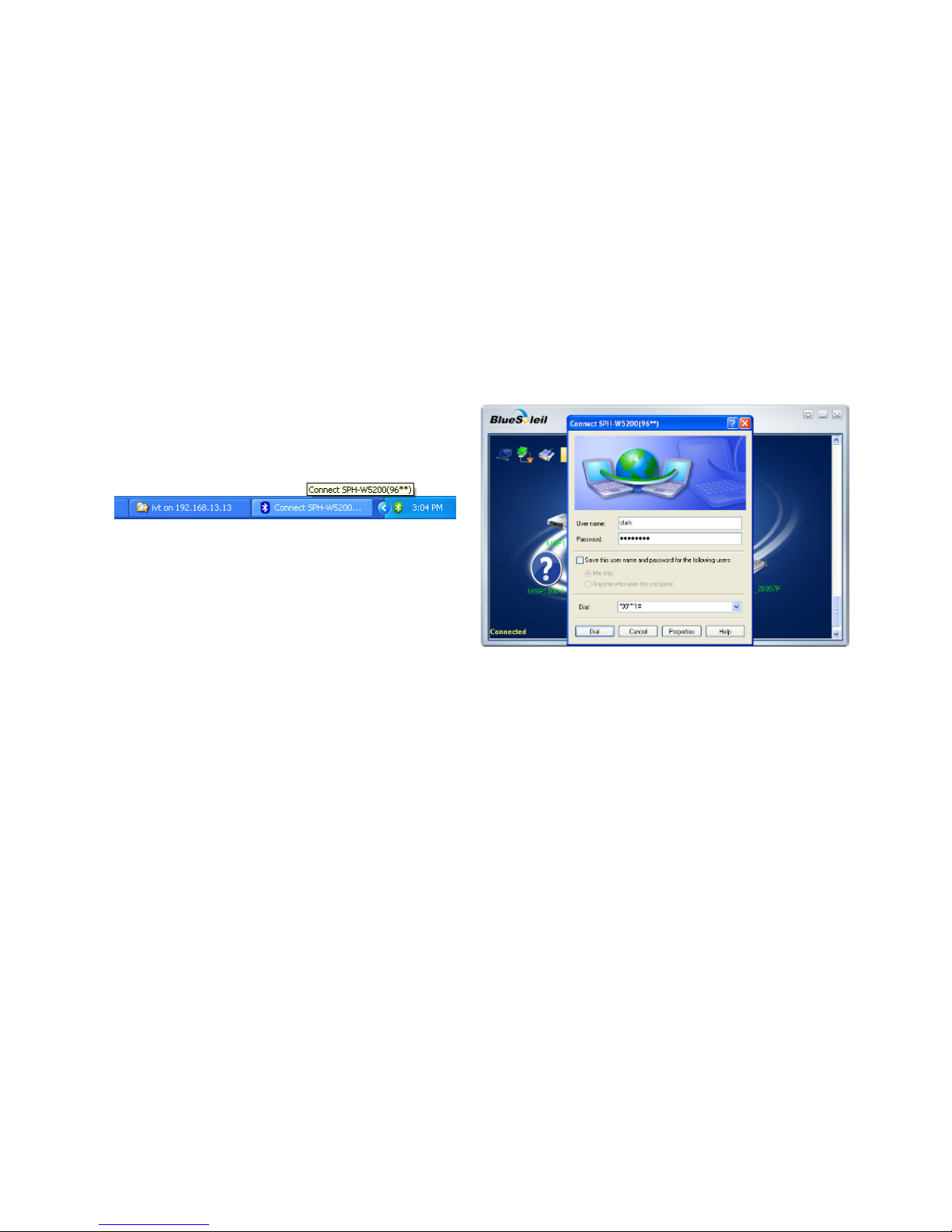

Figure 3.13: Dial-Up Connection icon
Figure 3.14: Type your ID and Password

18
g. The connection is established successfully. You can use Bluetooth Dial-Up network. (Figure 3.15)
h. To disconnect the connection, right-click on your device icon. And then click “Disconnect Bluetooth Dial-Up Networking”.(Figure 3.16)
Figure 3.15: Dial-Up Connection
Figure 3.16: Disconnect Dial-Up Connection

19
3.5. Using Bluetooth Stereo Headset
This section describes how to use the Bluetooth stereo headset to listen to your stereo music. A Bluetooth passkey (PIN code) is required for to connect
to. Please confirm your headset PIN code.
a. To search for your device, double-click on the My Device icon, namely, the orange ball in the center of the window. (Figure 3.17)
b. Turn your headset on and activate "Discoverable" mode.
c. Click and right-click on your device, and then click on “Search Services” (Figure 3.18)
Figure 3.17: Search for the device
Figure 3.18: Search Services

20
d. Right-click on your device icon, and then click on “Connect Bluetooth Advanced Audio” (Figure 3.19)
e. If you are connecting to the stereo headset for the first time, type the Bluetooth Passkey (PIN Code). And then click the “OK” button (Figure 3.20)
Figure 3.19: Connect Advanced Audio
Figure 3.20: Type the Passkey
