Sharp FP-H30A User manual

R
FP-H30A
“Plasmacluster” and “Device of a cluster of grapes” are
trademarks of Sharp Corporation.
*The number in this technology mark indicates an
approximate number of ions supplied into air of 1 cm3,
which is measured around the center of a room with
the “high-density plasmacluster 7000” applicable oor
area (at 1.2 m height above the oor) at the medium
wind volume in air purifying mode, when an air purier
using the high-density plasmacluster ion evolving
device is placed close to a wall. This product is
equipped with a device corresponding to this capacity.
AIR PURIFIER
OPERATION MANUAL
ENGLISH
中文
空氣清新機
使用說明書
Free standing type
直立型號
OM_FP-H30A.indd 1 2018/01/11 11:53:47

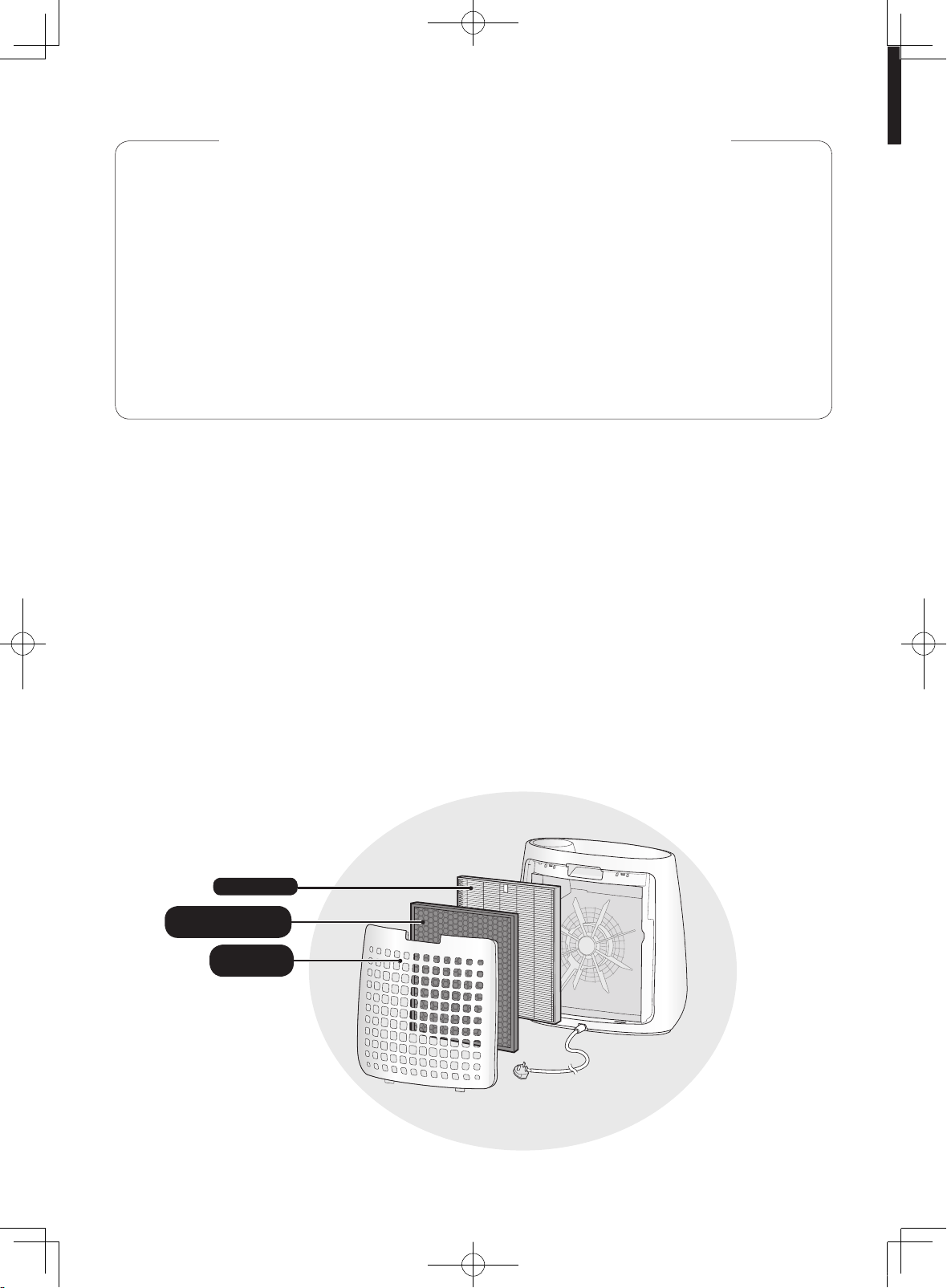

HEPA Filter
Active Carbon
Deodorizing Filter
Back Panel
(Pre-Filter)
NOTE
The air purier draws in room air from the air intake, passes the air through a Pre-
Filter, an Active Carbon Deodorizing Filter and a HEPA Filter inside of the unit, then
discharges the air through the air outlet. The HEPA Filter can remove 99.97% of dust
particles as small as 0.3 microns that pass through the lter.
The Active Carbon Deodorizing Filter gradually absorbs odors as they pass through
the lter.
Some odors absorbed by the lters may break down over time, resulting in additional
odor. Depending on the usage environment, especially when the product is used in
extreme environments (significantly more severe than normal household use), this
odor may become strong in a shorter period than expected. If the odor persists, the
lters should be replaced.
• The air purier is designed to remove air-suspended dust and odor, but not harmful gases
(for example, carbon monoxide contained in cigarette smoke).
Please read before operating your new Air Purier
OM_FP-H30A.indd 2 2018/01/11 11:53:48

E-1
ENGLISH
Thank you for purchasing the SHARP
Air Purier. Please read this manual carefully.
Before using this product, be sure to read the
section: “Important Safety Instructions.”
After reading this manual, keep it in a
convenient location for future reference.
For your reference, we recommend to keep
this manual in the place where you can read
at any time.
IMPORTANT SAFETY INSTRUCTIONS
..... E-2
PART NAMES...............................................E-4
FILTER INSTALLATION ............................. E-5
OPERATION .................................................E-6
CARE AND MAINTENANCE .....................E-8
REPLACEMENT GUIDELINES ................. E-9
TROUBLESHOOTING ..............................E-10
SPECIFICATIONS...................................... E-11
CONTENTS
ENGLISH
FEATURES
Unique Combination of Air Treatment
Technologies
Triple Filtration System + Plasmacluster
Ions
TRAPS DUST*
Pre-lter traps dust and other large
airborne particles.
REDUCES ODORS
Active Carbon Deodorizing lter absorbs
many common household odors.
REDUCES POLLEN & MOLD*
HEPA lter traps 99.97% of particles as
small as 0.3 microns.
FRESHENS
Plasmacluster treats the air similar to the
way nature cleans the environment by
emitting a balance of positive and negative
ions.
*When air is drawn through the lter
system.
OM_FP-H30A.indd 1 2018/01/11 11:53:50

E-2
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed,
including the following:
WARNING - To reduce the risk of electric shock, re or injury to persons:
• Read all instructions before using the unit.
• Use only a 220 volt outlet.
• Do not use the unit if the power cord or plug is damaged or the connection to the
wall outlet is loosened.
• Periodically remove dust from the power plug.
• Do not insert ngers or foreign objects into the intake or air outlet.
• When removing the power plug, always hold the plug and never pull the cord.
Electric shock and/or re from short circuit may occur as a result.
• Be careful not to damage the power cord, it may cause electric shock, excess heat or
res.
• Do not remove the plug when your hands are wet.
• Do not use this unit near gas appliances or replaces.
• Remove the power plug from the wall outlet before cleaning the unit and when not
using the unit.
Electric shock from bad insulation and/or re from short circuit may occur as a result.
•When cleaning the unit, or when the unit is not in use, be sure to unplug the unit. Electric
shock and/or re from a short circuit may result.
• If the power cord is damaged, it must be replaced by the manufacturer, its service
agent, Sharp Authorized Service Center or similarly qualified person in order to
avoid a hazard.
• Do not operate when using aerosol insecticides or in rooms where there is oily residue,
incense, sparks from lit cigarettes, chemical fumes in the air or in very high humidity
conditions, such as a bathroom.
• Be cautious when cleaning the unit. Corrosive cleansers may damage the exterior.
• Only a Sharp Authorized Service Center should service this air purifier. Contact the
nearest Service Center for any problems, adjustments, or repairs.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
NOTE - Radio or TV Interference
If this air purier should cause interference to radio or television reception, try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the unit and radio/TV receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
OM_FP-H30A.indd 2 2018/01/11 11:53:51

E-3
ENGLISH
CAUTIONS CONCERNING OPERATION
• Do not block the air intake and/or air outlet.
• Do not use the unit near or on hot objects, such as stoves or heaters or where it may
come into contact with steam.
• Do not lay the unit down when using.
• Always hold the handle on the back of the unit when moving it.
• Do not use without the lters installed inside the unit.
• Do not wash and reuse the HEPA lter and the Active Carbon Deodorizing lter.
Not only does it not improve lter performance, it may cause electric shock or malfunction.
INSTALLATION GUIDELINES
•When using the unit, place it away from equipment utilizing electric waves such as
televisions or radios to avoid electrical interference.
• Avoid using in locations where furniture, fabrics or other items may come in
contact with and restrict the air intake and/or air outlet.
• Avoid using in locations where the unit is exposed to condensation or drastic
temperature changes. Appropriate condition is at room temperature 0 – 35 ºC.
• Place on a stable surface with sufcient air circulation.
When placing the unit on a heavily carpeted area, the unit may vibrate slightly.
• Avoid locations where grease or oily smoke is generated.
The unit surface may crack as a result.
•Place the unit about 30 cm(1 ft) away from the wall in order to ensure proper
airow.
The dust collecting performance will be the same even if using the unit 3cm away from
the wall, but place it as far as possible(30cm away recommended) because it may dirty
the wall or oor around.
FILTER GUIDELINES
• Follow the instructions in this manual for correct care and maintenance of the lter.
OM_FP-H30A.indd 3 2018/01/11 11:53:51

E-4

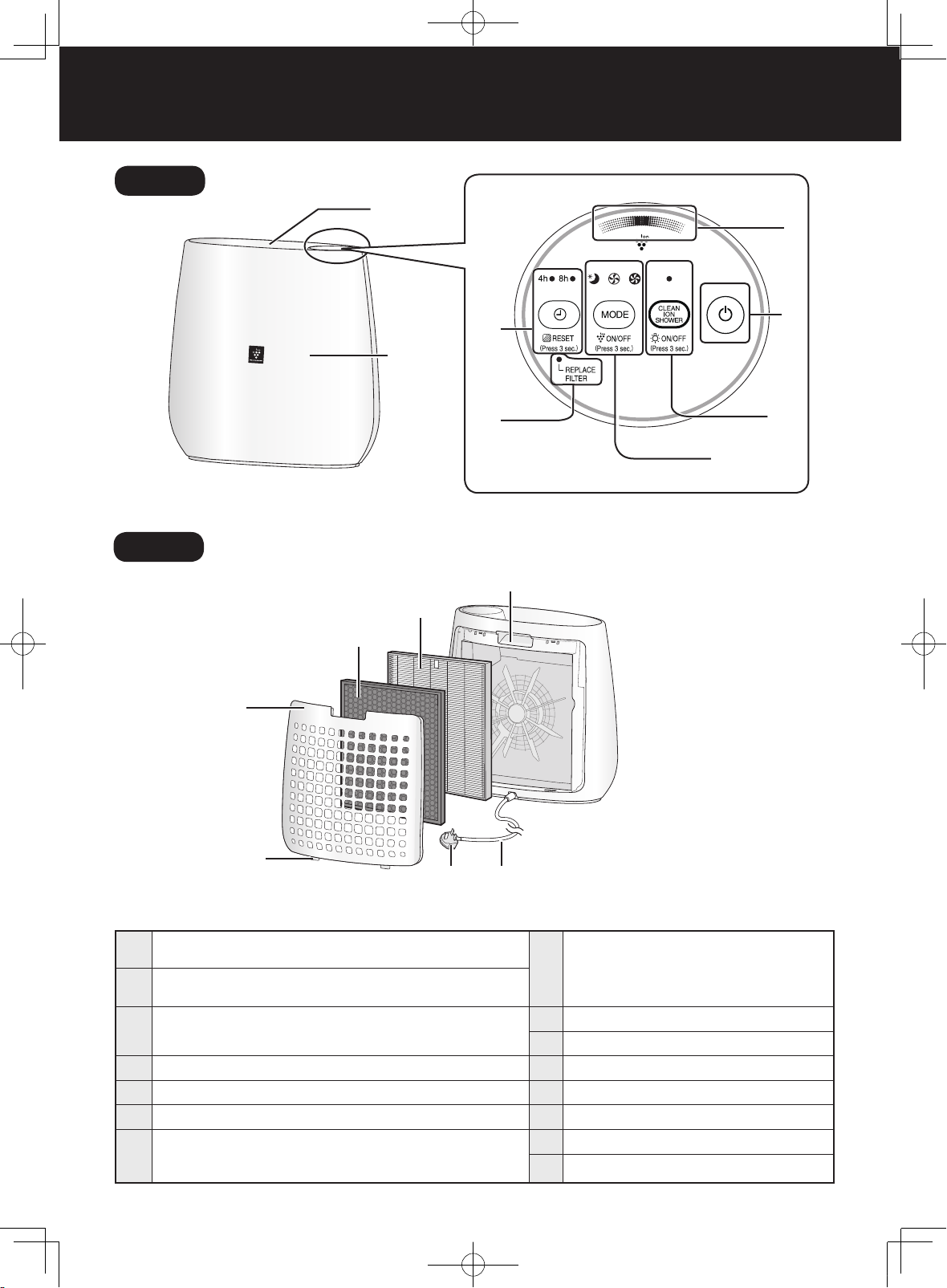

PART NAMES
13
15
FRONT
BACK
14
9
11
12
10
1Main Unit
8
MODE Button, Indicator Light
(green)
Plasmacluster Ion ON/OFF Button
(Press 3 sec.)
2Air Outlet
3OFF TIMER Button, Indicator Light (green)
Filter Reset Button (Press 3 sec.)
9HEPA Filter
10 Active Carbon Deodorizing Filter
4Replace Filter Indicator Light (orange) 11 Back Panel (Pre-Filter)
5Plasmacluster Ion Indicator Light (blue) 12 Bottom Tabs
6POWER ON/OFF Button 13 Handle
7
CLEAN ION SHOWER Button, Indicator Light (green)
LIGHT ON/OFF Button (Press 3 sec.)
14 Power Cord
15 Plug
2
1
4
8
6
3
5
7
OM_FP-H30A.indd 4 2018/01/11 11:53:53

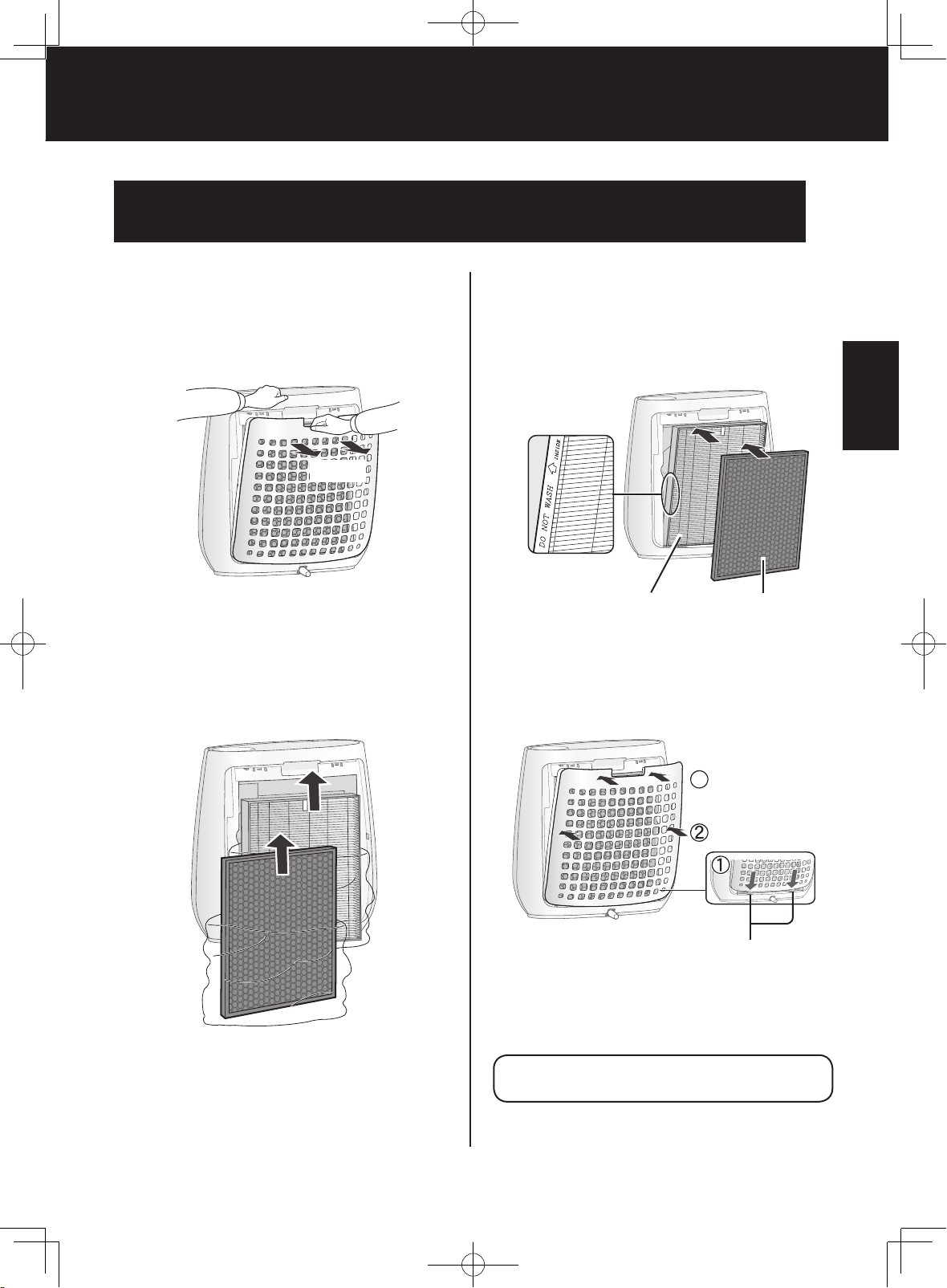

E-5
ENGLISH

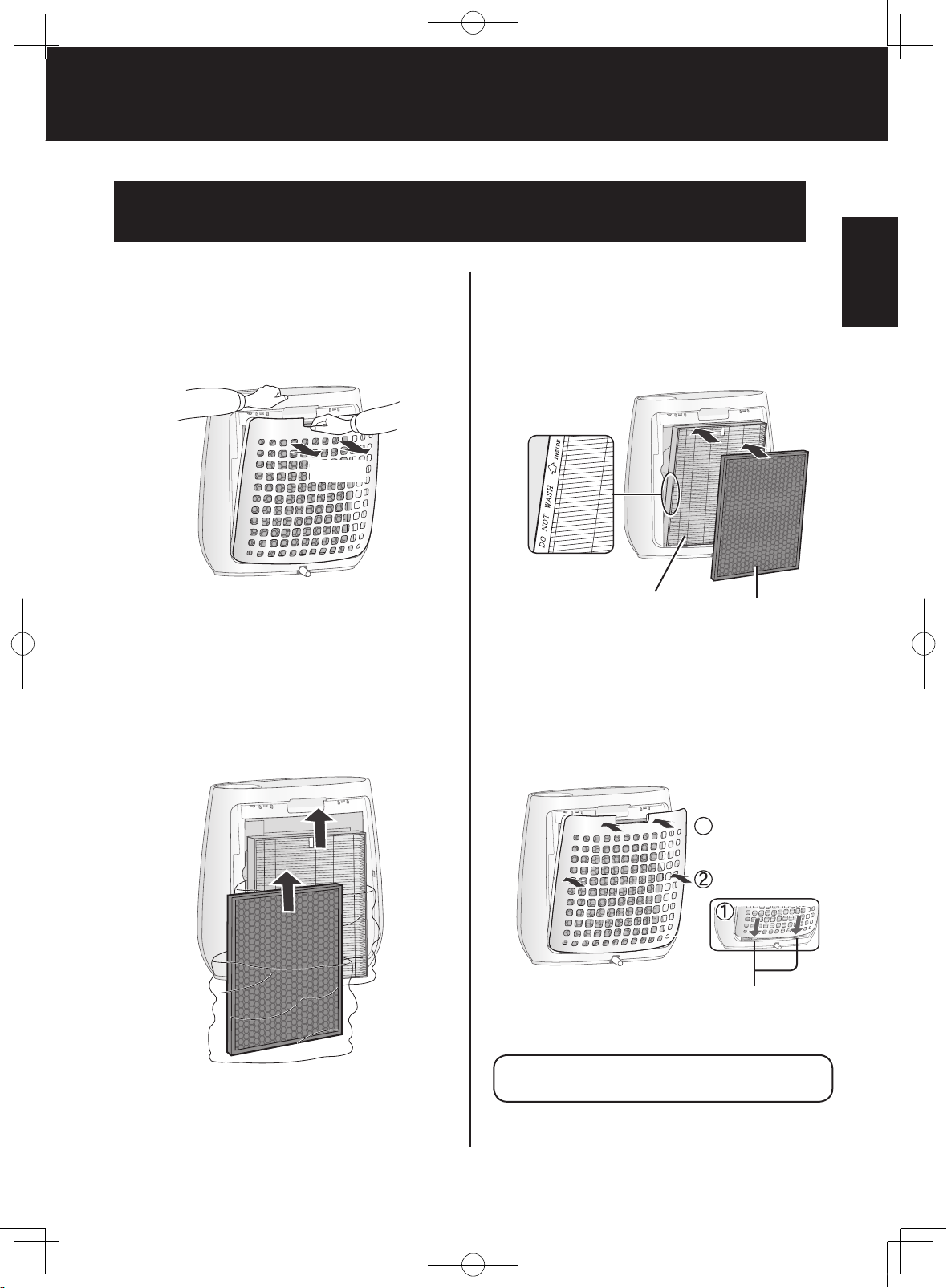

1
Remove the Back Panel.
2
Remove the plastic bag from the
Filter.
3
Place the Filter within the main
unit.
Do not install the filter backwards or
the unit will not operate properly.
4 Replace the Back Panel to the
main unit.
FILTER INSTALLATION
To maintain the quality of the  lter, it is installed in the main unit and packed in plastic
bag. Be sure to remove the  lter from the plastic bag before using the unit.
• Do not operate the unit without the  lter.
Pull
Be sure to remove the power plug
from the wall outlet.
3Push
Bottom Tabs
Push
HEPA Filter Active Carbon
Deodorizing Filter
OM_FP-H30A.indd 5 2018/01/11 11:53:59

E-6

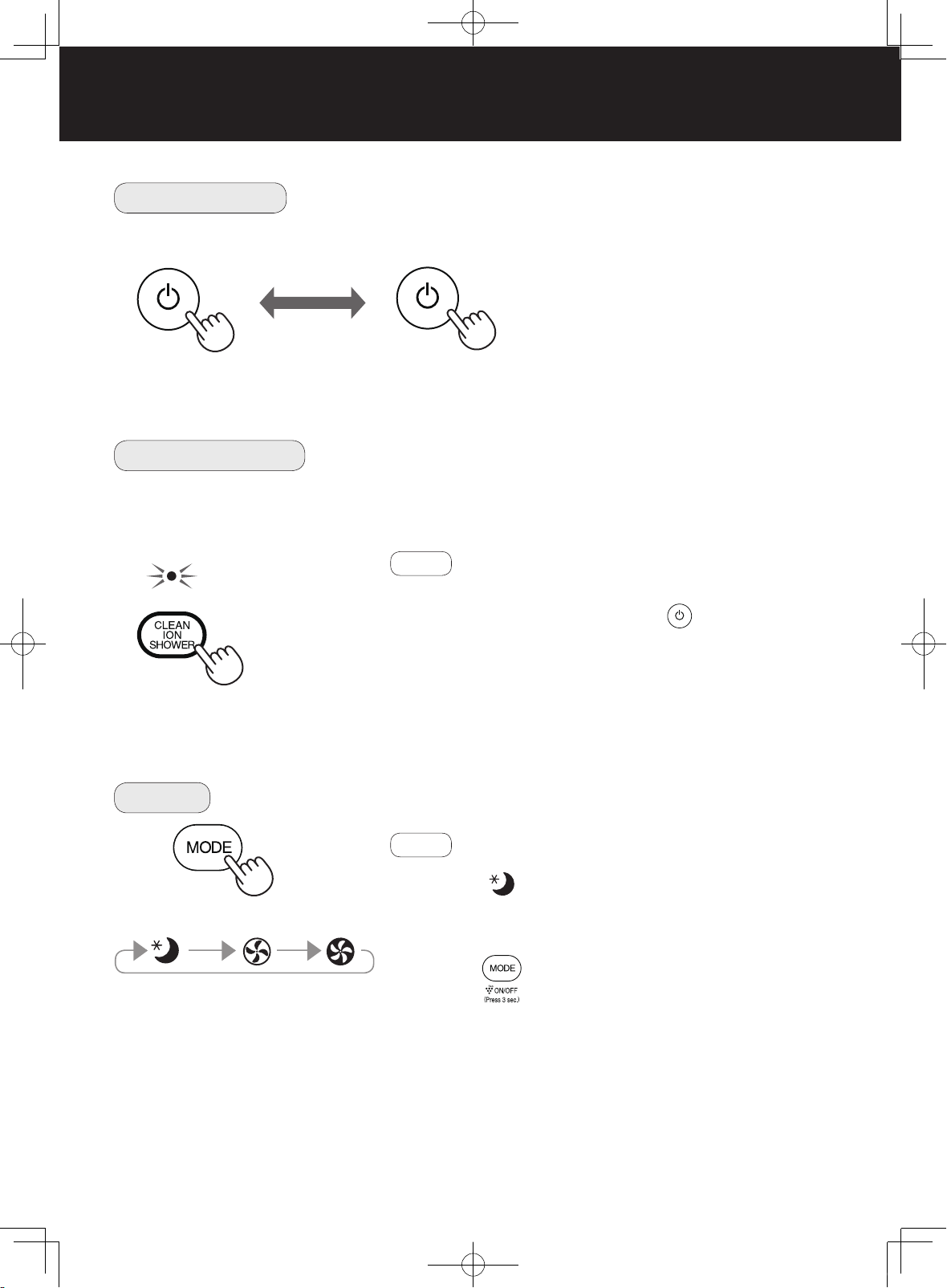

OPERATION
SLEEP MED MAX
CLEAN AIR
START
•Select the desired fan speed.
•Unless the power cord has been unplugged,
the operation starts in the previous mode it
was operated in.
STOP
FAN SPEED
SLEEP
• The unit will operate very quietly with low fan speed.
Plasmacluster Ion Indicator goes off automatically.
Even though the indicator is off, Plasmacluster Ion is
released into air unless Plasmacluster Ion is turned off
by .
NOTE
Releases high-density Plasmacluster Ions and discharges strong air ow for 60 minutes.
CLEAN ION SHOWER
START
• When the operation nishes, the unit will return to the prior
operation mode.
It is able to change the other mode and during this
mode.
• If Plasmacluster Ion is OFF, Plasmacluster Ion will not be
released.
NOTE
OM_FP-H30A.indd 6 2018/01/11 11:54:07

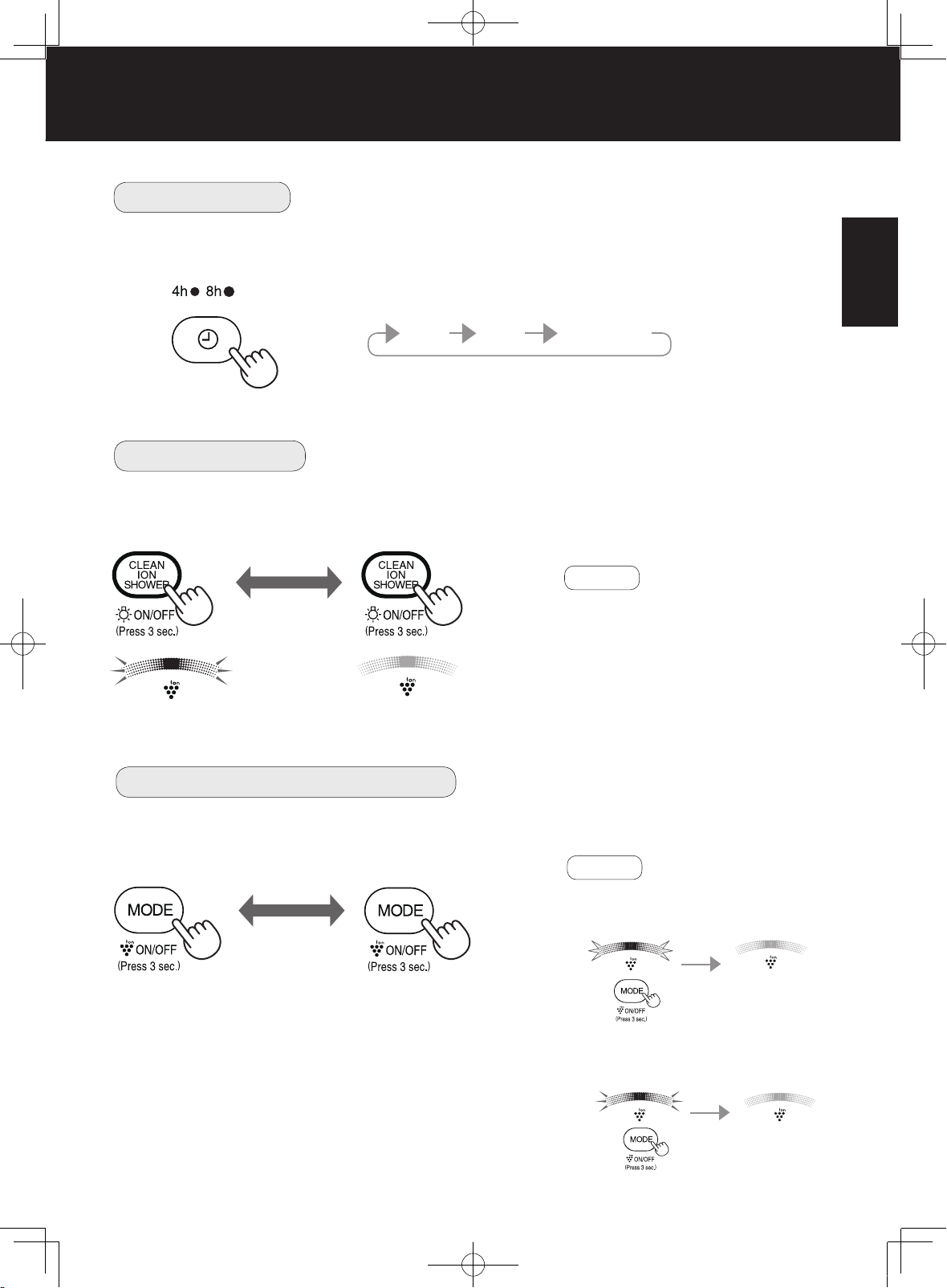

E-7
ENGLISH
When Indicator is off,
•If Plasmacluster Ion is ON,
•If Plasmacluster Ion is OFF,
3 sec.
OFF
OFF
Plasmacluster Ion ON/OFF
When Plasmacluster Ion is ON, the Plasmacluster Ion Indicator Light will turn on. (blue)
ON OFF
NOTE
Flashing
Lighting
4h ●8h ●CANCEL
OFF TIMER
Select the time turning off the unit during operation. The unit automatically stops once the selected
time is reached.
3 sec.
Light Control
You can set the Plasmacluster Ion Indicator to OFF when the Plasmacluster Ion Indicator is bright.
ON OFF
•When the unit restarts its operation,
Light Control resumes its setting
set before turning off.
NOTE
more than 3 sec. more than 3 sec.
more than 3 sec. more than 3 sec.
OM_FP-H30A.indd 7 2018/01/11 11:54:18

E-8
To maintain optimum performance of this air puri er, please clean the unit including the  lter
periodically.
Be sure to disconnect the power cord from the wall outlet before performing any maintenance.
CARE AND MAINTENANCE
Gently remove dust from the back panel
by using a vacuum cleaner attachment or
similar tool.
Back Panel (Pre- lter)
Back Panel
Back Panel
Unit
Wipe with a dry, soft cloth
For stubborn stains or dirt, use a soft cloth dampened with warm water.
• Do not use volatile  uids
Benzene, paint thinner, polishing powder, etc. , may damage the surface.
• Do not use detergents
Detergent ingredients may damage the unit.
CAUTION
1. Add a small amount of kitchen detergent to water and
soak for about 10 minutes.
2. Rinse off the kitchen detergent with clean water.
3. Completely dry the  lter in a well-ventilated area.
How to clean stubborn dirtNOTE
Do not apply excessive pressure when
scrubbing the back panel.
CAUTION
Gently remove dust from the HEPA FILTER and Active Carbon Deodorizeing Filter
with a vacuum cleaner attachment or similar tool.
Filters
CAUTION
Tag
HEPA Filter
Active Carbon
Deodorizing Filter
Do not WASH in water and DRY in the sun.
The  lters are fragile, be careful not to apply too much force.
• HEPA Filter
Apply the maintenance only on the side with the tag.
Do not clean the opposite side; otherwise, the  lter will be damaged.
• Active Carbon Deodorizing Filter
The maintenance can be applied to the both sides.
OM_FP-H30A.indd 8 2018/01/11 11:54:25

E-9
ENGLISH
REPLACEMENT GUIDELINES
Disposal of Filter
Please dispose of the replaced lter according
to the local disposal laws and regulations.
Replacement timing
When Replace Filter Indicator light turn on*
Filter
Replace the Filter according to the instructions
provided with the replacement lter.
After the exchange, insert the plug in socket and
press the POWER button, and OFF TIMER button 3
seconds.
HEPA
Filter
Active Carbon
Deodorizing
Filter
Active Carbon
Deodorizing Filter
Model : FZ-F30HFE
Model : FZ-F30DFE-HK
HEPA Filter
Do not wash and reuse the lter
The lter life and replacement period are based
on the condition of smoking 5 cigarettes per day
and the dust collection power is reduced by half
compared with that of new lter.
Filter life varies depending on the room
environment, usage, and location of the unit.
We recommend to replace the lter more
frequently if the product is used in a condition
signicantly severer than normal household use.
• Please consult your dealer for purchase of
replacement lter.
• Use only lter designed for this product.
*
The Replace Filter indicator light will turn on after
approximately 17,500 hours in Sleep mode.
( 2 years × 24 hours = 17,500)
Filter life varies depend on the operation mode.
HEPA Filter materials:
•Filter : Polypropylene
•Frame : Polyester
Active Carbon Deodorizing Filter
materials:
• Polypropylene • Polyester
• Activated charcoal
OM_FP-H30A.indd 9 2018/01/11 11:54:31

E-10
TROUBLESHOOTING
Before calling for service, please review the troubleshooting list below, since the problem may not be
a unit malfunction.
SYMPTOM REMEDY (not a malfunction)
Dust and smoke are not removed. • Clean or replace the lter if they appear to be heavily
soiled. (Refer to E-8,E-9)
A clicking or ticking sound is heard
from the unit.
• Clicking or ticking sound may be audible when the unit
is generating ions. (Refer to E-7)
The discharged air has an odor. • Check to see if the lter are heavily soiled.
Replace the lter.
• Plasmacluster Air Puriers emit small traces of ozone
which may produce an odor. These ozone emissions
are well below safety level.
The Plasmacluster Ion Indicator
doesn’t Light on.
• Check to see if the SLEEP mode is selected.
The Plasmacluster Ion Indicator Light is turned off
3 seconds after the SLEEP mode is selected.
• Check to see if the Plasmacluster Ion OFF is selected.
Press for 3 seconds to light On.
• Check to see if the Light Control OFF is selected.
Press for 3 seconds to light On.
AUTO RESTART • Even when the plug is unplugged or the breaker
is thrown during operation, the unit resumes at the
previous operation mode and settings if the power
recovers.
ON(default)
OFF
(with the unit OFF)
(with the unit OFF)
If the , , lights Lights up for
10 seconds, the setting is ‘ON’.
(simultaneously for more than 3 sec.)
(simultaneously for more than 3 sec.)
If the , , lights ashes for 3
seconds, the setting is ‘OFF’.
OM_FP-H30A.indd 10 2018/01/11 11:54:44

E-11
ENGLISH
Power Supply 220V 50Hz
Fan
Speed
Operation
Fan Speed MAX MED SLEEP
Rated Power (W) 50 30 13
Airow (m3/hr) 180 120 60
Applicable Floor Area (m2)*1 ~22
High density Plasmacluster ion recommended room size (m2)*2 ~16
Cord Length (m) 2.0
Dimensions (mm) 431(W) x 211(D) x 411(H)
Weight (kg) 4.2
*1 Size of a room which is appropriate for operating the unit at maximum fan speed.
• It indicates the space where a certain amount of dust particles can be removed in 30 minutes
(JEM1467).
*2 Size of a room in which approximately 7000 ions can be measured per cubic centimeter in the
center of the room (at a height of approximately 1.2 meters from the oor) when the product is
placed next to a wall and run at the MED operation position.
Standby Power In order to operate the electrical circuits while the power plug is inserted in the
wall outlet, this product consumes about 0.6W of standby power.
For energy saving, unplug the power cord when the unit is not in use.
SPECIFICATIONS
OM_FP-H30A.indd 11 2018/01/11 11:54:44

HEPA 過濾網
活性碳除臭過濾網
前置過濾網
注意
空氣清新機從進氣口吸入室內空氣，讓空氣通過預濾網及主機內的活性碳除臭過濾網和
HEPA 過濾網，然後將淨化後的空氣由出風口排出。HEPA 過濾網可以去除 99.97% 穿過
過濾網的約 0.3 微米的灰塵。而活性碳除臭過濾網則會吸除異味。
過濾網吸附的異味隨著時間可能會再次分解並散發出來，從而產生其他異味。視乎不同
的使用環境，尤其是產品應用於極端環境下（比家居使用環境嚴重），這些異味可能在
比預期更短的時間內變得更濃烈。如果異味持續存在，請更換過濾網。
• 本空氣清新機用於去除空氣中懸浮的灰塵和異味，而不能去除有害氣體
（如 : 香煙煙霧中的一氧化碳）。
操作您的新空氣清新機之前，請詳細閱讀本手冊
OM_FP-H30A.indd 12 2018/01/11 11:54:45

C-1
中文
感謝您購買 SHARP 空氣清新機。請仔細閱讀
本說明書。使用本產品之前，請務必閱讀“重
要安全事項”一節。
閱讀後請妥善保存本說明書，以便日後查閱。
我們建議將本說明書保存於方便隨時查閱的地
方。
中文
特點
獨有多重空氣淨化技術
三重過濾網系統及 Plasmacluster Ions
去除灰塵 *
前置過濾網去除灰塵及其他較大的空
氣粒子。
去除異味
活性碳除臭過濾網能去除一般垃圾異
味。
去除花粉與霉菌 *
HEPA 過濾網可去除 99.97% 約 0.3 微
米的微塵粒子。
淨化空氣
正如大自然潔淨環境的原理 一樣，
Plasmacluster Ions 在淨化空氣的同時，
釋放出數量相等的正離子和負離子來
淨化空氣。
* 空氣經過過濾網系統，然後再排出。
重要安全事項...............................................................C-2
各部份名稱....................................................................C-4
安裝過濾網....................................................................C-5
主機操作.........................................................................C-6
日常保養.........................................................................C-8
過濾網更換指南..........................................................C-9
故障時的檢查事項..................................................C-10
規格................................................................................C-11
目錄
OM_FP-H30A.indd 1 2018/01/11 11:54:46

C-2
重要安全事項
在使用電器產品時 , 必須遵守基本安全預防措施 , 包括以下各方面 :
警告 - 為了減少觸電、火災或受傷等危險：
• 使用本機前，請先閱讀說明書。
• 僅使用 220 伏特電源插座。
• 在電源線或電源插頭發生損壞、或是牆壁上的電源插座發生鬆脫的情況下 , 切勿使用本機。
• 請定期清除電源插頭上的灰塵。
• 請勿將手指或異物插入進氣口或出風口。
• 移除電源插頭時，請務必抓住插頭而不要拉扯電源線。
否則可能會由於短路而導致觸電或發生火災。
•
請注意不要損壞電源線，否則可能導致觸電、過熱或發生火災。
• 切勿在手濕時移除電源插頭。
• 切勿在氣體設備或壁爐附近使用本機。
• 清潔或不使用本機時，將電源線從牆壁的插座上拔出。
否則可能會由於短路而導致觸電、隔熱不良和 / 或發生火災。
• 清潔或不使用本機時，請確保拔出主機的插頭。否則可能會由於短路而導致觸電或發生火災。
• 如果電源線損壞，必須由製造廠商、其服務代理商、聲寶公司授權服務中心或其他具有同
樣資格的人員進行更換，以避免發生危險。
• 使用噴霧殺蟲劑或房間中有含油殘餘物、焚香、點燃香煙的火花、空氣中有化學煙霧或在
非常潮濕的環境（如浴室）中時，請勿使用本機。
• 清潔本機時請注意。腐蝕性清潔劑可能會損壞外殼。
• 只有聲寶公司授權服務中心可以對本空氣清新機進行維修。若本機出現任何問題、需要調
校或修理，請聯絡最近的服務中心。
• 除非得到監護人或負責其安全人士的適當監督或指導，否則，本機不適合身體官能或心智
能力退化者， 或缺乏操作經驗和知識的人士（包括兒童）使用。本機不應該作為兒童的玩具。
在沒有監督的情況下，兒童不應對本機進行清潔保養。
注意 — 收音機或電視機干擾
如果本空氣清新機對收音機或電視接收造成干擾，請嘗試以下列其中一項或多項措施修正干擾：
• 改變接收天線的方向或擺放位置。
• 增加本機與收音機 / 電視機接收器之間的距離。
• 將本機與接收器分別連接至不同的電源插座或供電線路。
• 向經銷商或有經驗的收音機 / 電視機技術人員諮詢並請求幫助。
OM_FP-H30A.indd 2 2018/01/11 11:54:46

C-3
中文
操作的注意事項
• 切勿堵塞進氣口和 / 或出風口。
•
請勿靠近或在熱源物體上（如爐灶、 暖爐或散熱器），或者在可以接觸到蒸氣的地方使用本機。
• 使用時，請勿平放本機。
• 移動本機時，請緊握主機背部的手柄。
• 請勿在沒有安裝過濾網的情況下使用本機。
• 請勿清洗和重複使用 HEPA 過濾網和活性碳除臭過濾網。
這樣不但不會提高過濾網效能，反而可能引致觸電或機件故障。
安裝指南
• 使用本機時，請遠離發出電波的設備（例如電視機或收音機），以避免產生電波干擾。
• 避免在家具、織物或其他用品可能會與進氣口和 / 或出風口接觸的地方使用本機。
• 請勿在溫差極大或導致本機直接暴露於冷凝環境的地方使用。適當的使用環境是
0 – 35 ºC 的室溫環境。
• 安裝必須穩固，且通風良好。
把本機放置在鋪有厚地毯的地方時，可能導致本機微微震動。
• 請避免在產生油煙的地方使用本機。
否則本機外殼可能會裂開。
• 請將本機放置於距離牆壁大約 30 cm (1 ft) 的位置，以確保適當氣流流動。
與牆壁保持 3cm 距離即可確保除塵性能，但仍然應該儘量遠離牆壁（建議 30cm），因為本
機可能會把周圍的牆壁或地板弄髒。
過濾網指南
• 請遵循本說明書的指示，正確保養和維護過濾網。
OM_FP-H30A.indd 3 2018/01/11 11:54:46

C-4
13
15 14
9
11
12
10
各部份名稱
2
1
4
8
6
3
5
7
前面
背面
1主機
8
MODE( 模式 ) 按鈕/ 指示燈 (綠色)
Plasmacluster Ion 開 / 關按鈕
(
按
住 3 秒
)
2吹出口
3關機定時器按鈕 /指示燈 (綠色)
Filter Reset 按鈕
(
按住 3 秒 )
9HEPA 過濾網
10 活性碳除臭過濾網
4Replace Filter 指示燈 (橙色) 11 前置過濾網（背板）
5Plasmacluster Ion 指示燈 (藍色) 12 下扣勾
6電源(開/關)按鈕 13 手柄
7
CLEAN ION SHOWER
( 強力 Ion 除菌 ) 按鈕 / 指示燈
(綠色)
指示燈(開/關)按鈕
(
按住 3 秒
)
14 電線
15 插頭
OM_FP-H30A.indd 4 2018/01/11 11:54:48

C-5
中文
• 請勿在沒有安裝過濾網的情況下操作本機。
拉出
3推入
下扣勾
推入
安裝過濾網 確保將電源線從牆壁的插座上拔出。
為確保過濾網的品質，過濾網以塑膠袋包裝並安裝在主機中。
使用本機前，須將過濾網從塑膠袋中取出。
1
取下前置過濾網 ( 背板 )。
2
將過濾網從塑膠袋中取出來。
3
將過濾網安裝到主機中。
請勿反向安裝過濾網，否則本機無法正
常操作。
4將前置過濾網 ( 背板 ) 裝回主機。
HEPA 過濾網 活性碳除臭過濾網
OM_FP-H30A.indd 5 2018/01/11 11:55:13

C-6
主機操作
睡眠 中等 高速
啟動
•選擇所需的風速。
•除非拔掉電源，否則主機啟動後將維持前一
次的操作模式。
停止運轉
風速
睡眠模式
•本機在使用睡眠模式時操作非常寧靜。
PLASMACLUSTER 指示燈及淨化度指示燈自動熄滅。
即使指示燈關閉後，離子仍然釋放至空氣中，
除非按下 關閉 Plasmacluster Ion。
持續 60 分鐘於高風速釋放高濃度 Plasmacluster Ions。
啟動
•此操作完成時，主機會恢復到之前的操作模式。
本機能在此模式下轉換成其他模式或 停止操作。
• 如果 Plasmacluster Ion 為「關」，將不再釋放出離子。
空氣淨化
強力 Ion 除菌
注意
注意
OM_FP-H30A.indd 6 2018/01/11 11:55:19
