DIGITAL LASER COPIER

PRINTER OPTION

DUAL FUNCTION BOARD

MODEL AR-EB7

[1] SYSTEM CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

[2] SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

[3] UNPACKING AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . 5

[4] ELECTRICAL SECTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

[5] USER PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

[6] FLASH ROM VERSION UP PROCEDURE . . . . . . . . . . . . . . . . . 8

[7] CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

AR-EB7

CONTENTS

[1] SYSTEM CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

[2] SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1. “Sharp Printer Language with Compression (SPLC)” Printer mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

2. IMC board functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . .4

[3] UNPACKING AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2. Parts included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

3. Installation procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

4. Installation of additional memory (After installation, proceed to step 5.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

[4] ELECTRICAL SECTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2. Pin arrangement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

[5] USER PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

[6] FLASH ROM VERSION UP PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1. Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2. Initialization (Procedures for setting the serial number) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

3. Download procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

4. Installation procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

[7] CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

AR-EB7 SYSTEM CONFIGURATION

– 1 –

[1] SYSTEM CONFIGURATION

[2] SPECIFICATIONS

1. “Sharp Printer Language with

Compression (SPLC)” Printer mode

A. Basic specification

B. Printer driver specification

(1) System

(2) Printing function specification

(AR-EB7)

Item Detail

Print Speed 10ppm (600dpi) (With the AR-EB7 installed)

AR-160M (16ppm)/AR-200M (20ppm)

Data resolution 300/600dpi

Input tray 4 Multi size tray

1 Multi Bypass tray

(Depending on conditions of the machine

and option installation.)

Option memory

+16MB (With the AR-EB7 installed)

128/256/512MB can be added to the AR-EB7.

Printer driver Two drivers for the case when the AR-EB7 is

installed and when it is not are automatically

installed by plug & play.

Manual (Online manual)

Standard

Platform IBM PC/AT (Include compatible machine)

Support OS

(Printer Driver) Windows 95/98/Me

Windows NT4.0 Workstation (SP6 or later)

Windows 2000 Professional

Windows XP Home/Professional Edition

Machine OS GDI

IBM PC/AT

(Include compatible

machine)

Windows 95/98/Me

Windows NT4.0 Workstation

(SP6 or later)

Windows 2000 Professional

Windows XP Home/Professional Edition

Yes

Function GDI Driver

Main Copies 1-999

Collate Collate

Uncollate

Document Style 1-sided

2-sided (Book)

2-sided (Tablet)

N-up printing 2/4

N-up Order Z

Main N-up Border Yes/No

Duplex 1-sided

2-sided (Book)

2-sided (Tablet)

Binding Edge Yes/No

Booklet Possible

Booklet Binding Edge Yes/No

Paper Paper Size A3/B4/A4/B5/A5/B6/A6/

Ledger(11x17)/Legal

(8.5 x 14)/Foolscap (8.5 x 13)/

Letter (8.5 x 11)/Invoice

(5.5 x 8.5)/Folio/Executive/

COM-10/DL/C5/8K/16K/

Custom

Custom Paper Size 1 size

100 - 297mm(W)

148 - 431.8mm(H)

Paper Selection • Auto Select

• Bypass

• Tray 1/2

Fit to Page Yes/No

Image Orientation Portrait/Landscape

Advanced Print Quality Normal

Draft

Photo (without Win9x, Me)

Image Adjustment Yes/No

Brightness 0 to 100

Contrast 0 to 100

2 Gradation print Yes/No

Water-marks Watermark (None)/TOP SECRET/

CONFIDENTIAL/DRAFT/

ORIGINAL/COPY

User setting Add/Update/Delete

Position Center

X: m50

Y: m50

Size 6 to 300

Angle m90

Gray Scale 0 to 255

Edit Font Yes

On first page only Yes/No

Function GDI Driver

AR-EB7 SPECIFICATIONS

– 2 –

(3) Scanner function specification

(4) System requrement

Note: Hardware requirements such as CPU and RAM for your operat-

ing system must be satisfied.

(5) Print quality

*Default

(6) Print area

Type Flat bed color scanner

Scan system Document table/document feed unit

Light source White CCFL

Resolution Basic 600 x 1200dpi

Set range: 50 ~ 9600dpi

Document Sheet/Book

Effective scan range OC/SPF: Approx.297(V) x 431(H)

Scan speed OC/SPF: 2.8mm sec/line (Color)

Input data 1bit or 12bit

Output data 1bit or 8bit

Scan color Black and white binaryGray scaleFull color

Protocol TWAIN/WIA (XP only)/STI

Interface USB1.1

USB2.0 (It can be used according to conditions.)

(Option support: High speed mode)

(Supported when E-sort is installed)

Scanner utility Sharp Desk/Button Manager

Drop-out color Provided

Scanner button Provided (6)

Duplex scan Provided

Supported OS Windows98/ME/2000/XP

Void area Lead edge/rear edge (2.5mm) on the driver side

Left/right: 3.0mm

WHQL support Yes

Memory storage

method JPEG-compression by hardware.

Computer IBM PC/AT (Include compatible machine)

Operating system Windows 95/98/Me

Windows NT 4.0 Workstation (SP5 or later)

Windows 2000 Professional

Windows XP Home/Professional Edition

Resolution 600dpi Print quality is selected from

Normal*/Draft/Photo.

2 Gradation print On 2-Gradation print function is ON.

Off*2-Gradation print function is OFF.

Paper

Size ABCDEFGH

A3 7014 9920 6730 142 100 300 6814 0

B4 6070 8597 5786 142 100 300 5870 0

A4 4960 7014 4676 142 100 300 4760 0

B5 4298 6070 5770 142 100 300 4098 0

A5 3508 4960 3224 142 100 300 3308 0

Ledger 6600 10200 6300 150 100 300 6400 0

Legal 5100 8400 4800 150 100 300 4900 0

Letter 5100 6600 4800 150 100 300 4900 0

Invoice 3300 5100 3000 150 100 300 3100 0

Foolscap 5100 7800 4800 150 100 300 4900 0

Folio 4980 7800 4680 150 100 300 4780 0

Executive 4350 6300 4050 150 100 300 4150 0

COM-10 2474 5700 2174 150 100 300 2274 0

C5 3826 5408 3542 142 100 300 3626 0

DL 2598 5196 2314 142 100 300 2398 0

Actual page size

HP/GL

picture frame

Logic paper size

Print area

AR-EB7 SPECIFICATIONS

– 3 –

*Top margin

The set value is received from the digital copier, and data are made

according to the set value.

*Left margin

Since the paper size sensor is not set, the digital copier cannot recog-

nize the size and direction of paper which is actually inserted.

Therefore, the left margin is set according to the paper size specified

in the print data sent from the computer, and print process is per-

formed.

If the computer does not specify the paper size, or in the case of the

custom size, the left margin is set according to the default paper size.

(7) Print reference

This machine employs the center reference system.

Since the digital copier is not provided with the tray size detection fea-

ture, formatting and center distribution are performed not by the actual

paper size but by the paper size specified by the computer.

D. Interface

2. IMC2 board functions

Caution: The number of sheets for the columns marked with “*” is calculated supposing that the same quantity is assigned to the ROPM memory and

the copy expansion memory.

Paper

Size ABCDEFGH

A3 9920 7014 9684 118 100 300 9720 0

B4 8597 6070 8361 118 100 300 8397 0

A4 7014 4960 6778 118 100 300 6814 0

B5 6070 4298 5830 118 100 300 5870 0

A5 4960 3508 4720 118 100 300 4760 0

Ledger 8400 5100 8160 120 100 300 8200 0

Legal 8400 5100 8160 120 100 300 8200 0

Letter 6600 5100 6360 120 100 300 6400 0

Invoice 5100 3300 2860 120 100 300 4900 0

Foolscap 7800 5100 7560 120 100 300 7600 0

Folio 7800 4980 7560 120 100 300 7600 0

Executive 6300 4350 6060 120 100 300 6100 0

COM-10 5700 2474 3460 120 100 300 5500 0

C5 5408 3826 5172 118 100 300 5208 0

DL 5196 2598 4960 118 100 300 4996 0

Actual page

size

HP/GL


frame

Logic paper

size

Print area

Interface USB 1.1 (Standard)

USB 2.0 High speed

(With the AR-EB7 installed))

Origin

Paper feed direction

Center reference line

Size specified by the HOST

Actual paper size

*Sort function (Electronic sort) 100 sheets (max. 765 sheets) <copy mode> with A4 standard documents at 600dpi. Offset paper exitby the shifter

function

*Group function 100 sheets (max. 765 sheets) <copy mode> with A4 standard documents at 600dpi. Offset paper exit by the shifter

function

Rotation copy If there is paper of the same size as the document, the image is rotated to copy even though the paper is set in the

different direction from the document direction.

2 in 1, 4 in 1 Copies of 2 pages or 4 pages are integrated into one surface. Divided by solid lines, (Selectable by the user pro-

gram.)

Edge erase Images surrounding the document are erased when copying. (Adjustable in 5 ~ 20mm by the user program.)

Center erase The image at the center is erased when copying. (Adjustable in 5 ~ 20mm by the user program.)

Margin shift Binding margin is made at the left edge of the set documents. (Adjustable in 5 ~ 20mm by the user program.)

Memory for electronic sort 16MB

*Memory read capacity 600dpi: 100 sheets (Max. 765 sheets) <copy mode> of A4 standard documents (Sharp A4 standard document)

Memory expansion DIMM memory slot x 1, max. 256MB x 1 slot + 16MB (Max. 272MB in total)

USB2.0 Standard provision of E-sort (It can be used according to conditions.)

SPLC (JBIG-GDI) Supported when E-sort is installed.

ROPM Supported when E-sort is installed.

AR-EB7 UNPACKING AND INSTALLATION

– 4 –

[3] UNPACKING AND INSTALLATION

1. Unpacking

For improvement of workability, any part of the description in this

manual may be modified without prior notice. In this case, refer to

the service manual.

2. Parts included

3. Installation procedure

Turn the main switch of the copier to the "OFF" position and then

remove the power plug of the copier from the power supply outlet.

1) Remove the rear cover.

Remove the screw, push the portion indicated by the arrow to

unlock the rear cover, and slide the cover to the right to remove it.

2) Cut out the cut-out portion of the rear cover.

Cut out the cut-out portion with nippers or the like.

At this time, be careful about the orientation of the nippers so that

the cut plane of the rear cover is flat.

3) Attach the IMC2 PWB.

Fit the two pawls on the rear surface of the IMC2 PWB frame to the

mounting portions of the copier and secure the PWB with the four

supplied golden screws M3 x 6.

IMC2 PWB (with frame)

screw (golden) M3 x 6:4pcs.

Installation manual: 1 volume

Pawl for

locking

Rear cover

Scre

Cut-out portion

Rear cover

Pawl

Screws (golden)

M3 x 6

Pawl

IMC2 PWB Screws (golden)

M3 x 6

Take care not to get

the cable caught.

AR-EB7 UNPACKING AND INSTALLATION

– 5 –

4) Connect the IMC2 PWB to the MCU PWB of the copier.

Connect the flat cables of the IMC2 PWB to the connectors of the

MCU PWB of the copier so that the shorter cable comes inside and

the longer cable comes outside as shown in the illustration.

Be careful about the orientation of the flat cable insertion and check

that both ends of each cable are securely inserted into the connec-

tor. (The terminal surface of each flat cable must have contact with

the connector terminals.)

5) Attach the rear cover.

Fit the four pawls of the rear cover to the rear cabinet, slide the

cover to the left until it is locked, and then secure the cover with the

screw.

Insert the power plug of the copier into the power supply outlet

and turn on the power switch. Then, carry out the following proce-

dure.

6) Check the IMC2 PWB.

Press the SORT/GROUP key on the operation panel to check that

the SORT mode indicator lights up.

7) Check printing.

For installation of the driver software on the computer, see the oper-

ation manual supplied with the copier.

Connect the USB cable, carry out printing from the computer, and

check that printing can be performed normally.

4. Installation of additional memory

(After installation, proceed to step 5.)

1Open the two locking clips of the socket.

2Insert the memory matching the orientation of its notches.

3Close the locking clips of the socket.

Flat cable (shorter)

Flat cable (longer)

Copier MCU PWB

IMC2 PWB

Connector

Pawl

Pawl for

locking

Rear cabinet

Rear cover

Screw

As additional memory, use AR-SM5 (sold separately).

AR-EB7 ELECTRICAL SECTION

– 6 –

[4] ELECTRICAL SECTION

The OA982 board mounted on the IMC2 board inputs and outputs image data to and from the MCU board, controls SDRAM memory, and communi-

cates with USB2.0 devices.

SDRAM memory is used to store programs and image data as well as for a working area.

USB 2.0 devices communicate with a PC through a USB2.0 cable at a rate of 480 Mbps.

SDRAM memory can be expanded by using 1BANK SDRAM DIMM (AR-SM5).

Communications between the OA982 and the AR-SM5 is held using an ASIC-controlled BUFFER IC (74VCX16244/16245).

1. Block diagram

2. Pin arrangement

The table below shows connector pin arrangement between the MCU to IMC2 PWB.

• IMC2 side

Interface-1 CN2 (22FE-BT-VK-N) Interface-2 CN3 (22FE-BT-VK-N)

IC1

OA982

IC35

BUFFER

ASIC IC3

256Mbit SDRAM

IC4

256Mbit SDRAM

IC2

8Mbit

FlashROM

IC26 BUFFER

74VCX16245

IC28 BUFFER

74VCX16244 IC29 BUFFER

74VCX16244

IC6

ZeroDelayBuffer

CY2305

CN6 168PIN DIMM SOCKET

(For 1BANK SNR SDRAM DIMM)

X1 XTAL

20.3094MHz

IC8

USB2.0Driver

ISP1581

Y1 XTAL

12.0000MHz

CN2 22pinFFC (To MCU)

CN3 22pinFFC (To MCU)

USB2.0

Connector

ADDRESS BUS

DATA BUS

CONTROL SIGNAL (/CS,/RAS,/CAS,/WE etc.)

3.3V

Peripheral

BUS(DMA)

8bit ADBUS

USB2.0

High/Full

Speed

Pixel Input BUS (8bit DMA)

Pixel Output BUS (8bit DMA)

SDRAM CLK 81.2376MHz

/OE,/DIR

SDRAM CLK

81.2376MHz

DATA BUS

CONTROL BUS ADDRESS BUS

No. Signal

name

Processing of

connection

Pattern = “direct”

No. Signal

name

Processing of

connection

Pattern = “direct”

1 DGND (MCU 3IMC) 12 PI_DATA2 MCU 3IMC

2ESCMD IMC3MCU 13 PI_DATA1 MCU 3IMC

3 /ESCRDY MCU 3IMC 14 PI_DATA0 MCU 3IMC

4 PI_WR MCU 3IMC 15 /HSYNC MCU 3IMC

5 PI_ACK MCU 3IMC 16 /ESPAGE IMC 3MCU

6 PI_REQ IMC 3MCU 17 /PRLINE MCU 3IMC

7 PI_DATA7 MCU 3IMC 18 /RESET MCU 3IMC

8 PI_DATA6 MCU 3IMC 19 3.3V (MCU 3IMC)

9 PI_DATA5 MCU 3IMC 20 3.3V (MCU 3IMC)

10 PI_DATA4 MCU 3IMC 21 DGND (MCU 3IMC)

11 PI_DATA3 MCU 3IMC 22 DGND (MCU 3IMC)

No. Signal

name

Processing of

connection

Pattern = “direct”

No. Signal

name

Processing of

connection

Pattern = “direct”

1 DGND (MCU 3IMC) 12

PO_DATA2

IMC 3MCU

2 ESSTS MCU 3IMC 13

PO_DATA1

IMC 3MCU

3 /ESSRDY IMC 3MCU 14

PO_DATA0

IMC 3MCU

4 (PO_CS) NOT USE 15 /READY MCU 3IMC

5 PO_ACK IMC 3MCU 16 /SCLINE MCU 3IMC

6 PO_REQ MCU 3IMC 17 /ESDET IMC (GND)

3MCU

PO_DATA7

IMC 3MCU 18 5V (MCU 3IMC)

PO_DATA6

IMC 3MCU 19 3.3V (MCU 3IMC)

PO_DATA5

IMC 3MCU 20 3.3V (MCU 3IMC)

PO_DATA4

IMC 3MCU 21 DGND (MCU 3IMC)

PO_DATA3

IMC 3MCU 22 DGND (MCU 3IMC)

AR-EB7 USER PROGRAMS

– 7 –

[5] USER PROGRAMS

1. List

With the AR-EB7, the following user settings can be made:

[6] 1in1/4in1 solid- and broken-line frame setting

[7] Rotation copy function setting

[16] Adjustment of frame deletion/center deletion width

[17] Change in 2in1 combination

[18] Change in 4in1 combination

[21] Selection of binding margin position

[22] Adjustment of binding margin

[24] Allocation of memory capacity to printer

[33] Selection of USB2.0 mode

[6] FLASH ROM VERSION UP

PROCEDURE

1. Preparation

Write the download data (the file with the extension dwl) to the main

body.

Necessary files for download

• Maintenance.exe (Maintenance software)

• ProcPegasus.mdl

• ProcPegasus.ini

• ProcPegasus.fmt

• Pegasus.inf

• Usbscan.sys

• Download file:***.dwl

Note:

• The Download file(***.dwl ) and the like that are to be downloaded

should be copied, in advance, into folders that have a maintenance

program.

• When creating a folder for a maintenance tool in the PC, be sure

that no lengthy folder name is included in the path.

(Example)

2. Initialization

(Procedures for setting the serial number)

Set the serial number on the side of the PC for download. It is not nec-

essary to set the serial number again at a later time, even if software is

restarted.

1) PC side:

Start the "Maintenance.exe" and select the model icon of main

body.

(Connection with the main body is not necessary for setting the

serial number only. However, for the set serial number to be

reflected into the main body, a connection should be made between

the PC and the main body in download mode for download.)

2) Select the "Option" in the menu bar and click on the "Serial Number

Setting".

3) Make the setting of the serial number following the instructions below.

Enter the number three "3" for service.

ID cord (I): Code number assigned by PC. (0 - 99)

If there is more than one computer that uses "MaintenanceTool.exe",

then assign a different code number to each PC.

When the setting is completed, push down the button "OK".

4) The procedures for the change of the serial number has been com-

pleted.

Incorrect c:\Pegasus Download Tool

Correct c:\Pegasus\Downtool

Place of production code (P): Code number assigned on the basis of a

production place. (0 - 99)

AR-EB7 FLASH ROM VERSION UP PROCEDURE

– 8 –

3. Download procedure

1) Main body side:

Executable by performing the Service Simulation No. 49-01 (Flash

Rom program-writing mode).

(A word "d" appears on the LCD to denote the download mode status.)

2) Connect the PC and the main body with the download cable (USB

cable).

(Be sure to use a USB cable for connection. USB2.0 of the AR-EB7

is not applicable.)

3) PC side:

Boot the maintenance program. Select the model icon of main

body.

4) PC side:

Confirm that the "Simulation Command List" tree is displayed on the

maintenance program.

5) PC side:

When the message "the main body has not got started running" is

displayed on the lowest area of the figure below after the "mainte-

nance program" is started up, select the "File" and then "Recon-

nect" in the menu bar.

6) PC side:

Confirm a tree is displayed under the "Special (MCU/IMC2/FAX)"

on the maintenance program". (If no tree is displayed, confirm that

the USB is connected and select the "Reconnect" (the above 5)

again.)

7) PC side:

Double click "Special (MCU/MCU2/FAX)" in the main tree item to

develop the sub tree items, and double click "DWL Download" in

the sub tree items.

8) PC side:

Specify the download file (*.dwl).

9) PC side:

The download file is specified, download is automatically per-

formed.

The "Automatic paper selection" lamp and "Start" lamp will blink

approximately 15 seconds after the download file is specified.

AR-EB7 FLASH ROM VERSION UP PROCEDURE

– 9 –

10) PC side:

When the message below is displayed, download is completed.

Completion message: DOWNLOAD COMPLETED

Note (Important):

• Be sure that the power is not turned off and the USB cable is not

removed until the word "OFF" appears.

11) Main body side:

Wait until the word "OFF" appears on the operation panel. The

appearance of "OFF" indicates the completion of the download

(writing into ROM).

Turn the power off.

12) After-process: Terminate the maintenance program, and turn on the

power of the main body.

After the download (data transmission) has been completed, exit the

software program. The USB cable can be removed at this point.

Note:

• For making a second connection with another machine, select the

"File" and "Reconnect" in the menu bar on the maintenance pro-

gram at the time of the USB being re-connected. Repeat the previ-

ous procedures from the above 5).

*Forbidden actions while downloading (Important)

Failure in the download concerned may not allow you to conduct the

subsequent download procedures. Added care should be taken to avoid

having the situation below arise while downloading.

• Switching off the main body.

• Disconnecting the download cable (USB cable).

4. Installation procedure

A. USB joint maintenance program installation

The driver is installed by plug and play.

B. Installation procedure on Windows XP

1) Main body side:

Executable by performing the Service Simulation No. 49-01 (Flash

Rom program-writing mode).

(A word "d" appears on the LCD to denote the download mode status.)

2) Connect the machine and the PC with a USB cable.

(Be sure to use a USB cable for connection. USB2.0 of the AR-EB7

is not applicable.)

3) Check that the following display is shown.

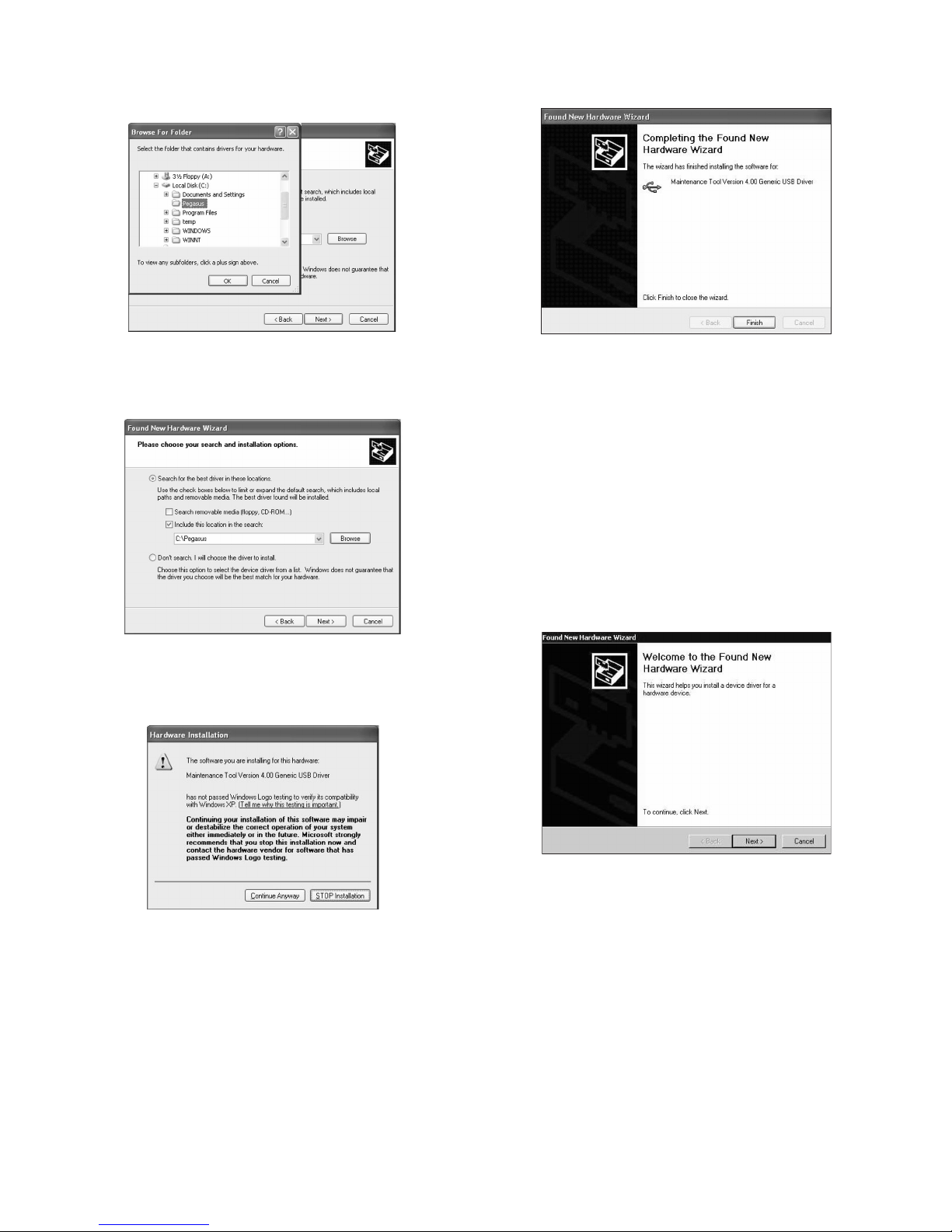

Select "Install from a list or the specific location" and press the

NEXT button.

4) Select "Include this location in the serch". If the retrieval area does

not include the folder which includes the maintenance tool driver

(Pegasus.inf), select "Browse".

If the folder path is properly shown, press the NEXT button to go to

procedure 7).

AR-EB7 FLASH ROM VERSION UP PROCEDURE

– 10 –

5) Select the folder which includes the maintenance tool driver

(Pegasus.inf), and press the OK button.

(When the driver is included in the "C:\Pegasus" folder:)

6) Check that the path to the folder which includes the maintenance

tool driver (Pegasus.inf) is shown, and press the NEXT button.

7) Check that the following display is shown. Press the Continue Any-

way button.

8) When installation is completed, the following display is shown.

Press the Finish button.

The installation procedure (on Windows XP) is completed with the

above operation.

C. Installation procedure on Windows 2000

1) Main body side:

Executable by performing the Service Simulation No. 49-01 (Flash

Rom program-writing mode).

(A word "d" appears on the LCD to denote the download mode status.)

2) Connect the machine and the PC with a USB cable.

(Be sure to use a USB cable for connection. USB2.0 of the AR-EB7

is not applicable.)

3) Check that the new hardware search wizard is shown. Press the

NEXT button.

AR-EB7 FLASH ROM VERSION UP PROCEDURE

– 11 –

4) Select "Serch for a suitable driver for my device" and press the

NEXT button.

5) Select "Specify a location" and press the NEXT button.

6) Press the "Browse" button. Specify the folder which includes the

maintenance tool driver (Pegasus.inf)

7) Specify the folder which includes the maintenance tool driver

(Pegasus.inf), and press the OPEN button.

Check that the path to the folder which includes the maintenance

tool driver (Pegasus.inf) is properly displayed, and press the OK

button.

(When the maintenance tool driver is included in the folder of

"D:\Pegasus")

8) Press the NEXT button, and installation is started.

9) When installation is completed, the following display is shown.

Press the Finish button.

The installation procedure of the joint maintenance program on Win-

dows 2000 is completed with the above operation.

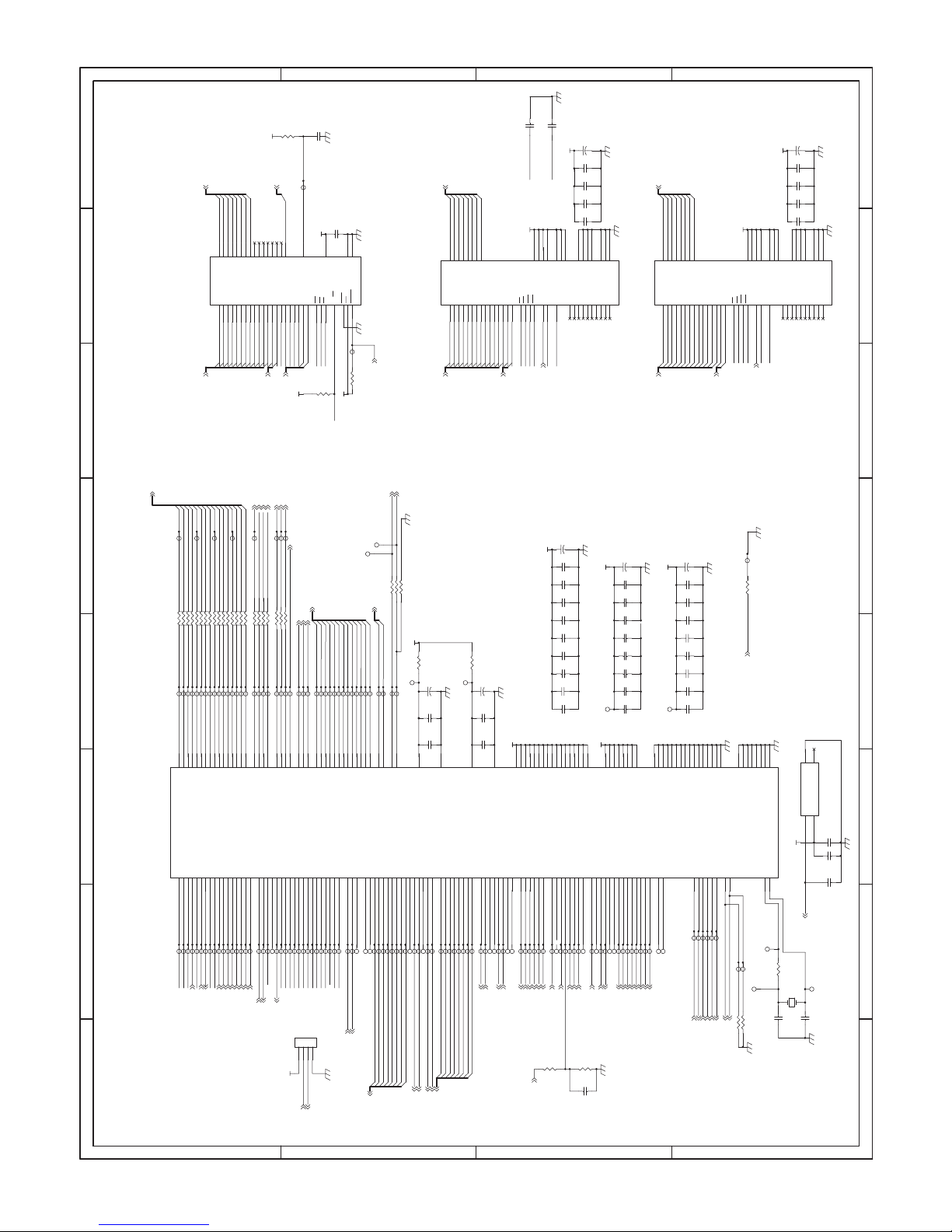

AR-EB7 CIRCUIT DIAGRAM

– 12 –

87654321

12345678

A A

87654321

12345678

A A

87654321

12345678

A A

87654321

12345678

1/4

UART-1 (TP or Connector)

*change-1(2003.3.17)

SDRAM_ADDR2

SDRAM_ADDR7

_SDRAM_DQMB1

SDRAM_ADDR10

_SDRAM_DQMB0

PB_ADDR1

_SDRAM_DQMB1

SDRAM_RAS_L

SDRAM_CKE

SDRAM_ADDR0

XOUT

SDRAM_ADDR6

SDRAM_CAS_L

SDRAM_ADDR9

PB_ADDR7

ROM_CS_L

_SDRAM_DQMA1

SDRAM_ADDR5

_SDRAM_DQMA1

_SDRAM_DQMB0

SDRAM_WE_L

_SDRAM_DQMA0

SDRAM_BANK0

SDRAM_ADDR8

PB_ADDR4

SDRAM_ADDR4

SDRAM_ADDR12

_SDRAM_CS0_L

PB_ADDR5

SDRAM_ADDR3

SDRAM_BANK1

SDRAM_ADDR11

SDRAM_ADDR1

PB_DATA3

SDRAM_DATA3

SDRAM_DATA7

SDRAM_DATA5

SDRAM_DATA0

SDRAM_DATA6

SDRAM_DATA4

SDRAM_DATA1

SDRAM_DATA2

SDRAM_DATA11

SDRAM_DATA15

SDRAM_DATA13

SDRAM_DATA8

SDRAM_DATA14

SDRAM_DATA12

SDRAM_DATA9

SDRAM_DATA10

SDRAM_DQMB1

SDRAM_DQMB0

SDRAM_DQMA0

SDRAM_DQMA1

SDRAM_CS0_L

SDRAM_CS1B_L ROM_CS_L

SDRAM_CS1A_L

SDRAM_WE_L

SDRAM_ADDR3

SDRAM_ADDR7

SDRAM_ADDR0

SDRAM_ADDR6

SDRAM_ADDR2

XIN

SDRAM_RAS_L

SDRAM_ADDR8

SDRAM_ADDR11

SDRAM_ADDR9

_SDRAM_CKE

SDRAM_ADDR5

SDRAM_CAS_L

SDRAM_BANK0

SDRAM_ADDR10

SDRAM_ADDR12

SDRAM_BANK1

SDRAM_ADDR1

SDRAM_ADDR4

SDRAM_RAS_L

SDRAM_ADDR9

SDRAM_CAS_L

_SDRAM_CLK

SDRAM_BANK0

SDRAM_ADDR10

_SDRAM_DQMA0

SDRAM_ADDR7

SDRAM_ADDR6

SDRAM_ADDR5

SDRAM_ADDR11

SDRAM_BANK1

SDRAM_ADDR12

SDRAM_ADDR3

SDRAM_ADDR8

_SDRAM_CS0_L

SDRAM_WE_L

SDRAM_ADDR1

SDRAM_ADDR0

SDRAM_ADDR4

SDRAM_ADDR2

_SDRAM_CKE

CLK_EXT

RY_BY

PB_DATA7

PB_DATA0

PB_DATA1

PB_ADDR3

PB_ADDR0

PB_ADDR6

PB_DATA4

PB_DATA5

PB_ADDR2

PB_DATA6

PB_DATA2

_SDRAM_DATA7

_SDRAM_DATA6

_SDRAM_DATA2

_SDRAM_DATA8

_SDRAM_DATA1

_SDRAM_DATA5

_SDRAM_DATA11

_SDRAM_DATA0

_SDRAM_DATA10

_SDRAM_DATA13

_SDRAM_DATA2

_SDRAM_DATA14

_SDRAM_DATA7

_SDRAM_DATA9

_SDRAM_DATA7

_SDRAM_DATA3

_SDRAM_DATA4

_SDRAM_DATA5

_SDRAM_DATA3

_SDRAM_DATA5

_SDRAM_DATA9

_SDRAM_DATA6

_SDRAM_DATA3

_SDRAM_DATA4

_SDRAM_DATA1

_SDRAM_DATA6

_SDRAM_DATA1

_SDRAM_DATA2

_SDRAM_DATA0

_SDRAM_DATA15

SDRAM_ADDR12

_SDRAM_DATA9

_SDRAM_DATA15

_SDRAM_CLK

_SDRAM_CS0_L

_SDRAM_DATA14SDRAM_ADDR6

_SDRAM_DATA11

SDRAM_BANK1

SDRAM_CAS_L

_SDRAM_DATA13

_SDRAM_CKE

_SDRAM_DATA8

SDRAM_ADDR7

_SDRAM_DATA10

SDRAM_ADDR0

SDRAM_ADDR9

SDRAM_ADDR11

SDRAM_ADDR8

_SDRAM_DQMA1

SDRAM_ADDR2

SDRAM_ADDR3

SDRAM_ADDR10

SDRAM_ADDR1

SDRAM_ADDR4 _SDRAM_DATA12

SDRAM_BANK0

SDRAM_WE_L

SDRAM_RAS_L

SDRAM_ADDR5

RY_BY

SDRAM_CLK

_SDRAM_DATA0

_SDRAM_DATA4

_SDRAM_DATA8

_SDRAM_DATA12

_SDRAM_DQMA0

_SDRAM_CS0_L

_SDRAM_CS1A_L

_SDRAM_CS1B_L

_SDRAM_CLK

_SDRAM_CKE

PO_DATA0

PO_DATA4

PO_ACK

PO_DATA3

PO_DATA1

PO_DATA5

PO_DATA6

PO_DATA2

TRST_L

PO_DATA7

PI_DATA6

PI_DATA5

PI_DATA4

PI_DATA3

PI_DATA2

PI_DATA0

_SDRAM_CLK

_SDRAM_CKE

_SDRAM_DQMA0

_SDRAM_DQMB1

_SDRAM_DQMB0

_SDRAM_DQMA1

_SDRAM_CS1A_L

_SDRAM_CS1B_L

SDRAM_WE_L

SDRAM_CAS_L

SDRAM_RAS_L

PI_DATA1

CLK_EXT

_SDRAM_CLK

PI_DATA7

PI_REQ

PI_WR

PI_ACK

PO_REQ

/SCLINE

TDI

TMS

TCK

BASE_CLK

USART1_ TX

BASE_CLK

CLK_EXT

ESCMD

ESSTS

DT_REQB

DT_ACKB

PB_DATA[7:0]

PB_ADDR[7:0]

PB_NAE0

PB_NOE

PB_NWE

/PRLINE

/HSYNC

/ESPAGE

/READY

SDRAM_ADDR[12:0]

SDRAM_BANK[1:0]

_SDRAM_CS0_L

_SDRAM_DATA[15:0]

SDRAM_ADDR[12:0]

SDRAM_BANK[1:0]

_SDRAM_DATA[15:0]

SDRAM_ADDR[12:0]

SDRAM_ADDR[12:0] _SDRAM_DATA[15:0]

SDRAM_BANK[1:0]

ROM_CS_L

/ESCRDY

/ESSRDY

INT_USBD

SDRAM_BANK[1:0]

_SDRAM_DATA[15:0]

_SDRAM_CLK

SDRAM_ADDR[12:0]

SCL

SDA

USART1_RX

WAKEUP

SUSPEND

USBVBUS

USART1_RX

USART1_TX

PB_NCS3

TDO

JTAGSCAN0

JTAGSCAN1

USB_FUNC

RESET_L

3.3V

TP894 TP

TP887 TP

TP114 DT_ACKA

C23

0.1U

TP81 SDRAM_ADDR12

C26

10U/16V

TP145 USB_DM

TP83 PB_DATA6

TP97 PB_NAE1

C52

0.1U(NM)

R9 10J

TP107 PB_ADDR7

TP51 PP_NACK

TP40 SDRAM_DQMB1

TP34 SDRAM_DQMA0

TP147

VDD_CORE

BR1 10JX4

4 5

TP95 PB_NCS3

TP92 PB_DATA1

TP89 SDRAM_CLK

TP113 DT_REQB

TP106 PB_ADDR6

C27

0.1U

TP891 TP

TP137 PO_DATA7

C24

0.1U

C51

12P(NM)

TP156 CLK_EXT_OUT

TP54 SDRAM_CAS_L

TP126 GP_A4

IC4

K4S560832D

VSS

RAS

CAS

VSS

VDD

BA0

BA1

A10

A11

VDDQ

VSSQ

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

DQM

CLK

CKE

A12

TP35 PP_HIDRIVE

R8 10J

TP71 BASE_CLK

0.1U

C35

10U/16V

R14

R17 4.7KJ

TP69 SDRAM_ADDR5

4.7KJ

TP140 PO_DATA4

TP85 PB_DATA5

TP109 USART0_RX

TP101 PB_ADDR1

TP100 PB_ADDR0

TP65 SDRAM_ADDR3

TP131 PO_PAGE_SYNC

TP82 PB_DATA7

TP93 PB_DATA0

TP66 PP_DATA0

TP46 PP_SELECT

TP20 SDRAM_DATA9

TP119 GP_D3

TP99 PB_NOE

TP885 TP

TP152 TDI

R19

4.7KJ

C19

0.1U

TP86 SDRAM_BANK1

TP38 SDRAM_DQMA1

C28

0.1U

TP67 SDRAM_ADDR4

R11

TP27 PI_DATA3

IC3

K4S560832D

40 VSS

RAS

CAS

VSS

VDD

BA0

BA1

A10

A11

VDDQ

VSSQ

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

DQM

CLK

CKE

A12

C38

0.1U

TP29 PI_DATA2

TP84 SDRAM_BANK0

TP117 GP_D1

TP141 PO_DATA3

TP893 TP

TP7 PI_WR

TP63 SDRAM_ADDR2

TP80 PB_NCS2

TP148 RESET_L

TP883

CLK

TP103 PB_ADDR3

TP132 PO_REQ

TP11 PI_ACK

C48

0.1U

TP28 SDRAM_DATA13

TP96 PB_NAE0

TP91 SDRAM_CKE

TP157

XIN

TP123 GP_A1

R402

4.7KJ

TP42 PP_NSELECTIN

TP118 GP_D2

TP70 SDRAM_ADDR6

C43

0.1U

TP50 PP_BUSY

TP139 PO_DATA5

TP120 GP_D4

TP22 SDRAM_DATA10

TP73 CLK_EXT

TP151 TMS

TP5 PI_TGEN6

C18

0.1U

TP49 ROM_CS_L

TP33 PI_DATA0

TP44 PP_NAUTOFD

TP76 SDRAM_ADDR9

TP128 GP_A6

C30

0.1U

TP146 USB_DP

C37

0.1U

TP888 TP

TP64 PP_DATA1

TP75 MAIN_CLK

TP52 SDRAM_WE_L

TP43 SDRAM_CS0_L

C14

0.1U

R3 10J

TP94 PB_NCS0

SG8002JC (20or56MHz)

/CONT

OUT

VDD

GND

C13

0.1U

TP112 DT_ACKB

TP155 TEST_MODE1

C44

12P

TP133 PO_ACK

TP37 PP_DRIVE

TP108 USART0_TX

TP57 PP_DATA5

TP129 GP_A7

TP90 PB_DATA2

R417

10KJ

TP74 SDRAM_ADDR8

C53

22000P(NM)

C22

0.1U

TP48 PP_PERROR

C17

0.1U

R18 4.7KJ

TP880

XOUT

TP47 SDRAM_CS1B_L

C47

0.1U

TP104 PB_ADDR4

TP58 PP_DATA4

C20

0.1U

TP23 PI_DATA5

TP56 SDRAM_RAS_L

C36

0.1U

TP1 PI_LINE_SYNC

C45

10U/16V

TP19 PI_DATA7

R1 10J

TP12 SDRAM_DATA5

R2 10J

TP130 /HSYNC

TP26 SDRAM_DATA12

TP16 SDRAM_DATA7

TP4 SDRAM_DATA1

TP53 PP_DATA7

TP142 PO_DATA2

C42

0.1U

C40

0.1U

R401

3.9KJ

TP125 GP_A3

TP62 PP_DATA2 TP61 SDRAM_ADDR1

TP121 GP_D5

C400

R10 4.7KJ

C16

0.1U C11

10U/16V

C10

BR3 10JX4

4 5

TP10 SDRAM_DATA4

TP15 PI_TGEN1

R20 0J

TP127 GP_A5

TP41 PP_NFAULT

TP154 TEST_MODE0

TP55 PP_DATA6

TP884

CKE

TP889 TP

TP30 SDRAM_DATA14

TP72 SDRAM_ADDR7

TP886 TP

TP110 USART0_CK

TP60 PP_DATA3

C49

0.1U

C15

0.1U

C25

0.1U

TP955

C12

0.1U

TP8 SDRAM_DATA3

47U/16V

TP6 SDRAM_DATA2

BR2 10JX4

4 5

TP59 SDRAM_ADDR0

0.01U

TP882

VDD149

TP32 SDRAM_DATA15

C39

0.1U

TP153 TRST_L

TP98 PB_NWE

C41

0.1U

TP13 PI_REQ

TP77 SDRAM_ADDR10

20.3094MHz

TP31 PI_DATA1

TP105 PB_ADDR5

C31

0.1U

BR5 10JX4

4 5

TP134 PO_DONE

TP116 GP_D0

C34

0.1U

IC1

OA-982

199

201

202

203

204

205

207

208

178

180

189

188

187

186

185

183

182

181

190

194

195

196

197

191

150

173

136

121

123

139

108

206

193

179

164

198

112

114

116

117

113

168

170

169

172

143

145

146

147

151

152

153

154

155

156

157

159

160

161

162

163

165

166

167

119

120

124

125

126

127

128

129

131

132

133

134

135

137

138

141

142 53

100

101

102

104

105

106

107

109

110

111

144

192

130

174

115

140

103

122

200

184

171

158

176

175

149

148

177

118

GP_C0/PB_ADDR0

GP_C1/PB_ADDR1

GP_C2/PB_ADDR2

GP_C3/PB_ADDR3

GP_C4/PB_ADDR4

GP_C5/PB_ADDR5

GP_C6/PB_ADDR6

GP_C7/PB_ADDR7

REG_A9/PB_NCS1

REG_A8/PB_NCS2

GP_A1

GP_A2/DC_CHY1

GP_A3/DC_CHX1

GP_A4/DC_PWM1

GP_A5/DC_CHY0

GP_A6/DC_CHX0

GP_A0

GP_A7/DC_PWM0

GP_B0/USART0_TX

GP_B1/USART0_RX

GP_B2/USART0_CK

GP_B3/ANA_SD1

GP_B4/DT_ACKB

GP_B5/DT_REQB

GP_B6/DT_ACKA

GP_B7/DT_REQA

GP_D0/ADC_A0

GP_D1/ADC_A1

GP_D2/ADC_A2

GP_D3/ADC_CLK

REG_AD0/PB_DATA0

REG_AD1/PB_DATA1

REG_AD2/PB_DATA2

REG_AD3/PB_DATA3

REG_AD4/PB_DATA4

REG_AD5/PB_DATA5

REG_AD6/PB_DATA6

REG_AD7/PB_DATA7

REG_ADDR_VALID/PB_NCS0

REG_RD_L/PB_NCS3

REG_WR_L/PB_NAE0

REG_CS_L/PB_NAE1

REG_RDY/PB_NWE

VSS_CORE

VSS_IO

VSS_CORE

VSS_IO

VSS_CORE

VSS_IO

VSS_CORE

VSS_IO

VSS_CORE

VSS_IO

VSS_CORE

VSS_IO

VSS_CORE

VSS_IO

INTERRUPT_L/PB_NOE

RESET_L

TCK

TMS

TDI

TDO

BASE_CLK/GP_PWM1

MAIN_CLK/GP_PWM0

CLK_EXT/GP_PWM2

TEST_MODE0

XIN

XOUT

PP_HIDRIVE/USART1_RX

PP_DRIVE/USART1_TX

PP_NINIT

PP_NFAULT

PP_NSELECTIN

PP_NAUTOFD

PP_SELECT

PP_PERROR

PP_BUSY

PP_NACK

PP_DATA7

PP_DATA6

PP_DATA5

PP_DATA4

PP_DATA3

PP_DATA2

PP_DATA1/USART1_CK

PP_DATA0

PP_NSTROBE

PO_LINE_SYNC/ANA_SCLK

PO_PAGE_SYNC/ANA_NCS

PO_REQ/ANA_SD0

PO_ACK/PDATA0/PDS0

PO_DONE/PDATA2/PDS2

PO_WR/PDATA1/PDS1

PO_DATA7/LHEAT/PAS_M

PO_DATA6/LCTRL/CFIRE2

PO_DATA5/AGATE/CFIRE1

PO_DATA4/ACLK/MFIRE2

PO_DATA3/PENABLE/MFIRE1

PO_DATA2/PLOAD

PO_DATA1/PCLK

PO_DATA0/PDATA3/PAS_C

PI_LINE_SYNC/GP_D6

PI_TR_TGEN

PI_TGEN6

PI_TGEN5

PI_TGEN4

PI_TGEN3

PI_TGEN2

PI_TGEN1

PI_TGEN0

PI_DATA7

PI_DATA6

PI_DATA5

PI_DATA4

PI_DATA3

PI_DATA2

PI_DATA1

PI_DATA0 SDRAM_DATA15

SDRAM_DATA14

SDRAM_DATA13

SDRAM_DATA12

SDRAM_DATA11

SDRAM_DATA10

SDRAM_DATA9

SDRAM_DATA8

SDRAM_DATA7

SDRAM_DATA6

SDRAM_DATA5

SDRAM_DATA4

SDRAM_DATA3

SDRAM_DATA2

SDRAM_DATA1

SDRAM_DATA0

ROM_CS_L

SDRAM_CS1B_L

SDRAM_CKE

SDRAM_CLK

SDRAM_ADDR11

SDRAM_BANK1

SDRAM_BANK0

SDRAM_ADDR10

SDRAM_ADDR9

SDRAM_ADDR8

SDRAM_ADDR7

SDRAM_ADDR6

SDRAM_ADDR5

SDRAM_ADDR4

SDRAM_ADDR3

SDRAM_ADDR2

SDRAM_ADDR1

SDRAM_ADDR0

SDRAM_RAS_L

SDRAM_CS1A_L

SDRAM_CS0_L

SDRAM_DQMB1

SDRAM_DQMA1

SDRAM_DQMB0

SDRAM_DQMA0

SDRAM_CAS_L

SDRAM_WE_L

VDD_IO

VDD_CORE

VDD_IO

VDD_CORE

VDD_IO

VDD_CORE

VDD_IO

VDD_CORE

VDD_IO

VDD_CORE

VDD_IO

VDD_CORE

VDD_IO

VDD_CORE

VDD_IO

VDD_CORE

VDD_IO

PLLCS_VDDA

PLLCS_VSSA

SDRAM_ADDR12

USB_DP

USB_DM

PLLSS_VDDA

PLLSS_VSSA

TEST_MODE1

TRST_L

GP_D4/ADC_DATA

GP_D5/ADC_NCS

VDD_IO

0.01U

TP25 PI_DATA4

IC2

MBM29LV160B-90PFTN or LH28F800BJE-PBTL90

16 13

14 GND

GND

VCC

IO0

IO1

IO2

IO3

IO4

IO5

IO6

IO7

IO8

IO9

IO10

IO11

IO12

IO13

IO14

IO15/A-1

A10

A11

A12

A13

A14

A15

A16

A17

A18 NC

RESET

BYTE

RY/BY

A19

A20

WP/ACC

TP79 SDRAM_ADDR11

TP136 PO_WR

TP124 GP_A2

TP150 TCK

TP24 SDRAM_DATA11

TP144 /PCLPRD

TP111 GP_B3

TP892 TP

TP9 PI_TGEN4

TP87 PB_DATA4

TP18 SDRAM_DATA8

TP88 PB_DATA3

TP68 PP_NSTROBE

TP21 PI_DATA6

BR4 10JX4

4 5

TP39 PP_NINIT

C46

0.1U

C21

10U/16V

TP14 SDRAM_DATA6

TP45 SDRAM_CS1A_L

TP149 TDO

TP2 SDRAM_DATA0

C33

0.1U

TP115 DT_REQA

TP17 PI_TGEN0

TP102 PB_ADDR2

C50

12P

TP135

VDD_IO

TP122 GP_A0

CN11

B4B-PH-K-S(NM)

47U/16V

TP3 PI_TGEN7

TP138 PO_DATA6

TP881

VDD7

TP143 PO_DATA1

TP890 TP

C32

0.1U

TP78 PB_NCS1

C29

0.1U

TP36 SDRAM_DQMB0

1. IMC2 PWB

[7] CIRCUIT DIAGRAM

AR-EB7 CIRCUIT DIAGRAM

– 13 –

87654321

12345678

A A

87654321

12345678

A A

87654321

12345678

A A

87654321

12345678

2/4

From For DC2-BUS

Connector

DEBUG ONLY

MACHINESET

ONLY

A_SDRAM_RAS_L

_SDRAM_CKE

A_SDRAM_CAS_L

A_SDRAM_WE_L

A_SDRAM_BANK1

A_SDRAM_BANK0

A_SDRAM_DATA7

A_SDRAM_DATA15

A_SDRAM_DATA9

A_SDRAM_DATA3

A_SDRAM_DATA14

A_SDRAM_DATA6

A_SDRAM_DATA11

A_SDRAM_DATA8

A_SDRAM_DATA2

A_SDRAM_DATA5

A_SDRAM_DATA4

A_SDRAM_DATA10

A_SDRAM_DATA12

A_SDRAM_DATA0

A_SDRAM_DATA13

A_SDRAM_DATA1

A_SDRAM_DATA14

A_SDRAM_DATA6

A_SDRAM_DATA8

A_SDRAM_DATA5

A_SDRAM_DATA4

A_SDRAM_DATA2

A_SDRAM_DATA15

A_SDRAM_DATA10

A_SDRAM_DATA9

A_SDRAM_DATA3

A_SDRAM_DATA7

A_SDRAM_DATA0

A_SDRAM_DATA13

A_SDRAM_DATA1

A_SDRAM_DQMA0

A_SDRAM_DQMB0

A_SDRAM_DQMA1

A_SDRAM_DQMB1

_SDRAM_CLK

A_SDRAM_ADDR3

A_SDRAM_ADDR0

A_SDRAM_ADDR2

A_SDRAM_ADDR10

A_SDRAM_ADDR8

A_SDRAM_ADDR9

A_SDRAM_ADDR11

A_SDRAM_ADDR6

A_SDRAM_ADDR7

A_SDRAM_ADDR12

A_SDRAM_ADDR5

A_SDRAM_ADDR4

A_SDRAM_ADDR1

A_SDRAM_DATA11

A_SDRAM_DATA12

A_SDRAM_DATA6

A_SDRAM_DATA0

A_SDRAM_DATA1

A_SDRAM_DATA15

A_SDRAM_DATA0

A_SDRAM_DATA10

A_SDRAM_DATA8

A_SDRAM_DATA3

A_SDRAM_DATA4

A_SDRAM_DATA11

A_SDRAM_DATA14

A_SDRAM_DATA5

A_SDRAM_DATA2

A_SDRAM_DATA13

A_SDRAM_DATA12

A_SDRAM_DATA15

A_SDRAM_DATA5

A_SDRAM_DATA8

A_SDRAM_DATA4

A_SDRAM_DATA10

A_SDRAM_DATA2

A_SDRAM_DATA11

A_SDRAM_DATA9

A_SDRAM_DATA14

A_SDRAM_DATA7

A_SDRAM_DATA9

A_SDRAM_DATA13

A_SDRAM_DATA3

A_SDRAM_DATA1

A_SDRAM_DATA6

A_SDRAM_CS1B_L

A_SDRAM_CS1A_L

_SDRAM_CKE

_SDRAM_CLK_3 SDA

SCL

_SDRAM_CLK_2

_SDRAM_CLK_1

_SDRAM_CLK_0

_SDRAM_CLK

_SDRAM_CLK_1

_SDRAM_CLK_2

_SDRAM_CLK_0

_SDRAM_CLK_3

_SDRAM_CLK_0

TCK

TDI

RESET_L

TMS

TDO

/RESET

TRST_L

A_SDRAM_ADDR[12:0]

PI_DATA5

PI_DATA2

ESCMD

PI_DATA3

PI_ACK

PI_DATA1

PI_WR

PI_DATA0

PI_DATA6

/HSYNC

/PRLINE

PI_DATA4

/RESET

PI_DATA7

/ESPAGE

PI_REQ

/ESCRDY

PO_DATA2

/READY

ESSTS

PO_DATA3

PO_DATA0

/ESSRDY

PO_DATA5

PO_REQ

PO_DATA1

/SCLINE

PO_DATA7

PO_DATA4

PO_DATA6

PO_ACK

A_SDRAM_BANK[1:0]

A_SDRAM_RAS_L

A_SDRAM_WE_L

A_SDRAM_CAS_L

A_SDRAM_CS1B_L

A_SDRAM_CS1A_L

A_SDRAM_DQMB1

A_SDRAM_DQMB0

A_SDRAM_DQMA0

A_SDRAM_DQMA1

A_SDRAM_DATA[15:0]

JTAGSCAN0

JTAGSCAN1

EPSONTEST

USB_FUNC

EPSONINP1

3.3V

3.3V 3.3V

3.3V

3.3V 3.3V

3.3V3.3V

3.3V 3.3V

3.3V

C79

0.1U

R47 0J

R419

10KJ

R65 0J

C401

68P

TP226 NC

R30 0J

R78 10KJ(NM)

TP229 NC

TP237 NC

R36 0J

TP212 NC

TP183

PI_DATA5

R22 10KJ

C404

68P

TP186

PO_DATA6

TP158 3.3V

C59

0.01U

R50 0J

TP198

/ESCRDY

C60

100P

TP207 CLK1

R32 0J

R413

10KJ

R45 0J

TP166 TDO

R58 0J

R34 0J

TP234 NC

TP197

(PO_CS)

CN6

DIMM168pinConnector MO-161

100

101

103

104

139

140

141

142

144

149

150

151

153

154

155

156

158

159

160

161

105

106

108

109

126

132

134

135

136

137

145

146

147

164

117

118

119

120

121

123

122

115

111

114

129

112

113

130

131

125

163

128

167

166

165

107

116

127

138

148

152

162

102

110

124

133

143

157

168

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

DQ8

DQ9

DQ10

DQ11

DQ12

DQ13

DQ14

DQ15

DQ16

DQ17

DQ18

DQ19

DQ20

DQ21

DQ22

DQ23

DQ24

DQ25

DQ26

DQ27

DQ28

DQ29

DQ30

DQ31

DQ32

DQ33

DQ34

DQ35

DQ36

DQ37

DQ38

DQ39

DQ40

DQ41

DQ42

DQ43

DQ44

DQ45

DQ46

DQ47

DQ48

DQ49

DQ50

DQ51

DQ52

DQ53

DQ54

DQ55

DQ56

DQ57

DQ58

DQ59

DQ60

DQ61

DQ62

DQ63

CB0

CB1

CB2

CB3

CB4

CB5

A12

CB6

CB7

A10

A11

BA1

BA0

/RAS

/WE

/CAS

/CS0

/CS1

/CS2

/CS3

DQMB0

DQMB1

DQMB2

DQMB3

DQMB4

DQMB5

DQMB6

DQMB7

CK0

CK1

CK2

CK3

CKE1

CKE0

SCL

SDA

SA2

SA1

SA0

VSS

VCC

VCC C80

0.1U

R56 10J

TP176

PO_DATA1

TP159 3.3V

TP161 TRST_L

R53 0J

C55

0.1U

TP170

/SCLINE

TP233 NC

TP196

PI_WR

TP239 NC

R71 0J

TP172

/READY

C65

2200P

BR11 33JX4

4 5

TP180

PO_DATA3

TP225 NC

R83 0J

TP182

PO_DATA4

C405

68P

TP240 NC

TP896 TP

R410

10KJ

C64

0.1U

TP167

/PRLINE C62

0.1U(NM)

CN3

22FE-BT-VK-N

TP242 NC

TP164 TCK

TP230 NC

R408

10KJ

TP244 NC

R46 0J

C71

0.1U

R52

10KJ(NM)

R40 0J

TP245 NC

R412

10KJ

R63 10J

TP199

/ESSRDY

TP191

PI_REQ

IC5

PST597KNR(NM)

1 2 3

M/RSUBGND

VoutVcc

TP246 NC

C77

0.1U

TP210 NC

R67 0J

R76 10KJ(NM)

R39 0J

TP194

PI_ACK

C58

0.01U

R59 10J

TP247 NC

TP160 5V

C70

47U/16V

C57

0.1U

R48 0J

R54 0J

R85 0J

R31 0J

C78

0.1U

TP173

PI_DATA0

TP222 NC

TP897 TP

TP208 /CS3

C72

0.1U

TP192

PO_REQ

R62 0J

TP185

PI_DATA6

R26 10KJ

TP162 TDI

R55 0J

R29 0J

TP209 /CS1

R41 68J

TP201

ESST

C403

68P

R33 0J C61

0.1U(NM)

TP250 NC

R411

10KJ

C66

39PF

TP241 NC

TP175

PI_DATA1

TP190

PO_DATA7

TP232 NC

TP249 NC

TP177

PI_DATA2

TP200

ESCMD

C74

0.1U

CN1

B20B-PHDSS-B

R74 10KJ(NM)

R84 0J

R407

10KJ

R35 0J

R42 0J

TP957

TP189

PI_DATA7

R24 10KJ

R420

10KJ

R28

TP193

RESET_IC_OUT

R37 0J

TP898 TP

R23 NM

C75

0.1U

R51 0J

TP168

/ESDET

TP169

/ESPAGE

TP179

PI_DATA3

R57 10J

TP251 NC

TP184

PO_DATA5

R70 0J

TP219 NC

C402

68P

TP227 NC

R61 0J

C76

0.1U

C63

R69 0J

TP174

PO_DATA0

R44 0J

TP195

PO_ACK

TP181

PI_DATA4

R21 10KJ

R60 10J

TP211 NC

R414

10KJ

C56

47U/16V

IC6

CY2305

4 5

REF

CLK2

CLK1

GND CLK3

VDD

CLK4

CLKOUT

R66 0J

TP165

/RESET

TP248 NC

CN2

22FE-BT-VK-N

R409

10KJ

R43 0J

R64

TP899 TP

R38 0J

TP895 TP

R25 10KJ

TP178

PO_DATA2

R27

TP243 NC

TP171

/HSYNC

TP236 NC

TP163 TMS

TP235 NC

C69

47U/16V

TP238 NC

C54

47U/16V

C73

0.1U

AR-EB7 CIRCUIT DIAGRAM

– 14 –

87654321

12345678

A A

87654321

12345678

A A

87654321

12345678

A A

87654321

12345678

3/4

*change-1(2003.3.17)

SDRAM_ADDR5

SDRAM_ADDR3

SDRAM_ADDR11

SDRAM_ADDR8

SDRAM_ADDR1

SDRAM_ADDR6

SDRAM_ADDR0

SDRAM_BANK1

SDRAM_ADDR9

SDRAM_ADDR7

SDRAM_ADDR10

SDRAM_ADDR4

SDRAM_ADDR12

SDRAM_BANK0

SDRAM_ADDR2

SDRAM_CAS_L

SDRAM_RAS_L

_SDRAM_DATA1

_SDRAM_DATA0

_SDRAM_DATA15

_SDRAM_DATA2

_SDRAM_DATA14

_SDRAM_DATA7

_SDRAM_DATA8

_SDRAM_DATA12

_SDRAM_DATA11

_SDRAM_DATA9

_SDRAM_DATA13

_SDRAM_DATA6

_SDRAM_DATA3

_SDRAM_DATA5

_SDRAM_DATA4

_SDRAM_DATA10

A_SDRAM_BANK0

A_SDRAM_BANK1

A_SDRAM_DATA13

A_SDRAM_DATA8

A_SDRAM_DATA11

A_SDRAM_DATA7

A_SDRAM_DATA4

A_SDRAM_DATA1

A_SDRAM_DATA14

A_SDRAM_DATA8

A_SDRAM_DATA2

A_SDRAM_DATA6

A_SDRAM_DATA12

A_SDRAM_DATA2

A_SDRAM_DATA10

A_SDRAM_DATA5

A_SDRAM_DATA3

A_SDRAM_DATA5

A_SDRAM_DATA15

A_SDRAM_DATA4

A_SDRAM_DATA10

A_SDRAM_DATA11

A_SDRAM_DATA3

A_SDRAM_DATA9

A_SDRAM_DATA0

A_SDRAM_DATA14

A_SDRAM_DATA6

A_SDRAM_DATA0

A_SDRAM_DATA1

A_SDRAM_DATA15

A_SDRAM_DATA13

A_SDRAM_DATA9

A_SDRAM_DATA7

A_SDRAM_ADDR11

A_SDRAM_ADDR8

A_SDRAM_ADDR4

A_SDRAM_ADDR6

A_SDRAM_ADDR10

A_SDRAM_ADDR5

A_SDRAM_ADDR9

A_SDRAM_ADDR7

A_SDRAM_ADDR3

A_SDRAM_ADDR2

A_SDRAM_ADDR12

A_SDRAM_ADDR0

A_SDRAM_ADDR1

A_SDRAM_CS1A_L

A_SDRAM_CS1B_L

A_SDRAM_BANK[1:0]

A_SDRAM_DATA[15:0]

SDRAM_ADDR[12:0]

A_SDRAM_CAS_L

_SDRAM_DATA[15:0]

A_SDRAM_RAS_L

SDRAM_BANK[1:0]

A_SDRAM_WE_L

A_SDRAM_ADDR[12:0]

A_SDRAM_DQMB0

A_SDRAM_DQMB1

A_SDRAM_DQMA0

A_SDRAM_DQMA1

DIR

SDRAM_CAS_L

_SDRAM_DQMA1

_SDRAM_DQMB0

_SDRAM_DQMA0

_SDRAM_DQMB1

SDRAM_WE_L

SDRAM_RAS_L

_SDRAM_CS1B_L

_SDRAM_CS1A_L

SDRAM_CAS_L

SDRAM_WE_L

_SDRAM_CS1B_L_SDRAM_CLK

DIR

SDRAM_RAS_L

RESET_L

USB_CS

USB_ALE

PB_NAE0

PB_NCS3

EPSONTEST

EPSONINP1

3.3V

3.3V3.3V

3.3V

TP864 OE

TP869 AD

TP868 AD

TP903

TP862 AD

TP860 AD

TP879 BD

C121

0.1U

R418

4.7KJ

BR36

0JX4

1 8

2 7

3 6

4 5

TP908 TP

BR401

0JX4

1 8

2 7

3 6

4 5

TP951 TEST_OUT1

BR43

10KJX4

1 8

2 7

3 6

4 5

TP900

BR40

10KJX4

1 8

2 7

3 6

4 5

TP953 USB_ALE

TP904 TP

TP876 BD

R400 0J

BR400

0JX4

1 8

2 7

3 6

4 5

IC26

74VCX16245

1B1

1B2

1B3

1B4

1B5

1B6

1B7

1B8

1A1

1A2

1A3

1A4

1A5

1A6

1A7

1A8

GND

2A1

2A2

2A3

2A4

2A5

2A6

2A7

2A8

2B1

2B2

2B3

2B4

2B5

2B6

2B7

2B8

1DIR

2DIR

1OE

2OE

VCC

TP942 NA1_OUT

TP867 BD

IC29

74VCX16244

1Y1

1Y2

1Y3

1Y4

2Y1

2Y2

2Y3

2Y4

3Y1

3Y2

3Y3

3Y4

4Y1

4Y2

4Y3

4Y4

1A4

1A3

1A2

1A1

2A4

2A3

2A2

2A1

3A4

3A3

3A2

3A1

4A4

4A3

4A2

4A1

1OE

4OE

3OE

2OE

GND

VCC

TP866 BD

C120

0.1U

TP865 BD

TP909 TP

TP863 OE

TP954 USB_CS

C129

0.1U

TP861 AD

C122

0.1U TP901

TP952 TEST_OUT2

TP874 OE

BR38

0JX4

1 8

2 7

3 6

4 5

C123

0.1U

TP870 AD

IC28

74VCX16244

1Y1

1Y2

1Y3

1Y4

2Y1

2Y2

2Y3

2Y4

3Y1

3Y2

3Y3

3Y4

4Y1

4Y2

4Y3

4Y4

1A4

1A3

1A2

1A1

2A4

2A3

2A2

2A1

3A4

3A3

3A2

3A1

4A4

4A3

4A2

4A1

1OE

4OE

3OE

2OE

GND

VCC

TP905 TP

TP856 DIR

TP949 NA1_IN1

C119

10U/16V

BR402

0JX4

1 8

2 7

3 6

4 5

BR42

0JX4

1 8

2 7

3 6

4 5

TP947

NA2_IN2

TP948

NA2_IN1

TP871 AD

C130

0.1U

BR403

0JX4

1 8

2 7

3 6

4 5

TP906 TP

BR404

0JX4

1 8

2 7

3 6

4 5

TP950 NA1_IN2

TP872 AD

TP902

BR37

0JX4

1 8

2 7

3 6

4 5

BR39

10KJX4

1 8

2 7

3 6

4 5

C125

0.1U

TP857 OE

BR41

10KJX4

1 8

2 7

3 6

4 5

C128

0.1U

TP877 BD

TP943

NA2_OUT

IC35

ASIC(RH-IX0026QSZZQ)

VDD

RAS_L

CS1B_L

VSS

_SDRAM_CLK

VSS

RESET_L

VDD

VSS

DIR

VSS

VDD

NA1_OUT

TEST_OUT1

VSS

NA1_IN1

NA1_IN2

VDD

NA2_OUT

VSS

TEST_OUT2

VDD

VSS

VDD

NA2_IN1

NA2_IN2

TSTEN

VSS

VDD

TEST_IN

USB_ALE

USB_CS

PB_NCS3

PB_NAE0

VSS

VDD

WE_L

VSS

CAS_L

INP2

INP1

VDD

VSS

INP0

CS1A_L

VSS

TP910 TP

TP873 OE

C124

0.1U

TP907 TP

TP875 BD

C131

0.1U

TP878 BD

BR405

0JX4

1 8

2 7

3 6

4 5

AR-EB7 CIRCUIT DIAGRAM

– 15 –

87654321

12345678

A A

87654321

12345678

A A

87654321

12345678

A A

87654321

12345678

4/4

GND

GND FGND_UD1

GND

USB2.0 DEV1

FGND_UD2

AGND_UD2

GND

GND GND AGND_UD2

GND

GND GND

*change-1(2003.3.17)

PB_DATA1

PB_DATA6

PB_DATA7

PB_ADDR5

PB_DATA2

PB_ADDR3

PB_DATA5

PB_DATA6

PB_DATA1

PB_DATA0

PB_ADDR6

PB_DATA4

PB_DATA5

PB_ADDR2

PB_ADDR7

PB_DATA3

PB_DATA0

PB_DATA4

PB_ADDR1

PB_DATA2

PB_DATA7

PB_DATA3

PB_ADDR0

PB_ADDR4

PB_DATA[7:0]

PB_NWE

DT_REQB

PB_DATA[7:0]

DT_ACKB

RESET_L

INT_USBD

PB_NCS3

PB_NOE

PB_ADDR[7:0]

USBVBUS

USB_CS

USB_ALE

PB_NOE

PB_NWE

SUSPEND

WAKEUP

3.3V

R123 10KJ

C95

0.1U

TP930

R135 NM

TP939

TP932 TP

IC8

ISP1581

Vreg(3.3)

D-

D+

RPU

RREF

MODE1

/RESET

EOT

DREQ

DACK

DIOR

DIOW

INTRQ

/CS1

/CS0

BUS_CONF

MODE0

DA2

READY

/CS

/RD

/WR

INT

ALE

AD0

AD1

AD2

AD3

AD4

AD5

AD6

AD7

DATA0

DATA1

DATA2

DATA3

DATA4

DATA5

DATA6

DATA7

DATA8

DATA9

DATA10

DATA11

DATA12

DATA13

DATA14

DATA15

XTAL2

XTAL1

WAKEUP

SUSPEND

VCC(5.0)

VCC(3.3)

DGND

AGND

C184

C176

R138

BR15

0JX4

C188

C180

R143

12KF

R126 NC

TP254

DA2

C96 15P

C153

R415 0J

R140

TP252 /CS1

BR13

0JX4

R127 10KJ

R124 10KJ

TP921

TP918 TP

BLM21PG600SN1

TP924

TP913 TP

BLM21PG600SN1

TP935 TP

TP928

TP934 TP

R145 NM

C93

0.1U

C179

C189

C173

C87

10U/16V

C82

0.01U C84

0.01U

C182

C174

TP911 TP

L2 0J(1608)

R139

R144

C86

0.01U

C151

R130

R406 0J

TP915 TP

R129 10KJ

TP926

TP914 TP

C159

TP937

TP923

R122 10KJ

R142 NM

TP936

C88

0.1U

C154

BR17

0JX4

C190

R131

10KJ

C92

0.1U

R125 10KJ

TP922

C186

C175

C97 15P

BR12

0JX4

R136

C187

C172

C94

0.1U

0J(1608)

TP917 TP

C165

DLW21SN900SQ2

TP929

TP931

R132

10KJ

TP940

TP925 TP

TP253 /CS0

Y1 12MHz

C152

C83

0.01U

L3 0J(1608)

C81

0.01U C85

0.01U

TP912 TP

C185

TP941

C177

R128 10KJ

R134

1.5KJ

C89

10U/16V

C181

C178

R133 0J

TP916 TP

C90

0.1U

TP933 TP

TP919

TP938

TP927 TP

C91

0.1U

C183

C156

BR16

0JX4

CN8

UBR23(ACON)

1-D

SHIELD

GND

+5V

TP956

AGND

C158

R416 0J

R137

TP920

R405 0J

C98 0.01U

BR14

0JX4

R141

TP TP

SHARP CORPORATION

Digital Document Systems Group

Products Quality Assurance Department

Yamatokoriyama, Nara 639-1186, Japan

2003 June Printed in Japan t

Printed in Japan.

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted.

In any form or by any means,

electronic, mechanical, photocopying, recording, or otherwise,

without prior written permission of the publisher.

Trademark acknowledgments

Microsoft and Windows are trademarks of Microsoft Corporation in the U.S.A and other

countries.

IBM and PC/AT are trademarks of International Business Machines Corporation.

Adobe and Acrobat are trademarks of Adobe Systems Incorporated.

All other trademarks and copyrights are the property of their respective owners.

Table of contents

Popular Copier manuals by other brands

Toshiba

Toshiba e-studio550 Operator's manual

Canon

Canon iR1210 Service bulletin

Royal Copystar

Royal Copystar Ri 6230 Technical bulletin

Dell

Dell 5210n Mono Laser Printer Quick reference guide

Canon

Canon imageRUNNER 105 Function guide

Toshiba

Toshiba 3560 Service handbook

Gestetner

Gestetner F104 Settings guide

Gestetner

Gestetner 5499 operating instructions

Gestetner

Gestetner DSm616 Network guide

Oce

Oce CS120 Copying guide

Xerox

Xerox WorkCentre Pro 40 user manual

Ricoh

Ricoh V-C3 Technical training

Xerox

Xerox Copycentre C118 user guide

Copystar

Copystar CS-1620 Service manual

Canon

Canon CLC 1130 Service manual

Gestetner

Gestetner CS213d COPY REFERENCE

Olivetti

Olivetti d-COLOR MF3100 manual

Ricoh

Ricoh D069 Field service manual

Sharp AR-EB7 User manual

Popular Copier manuals by other brands
