PROGRAMMING MANUAL
UP3301UPME
POS TERMINAL
MODEL UP-3301
CHAPTER 1. PROGRAM RESET and SRV mode. . . . . . . . . . . . . . . . . . . . . 1
CHAPTER 2. MASTER RESET (All Memory Clear). . . . . . . . . . . . . . . . . . . . 2
CHAPTER 3. READING OF SRV PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . 5
CHAPTER 4. SRV MODE PROGRAMMING (“2 SETTING”) . . . . . . . . . . . . 10
CHAPTER 5. SRV MODE PROGRAMMING (“3 IRC SETTING”) . . . . . . . . 29
("U & A" version)
*ForsettingsintheUSERPROGRAMMINGmode,pleasereferto theapplicable
Reference Manual which is provided for the UP3301 model POS terminal.

UP-3301UP PROGRAM RESET and SRV mode
– 1 –
CHAPTER 1. PROGRAM RESET and SRV mode

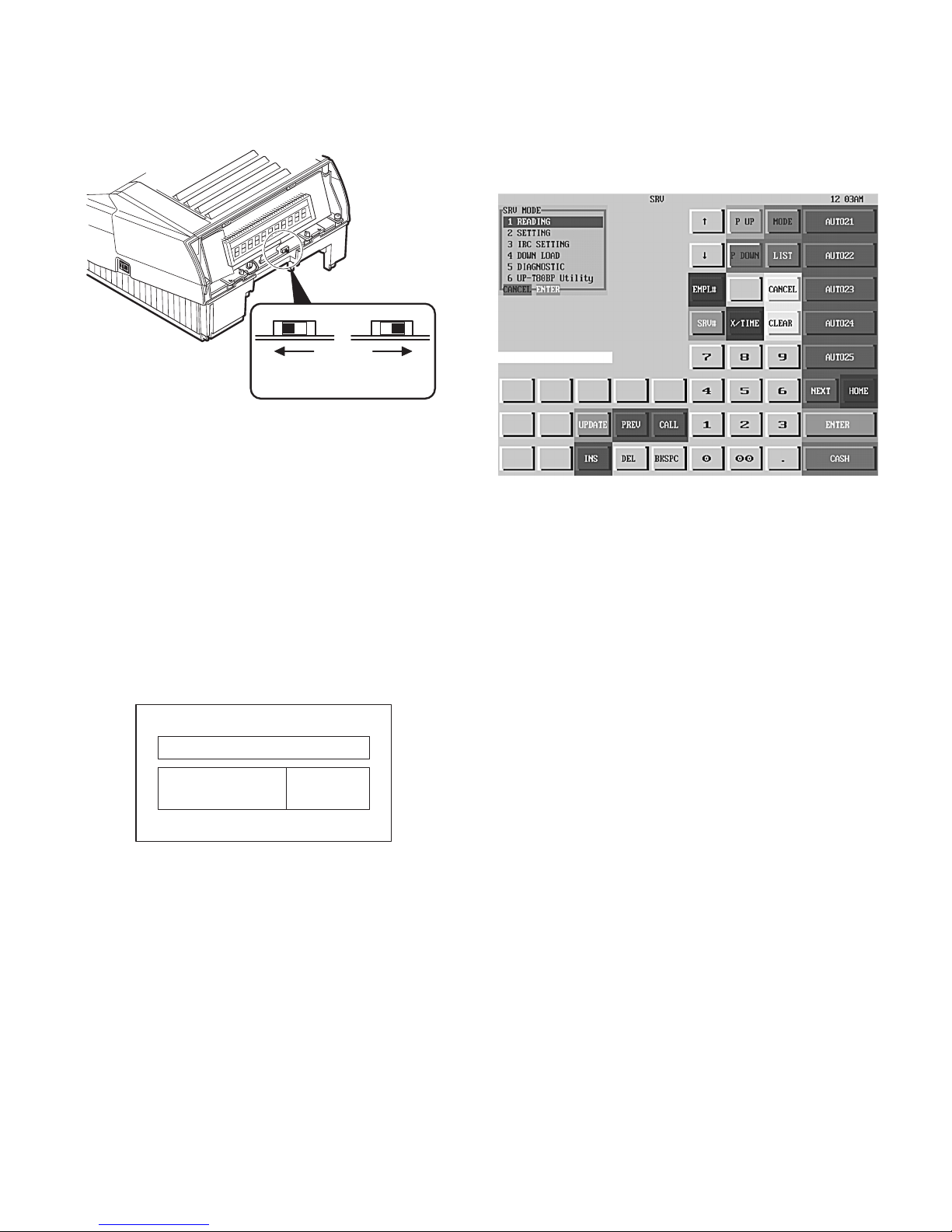

In the UP-3301, the following reset switch (location No: S1) is used to
enter to the service (SRV) mode and to reset.
PROGRAM RESET
Required to return the machine back to its operation state after a lock
up has occured.
PROCEDURE
1) Turn off the AC switch.
2) Set the reset switch to the “ON” position.
3) Turn on the AC power switch.
4) Set the reset switch to the “OFF” position.
5) The reset menu window is displayed as shown below.
DISPLAY:
Touch the [PROGRAM RESET] key.
6) PROGRAM RESET is executed.
7) After completion of the program reset, the SRV mode is displayed
as shown below.
DISPLAY: [SRV mode screen]
MRS Switch
Rear view
ON OFF
MRS Switch
Please select
PROGRAM RESET MASTER RESET

UP-3301UP MASTER RESET (All Memory Clear)
– 2 –

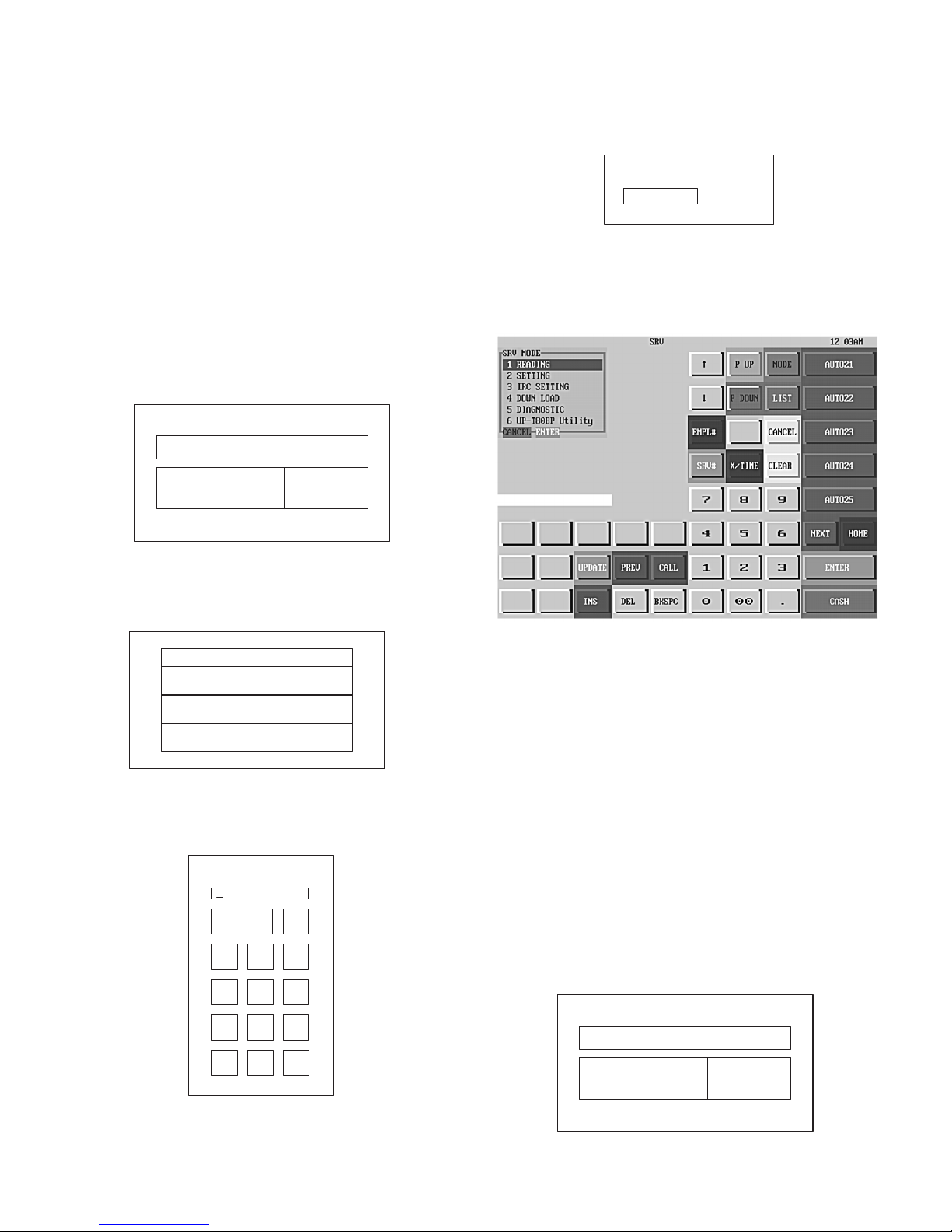

CHAPTER 2. MASTER RESET (All Memory Clear)
There are three methods available to perform a master reset.
1. MRS-1 (Master resetting 1): Clear the
entire memory and resumes default
values.
PROCEDURE
1) Turn off the AC power switch.
2) Set the reset switch to the “ON” position.
3) Turn on the AC power switch.
4) Set the reset switch to the “OFF” position.
5) The reset menu window is displayed as shown below.
DISPLAY:
Touch the [MASTER RESET] key.
6) The master reset menu window is displayed as shown below.
DISPLAY:
Touch the [MASTER RESET] key.
7) The secret number entry window is displayed as shown below.
DISPLAY:
Enter the secret number for the MASTER RESET-1 and touch the
[ENTER] key.
Secret number for MRS-1: 11111111
8) The MASTER RESET-1 is executed.
DISPLAY:
9) After completion of the master reset, the buzzer sounds three times
and the following SRV mode display is shown.
DISPLAY: [SRV mode screen]
2. MRS-2 (Master resetting 2): Clear the
entire memory and default values.
The keyboard must be entered by hand. This reset is used if an applica-
tion needs different keyboard layouts other than that supplied by a nor-
mal MRS-1.
PROCEDURE
1) Turn off the AC power switch.
2) Set the reset switch to the “ON” position.
3) Turn on the AC power switch.
4) Set the reset switch to the “OFF” position.
5) The reset menu window is displayed as shown below.
DISPLAY:
Touch the [MASTER RESET] key.
Please select
PROGRAM RESET MASTER RESET
MASTER RESET
Please select
MASTER RESET 2
MASTER RESET 3
ENTER MRS 2 PASSWORD
ENTER
CLEAR
0
1
4
7
00
2
5
8
CANCEL
3
6
9
MASTER RESET
Please select
PROGRAM RESET MASTER RESET

UP-3301UP MASTER RESET (All Memory Clear)
– 3 –
6) The master reset menu window is displayed as shown below.
DISPLAY:
Touch the [MASTER RESET 2] key.
7) The secret number entry window is displayed as shown below.
DISPLAY:
Enter the secret number for the MASTER RESET-2 and touch the
[ENTER] key.
Secret number for MRS-2: 22222222
8) Preset the fixed keys in the table below (Start from the [HOME] key,
The keys are displayed sequentially)
DISPLAY:
9) The MASTER RESET-2 is executed.
DISPLAY:
10) After completion of the master reset, the buzzer sounds three times
and the following SRV mode display is shown.
DISPLAY: [SRV mode screen]
3. MRS-3 (Master resetting 3): Master resetting
3 requires the entry of the Serial No. in addi-
tion to master resetting 2.
After completion of the MRS3, following operations and programming
will be inhibited.
1. GT programming.
2. GT resets with Z report. (Z report can be made, but GT will not be
reset.)
PROCEDURE
1) Turn off the AC power switch.
2) Set the reset switch to the “ON” position.
3) Turn on the AC power switch.
4) Set the reset switch to the “OFF” position.
5) The reset menu window is displayed as shown below.
DISPLAY:
Touch the [MASTER RESET] key.
No. KEY NAME
1HOME
2 CANCEL
3CL
4MODE
5 UP ( 2)
6DOWN(4)
MASTER RESET
Please select
MASTER RESET 2
MASTER RESET 3
ENTER MRS 2 PASSWORD
ENTER
CLEAR
0
1
4
7
00
2
5
8
CANCEL
3
6
9
ENTER HOME
MASTER RESET
Please select
PROGRAM RESET MASTER RESET

UP-3301UP MASTER RESET (All Memory Clear)
– 4 –
6) The master reset menu window is displayed as shown below.
DISPLAY:
Touch the [MASTER RESET 3] key.
7) The secret number entry window is displayed as shown below.
DISPLAY:
Enter the secret number for the MASTER RESET-3 and touch the
[ENTER] key.
Secret number for MRS-3: 33333333
8) The product serial No. entry window is displayed as shown below.
DISPLAY:
Enter the product serial No. of this POS and touch the [ENTER]
key.
9) Preset the fixed keys in the table below (Start from the [HOME] key,
The keys are displayed sequentially)
DISPLAY:
10) The MASTER RESET-3 is executed.
DISPLAY:
11) After completion of the master reset, the buzzer sounds three times
and the following SRV mode display is shown.
DISPLAY: [SRV mode screen]
MASTER RESET
Please select
MASTER RESET 2
MASTER RESET 3
ENTER MRS 3 PASSWORD
ENTER
CLEAR
0
1
4
7
00
2
5
8
CANCEL
3
6
9
No. KEY NAME
1HOME
2 CANCEL
3CL
4MODE
5 UP ( 2)
6DOWN(4)
ENTER HOME
MASTER RESET

UP-3301UP READING OF SRV PROGRAM
– 5 –
CHAPTER 3. READING OF SRV PROGRAM
The setting contents of the SRV mode can be reviewed on the display
or printer.
DISPLAY: SRV mode screen
Select “1 READING” and press the ENTER key.
DISPLAY: READING menu selection screen
Select the desired item, press the ENTER key.
DISPLAY: OUTPUT to destination selection screen
Select the output desired item, press the ENTER key.
The setting content is displayed or printed.
Sample of program reports
1. [1 SYSTEM PRESET]
DISPLAY:

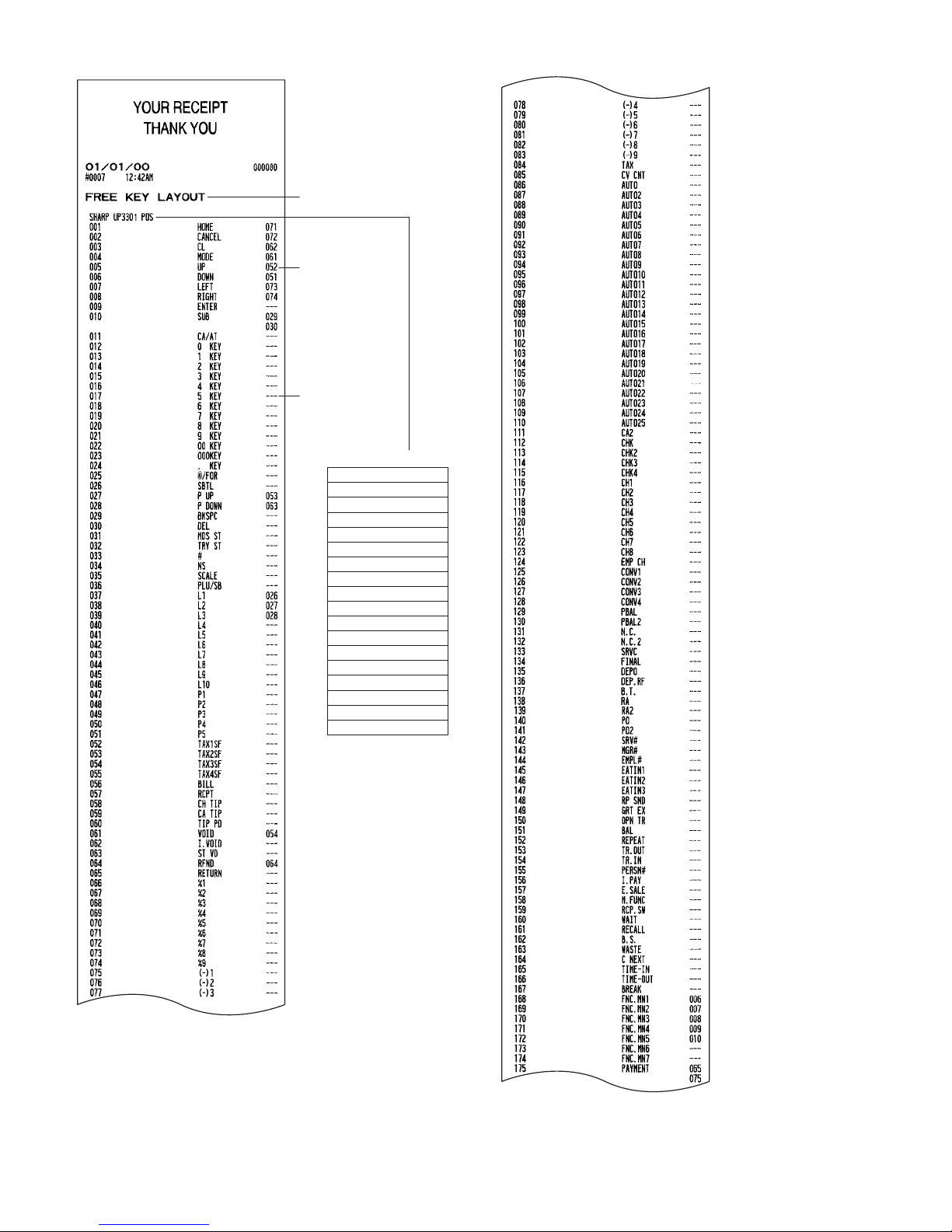

PRINTER:
Report title
JOB# / Data
Transaction Z1 reset counter
Transaction Z2 reset counter
Consolidation Transaction Z1 reset counter
Consolidation Transaction Z2 reset counter
Server Z1/Z2 reset counter
Houlry Z1 reset counter
PLU Z1/Z2 reset counter
GLU / PBLU Z1 reset counter
DRIVE THRU Z1 reset counter
Daily net Z2 reset counter
Department Z1 reset counter
Department Z2 reset counter
GT2
GT3
TRAINING GT
SUPERVISOR MODE
OP X/Z mode secret code
X1 mode secret code
AUTO KEY mode secret code
REG mode secret code
START UP secret code
Report title
Device name / Notassigned
Device name / Terminal No. / Channel No.
Auto cutter function
Printer name
Paper sheet type
CAT#2 execute
CAT#2 report

UP-3301UP READING OF SRV PROGRAM
– 6 –

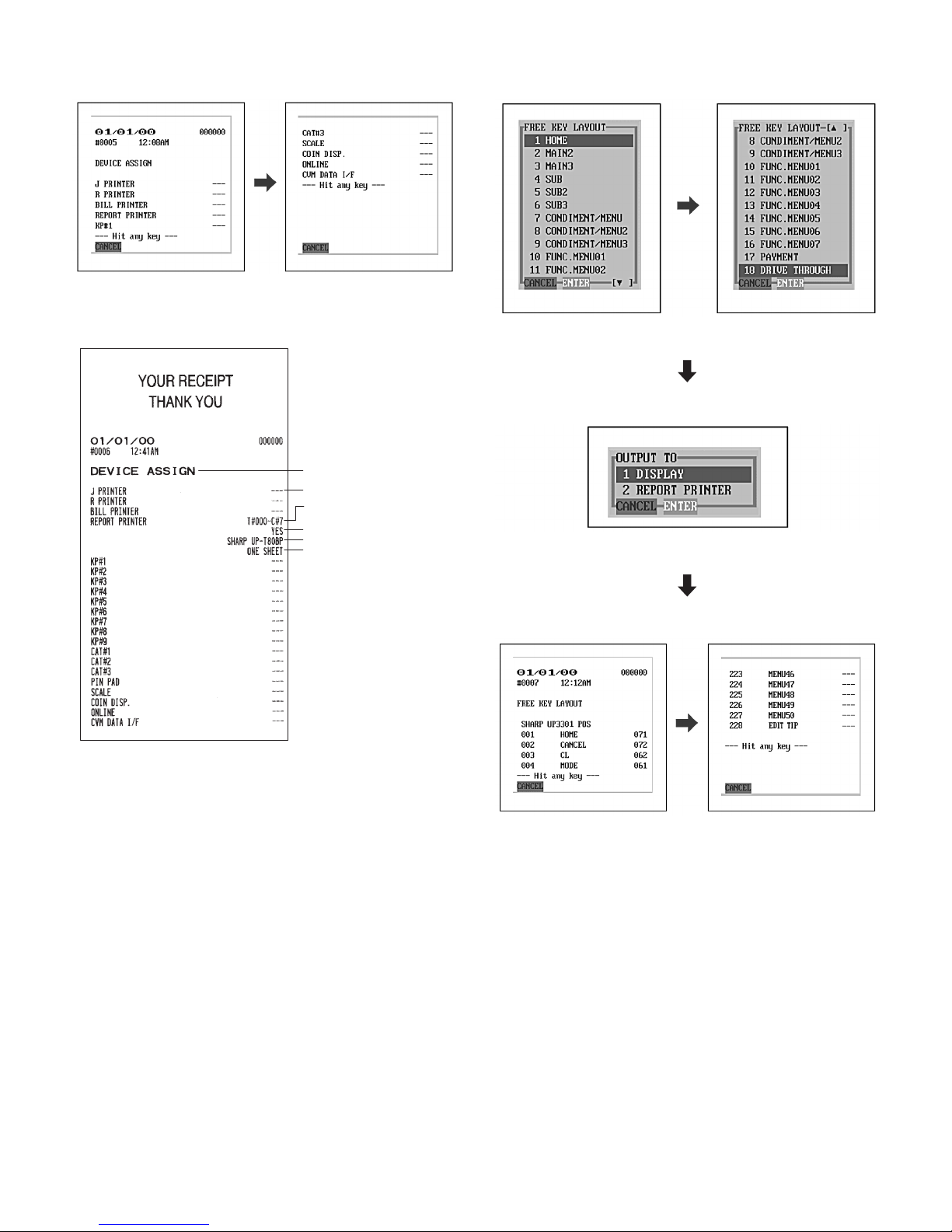

2. [2 DEVICE ASSIGN]
DISPLAY:
PRINTER:
3. [3 FREE KEY LAYOUT]
DISPLAY: FREE KEY LAYOUT menu selection screen
Select the desired item, press the ENTER key.
DISPLAY: OUTPUT to destination selection screen
The setting content is displayed or printed
DISPLAY:
Report title
Device name / Not assigned
Auto cutter function
Printer name
Paper sheet type
Device name / Terminal No.
/
Channel No.

UP-3301UP READING OF SRV PROGRAM
– 7 –
PRINTER:
Report title
Keyboard name:
SHARP UP3301 POS
MAIN2
MAIN3
SUB
SUB2
SUB3
CONDIMENT/MENU
CONDIMENT/MENU2
CONDIMENT/MENU3
QUANTITY
DISCOUNT
SUB ENTRY
FUNC.MENU4
FUNC.MENU5
FUNC.MENU6
FUNC.MENU7
PAYMENT
DRIVE THROUGH
Key No. / Key text /
Key position code
Not assigned

UP-3301UP READING OF SRV PROGRAM
– 8 –
4. [4 FILE]
DISPLAY:
PRINTER:
Report title
File table No. / No. of records/
No. of used records
File table No. / No. of records /
No. of blocks / No. of used
records
File table No. / No. of index
records - No. of data records /
No. of used records

UP-3301UP READING OF SRV PROGRAM
– 9 –

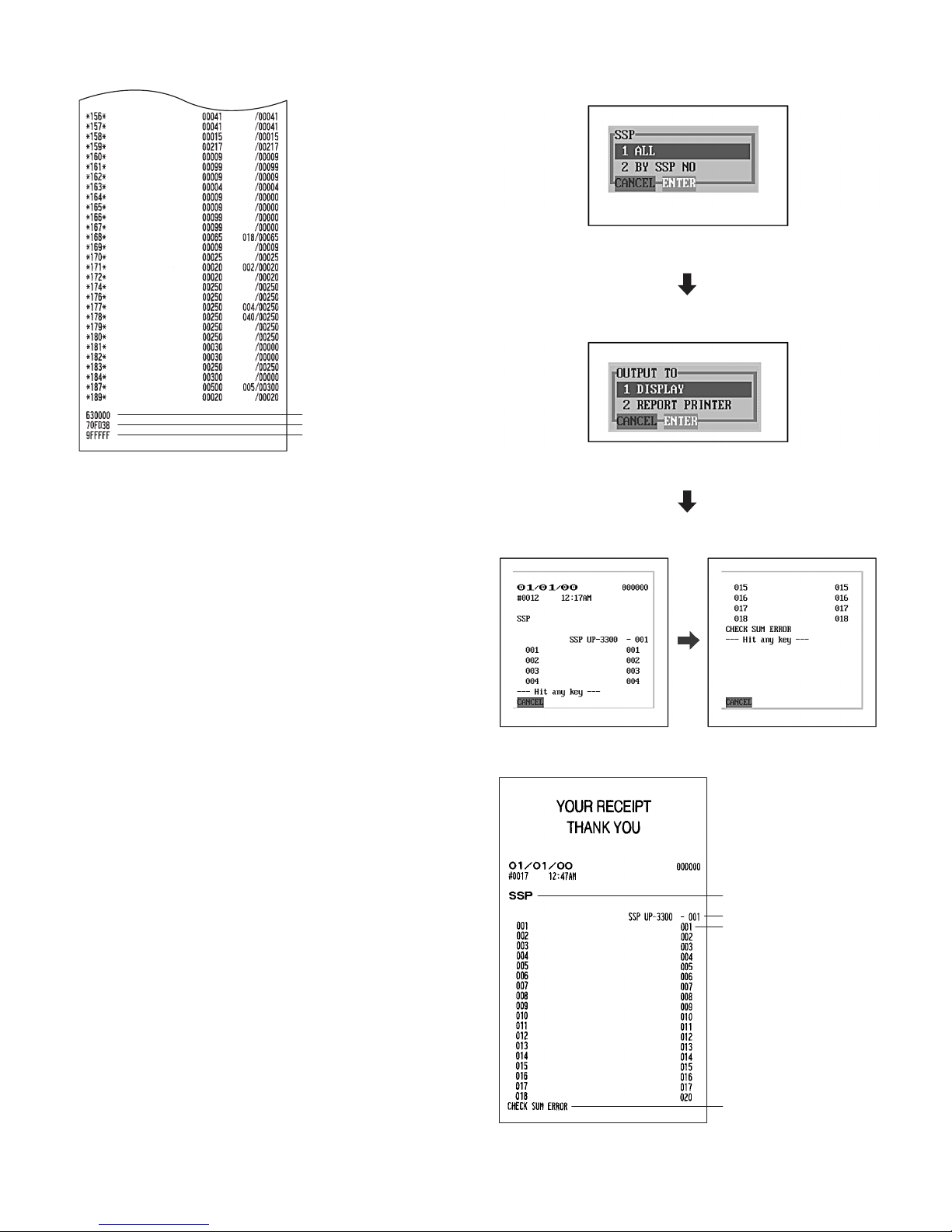

5. [5 SSP]
DISPLAY: SSP menu selection screen
Select the desired item, press the ENTER key.
DISPLAY: OUTPUT to destination selection screen
The setting content is displayed or printed
DISPLAY:
PRINTER:
File memory start address
Empty memory start address
Memory end address
Report title
SSP No.
SSP data
Error message

UP-3301UP SRV MODE PROGRAMMING (“2 SETTING”)
– 10 –
CHAPTER 4. SRV MODE PROGRAMMING (“2 SETTING”)
DISPLAY: SRV mode screen
Select “2 SETTING” and press the ENTER key.
DISPLAY: SETTING item selection screen
Select the desired item, press the ENTER key.
The item selection input screen is displayed.
1. [1 DEVICE ASSIGN]
DISPLAY: Setting item menu screen
Select “1 DEVICE ASSIGN” and press the ENTER key.
DISPLAY: DEVICE ASSIGN selection screen
Select the item to be changed and press the ENTER key.
The setting content is described below.

UP-3301UP SRV MODE PROGRAMMING (“2 SETTING”)
– 11 –

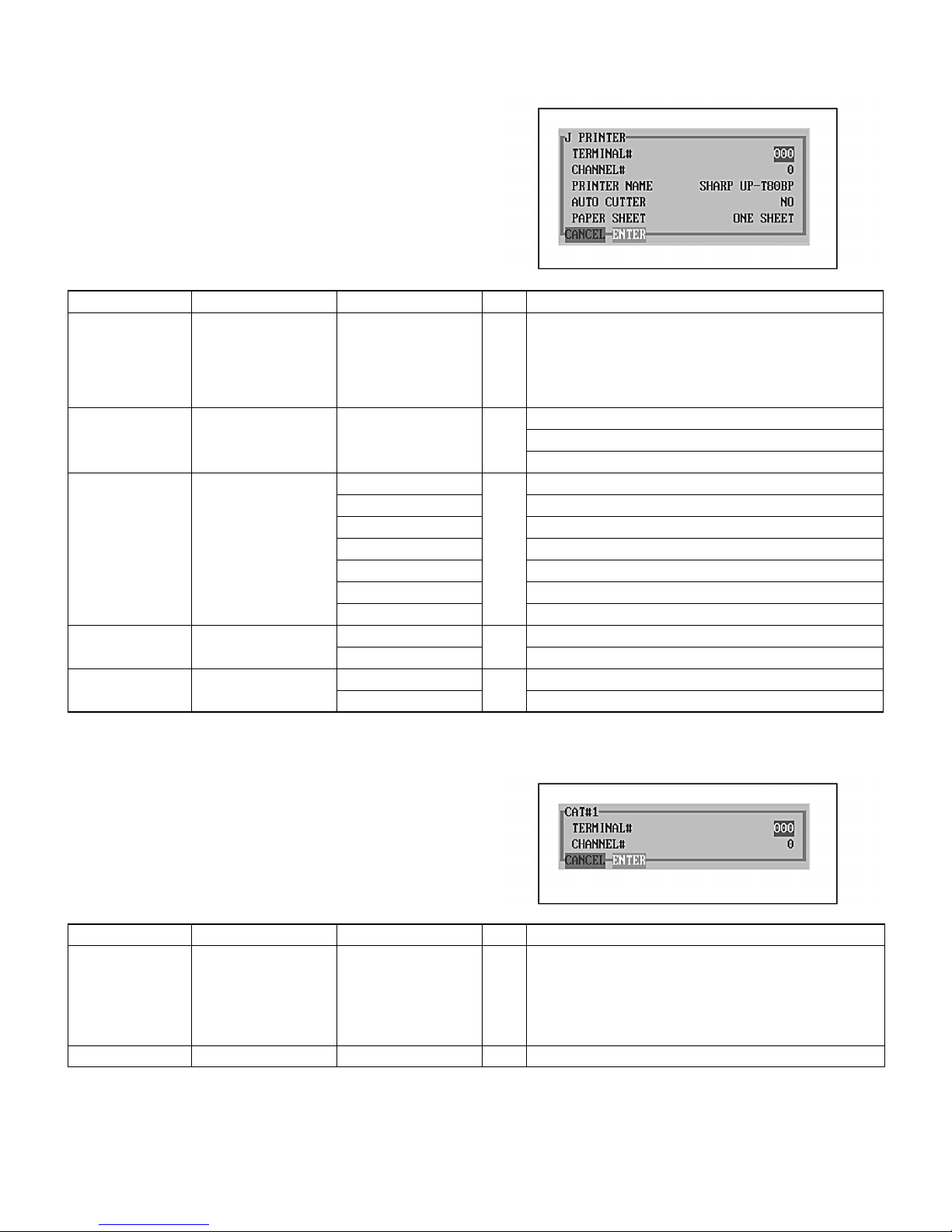

DISPLAY: Setting screen
[1 DEVICE ASSIGN] – [1 J PRINTER]
– [2 R PRINTER]
– [3 BILL PRINTER]
– [4 REPORT PRINTER]
– [5 KP#1]
– [6 KP#2]
– [7 KP#3]
– [8 KP#4]
– [9 KP#5]
– [10 KP#6]
– [11 KP#7]
– [12 KP#8]
– [13 KP#9]
DISPLAY CONTENTS SELECT ITEM MRS NOTE
TERMINAL# Terminal No. 000~254 000 000: Self terminal No.
This means local device.
1~254: Except self terminal No.
This means re-routed device.
Re-routing programming is only valid for printers.
CHANNEL# Channel No. 0~7 0 0: No RS232 channel is assigned.
1~7: RS232 channel is assigned.
*Set channel #7 for SHARP UP-T80BP.
PRINTER NAME Connected printer name TM-T85/T88(3)
TM-300
TM-T80
ER-01PU
UP-T80BP ★
TM-T88(3) + LOGO
TM-U200/U230
AUTO CUTTER Auto cutter function No ★
Yes
PAPER SHEET Paper sheet type
selecting ONE SHEET ★
TWO OR MORE
[1 DEVICE ASSIGN] – [14 CAT#1]
– [15 CAT#2]
– [16 CAT#3]
– [17 PIN PAD]
– [18 SCALE]
– [19 COIN DISP.]
– [20 ONLINE]
– [21 CVM DATA I/F]
DISPLAY TEXT CONTENTS SELECT ITEM MRS NOTE
TERMINAL# Terminal number 000~254 000 000: Self terminal No.
This means local device.
1-254: Except self terminal No.
This means re-routed device.
Re-routing programming is only valid for printers.
CHANNEL# Channel number 0~7 0 0: No RS-232 channel is assigned.

UP-3301UP SRV MODE PROGRAMMING (“2 SETTING”)
– 12 –

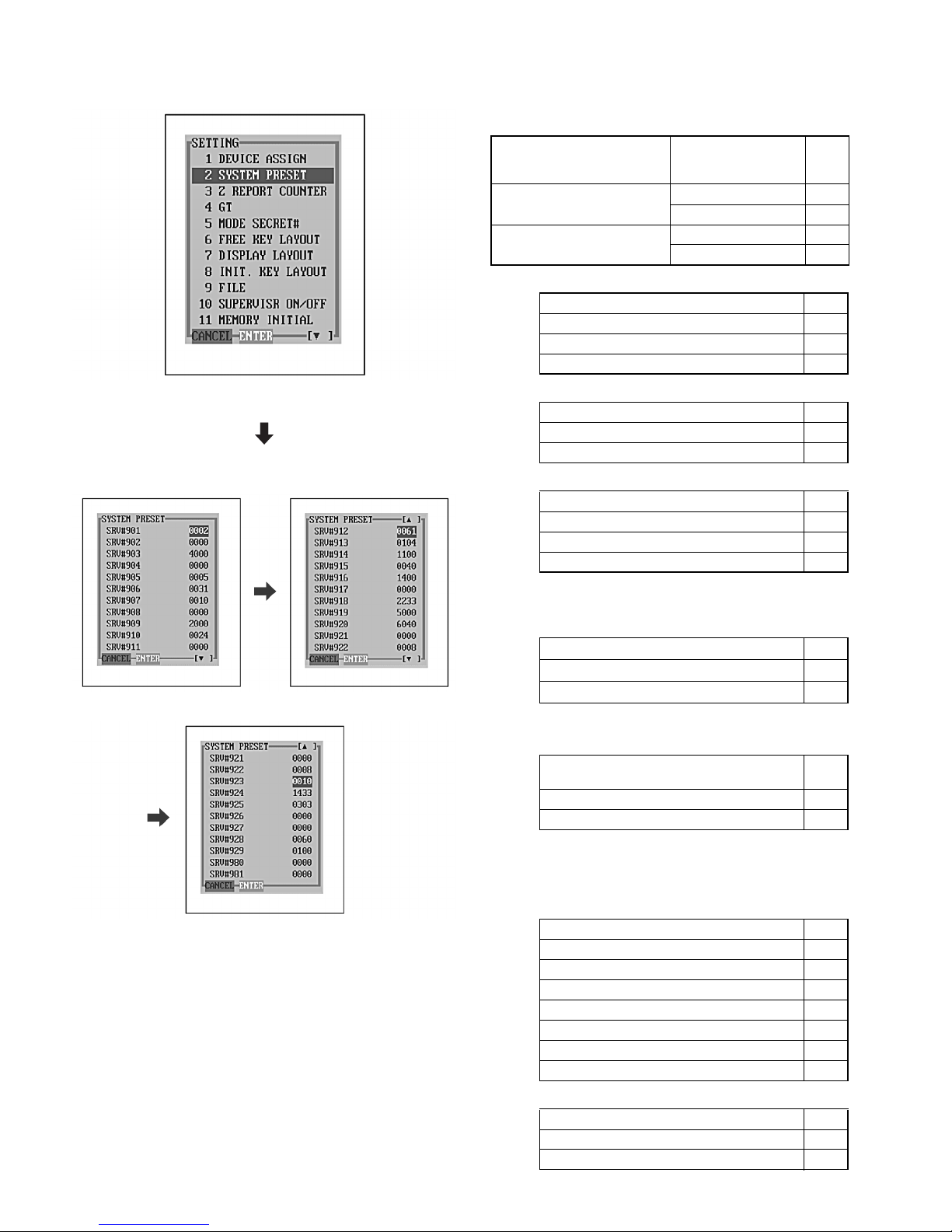

2. [2 SYSTEM PRESET]
DISPLAY: Setting item menu screen
Select “2 SYSTEM PRESET” and press the ENTER key.
DISPLAY: SYSTEM PRESET screen
Select the job# to be changed and enter the value
The content of each job is described below.
[JOB#901] : MRS=0002
901-A: 1. The Server can do Past Voids when the re-order has not yet
been serviced.
2. % entry is prohibited at REG Mode.
901-B: 1. Tax system
901-C:1. Rounding system
901-D: 1. TAB setting
[JOB#902] : MRS=0000
902-A: 1. In-line system
902-B: Not used (Fixed at "0")
902-C: 1. Sending AT &UI6 command to data translation CAT (CAT2)
902-D: Not used (Fixed at "0")
[JOB#903] : MRS=8000
903-A: 1. (POS data copy) baud rate
903-B: 1. Symbol of scale entry
1. The Server can do Past
Voids when the re-order
has not yet been serviced.
2. % entry is prohib-
ited in REG Mode. 901-A
No No 0 ★
Yes 1
Yes No 4
Yes 5
1. Tax system 901-B
Auto tax 1-4 & manual tax 0 ★
CANADIAN TAX (Type to Type 10) 6
CANADIAN TAX (Type 11) 7
1. Rounding system 901-C
Normal 0 ★
Singapole 8
1. TAB setting 901-D
0.0 1
0.00 2 ★
0.000 3
1. In-line system 902-A
No 0 ★
Yes 1
1. Sending AT &UI6 command to data
translation CAT (CAT2) 902-C
Yes 0 ★
No 2
1. baud rate 903-A
2400 2
4800 3
9600 4
19200 5
38400 6
57600 7
115200 8 ★
1. Symbol of scale entry 903-B
LB 0 ★
KG 2

UP-3301UP SRV MODE PROGRAMMING (“2 SETTING”)
– 13 –
903-C: 1. Scale entry system
2. Entry of tare (For automatic system only)
3. Unit of weight for the scale
903-D: Not used (Fixed at “0”)
[JOB#904] : MRS=0000
904-A: 1. Printing of date
904-B: 1. Printing of the consecutive No.
904-C, D: Not used (Fixed at "00")
[JOB#905] : MRS=0005
905-A: 1. Taxable 4 subtotal print on X/Z report
2. Gross Tax 4 and refund Tax 4 total print on X/Z report
3. Net Tax 4 total print on X/Z report
905-B: 1. Tax printing when taxable subtotal is zero.
2. Tax printing when GST is VAT.
3. Tax printing when tax is zero.
905-C: 1. GST EXPT print on X/Z report
905-D: 1. TAX METHOD (CANADIAN TAX)
[JOB#906] : MRS=0031
906-A: 1. Printing of Dept. and PLU code
2. Entry which makes the PLU stock counter negative
906-B: 1. Hash department setting
906-C: 1. Multiplication entry
906-D: 1. Presetting of consective No.
2. Fractional quantity
Note: Fractional guantity must be set to 1 for scale.
1. Scale entry
system 2. Entry of tare 3. Unit of weight for the scale 903-C
Manual Disallowed 2id (3id) +2dd 0 ★
1id (2id) +3dd 1
Automatic Disallowed 2id (3id) +2dd 4
1id (2id) +3dd 5
Allowed 2id (3id) +2dd 6
1id (2id) +3dd 7
1. Printing of date 904-A
Yes 0 ★
No 4
1. Printing of the consecutive No. 904-B
Yes 0 ★
No 4
1. Taxable 4
subtotal 2. Gross Tax 4 and refund
Tax 4 total
3. Net Tax 4 total 905-A
Print
Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip
Print Print 4
Skip 5
Skip Print 6
Skip 7
1. Taxable sub-
total is zero 2. GST is VAT 3. Tax is zero 905-B
Skip
Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Print
Print Print 4
Skip 5
Skip Print 6
Skip 7
1. GST EXPT 905-C
Print 0 ★
Skip 4
Tax4
method
(GST)
Tax 3 method Tax2, 1
method
(PST) 905-D
GST PST
Type 1VAT VAT Tax on Tax 0
Type 2Tax on Base 1
Type 3VAT Tax on Tax 2
Type 4Tax on Base 3
Type 5Add on Tax Tax on Tax 4
Type 6Tax on Base 5 ★
Type 7Add on Tax VAT Tax on Tax 6
Type 8Tax on Base 7
Type 9Add on Tax Add on Tax Tax on Tax 8
Type FTax on Base 9
1. Printing of Dept. and
PLU code 2. Entry which makes the PLU stock counter
negative 906-A
No
Allowed unconditionally 0 ★
Operation allowed despite
error message 1
Entry inhibited 2
Yes
Allowed unconditionally 4
Operation allowed despite
error message 5
Entry inhibited 6
1. Hash department setting 906-B
Disable 0 ★
Enable 2
1. Multiplication entry 906-C
Multiplication 0
FFx (FF sequence + Split pricing) 3 ★
1. Presetting of consec-
tive No. 2. Fractional quantity 906-D
Yes No 0
Yes (3 digit decimal place) 1 ★
No No 2
Yes (3 digit decimal place) 3

UP-3301UP SRV MODE PROGRAMMING (“2 SETTING”)
– 14 –
[JOB#907] : MRS=0010
907-A, B: Not used (Fixed at "00")
907-C: 1. Minus Dept./PLU
907-D: Not used (Fixed at "0")
[JOB#908] : MRS=0000
908-A: GT print on Z report
908-B: GT print on X report
908-C: 1. Add void -mode transaction data to hourly total report
2. Resetting of consecutive number in Z1 resetting
908-D: 1. Printing of X/Z report
(Excepting the individual server report)
2. Z1 resetting that resets GT
[JOB#909] : MRS=2000
909-A: 1. Printing of training GT on the X report
2. Printing of training GT on the Z report
909-B: 1. Printing of data on PLU resetting report
909-C: 1. Printing of VOID mode totalizer and MGR VOID totalizer on
Z2 report
2. Printing of VOID mode totalizer and MGR VOID totalizer on
Z1 report
909-D: Not used (Fixed at "0")
[JOB#910] : MRS=0024
910-A: 1. Drawer open at server sign ON/OFF
Note: For stay down server# entry system.
910-B: Not used (Fixed at "0")
910-C: 1. Server # entry system
910-D: Not used (Fixed at "4")
[JOB#911] : MRS=0000
911-A: 1. Fraction treatment
911-B, C: Not used (Fixed at "00")
1. Minus Dept./PLU 907-C
Disable 0
Enable 1 ★
1. GT1 (NET) 2. GT2 (+) 3. GT3 (–) 908-A
Print
Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip
Print Print 4
Skip 5
Skip Print 6
Skip 7
1. GT1 (NET) 2. GT2 (+) 3. GT3 (–) 908-B
Skip
Skip Skip 0 ★
Print 1
Print Skip 2
Print 3
Print
Skip Skip 4
Print 5
Print Skip 6
Print 7
1. Add void -mode trans-
action data to hourly
total report
2. Resetting of consecu-
tive number in Z1
resetting 908-C
No No 0 ★
Yes 1
Yes No 4
Yes 5
1. Printing of X/Z report 2. Z1 resetting that resets
GT 908-D
Receipt & Journal Disable 0 ★
Enable 1
Journal only Disable 4
Enable 5
1. Printing of training GT
on the X report 2. Printing of training GT on the Z report 909-A
Skip Print 0
Skip 1
Print Print 2 ★
Skip 3
1. Printing of data on PLU resetting report 909-B
Print 0 ★
Skip 4
1. Printing of VOID mode
totalizer and MGR
VOID totalizer on Z2
report
2. Printing of VOID mode
totalizer and MGR
VOID totalizer on Z1
report
908-C
Print Print 0 ★
Skip 2
Skip Print 4
Skip 6
1. Drawer open at server sign ON/OFF 910-A
No 0 ★
Yes 2
1. Server # entry system 910-C
Stay down 0
Auto sign off 2 ★
1. Fraction treatment 911-A
Round off 0 ★
Round up 1
Round down 2

UP-3301UP SRV MODE PROGRAMMING (“2 SETTING”)
– 15 –
911-D: 1. RECEIPT/SLIP header format
Format 1:
Normal
Format 2:
Normal
Format 3:
Normal
[JOB#912] : MRS=0061
912-A: 1. Data print format
912-B: 1. Time system
912-C: 1. After transaction receipt
2. Copy receipt function
3. Footer print control (SRV JOB 912-D=2)
912-D: 1. STAMP LOGO message control
(STAMP LOGO message format)
Note: STAMP LOGO applies to ER-01PU & UP-T80BP only.
[JOB#913] : MRS=0104
913-A: Not used (Fixed at "0")
913-B: 1. Printing of SBTL
2. Printing of MDSE SBTL
3. Escape compulsory bill print operation
913-C: 1. Lock error buzzer keeps sounding
2. Buffered keyboard
913-D: 1. Drawer closing compulsory
2. Error system
3. Key touch sound
1. RECEIPT/SLIP header format 911-D
Format 1 0 ★
Format 2 2
Format 3 4
10/01/98 123456
#0123 12:34 jack__0001
1Date / Machine No.
1CC-No. / Time / Server name /
Server Code
10/01/98 123456
#0123 12:34 jack__0001
1Date / Machine No.
1CC-No. / Time / Server name /
Server Code
10/01/98 123456
#0123 12:34 ____0001
1Date / Machine No.
1CC-No. / Time / Server Code
1. Data print format 912-A
Month / Day / Year 0 ★
Day / Month / Year 1
Year / Month / Day 2
1. Time system 912-B
12 H 0 ★
24 H 1
1. After
transaction
receipt
2. Copy
receipt
function
3. Footrer print control 912-C
Total only
No All receipts 0
On selected function key
at the time of finalization 1
Yes All receipts 2
On selected function key
at the time of finalization 3
Detail
No All receipts 4
On selected function key
at the time of finalization 5
Yes All receipts 6 ★
On selected function key
at the time of finalization 7
1. STAMP LOGO message control 912-D
3-line header instead of a STAMP LOGO 0
STAMP LOGO only 1 ★
STAMP LOGO and 3-line footer 2
3-line header instead of a STAMP LOGO 3
3-line header instead of a STAMP LOGO and
3-line footer 5
1. Printing of
SBTL 2. Printing of MDSE SBTL 3. Escape compulsory
bill print 913-B
No No Disable 0
Enable 1 ★
Yes Disable 2
Enable 3
Yes
No Disable 4
Enable 5
Yes Disable 6
Enable 7
1. Lock error buzzer
keeps sounding 2. Buffered keyboard 913-C
For 2 sec. Yes 0 ★
No 1
Constant Yes 2
No 3
1. Drawer closing
compulsory
2. Error system 3. Key touch
sound 913-D
Non-compulsory
All lock error Yes 0
No 1
Misoperation
(One shot error) Yes 2
No 3
Compulsory All lock error Yes 4 ★
No 5
Misoperation
(One shot error) Yes 6
No 7
01 235

UP-3301UP SRV MODE PROGRAMMING (“2 SETTING”)
– 16 –
[JOB#914] : MRS=1100
914-A: 1. Receipt issuing at no-sale
2. No-sale key separation from CA/AT key for no-sale function
3. Tax delete
914-B: 1. No-sale after non-add code entry
914-C: 1. VOID mode
2. Non-add code entry at the begining of a transaction opera-
tion
914-D: 1. Manual TAX
2. Check/Cashing
3. Non-add code entry
[JOB#915] : MRS=0040
915-A: 1. Amount symbol
915-B: 1. PO system
915-C: 1. Paper near end check (ER01PU & UP-T80BP only)
2. No. of times of ST (–) or ST (%) entry within one transaction
3. RA system
915-D: Not used (Fixed at "0")
[JOB#916] : MRS=1400
916-A: 1. Action to be taken when text and amount overlaps each
other in a REG mode entry
916-B: 1. Finalization by charge when ST t0
916-C: 1. Negative merchandise subtotal
2. Subtotal entry before tender
3. Subtotal entry before direct non-tendering finalization
1. Recipt
issuing at
no-sale
2. No-sale key
separation from
CA/AT key for
no-sale function
3. Tax delete
914-A
Yes
Yes Inhibit 0
Enable 1 ★
No Inhibit 2
Enable 3
No
Yes Inhibit 4
Enable 5
No Inhibit 6
Enable 7
1. No-sale after non-add code entry 914-B
Disable 0
Enable 1 ★
1. VOID mode 2. Non-add code entry at
the begining of a trans-
action operation 914-C
Enable Non-compulsory 0 ★
Compulsory 1
Disable Non-compulsory 2
Compulsory 3
1. Manual TAX 2. Check/Cash-
ing 3. Non-add code entry 914-D
Enable
Disable Enable 0 ★
Disable 1
Enable Enable 2
Disable 3
Disable
Disable Enable 4
Disable 5
Enable Enable 6
Disable 7
1. Amount symbol 915-A
"$" 0 ★
"*"1
"(Space)" 2
1. PO system 915-B
Mixed entry 0 ★
Cash only entry 1
1. Papernear
end check 2. No. of times of ST (–) or ST (%)
entry within one
transaction
3. RA system
915-C
Yes
Any No. of times Mixed entry 0
Cash only entry 1
Only once Mixed entry 2
Cash only entry 3
No
Any No. of times Mixed entry 4 ★
Cash only entry 5
Only once Mixed entry 6
Cash only entry 7
1. Action to be taken when text and amount
overlaps each other in a REG mode entry 916-A
Truncate text 0
2-line print 1 ★
1. Finalization by charge when ST t 0 916-B
Inhibit 0
Allow 4 ★
1. Negative
merchan-
dise subtotal
2. Subtotalentry
before tender 3. Subtotal entry before direct
non-tendering
finalization
916-C
Enable
Non-compulsory Non-compulsory 0 ★
Compulsory 1
Compulsory Non-compulsory 2
Compulsory 3
Disable Non-compulsory Non-compulsory 4
Compulsory 5
Compulsory Non-compulsory 6
Compulsory 7

UP-3301UP SRV MODE PROGRAMMING (“2 SETTING”)
– 17 –
916-D: 1. Coupon PLU printing on X/Z report
2. Net sales subtotal (NET1) printing on X/Z report
3. Check change total printing on X/Z report
[JOB#917] : MRS=0000
917-A: 1. Printing of Taxable 1 subtotal on X/Z report
2. Printing of Gross Tax 1 and Refund Tax 1 totals on X/Z
report
3. Printing of Net Tax 1 total on X/Z report
917-B: 1. Printing of Taxable 2 subtotal on X/Z report
2. Printing of Gross Tax 2 and Refund Tax 2 totals on X/Z
report
3. Printing of Net Tax 2 total on X/Z report
917-C: 1. Printing of Taxable 3 subtotal on X/Z report
2. Printing of Gross Tax 3 and Refund Tax 3 totals on X/Z
report
3. Printing of Net Tax 3 total on X/Z report
917-D: 1. Printing of Total Tax on X/Z report
2. Printing of Gross manual Tax and Refund manual Tax on X/
Z report
3. Printing of Net manual Tax total on X/Z report
[JOB#918] : MRS=2233
918-A: 1. Printing of text for associated PLU in COMBO MEAL.
2. Direct non-tendering finalization after previous tender entry.
3. Output of COMBO MEAL to KP.
1. Coupon PLU 2. Net sales sub-
total (NET1) 3. Check change total 916-D
Print
Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip
Print Print 4
Skip 5
Skip Print 6
Skip 7
1. Taxable 1
subtotal 2. Gross Tax 1 and Refund Tax 1 totals 3. Net Tax 1 total 917-A
Print
Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip
Print Print 4
Skip 5
Skip Print 6
Skip 7
1. Taxable 2
subtotal 2. Gross Tax 2 and Refund Tax 2 totals 3. Net Tax 2 total 917-B
Print
Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip Print
Skip
Print 4
Skip 5
Print 6
Skip 7
1. Taxable 3
subtotal 2. Gross Tax 3 and Refund Tax 3 totals 3. Net Tax 3 total 917-C
Print
Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip
Print Print 4
Skip 5
Skip Print 6
Skip 7
1. Total Tax 2. Gross manual Tax
and Refund manual
Tax
3. Net man-
ual Tax
total 917-D
Print
Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip
Print Print 4
Skip 5
Skip Print 6
Skip 7
1. Printing of
text for asso-
ciated PLU in
COMBO
MEAL.
2. Direct non-
tendering
finalization
after previous
tender entry.
3. Output of
COMBO
MEAL to KP. 918-A
Print
Disable
By associated
PLU 0
COMBOMEAL's
KP 1
Enable
By associated
PLU 2★
COMBOMEAL's
KP 3
Skip
Disable
By associated
PLU 4
COMBOMEAL's
KP 5
Enable
By associated
PLU 6
COMBOMEAL's
KP 7

UP-3301UP SRV MODE PROGRAMMING (“2 SETTING”)
– 18 –
918-B: 1. Red color printing on KP when PLU's unit price is zero
2. Fractional entries for non-scalable PLU/DEPT.
918-C: 1. Kitchen printer recapitulation
2. Printing the DEPT./PLU text on KP in double size character
918-D: 1. Tip paid includes cash tip
2. Clearing of tip totalizer at server Z1 report
3. Printing of tip totalizer on the server report
[JOB#919] : MRS=5000
919-A: 1. GLU/PBLU system
2. GLU/PBLU code entry at reorder (When #919:B-1 is 0 "Auto
generation")
919-B: 1. Checking of server# on guest check when a reorder is made
2. Guest check No. system
919-C: 1. PB entry
2. Amount printing when PLU unit price is $0.00
919-D: 1. Conversion SBTL printing of native SBTL
2. Foreign currency format
[JOB#920] : MRS=6040 : INLINE PROGRAMMING AREA
920-A: 1. Item print/display recapitulating.
2. Back-up master function.
920-B: 1. System report and down-load job is executed in the back-up
master
920-C: 1. Broadcast communication (in-line)
2. PGM-mode programming at the satellite
920-D: 1. The register is
1. Red color printing on
KP when PLU's unit
price is zero
2. Fractional entries for
non-scalable PLU/
DEPT. 918-B
No Enable 0
Disable 1
Yes Enable 2 ★
Disable 3
1. Kitchen printer recapit-
ulation 2. Printing the DEPT./ PLU text on KP in dou-
ble size character 918-C
Yes Normal size 0
Double size 1
No Normal size 2
Double size 3 ★
1. Tip paid
includes
cash tip
2. Clearing of tip
totalizer at
server Z1 report
3. Printing of tip
totalizeronthe
server report 918-D
Yes
No No 0
Yes 1
Yes No 2
Yes 3 ★
No
No No 4
Yes 5
Yes No 6
Yes 7
1. GLU/PBLU system 2. GLU/PBLU code entry
at reorder 919-A
PB Look-Up system Non-compulsory 2
Compulsory 3
Guest Look-Up system Non-compulsory 4
Compulsory 5 ★
1. Checking of server# on
guest check when a
reorder is made
2. Guest check No. sys-
tem 919-B
Yes Auto generation 0 ★
Manual 1
No Auto generation 4
Manual 5
1. PB entry 2. Amount printing when
PLU unit price is $0.00 919-C
Non-compulsory No 0 ★
Yes 1
Compulsory No 2
Yes 3
1. Conversion SBTL print-
ing of native SBTL 2. Foreign currency for- mat 919-D
Yes Decimal digits are printed 0 ★
Omit digits lower than tab
position 1
No Decimal digits are printed 4
Omit digits lower than tab
position 5
1. Item print/display reca-
pitulating. 2. Back-up master func- tion. 920-A
Yes Not 2
Exist 3 ★
No Not 6
Exist 7
1. System report and down-load job is exe-
cuted in the back-up master 920-B
Disable 0 ★
Enable 4
1. Broadcast communica-
tion 2. PGM-mode program- ming at the satellite 920-C
Exist Disable 0
Enable 1
By terminal No. Disable 4 ★
Enable 5
1. The register is 920-D
Standard alone machine 0 ★
Satellite 1
Master 2
Back up master 3

UP-3301UP SRV MODE PROGRAMMING (“2 SETTING”)
– 19 –
[JOB#921] : MRS=0000
921-A: Not used (Fixed at "0")
921-B: 1. GLU system
2. Drive thru system
3. Drive thru entry
921-C: Not used (Fixed at "00")
921-D: 1. Tip paid is automatically executed when tip is remained at
individual server resetting.
2. Drive thru machine location
[JOB#922] : Not used MRS=0000
[JOB#923] : MRS=0010 : INLINE PROGRAMMING
AREA
923-A, B: 1. The record number for REQUEST of T-LOG POLLING
(x100)
923-C: 1. T-log Function
923-D: 1. Polling cycle (second)
Explanation for satellite:
Ex: When AB=10
The satellite will request to the master to poll the T-log when the T-
log records exceed 1,000.
Explanation for MASTER or Stand Alone.
Ex: AB = 0: Not send
Ex: AB = 10:
When the T-LOG empty record remains 1000 records, the MAS-
TER or Stand Alone request T-LOG POLLING to MWS.
Ex: When D = 5, the master starts its next T-Log request after the wait-
ing 5 sec.
[JOB#924] : MRS=1433 : INLINE PROGRAMMING AREA
924-A, B, C: Not used (Fixed at "143")
924-D: Programming whether or not to lock REG-mode entries after
individual periodic total resetting
1. Locking after Daily Net resetting
2. Locking after Transaction resetting
[JOB#925] : MRS=0303 : INLINE PROGRAMMING
AREA
925-A: 1. Selection of the method of daily total transaction consolida-
tion resetting at the master
2. Clearing of the individual resetting memory at the time of
consolidation daily total transaction resetting
925-B: 1. Various individual resetting
925-C: 1. Report printing when consolidation daily and periodic trans-
action reading or resetting is taken
925-D: 1. Resetting is allowed when the server is remained sign on
2. Resetting in the open store state
1. GLU system 2. Drive thru
system 3. Drive thru entry 921-B
Centralized Centralized Non-compulsory 0 ★
Compulsory 1
Individual Non-compulsory 2
Compulsory 3
Individual
Centralized Non-compulsory 4
Compulsory 5
Individual Non-compulsory 6
Compulsory 7
1. Tip paid is automati-
cally executed when tip
is remained at individ-
ual server resetting.
2. Drive thru machine
location 921-D
Yes Cashier Station 0 ★ Order Taker 1
Counter 2
No Cashier Station 4 Order Taker 5
Counter 6
1. The record number for REQUEST of T-LOG
POLLING (x100) 923-AB
0000~9900 00-99
1. T-log Function 923-C
No 0
Yes 1 ★
1. Polling cycle (second) 923-D
0~9 Sec. 0~9
1. Locking after Daily Net
resetting 2. Locking after Transac- tion resetting 924-A
Yes Yes 0
No 1
No Yes 2
No 3 ★
1. Selection of the
method of daily total
transaction consolida-
tion resetting at the
master
2. Clearing of the individ-
ual resetting memory
at the time of consoli-
dation daily total trans-
action resetting
925-D
Those data that has indi-
vidually been resetand the
current sales data are
reset together
Yes 0 ★
No 2
Only those data that has
individually been reset is
reset
Yes 4
No 6
1. Various individual resetting 925-B
Disable 2
Enable 3 ★
1. Report printing when consolidation daily and peri-
odic transaction reading or resetting is taken 925-C
Printing of both i.e. reports on individual machines and
consolidation report on the entire system 0★
Printing of consolidation report on the entire system 1
Printing of report on individual register 2
1. Resetting is allowed
when the server is
remained sign on
2. Resetting in the open
store state 925-D
No Disable 0
Enable 1
Yes Disable 2
Enable 3 ★
