Sharp UP-5300 User manual

CODE: 00ZUP5300UIME
POS TERMINAL
MODEL UP-5300
("U" & "A" version)
1. Removing the Rear display filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Replacing the Rear display filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
3. Removing the Top cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
4. Replacing the Top cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
5. Removing the power supply unit and AC cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
6. Replacing the power supply unit and AC cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
7. Removing the LCD unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
8. Replacing the LCD unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
9. PS-RAM DISK: UP-P02MB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
10. F-ROM DISK: UP-F04RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
11. Cautions for UP-F04RB and UP-P02MB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
12. D-RAM disk: S.O. DIMM (Locally supplied) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
13. MCR UNIT: UP-E12MR2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
14. Adjusting the IRQ10/11 on the ISA PWB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
15. RS232 & CENTRO I/F: ER-A8RS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
16. REAR DISPLAY UP-I20DP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
17. POLE DISPLAY: UP-P20DP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
18. DRAWER UNIT: ER-03DW/04DW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
19. COM1, COM2, COM3/5, and COM4/6 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
20. BUILT-IN PRINTER: UP-T80BP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
21. HDD (Local purchase) & HDD KIT: DKIT-8671RCZZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
22. FDD UNIT: UP-H14FD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
CONTENTS
SHARP CORPORATION
Parts marked with "!" is important for maintaining the safety of the set. Be sure to replace these parts with specified
ones for maintaining the safety and performance of the set.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.

Precautions
•Before installation, be sure to turn off the power.
•Use gloves to protect your hand from being cut by the angle
and the chassis.
•Connect all the cables securely. When connecting or
disconnecting the cables, be careful not to apply stress to the
cables. (It may cause disconnection.)
•Ground the human body to prevent against troubles and dust
adhesion to the LCD by static electricity. When assembling the
LCD, use a discharge blower to prevent against dust intrusion.
•Be careful to the high voltage of the invertor PWB transformer.
•About placing top cabinet with LCD panel side down, Please
use a clean dust free clothe to protect the touch panel and LCD
area.
1. Removing the Rear display filter
1) Remove the two Screws 1.
2) Remove the Rear display filter 2.
2. Replacing the Rear display filter
Install the Rear display filter in the reverse order of removing.
3. Removing the Top cabinet
1) Remove the two Screws 1.
2) Remove the Side cabinet 7.
2) Remove the Screw 2.
3) Remove the Printer cover 3.
4) Remove the Screw 4.
5) Remove the Top cabinet 8.
a) Release the latches a, band cin that order. Slide the
upper cabinet to the right and release the latch on the right.
b) Lift the top cabinet and put it straight in the direction of arrow
A. ( Be careful not to pull the cable between the LCD I/F PWB
of the top cabinet and the MAIN PWB of the Bottom cabinet.)
c) Pull and remove the following cables between the LCD I/F
PWB of the top cabinet and the MAIN PWB of the Bottom
cabinet.
•LCD Cable 5: MAIN PWB : CN11
•Earth wire 6.
4. Replacing the Top cabinet
Install the top cabinet in the reverse order of removing. Before install-
ing, make sure that each connector is connected securely.
1
2
A
1
7
3
5
2
6
4
1
8
9
a
b
c
– 1 –

5. Removing the power supply unit
and AC cord
1) Remove the two screws 1.
2) Remove the AC cord cover 2.
3) Remove the four screws 8.
4) Remove the P/S cover 7.
5) Use a minus screwdriver Ato loosen the AC cord fixing screws
(2 pcs.) of the power supply unit.
6) Remove the screw 4and the earth wire 5from the AC cord.
Remove the screw 8of the holder securing the earth wire of the
AC cord.
7) Remove the power supply cable 6.
8) Remove the three screws 3.
6. Replacing the power supply unit
and AC cord
Install the in the power supply unit and AC cord in the reverse order
of removing.
Before installing, make sure that each connector is connected
securely.
*When connecting the AC cord to the power supply unit in
assembly, tighten with the torque of 3 kg/cm ±1 kg/cm.
7. Removing the LCD unit
1) Remove the LCD unit 1.
a) Remove the three Screws 2.
2) Remove the LCD rear cabinet 3.
a) Remove the two Screws 4.
b) Remove the pawls ato 1of the LCD rear cabinet 3in that
order.
Caution:
Please do not place the LCD unit on hard surfaces, Please take
special care not to place the LCD unit on any surface that may cause
damage to the unit.
3
4
53
3
6
7
1
2
A
8
8
8
1
2
2
a
b
c
de
f
g
h
i
j
k
4
3
– 2 –

3) Remove the Inverter PWB 5.
a) Remove the Inverter cable 6.
b) Remove the CCFT cable 7.
c) Remove the two screws 8.
d) Remove the Inverter cover 9.
4) Remove the Touch panel PWB unit F.
a) Remove the LCD cable(40P) G.
b) Remove the LCD cable(30P) H.
c) Remove the Inverter cable I.
d) Remove the two Screws Jand the two Earth wire K.
e) Remove the Screw L.
5) Remove the LCD M.
a) Remove the five Screws N.
b) Remove the LCD plate O.
c) Remove the LCD PWB unit P.
8. Replacing the LCD unit
Install the LCD unit in the reverse order of removing.
Before installing, make sure that each cables are connected securely.
9. PS-RAM DISK: UP-P02MB
Make sure to save data before installing this option.
1) Remove the Rear display filter.
2) Install the option RAM disk 1to the Option ROM/RAM connector
CN15 2on the Main PWB.
a) Insert the RAM disk aslant into the option ROM/RAM connec-
tor .
b) Push the RAM disk until the RAM disk is locked by the arms of
option ROM/RAM connector.
*It is possible to install one UP-P02MB.
*Be careful of the direction of RAM disk to be installed. Install
the RAM disk with the notch part of the PWB (Figure A) come
right. Installing the RAM disk in the wrong direction may
damage the connector part or make the machine out of order.
7
8
6
5
9
10
Lock
Unlock
Lock
Unlock
Lock U nlock
10
11
12
13
14
15
16
15
17
20
18
19
Touch panel
18
18
18
– 3 –

3) Removing the option RAM disk.
a) Open the arms of option ROM/RAM connector right and left.
b) The RAM disk will be lifted automatically.
10. F-ROM DISK: UP-F04RB
Make sure to save data before installing this option.
1) Remove the Rear display filter.
2) Install the option ROM disk 1to the Option ROM/RAM connector
CN15 2on the Main PWB.
a) Insert the ROM disk at a slant into the option ROM/RAM con-
nector.
b) Push the ROM disk until the ROM disk is locked by the arms of
option ROM/RAM connector.
*It is possible to install one UP-F04RB.
*Be careful of the direction of ROM disk to be installed. Install
the ROM disk with the notch part of the PWB (Figure A) come
right. Installing the ROM disk in the wrong direction may
damage the connector part or make the machine out of order.
3) Remove the option ROM disk.
a) Open the arms of option ROM/RAM connector right and left.
b) The ROM disk will be lifted automatically.
11. Cautions for UP-F04RB and
UP-P02MB
Caution 1
Back up all data in the standard RAM disk (PS-RAM) before installing
the UP-F04RB/UP-P02MB.
Caution 2
Do not insert the UP-F04RB/UP-P02MB upside down into the con-
nector on the UP-5300 main PWB.
If you try to insert the UP-F04RB/UP-P02MB upside down, the UP-
F04RB/UP-P02MB can only be inserted halfway.
The RAM disk on the UP-5300 may be broken.
A
installing one R AM
disk on the upper
slot.
installing one R AM
disk on the low er
slot.
1
2
A
installing one R O M
disk on the upper
slot.
installing one R O M
disk on the low er
slot.
1
2
– 4 –

Always insert the UP-F04RB/UP-P02MB with its upper side directed
upwards (The upper side of UP-F04RB/UP-P02MB is the same side
as the notch of the connector part).
Caution 3
Install and remove the UP-F04RB/UP-P02MB as follows:
Handling the UP-F04RB/UP-P02MB forcibly may break the connector
lever.
InstallingUP-F04RB/UP-P02MB
1) Insert the terminal side of UP-F04RB/UP-P02MB into the connec-
tor with the parts face upwards.
Push the center part of UP-F04RB/UP-P02MB’s PWB onto the
upper slot at an angle of 30 to 40 degrees or onto the lower slot at
an angle of 45 degrees against the main PWB to insert until it hits
the back of the connector.
2) Grab the UP-F04RB/UP-P02MB’s PWB on the center part to push
down by sliding on the arms of the connector’s both sides using
the PWB’s terminal side as an axis until the arms click.
If the arms are too hard to push the UP-F04RB/UP-P02MB down
smoothly, push the UP-F04RB/UP-P02MB down from above with
opening the arms of the both sides of the connector right and left
using your fingers.
RemovingUP-F04RB/UP-P02MB
1) Open the arms of connector’s both sides using your fingers.
2) Check that the arms of the both sides are off and the UP-
F04RB/UP-P02MB stands at an angle of 30 to 40 degrees on the
upper slot against the main PWB or at an angle of 45 degrees on
the lower slot against the main PWB.
For the lower slot, the UP-F04RB/UP-P02MB may be caught in
the arms of the upper slot and stopped on the way to stand up.
Check that the UP-F04RB/UP-P02MB stands up to about an
angle of 45 degrees by further opening the both arms of the upper
slot right and left.
3) Pull the UP-F04RB/UP-P02MB out of the connector along the
inclination with which the UP-F04RB/UP-P02MB stood up.
U pperside
U pperside
Upper slot Lower slot
45°
30° ~ 40°
Pawl
Click
Pawl
Pawl
Upper slot Lower slot
45°
30° ~ 40°
– 5 –

Caution 4)
Do not insert any general-purpose RAM board (additional DIMM
module) in the connector.
The connector has the signal assignment designed only for the UP-
5300.
If you erroneously insert a general-purpose RAM board into the con-
nector, the UP-5300 and general-purpose RAM board may be
damaged.
12. D-RAM disk: S.O. DIMM (Locally supplied)
[Outline] UP-5300 has a socket as Small Outline DIMM.
It is necessary to satisfy with S.O.DIMM memory specification as follows.
[Specification]
144pin S.O.DIMM
8 Mbytes 16 Mbytes 32 Mbytes
TYPE EDO type
ACCESS TIME 60 nsec. (less than)
POWER 3.3 V
REFRESH CYCLE 1024/16 msec. 2048/32 msec. 4096/64 msec.
REFRESH TYPE CBR
POWER CONSUMPTION 700 mA (less than)
OTHER 4 chip ×16 Mbits
(1 Mwords ×16 bits) 8 chip ×16 Mbits
(2 Mwords ×8 bits) 4 chip ×64 Mbits
(4 Mwords ×16 bits)
Make sure to save data before installing this option.
1) Remove the top cabinet.
2) Remove the three screws 1.
3) Remove the shield plate 4.
4) Remove the VGA PWB 5.
5) Install the option D-RAM disk 2to the D-RAM connector: CN13
3on the CPU PWB.
a) Insert a D-RAM disk at a slant into the D-RAM connector.
b) Push the D-RAM disk until the D-RAM disk is correctly locked
by the arms of D-RAM connector.
6) Connect the VGA PWB 5.
7) Fix the shield plate 4with three screws 1.
2
3
4
5
1
– 6 –

8) Remove the option D-RAM disk.
a) Open the arms of D-RAM connector right and left.
b) The D-RAM disk will be lifted automatically.
13. MCR UNIT: UP-E12MR2
1) Fix the MCR ANGLE 1to the lower cabinet with two screws 2.
2) Connect the MCR cable 3to the MCR connector with the cable
holder 6, and tighter the screw 7on the back of lower cabinet.
3) Install the ferrite Core 4to the MCR cable and GND wire 5.
4) Fix the earth wire 5from the UP-E12MR2 with the screw.
14. Adjusting the IRQ10/11 on the
ISA PWB.
Adjust the IRQ10 and IRQ11 using the switches: S1 and S2 on the
ISA PWB if an option equipment is connected to the ISA slot of the
ISA PWB.
S1 = IRQ10: S = ON (Connect IRQ10 to the ISA Slot.)
M = OFF (Connect IRQ10 to GND, not to the ISA Slot.)
S2 = IRQ11: S = ON (Connect IRQ11 to the ISA Slot.)
M = OFF (Connect IRQ11 to GND, not to the ISA Slot.)
15. RS232 & CENTRO I/F: ER-A8RS
*Adjust the IRQ10 and IRQ11.
(See the "13. Adjusting the IRQ10/11 on the ISA PWB.")
1) Remove the REAR COVER.
2) Remove the screw 1from the ISA BUS SHASSIS.
3) Insert the I/F PWB 2to the ISA BUS CONNECTOR.
4) Fix the I/F BRACKET to the ISA BUS SHASSIS with screw 1.
*Only one ER-A8RS can be installed.
5) Connect the RS232 3and CENTRONICS 4cables to the I/F
PWB.
*If an I/F (locally supplied half-size PC card) other than the ER-
A8RS is connected to the ISA bus connector, it may be required to
remove reinforcement angle 5when inserting the I/F.
In this case, remove reinforcement angle 5, insert the I/F, then
install reinforcement angle 5.
2
1
3
46
5
7
IRQ11 IRQ10
S2
M
(3) S
(1) M
(3) S
(1)
S1
ER -A 8R S connection
2
3
1
3
4
5
– 7 –

*Align threaded holes completely before securing the I/F PWB with
screws.
16. REAR DISPLAY UP-I20DP
1) Remove the Display filter 1
2) Remove the Rear cover angle 2from the Display filter 1
a) Remove the two Screws 3
3) Connect the display cable 4to the connector: CN: 1 on the Main
PWB
4) Install the Display unit 5to the cabinet
a) Align the positioning boss Aof the bottom cabinet with the
angle hole Ain the display unit.
17. POLE DISPLAY: UP-P20DP
1) Install the core 6to the display cable 1.
2) Install the core 7to the display earth cable 4.
3) Connect the Display cable 1to the remote display connector on
the back of the set.
4) Fix the display cable 1with the cable holder 2, and tighten the
screw 3on the back of bottom cabinet.
5) Fix the display earth cable 4to the main chassis with the screw
5.
*Cable holder 2
Use the following type of cable holder supplied with the UP-
P20DP.
•"3N" (large type)
2
3
1
4
6
5
7
– 8 –

*How to Extend Display Pole
The pole can be extended by installing the attached pole to the
standard pole.
COMPONENT LIST:
No. NAME USE Q’ty
7, GPole cabinet Pole extension 2
HScrew (M3 ×4) Pole connection 4
IScrew (M4 ×16) Securing the UP-P20DP to
the wooden table 4
JScrew (M4 ×20) Securing the UP-P20DP to
the metal table 4
KNut Securing the UP-P20DP to
the metal table 4
LDisplay cable (S) This display cable (S)
should be used instead of
the standard cable and
earth wire if the
UP-20DP’s standard pole
is removed to lower the
height of the UP-20DP.
1
MEarth wire (S) 1
1) Remove the five screws 1.
2) Remove the Base angle 2.
3) Remove the PWB unit 3from the Base cabinet 4.
4) Remove the display cable 5from the PWB unit 3.
5) Remove the two screws 6.
6) Remove the Base cabinet 4from the pole cabinet 7.
7) Pull the Ratchet 9attached to the pole cabinet 7out of the
Display unit 8by turning it as shown in Figure A.
8) Remove the two screws F.
9) Remove the pole cabinet 7from the Ratchet 9.
Pattern side(PWB)
Core
1
2
3
4
5
1
6
47
7
8
9
10
10
9
– 9 –

10) Install the attached pole cabinet Gto the pole cabinet 7to fix it
with the screw H.
11) Install the pole cabinet Gin the opposite order of the disas-
sembly.
12) Fastening onthe table:
Secure the Base cabinet 2using the screw.
No. NAME USE Q’ty
IScrew (M4 ×16) Securing the UP-P20DP to
the wooden table 4
JScrew (M4 ×20) Securing the UP-P20DP to
the metal table 4
KNut Securing the UP-P20DP to
the metal table 4
*Lowering the height of the UP-P20DP
Remove the standard Pole and attach the Base cabinet 4to the
Ratch 9. At this time, replace the standard Display cable and the
Earth wire with the S type cable Land wire M.
18. DRAWER UNIT: ER-03DW/04DW
1) Connect the drawer cable 1to the drawer connector 2.
2) Fix the earth wire 3to the main chassis from drawer box unit
with the screw 4.
3) Install the ferrite Core 5to the drawer cable.
4) Fix the drawer cable 1with the cable holder 6, and tighten the
screw 7on the back of lower cabinet Aor B.
Display cable
7
7
11 11
2
5
3
4
1
1 turn
6
7
A
B
– 10 –

19. COM1, COM2, COM3/5, and
COM4/6 Connector
1) COM1 & COM2
•D-SUB 9pin Connector
•CI signal of COM1 or COM2 and +5V power supply can be
switched in order to supply +5V power.
Connector Specifications
D-SUB9
Pin No. Signal Function I/O
1 CD Data Carrier Detect I
2 RD Receive Data I
3 SD Send Data O
4 ER Data Terminal Ready O
5 SG Signal Ground —
6 DR Data set Ready I
7 RS Request to Send O
8 CS Clear to Send I
9 CI/+5V Ring Indicate/+5V I/–
Main PWB
S2 = COM1: 1 = +5V
3 = CI
S1 = COM2: 1 = +5V
3 = CI
S2
13
S1
13
31
31
S2
31
3
S1
1
+5V
CI
COM1
COM2
S2
S1
– 11 –

2) COM3/5, COM4/6
•Two channels of COM port with an RJ45 connector are
equipped.
•For 2 channels of RJ45 COM port, COM3 & COM4 or an I/O
address (COM5 & COM6) can be selected.
•Two CABLE HOLDER 1and SCREW (M3 ×8) 2are con-
tained in the package.
Connector Specifications
RJ45
Pin No. Signal Function I/O
1 RS Request to Send O
2 ER Data terminal Ready O
3 SD Send Data O
4 SG Signal Ground —
5 SG Signal Ground —
6 RD Receive Data I
7 DR Data set Ready I
8 CS Clear to Send I
20. BUILT-IN PRINTER: UP-T80BP
1) Remove the BOTTOM PLATE 2.
a) Remove the three SCREWs 1.
b) Remove the BOTTOM PLATE 2.
c) Remove the SCREW 3, CABLE CLAMP 4and POWER SUPP-
LY CABLE 5.
Fig. 1
2) Install the PS+CONTROL PWB 6.
a) Fix the PS+CONTROL PWB 6with three SCREWs 7Z, 3
*SCREW 3: Use the screw which was fixing the CLAMP 4
3) Connect the POWER SUPPLY CABLE 5to the
PS+CONTROL PWB 6. (No. CN1)
4) Connect the I/F CABLE 8of the PS+CONTROL
PWB 6to the UP-5300 MAIN PWB (No.CN109)
Fig. 2
2
1
34
5
5
6
37
8
: XHBSD30P06000
: XEBSD30P08000 7
30
30
– 12 –

5) Remove the PRINTER LID 9.
a) Remove the screw F.
b) Remove the PRINTER LID 9.
6) Install the PAPER ROLLERs (4ea.) G.
Fig. 3
7) Install the SWITCH UNIT H.
a) Fix the SWITCH UNIT Hon the cabinet pawl A.
b) Pass the SWITCH UNIT CABLE Ithrough the hole (B).
Fig. 4
8) Install the AUTO CUTTER RELAY PWB UNIT J.
a) Install the AUTO CUTTER RELAY PWB UNIT Jwith SCREW
K.
b) Pass the AUTO CUTTER RELAY PWB CABLE Lthrough the
hole (C).
Fig. 5
9) Install the PAPER GUIDE Mto the PRINTER
UNIT N.
10) Install the HEAD CABLE Oto the PRINTER
UNIT N.
Fig. 6
10
9
11
12
A
A
B
12
13
14
15
C
16
: XEBSD30P08000
15
17
19
18
– 13 –

11) Install the PRINTER UNIT N.
a) Connect the AUTO CUTTER CABLE Pto the AUTO CUTTER
RELAY PWB J.
b) Pass the HEAD CABLE Othrough the hole (C).
c) Pass the MOTOR CABLE Qand SENSOR CABLE Rthrough
the hole (D).
d) Open the PRINTER UNIT N.
e) Fix the PRINTER UNIT Nwith four SCREWs S
*Fix the SCREWs Sin the order of S-(a) to S-(d).
f) Fix the two EARTH WIREs Twith a SCREW U.
Fig. 7
12) Wiring for each cables as shown below
13) Connect the Printer cables to the CONTROL
PWB.
a) SWITCH UNIT CABLE I: Connect to the CN7.
b) HEAD CABLE O: Connect to the CN5.
Attach the FERRITE CORE (L size) Vand
CABLE CLAMP 4.
Fix the CABLE CLAMP 4with a SCREW X.
c) AUTO CUTTER RELAY PWB CABLE L: Connect to the CN4.
d) MOTOR CABLE Q: Connect to the CN2.
e) SENSOR CABLE R: Connect to the CN6
Fig. 8
C
D
18
23 a
23 b
23 c
23 d
14
19
22
25 24
21
20
16
: XEBSD26P06000
23 a: XEBSD26P06000
23 b
: XEBSD26P08000
23 : XEBSD26P08000
23 d
: XHBSD30P06000
25
c
16 19
14
20
26
22
13
21
16
19
4
28
: XEBSD30P08000
28
– 14 –

14) Wiring for each cables as shown below
a) Attach the FERRITE CORE (S size) Yto the I/F CABLE 8.
b) Fix the I/F CABLE 8and EARTH WIRE [with the CABLE
BAND Z.
c) Set the switch: SW2 to the "MRS" position.
Fig. 9
15) Install the BOTTOM PLATE 2.
Fig. 10
16) Install the PRINTER COVER Y.
Fig. 11
1
2
29
– 15 –

1. LIST FOR SCREWs
No. PARTS CODE M [mm] L [mm]
KXEBSD30P08000 3 8
Z
X
S-aXEBSD26P06000 2.6 6
S-b
S-cXEBSD26P08000 2.6 8
S-d
7XHBSD30P06000 3 8
U
2. INSTALLATION OF PAPER NEAR END SENSOR
[PARTS LIST]
No. PARTS NAME PARTS CODE NOTE
1PAPER NEAR
END SENSOR DUNTK3819BHZZ SENSOR UNIT,
FIXING SCREW
2NEAR END
SENSOR
CONNECTOR QCNCM6865RC0B 2 pin connector
1. Remove the BOTTOM PLATE .
2. Remove the PS+CONTROL PWB .
3. Solder the CONNECTOR 1to the PS+CONTROL PWB (No.
CN1)
4. Install the NEAR END SENSOR UNIT 2to the CABINET , and
fix it with the fixing SCREW 3.
Fig. 12
21. HDD (Local purchase) & HDD
KIT: DKIT-8671RCZZ
[Outline] UP-5300 can connect to a specific Hard Disk Drive as local
purchase.
It is necessary to provide the following 2.5 inch Hard Disk
Drive specification as follows.
[Specification]
2.5 inch type Hard Disk Drive
MAKER FUJITSU
MODEL MHA2021AT
PARTS No.
REVISION No. 1) Part No.: CA01640-B040 (For local purchase)
Rev. No.: A4
CAPACITY 2.16 Gbytes
INTERFACE ATA-3
*The hard disk drive is a part which is supplied locally.
COMPONENT LIST:
No. NAME Q’ty
1HDD COVER A 1
2HDD COVER B 1
3ANGLE 2
4HDD CUSHION 4
5SPACER 4
6SCREW A (M3 ×4) 4
7SCREW C (M3 ×8) 4
8SCREW B (M3 ×14) 4
9WASHIER 4
FHDD CABLE 1
GFERRITE CORE 2
HHOLDER 2
1) Install the HDD COVER A 1to the HDD unit with the SCREW A
(M3 ×4) 6.
*Install the HDD unit in the correct direction so that the HDD unit
firmly fits onthe HDD COVER A 1.
L
M
L
M
1
3
2
– 16 –

2) Install the HDD CUSHION 4to the ANGLE 3.
3) Insert the SPACER 5to the HDD CUSHION 4.
4) Install the HDD COVER B 2and the ANGLE 3to the HDD
COVER A 1with the WASHIER 9and SCREW B(M3 ×14)
8.
5) Place the ferrite core Gin the center of the HDD cable Fand
secure with the holder H.
6) Connect the HDD CABLE Fto the HDD unit.
*Connect the HDD CABLE Fwith the 4 pins on the left side of
the HDD unit open as shown in Figure A.
7) Remove the Bottom plate I.
8) Connect the HDD CABLE Fto the HDD connector: CN108 on
the MAIN PWB.
9) Install the HDD unit to the Bottom cabinet. With the SCREW A
(M3 ×8) 7.
22. FDD UNIT: UP-H14FD
COMPONENT LIST:
No. NAME Q’ty
1FDD UNIT 1
2FDD ANGLE-A 2
3FDD ANGLE-B 1
4SCREW 4
5SCREW 4
6EARTH WIRE 1
7FDD CABLE 1
8FDD COVER-A 1
9FDD COVER-B 1
FFERRITE CORE 1
1) Remove to the Printer lid 1.
a) Remove the screw 2.
b) Remove the printer lid 1.
2) Remove the bottom plate 4.
a) Remove the three screws 5.
b) Remove the bottom plate 4.
3) Remove the FDD cover 7.
A
1 pin
6
4
5
9
8
3
4
1
4
3
48
9
5
10
11
12
2
– 17 –

4) Install the FDD ANGLE-A 8.
a) Install the two FDD ANGLE-A 8and EARTH WIRE Fto the
FDD UNIT Gwith the four screws H.
5) Connect the FDD CABLE Ito the FDD UNIT G.
6) Install the ferrite core Monto the FDD cable I.
7) Install the FDD UNIT Gto the UP-5300.
a) Install the FDD UNIT Gand FDD ANGLE-B Jto the bottom
cabinet with the four screws K.
b) Connect the FDD CABLE Ito the Main PWB.
c) Pass the EARTH WIRE Fthrough the hole A.
d) Install the EARTH WIRE Fwith the screw L.
5
4
7
2
1
12
8
10
13
11
8
12
17
15
11
14
13
10
15
16
10
A
17
– 18 –

8) Install the FDD COVER Mto the FDD FRONT COVER N.
9) Install the FDD COVER UNIT M, Nto the bottom cabinet.
17
18
17 18
– 19 –
Other manuals for UP-5300
1
Table of contents
Other Sharp Touch Terminal manuals

Sharp

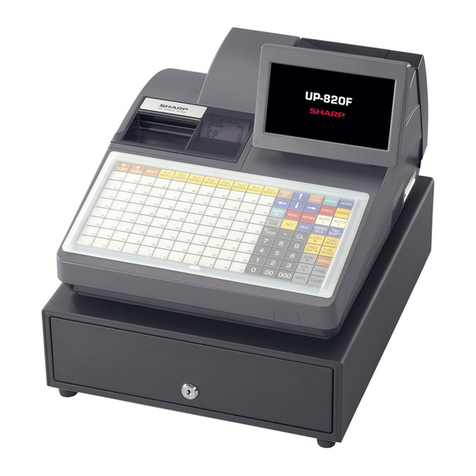

Sharp UP-820F User manual

Sharp
Sharp UP-X500 User manual

Sharp
Sharp UP-3301 Owner's manual

Sharp
Sharp ER-A770 User manual

Sharp
Sharp UP-5300 User manual

Sharp
Sharp UP-V5500 User manual

Sharp
Sharp UP-5350 User manual

Sharp
Sharp UP-600 Owner's manual

Sharp
Sharp UP-5700 User manual

Sharp
Sharp UP-3300 User manual

Sharp
Sharp UP-3300 Owner's manual

Sharp
Sharp UP-X300 User manual

Sharp

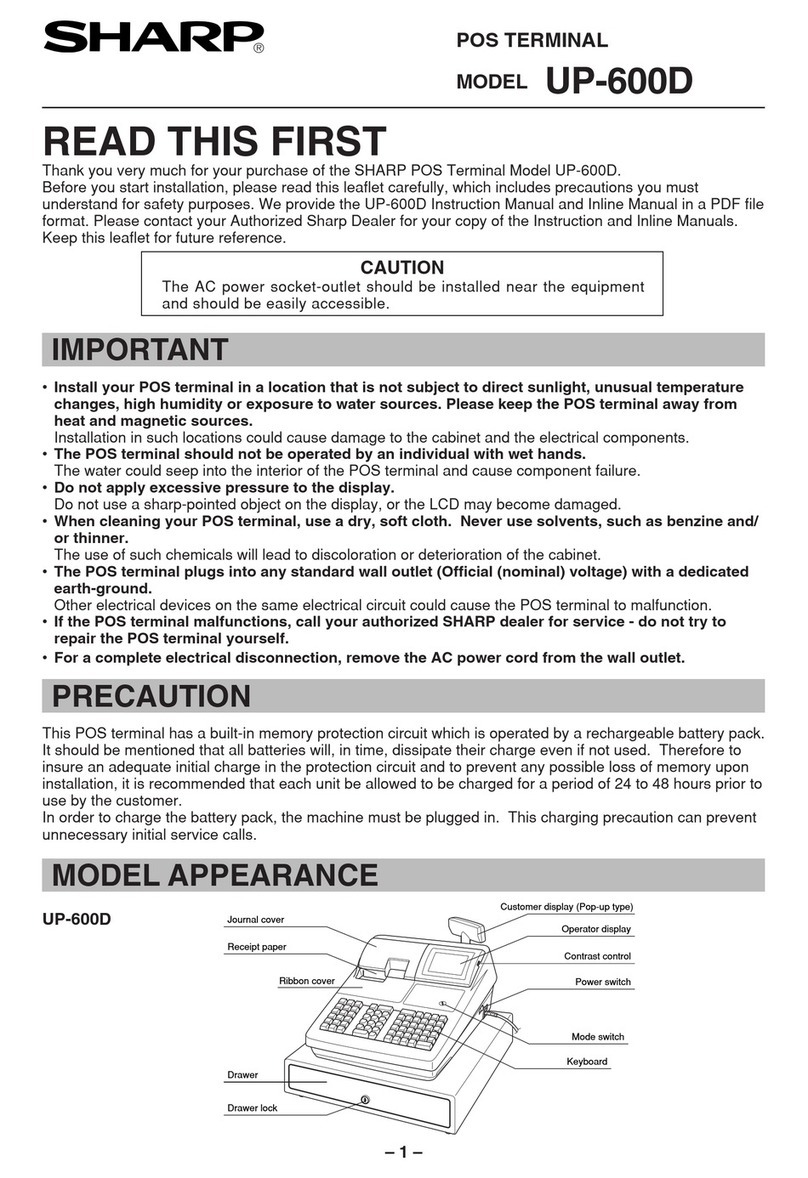

Sharp UP-600D Configuration guide

Sharp
Sharp ER-A770 User manual

Sharp
Sharp UP-3300 User manual

Sharp
Sharp UP-820F User manual

Sharp
Sharp ZQ-5000 User manual

Sharp
Sharp UP-3300 User manual

Sharp
Sharp UP-600 User manual

Sharp

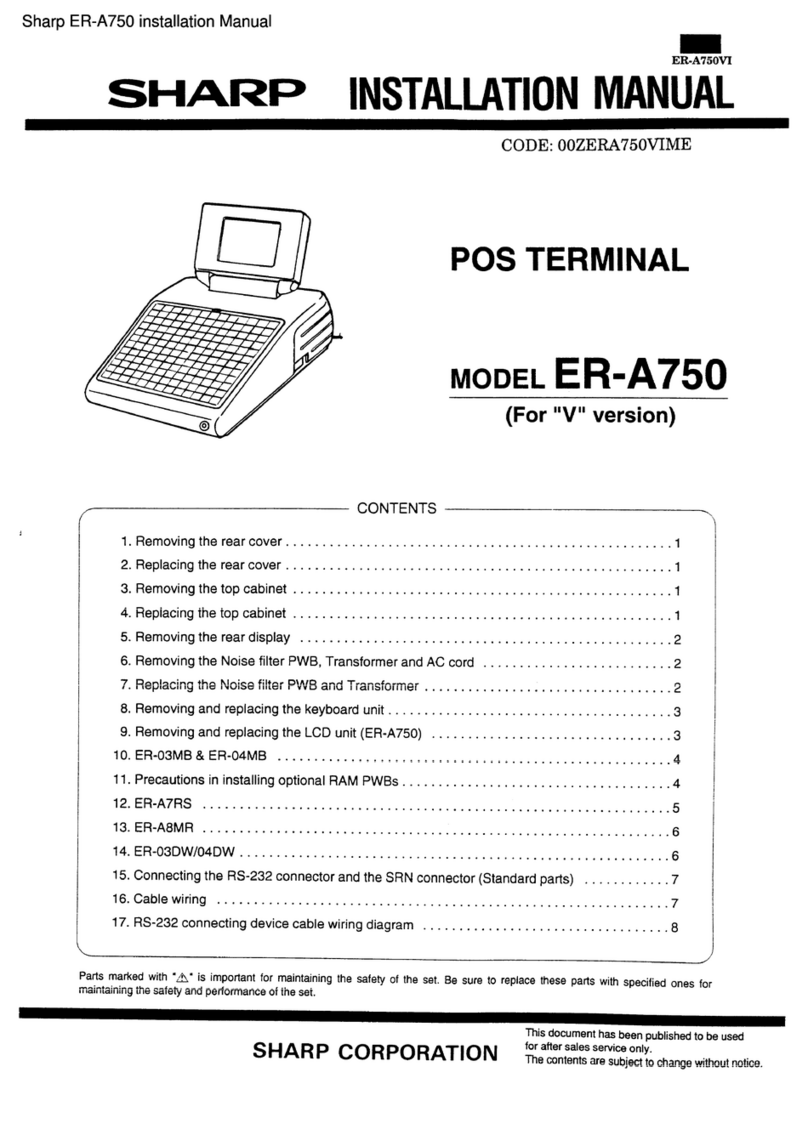

Sharp ER-A750 User manual
