Shuttle Spacewalker AV41 User manual

AV41
Pentium 4 Processor
Based MAIN BOARD
User's Manual

Shuttle®SpacewalkerTM AV41
Pentium 4 , 478-pin processor based AGPset Mainboard
Manual Version 1.0
Copyright
Copyright©2001 by Shuttle®Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,
translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without
prior written permission from Shuttle®Inc.
Disclaimer
Shuttle®Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.
This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.
Trademarks
Spacewalker is a registered trademark of Shuttle Inc.
Intel, Pentium is a registered trademarks of Intel Corporation.
VIA is a registered trademark of VIA Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice: Other brand and product names used herein are for identification
purposes only and may be trademarks of their respective owners.
M492

- 1 -
WHAT’S IN THE MANUAL.....................................................................5
Quick Reference ................................................................................................5
About This Manual ............................................................................................5
1 INTRODUCTION ..................................................................................6
1.1 TO DIFFERENT USERS ...............................................................................6
FIRST-TIME DIY SYSTEM BUILDER..........................................................6
EXPERIENCEDDIY USER .........................................................................6
SYSTEM INTEGRATOR ..............................................................................6
1.2 ITEM CHECKLIST: .......................................................................................7
2 FEATURES...........................................................................................8
2.1 SPECIFICATIONS ......................................................................................... 8
3 HARDWARE INSTALLATION ............................................................11
3.1 STEP BY STEP INSTALLATION ................................................................ 11
Accessories of AV41............................................................................. 11
STEP 1 Install the CPU ..........................................................................12
STEP 2 Set Jumpers .............................................................................14
STEP 3 Install DDR SDRAM System Memory.......................................14
STEP 4 Install Peripherals in System Case............................................15
STEP 5 Mount the Mainboard on the Computer Chassis .......................16
STEP6ConnectFrontPanel Switches/LEDs/Speaker/USB ..................17
STEP 7 Connect IDE, IDE RAID, and Floppy Disk Drives......................19
STEP 8 Connect Other Internal Peripherals ...........................................20
STEP 9 Connect the Power Supply........................................................20
STEP 10 Install Add-on Cards in Expansion Slots..................................21
STEP 11 Connect External Peripherals to Back-Panel ...........................22
STEP 12 First Time System Boot Up .....................................................24
STEP 13 Install Drivers & Software Components ..................................25
TABLE OF CONTENTS

- 2 -
3.2 JUMPER SETTINGS ..................................................................................26
JUMPERS&CONNECTORSGUIDE.....................................................27
Jumpers
Clear CMOS Setting (JP1)....................................................................30
BIOS flash protection Setting (JP3) .......................................................30
Back-Panel Connectors
PS/2 Keyboard & PS/2 Mouse Connectors............................................31
USB1/USB2PortConnectors.................................................................31
COM1/2 Port Connectors ......................................................................31
Parallel Port Connector ..........................................................................31
Line-Out Port Connector ........................................................................32
Line-InPort Connector ...........................................................................32
Mic-In Port Connector............................................................................32
GAME Port Connector ...........................................................................32
Front-Panel Connectors
Green LED Connector (Green LED) ......................................................33
HDDLEDConnector(HDDLED) ...........................................................33
ATX Power On/Off Switch Connector (Power ON) ................................34
Hardware Reset Connector (RST).........................................................34
Internal Peripherals Connectors
EnhancedIDE,andFloppyConnector ...................................................35
Other Connectors
ATX Power Supply Connector (ATX1)....................................................36
CPU,ChipsetandChassisFanconnectors(FAN1/2)..............................37
Wake-On-Modem Connector (WOM1)...................................................37
Wake-On-LAN Connector (WOL1).........................................................38
CD-INConnector (CD1/2) ......................................................................38

- 3 -
ExtendedUSBHeaders(USB2/USB3)...................................................38
MIC/speaker-out header(AUDIO) ..........................................................39
Single color MSG LED(SJ1)...................................................................40
3.3 SYSTEM MEMORY CONFIGURATION......................................................41
1. INSTALL MEMORY ...........................................................................41
2. UPGRADE MEMORY........................................................................41
4 SOFTWARE UTILITY .........................................................................42
4.1 AV41 Mainboard CD Overview.................................................................42
4.2 Install Mainboard Software......................................................................43
4.3 Install Audio Driver...................................................................................44
4.4 View the User's Manual ...........................................................................45
5 BIOS SETUP ......................................................................................46
5.1 ENTER BIOS ..............................................................................................46
5.2 THE MAIN MENU .......................................................................................47
STANDARD CMOS FEATURES.................................................................49
ADVANCEDBIOSFEATURES...................................................................52
ADVANCEDCHIPSETFEATURES ............................................................56
INTEGRATEDPERIPHERALS ...................................................................60
POWERMANAGEMENTSETUP...............................................................64
PNP/PCICONFIGURATION.......................................................................68
PCHEALTHSTATUS .................................................................................70
FREQUENCY/VOLTAGE CONTROL .........................................................71
LOADFAIL-SAFEDEFAULTS....................................................................72
LOAD OPTIMIZED DEFAULTS..................................................................72
SETSUPERVISOR PASSWORD...............................................................73

- 4 -
SETUSERPASSWORD ............................................................................73
SAVE & EXIT SETUP.................................................................................75
EXITWITHOUTSAVING ...........................................................................75

- 5 -
Quick Reference
Hardware Installation >> Step-by-Step................................................ Page 11
Jumper Settings >> A Closer Look ...................................................... Page 26
Drivers/Software Utilities >> How to Install......................................... Page 42
BIOS Setup >> How to Configure ........................................................ Page 46
About This Manual
For First-Time DIY System Builder......................................................... Page 6
For Experienced DIY User ...................................................................... Page 6
For System Integrator ............................................................................. Page 6
WHAT’SINTHEMANUAL

- 6 -
1.1 To Different Users
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience
successful, right from the start, we ha e designed the 3.1 Hardware Installation
section in a step-by-step fashion for all the first-time DIY system builders. Prior
to installation, we also suggest you to read the whole manual carefully to gain a
complete understanding of your new Shuttle AV41 mainboard.
Experienced DIY User
Congratulate on your purchase of the Shuttle AV41 mainboard. You will find
that installing your new Shuttle AV41 mainboard is just easy. Bundled with
an array of onboard functions, the highly-integrated AV41 mainboard pro-
ides you with a total solution to build the most stable and reliable system.
Refer to sections 3.2 Jumper Settings and Chapter 4 Drivers/Software tili-
ties to find out how to get the best out of your new mainboard. Chapter 5
BIOS Setup also contains the rele ant information on how to tune up your
system to achie e higher performance.
SystemIntegrator
You ha e wisely chosen Shuttle AV41 to construct your system. Shuttle
AV41 incorporates all the state-of-the-art technology of the P4X266
chipset from Intel. It integrates the most ad anced functions you can find
to date in a compact ATX board.
1INTRODUCTION

- 7 -
1.2 Item Checklist:
Check all items with you AV41 mainboard to make sure nothing is miss-
ing. The complete package should include:
One piece of Shuttle AV41 Mainboard
One piece of ATA 100/66/33 Ribbon Cable
One piece of Floppy Ribbon Cable
One piece of twin ports USB Cable (optional)
AV41 User's Manual
One piece of Bundled CD-ROM with containing:
Ø AV41 user's manual sa ed in PDF format
Ø VIA 4-IN-1 dri er
Ø VIA Audio dri er
Ø Award Flashing Utility
DIM M1
DIM M2DIM M3
IT8705F 0115-BXA M3Q040
1
C
P
U
FAN1
IDE1 IDE2
1
AGP1
PCI1
PCI2
PCI3
PCI4
PCI5
CNR 1
CM14007
0134
9279AF -21
WOM1 WOL1
FDD1
1
1
CASFAN1
CD 1
CD 2
P4X26 0125CD TAI
2JA000142
11
ROM2
BT1
JP1
1
JP3 1
ATX1
1
USB3
PANE L
1
SIR
1
AUDIO
1
USB2
1
E137A A7500
AV41
ALC201A 19281S1138
SJ1

- 8 -
AV41 mainboard is carefully designed for the demanding PC user who wants high
performance and maximum intelligent features in a compact package.
2.1 Specifications


CPU Support
Intel Pentium 4, 478-pin processors with 100 MHz FSB.


Chipset
Features VIA P4X266 N.B. and VIA VT8233 S.B..


Jumperless CPU Configuration
Soft-configuration FSB (The FSB speed is software configurable at 100MHz
and 133MHz.)


AC'97 Link for Audio and Telephony CODEC
AC'97 2.1 compliant
Spread independent PCI functions for Audio and Modem


Versatile Memory Support
Three 168-pin DIMM slots to support up to 1.5GB (unbuffered) or 3GB
(registered) compliant SDRAM module.


PCI Expansion Slots
Pro ides fi e 32-bit PCI slots.


AGP Expansion Slots
Pro ides one 32-bit AGP slot which supports up to 4X AGP de ices.


CNR Expansion Slots
ØPro ides one CNR (Communication Network Riser) slot.


I/O Interface
Pro ides a ariety of I/O interfaces:
Ø1*Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, or 2.88MB
format or for 5.25-inch FDD with 360K or 1.2MB format.
2 FEATURES

- 9 -
Ø1*PS/2 mouse connector.
Ø1*PS/2 Keyboard connector.
Ø2*DB9 Serial connectors 16550 UART compatible.
Ø1*Infrared communication port.
(Serial port COM2 can also be redirected to an external IrDA Adapter
for wireless connection.)
Ø1*DB25 Parallel port supports Standard Parallel Port and Bi-directional
(SPP), Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)
data transmission schemes.
Ø1*Line-Out port.
Ø1*Line-In port.
Ø1*Mic-In port.
Ø1*MIDI/GAME port.


PCI Bus Master IDE Controller Onboard
Two Ultra DMA 100/66/33 Bus Master Dual-channel IDE ports pro ide sup-
port to a maximum of four IDE de ices (one Master and one Sla e per channel).
The IDE Bus implements data transfer speeds of up to 100/66/33 MB/sec and
also supports Enhanced PIO Modes.
80-pin Cable Backward Compatible Legacy ATAPI De ices, ATAPI IDE CD-
ROM, CD-R, CD-RW, and LS-120 Supports.


ATX Power Supply Connector
ATX power supply unit can connected to the onboard 20-pin Pentium 4
standard ATX power connectors, supporting Suspend and Soft-On/Off by
dual-function power button.
The Pentium 4 ATX power include three connectors.
Note: S3(Suspend to RAM, and S5(Soft-off). in ACPI mode are not sup-
ported at current AV41 Version.

- 10 -


SystemBIOS
Pro ides licensed Award BIOS V6.0 PG on 2Mb Flash core and supports
Green PC, Desktop Management Interface (DMI).


ATX Form Factor
System board conforms to ATX specification.
Board dimension: 305mm*190mm.


Advanced Features
ØLow EMI - Built in spread spectrum and automatic clock shut-off of
unused PCI/SDRAMS slots to reduce EMI.
ØDual Function Power Button - The system can be in one of two states,
one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enters Soft-Off mode.
ØCP Clock Setting - This item allows users to adjust CPU Host Clock in
BIOS.
ØCP Multiplier Setting - This item allows users to adjust CPU Multiplier in
BIOS.


Intelligent Features
ØVoltage Monitoring - Monitors arious oltages of key elements, such
as the CPU, and other critical system oltage le els to ensure stable
current passing through mainboard components.
ØFan Status Monitoring - To pre ent CPU from o erheating, the CPU fan
is monitored for RPM and failure. (CPU Cooling FAN with RPM sensor
is required.)
ØTemperature Monitoring - This item allows users to make sure whether
the CPU or system runs in a suitable temperature.

- 11 -
Before removing or installing any of these devices including CPU, DIMMs, Add-On
Cards, Cables, lease make sure to un lug the onboard ower connector.
This section outlines how to install and configure your mainboard. Refer to the following
mainboard layout to help you to identify various jumpers, connectors, slots, and ports.
Then follow these steps designed to guide you through a quick and correct installation of
your system.
3.1 Step-by-Step Installation
3HARDWAREINSTALLATION
Accessories Of AV41
DIMM1
DIMM2
DIMM3
IT 87 0 5
0115-B
M3 Q 040
1
CPU F AN1
ID E 1 ID E 2
1
AG P1
PCI1
PCI2
PCI3
PCI4
PCI5
CNR1
C M 14 00
01 34
92 79AF- 2
WOM1
WOL1
FDD
1
1
CA S FAN1
CD 1
CD 2
P 4X 2 6
01 25C D TA IW A
2J A0 00 142
1
1
ROM2
BT1
JP 1 1
JP 3
1
ATX1
1
USB 3
PA N EL
1
SIR
1
AUDIO
1
USB 2
1
E137
KA7 50
)8"
ALC 20 1
1928 1
SJ 1
Extended USB 1.1 Hea ders USB2/3
Front-PANEL Connecto
Wake On LAN - WOL1
Wake On odem - WO 1
Fl op py C onn e ct or
One CNR Slot
Three DI Slot
Two IDE Connectors
BIOS PROTECT-JP3
One AGP Slot
Clear C OS-JP1
Single color LED
AT X Power Connector
SOCKET 478
FAN1
Five PCI Slot
FAN2
Secondary CD-in Connecto
Primary CD-in Connect o
Two USB Connectors
Parallel Connecto
Serial Port
Connector (CO 1
Serial Port
Connector (CO 2
Line-Out/Lin e-In/ ic-In /
Game/ IDI Connector
ic/speaker-out header
PS/2 Keyboard and
PS/2 ouse Connector
I/O Controlle
On Board Audio CODEC

- 12 -
Step 1
CPU Installation:
This mainboard supports Intel Pentium 4 Socket 478 series CPU. Please
follow the step as below to finish CPU installation.
Be careful of CPU orientation when you plug it into CPU socket.

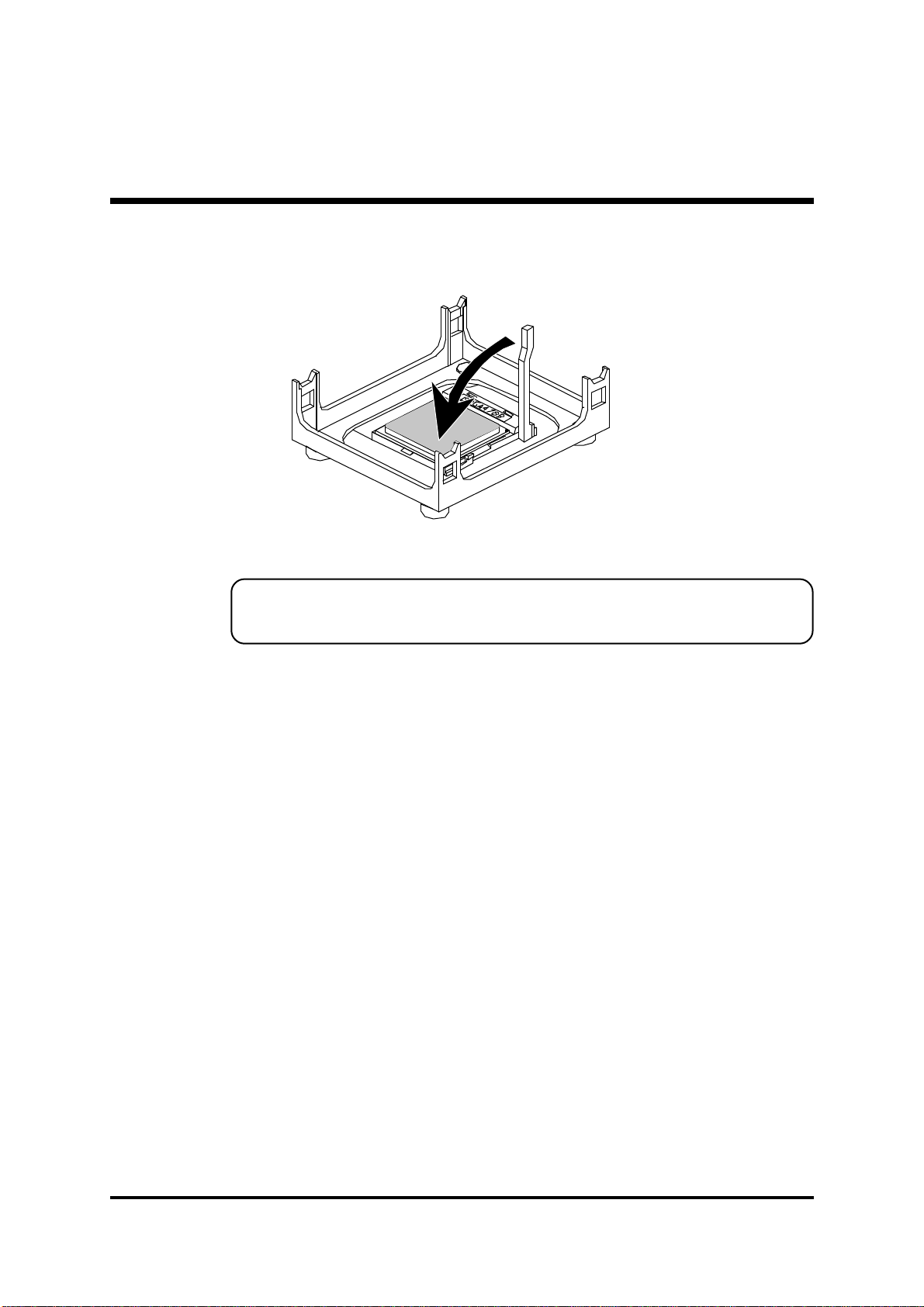

1. Pull up the CPU socket le el and up to 90-degree angle.
2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU
upper interface. Match Pin 1 and cut edge, then insert the CPU into the
socket. CPU pin 1 and cut edge
CPU socket level up to
90 degree

- 13 -
3. Press down the CPU socket le el and finish CPU installation.
Note: If you do not match the CPU socket Pin 1 and CPU cut
edge well, it may damage the CPU.

- 14 -
Step 2.
Set Jumpers
This mainboard is jumperless! The default jumper settings ha e been set
for the common usage standard of this mainboard. Therefore, you do not
need to reset the jumpers unless you require special adjustments as any of
the following cases:
1. Clear CMOS
2. BIOS Protect
For first-time DIY system builders, we recommend that you do not change
the default jumper settings if you are not totally familiar with the
mainboard configuration procedures. The factory-set default settings are
tuned for optimum system performance. For the ad anced users who
wish to customize their system, section 3.2 Jumper Settings will pro ide
detailed information on how to configure your mainboard manually.
Step 3
Install DDR SDRAM System Memory
To install memory, insert SDRAM memory module(s) in any one or two or
three DIMM banks. Note that SDRAM modules are directional and will not
go in the DIMM banks if they are not properly oriented. After the module is
fully inserted into the DIMM bank, lift the clips of both sides of the DIMM
bank to lock the module in place.

- 15 -
Step 4
Install Internal Peripherals in System Case
Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral de ices into the
computer housing, including but not limited to the hard disk dri e (IDE/
HDD), floppy disk dri e (FDD), CD-ROM dri e, and ATX power supply unit.
This will greatly facilitate in making the connections to the mainboard de-
scribed below.
To install IDE & FDD dri es, follow this procedure:
1. Set the required jumpers on each de ice according to the instructions
pro ided by the manufacturer. (IDE de ices, HDD, and CD-ROM, ha e to
set jumpers to Master or Sla e mode depending on whether you install
more than one de ice of each kind.)
2. Connect IDE cable and FDD cable on the back-panel of the internal
peripheral de ices to the corresponding headers on board. Note that the
cable should be oriented with its colored stripe (usually red or magenta)
connected to pin#1 both on the mainboard IDE or FDD connector and on
the de ice as well.
3. Connect an a ailable power cable from your system power supply unit
to the back-panel of each peripheral de ice. Note that the power cable is
directional and cannot fit in if not properly positioned.

- 16 -
Step 5
Mount the Mainboard on the Computer Chassis
1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose
correct mounting holes, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.
2. After deciding on the proper mounting holes, position the studs be
tween the frame of the chassis and the mainboard. The studs are used
to fix the mainboard and to keep a certain distance between the system
chassis and the mainboard, in order to a oid any electrical shorts
between the board and the metal frame of the chassis. (If your com
puter case is already equipped with mounting studs, you will need to
tighten screws to attach the mainboard.)
Note: In most computer housings, you will be able to find 4 or more
attachment points to install mounting studs and then fix the
mainboard. If there arent enough matching holes, then make sure
to install at least 4 mounting studs to ensure proper attachment of
the mainboard.

- 17 -
Step 6
Connect Front Panel Switches/LEDs/USB
You can find there are se eral different cables already existing in the
system case and originating from the computer's front-panel de ices
(HDD LED, Power LED, Reset Switch, or USB de ices etc.) These cables
ser e to connect the front-panel switches, LEDs, and USB connectors to
the mainboard's front-panel connectors group (Panel and USB2/3), as
shown below.
1. Green LED(Green LED)
2. HDD-LED (HDD LED)
Green
LED
HDD
LED
+-RST
Power
On
Green
LED
HDD
LED
+-RST
Power
On
Gree
LED
HDD
LED
+-RST
Power
On
USB2
1
USB3
1

- 18 -
3. Power On(Power On)
4. Hardware Reset Switch
(RST)
4. MIC/Speaker-out (AUDIO)
5. Extended USB Header
Green
LED
HDD
LED
+-RST
Power
On
Green
LED
HDD
LED
+-RST
Power
On
USBP2-N(port2-)
USBP2-P(port2+)
GND
VCC(+5V)
USBP3-N(port3+)
USBP3-P(port3-)
GND
OC#
VCC(+5V)

USB2/3
AGND
5V
XSPKOUTR
XSPKOUTL SPKOUTL
KEY
SPKOUTR
MICBIAS
MICIN
AUDIO

