Shuttle AV64 User manual

AV64
Pentium™II/IIIprocessor
BasedAGPsetMAINBOARD
User's Manual

M321
ShuttleAV64
Pentium II/III processor based AGPset Mainboard
Manual Version 1.0
Copyright
Copyright©2000byShuttleInc. AllRightsReserved.
Nopartofthispublicationmaybereproduced,transcribed,storedina retrieval system,
translated into any language, or transmitted in any form or by any means, electronic,
mechanical,magnetic,optical, chemical,photocopying, manual,orotherwise, without
priorwritten permission fromShuttle Inc.
Disclaimer
Shuttle Inc. shall not be liable for any incidental or consequential damages resulting from the
performanceor use ofthis product.
Thiscompany makesno representationsor warrantiesregarding the contentsof thismanual.
Informationin thismanual hasbeen carefullychecked for reliability;however, noguarantee
is given as to the correctness of the contents. In the interest of continued product improve-
ment, this company reserves the right to revise the manual or include changes in the specifi-
cations of the product described within it at any time without notice and without obligation to
notify any persion of such revision or changes. The information contained in this manual is
providedforgeneral useby thecustomers.
Trademarks
SpacewalkerisaregisteredtrademarkofShuttleInc.
Intel,Pentiumisaregistered trademarks ofIntel Corporation.
VIAis a registered trademarks of VIA Corporation.
PS/2is aregistered trademarkof IBM Corporation.
AWARDis a registered trademark of Award Software Inc.
Microsoftand Windows are registeredtrademarks of Microsoft Corporation.
General Notice:Other brand and product names used herein arefor identification
purposesonly and may be trademarks oftheir respective owners.

- 1 -
WHAT’SINTHE MANUAL ................................................................4
QuickReference.................................................................................................4
About This Manual..............................................................................................4
Technical Support..............................................................................................4
1INTRODUCTION ............................................................................5
1.1 TO DIFFERENT USERS................................................................................5
FIRST-TIME DIY SYSTEM BUILDER.......................................................5
EXPERIENCED DIY USER.......................................................................5
SYSTEMINTEGRATOR ...........................................................................5
1.2 ITEM CHECKLIST.........................................................................................6
2FEATURES....................................................................................7
2.1 SPECIFICATIONS.........................................................................................7
3HARDWAREINSTALLATION.......................................................10
3.1 STEP BY STEP INSTALLATION................................................................10
Accessories Of AV64...............................................................................10
STEP 1 Install the CPU ...........................................................................11
STEP 2 Set Jumpers ...............................................................................13
STEP 3 Install SDRAM System Memory.................................................13
STEP 4 Install Internal Peripherals in System Case ...............................14
STEP 5 Mount the Mainboard on the Computer Chassis .......................15
STEP 6 Connect Front Panel Switches/LEDs/Speaker ..........................16
STEP 7 Connect IDE & Floppy Disk Drives ............................................18
STEP 8 Connect Other Internal Peripherals ...........................................18
STEP 9 Connect the Power Supply.........................................................19
STEP 10 Install Add-on Cards in Expansion Slots..................................19
STEP 11 Connect External Peripherals to Back Panel...........................20
TABLEOFCONTENTS

- 2 -
STEP 12 First Time System Boot Up ......................................................21
STEP 13 Install Drivers & Software Components...................................22
3.2 JUMPER SETTINGS...................................................................................23

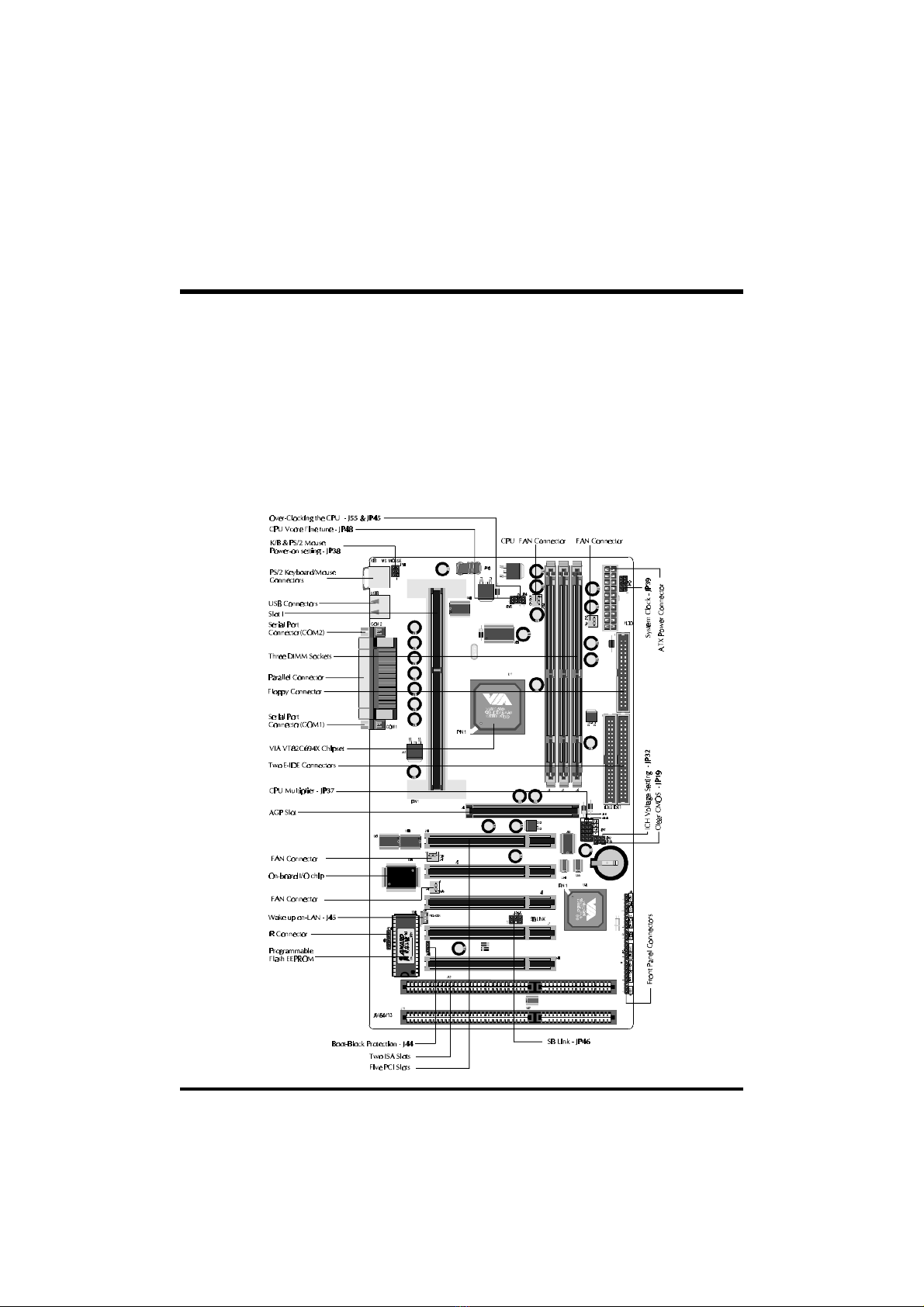

Jumpers & Connectors Guide .................................................................24
Set Keyboard & PS/2 Mouse Power-On (JP38)......................................26
CPU Host Frequency hardware Setting (JP39) .....................................27
CPU Clock Ratio Setting (JP37)..............................................................28
Clear CMOS (JP19).................................................................................29
ICH Vcltage (JP32)..................................................................................29
CPU Vcore Fine Tune (JP48)..................................................................30
Over-Clocking the CPU (J55 & JP45) .....................................................30
Boot-Block Protection (J44).....................................................................31
PS/2 Keyboard & PS/2 Mouse Connectors.............................................31
USB1 / USB2 Port Connectors................................................................31
COM1 / COM2 Connector .......................................................................32
Parallel Port Connector............................................................................32
ATX Power On/Off Switch Connector (PWON-S1).................................32
Green LED Connector (GLED-J48).........................................................32
EPMI Connector (EPMI-J42) ...................................................................33
HDD LED Connector (IDE LED-S3) ........................................................33
Hardware Reset Connector (RST-J32) ...................................................33
Speaker Connector (SPEAKER-JP24)....................................................34
PWR LED Connector (PWR LED-J27)....................................................34
Keylock Connector (KEYLOCK-J27).......................................................34
Enhanced IDE Ports and Floppy Connectors .........................................35
ATX Power Supply Connector.................................................................35
Cooling Fan Connectors for CPU (JP29),
Chassis (JP28), (J43) & (J47) .................................................................36

- 3 -
IR Connector (JP4)..................................................................................36
Wake-on LAN Connector (J45) ...............................................................37
SB-Link Connector (JP46).......................................................................37
3.3 SYSTEM MEMORY CONFIGURATION......................................................38
Install Memory..........................................................................................38
Upgrade Memory .....................................................................................38
4SOFTWAREUTILITY ...................................................................39
4.1 AV64 MAINBOARD CD OVERVIEW.........................................................39
4.2 INSTALL MAINBOARD DRIVER...............................................................40
4.3 TO VIEW THE USER'S MANUAL..............................................................41
5 BIOS SETUP ...............................................................................42
5.1 ENTERING BIOS.........................................................................................42
5.2 THE MAIN MENU.........................................................................................43
Standard CMOS Setup............................................................................45
BIOS Features Setup...............................................................................49
Chipset Features Setup...........................................................................53
Integrated Peripherals .............................................................................57
Power Management Setup......................................................................62
PnP / PCI Configuration ..........................................................................55
CPU Features Setup................................................................................65
PC Health Status Setup...........................................................................68
Frequency/Voltage Setup........................................................................70
Load Fail-safe Defaults............................................................................71
Load Optimized Defauits .........................................................................71
Supervisor/User Password Setting..........................................................72
Save & Exit Setup....................................................................................74
Exit Without Saving..................................................................................74

- 4 -
Quick Reference
HardwareInstallation >> Step-by-Step.................................................Page 10
Jumper Settings >> A Closer Look.......................................................Page 23
Software Utility >> How to Install..........................................................Page 39
BIOS Setup >> How to Configure.........................................................Page 42
About This Manual
For First-Time DIY System Builder.........................................................Page 5
ForExperienced DIY User.......................................................................Page 5
For System Integrator..............................................................................Page 5
WHAT’SINTHEMANUAL

- 5 -
1INTRODUCTION
1.1ToDifferent Users
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience a
success, right from the start, we have designed the 3 Hardware Installation
section in a step-by-step fashion for all the first-time DIY system builders.
Prior to installation, we also suggest you to read the whole manual carefully
to gain a complete understanding of your new AV64 mainboard.
Experienced DIY User
Congratulations on your purchase of the Shuttle AV64 mainboard. You will
findthatinstallingyournewShuttle AV64 mainboard is justthat easy. Bundled
with an array of onboard functions, the highly-integrated AV64 mainboard
provides you with a total solution to build the most stable and reliable system.
Refer to section 3.2 Jumper Settings and Chapter 4 Software Utility to find
out how to get the best out of your new mainboard. Chapter 5 BIOS Setup
also contains relevant information on how to tune up your system to achieve
higher performance.
System Integrator
You have wisely chosen Shuttle AV64 to construct your system. Shuttle
AV64 incorporates all the state-of-the-art technology of the VT82C694X
chipset from VIA. It integrates the most advanced functions you can find to
date in a compact ATX board. Refer to section 3.2 Jumper Settings and
Chapter 4 Software Utility for an in-depth view of system construction.

- 6 -
1.2ItemChecklist
Check all items you received with your AV64 mainboard to make sure
nothing is missing. The complete package should include:
One Shuttle AV64 Mainboard
(with onboard Slot1, built-in VIA694X
chipset, ATX form factor, including 2xUSB,
2xSerial, and 1xParallel ports, plus 1xPS/2
Keyboard, and 1xPS/2 Mouse connectors.)
One ATA/66 Ribbon Cable
One Floppy Ribbon Cable
One set of Universal Retention Mechanism
This AV64 User’s Manual
One CD-ROM containing:
The AV64 user’s manual on PDF format
The VIA 4 IN 1 Drivers
The Award Flashing Utility

- 7 -
The AV64 mainboard is carefully designed for the demanding PC user who wants
high performance and maximum intelligent features in a compact package.
2.1Specifications
CPU Support
Supports Slot-1 (Celeron, Pentium II/III and Coppermine) processor.
66/100/133MHz CPU Front Side Bus (FSB).
Chipset
Features VIA VT82C694X AGPset with I/O subsystems.
Jumperless CPU Configuration
Auto-detect CPU voltage
Soft-configure CPU Speed (The CPU operating speed is software
configurable in the CMOS Setup menu of the BIOS Setup utility.)
Versatile Memory Support
Equipped with three DIMM banks of PC/100 and PC/133 compliant
SDRAM to provide up to 768MB of system memory.
Configurable support for EC (Error Checking) and ECC (Error Checking
and Correcting).
AGP Slots
AGP V2.0 Compliant
Supports Side Band Addressing (SBA) mode.
Supports 266MHz 4X mode for AD and SBA Signaling.
PCI and ISA Expansion Slots
Provides five 32-bit PCI slots and two 16-bit ISA slots.
LPC Super I/O Onboard
Provides a variety of I/O interfaces:
1 × Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, 2.88MB
2FEATURES

- 8 -
format or for 5.25-inch FDD with 360KB or 1.2MB format.
1 × PS/2 mouse connector
1 × PS/2 Keyboard connector
2 × USB connectors
2 × DB9 Serial connectors 16550 UART compatible
1 × Infrared communications port ASKIR and HPSIR compatible.
(Serial port COM2 can also be redirected to an external IrDA Adapter
for wireless connection.)
1 × DB25 Parallel port supporting Standard Parallel Port (SPP),
Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)
data transmission schemes.
PCI Bus Master IDE Controller Onboard
Two UltraDMA 33/66 Bus Master Dual-channel IDE ports provide support to
a maximum of four IDE devices (one Master and one Slave per channel). The
IDEBus implementsdata transferspeeds of up to 66 MB/sec andalso supports
Enhanced PIO Modes 3 & 4.
ATX Power Supply Connector
ATX power supply unit can connect to the onboard 20-pin ATX power
connector, supporting Suspend and Soft-On/Off by dual-function power
button.
Advanced Configuration and Power Interface
Features four power savings modes: Snoop, Suspend to RAM, Suspend to
Disk, and Soft-Off. ACPI provides more efficient Energy Savings Features
controlled by your operating system that supports OS Direct Power Manage-
ment (OSPM) functionality.
System BIOS
Provides licensed Award V4.51PG BIOS on 2MB Flash EEPROM.
Supports Green PC and Desktop Management Interface (DMI).

- 9 -
ATX Form Factor
System board conforms to the ATX specification.
Board dimensions: 305mm × 170mm
Advanced Features
Dual Function Power Button - The system can be in one of two states,
one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enters the Soft-Off mode.
Keyboard/Mouse Power-On - This mainboard implements a special
jumper to enable a system power-on function by keyboard or PS/2 mouse.
Wake-on-LAN (WOL) - The onboard WOL connector can be attached to
a network card that supports this function to wake up the system via the
LAN.
Modem Ring Power-On - The system can be powered on automatically
by activation of the modem ring.
Optional Features
Voltage Monitoring - Monitors various voltages of key elements, such as
the CPU, and other critical system voltage levels to ensure stable current
reach to mainboard components. System voltages include Vcore/ VTT on
CPU, and +5V, +12V, -5V, -12V on system.
Fan Status Monitoring - To prevent overheating of CPU, the CPU fan is
monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is
required.)

- 10 -
This section outlines how to install and configure your AV64 mainboard. Refer to the
following mainboard layout to help you identify various jumpers, connectors, slots, and
ports. Then follow these steps designed to guide you through a quick and correct instal-
lation of your system.
3.1Step-by-StepInstallation
Accessories Of AV64
3HARDWAREINSTALLATION

- 11 -
Step 1
Install the CPU
1. Mark your CPU Frequency
Checking the working frequency of your cpu that should be clearly
marked on the CPU cover or write your own combination in the space
provided.
2. Pentium II/III Processor Installation
<Locate the Retention Mechanism>
To install a CPU, first turn off your system and remove its cover.
Locate the Retention Mechanism (1) around the Slot 1.
Take care of the Square Cut Mark (1.1).
Fix (1) by inserting Attach Mounts (1.4) up through holes (A1...A4)
in the bottom of the mainboard, and screw the four captive nuts
(1.3).
<Install the CPU>
Insert CPU (2) into the Retention Mechanism (1).
Ensure that the alignment notch in the processor fits over the plug
(1.2), then push processor down firmly until it is seated.
Push the latches (2.1) on the processor outward until they click into
place.
Connect power cable (2.2) of Fan/Heat Sink.

- 12 -
3. Celeron Processor Installation
<Locate the Retention Mechanism>
To install a CPU, first turn off your system and remove its cover.
Insert two Retention Mechanism (3) on opposite side of Slot 1.
Fix (3) by inserting Attach Mounts (4) up through holes (A1...A4) in
the bottom of the mainboard, and screw the four captive nuts (3.1).
<Install the CPU>
Hold the processor (5) so that the Heatsink is facing toward the DIMM
sockets on the mainboard.
Slide the processor into the RM. Push the provessor down firmly,
with even pressure on both sides of the top, until it is seated.

- 13 -
Step2.
Set Jumpers
This mainboard is jumperless! The default jumper settings have been set for
the common usage standard of this mainboard. Therefore, you do not need
to reset the jumpers unless you require special adjustments as in any of the
following cases:
1. Over-clock your CPU
2. Clear CMOS
3. Set the wake up function by keyboard/PS2 mouse
For first-time DIY system builders, we recommend that you do not change
the default jumper settings if you are not totally familiar with mainboard
configuration procedures. The factory-set default settings are tuned for
optimum system performance. For the advanced users who wish to custom-
ize their system, section 3.2 Jumper Settings will provide detailed informa-
tion on how to configure your mainboard manually.
Step 3
Install SDRAM System Memory
To install memory, insert SDRAM memory module(s) in any one, two or
three DIMM banks. Note that SDRAM modules are directional and will not
go in the DIMM slots unless properly oriented. After the module is fully
inserted into the DIMM socket, lift the clips of both sides of the DIMM bank
to lock the module in place.

- 14 -
Step 4
Install Internal Peripherals in System Case
Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral devices into
the computer housing, including but not limited to the hard disk drive (IDE/
HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply
unit. This will greatly facilitate in making the connections to the mainboard
described below.
To install IDE & FDD drives, follow this procedure:
1. Set the required jumpers on each device according to the instructions
provided by the manufacturer. (IDE devices, HDD and CD-ROM, have to
set jumpers to Master or Slave mode depending on whether you install
more than one device of each kind.)
2. Connect IDE cable and FDD cable on the back-panel of the internal
peripheral devices. Note that the cable should be oriented with its
colored stripe (usually red or magenta) connected to pin#1 both on the
mainboard IDE or FDD connector and on the device as well.
3. Connect an available power cable from your system power supply unit
to the back-panel of each peripheral device. Note that the power cable is
directional and cannot fit in if not properly positioned.

- 15 -
Step 5
Mount the Mainboard on the Computer Chassis
1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose a
correct mounting hole, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.
2. After deciding on the proper mounting holes, position the studs between
the frame of the chassis and the mainboard. The studs are used to fix the
mainboard and to keep a certain distance between the system chassis
and the mainboard, in order to avoid any electrical shorts be tween the
board and the metal frame of the chassis. (If your computer case is
already equipped with mounting studs, you will need to tighten screws to
attach the mainboard.)
Note: In most computer housings, you will be able to find 4 or more
attachment points to install mounting studs and fix the mainboard.
If there aren’t enough matching holes, then make sure to install at
least 3 mounting studs to ensure proper attachment of the
mainboard.

- 16 -
Step 6
Connect Front Panel Switches/LEDs/Speaker
You can find there are several different
cables already existing in the system
case and originating from the computer’s
front-panel devices (HDD LED, Power
LED, Reset Switch, PC Speaker, etc.)
These cables serve to connect the
front-panel switches and LEDs to the
mainboard’s front-panel connectors
group, as shown below.
1. ATX Soft Power On/Off
2. Power-LED
3. HDD-LED

- 17 -
4. EPMI
(Hardware System Management Interface)
5. Green-LED
6. PC Speaker
7. Hardware Reset Switch
8. Keylock

- 18 -
Step 7
Connect IDE & Floppy Disk Drives
1. IDE cable connector
2. FDD cable connector
Step 8
Connect Other Internal Peripherals
1. IR connector
