HOT-683 is a highly integrated IBM PC/ATX compatible system board designed to
meet the industry's most demanding desktop applications.
Based on the Intel 82440LX AGPset chipset which support up to 400MHz PPGA
Celeron processor with MMX technology.
HOT-683 is equipped with an Accelerated Graphics Port (A.G.P.), a high-performance
interconnect for graphic-intensive application, such as 3D applications. The A.G.P. is
independent of the PCI bus and is designed to exclusively use with graphical-display
devices. The HOT-683 supports 3.3 V A.G.P. devices with data transfer rates up to 133
MHz, allowing data throughput of 500 MB/sec.
The Intel's 82440LX AGPset chipset provides an integrated Bus Mastering IDE control-
ler with two high performance IDE interfaces which allows up to four IDE devices
connection and up to 33 MB/sec of data transfer rates.
The on-board I/O controller provides standard PC I/O functions:
floppy drive interface, two FIFO serial ports, an InDA device port and a SPP/EPP/ECP
capable parallel port.
HOT-683 is built with four PCI local bus slots providing a high bandwidth data path for
data-movement intensive functions such as graphics, and with three ISA slot.
HOT-683 provides the foundation for cost effective, high performance and highly
expandable platforms, which delivers the latest in the Intel PPGA Celeron processor and
new advanced chipset technology.
PREFACE

- 5 -
1
1
The HOT-683 Mainboard is carefully designed for the demanding PC user who wants high perfor-
mance and many intelligent features in a compact package:
Intel Chipset:
Features Intel's 440LX AGPset with I/O subsystems.
CPUSupport:
Intel PPGA Celeron processor 300/66, 333/66, 366/66, 400/66 MHz.
Versatile Memory Supports:
Supports three banks of SDRAM or EDO DRAM maximum memory size up to 384MB.
Configurable support for ECC (Error Checking and Correcting)
PCIand ISA ExpansionSlots:
Provides four 32-bit PCI slots and three 16-bit ISA slot.
Onboard I/O:
Provides one Floppy port; one PS/2 mouse and one PS/2 Keyboard port connector; two high-speed
UART compatible serial ports and one parallel port with ECP and EPP capabilities. Serial Port 2
can also be directed from COM2 to the Infrared Module for wireless connections.
OnboardPCI Bus Master IDEController:
Two Ultra DMA/33 Bus Master IDE Ports supports four IDE devices up to 33 MB/sec IDE trans-
fers and supports Enhanced PIO Modes 3 and 4 and Bus Master IDE DMA Mode 2 devices.
Onboard20-pin ATX PowerSupply:
Provides ATX power connector onboard supports soft-on/off function.
System BIOS:
Provides licensed Award V4.51PG BIOS on Flash EEPROM.
Supports Green PC, DMI and Bundled with NCR SCSI BIOS.
ACPI:
Support ACPI (Advanced Configuration and Power Interface) function. ACPI provide more
Energy Saving Features for the future operating system supporting OS Direct Power Management
(OSPM) functionality.
INTRODUCTION

- 6 -
Board Size:
MicroATX form factor 305mm x 170mm.
Advanced Features:
CPU Plug & Play -- HOT-683 featuring CPU Plug & Play function, the user needn't to adjust
onboard system clock and CPU multiplier. When the system first power-on, BIOS will set CPU
clock speed to 300 MHz (depend on CPU external frequency) automatically. If your CPU speed
higher than 300 MHz, one thing you only have to do is entry BIOS to set CPU speed to the higher
one.
Low EMI -- Spread Spectrum built in - ±0.5% or ±0.3% modulation and automatic clock shut-off
of unused PCI/SDRAMS slots to reduce the EMI.
Dual Function Power Button -- The system can be one of two states, one is Suspend mode and
the other is the Soft-off mode. Pushing the power button for less than 4 seconds will place the
system into Suspend mode. When push the power button for more than 4 seconds, the system
enters the Soft-off mode.
Wake-On-LAN -- The system will power-on automatically by activating of LAN.
(This function support Intel LAN card only).
Modem Ring Power-on -- The system will power-on automatically by activating of modem ring.
PS/2 Keyboard & Mouse Power-on -- The system will power-on automatically by stroke key-
board or double click PS/2 mouse.
Voltages Monitoring -- System voltages levels are monitored to ensure stable current to main
board components.
System voltages include VCORE and VTT for CPU, and +5V, +12V, -5V, -12V for system.
FAN Status Monitoring -- To prevent CPU overheat, CPU fans is monitored for RPM and failure.
(CPU Cooling FAN with RPM sensor is required)

- 7 -
ACCESSORIESOF HOT-683

- 8 -
2

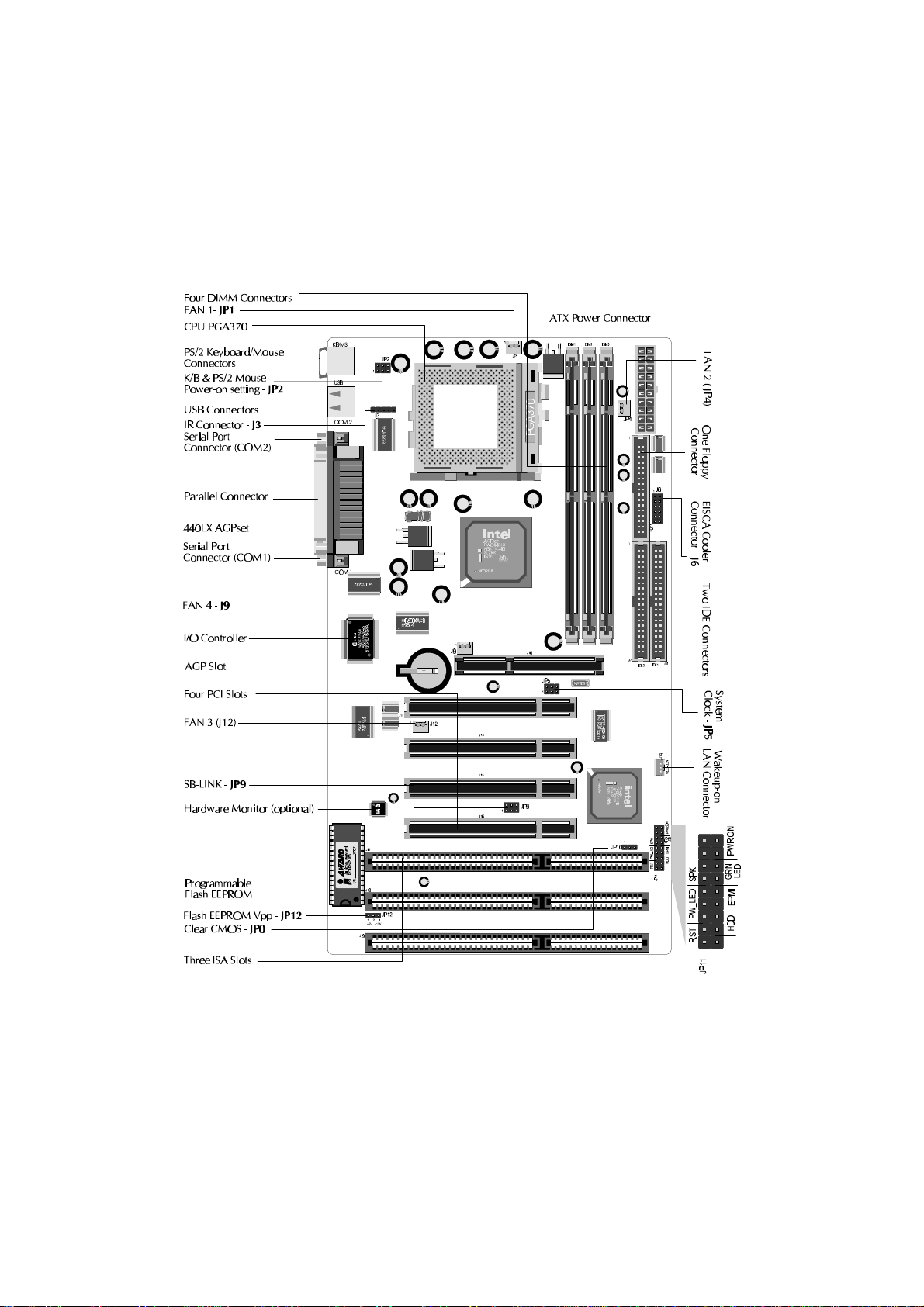

2HARDWARECONFIGURATION
HOT-683 mainboard provides a 370-pin ZIF Socket370 for Intel PPGA Celeron CPU. The
CPU that came with the mainboard should have a fan attached to it to prevent overheating. If
this is not the case then purchase a fan before you turn on your system.
To install a CPU, first turn off your system and remove its cover. Locate the ZIF Socket370
and open it by first pulling the lever sideways away from the socket then upwards to a 90-
degree right angle. Insert the CPU with the correct orientation as shown.(Figure 2-1) Use
the notched corner of the CPU as your guide. The notched corner should point towards the
end of the lever. Notice that there are two blank area where one hole is missing from that
corner of the square array of pin holesr. Because the CPU has a corner pin for two of the
four corner, the CPU will only fit in the one orientationn, hold down on the CPU and close
the socket’s lever.

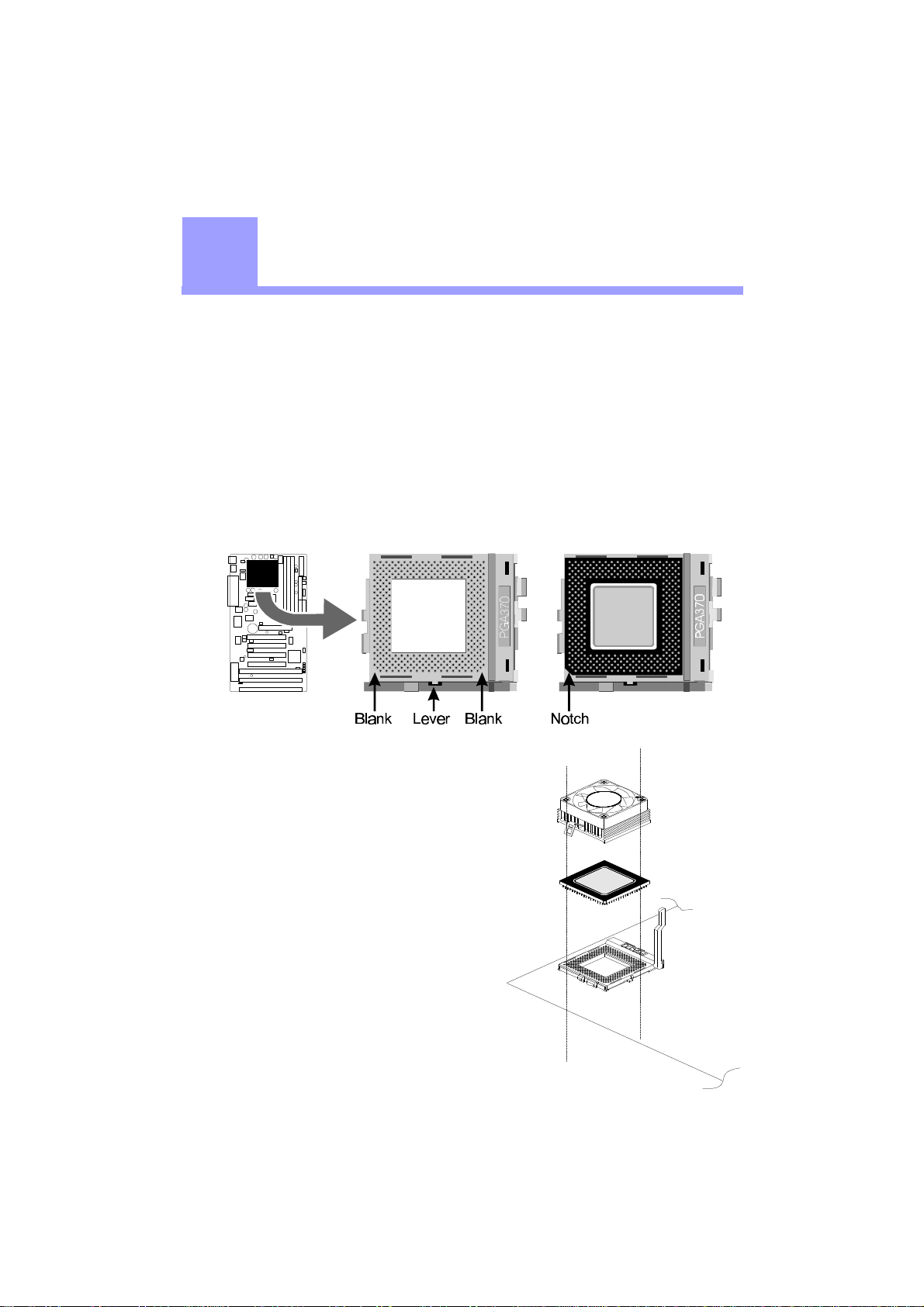

The Installation PPGA Celeron Processor
Figure 2-1
Figure 2-2
Then you should have a CPU fan that
will cover the face of the CPU. Apply
thermal jelly to the CPU metallic top and
then install the fan onto the CPU. (Figure
2-2 )

- 9 -
Jumpers
Several hardware settings are made through the use of jumper caps to connect jumper pins on
the main board. The jumper's pin 1 on main board will be on the top or on the left when hold-
ing the main board with the keyboard connector away from yourself.
Jumpers with two pins will be shown as for Close (On) and for Open (Off).
To connect the pins, simply place a plastic jumper cap over the two pins.
CPU Clock Speed Selection - JP5
HOT-683 featuring CPU Plug & Play function, the user needn't to adjust onboard system clock
and CPU multiplier.
HOT-683 mainboard features a clock generator to provide adjustable system clock frequency.
JP5 is a 6-pin jumpers which determine the system clock frequency 50 MHz to 83 MHz.
HOT-683 mainboard does not provide any jumper to figure the CPU multiplier since the
multiplier adjusting function is not available on PPGA Celeron.

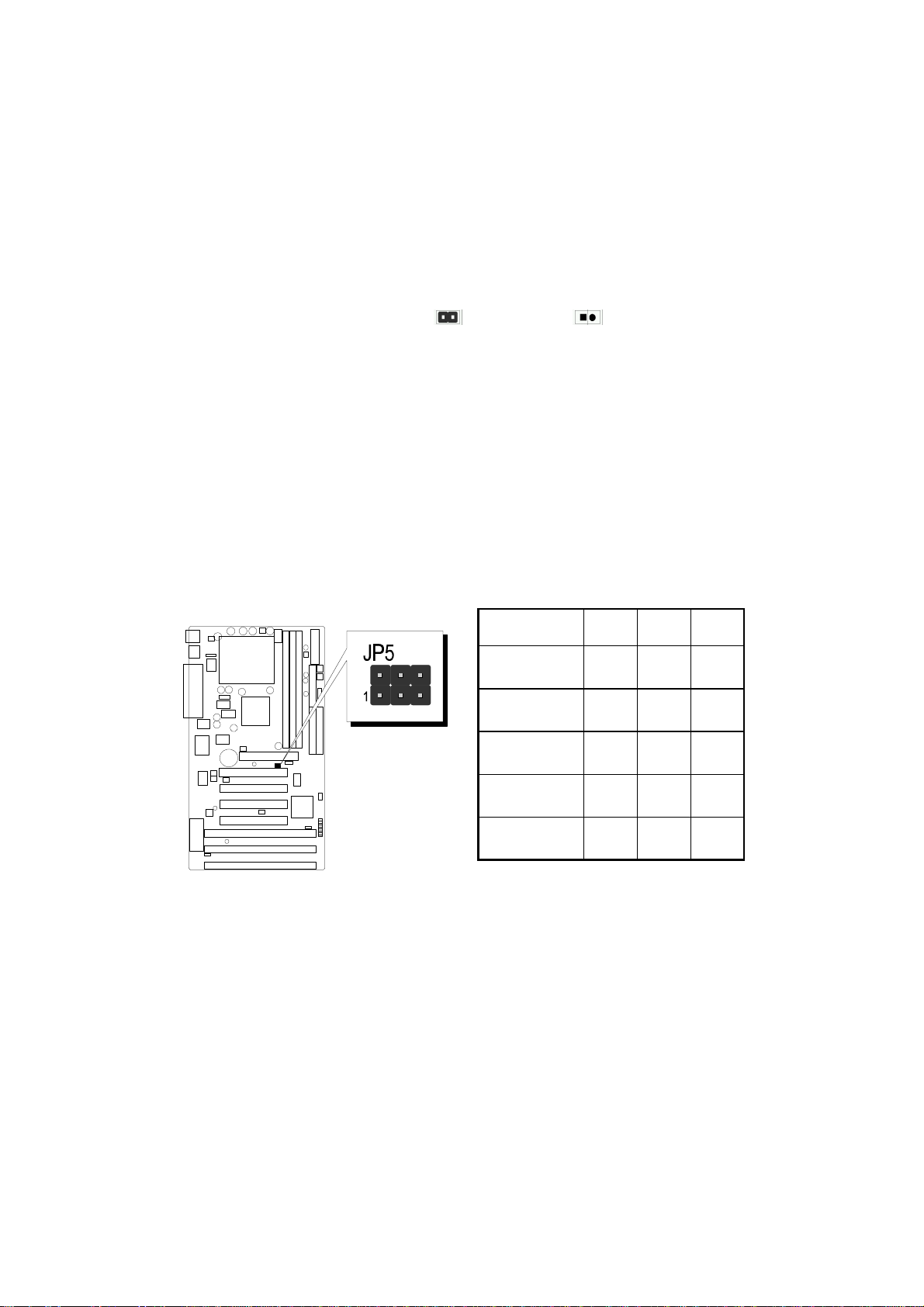

Figure 2-3 shows the position of JP5 on the mainboard. Table 2-1 shows adjustable System
clock on jumper JP5.
Figure 2-3
SystemClock
(JP5) 1-2 3-4 5-6
50 MHzONONON
60 MHzONOFF OFF
66 MHzOFF OFF OFF
75 MHzOFF ONOFF
83 MHzONOFF ON
Table 2-1

- 10 -
Clear CMOS - JP10
HOT-683 mainboard supports jumper JP10 for discharging mainboard's CMOS memory.
This jumper can clear the CMOS data stored in the Giga I/O chip. To clear the CMOS data
please follow listed steps:
1) Turn off the PC,
2) Remove mini jumper from JP10 pin 1-2,
3) Insert mini jumper to JP10 pin 2-3 for a brief while,
4) Remove mini jumper from JP10 in 2-3,
5) Reinsert mini jumper to JP10 pin 1-2,
6) Turn on the PC.
Keyboard & PS/2 Mouse Power-On Setting - JP2
HOT-683 mainboard provides an optional power-on function by stroke any key (or hot-key)
on keyboard or double click on PS/2 mouse.
Note: Power-on by serial mouse is not supported
JP2 is the jumper used to set the functions of keyboard & PS/2 mouse power-on Enabled or
Disabled.
When you enabled K/B & PS/2 Mouse Power-ON function, you also have to set the proper
item on POWER ON function category of Integrated Peripherals of BIOS setup.
Table 2-2
Figure 2-4 Figure 2-5
K/B&PS/2Mouse Power-OnJP2
Keyboard&
PS/2Mouse
Power-On
Disabled
PS/2Mouse
Power-On
Enabled
Keyboard&
PS/2Mouse
Power-On
Enabled

- 11 -
Connectors
Front Panel Connectors (JP11)
Speaker Connector - SPEAKER
PC speaker connector may attach a 4-pin PC speaker cable from the case to this connector.
HDD LED Connector - IDE LED
Attach a 2-pin IDE drive LED cable to this connector. The LED lights when an IDE device is active.
ATX Power On/Off Switch Connector - PW ON
Attach a 2-pin momentary type switch to this connector for turning on or off your ATX power supply.
Hardware Reset Connector - RST
Attach 2-pin hardware reset switch to it. Closing the reset switch restarts the system.
PW-LED Connector - PW LED
Power LED connector is a 3-pin connector for attached to the case's Power LED.
EPMI Connector - EPMI
Hardware System Management Interface connector may attach a 2-pin momentary switch to it.
When push it will force system get into power saving mode, and the system will resume when
switch is pushed again.
GLED Connector - GREEN LED
Attach a 2-pin Green LED cable to it. The Green LED lights when the system get intopower saving
mode.
Figure 2-6

- 12 -
Back Panel Connectors
Figure 2-9
Figure 2-8
COM1/COM2 Connectors
Attach COM1/COM2 device cable to this connector.
PS/2 Keyboard & PS/2 Mouse Connector
Two 6-pin female PS/2 keyboard & Mouse Connectors is located at the rear of the main board.
PS/2 Mouse on top of connector and PS/2 Keyboard on the bottom of connector. Plug the PS/2
keyboard and mouse jack into this connector.
Parallel Port Connector
A 25-pin female connector is located at the rear of the main board.
Plug the parallel port device cable into this connector.
USB1/USB2 Port Connectors
Two female connectors are located at the rear of the board. Plug
the USB devices jack into this connector.
OtherConnectors
ATX Power Supply Connector - J4
It is a twenty-pin male header connector. Plug the connector from
the power directly onto the board connector while making sure the
pin 1 is in its position. The main board requires a power supply
with at least 200 watts and power good signal.
IR Connector - J3
Infrared device connector may attach a 5-pin infrared device cable
to this connector for enabling the infrared transfer function.
This mainboard meets the specification of ASKIR and HPSIR.
Figure 2-10 shows J3's pin assignment.
Figure 2-7

- 13 -
CPU, Chassis & AGP cooling Fan
connectors - JP1, JP4,J12 & J9
The main board provides three onboard 12V cooling
fan power connectors. Depending on the fan maker,
the wiring and plug may be different. The red wire
should be connected to +12V and black wire should
be connected to ground (GND).
Wake-On-LAN Connector - J14
Attach a 3-pin connector from the LAN card which
supports the Wake-On-LAN (WOL) function. This
function lets users wake up the connected system
through the LAN card.
Enhanced IDE and Floppy
connectors
The main board shipped with two 40-pin ribbon cable
for IDE H.D.D , one 34-pin ribbon cable for F.D.D
Ribbon cables should always be connected with the red
stripe on the Pin 1 side of the connector.
SB-Link connector - JP9
The main board provides a 2x3 pin SB-Link header
accepts the Creative CT4600 series PCI sound cards with
PCI solution to connect the legacy Sound Blaster com-
patible audio to the PCI bus.
Figure 2-10

- 14 -
MEMORYCONFIGURATION
Table 3-1
DIMM
Socket MemoryModulesMudule Quantity
DIMM 08MB,16MB,32MB,64MB,128MB168-pin
3.3VEDOorSDRAMDIMM x1
DIMM 18MB,16MB,32MB,64MB,128MB168-pin
3.3VEDOorSDRAMDIMM x1
DIMM 28MB,16MB,32MB,64MB,128MB168-pin
3.3VEDOorSDRAMDIMM x1
3
3
The HOT-683 mainboard provides three 168-pin DIMM sockets that make it possible to
install from 8MB up to 384MB of EDO DRAM or SDRAM. The DIMM socket support
8MB, 16MB, 32MB, 64MB, and 128MB 3.3V single- or double- side DIMM.
The three DIMM sockets are arranged in three banks of one socket each, Each bank
provides a 64/72-bit wide data path.
HOT-683 provides optional data integrity features including EC (Error Checking) or
ECC (Error Checking and Correcting) in the memory array. EC mode provides single
and multiple bit error detection. In ECC mode, during reads from the DRAM, the HOT-
683 provides error checking and correction of the data.
To support ECC, you must use true (opposed to phantom parity generated by TTL chips)
72-bit parity-type DIMM for all modules.
Install memory in any or all of the banks in any combination as follows:

- 15 -
FLASHUTILITY
The following manual is intended to guide you through the process of both “No” and
“Yes” cases respectively.
If “No”
If you do not wish to save the old BIOS:
1. Please type “N”, and then press the ENTER key.
2. Then you will be requested to answer:
“Are You Sure to Program? “
3. Answer “N” if you do not want to program, and then it will exit.
4
4
This chapter briefly discusses Award Flash utility in order to guide you through updating
your old BIOS. The file name we use to program here is test.bin, and the file name to
save old BIOS is 683.OLD. Please note that those file names are not absolute. They are
only examples to let you have a more clear understanding of the updating process.
How to Begin
1. Please type “awdflash” and press the ENTER key to begin the updating process.

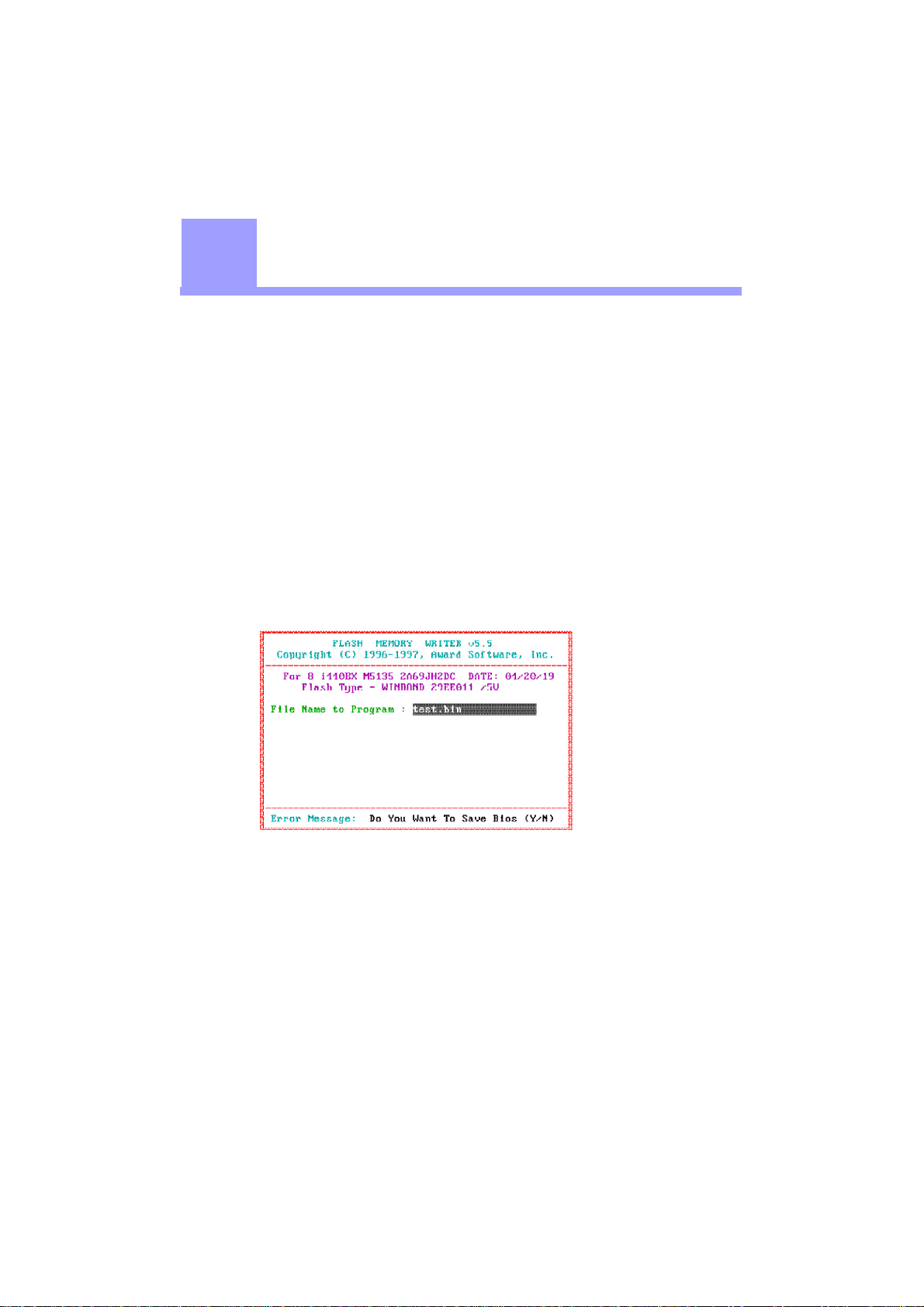

2. Once you enter, you will see a main menu displaying:
3. Move the cursor to “File Name to Program: “
4. Type the program name “test.bin”, and then press the ENTER key.
5. At the bottom of the menu, you will be requested to answer:
“Do You Want to Save BIOS (Y/N)? “

- 16 -
If “Yes”
To save the old BIOS:
1. Please respond “Y”, and then press the ENTER key.
2. Move the cursor to “File Name to Save: “
3. Type file name “TEST.BIN”, and then press the ENTER key. (Your old BIOS will be
saved in the file name you create. In this case, the old BIOS is saved in the file
name,683.OLD).
4. Then you will be requested to answer:
“Are You Sure to Program (Y/N)? “
5. Type “Y” to begin programming, and press the ENTER key.
6. When the programming is finished, the showing message will appear:
7. Once you see the showing message “Power Off or Reset System”, please restart your
system.
8. When you power on the computer again, you will find your old BIOS has already
been successfully updated.
To view a complete usage of FLASH utility, please type “awdflash /?” and press the
ENTERkey.
Notes About Award Flash Utility
Please note that Award Flash Utility cannot run under EMM386 or QEMM. Thus,
when executing the command “awdflash”, an error message will appear:
“Error Message: Fail — Due to EMM386 or QEMM !”

- 17 -
BIOSSETUP
The BIOS ROM has a built-in Setup program that allows users to modify the basic system
configuration. This type of information is stored in battery-backed RAM so that it retains
the Setup information when the power is turned off.
Entering Setup
Power on the computer and press <Del> immediately will allow you to enter Setup. The
other way to enter Setup is to power on the computer, when the below message appear
briefly at the bottom of the screen during the POST (Power On Self Test), press <Del> key
or simultaneously press <Ctrl>,<Alt>, and <Esc> keys.
“Press DEL to enter SETUP”
If the message disappears before you respond and you still wish to enter Setup, restart the
system to try again by turning it OFF the ON or pressing the “RESET” button on the system
case. You may also restart by simultaneously press <Ctrl>,<Alt>, and <Delete> keys. If
you do not press the keys at the correct time and the system does not boot, an error message
will be displayed and you will again be asked to,
“Press F1 to Continue, DEL To Enter Setup”
5
5

- 18 -

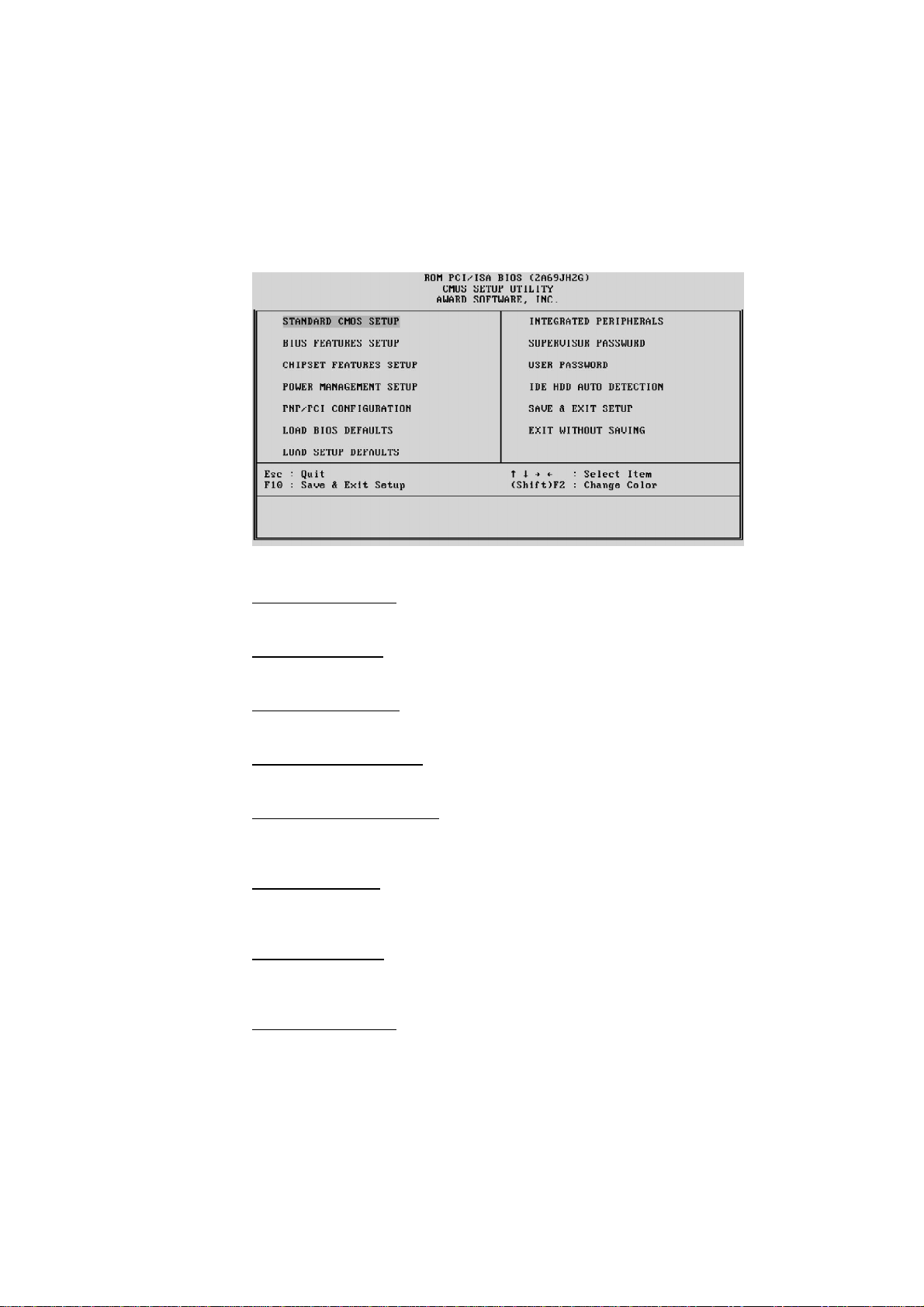

The Main Menu
StandardCMOSsetup
This setup page includes all items in a standard compatible BIOS.
BIOS features setup
This setup page includes all items of Award special enhanced features.
Chipsetfeatures setup
This setup page includes all items of chipset features.
PowerManagementSetup
This setup page includes all items of Power Management features.
PnP/PCI Configuration setup
This item specifies the value (in units of PCI bus blocks) of the latency timer for the
PCI bus master and the IRQ level for PCI device. Power-on with BIOS defaults
Load BIOS Defaults
BIOS defaults loads the values required by the System for the maximum performance.
However, you can change the parameter through each Setup Menu.
LoadSetup Defaults
Setup defaults loads the values required by the system for the O.K. performance.
However, you can change the parameter through each Setup Menu.
Integrated Peripherals
This setup page includes all items of peripheral features.

- 19 -
SupervisorPassword
Change, set, or disable supervisor password. It allows you to limit access to the system
and Setup, or just to Setup.
UserPassword
Change, set, or disable user password. It allows you to limit access to the system and
Setup, or just to Setup.
IDEHDD auto detection
Automatically configure IDE hard disk drive parameters.
Save& Exit setup
Save CMOS value change to CMOS and exit setup
Exit without saving
Abandon all CMOS value changes and exit setup.

- 20 -

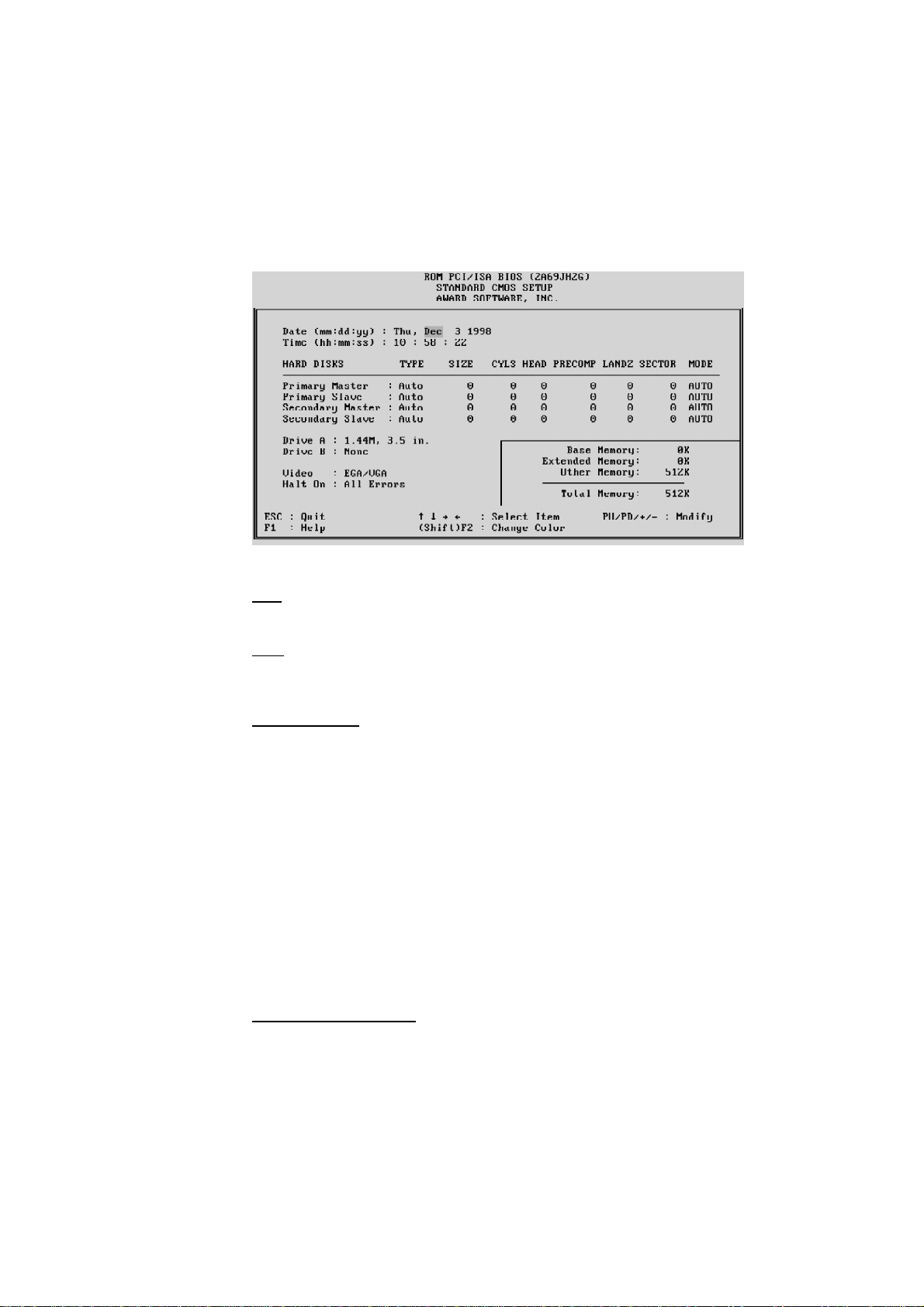

Standard CMOS Setup
Date
The date format is <day>, <month> <date> <year>. Press <F3> to show the calendar.
Time
The time format is <hour> <minute> <second>. The time is calculated base on the
24-hour military-time clock. For example. 5 p.m. is 17:00:00.
HardDisks Type
This item identify the types of hard disk drives that has been installed in the computer.
There are 46 predefined types and a user definable type.
Press PgUp or PgDn to select a numbered hard disk type or type the number and press
<Enter>. Note that the specifications of your drive must match with the drive table.
The hard disk will not work properly if you enter improper information for this item.
If your hard disk drive type is not matched or listed, you can use Type User to define
your own drive type manually.
If you select Type User, related information is asked to be entered to the following
items. Enter the information directly from the keyboard and press <Enter>. Those
information should be provided in the documentation from your hard disk vendor or
the system manufacturer.
The user may also set those items to AUTO to auto configure hard disk drives param-
eter when system power-on.
If a hard disk drive has not been installed select NONE and press <Enter>.
DriveA type/Drive Btype
This item specifies the types of floppy disk drive A or drive B that has been installed
in the system.
