Shuttle Spacewalker MV17 User manual

MV17
FC-PGA/PPGA Celeron
and FC-PGA Pentium III Processor
Based Main Board
User's Manual

Shuttle®SpacewalkerTM MV17
PPGA/FC-PGA Celeron and FC-PGA Pentium III processor
based AGPset Mainboard
Manual Version 1.0
Copyright
Copyright©2000 by Shuttle®Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,
translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without
prior written permission from Shuttle®Inc.
Disclaimer
Shuttle®Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.
This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.
Trademarks
Spacewalker is a registered trademark of Shuttle Inc.
Intel, Pentium is a registered trademarks of Intel Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice: Other brand and product names used herein are for identification
purposes only and may be trademarks of their respective owners.
M366

- 1 -
WHAT’S IN THE MANUAL .....................................................................5
Quick Reference................................................................................................5
About This Manual ............................................................................................5
1 INTRODUCTION .................................................................................6
1.1 TO DIFFERENT USERS ..............................................................................6
First-TimeDIYSystemBuilder ..................................................................6
ExperiencedDIYUser ..............................................................................6
SystemIntegrator .....................................................................................6
1.2 ITEM CHECKLIST........................................................................................7
2 FEATURES..........................................................................................8
2.1 SPECIFICATIONS ........................................................................................8
3 HARDWARE INSTALLATION ...........................................................11
3.1 STEP-BY-STEP INSTALLATION ............................................................... 11

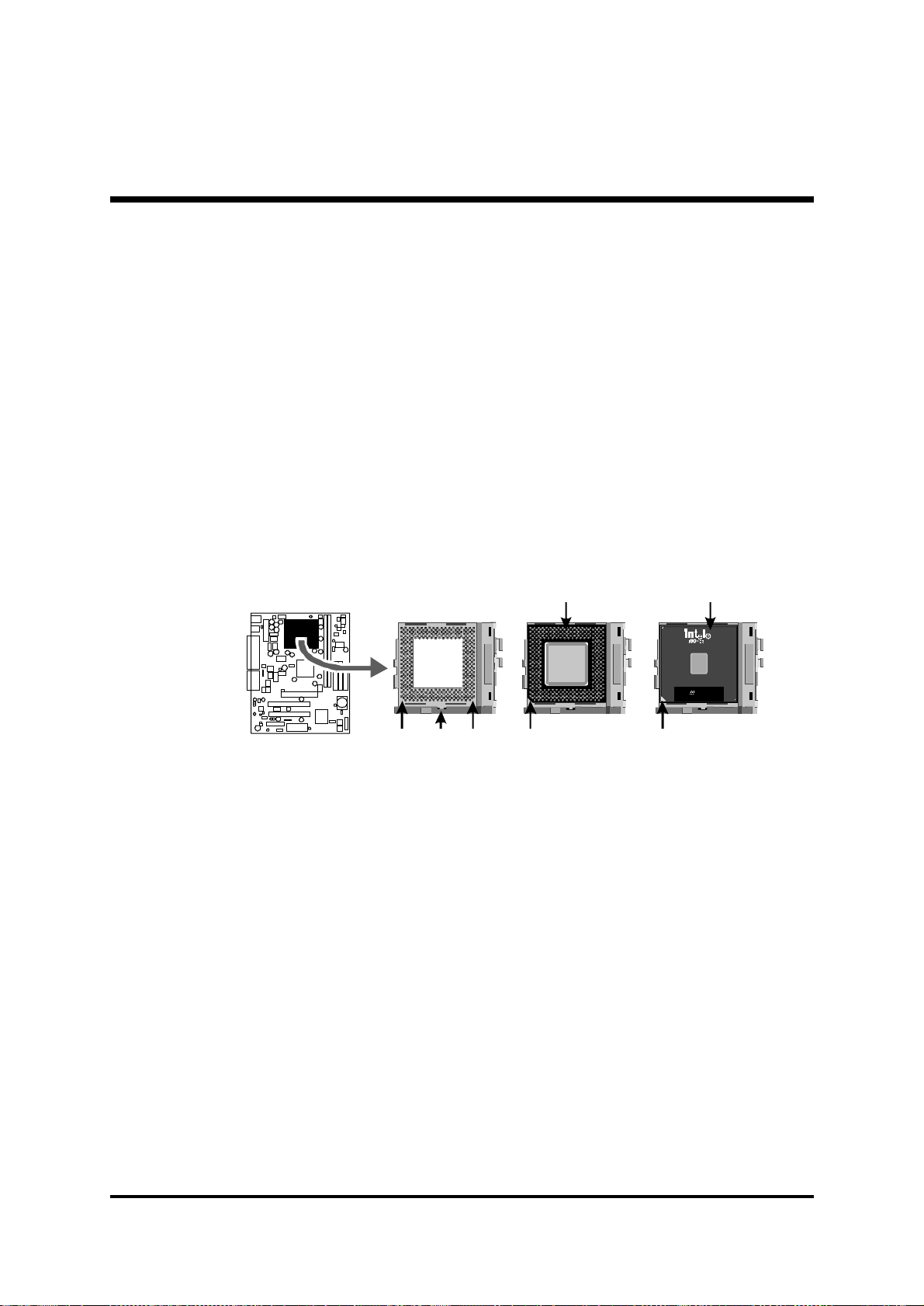

STEP1InstalltheCPU...........................................................................12
STEP 2 Set Jumpers..............................................................................13
STEP3InstallSDRAMSystemMemory .................................................13
STEP4InstallInternalPeripherals in SystemCase.................................14

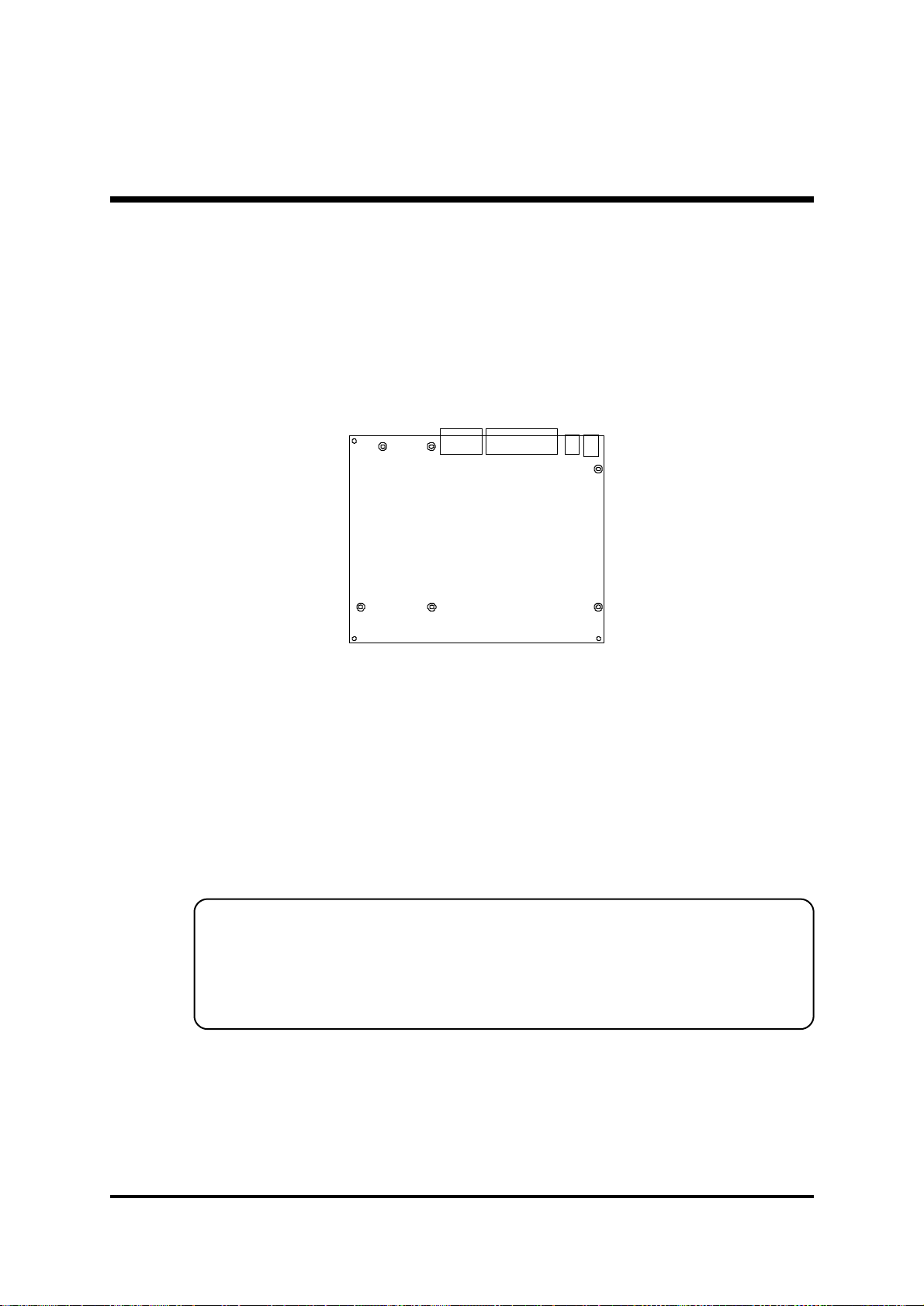

STEP5MounttheMainboardontheComputerChassis ........................15

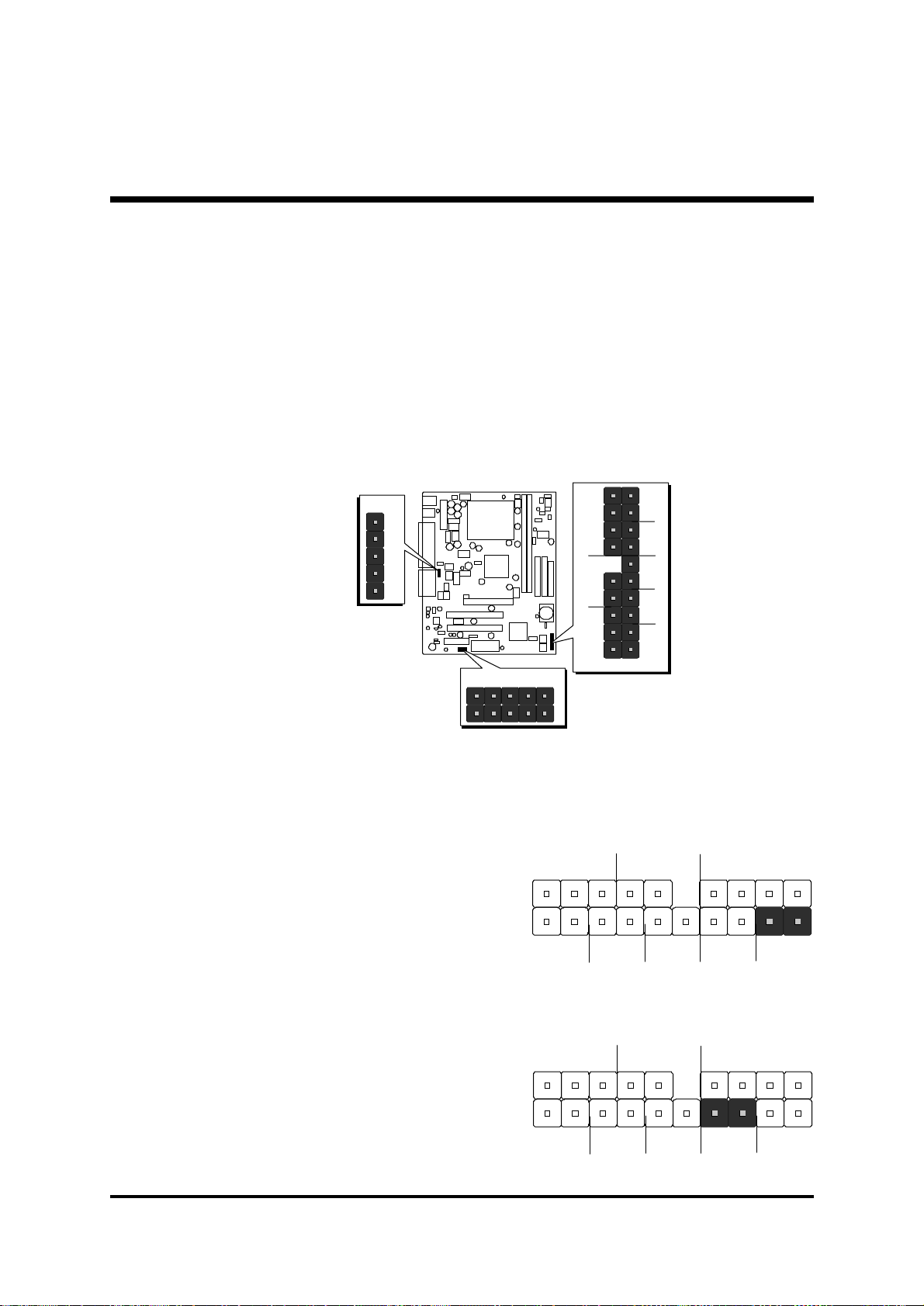

STEP6ConnectFront-panelSwitches/LEDs/Speaker/Audio/USB ........16
STEP 7 Connect IDE & Floppy Disk Drives............................................18
STEP8ConnectOther Internal Peripherals ............................................19
STEP9ConnectPowerSupply..............................................................19
STEP10InstallAdd-onCardsinExpansionSlots ..................................20
STEP11ConnectExternalPeripheralstoBack-panel............................21
STEP 12 First Time System Boot Up......................................................23
STEP13InstallDriver&SoftwareComponents......................................24
TABLE OF CONTENTS

- 2 -
3.2 JUMPER SETTINGS ..................................................................................25
JUMPER&CONNECTORGUIDE .........................................................26
Jumpers
FSB Speed Auto Configuration Setting (JP1).........................................28
CPU Clock Ratio Setting (JP2)...............................................................29
Clear CMOS (J11)..................................................................................30
Back-Panel Connectors
PS/2 Keyboard & PS/2 Mouse Connectors ............................................31
USB0/USB1PortConnectors.................................................................31
COM1Connector ...................................................................................31
VGAConnector......................................................................................31
ParallelPortConnector...........................................................................31
Line-Out .................................................................................................32
Line-In ....................................................................................................32
Mic-In .....................................................................................................32
MIDI/GAMEPort.....................................................................................32
Front-Panel Connectors
ATXPowerOn/OffSwitchConnector (PWON)........................................33
EPMIConnector(EPMI) .........................................................................33
Green LED Connector (G LED) ..............................................................33
HDD LED Connector (HD LED) .............................................................34
PWR LED Connector (PW LED) ............................................................34
HardwareResetConnector(RST) ..........................................................34
Speaker Connector (SPK)......................................................................34
Line-OutandMic-InHeader(SJP1) ........................................................35
Front-panelUSBConnectorHeader(USB2)...........................................35

- 3 -
Internal Peripherals Connectors
EnhancedIDEPortsandFloppyConnectors ..........................................36
Other Connectors
ATXPowerSupplyConnector(JWR1)....................................................37
CoolingFANConnectorsforCPUFANs(FAN1/FAN2),
& AGP FAN Chassis (FAN3) ..................................................................37
COM2Connector(J14) ..........................................................................38
SIRConnector(J8) .................................................................................38
Wake-On-LANConnector (WOL1)..........................................................38
AudioConnectorAUX_In(SJP2)............................................................39
AudioConnectorTAD_In(SJP3) ............................................................39
AudioConnectorCD_In(SJP4)..............................................................39
3.3 SYSTEM MEMORY CONFIGURATION ......................................................40
InstallMemory.........................................................................................40
UpgradeMemory ...................................................................................40
4 SOFTWARE UTILITY .......................................................................41
4.1 Mainboard CD Overview ..........................................................................41
4.2 Install VIA 4 in 1 Driver .............................................................................42
4.3 Install AGP Device Software ....................................................................43
4.4 Install Audio Device Software..................................................................44
4.5 Install Hardware Monitor Device Software .............................................45
4.6 View the User's Manual............................................................................46

- 4 -
5 BIOS SETUP.....................................................................................47
5.1 ENTER THE BIOS......................................................................................47
5.2 THE MAIN MENU .......................................................................................48
STANDARD CMOS FEATURES ................................................................50
ADVANCED BIOS FEATURES..................................................................54
ADVANCED CHIPSET FEATURES...........................................................58
INTEGRATEDPERIPHERALS...................................................................62
POWERMANAGEMENTSETUP ..............................................................66
PNP/PCICONFIGURATION .......................................................................71
PC HEALTH STATUS.................................................................................73
FREQUENCY/VOLTAGECONTROL..........................................................74
LOAD FAIL-SAFE DEFAULTS...................................................................75
LOADOPTIMIZEDDEFAULTS ..................................................................75
SET SUPERVISOR PASSWORD ..............................................................76
SET USER PASSWORD ...........................................................................76
SAVE & EXIT SETUP.................................................................................78
EXITWITHOUTSAVING.............................................................................78

- 5 -
Quick Reference
Hardware Installation >> Step-by-Step ................................................ Page 11
Jumper Settings >> A Closer Look ...................................................... Page 25
Software Utility >> How to Install ......................................................... Page 41
BIOS Setup >> How to Configure ........................................................ Page 47
About This Manual
For First-Time DIY System Builder......................................................... Page 6
For Experienced DIY User ...................................................................... Page 6
For System Integrator ............................................................................. Page 6
WHAT’S IN THE MANUAL

- 6 -
1INTRODUCTION
1.1 To Different Users
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience
successful, right from the start, we ha e designed the Chapter 3 Hardware
Installation section in a step-by-step fashion for all the first-time DIY system
builders. Prior to installation, we also suggest you to read the whole manual
carefully to gain a complete understanding of your new Shuttle MV17
mainboard.
Experienced DIY User
Congratulate on your purchase of the Shuttle MV17 mainboard. You will find
that installing your new Shuttle MV17 mainboard is just easy. Bundled with an
array of onboard functions, the highly-integrated MV17 mainboard pro ides
you with a total solution to build the most stable and reliable system. Refer to
sections 3.2 Jumper Settings and Chapter 4 Software Utility to find out how to
get the best out of your new mainboard. Chapter 5 BI S Setup also contains
the rele ant information on how to tune up your system to achie e higher per-
formance.
System Integrator
You ha e wisely chosen Shuttle MV17 to construct your system. Shuttle MV17
incorporates all the state-of-the-art technology of the VT8605 chipset from VIA.
It integrates the most ad anced functions you can find to date in a compact
MicroATX board. Refer to sections 3.2 Jumper Settings and Chapter 4 Soft-
ware Utility for an in-depth iew of system construction.

- 7 -

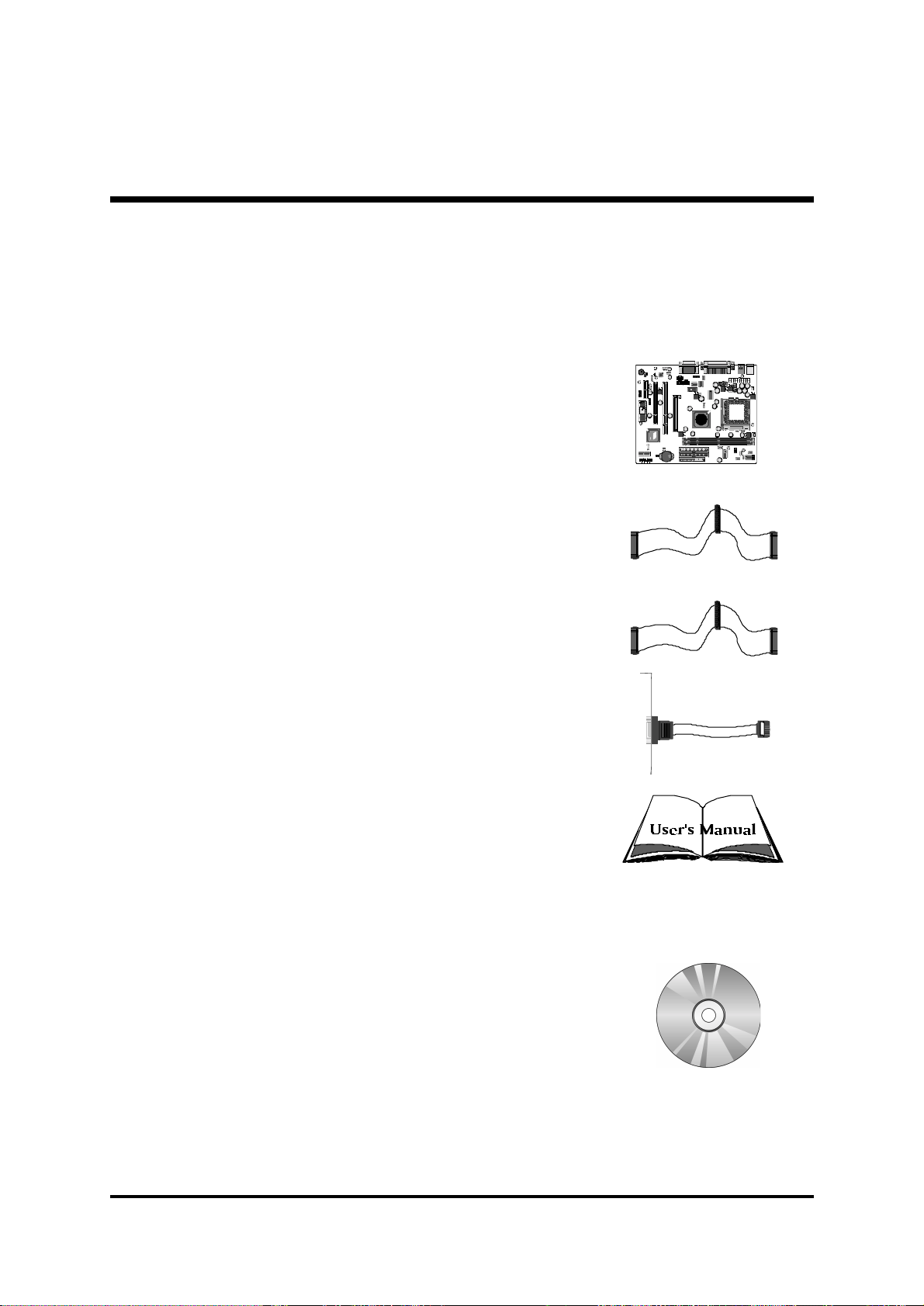

1.2 Item Checklist
Check all items with you MV17 mainboard to make sure nothing is missing.
The complete package should include:
One Shuttle MV17 Mainboard
One ATA33/66 Ribbon Cable
One Floppy Ribbon Cable
One 9-pin COM2 Cable
One MV17 Users Manual
One Shuttle Spacewalker Bundled CD-ROM containing:
ØMV17 users manual on PDF format
ØVIA 4-IN-1 dri er
ØS3 VGA dri er
ØAudio AC'97 2.1 CODEC dri er
ØVIA Hardware Monitor dri er
ØAward Flashing Utility
+
++
-
--

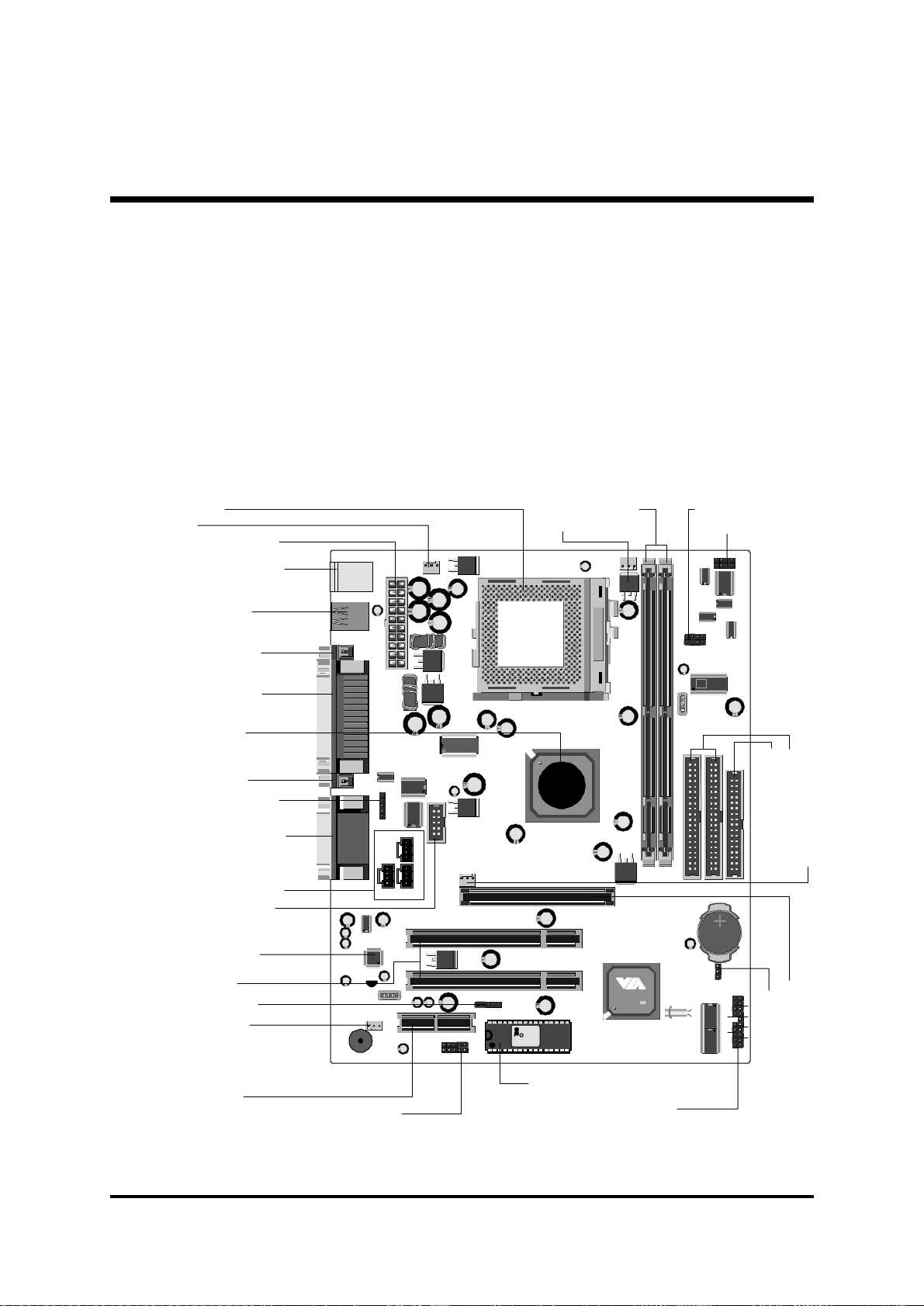

JWR1
1
1
1
1
FAN2
1
PWONEPMI
SPK
GLED
PWLED
HDLEDRST
J12
1
1-2
3-4
5-6
7-8
1-2
3-4
5-6
7-8
JP2
JP1
9148BF-04
9741
VA730213
1
+5
Panaso nic
CR2032
3V
JAPAN1
USB2
1
J5
1
J8
IR
1
M
C
VT
8
2
C686
A
00
17
6CG
TAI WAN
1
3CO
N
6600
J11
ClearCMOS
WOL1
1
SJP1
1
J14
1
FAN3
1
SJP2
SJP3
SJP4
1
1
1
FAN1
1
AMR1
RISER1
PGA370
S3
Pr
oSa
v
age
PM1
33
8605
NFC0CA
0017C62905.00
TAIWAN
)
9
)4
,
PCI/PNP686
169332966
1998
C

- 8 -
MV17 mainboard is carefully designed for the demanding PC user who wants high
performance and maximum intelligent features in a compact package.
2.1 Specifications
CPU Support
Support Socket370 package CPU with 66/100/133 MHz FSB.
Intel PPGA/FC-PGA Celeron processors: 300 ~ 733+ MHz.
Intel Pentium III FC-PGA processors: 500MHz ~ 1.13+ GHz.
Chipset
Features VIA VT8605 AGPset and VT82C686A Chipset.
Jumperless CPU Configuration
Soft-configuration FSB (The FSB speed is software configurable in the Chipset
Features Setup menu of the BIOS Setup utility.)
Integrated Graphics Controller
3D Hyper Pipelined Architecture
Full 2D Acceleration
Motion Video Acceleration
Digital Video output
4 to 32MB frame buffer using system memory
AC'97 Link for Audio and Telephony CODEC
AC'97 2.1 compliant
Sperate independent PCI functions for Audio and Modem
Versatile Memory Support
Is equipped with two DIMM slots of PC100 or PC133 compliant SDRAM to
pro ide up to 1GB of system memory.
Configurable support for EC (Error Checking) and ECC (Error Checking and
Correcting)
PCI Expansion Slots
Pro ides two 32-bit PCI slots.
2 FEATURES

- 9 -
AMR Expansion Slot
Pro ides one AMR (Audio/Modem Riser) slot.
AGP Expansion Slot
Pro ides one 32-bit AGP slot which supports up to 4X AGP de ice.
I/O Interface
Pro ides a ariety of I/O interfaces:
Ø1 × Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, or 2.88MB
format or for 5.25-inch FDD with 360K or 1.2MB format.
Ø1 × PS/2 mouse connector.
Ø1 × PS/2 Keyboard connector.
Ø2 × DB9 Serial connectors 16550 UART compatible.
Ø1 × DB15 VGA connector.
Ø1 × Infrared communication port ASKIR and HPSIR compatible.
(Serial port COM2 can also be redirected to an external IrDA Adapter
for wireless connection.)
Ø1 × DB25 Parallel port supporting Standard Parallel Port (SPP),
Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)
data transmission schemes.
USB Interface Onboard
Ø2 × USB connectors on back-panel and 10 pin header for USB
connectors on front-panel.
PCI Bus Master IDE Controller Onboard
Two UltraDMA 33/66 Bus Master Dual-channel IDE ports pro ide support to a
maximum of four IDE de ices (one Master and one Sla e per channel). The
IDE Bus implements the data transfer speed up to 33/66 MB/sec and also sup-
ports Enhanced PIO Modes 0~4.
80-pin Cable Backward Compatible Legacy ATAPI De ices, ATAPI IDE CD-
ROM, CD-R, CD-RW, and LS-120 Supports.
ATX Power Supply Connector
ATX power supply unit can be connect to the onboard 20-pin ATX power
connector, supporting Suspend and Soft-On/Off by dual-function power
button.

- 10 -
Advanced Configuration and Power Interface
Features four power sa ing modes: Snoop, Suspend to RAM, Suspend to
Disk, and Soft-Off. ACPI pro ides more efficient Energy Sa ings Features
controlled by your operating system that supports OS Direct Power Manage-
ment (OSPM) functionality.
System BIOS
Pro ides licensed Award BIOS V6.0 PG on Intel Firmware Hub with 2 Mb
flash core and supports Green PC, Desktop Management Interface (DMI).
MicroATX Form Factor
System board conforms to the MicroATX specification.
Board dimension: 244mm × 200mm.
Advanced Features
ØDual Function Power Button - The system can be in one of two states;
one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enters the Soft-Off mode.
ØWake-on-LAN (W L) - The onboard WOL connector can be attached to
a network card that supports this function to wake up the system ia LAN.
ØModem Ring Power- n - The system can be powered on automatically
by the acti ation of modem ring.
Intelligent Features
ØVoltage Monitoring - Monitors arious oltages of key elements, such as
the CPU, and other critical system oltage le els to ensure stable current
passing through mainboard components. System oltages include Vcore
on CPU, and +5V, +12V, -5V, -12V on system etc.
ØFan Status Monitoring - To pre ent CPU from o erheating, the CPU fan is
monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is
required.)
ØTemperature Monitoring - This item allows users to make sure whether
the CPU or system runs in a suitable temperature.

- 11 -
3HARDWAREINSTALLATION
This section outlines how to install and configure your MV17 mainboard. Refer to the
following mainboard layout to help you identify arious jumpers, connectors, slots, and
ports. Then follow these steps to guide you through a quick and correct installation of
your system.
3.1 Step-by-Step Installation
Accessories Of MV17
+
++
-
--
KBMS1
USB1
COM1PRINT
VGA
AUDIO
CD_IN
TA D_ I/OAUX_IN
JWR1
1
IDE1
DIMM1DIMM2
111
IDE2
FAN2
FDD1
1
PWONEPMI
SPK
GLED
PW LED
HD LEDRST
J12
1
1-2 3-4 5-6 7-8
1-2 3-4 5-6 7-8
JP2
JP1
9148BF-04
9741
VA730213
1+ 5
Panasonic
CR2 032
3V
JAPAN1
USB2 1
J8 IR 1M
C
VT82C686A
0 0 17 6 C G TAIW AN
13CON 6600
J11
ClearCMOS
WOL1
1
SJP1
1
J14
1
FAN3
1
SJP2 SJP3
SJP4
1
1
1
FAN1
1
AMR1
2/)!%
5!
Pr o S ava
g
e
PM133
8605
NFC0CA
0017 C62905.00
TAIWA N
)9)4,
PC I/P N P 6 8 6
169332966
1998
C
PS/2 Keyboard/Mouse
Connectors
ATX Power Connector
VGA Connector
Parallel Connector
Serial Port
Connector (COM1
Line-In/Line-Out/Mic-In
Game/MIDI Connectors
System Clock - JP1
Floppy Connector
Clear CMOS - J11
Front Panel Connector - J12
Two E-IDE Connectors
FAN3
FAN2
Socket 370
FAN1
Two PCI Sl ots
One A MR Slot
One AGP Slot
VIA S3 Chipset
USB Connectors
IR Connector - J8
CD Audio Connectors
Onboard CODEC
Serial Port Connector
(COM2
Wake-On-LAN
Connector - WOL1
Programmable
2M Flash EEPROM
CPU Multiplier - JP2
Front Panel USB Connectors header -
75*
L-OUT & MIC-IN
Connectors header - SJP1
Two DIMM Socket

- 12 -
Step 1
Install the CPU:
1. Locate the CPU ZIF (Zero Insertion Force) socket on the upper-right
sector of your mainboard (between the back-panel connectors and the
DIMM memory slots).
2. Pull the CPU ZIF socket le er slightly sideways away from the socket
to unlock the le er, and then bring it to an upwardly ertical position.
3. Place your PPGA/FC-PGA370 processor in the ZIF socket. Note that the
CPUs edges ha e been purposely designed non-symmetrically to pre ent
from inserting the processor in the wrong direction. The following diagram
dem onstrates the correct placement of the CPU in the ZIF socket. You can
see that the two blunt-edged corners should face towards the socket-le er.
4. Slightly push the PPGA/FC-PGA370 processor into the socket without
applying excessi e force while making sure there is no gap between CPU
and socket. Then lower the socket-le er all the way down to its horizontal
position and lock it to secure the CPU in place.
5. The PPGA/FC-PGA370 processor requires a set of heatsink/fan to ensure
proper cooling of the processor. If heatsink/fan ha ing not been already
mounted on your CPU, you must purchase the heatsink/fan separately
and ha e it installed. Plug the cable throught the heatsink/fan in the CPU
fan power connector located nearby. Note that there are se eral types of
CPU fan connectors. Normally, if your mainboard supports the hardware
monitoring function, a 3-pin fan power connector should allow your system
to detect the CPU fans speed . The CPU fan can also run with a 2-pin fan
power connector, howe er, detection of CPU fans speed is not supported.
Another type of CPU fan may feature a large 4-pin fan power connector,
which does not support CPU fan's speed detection and must be directly
connected to the systems power supply unit. Please refer to the following
diagram.
2/) !% 2/) !%
Lever BlankBlank Notch Notch
PPGA CPU
2/) !%
Pen tium MALAY
RB80526PY 550 256
Q944A0 36 - 0 393 SL3R3
®
FC-PGA CPU

- 13 -
Step 2.
Set Jumpers
This mainboard is jumperless! The default jumper settings ha e been set for
the common usage standard of this mainboard. Therefore, you do not need
to reset the jumpers unless you require special adjustments as in any of the
following cases:
1. O er-clock your CPU
2. Disable the onboard audio before installing an add-on sound card
3. Clear CMOS
For first-time DIY system builders, we recommend that you do not change the
default jumper settings if you are not totally familiar with mainboard configu-
ration procedures. The factory-set default settings are tuned for optimum
system performance. For the ad anced users who wish to customize their
system, section 3.2 Jumper Settings will pro ide detailed information on how
to configure your mainboard manually.
Step 3.
Install SDRAM System Memory
To install memory, insert SDRAM memory module(s) in any one or two
DIMM slot(s). Note that SDRAM modules are directional and will not go in
the DIMM slots unless properly oriented. After the module is fully inserted
into the DIMM slots, lift the clips of both sides of the DIMM slot to lock the
module in place.

- 14 -
Step 4
Install Internal Peripherals in System Case
Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral de ices into the
computer housing, including but not limited to the hard disk dri e (IDE
/HDD), floppy disk dri e (FDD), CD-ROM dri e, and ATX power supply unit.
This will greatly facilitate in making the connections to the mainboard de-
scribed below.
To install IDE & FDD dri es, follow this procedure:
1. Set the required jumpers on board each de ice according to the
instructions pro ided by the manufacturer. (IDE de ices, HDD, and
CD-ROM ha e to set jumpers on Master or Sla e mode depending
on your willing to install more than one de ice for each kind.)
2. Connect IDE cable and FDD cable to the back-panel of the internal
peripheral de ices. Note that the cable should be oriented with its
colored stripe (usually in red or magenta) connected to pin#1 both on the
mainboard IDE or FDD connector and on the de ice as well.
3. Connect an a ailable power cable through your system power supply unit
to the back-panel of each peripheral de ice. Note that the power cable
is directional and cannot fit in if not properly positioned.

- 15 -
Step 5
Mount the Mainboard on the Computer Chassis
1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose a
correct mounting hole, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.
2. After deciding on the proper mounting holes, position the studs between
the frame of chassis and the mainboard. The studs are used to fix the
mainboard and to keep a certain distance between the system chassis
and the mainboard, in order to a oid any electrical short be twine the
board and the metal frame of chassis. (If your computer case is
already equipped with mounting studs, you will need to tighten screws to
attach the mainboard.)
Note: In most computer housings, you will be able to find 4 or more
attachment points to install mounting studs and fix the mainboard.
If there arent enough matching holes, then make sure to install at
least 3 mounting studs to ensure proper attachment of the
mainboard.

- 16 -
Step 6
Connect Front-panel Switches/LEDs/Speaker/Audio/USB
connectors
You can find there are se eral different cables already existing in the system
case and originating from the computers front-panel de ices (HDD LED,
Power LED, Reset Switch, PC Speaker, or USB de ices etc.) These cables
ser e to connect the front-panel switches, LEDs, USB, Line-Out, and Mic-In
connectors to the mainboards front-panel connectors group (J12, SJP1, and
USB2), as shown below.
1. ATX Soft Power On/Off (PWON)
2. EPMI
(Hardware System Management
Interface)
+
++
-
--
PWONEPMI
SPK
G LED
PW LED
HD LED
RST
J12
1
SJP1
1
USB2 1
+
++
-
--
PWONEPMI
SPK
G LED
PW LED
HD LED
RST
J12
1
+
++
-
--
PWONEPMI
SPK
G LED
PW LED
HD LED
RST
J12
1

- 17 -
3. Green_LED (G LED)
4. HDD_LED (HD LED)
5. Power-LED (PW LED)
6. Hardware Reset Switch (RST)
7. PC Speaker (SPK)
+
++
-
--
PWON
EPMI
SPK
G LED
PW LED
HD LED
RST
J12
1
+
++
-
--
PWON
EPMI
SPK
G LED
PW LED
HD LED
RST
J12
1
+
++
-
--
PWONEPMI
SPK
G LED
PW LED
HD LED
RST
J12
1
+
++
-
--
PWONEPMI
SPK
G LED
PW LED
HD LED
RST
J12
1
+
++
-
--
PWONEPMI
SPK
G LED
PW LED
HD LED
RST
J12
1

- 18 -
8. Line-Out and Mic-In header
9. Front-panel USB connectors header
Step 7
Connect IDE & Floppy Disk Drives
1. IDE cable connector
2. FDD cable connector
ELOUT
EROUT
AGND
EMIC_VCC
EMIC_IN
SJP1
1
GROUND GROUND USBD3+ USBD3- +5V
+5V
USBD2-
USBD2+
GROUND GROUND
1
USB2
IDE1
11
IDE2
1
FDD1
