SICK deTec4 Core User manual

OPERATING INSTRUCTIONS
deTec4 Ex
Safety light curtain

Described product
deTec4 Ex
Manufacturer
SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Germany
Legal information
This work is protected by copyright. Any rights derived from the copyright shall be
reserved for SICK AG. Reproduction of this document or parts of this document is
only permissible within the limits of the legal determination of Copyright Law. Any modi‐
fication, abridgment or translation of this document is prohibited without the express
written permission of SICK AG.
The trademarks stated in this document are the property of their respective owner.
© SICK AG. All rights reserved.
Original document
This document is an original document of SICK AG.
2O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 8022883/1DVD/2023-04-28 | SICK
Subject to change without notice

Contents
1 About this document........................................................................ 7
1.1 Purpose of this document........................................................................ 7
1.2 Scope......................................................................................................... 7
1.3 Target groups of these operating instructions........................................ 7
1.4 Additional information.............................................................................. 7
1.5 Symbols and document conventions...................................................... 8
2 Safety information............................................................................ 9
2.1 General safety notes................................................................................ 9
2.2 Intended use............................................................................................. 11
2.3 Inappropriate use..................................................................................... 11
2.4 Requirements for the qualification of personnel.................................... 12
3 Product description........................................................................... 13
3.1 Structure and function............................................................................. 13
3.2 Product characteristics............................................................................ 14
3.2.1 Device overview....................................................................... 14
3.2.2 Automatic calibration of the protective field width................ 14
3.2.3 Beam coding............................................................................ 14
3.2.4 Alignment aid........................................................................... 14
3.2.5 Restart interlock...................................................................... 15
3.2.6 External device monitoring (EDM).......................................... 15
3.2.7 Application diagnostic output................................................. 15
3.2.8 System plug.............................................................................. 15
3.2.9 Flexible control cabinet cabling and status indication on
both sides................................................................................. 16
3.2.10 Status indicators...................................................................... 16
3.3 Example applications............................................................................... 19
4 Project planning................................................................................ 21
4.1 Manufacturer of the machine.................................................................. 21
4.2 Operating entity of the machine.............................................................. 21
4.3 Design........................................................................................................ 21
4.3.1 Scanning range and protective field width............................. 22
4.3.2 Minimum distance from the hazardous point....................... 23
4.3.3 Minimum distance to reflective surfaces............................... 25
4.3.4 Protection against interference from systems in close prox‐
imity to each other................................................................... 27
4.4 Integration in electrical control................................................................ 29
4.4.1 Restart interlock...................................................................... 32
4.4.2 External device monitoring (EDM).......................................... 33
4.4.3 Application diagnostic output................................................. 34
4.4.4 Connection of sender and receiver........................................ 34
4.4.5 Laser alignment aid................................................................. 34
CONTENTS
8022883/1DVD/2023-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 3
Subject to change without notice

4.4.6 Connection diagrams.............................................................. 35
4.5 Testing plan............................................................................................... 36
4.5.1 Test rod check.......................................................................... 37
4.5.2 Visual check of the machine and the protective device........ 39
5 Mounting............................................................................................. 40
5.1 Safety......................................................................................................... 40
5.2 Unpacking.................................................................................................. 40
5.3 Mounting the system plug........................................................................ 40
5.4 Mount the safety light curtain in the explosion-proof enclosure (only
if the safety light curtain is used in North America)............................... 42
5.5 Mount the optional cable gland............................................................... 43
5.6 Mount the handlesto the cover of the explosion-proof enclosure........ 44
5.7 Installation................................................................................................ 44
5.7.1 Mounting the safety light curtain without alignment
bracket...................................................................................... 46
5.7.2 Mounting the safety light curtain with alignment bracket.... 48
6 Electrical installation........................................................................ 52
6.1 Safety......................................................................................................... 52
6.2 System connection (flying leads, 8-wire)................................................. 55
7 Configuration..................................................................................... 56
7.1 Overview.................................................................................................... 56
7.2 Factory settings......................................................................................... 56
7.2.1 Reset to factory settings......................................................... 57
7.3 Configuration mode.................................................................................. 58
7.4 Configuring beam coding......................................................................... 58
7.5 Configuring the restart interlock.............................................................. 59
7.6 Configuring external device monitoring (EDM)....................................... 60
7.7 Configuring application diagnostic output.............................................. 60
7.8 Status indication on both sides............................................................... 61
8 Commissioning.................................................................................. 62
8.1 Overview.................................................................................................... 62
8.2 Switching on.............................................................................................. 62
8.3 Sender and receiver alignment................................................................ 63
8.3.1 Aligning the sender and receiver............................................ 63
8.3.2 Alignment with the alignment bracket................................... 65
8.3.3 Indication of the alignment quality......................................... 66
8.4 Check during commissioning and modifications.................................... 67
9 Operation............................................................................................ 68
9.1 Overview.................................................................................................... 68
9.2 Regular thorough check........................................................................... 68
9.3 LEDs........................................................................................................... 68
CONTENTS
4O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 8022883/1DVD/2023-04-28 | SICK
Subject to change without notice

10 Maintenance...................................................................................... 70
10.1 Safety......................................................................................................... 70
10.2 Regular cleaning....................................................................................... 70
10.3 Regular thorough check........................................................................... 71
11 Troubleshooting................................................................................. 72
11.1 Overview.................................................................................................... 72
11.2 Safety......................................................................................................... 72
11.3 Diagnostic LEDs........................................................................................ 72
11.3.1 Indications when switching on................................................ 72
11.3.2 Status indication...................................................................... 74
11.3.3 Fault indicators........................................................................ 75
12 Decommissioning............................................................................. 80
12.1 Disposal..................................................................................................... 80
13 Technical data.................................................................................... 81
13.1 Data sheet................................................................................................. 81
13.2 Response time.......................................................................................... 84
13.3 Power consumption.................................................................................. 84
13.4 Length of cable......................................................................................... 84
13.5 Table of weights........................................................................................ 85
13.6 Dimensional drawings.............................................................................. 86
14 Ordering information........................................................................ 91
14.1 Scope of delivery....................................................................................... 91
14.2 Ordering information................................................................................. 91
15 Accessories........................................................................................ 92
15.1 Brackets.................................................................................................... 92
15.2 Mounting accessories.............................................................................. 93
15.3 Connectors................................................................................................ 93
15.4 Alignment aid............................................................................................ 93
15.5 Deflector mirrors....................................................................................... 94
15.5.1 Function and use..................................................................... 94
15.5.2 Mounting.................................................................................. 94
15.5.3 Change in scanning range using deflector mirrors................ 94
15.5.4 Deflector mirror PNS75 - ordering information...................... 95
15.5.5 Deflector mirror PNS125 - ordering information................... 95
15.6 Mirror columns.......................................................................................... 95
15.7 Cleaning agent.......................................................................................... 96
15.8 Test rods.................................................................................................... 96
16 Annex.................................................................................................. 97
16.1 Conformities and certificates................................................................... 97
16.1.1 EU declaration of conformity................................................... 97
16.2 Note on standards.................................................................................... 97
CONTENTS
8022883/1DVD/2023-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 5
Subject to change without notice

16.3 Checklist for initial commissioning and commissioning........................ 98
17 List of figures..................................................................................... 99
18 List of tables....................................................................................... 101
CONTENTS
6O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 8022883/1DVD/2023-04-28 | SICK
Subject to change without notice

1 About this document
1.1 Purpose of this document
These operating instructions contain information required during the life cycle of the
safety light curtain.
These operating instructions are available to all those who work with the safety light
curtain.
Please read these operating instructions carefully and make sure that you understand
the content fully before working with the safety light curtain.
1.2 Scope
This document applies to the following products:
•Product code: deTec4 Ex
•“Operating instructions” type label entry: 8022831
Document identification
Document part number:
•This document: 8022883
•Available language versions of this document: 8022831
You can find the current version of all documents at www.sick.com.
1.3 Target groups of these operating instructions
Some sections of these operating instructions are intended for certain target groups.
However, the entire operating instructions are relevant for intended use of the product.
Table 1: Target groups and selected sections of these operating instructions
Target group Sections of these operating instructions
Project developers (planners, developers,
designers)
"Project planning", page 21
"Configuration", page 56
"Technical data", page 81
"Accessories", page 92
Installers "Mounting", page 40
Electricians "Electrical installation", page 52
Safety experts (such as CE authorized repre‐
sentatives, compliance officers, people who
test and approve the application)
"Project planning", page 21
"Configuration", page 56
"Commissioning", page 62
"Technical data", page 81
"Checklist for initial commissioning and com‐
missioning", page 98
Operators "Operation", page 68
"Troubleshooting", page 72
Maintenance personnel "Maintenance", page 70
"Troubleshooting", page 72
1.4 Additional information
www.sick.com
The following information is available on the Internet:
•Data sheets and application examples
•CAD data and dimensional drawings
ABOUT THIS DOCUMENT 1
8022883/1DVD/2023-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 7
Subject to change without notice

•Certificates (e.g. EU declaration of conformity)
•Guide for Safe Machinery Six steps to a safe machine
1.5 Symbols and document conventions
The following symbols and conventions are used in this document:
Safety notes and other notes
DANGER
Indicates a situation presenting imminent danger, which will lead to death or serious
injuries if not prevented.
WARNING
Indicates a situation presenting possible danger, which may lead to death or serious
injuries if not prevented.
CAUTION
Indicates a situation presenting possible danger, which may lead to moderate or minor
injuries if not prevented.
NOTICE
Indicates a situation presenting possible danger, which may lead to property damage if
not prevented.
NOTE
Indicates useful tips and recommendations.
Instructions to action
►The arrow denotes instructions to action.
1. The sequence of instructions for action is numbered.
2. Follow the order in which the numbered instructions are given.
✓The check mark denotes the result of an instruction.
LED symbols
These symbols indicate the status of an LED:
oThe LED is off.
ÖThe LED is flashing.
OThe LED is illuminated continuously.
Sender and receiver
These symbols indicate the sender and receiver of the device:
sThe symbol indicates the sender.
rThe symbol indicates the receiver.
1 ABOUT THIS DOCUMENT
8O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 8022883/1DVD/2023-04-28 | SICK
Subject to change without notice

2 Safety information
2.1 General safety notes
DANGER
The product can not offer the expected protection if it is integrated incorrectly.
►Plan the integration of the product in accordance with the machine requirements
(project planning).
►Implement the integration of the product in accordance with the project planning.
DANGER
Death or severe injury due to electrical voltage and/or an unexpected startup of the
machine
►Make sure that the machine is (and remains) disconnected from the voltage
supply during mounting and electrical installation.
►Make sure that the dangerous state of the machine is and remains switched off.
DANGER
Improper work on the product
A modified product may not offer the expected protection if it is integrated incorrectly.
►Apart from the procedures described in this document, do not repair, open, manip‐
ulate or otherwise modify the product.
CAUTION
Laser class 1
LASER
1
Figure 1: Laser class 1
This device has been classified in accordance with the following standards:
•IEC60825-1:2007/EN60825-1:2007
•IEC60825-1:2014/EN60825-1:2014
•21CFR1040.10 and 1040.11, except for deviations pursuant to Laser Notice
No.50 dated 2007-06-24
The laser is eye-safe. Looking directly into the laser may cause temporary impairments.
The outlet opening of the laser radiation is located in the sender, see figure 4,
page 16. The laser is only active when the laser alignment aid is switched on.
Laser identification is located on the rear of the sender.
►Comply with the latest version of the applicable provisions on laser protection.
SAFETY INFORMATION 2
8022883/1DVD/2023-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 9
Subject to change without notice

CAUTION
If any operating or adjusting devices other than those specified in this document are
used or other methods are employed, this can lead to dangerous exposure to radiation.
►Only use the operating or adjusting devices specified in this document.
►Only follow the methods specified in this document.
►Do not open the housing, except for the purposes of the installation and mainte‐
nance work specified in these operating instructions.
DANGER
Risk of ignition
Failure to observe this information could result in a risk of ignition.
►The sender, receiver, and cables delivered with the safety light curtain are not
explosion-proof. The person purchasing, assembling, and using the safety light
curtain is responsible for fitting the cables in suitable explosion-proof conduits
and/or cable glands to ensure the integrity of the system.
►The type label on each individual explosion-proof enclosure contains information
on the device’s hazardous area class and group. Every device that penetrates
the explosion-proof enclosure must be suitable for the environment in which the
explosion-proof enclosure is installed with regard to its hazardous area class and
group or zone.
WARNING
Risk of ineffectiveness of the protective device
Please observe the following information to ensure that you are using the deTec4 Ex
safety light curtain safely and correctly.
►National and international regulations and guidelines must be observed when
mounting, using, and commissioning electrical devices as well as when carrying
out regular technical inspections in explosion-hazardous areas. Article 500 of the
National Electrical Code and ATEX Directive 2014/34/EU shall apply in particular.
Manufacturers of and entities operating machines using the safety light curtain
are responsible for ensuring that all applicable safety regulations and guidelines
are complied with.
►These operating instructions must be made available to the operator of the
machine on which the safety light curtain is used. Qualified safety personnel must
instruct the operator in how to use the device. The operator must also be directed
to read and follow the operating instructions.
DANGER
Risk of ignition
Failure to observe this instruction can result in a risk of ignition from potential sparking.
►Ensure that only accessories that are approved for explosion-hazardous areas are
used.
NOTE
SICK provides more information about the following explosion-proof connections:
•Joint between glass and cover
•Joint between cover and explosion-proof enclosure
2 SAFETY INFORMATION
10 O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 8022883/1DVD/2023-04-28 | SICK
Subject to change without notice

2.2 Intended use
The deTec4 Ex safety light curtain is an electro-sensitive protective device (ESPE) and is
suitable for the following applications:
•Hazardous point protection
•Access protection
•Hazardous area protection
The product may be used in safety functions.
The deTec4 Ex safety light curtain is suitable for use in enclosed spaces only. It has
UL/cUL certification for the following hazardous areas defined in the National Electrical
Code® and Canadian Electrical Code®:
•Class I, groups C, D
•Class II, groups E, F, G
•Class III
The deTec4 Ex safety light curtain also complies with the following standards: EN IEC
60079-0:2018/IEC 60079-0 Edition 7.0, EN 60079-1:2014/IEC 60079-1 Edition
7.0, EN 60079-31:2014/IEC 60079-31 Edition 2.0 and is certified for the following
hazardous areas:
• 0539 X II 2 G Ex db IIB T6 Gb
• 0539 X II 2 D Ex tb IIIC T56°C Db
•Ex db IIB T6 Gb
•Ex tb IIIC T56°C Db
DEMKO 14 ATEX 1315X
IECEx UL 14.0034X
The deTec4 Ex safety light curtain does not emit any paint wetting impairment sub‐
stances or volatile silicones and does not expel any fixed parts or materials into the
surrounding area.
The deTec4 Ex safety light curtain must only be used within the limits of the prescribed
and specified technical data and operating conditions at all times.
Any instance of improper use, incorrect modification, or manipulation of the deTec4 Ex
safety light curtain shall void any warranty provided by SICK AG; furthermore, SICK AG
shall not accept any responsibility or liability for any resulting damage and consequen‐
tial damage.
2.3 Inappropriate use
The safety light curtain works as an indirect protective measure and cannot provide
protection from parts thrown out nor from emitted radiation. Transparent objects are
not detected.
Among others, the deTec4 Ex safety light curtain is not suitable for the following
applications:
•Outdoors
•Underwater
•At altitudes over 3,000m above sea level
•In environments with increased levels of ionizing radiation
SAFETY INFORMATION 2
8022883/1DVD/2023-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 11
Subject to change without notice

2.4 Requirements for the qualification of personnel
The safety light curtain must only be configured, installed, connected, commissioned
and serviced by qualified safety personnel.
Project planning
You need safety expertise to implement safety functions and select suitable products
for that purpose. You need expert knowledge of the applicable standards and regula‐
tions.
Mounting, electrical installation and commissioning
You need suitable expertise and experience. You must be able to assess if the machine
is operating safely.
Configuration
You need suitable expertise and experience. You must be able to assess if the machine
is operating safely.
Operation and maintenance
You need suitable expertise and experience. You must be instructed in machine oper‐
ation by the machine operator. For maintenance, you must be able to assess if the
machine is operating safely.
Maintenance and thorough checks should only be conducted by qualified, trained
personnel who are familiar with the regulations and instructions relating to explosion-
hazardous environments, particularly:
•Ignition protection methods
•Mounting regulations
•Regulations on distances to be maintained
2 SAFETY INFORMATION
12 O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 8022883/1DVD/2023-04-28 | SICK
Subject to change without notice

3 Product description
3.1 Structure and function
Overview
The deTec4 Ex safety light curtain is an electro-sensitive protective device (ESPE) con‐
sisting of a sender and receiver.
A series of parallel infrared light beams forms a protective field between sender and
receiver that protects the hazardous area (hazardous point, access, and hazardous
area protection). When one or more beams are completely interrupted, the safety light
curtain reports the interruption in the light path to the secure output signal switching
devices (OSSDs) by a signal change. The machine or its control must safely analyze the
signals (for example using a safe control or safety relays) and stop the dangerous state.
Sender and receiver automatically synchronize themselves optically. An electrical con‐
nection between both components is not required, but is advantageous.

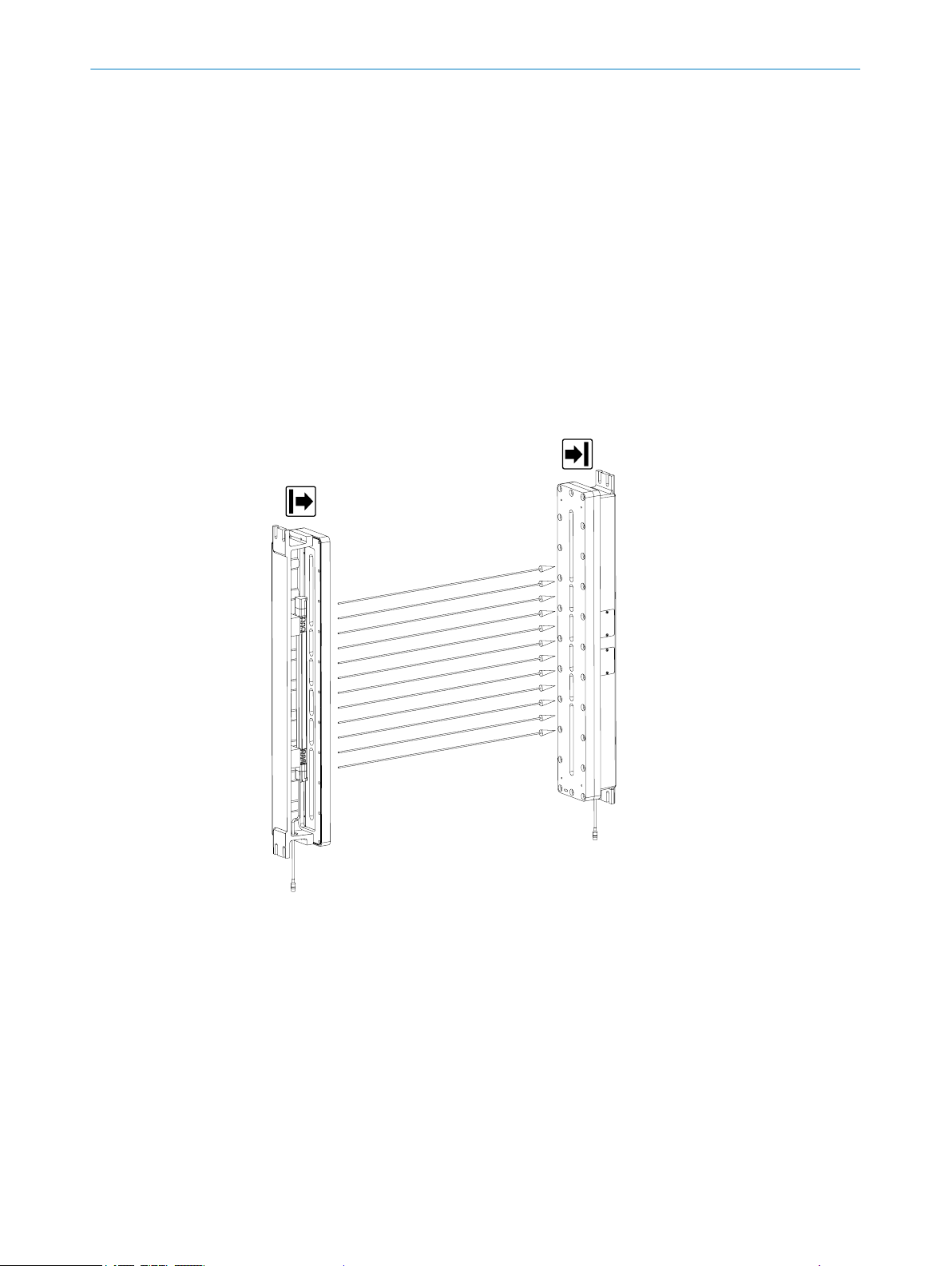

Figure 2: Sender and receiver
Protective field height
The protective field height indicates the range within which the test rod belonging to the
safety light curtain is reliably detected.
Protective field width
The protective field width is the dimension of the light path between sender and
receiver. The maximum protective field width is limited by the scanning range.
Resolution
The resolution describes the size of the smallest object detected by the safety light
curtain in the protective field. The resolution corresponds to the diameter of the test rod
belonging to the safety light curtain.
PRODUCT DESCRIPTION 3
8022883/1DVD/2023-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 13
Subject to change without notice

The safety light curtain has a resolution of 30mm. This resolution provides hand
protection.
Scanning range
The scanning range is the maximum protective field width.
The scanning range is reduced by using deflector mirrors.
Further topics
•"Flexible control cabinet cabling and status indication on both sides", page 16
•"Data sheet", page 81
•"Deflector mirrors", page 94
3.2 Product characteristics
3.2.1 Device overview
1
3
2
4
Figure 3: Device overview
1
2
3
4
3.2.2 Automatic calibration of the protective field width
When switched on, the safety light curtain automatically calibrates to the protective
field width.
3.2.3 Beam coding.
Depending on its configuration, the safety light curtain operates with 1 of 3 beam
codings: uncoded, code1 or code2. The beam coding “uncoded” allows for particularly
short response times. In order to avoid mutual interference between 2 neighboring
safety light curtains, one can be operated with code1 and the other with code2.
3.2.4 Alignment aid
A laser alignment aid is installed in the sender of the safety light curtain. The laser
alignment aid can be switched on to perform a simple alignment of the sender.
3 PRODUCT DESCRIPTION
14 O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 8022883/1DVD/2023-04-28 | SICK
Subject to change without notice

Diagnostic LEDs are installed in the receiver of the safety light curtain. For a simple
alignment of the receiver, diagnostic LEDs 1, 2, 3 and 4 indicate the alignment quality
once the safety light curtain has been switched on.
Diagnostic LEDs 5 and 6 light up if the topmost beam (far from system plug) is
synchronized. Diagnostic LEDs 7 and 8 light up if the bottommost beam (near system
plug) is synchronized.
3.2.5 Restart interlock
The safety light curtain has an integrated restart interlock. The function can be config‐
ured during commissioning.
A restart interlock prevents the machine from starting again once the protective device
has been triggered. The operator must first press a reset pushbutton to allow the
protective device to resume its monitoring function. The operator can then restart the
machine.
3.2.6 External device monitoring (EDM)
The safety light curtain has integrated external device monitoring. The function can be
configured during commissioning.
The external device monitoring (EDM) monitors the status of downstream contactors.
In order to use external device monitoring, positively guided contactors must be used
to switch off the machine. If the auxiliary contacts of the positively guided contactors
are connected to the external device monitoring, the external device monitoring checks
whether the contactors switch correctly when the OSSDs are switched off.
3.2.7 Application diagnostic output
The safety light curtain has an application diagnostic output on the system connection.
Depending on the configuration, the application diagnostic output signals a certain
status of the safety light curtain, e.g. if the reset pushbutton must be engaged or if
there is a weak signal at the receiver.
For a signal of the safety light curtain to be displayed, a light can be connected to
the application diagnostic output or the signal can be transmitted to the machine
controller.
The following signals can be output over the application diagnostic output:
•Reset required
•Weak signal
3.2.8 System plug
Overview
The following system plugs are available for the safety light curtain:
•SP1system plug
The system plugs are available in the following versions:
•System plug (flying leads, 8-wire)
Functional scope
The following functions are available depending on the system plug used:
•Beam coding
•Restart interlock
•External device monitoring (EDM)
•Application diagnostic output
PRODUCT DESCRIPTION 3
8022883/1DVD/2023-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 15
Subject to change without notice

The SP1 system plug can be used on all of the senders and receivers of a single
system.
3.2.9 Flexible control cabinet cabling and status indication on both sides
The safety light curtain can be connected to the control cabinet in different ways as
required:
•Separate connecting cables for sender and receiver
•Separate connecting cables for sender and receiver with connection in the control
cabinet
The OSSD status and the status of the protective field are indicated via LEDs on the
sender and receiver when the following applies:
•The sender and receiver are connected to one another in the control cabinet
If the sender and receiver are not connected to each other, this status information is
only indicated at the receiver.
Further topics
•"Connection diagrams", page 35
3.2.10 Status indicators
Overview
The sender and receiver LEDs indicate the operational status of the safety light curtain.
Sender displays
1
2
3
Figure 4: Sender displays
The sender has one laser alignment aid and at least two light emitting diodes, which
indicate the operational status:
3 PRODUCT DESCRIPTION
16 O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 8022883/1DVD/2023-04-28 | SICK
Subject to change without notice

Position LED color Function Labeling
1Red/yellow/green Field indicator 1);
shows the status of
the protective field
and additional infor‐
mation about the sta‐
tus display
–
2– Laser alignment aid –
3Red/yellow/green Status indicator STATE
1) Safety light curtains with protective field height >300mm have multiple LEDs for the field indicator.
Receiver displays
1
3
2
1234
5 6 7 8
Figure 5: Receiver displays
At least ten light emitting diodes on the receiver indicate the operational status:
Position LED color Function Labeling
1Red/yellow/green Field indicator 1);
shows the status of
the protective field
and additional infor‐
mation about the sta‐
tus display
–
2Blue/red/yellow/white Diagnostics 1, 2, 3, 4, 5, 6, 7, 8
3Red/green OSSD status OSSD
1) Safety light curtains with protective field height >300mm have multiple LEDs for the field indicator.
Further topics
•"Diagnostic LEDs", page 72
3.2.10.1 Indication of diagnostic LEDs
Table 2: Colors and their meaning
Color Color Meaning
OWhite Configuration status
OBlue Alignment quality
PRODUCT DESCRIPTION 3
8022883/1DVD/2023-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 17
Subject to change without notice

Color Color Meaning
ORed Fault indicator
OYellow Warning
o LED off. Ö LED flashes. O LED illuminates.
Table 3: Indication of the configuration status
Diagnostic LEDs Color Configuration
1O White External device monitoring (EDM) is config‐
ured.
2O White Reserved
3O White Beam coding is configured.
4O White Restart interlock is configured.
5O White Reserved
6O White Reserved
7O White Reserved
8O White Reserved
o LED off. Ö LED flashes. O LED illuminates.
Table 4: Indication of the alignment quality
Diagnostic LEDs Color Meaning
1...4 O Blue Indication of the alignment quality.
If only one diagnostic LED lights up, the align‐
ment is insufficient. If all 4 diagnostic LEDs
light up, the alignment is excellent.
5, 6 O Blue The topmost beam (far from system plug) is
synchronized.
7, 8 O Blue The bottommost beam (near system plug) is
synchronized.
o LED off. Ö LED flashes. O LED illuminates.
Table 5: Fault indicator
Diagnostic LEDs Color Meaning
1...8 O Red A red illuminated diagnostic LED signals the
function at which an error has occurred.
1...8 Ö Red A red flashing diagnostic LED signals the rea‐
son for the error.
o LED off. Ö LED flashes. O LED illuminates.
Example: If diagnostic LED 1 lights up red and diagnostic LED 5 flashes red, there is an
EDM error.
Table 6: Warnings
Diagnostics LED Color Meaning
1...8 O Yellow A yellow illuminated diagnostic LED signals
which function is affected.
1...8 Ö Yellow A yellow flashing diagnostic LED signals the
reason for the warning.
o LED off. Ö LED flashes. O LED illuminates.
3 PRODUCT DESCRIPTION
18 O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 8022883/1DVD/2023-04-28 | SICK
Subject to change without notice

Further topics
•"Diagnostic LEDs", page 72
3.3 Example applications
Figure 6: Hazardous point protection
Figure 7: Access protection
PRODUCT DESCRIPTION 3
8022883/1DVD/2023-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 19
Subject to change without notice

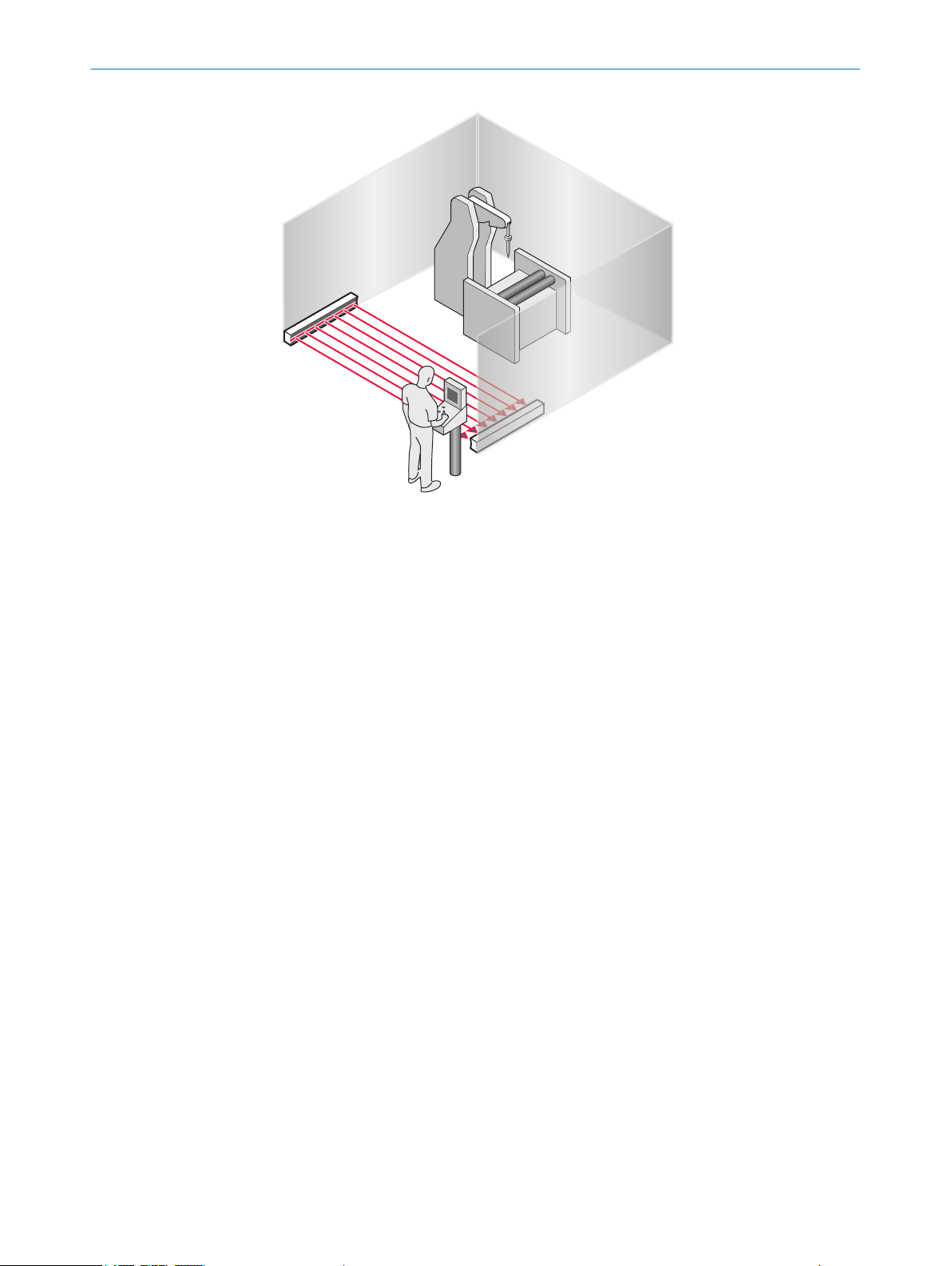

Figure 8: Hazardous area protection
3 PRODUCT DESCRIPTION
20 O P E R A T I N G I N S T R U C T I O N S | deTec4 Ex 8022883/1DVD/2023-04-28 | SICK
Subject to change without notice
