Siemens SIMATIC Mobile Client900RFN User manual

Mobile Client900RXA
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
SIMATIC HMI
Customized automation
Mobile Client900RXA
Operating Instructions
07/2015
A5E36360099
-AA
Preface
Overview
1
Safety guidelines
2
Installing and connecting the
device
3
Parameter assignment of a
Mobile Client
4
Configuring the Mobile Client
and Connection box
5
Commissioning a project
6
Operating the project
7
Operating the mobile client
8
Device maintenance and
repair
9
Technical specifications
10
Technical support
A
Abbreviations
B

Siemens AG
Division Digital Factory
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E36360099-AA
Ⓟ
07/2015 Subject to change
Copyright © Siemens AG 2015.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

Mobile Client900RXA
Operating Instructions, 07/2015, A5E36360099-AA 3
Preface
Purpose of the operating instructions
These operating instructions provide information based on the requirements defined by
DIN EN 62079 for mechanical engineering documentation. This information relates to the
place of use, transport, storage, mounting, use and maintenance.
These operating instructions are intended for the following user groups:
●Operators
Operators operate and monitor the system during the process control phase.
●Commissioning engineers
The commissioning engineer integrates the HMI device into the system and ensures the
operating capability of the HMI device for the process control phase.
●Service technicians
Service technicians rectify faults that occur during the process control phase.
●Maintenance technicians
Maintenance technicians carry out regular maintenance work during the process control
phase.
Knowledge required
General knowledge of automation technology and process communication is needed to
understand the operating instructions.
Scope of application of the document
This source document was written in German, the basis for the translations, and applies to
the following HMI devices:
●SIMATIC Mobile Client900RXA, article number 6AV6645-7CG00-2AA0
Note
Observe the following points:
•
This document belongs to the device and will also be required for repeat commissioning.
Keep all supplied and supplementary documentation for the entire service life of the
device.
•
Make sure that the persons who require these documents have access to them.
•
Pass on all of these documents to the subsequent owner of the device.

Preface
Mobile Client900RXA
4Operating Instructions, 07/2015, A5E36360099-AA
Figures
This document contains figures of the described devices and the described software. The
figures can deviate from the particularities of the delivered device and the supplied software.
Style conventions
The following text notation will facilitate reading this manual:
Representation type
Scope
"Add figure" •Terminology that appears in the user interface, for example
dialog names and buttons.
•Required inputs, for example, an IP address.
•Path information
"File > Edit" Operating sequences, for example, menu commands, shortcut
menu commands.
<F1>, <Alt + P>
Keyboard actions
Please observe notes labeled as follows:
Note
Notes containing important information about the product and its use or a specific section of
the documentation to which you should pay particular attention.
Naming conventions
The following terms are used in this document:
Item name
Term used in the document
Mobile Client all versions
Device, HMI device, Mobile Client, Mobile Panel
Mobile Client with Arctic extension (extended
temperature range)
Arctic HMI device
Mobile Client without Arctic extension
Non-arctic HMI device

Mobile Client900RXA
Operating Instructions, 07/2015, A5E36360099-AA 5
Table of contents
Preface ................................................................................................................................................... 3
1 Overview................................................................................................................................................. 9
1.1 Product description ...................................................................................................................9
1.2 Design of the device ...............................................................................................................10
1.3 Scope of delivery ....................................................................................................................12
1.4 Accessories.............................................................................................................................12
1.4.1 Connecting cable ....................................................................................................................12
1.4.2 Connection box .......................................................................................................................13
1.4.3 Wall-mounting bracket ............................................................................................................14
1.4.4 Wall-mounting bracket with cable holder ................................................................................15
1.4.5 Magnetic wall bracket .............................................................................................................16
1.4.6 Protective cover ......................................................................................................................18
1.4.7 Protective foil ..........................................................................................................................18
1.4.8 Rubber strips...........................................................................................................................19
1.4.9 Touch pen ...............................................................................................................................19
1.4.10 Storage media.........................................................................................................................20
1.5 The HMI device in the operating process ...............................................................................20
1.6 Scope of functions with WinCC ..............................................................................................21
1.7 Software add-ons....................................................................................................................23
1.8 Communication with controllers..............................................................................................24
2 Safety guidelines................................................................................................................................... 25
2.1 General safety instructions .....................................................................................................25
2.2 Notes about usage..................................................................................................................28
2.3 Power supply ..........................................................................................................................30
3 Installing and connecting the device...................................................................................................... 31
3.1 Preparing for installation .........................................................................................................31
3.1.1 Checking delivery....................................................................................................................31
3.1.2 Device identification data........................................................................................................31
3.1.3 Mounting positions and type of fixation...................................................................................31
3.1.4 Preparing mounting of the connection box .............................................................................32
3.1.5 Preparing to mount the wall-mounting bracket .......................................................................32
3.2 Connection box and wall bracket............................................................................................33
3.2.1 Mounting the connection box..................................................................................................33
3.2.2 Mounting the wall-mounting bracket .......................................................................................33
3.2.3 Mounting and using the magnetic wall-mounting bracket.......................................................35
3.2.3.1 Mounting the magnetic wall bracket .......................................................................................35
3.2.3.2 Using the magnetic wall bracket .............................................................................................36

Table of contents
Mobile Client900RXA
6Operating Instructions, 07/2015, A5E36360099-AA
3.3 Connecting the device ........................................................................................................... 37
3.3.1 Connecting the connection box.............................................................................................. 37
3.3.1.1 Connection sequence ............................................................................................................ 37
3.3.1.2 Connecting cables and replacing fuses ................................................................................. 38
3.3.1.3 Connecting the power supply................................................................................................. 39
3.3.2 Connecting the mobile client.................................................................................................. 41
3.3.3 Connecting the USB mouse or USB keyboard for service purposes .................................... 42
3.4 Switching on and testing the HMI device............................................................................... 43
4 Parameter assignment of a Mobile Client .............................................................................................. 45
4.1 Desktop and Start Center ...................................................................................................... 45
4.2 Operating the desktop, Start Center and Control Panel ........................................................ 46
4.3 Installed programs ................................................................................................................. 46
4.4 Security mode ........................................................................................................................ 47
4.4.1 Overview ................................................................................................................................ 47
4.4.2 Activating and deactivating temporary security mode ........................................................... 48
4.4.3 Using the HMI device in password-protected security mode................................................. 49
4.5 Control Panel ......................................................................................................................... 50
4.5.1 Overview ................................................................................................................................ 50
4.5.2 Functions in the Control Panel............................................................................................... 50
4.5.3 Operating the Control Panel .................................................................................................. 51
4.5.4 Display types for the screen keyboard................................................................................... 52
4.5.5 Configuring operation............................................................................................................. 54
4.5.5.1 Changing the screen settings ................................................................................................ 54
4.5.5.2 Configuring the screen keyboard ........................................................................................... 56
4.5.5.3 Setting the character repeat rate of the screen keyboard ..................................................... 57
4.5.5.4 Setting the double-click.......................................................................................................... 58
4.5.5.5 Calibrating the touch screen .................................................................................................. 59
4.5.5.6 Restarting the Mobile Panel................................................................................................... 60
4.6 General settings..................................................................................................................... 62
4.6.1 Regional and language settings............................................................................................. 62
4.6.2 Setting the date and time ....................................................................................................... 63
4.6.3 Changing password protection .............................................................................................. 64
4.6.4 Setting the screen saver ........................................................................................................ 66
4.6.5 Configuring transfer ............................................................................................................... 67
4.6.6 Setting the memory................................................................................................................ 69
4.6.6.1 Displaying memory distribution .............................................................................................. 69
4.6.6.2 Setting the project storage location and start delay............................................................... 70
4.6.7 Backing up registry information and temporary data ............................................................. 71
4.6.8 Changing the printer properties ............................................................................................. 72
4.6.9 Displaying general system properties .................................................................................... 73
4.6.10 Displaying information about the Mobile Panel...................................................................... 74
4.7 Changing Internet settings ..................................................................................................... 75
4.7.1 Changing general Internet settings........................................................................................ 75
4.7.2 Setting the proxy server ......................................................................................................... 76
4.7.3 Changing the privacy settings................................................................................................ 77
4.7.4 Importing, displaying and deleting certificates ....................................................................... 78
4.8 Enabling NTP ......................................................................................................................... 80

Table of contents
Mobile Client900RXA
Operating Instructions, 07/2015, A5E36360099-AA 7
4.9 Configuring network operation................................................................................................81
4.9.1 Overview .................................................................................................................................81
4.9.2 Entering the Mobile Panel computer name.............................................................................83
4.9.3 Specifying the IP address and name server...........................................................................84
4.9.4 Specifying the logon data .......................................................................................................85
4.9.5 Configuring e-mail...................................................................................................................86
4.9.6 Configuring Telnet for remote control .....................................................................................88
4.10 Functions for service and commissioning...............................................................................88
4.10.1 Saving to external storage medium – backup.........................................................................88
4.10.2 Restoring from external storage medium – Restore ...............................................................91
4.10.3 Restoring from external storage medium – Restore ...............................................................93
4.10.4 Update operating system........................................................................................................95
4.10.5 Setting a communication connection to the PLC....................................................................97
4.10.5.1 Overview .................................................................................................................................97
4.10.5.2 Changing the network configuration .......................................................................................97
5 Configuring the Mobile Client and Connection box .............................................................................. 101
5.1 Required configuration software ...........................................................................................101
5.2 Configuring the device ..........................................................................................................101
5.3 Configuring the Connection Box ...........................................................................................101
6 Commissioning a project ..................................................................................................................... 103
6.1 Overview ...............................................................................................................................103
6.2 Operating modes ..................................................................................................................103
6.3 Using existing projects..........................................................................................................104
6.4 Data transmission options ....................................................................................................105
6.5 Transfer.................................................................................................................................105
6.5.1 Setting the transfer mode .....................................................................................................105
6.5.2 Starting the transfer ..............................................................................................................107
6.5.3 Testing a project ...................................................................................................................108
6.6 Backup and restore...............................................................................................................109
6.6.1 Overview ...............................................................................................................................109
6.6.2 Backing up and restoring data of the HMI device.................................................................110
6.7 Updating the operating system .............................................................................................111
6.7.1 Updating the operating system .............................................................................................111
6.7.2 Updating the operating system of the HMI device................................................................111
6.8 Managing add-ons and license keys ....................................................................................113
6.8.1 Transferring license keys......................................................................................................113
7 Operating the project........................................................................................................................... 115
7.1 Overview ...............................................................................................................................115
7.2 Setting the project language .................................................................................................116
7.3 Entering and modifying the value, date and time .................................................................117
7.4 Operating the Sm@rtClient view ..........................................................................................119
7.5 Displaying infotext.................................................................................................................121
7.6 Closing the project ................................................................................................................122

Table of contents
Mobile Client900RXA
8Operating Instructions, 07/2015, A5E36360099-AA
8 Operating the mobile client...................................................................................................................123
8.1 Holding and setting down the mobile client ......................................................................... 123
8.2 Special operating modes ..................................................................................................... 124
8.3 Using the override function .................................................................................................. 125
8.4 LED display .......................................................................................................................... 126
8.5 Switching the device on and off ........................................................................................... 129
8.6 Possible errors when powering on....................................................................................... 130
9 Device maintenance and repair............................................................................................................131
9.1 Cleaning the device ............................................................................................................. 131
9.2 Spare parts and repairs ....................................................................................................... 132
9.3 Recycling and disposal ........................................................................................................ 132
9.4 Maintenance application ...................................................................................................... 132
10 Technical specifications .......................................................................................................................135
10.1 Certificates and approvals ................................................................................................... 135
10.2 Directives and declarations.................................................................................................. 136
10.2.1 Electromagnetic compatibility .............................................................................................. 136
10.2.2 ESD guideline ...................................................................................................................... 138
10.3 Dimension drawings............................................................................................................. 140
10.3.1 Mobile client ......................................................................................................................... 140
10.3.2 Connection box .................................................................................................................... 141
10.3.3 Wall-mounting bracket ......................................................................................................... 142
10.3.4 Magnetic wall bracket .......................................................................................................... 143
10.4 Specifications ....................................................................................................................... 144
10.4.1 Technical specifications Mobile Client ................................................................................. 144
10.4.2 Technical specifications Connection Box ............................................................................ 145
10.4.3 Technical specifications of the wall-mounting brackets ....................................................... 146
10.4.4 Ambient conditions for transport and storage ...................................................................... 146
10.4.5 Ambient conditions during operation ................................................................................... 147
10.5 Contact assignment of the USB port.................................................................................... 149
A Technical support.................................................................................................................................151
A.1 Service and support ............................................................................................................. 151
A.2 Problem solving.................................................................................................................... 152
B Abbreviations.......................................................................................................................................153
Glossary ..............................................................................................................................................155
Index ...................................................................................................................................................157

Mobile Client900RXA
Operating Instructions, 07/2015, A5E36360099-AA 9
Overview
1
1.1
Product description
The SIMATIC Mobile Client900RFN is a portable HMI device with a rugged and ergonomic
design. A high-performance processor and Ethernet capability mean the device is excellently
suited to a wide range of uses. The device is lightweight and robust, has an easy-to-read
display and can be operated by both left-handed and right-handed users.
The device also has the following additional features:
●Ethernet, integrated with connecting cable
●9" TFT screen with color depth of 24 bits
●USB port for service purposes
●Heating system
The device heats up, if necessary, and keeps the internal temperature within the optimum
temperature range for as long as the heat output permits.
The SIMATIC Mobile Client connection box, connection box for short, is designed to be
mounted to the wall of the control cabinet. It provides the power supply and control system
connections in the control cabinet. The device is connected to the connection box with a
connecting cable.
The device is used as a mobile handheld terminal. The connecting cable can be easily
connected and disconnected at both the connection box and the handheld terminal. The
device enables you to use text- or graphic-based projects even more efficiently for simple
and medium-complexity operator control and monitoring tasks on machines and systems.

Overview
1.2 Design of the device
Mobile Client900RXA
10 Operating Instructions, 07/2015, A5E36360099-AA
Area of application
The device is intended for uses ranging from operation and monitoring, parameter
assignment, and commissioning to troubleshooting for industrial systems, in particular wind
turbines.
Note
Please observe the relevant requirements and safety meas
ures for the application and place
of use.
1.2
Design of the device
Front view
①
LED display
②
Display with touch screen
③
Handle
④
Button for brightness control
⑤
On/off button, two present

Overview
1.2 Design of the device
Mobile Client900RXA
Operating Instructions, 07/2015, A5E36360099-AA 11
Bottom view
①
Handle
②
Stand
The supporting surfaces of the handle and stand are made of anti-slip material.
Rear view
①
Rating plate
②
Space for customized rating plate
③
USB port for service purposes
④
Pressure compensation valve
⑤
Port for connecting cable, with locking clip

Overview
1.3 Scope of delivery
Mobile Client900RXA
12 Operating Instructions, 07/2015, A5E36360099-AA
Note
The device ensures a degree of protection of IP65 even without the connecting cable
plugged in.
1.3
Scope of delivery
●1 × HMI device
●1 × packaging
Packaging is used for shipping and protection of the device. You can reuse the packaging
if you are returning the device.
1.4
Accessories
Accessories are not included with the device. You can order accessories by entering the
corresponding article number at the following link:
Industry Mall (https://mall.industry.siemens.com)
1.4.1
Connecting cable
The connecting cable connects the device with the connection box:
①
Circular connector, female connector for connection to the device
②
Circular connector, male connector for connection to the connection box

Overview
1.4 Accessories
Mobile Client900RXA
Operating Instructions, 07/2015, A5E36360099-AA 13
The connecting cable is available in the following lengths:
Length
Article number
Functional status
5 m
6AV6645-7CY03-1WP0
FS 02
10 m 6AV6645-7CY04-1WP0 FS 02
15 m
6AV6645-7CY05-1WP0
FS 02
The connecting cable is an industrial cable and is therefore resistant to many solvents and
lubricants. The flexural strength of the connecting cable is geared to the actual usage
conditions.
1.4.2
Connection box
The connection box supplies power to the device and connects it to the Ethernet network.
①
Screws for fixing the connection box
②
Socket for the connecting cable
③
Locking bracket for the circular connector
④
Connecting cable
⑤
Attach
ment for cable ties for strain relief
Article number:
6AV6645-7CX06-1WP0
A mechanical foolproofing device means that only the correct connecting cable circular
connector can be plugged into the connection box.
Note
IP65 can only be guaranteed for the
connection box when the connecting cable is attached.

Overview
1.4 Accessories
Mobile Client900RXA
14 Operating Instructions, 07/2015, A5E36360099-AA
The scope of delivery of the connection box includes:
●1 × connection box
●1 x accessory pack with the following contents:
–4 M5 × 8 screws
–1 mains terminal for the power supply
●1 × Product Information
1.4.3
Wall-mounting bracket
The wall bracket ensures secure fastening of the Mobile Panel during stationary operation.
①
Hook for the grip on the HMI device
②
Screw flange
The wall bracket is not included with the HMI device. The wall bracket is available with order
number 6AV6574-1AF04-4AA0.

Overview
1.4 Accessories
Mobile Client900RXA
Operating Instructions, 07/2015, A5E36360099-AA 15
1.4.4
Wall-mounting bracket with cable holder
The wall bracket is used as a secure holder for the device during stationary operation and to
store the device when it is not in use.
①
Hooks
You attach the handle of the Mobile Client to the hooks.
②
Mounting holes
③
Holder for the connecting cable
Article number:
6AV6645-7CX04-1WP0
CAUTION
Risk of injury when device drops
The device can fall out of the wall bracket even when handled carefully.
•Never stand below the fitted wall bracket.
•The wall bracket is permitted for indoor use only.
•Do not mount the wall bracket on doors or covers.
•Do not fit the wall bracket anywhere where the device may fall out of the bracket.
Note
The wall bracket is designed for fixed used and is always to be screwed to the wall.
•
The wall bracket should not be used to store tools or for other purposes.
•
Ensure that the wall bracket is used correctly. If the wall bracket is not in use, it should be
stored in a suitable location.
•
Make sure that no one can trip over the cable and cause the device to fall.

Overview
1.4 Accessories
Mobile Client900RXA
16 Operating Instructions, 07/2015, A5E36360099-AA
1.4.5
Magnetic wall bracket
The magnetic wall bracket provides a safe hold for the SIMATIC Mobile Client when used in
stationary mode.
The magnetic wall bracket is equipped with magnets for permanent or temporary mounting
on ferromagnetic surfaces. The following applies to the magnetic holding power:
●Under normal circumstances, the wall bracket can be removed from the surface without
tools.
●When the wall bracket is used as intended, there is no danger of it falling unintentionally
with the HMI device.

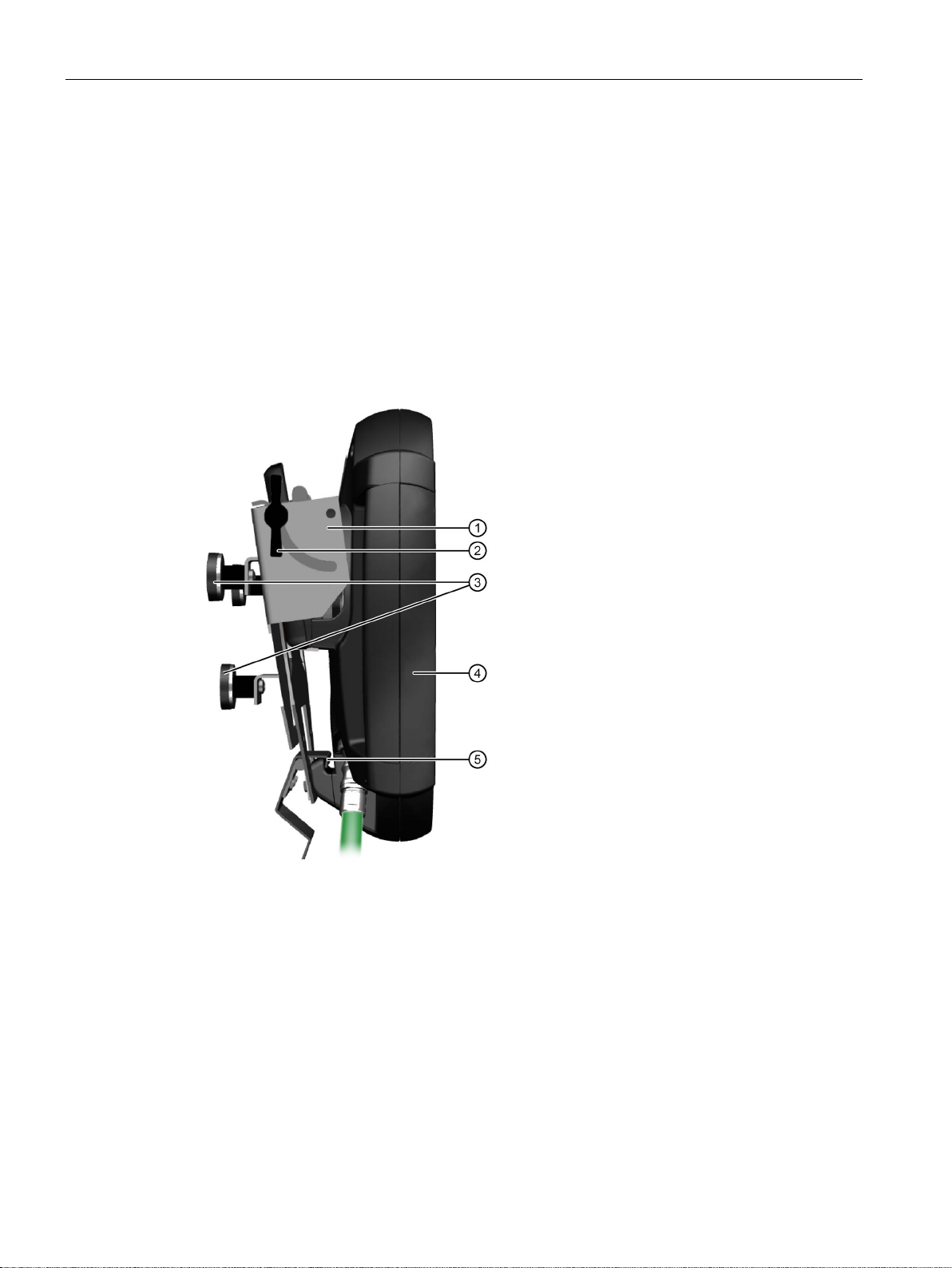

The magnetic wall bracket features a retaining mechanism for the HMI device.
①
Joint to set the inclination of the device
②
Wing screw to secure the inclination of the device
③
Magnets
④
Mobile Client
⑤
Locking hook
Article number:
6AV6645-7CX05-1WP0

Overview
1.4 Accessories
Mobile Client900RXA
Operating Instructions, 07/2015, A5E36360099-AA 17
Safety information on the magnetic wall bracket
CAUTION
Risk of injury when device drops
The magnetic wall bracket should be regarded as a suspended load and can fall. However,
under normal circumstances and if handled properly, the magnetic wall bracket is designed
in such a way that there is no risk of the wall bracket and device unintentionally falling and
the wall bracket can be taken down without tools.
In the case of improper locking, the device could fall out of the wall bracket.
•Never stand below the fitted wall bracket.
•Do not mount the wall bracket overhead or in places where the wall bracket or the
device held in it could fall.
•The wall bracket is permitted for indoor use only.
•Do not mount the wall bracket on doors or covers.
•The magnetic holding power is affected by the material, thickness and structure of the
mounting surface. Ensure that the holding power at the mounting location is sufficient. If
necessary, choose a different mounting location.
Risk of injury or damage from magnetic fields
Strong magnetic fields attract magnetic parts and damage or destroy electromagnetic
elements and devices. This also applies to pacemakers.
•Do not bring any iron parts (tools, nails, knives) into the vicinity of the magnets.
•Keep electronic devices and magnetic data carriers away from the magnets.
•Do not process the magnets mechanically, for example, by sawing or drilling.
•Keep the magnets away from open heat and flames.
Note
•
The wall bracket should not be used to store tools etc.
•
Ensure that the wall bracket is used correctly. If the wall bracket is not in use, it should be
stored in a suitable location.
•
Make sure that no one can trip over the cable and cause the device to fall.
Adjustable inclination
The inclination can be adjusted in the range from almost parallel to almost perpendicular to
the mounting surface. To adjust the inclination, loosen the wing screws located on both sides
of the wall bracket. With very large inclinations, the device cannot be removed from the wall
bracket. In this case, reduce the inclination in order to remove the device safely from the wall
bracket.
CAUTION
Tighten the wing screws sufficiently
Loosen the wing screws only when you wish to adjust the inclination. Afterwards, tighten
the two wing screws. Check that the wing screws and the device are tightly in place.

Overview
1.4 Accessories
Mobile Client900RXA
18 Operating Instructions, 07/2015, A5E36360099-AA
1.4.6
Protective cover
The protective cover provides mechanical protection of the display and is attached to both
handles. It protects the device from being damaged when transported, for example, in a tool
bag together with other tools.
NOTICE
Overheating
If you use the protective cover when the HMI device is on, the device may overheat.
Make sure the HMI device is off before you fit the protective cover.
Damage to the touch screen
Particles of dirt can scratch the touch screen when you attach the protective cover.
Clean the touch screen before attaching the protective cover or use a protective sheet
according to chapter "Protective foil (Page 18)".
①
Device
②
Protective cover
Article number:
6AV6645-7CX02-1WP0
1.4.7
Protective foil
The protective sheet prevents the touch screen getting scratched or dirty.
Article number:
6AV6645-7CX07-1WP0
Note
Particles of dirt can scratch the touch screen when you attach the protective sheet. Clean the
touch screen before attaching the protective sheet.
The set contains 10 protective sheets.

Overview
1.4 Accessories
Mobile Client900RXA
Operating Instructions, 07/2015, A5E36360099-AA 19
1.4.8
Rubber strips
The rubber strips prevent the device from slipping. You can also use rubber strips to angle
the device, for example.
①
Device
②
3 rubber strips
Article number:
6AV6645-7CX01-1WP0
1.4.9
Touch pen
The touch pen makes it easier to operate the touch screen. The touch pen is to be attached
to the connecting cable.
①
Touch pen
②
Holder
③
Velcro strap
④
Connecting cable
Article number:
6FC5348-0AA08-4AA0

Overview
1.5 The HMI device in the operating process
Mobile Client900RXA
20 Operating Instructions, 07/2015, A5E36360099-AA
1.4.10
Storage media
Name
Article number
USB flash drive 8 GB
6ES7648-0DC50-0AA0
1.5
The HMI device in the operating process
The HMI device is part of the operating process. Operation is based on two-way
communication between the HMI device and the PLC. The following figure shows an
exemplary system design.
The HMI device is used for monitoring or controlling the operating process. The controller in
turn supplies the results of the operating process, which are displayed on the Mobile Client.
