Siemens Flowrite 599 Series Owner's manual

599 Series
2-Way Ball Valves
Technical Instructions
Document No. 155-703P25
VF 599-9
February 4, 2016
Description The 599 Series 2-way Ball Valves are coupled with OpenAir™ actuators to provide
equal percentage flow control. The ball valves are 1/4-turn rotary control valves and
are available in 1/2-inch to 2-inch line sizes.
Features ·ANSI 250 valve body rating.
·200 psi close-off with ANSI Class IV leakage for all line sizes and actuators.
·Available with chrome-plated brass ball and brass stem or
stainless steel ball and stem.
·Blow-out proof stem withstands high pressure.
·Universal mounting plate.
·Actuator and plate can be rotated (90 degree increments).
·Standoffs provide a thermal barrier between the actuator and the mounting
plate.
·Operating handle for manual operation.
Application Ball valves can control hot or chilled water and up to 50% water-glycol solution in
air handling units, convectors, fan coil units, unit conditioners, radiators, and reheat
coils.
WARNING: Personal injury or loss of life may occur if you do not
perform a procedure as specified.
CAUTION: Equipment damage may occur if you do not perform a
procedure as specified.
Product Numbers See Error! Reference source not found. through Table 12.
Accessories/Kits 599-10078 Ball Valve Bracket Kit
(includes bracket, mounting screws, shaft and handle)
599-10080 Ball Valve Weather Shield
(provides NEMA 3R protection)

Technical Instructions 599 Series 2-Way Ball Valves
Document Number 155-703P25
February 4, 2016
Page 2 Siemens Industry, Inc.
Specifications
Material
Body Brass: ASTM B283, C37700
Ball Chrome-plated brass or stainless steel
Ball seals Glass filled PTFE with EPDM O-rings
Flow characterizer Glass filled PTFE
End connections Female NPT
Stem Brass or stainless steel
Stem seals EPDM O-rings
Operating Valve body rating ANSI 250/600 WOG
Media temperature 35°F to 250°F (2°C to 121°C)
Controlled medium Water, water-glycol solutions to 50%
Angle of rotation 0° to 90°
Close-off rating 200 psi (ANSI Class IV)
Miscellaneous Canadian Registration Number OC8213.5ADD4
Mounting location NEMA 1 (interior only)
NEMA 3R (with weathershield)

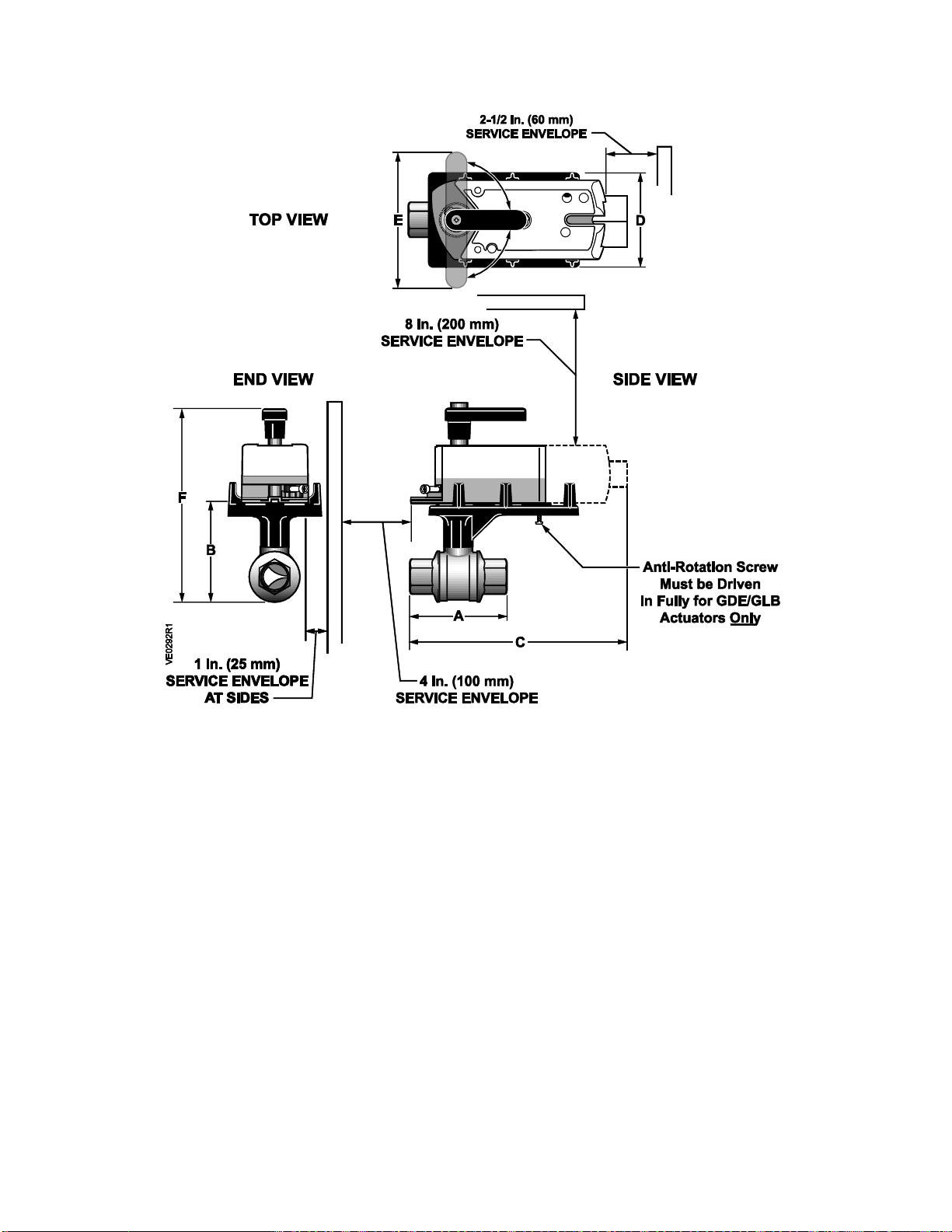

Dimensions, service envelope, weight See Figure 6 and Table 14.
Ordering a
Valve/Actuator
Assembly
To order a complete valve plus actuator assembly from the factory, combine an
actuator prefix code (see Table 1) with the suffix of the valve assembly product number.
Table 1. Actuator Prefix Codes.
Actuator Prefix Code OpenAir Actuator * Control
171A GDE131.1P Floating, fail-in-place
171B GLB131.1P Floating, fail-in-place
171C GDE161.1P 0 to 10 Vdc, fail-in-place
171D GLB161.1P 0 to 10 Vdc, fail-in-place
171E GMA121.1P 2-position, fail-safe, normally open
171F GMA131.1P Floating, fail-safe, normally open
171G GMA161.1P 0 to 10 Vdc, fail-safe, normally open
171H GQD121.1P 2-position, fail-safe, normally open
171J GQD131.1P Floating, fail-safe, normally open
171K GQD151.1P 2 to 10 Vdc fail-safe, normally open
171L GQD221.1U 120V, 2-position, fail-safe, normally open
171M GMA221.1U 120V, 2-position, fail-safe, normally open
171N GQD126.1P 2-position, fail-safe, normally open, dual auxiliary switches
171P GMA126.1P 2-position, fail-safe, normally open, dual auxiliary switches
172E GMA121.1P 2-position, fail-safe, normally closed
172F GMA131.1P Floating, fail-safe, normally closed
172G GMA161.1P 0 to 10 Vdc, fail-safe, normally closed
172H GQD121.1P 2-position, fail-safe, normally closed
172J GQD131.1P Floating, fail-safe, normally closed
172K GQD151.1P 2 to 10 Vdc fail-safe, normally closed
172L GQD221.1U 120V, 2-position, fail-safe, normally closed
172M GMA221.1U 120V, 2-position, fail-safe, normally closed
172N GQD126.1P 2-position, fail-safe, normally closed, dual auxiliary switches

599 Series 2-Way Ball Valves Technical Instructions
Document Number 155-703P25
February 4, 2016
Page 3 Siemens Industry, Inc.
Actuator Prefix Code OpenAir Actuator * Control
172P GMA126.1P 2-position, fail-safe, normally closed, dual auxiliary switches
173A GDE131.1Q** Floating, fail-in-place
173B GLB131.1Q** Floating, fail-in-place
173C GDE161.1Q** 0 to 10 Vdc, fail-in-place
173D GLB161.1Q** 0 to 10 Vdc, fail-in-place
*When ordered as an assembly, the actuator is provided with 3-foot (.9 m) wires.
**When ordered as an assembly, the actuator is provided with conduit adapter and 6-foot (1.8 m) wires.
See TB253 599 Series Ball Valve and Actuator Assemblies Selection Technical
Bulletin (155-704P25) for complete selection procedures and ordering numbers
for both two-way and three-way ball valve assemblies.
Individual two-way ball valves can be ordered using the product numbers in
through Table 6 for valves with a chrome-plated ball and brass stem or Error!
Not a valid result for table. through Table 11 for valves with stainless steel ball
and stem.

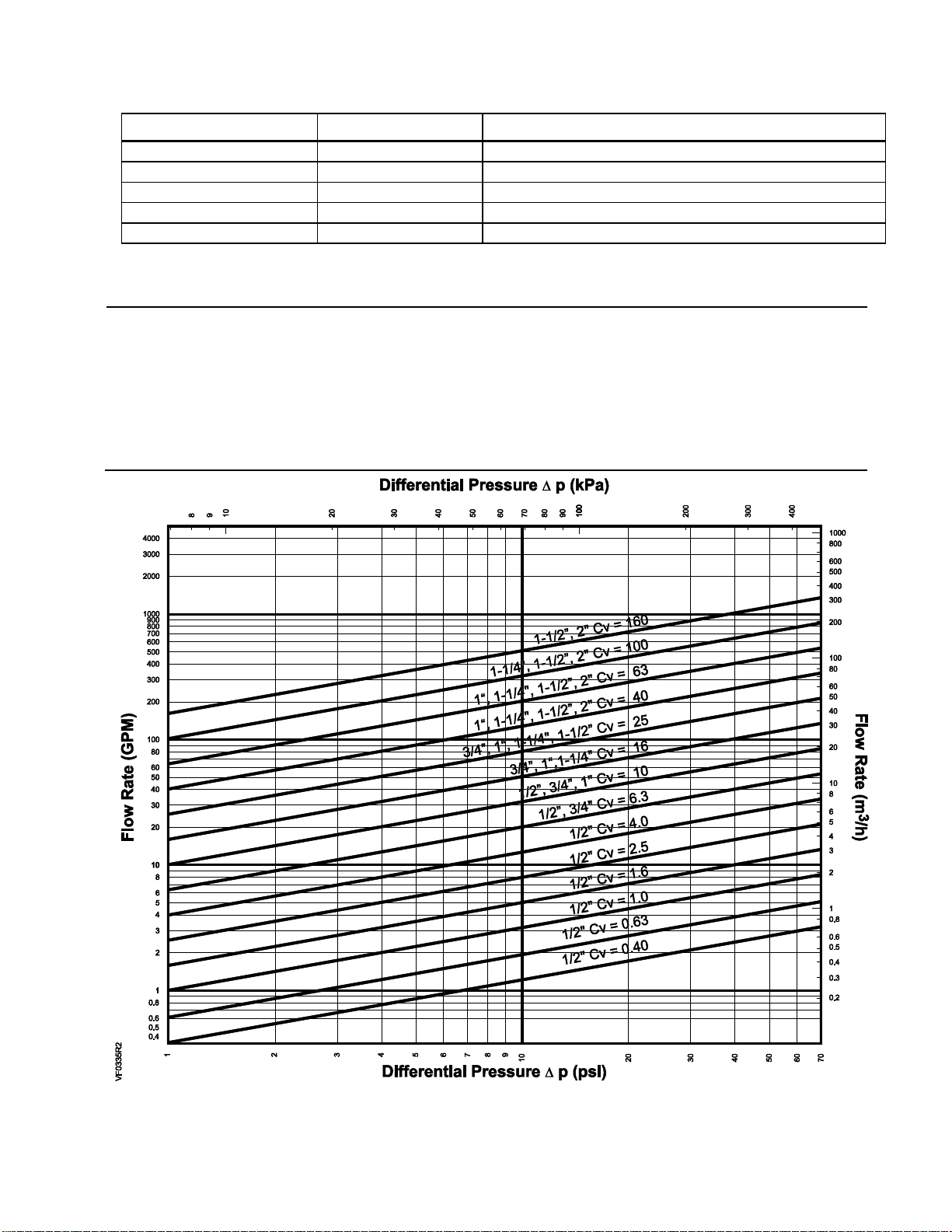

Figure 1.

Technical Instructions 599 Series 2-Way Ball Valves
Document Number 155-703P25
February 4, 2016
Page 4 Siemens Industry, Inc.
Table 2 . Fail-In Place Assemblies: Chrome-Plated Ball with Brass Stem (1/2-Inch and 3/4-Inch).
Valve
Body
Product
Number *
Valve
Size
Inches
(mm)
Flow Rate
Cv
(Kvs)
Close-Off ∆P in psi (kPa)
Fail-in-Place
Floating 0 to 10 Vdc
GDE
131.1P GDE 131.1Q GDE 161.1P GDE 161.1Q
3 foot (.9m)
Wires
Conduit Adapter
&
6-foot (1.8m)
Wires
3 foot (.9m)
Wires
Conduit Adapter
&
6-foot (1.8m)
Wires
Actuator Prefix Code
171A 173A 171C 173C
599-10300
1/2
(15)
0.4 (0.34)
200 (1379)
171A-10300 173A-10300 171C-10300 173C-10300
599-10301 0.63 (0.54) 171A-10301 173A-10301 171C-10301 173C-10301
599-10302 1.0 (0.9) 171A-10302 173A-10302 171C-10302 173C-10302
599-10303 1.6 (1.4) 171A-10303 173A-10303 171C-10303 173C-10303
599-10304 2.5 (2.2) 171A-10304 173A-10304 171C-10304 173C-10304
599-10305 4.0 (3.4) 171A-10305 173A-10305 171C-10305 173C-10305
599-10306 6.3 (5.4) 171A-10306 173A-10306 171C-10306 173C-10306
599-10307* 10 (8.6) 171A-10307* 173A-10307* 171C-10307* 173C-10307*
599-10308 3/4
(20)
6.3 (5.4) 171A-10308 173A-10308 171C-10308 173C-10308
599-10309 10 (8.6) 171A-10309 173A-10309 171C-10309 173C-10309
599-10310 16 (14) 171A-10310 173A-10310 171C-10310 173C-10310
599-10311* 25 (22) 171A-10311* 173A-10311* 171C-10311* 173C-10311*
*Denotes a full-port valve without flow characterizers insert.
Table 3. Fail-In-Place Assemblies: Chrome-Plated Ball with Brass Stem (1-Inch to 2-Inch)
Valve
Body
Product
Number *
Valve
Size
Inches
(mm)
Flow Rate
Cv
(Kvs)
Close-Off ∆P in psi (kPa)
Fail-in-Place
Floating 0 to 10 Vdc
GDE
131.1P GLB 131.1P GDE 131.1Q GLB 131.1Q GDE 161.1P GLB 161.1P GDE 161.1Q GLB 161.1Q
3 foot (.9m)
Wires
Conduit Adapter
&
6-foot (1.8m)
Wires
3 foot (.9m)
Wires
Conduit Adapter
&
6-foot (1.8m)
Wires
Actuator Prefix Code
171A 171B 173A 173B 171C 171D 173C 173D
599-10312
1 (25)
10 (9.0)
200 (1379)
171A-10312 173A-10312 171C-10312 173C-10312
599-10313 16 (14) 171A-10313 173A-10313 171C-10313 173C-10313
599-10314 25 (22) 171A-10314 173A-10314 171C-10314 173C-10314
599-10315 40 (34) 171A-10315 173A-10315 171C-10315 173C-10315
599-10316* 63 (54) 171A-10316* 173A-10316* 171C-10316* 173C-10316*
599-10317
1 1/4
(32)
16 (14) 171A-10317 173A-10317 171C-10317 173C-10317
599-10318 25 (22) 171A-10318 173A-10318 171C-10318 173C-10318
599-10319 40 (34) 171A-10319 173A-10319 171C-10319 173C-10319
599-10320 63 (54) 171A-10320 173A-10320 171C-10320 173C-10320
599-10321* 100 (90) 171A-10321* 173A-10321* 171C-10321* 173C-10321*
599-10322
1 1/2
(40)
25 (22) 171B-10322 173B-10322 171D-10322 173D-10322
599-10323 40 (34) 171B-10323 173B-10323 171D-10323 173D-10323
599-10324* 63 (54) 171B-10324* 173B-10324* 171D-10324* 173D-10324*
599-10325 100 (90) 171B-10325 173B-10325 171D-10325 173D-10325
599-10326* 160 (140) 171B-10326* 173B-10326* 171D-10326* 173D-10326*
599-10327
2 (50)
40 (34) 171B-10327 173B-10327 171D-10327 173D-10327
599-10328 63 (54) 171B-10328 173B-10328 171D-10328 173D-10328
599-10329* 100 (90) 171B-10329* 173B-10329* 171D-10329* 173D-10329*
599-10330* 160 (140) 171B-10330* 173B-10330* 171D-10330* 173D-10330*
*Denotes a full-port valve without flow characterizers insert.

599 Series 2-Way Ball Valves Technical Instructions
Document Number 155-703P25
February 4, 2016
Page 5 Siemens Industry, Inc.
Table 4. Fail-Safe Assemblies: Chrome-Plated Ball with Brass Stem (1/2-Inch and 3/4-Inch).
Valve
Body
Product
Number*
Valve
Size
Inches
(mm)
Flow Rate
Cv
(Kvs)
Close-off ∆P in psi (kPa)
Fail
-
Safe
2-Position Floating 2 to 10 Vdc
GQD121.1P
GQD131.1P
GQD151.1P
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
Actuator Prefix Code
171H
172H
171J
172J
171K
172K
599-10300
1/2 (15)
0.4 (0.34)
200 (1379)
171H-10300 172H-10300 171J-10300 172J-10300 171K-10300 172K-10300
599-10301 0.63 (0.54) 171H-10301 172H-10301 171J-10301 172J-10301 171K-10301 172K-10301
599-10302 1.0 (0.9) 171H-10302 172H-10302 171J-10302 172J-10302 171K-10302 172K-10302
599-10303 1.6 (1.4) 171H-10303 172H-10303 171J-10303 172J-10303 171K-10303 172K-10303
599-10304 2.5 (2.2) 171H-10304 172H-10304 171J-10304 172J-10304 171K-10304 172K-10304
599-10305 4.0 (3.4) 171H-10305 172H-10305 171J-10305 172J-10305 171K-10305 172K-10305
599-10306 6.3 (5.4) 171H-10306 172H-10306 171J-10306 172J-10306 171K-10306 172K-10306
599-10307* 10 (8.6) 171H-10307* 172H-10307* 171J-10307* 172J-10307* 171K-10307* 172K-10307*
599-10308
3/4 (20)
6.3 (5.4) 171H-10308 172H-10308 171J-10308 172J-10308 171K-10308 172K-10308
599-10309 10 (8.6) 171H-10309 172H-10309 171J-10309 172J-10309 171K-10309 172K-10309
599-10310 16 (14) 171H-10310 172H-10310 171J-10310 172J-10310 171K-10310 172K-10310
599-10311* 25 (22) 171H-10311* 172H-10311* 171J-10311* 172J-10311* 171K-10311* 172K-10311*
*Denotes a full-port valve without flow characterizer insert.
Table 5. Fail-Safe Assemblies: Chrome-Plated Ball with Brass Stem (1-Inch to 2-Inch).
Valve
Body
Product
Number *
Valve
Size
Inches
(mm)
Flow
Rate
Cv
(Kvs)
Close-off ∆P in psi (kPa)
Fail-Safe
2-Position Floating 0 to 10 Vdc
GMA121.1P GMA131.1P GMA161.1P
N.O. N.C. N.O. N.C. N.O. N.C.
Actuator Prefix Code
171E 172E 171F 172F 171G 172G
599-10312
1
(25)
10 (9.0)
200 (1379)
171E-10312 172E-10312 171F-10312 172F-10312 171G-10312 172G-10312
599-10313 16 (14) 171E-10313 172E-10313 171F-10313 172F-10313 171G-10313 172G-10313
599-10314 25 (22) 171E-10314 172E-10314 171F-10314 172F-10314 171G-10314 172G-10314
599-10315 40 (34) 171E-10315 172E-10315 171F-10315 172F-10315 171G-10315 172G-10315
599-10316* 63 (54) 171E-10316* 172E-10316* 171F-10316* 172F-10316* 171G-10316* 172G-10316*
599-10317
1-1/4
(32)
16 (14) 171E-10317 172E-10317 171F-10317 172F-10317 171G-10317 172G-10317
599-10318 25 (22) 171E-10318 172E-10318 171F-10318 172F-10318 171G-10318 172G-10318
599-10319 40 (34) 171E-10319 172E-10319 171F-10319 172F-10319 171G-10319 172G-10319
599-10320 63 (54) 171E-10320 172E-10320 171F-10320 172F-10320 171G-10320 172G-10320
599-10321* 100 (90) 171E-10321* 172E-10321* 171F-10321* 172F-10321* 171G-10321* 172G-10321*
599-10322
1-1/2
(40)
25 (22) 171E-10322 172E-10322 171F-10322 172F-10322 171G-10322 172G-10322
599-10323 40 (34) 171E-10323 172E-10323 171F-10323 172F-10323 171G-10323 172G-10323
599-10324* 63 (54) 171E-10324* 172E-10324* 171F-10324* 172F-10324* 171G-10324* 172G-10324*
599-10325 100 (90) 171E-10325 172E-10325 171F-10325 172F-10325 171G-10325 172G-10325
599-10326* 160 (140) 171E-10326* 172E-10326* 171F-10326* 172F-10326* 171G-10326* 172G-10326*
599-10327 2
(50)
40 (34) 171E-10327 172E-10327 171F-10327 172F-10327 171G-10327 172G-10327
599-10328 63 (54) 171E-10328 172E-10328 171F-10328 172F-10328 171G-10328 172G-10328
599-10329* 100 (90) 171E-10329* 172E-10329* 171F-10329* 172F-10329* 171G-10329* 172G-10329*
599-10330* 160 (140) 171E-10330* 172E-10330* 171F-10330* 172F-10330* 171G-10330* 172G-10330*
* Denotes a full-port valve without flow characterizer insert.

Technical Instructions 599 Series 2-Way Ball Valves
Document Number 155-703P25
February 4, 2016
Page 6 Siemens Industry, Inc.
Table 6. Fail-Safe Assemblies: Full-Port, Chrome-Plated Ball and Brass Stem, 120V.
Valve
Body
Product
Number*
Valve
Size
Inches
(mm)
Flow Rate
Cv
(Kvs)
Close-off ∆P in psi (kPa)
Fail-Safe, 120V
2-Position
GQD221.1U
GMA221.1U
N.O.
N.C.
N.O.
N.C.
Actuator Prefix Code
171L
172L
171M
172M
599-10307* 1/2 (15) 10 (9)
200 (1379)
171L-10307* 172L-10307* — —
599-10311* 3/4 (20) 25 (22) 171L-10311* 172L-10311* — —
599-10316* 1 (25) 63 (54) — — 171M-10316* 172M-10316*
599-10321* 1-1/4 (32) 100 (90) — — 171M-10321* 172M-10321*
599-10326* 1-1/2 (40) 160 (140) — — 171M-10326* 172M-10326*
599-10330* 2 (50) — — 171M-10330* 172M-10330*
* Denotes a full-port valve without flow characterizers insert.
Table 7. Fail-In-Place Assemblies: Stainless Steel Ball and Stem (1/2-Inch and 3/4-Inch).
Valve
Body
Product
Number *
Valve Size
Inches
(mm)
Flow Rate
Cv
(Kvs)
Close-Off ∆P in psi (kPa)
Fail-in-Place
Floating 0 to 10 Vdc
GDE
131.1P GDE 131.1Q GDE 161.1P GDE 161.1Q
3 foot (.9m)
Wires
Conduit Adapter
&
6-foot (1.8m)
Wires
3 foot (.9m)
Wires
Conduit Adapter
&
6-foot (1.8m)
Wires
Actuator Prefix Code
171A 173A 171C 173C
599-10300S
1/2
(15)
0.4 (0.34)
200 (1379)
171A-10300S 173A-10300S 171C-10300S 173C-10300S
599-10301S 0.63 (0.54) 171A-10301S 173A-10301S 171C-10301S 173C-10301S
599-10302S 1.0 (0.9) 171A-10302S 173A-10302S 171C-10302S 173C-10302S
599-10303S 1.6 (1.4) 171A-10303S 173A-10303S 171C-10303S 173C-10303S
599-10304S 2.5 (2.2) 171A-10304S 173A-10304S 171C-10304S 173C-10304S
599-10305S 4.0 (3.4) 171A-10305S 173A-10305S 171C-10305S 173C-10305S
599-10306S 6.3 (5.4) 171A-10306S 173A-10306S 171C-10306S 173C-10306S
599-10307S* 10 (8.6) 171A-10307S* 173A-10307S* 171C-10307S* 173C-10307S*
599-10308S 3/4
(20)
6.3 (5.4) 171A-10308S 173A-10308S 171C-10308S 173C-10308S
599-10309S 10 (8.6) 171A-10309S 173A-10309S 171C-10309S 173C-10309S
599-10310S 16 (14) 171A-10310S 173A-10310S 171C-10310S 173C-10310S
599-10311S* 25 (22) 171A-10311S* 173A-10311S* 171C-10311S* 173C-10311S*
*Denotes a full-port valve without flow characterizer insert.

599 Series 2-Way Ball Valves Technical Instructions
Document Number 155-703P25
February 4, 2016
Page 7 Siemens Industry, Inc.
Table 8. Fail-In-Place Assemblies: Stainless Steel Ball and Stem (1-Inch to 2-Inch).
Valve
Body
Product
Number *
Valve Size
Inches
(mm)
Flow Rate
Cv
(Kvs)
Close-Off ∆P in psi (kPa)
Fail-in-Place
Floating 0 to 10 Vdc
GDE
131.1P GLB 131.1P GDE 131.1Q GLB 131.1Q GDE 161.1P GLB 161.1P GDE 161.1Q GLB 161.1Q
3 foot (.9m)
Wires
Conduit Adapter
&
6-foot (1.8m)
Wires
3 foot (.9m)
Wires
Conduit Adapter
&
6-foot (1.8m)
Wires
Actuator Prefix Code
171A 171B 173A 173B 171C 171D 173C 173D
599-10312S
1
(25)
10 (9.0)
200 (1379)
171A-10312S 173A-10312S 171C-10312S 173C-10312S
599-10313S 16 (14) 171A-10313S 173A-10313S 171C-10313S 173C-10313S
599-10314S 25 (22) 171A-10314S 173A-10314S 171C-10314S 173C-10314S
599-10315S 40 (34) 171A-10315S 173A-10315S 171C-10315S 173C-10315S
599-10316S* 63 (54) 171A-10316S* 173A-10316S* 171C-10316S* 173C-10316S*
599-10317S
1-1/4
(32)
16 (14) 171A-10317S 173A-10317S 171C-10317S 173C-10317S
599-10318S 25 (22) 171A-10318S 173A-10318S 171C-10318S 173C-10318S
599-10319S 40 (34) 171A-10319S 173A-10319S 171C-10319S 173C-10319S
599-10320S 63 (54) 171A-10320S 173A-10320S 171C-10320S 173C-10320S
599-10321S* 100 (90) 171A-10321S* 173A-10321S* 171C-10321S* 173C-10321S*
599-10322S
1-1/2
(40)
25 (22) 171B-10322S 173B-10322S 171D-10322S 173D-10322S
599-10323S 40 (34) 171B-10323S 173B-10323S 171D-10323S 173D-10323S
599-10324S* 63 (54) 171B-10324S* 173B-10324S* 171D-10324S* 173D-10324S*
599-10325S 100 (90) 171B-10325S 173B-10325S 171D-10325S 173D-10325S
599-10326S* 160 (140) 171B-10326S* 173B-10326S* 171D-10326S* 173D-10326S*
599-10327S 2
(50)
40 (34) 171B-10327S 173B-10327S 171D-10327S 173D-10327S
599-10328S 63 (54) 171B-10328S 173B-10328S 171D-10328S 173D-10328S
599-10329S* 100 (90) 171B-10329S* 173B-10329S* 171D-10329S* 173D-10329S*
599-10330S* 160 (140) 171B-10330S* 173B-10330S* 171D-10330S* 173D-10330S*
*Denotes a full-port valve without flow characterizer insert.
Table 9. Fail-Safe Assemblies: Stainless Steel Ball and Stem (1/2-inch and 3/4-inch).
Valve
Body
Product
Number*
Flow Rate
Cv
(Kvs)
Valve Size
Inches (mm)
Close-off ∆P in psi (kPa)
Fail
-
Safe
2-Position Floating 2 to 10 Vdc
GQD121.1P
GQD131.1P
GQD151.1P
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
Actuator Prefix Code
171H
172H
171J
172J
171K
172K
599-10300S 0.4 (0.34)
1/2
(15)
200 (1379)
171H-10300S 172H-10300S 171J-10300S 172J-10300S 171K-10300S 172K-10300S
599-10301S 0.63 (0.54) 171H-10301S 172H-10301S 171J-10301S 172J-10301S 171K-10301S 172K-10301S
599-10302S 1.0 (0.9) 171H-10302S 172H-10302S 171J-10302S 172J-10302S 171K-10302S 172K-10302S
599-10303S 1.6 (1.4) 171H-10303S 172H-10303S 171J-10303S 172J-10303S 171K-10303S 172K-10303S
599-10304S 2.5 (2.2) 171H-10304S 172H-10304S 171J-10304S 172J-10304S 171K-10304S 172K-10304S
599-10305S 4.0 (3.4) 171H-10305S 172H-10305S 171J-10305S 172J-10305S 171K-10305S 172K-10305S
599-10306S 6.3 (5.4) 171H-10306S 172H-10306S 171J-10306S 172J-10306S 171K-10306S 172K-10306S
599-10307S* 10 (8.6) 171H-10307S* 172H-10307S* 171J-10307S* 172J-10307S* 171K-10307S* 172K-10307S*
599-10308S 6.3 (5.4) 3/4
(20)
171H-10308S 172H-10308S 171J-10308S 172J-10308S 171K-10308S 172K-10308S
599-10309S 10 (8.6) 171H-10309S 172H-10309S 171J-10309S 172J-10309S 171K-10309S 172K-10309S
599-10310S 16 (14) 171H-10310S 172H-10310S 171J-10310S 172J-10310S 171K-10310S 172K-10310S
599-10311S* 25 (22) 171H-10311S* 172H-10311S* 171J-10311S* 172J-10311S* 171K-10311S* 172K-10311S*
*Denotes a full-port valve without flow characterizer insert.

Technical Instructions 599 Series 2-Way Ball Valves
Document Number 155-703P25
February 4, 2016
Page 8 Siemens Industry, Inc.
Table 10. Fail-Safe Assemblies: Stainless Steel Ball and Stem (1-inch to 2-inch).
Valve
Body
Product
Number *
Valve
Size
Inches
(mm)
Flow Rate
Cv
(Kvs)
Close-off ∆P in psi (kPa)
Fail-Safe
2-Position Floating 0 to 10 Vdc
GMA121.1P GMA131.1P GMA161.1P
N.O. N.C. N.O. N.C. N.O. N.C.
Actuator Prefix Code
171E 172E 171F 172F 171G 172G
599-10312S
1
(25)
10 (9.0)
200 (1379)
171E-10312S 172E-10312S 171F-10312S 172F-10312S 171G-10312S 172G-10312S
599-10313S 16 (14) 171E-10313S 172E-10313S 171F-10313S 172F-10313S 171G-10313S 172G-10313S
599-10314S 25 (22) 171E-10314S 172E-10314S 171F-10314S 172F-10314S 171G-10314S 172G-10314S
599-10315S 40 (34) 171E-10315S 172E-10315S 171F-10315S 172F-10315S 171G-10315S 172G-10315S
599-10316S* 63 (54) 171E-10316S* 172E-10316S* 171F-10316S* 172F-10316S* 171G-10316S* 172G-10316S*
599-10317S
1-1/4
(32)
16 (14) 171E-10317S 172E-10317S 171F-10317S 172F-10317S 171G-10317S 172G-10317S
599-10318S 25 (22) 171E-10318S 172E-10318S 171F-10318S 172F-10318S 171G-10318S 172G-10318S
599-10319S 40 (34) 171E-10319S 172E-10319S 171F-10319S 172F-10319S 171G-10319S 172G-10319S
599-10320S 63 (54) 171E-10320S 172E-10320S 171F-10320S 172F-10320S 171G-10320S 172G-10320S
599-10321S* 100 (90) 171E-10321S* 172E-10321S* 171F-10321S* 172F-10321S* 171G-10321S* 172G-10321S*
599-10322S
1-1/2
(40)
25 (22) 171E-10322S 172E-10322S 171F-10322S 172F-10322S 171G-10322S 172G-10322S
599-10323S 40 (34) 171E-10323S 172E-10323S 171F-10323S 172F-10323S 171G-10323S 172G-10323S
599-10324S* 63 (54) 171E-10324S* 172E-10324S* 171F-10324S* 172F-10324S* 171G-10324S* 172G-10324S*
599-10325S 100 (90) 171E-10325S 172E-10325S 171F-10325S 172F-10325S 171G-10325S 172G-10325S
599-10326S* 160 (140) 171E-10326S* 172E-10326S* 171F-10326S* 172F-10326S* 171G-10326S* 172G-10326S*
599-10327S 2
(50)
40 (34) 171E-10327S 172E-10327S 171F-10327S 172F-10327S 171G-10327S 172G-10327S
599-10328S 63 (54) 171E-10328S 172E-10328S 171F-10328S 172F-10328S 171G-10328S 172G-10328S
599-10329S* 100 (90) 171E-10329S* 172E-10329S* 171F-10329S* 172F-10329S* 171G-10329S* 172G-10329S*
599-10330S* 160 (140) 171E-10330S* 172E-10330S* 171F-10330S* 172F-10330S* 171G-10330S* 172G-10330S*
* Denotes a full-port valve without flow characterizer insert.
Table 11. Fail-Safe Assemblies: Full-Port, Stainless Steel Ball and Stem, 120V.
Valve
Body
Product
Number*
Valve
Size
Inches
(mm)
Flow Rate
Cv
(Kvs)
Close-off ∆P in psi (kPa)
Fail
-
Safe, 120V
2-Position
GQD221.1
U
G
MA221.1U
N.O.
N.C.
N.O.
N.C.
Actuator Prefix Code
171L
172L
171M
172M
599-10307S* 1/2 (15) 10 (9)
200 (1379)
171L-10307S* 172L-10307S* — —
599-10311S* 3/4 (20) 25 (22) 171L-10311S* 172L-10311S* — —
599-10316S* 1 (25) 63 (54) — — 171M-10316S* 172M-10316S*
599-10321S* 1-1/4 (32) 100 (90) — — 171M-10321S* 172M-10321S*
599-10326S* 1-1/2 (40) 160 (140) — — 171M-10326S* 172M-10326S*
599-10330S* 2 (50) — — 171M-10330S* 172M-10330S*
* Denotes a full-port valve without flow characterizers insert.

599 Series 2-Way Ball Valves Technical Instructions
Document Number 155-703P25
February 4, 2016
Siemens Industry, Inc. Page 9
Table 12. Fail-Safe Assemblies: Full-Port, Stainless Steel Ball and Stem, 24V with Dual Auxiliary Switches.
Valve
Body
Product
Number*
Valve
Size
Inches
(mm)
Flow Rate
Cv
(Kvs)
Close-off ∆P in psi (kPa)
Fail
-
Safe, 24V
2-Position
GQD126.1P GMA126.1P
N.O. N.C. N.O. N.C.
Actuator Prefix Code
171N
172N
171P
172P
599-10307S* 1/2 (15) 10 (9)
200 (1379)
171N-10307S* 172N-10307S* — —
599-10311S* 3/4 (20) 25 (22) 171N-10311S* 172N-10311S* — —
599-10316S* 1 (25) 63 (54) — — 171P-10316S* 172P-10316S*
599-10321S* 1-1/4 (32) 100 (90) — — 171P-10321S* 172P-10321S*
599-10326S* 1-1/2 (40) 160 (140) — — 171P-10326S* 172P-10326S*
599-10330S* 2 (50) — — 171P-10330S* 172P-10330S*
* Denotes a full-port valve without flow characterizer insert.
NOTE: Use Table 13 to determine the effective Cv when using a full-port ball valve where the ball size and the
line sizes differ.

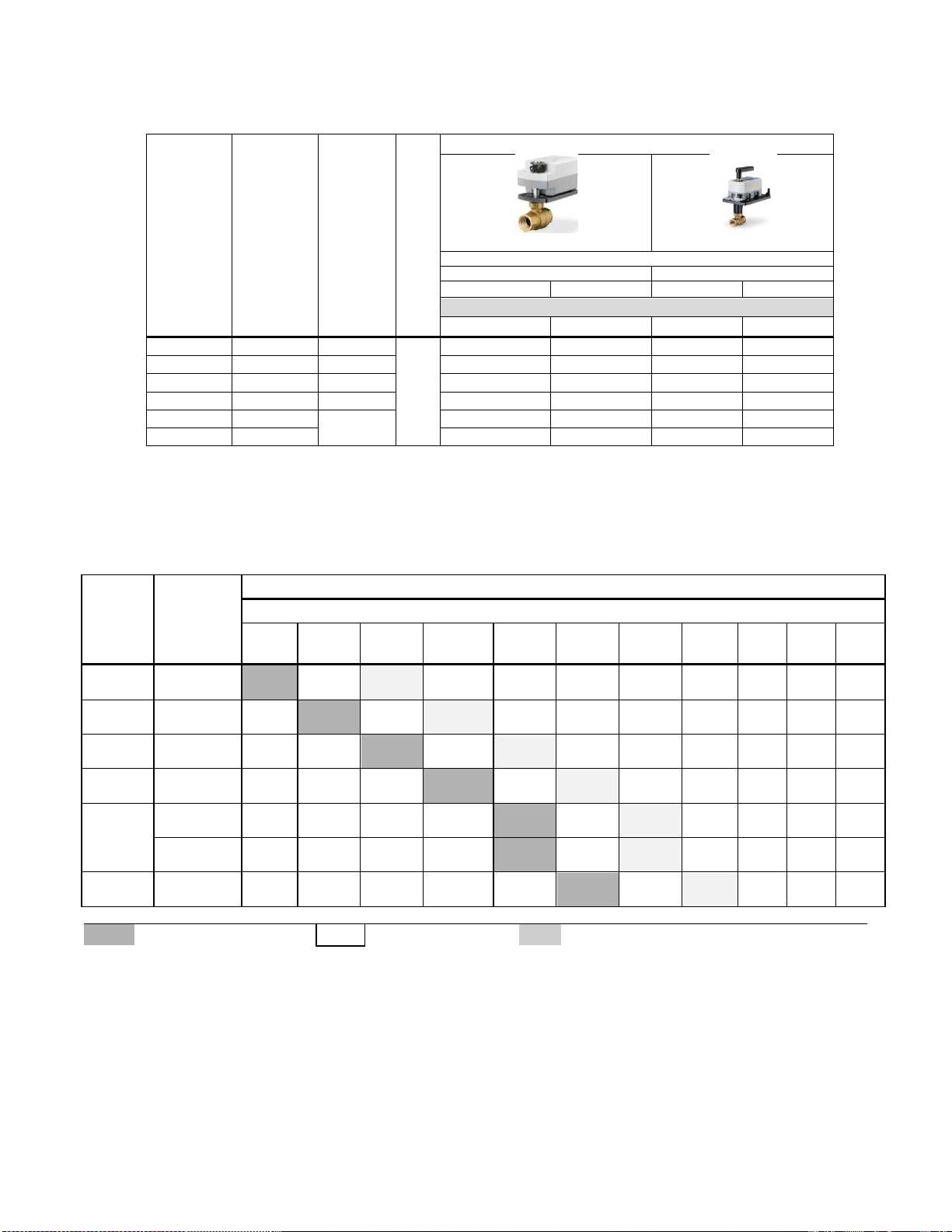

Table 13. Full-Port (No Flow Characterizer) Ball Valve Product Numbers and Flow Coefficients.
Valve
Line Size
in
Inches
(mm)
Valve
Product
Number
Effective (Installed) Cv (Kvs)
Supply Line Size inInches (mm)
1/2
(13) 3/4 (20) 1 (25) 1-1/4 (32) 1-1/2 (38) 2 (51) 2-1/2 (63) 3 (76) 4 (102) 5 (127) 6 (152)
1/2 (15) 599-10307
599-10307S
10.00
(8.62)
6.94
(5.93)
6.19
(5.29) — — — — — — — —
3/4 (20) 599-10311
599-10311S —
25.00
(21.55)
18.66
(15.95)
15.35
(13.12) — — — — — — —
1 (25) 599-10316
599-10316S — —
63.00
(54.31)
39.78
(34.00)
33.56
(28.69) — — — — — —
1-1/4 (32) 599-10321
599-10321S — — —
100.00
(86.21)
69.19
(59.13)
51.45
(43.98) — — — — —
1-1/2 (40)
599-10324
599-10324S — — — —
63.00
(54.31)
55.34
(47.30)
51.00
(43.59) — — — —
599-10326
599-10326S — — — —
160.00
(137.93)
93.80
(80.17)
76.34
(65.25) — — — —
2 (50) 599-10329
599-10329S — — — — —
100.00
(86.21)
94.30
(80.60)
86.12
(73.61) — — —
= Valve may be oversized. = Optimal valve size. = Valve may be undersized.

Technical Instructions 599 Series 2-Way Ball Valves
Document Number 155-703P25
February 4, 2016
Page 10 Siemens Industry, Inc.
Operation The parabolic shape of the flow characterizer orifice (Figure 2) provides a slowly
opening valve. Equal movements of the valve stem, at any point of the flow range,
change the existing flow an equal percentage regardless of the existing flow. The ball
valve equal percentage flow characteristic (Figure 3) mirrors the flow characteristic of a
coil, resulting in linear heat transfer.
Figure 2. Ball Valve Flow
Characterizer. Figure 3. Ball Valve Equal Percentage Flow Control.
Mounting and
Installation Install the valve so that the flow follows the
direction of the arrow cast on the valve
body.
For added flexibility, the actuator mounting
plate can be installed in any of the four (4)
rotation angles relative to the valve body.
For best performance, install the valve
assembly with the actuator above the
valve body.
The valve and actuator assembly can be
installed in a horizontal pipe in any position
between vertical and 90°.
The ball valve also can be installed
vertically.
CAUTION:
Do not install the valve assembly
so that the actuator is below
horizontal or upside-down.
See Ball Valve Bracket Kit
Installation Instructions 129-496
for complete and proper
installation and mounting
instructions.
Allow sufficient space for servicing the
valve and actuator. See Figure 6 and
Table 14 for valve body dimensions and
service envelope.
Figure 4. Mounting Positions.
Service Replace the valve or actuator if inoperable.

599 Series 2-Way Ball Valves Technical Instructions
Document Number 155-703P25
February 4, 2016
Siemens Industry, Inc. Page 11
Dimensions
Figure 5. Two-Way Ball Valve and Low Profile Bracket with Actuator Dimensions in Inches (Millimeters).
Line Size
Inches
(mm) Cv Range A
Length B Height
C Length
Actuator Codes D
Width E Height
Valve and
Bracket Weight
lbs (kg)
GDE GQD
171A-D 173A-D 171H, J, K, L, N
1/2 (15) 0.4 to 10 2-7/16 (61) 2-1/4 (57) 5-1/4 (133) 5-3/4 (146) 5-1/4 (133) 2-3/4 (70) 4-13/16 (123) 1 (0.45)
3/4 (20) 6.3 to 25 2-3/4 (70) 2-5/8 67) 5-3/8 (136) 6 (153) 5-3/8 (136) 5-1/4 (133) 1.3 (0.60)

Technical Instructions 599 Series 2-Way Ball Valves
Document Number 155-703P25
February 4, 2016
Page 12 Siemens Industry, Inc.
Figure 6. Dimensions with Actuator Mounted on Bracket.
NOTES:
·All dimensions are in inches (mm) and weights are in pounds (kg).
·Dimension D, Depth, is 3.7 inches (94.5mm).
·Dimension E, Handle, is 5.3 inches (135.9 mm).

599 Series 2-Way Ball Valves Technical Instructions
Document Number 155-703P25
February 4, 2016
Information in this publication is based on current specifications. The company reserves the right to make changes in specifications and models as
design improvements are introduced. OpenAir is a trademark of Siemens Schweiz AG. Other product or company names mentioned herein may be
the trademarks of their respective owners. © 2016 Siemens Industry, Inc.
Siemens Industry, Inc.
Building Technologies Division
1000 Deerfield Parkway
Buffalo Grove, IL 60089
USA
+ 1 847-215-1000
Your feedback is important to us. If you have comments about
this document, please send them to
[e-mail]
Document No. 155-703P25
Printed in the USA
Page 13
Dimensions, Continued
Table 14. Dimensions inInches (Millimeters) and Weights in Pounds (Kg).
Line Size
Inch
(mm) Cv Range A
Length
C Length *
Actuator Codes
171A-D,
173A-D
C Length *
Actuator
Codes
171H,J,K,L,
N
C Length*
Actuator
Codes
171E,F,G,M,P
172E,F,G,M,P
Fail-Safe
F
Height
Valve and Bracket
Weight
lbs
(kg)
GDE/GLB GQD GMA
1 (25)
10 3 (77)
6-11/16 (170)
–
8 (203) 8 (203) 1.6 (0.73)
16, 40, 63 3-1/4 (82)
–
8-3/8 (213) 8-5/16 (212) 1.8 (0.82)
25 3-7/8 (98) 7 (178)
–
8-11/16 (221) 8-13/16 (223)
1-1/4 (32) 16 3-3/8(86) 6-11/16 (170)
–
8-7/16 (214) 8-3/8 (213) 2.0 (0.91)
25 to 100 3-11/16 (94) 6-15/16 (176)
–
8-11/16 (221) 8-13/16 (223) 2.5 (1.1)
1-1/2 (40) 25, 63 3-5/8 (92)
–
8-7/16 (214) 8-13/16 (223) 1.8 (0.82)
40, 100, 160 3-15/16 (100) 7-1/16 (180)
–
8-3/4 (223) 9-1/4 (235) 3.3 (1.50)
2 (50) 40, 100 4 (102)
–
9-3/8 (238) 3.1 (1.41)
63 4-5/8 (118) 7-1/2 (190)
–
9-1/8 (223) 10-1/16 (255) 5.25 (2.38)
160
–
5.3 (2.40)
* Dimension “C” is maximum length, measured from the actuator, end fitting, or mounting plate, whichever extends the furthest.
