SIMADYN D
T400 Technology Module
Brief Description
Edition 09.99

Brief Description T400 Technology Module
Edition Edition version
1 T400 Technology Module 09.98
2 T400 Technology Module 04.00
Copyright © SIEMENS AG 2000 All rights reserved
The reproduction, transmission or use of this document or its
contents is not permitted without express written authority. Offenders
will be liable for damages. All rights, including rights created by patent
grant or registration or a utility model or design, are reserved.
Siemens AG
A&D LD R
Frauenauracherstr.80
91056 Erlangen
Disclaimer of liability
We have checked the contents of this Manual to ensure that they
coincide with the described hardware and software. However,
deviations cannot be completely ruled-out, so we cannot guarantee
complete conformance. However, the information in this document is
regularly checked and thenecessary corrections included in
subsequent editions. We are thankful for any recommendations or
suggestions.
© Siemens AG 2000
Technical data subject to change

Contents
Definitions..........................................................................................................................2
Danger and warning information......................................................................................2
1. Product description......................................................................................................3
2. Installation ....................................................................................................................4
2.1. Installing the module........................................................................................4
2.1.1. SRT400.............................................................................................4
2.1.2. Electronics box in the MASTERDRIVE / DC MASTER ......................4
2.2. Connections.....................................................................................................5
3. Technical data...............................................................................................................8
3.1. Overview.........................................................................................................8
3.2. General data....................................................................................................9
3.3. Power supply...................................................................................................9
3.4. Inputs/outputs..................................................................................................9
3.5. Incremental encoder with coarse- and fine pulse evaluation ..........................11
3.5.1. Pulse encoder 1 ..............................................................................11
3.5.2. Pulse encoder 2 ..............................................................................12
3.5.2.1. Pulse encoder type selection switches S2/1 - S2/8..................12
3.5.2.2. useable pulse encoder types...................................................13
3.6. Absolute value encoder .................................................................................14
3.7. Serial interfaces.............................................................................................14
3.7.1. Service interface 1..........................................................................14
3.7.1.1. Communications switch S1/8..................................................14
3.7.1.2. Connecting cable to the PC....................................................15
3.7.2. Interface 2.......................................................................................15
3.7.3. Bus termination switches S1/1 - S1/6...............................................15
3.7.4. Download switch S1/7 .....................................................................15
3.8. Diagnostic LEDs............................................................................................16
4. Troubleshooting.........................................................................................................17
4.1. Hotline...........................................................................................................17
5. Parameterization.........................................................................................................18
6. Configuring.................................................................................................................19
6.1. Standard software packages..........................................................................19
6.2. Freely configuring the T400...........................................................................20
7. Manufacturer’s declaration ........................................................................................22
8. ESD guidelines ...........................................................................................................24
8.1. What is ESD?................................................................................................24
8.2. Handling ESD modules..................................................................................24
8.3. Measuring and making changes on ESD modules ...........................................2
8.4. Transporting modules......................................................................................2

Definitions
2 Edition 04.00 Siemens AG
SIMADYN D Hardware Brief Description
Definitions
NOTE
The information in this Manual does not purport to cover all details or variations in equipment, nor to provide for
every possible contingency to be met in connection with installation, operation or maintenance.
Should further information be desired or should particular problems arise which are not covered sufficiently for
the purchaser’s purposes, please contact your local Siemens office.
Further, the contents of this Manual shall not become a part of or modify any prior or existing agreement,
commitment or relationship. The sales contract contains the entire obligation of Siemens. The warranty
contained in the contract between the parties is the sole warranty of Siemens. Any statements contained herein
do not create new warranties nor modify the existing warranty.
Qualified personnel
For the purpose of this Manual and product labels, a „Qualified person“ is someone who is familiar with the
installation, mounting, start-up and operation of the equipment and the hazards involved. He or she must have
the following qualifications, for example:
1. Trained and authorized to energize, de-energize, clear, ground and tag circuits and equipment in
accordance with established safety procedures.
2. Trained in the proper care and use of protective equipment in accordance with established safety
procedures.
3. Trained in rendering first aid
Danger and warning information
!DANGER For the purpose of this Manual and product labels, „Danger“ indicates death,
severe personal injury and/or substantial property damage will result if proper
precautions are not taken.
!WARNING For the purpose of this Manual and product labels, „Warning“ indicates death,
severe personal injury or property damage can result if proper precautions
are not taken.
!CAUTION For the purpose of this Manual and product labels, „Caution“ indicates that
minor personal injury or material damage can result if proper precautions are
not taken.
NOTE For the purpose of this Manual, „Note“ indicates information about the
product or the respective part of the Instruction Manual which is essential to
highlight.
!CAUTION This board contains components which can be destroyed by electrostatic
discharge. Prior to touching any electronics board, your body must be
electrically discharged. This can be simply done by touching a conductive,
grounded object immediately beforehand (e.g. bare metal cabinet
components, socket protective conductor contact).
!WARNING Hazardous voltages are present in this electrical equipment during operation.
Non-observance of the safety instructions can result in severe personal injury
or property damage.
It is especially important that the warning information in all of the relevant
Operating Instructions/Instruction Manuals are strictly observed.

Product description
Siemens AG Edition 04.00 3
SIMADYN D Hardware Brief Description
1. Product description
Order No. 6DD1606-0AD0
Applications
The T400 is a technology module. It can be used to complement drives with sophisticated, high-dynamic
performance open-loop and closed-loop control functions at a favorable price. Sampling times down to 100 µs
are possible.
Applications include higher-level closed-loop controls for:
•closed-loop tension control
•closed-loop position control
•winder and coiler
•(angular) synchronous control
•positioning
•cross cutter and flying saws
•drive-related open-loop control functions
The T400 can be inserted in the electronics box of
•SIMOVERT MASTERDRIVES VC, MC Compact 6SE70/71 AC drive converters (not in MC Compact PLUS!)
•SIMOREG DC-MASTER 6RA70.
Further, the T400 can also be used in the SRT400 SIMADYN D subrack. Two T400 can be inserted in the
SRT400.
The T400 is always used in the drives and in the SRT400, together with the MASTERDRIVES or DC MASTER
communications module, for example, CB1, SCB as well as the ADB carrier module with the communications
modules inserted in it, for example, CBP2 (PROFIBUS-DP), CBC (CAN), CBD (DeviceNet).

Installation
4 Edition 04.00 Siemens AG
SIMADYN D Hardware Brief Description
2. Installation
2.1. Installing the module
2.1.1. SRT400
If only one T400 is used, then this is inserted in the lefthand slot. The optional 2nd module (second T400 or
communications module) is inserted at the right. The modules are retained using screws above and below the
handles which are used to insert/withdraw the modules.
2.1.2. Electronics box in the MASTERDRIVE / DC MASTER
Slot in the electronics box Modules
Left Slot 1 (CUx) (left) CU2 / CU3 / CUDC / CUVC / CUMC / ...
Center Slot 3 (options) (center) CB1 / CB2 / CBP / CBP2 / SCB1 / SCB2 / ADB / ... / empty
Right Slot 2 (right) T400
Note:
The T400 must always be inserted at slot 2 (right!!!), if it is used in a MASTERDRIVE or DC MASTER.
It is not permissible to use a TSY or the terminal expansion modules EBx (on the ADB) in conjunction with the
T400.
In order to be able to insert the option modules in
the electronics box, the LBA (Local Bus Adapter)
must be installed in the electronics box.
Installing the bus expansion LBA:
♦Remove the CUx module (lefthand slot in the
electronics box) after releasing the connecting
cable to the PMU and the two retaining screws.
Use the handles to remove the module.
♦Insert the bus expansion LBA into the
electronics box (position, refer to the diagram)
until it snaps into place.
♦Insert the CUx module back into the lefthand
slot, screw in the retaining screws at the
handles, insert the connecting cable to the
PMU.
♦Insert the T400 in slot 2 (right) and, if required
the option module in slot 3 (center) of the
electronics box, and screw into place.
Replacing modules in the electronics box
♦Release the screws retaining the modules
above and below the handles.
♦Carefully remove the module from the
electronics box using the handles, and take
care that the module does not catch on any
adjacent components and parts.
♦Carefully locate the new module onto the guide
rails and insert it fully into the electronics box.
♦Tighten the module retaining screws above and
below the handles.
SLOT 3 (Options)
Slot 1 1 (CU)
SLOT 2 (T400)

Installation
Siemens AG Edition 04.00 5
SIMADYN D Hardware Brief Description
2.2. Connections
56
57
58
59
60
46
47
48
49
53
54
55
+24V
50
94
AD
+
-
96
91
93
92
AD
+
-
AD
+
-
95
AD
+
-
AD
+
-
90
98
97
A
D
A
D
11 bit + VZ
72
73
74
75
Datei: T400-io.dsf
M
45 P24 external
61
50
51
52
+24V
P24 external 45
99
99
0pulse
+15V / 100mA
Track A
Track B
Track A +
Track B +
0pulse+
81
82
83
63
64
Coarse p.
66
Coarse p.
65
84
Track A -
Track B -
0pulse-.
86
87
88
85 M
76
77
78
79
68
RS485, 2-wire
70
71
69
T/Rx+
T/Rx-
TTL RxD
TxD
67
Ana_In_1
Ana_In_2
Ana_In_3
Ana_In_4
Ana_In_5
Ana_Out_1
Ana_Out_2
BinInput
SSI_1
SSI_2
X02
X01
M
RS232
Increm_1
Increm_2
Dual-
Port-
RAM
Dual-
Port-
RAM
Pulse
encod.
2
Pulse
encod.
1
M
M
T400
80
62
+24V
e.g.
contact-
switch
Hardware-
addresses
of the basic
configured
software
Fct.-
block
Tracks A and B from CUx
Zero pulse from CUx
Serial interface 1
- Programdownload
- CFC test mode (start-up)
-USS(SIMOVIS)
2 analog outputs
±10V / 10mA
11 bits + sign
Fct.-
block
BinInOut
(bi-
directional)
Fct.-
block
MASTER DRIVES
or DC-MASTER
basic drive
CUx
Absolute value
encoder 2
or
Serial
interface 2:
for
- peer-to-peer
-USS
Absolute value
encoder 1
2binaryoutputs
Communic-
ations module
e.g. CB1, ADB
4 binary-
inputs
24V DC
4 binary inputs
alarm-capable
24V DC
(8mA input
current)
4binary
outputs
bi-directional
24V DC
(8mA input
current)
5 analog inputs
differential inputs
11 bits + sign
±10V / 10kΩ
2Pulse
encoder
inputs
HTL
HTL/
TTL
(RS422)
Selected with
switch S2
MASTER DRIVES
or DC-MASTER
basic drive
CUx
e.g.
contact-
switch
Note: All of the grounds are connected with one another and the electronics ground.

Installation
6 Edition 04.00 Siemens AG
SIMADYN D Hardware Brief Description
2.2.1. Analog inputs/outputs
T400 terminal assignment Connec-
tor Connec- tor pin Term- inal
Ground, analog inputs/outputs X9 189
Analog input 1 Analog input 1+ 2 90
Analog input 1- 3 91
Analog input 2 Analog input 2+ 4 92
Analog input 2- 5 93
Analog input 3 694
Analog input 4 795
Analog input 5 896
Analog output 1 997
Analog output 2 10 98
Ground, analog inputs/outputs 11 99
If inputs 1 and 2 are not used as differential inputs, terminals 89, 91 and 93 must be connected with one
another. This means that measurements made at terminals 90 and 92 are with respect to ground.
2.2.2. Binary inputs/outputs
T400 terminal assignment Connec-
tor Connec- tor pin Term- inal
+ 24 V external (for binary inputs and outputs) X5 145
Bi-directional binary input and output 1 2 46
Bi-directional binary input and output 2 3 47
Bi-directional binary input and output 3 4 48
Bi-directional binary input and output 4 5 49
Ground, binary inputs and outputs 650
Binary output 1 751
Binary output 2 852
Binary input 1 (alarm-capable) 9 53
Binary input 2 (alarm-capable) 10 54
Binary input 3 (alarm-capable) 11 55
Binary input 4 (alarm-capable) X6 1 56
Binary input 5 257
Binary input 6 358
Binary input 7 459
Binary input 8 560
Ground, binary inputs and outputs 661
2.2.3. Absolute value encoder
T400 terminal assignment Connec-
tor Connec- tor pin Term- inal
Absolute encoder 2: data+ Serial interface 2: Rx-RS485+ X7 6 72
Absolute encoder 2: data- Serial interface 2: Rx-RS485- 773
Absolute encoder 2: clock+ Serial interface 2: Tx (Rx)-RS485+ 874
Absolute encoder 2: clock- Serial interface 2: Tx (Rx)-RS485- 975
Absolute encoder 1: data+ 10 76
Absolute encoder 1: data- 11 77
Absolute encoder 1: clock+ X8 1 78
Absolute encoder 1: clock- 2 79
Either absolute encoder 2 or serial interface 2 can be used. The selection is made when configuring the software
using CFC.

Installation
Siemens AG Edition 04.00 7
SIMADYN D Hardware Brief Description
2.2.4. Incremental encoder
T400 terminal assignment Connec-
tor Connec- tor pin Term- inal
Increm. encod. 2: Track A (
HTL) Increm. encod. 2: Track A+ ( RS422) X6 7 62
Increm. encod. 2: Track B (
HTL) Increm. encod. 2: Track B+ ( RS422) 863
Increm. encod. 2: Zero pulse
(HTL) Increm. encod. 2: Zero pulse+ (RS422) 964
Increm. encod. 2: Coarse pulse 10 65
Ground, incremental encoder 2 11 66
+ 15 V encoder power supply (max. 100 mA) X8 380
Increm. encod. 1: Track A 4 81
Increm. encod. 1: Track B 5 82
Increm. encod. 1: Zero pulse 6 83
Increm. encod. 1: Coarse pulse 7 84
Ground, incremental encoder 1 885
Increm. encod. 2: Track A- (for RS422) 9 86
Increm. encod. 2: Track B- (for RS422) 10 87
Increm. encod. 2: Zero pulse- (for RS422) 11 88
If no push-pull signals are used for encoder 2, terminals 85, 86,87 and 88 must be connected with one another.
2.2.5. Serial interfaces
T400 terminal assignment Connec-
tor Connec- tor pin Term- inal
Ser. interface 1: Rx-RS232 X7 1 67
Ser. interface 1: Tx-RS232 2 68
Ground, serial interface 369
Ser. interface 1: Tx/Rx-RS485+ 4 70
Ser. interface 1: Tx/Rx-RS485- 5 71
Ser. interface 2: Rx-RS485+ 4 wire Absolute encoder 2: data+ 672
Ser. interface 2: Rx-RS485- 4 wire Absolute encoder 2: data- 773
Ser. interface 2: Tx (Rx)-RS485+ 2 or 4 wire Absolute encoder 2: clock+ 874
Ser. interface 2: Tx (Rx)-RS485- 2 or 4 wire Absolute encoder 2: clock- 975
Either absolute value encoder 2 or serial interface 2 can be used. The selection is made when configuring the
software using CFC.

Technical data
8 Edition 04.00 Siemens AG
SIMADYN D Hardware Brief Description
3. Technical data
3.1. Overview
Inputs/outputs
 2 analog outputs
 5 analog inputs
 2 binary outputs
 8 binary inputs
of which 4 binary inputs can be used to call interrupt tasks (50 µs response time)
 4 bi-directional binary inputs or outputs
 2 incremental encoder inputs with zero pulse
- encoder 1 for HTL (15V) encoder
Encoder pulses of an encoder connected to a SIMOVERT MASTERDRIVES SC/VC which are fed
via the backplane bus to the T400 can also be evaluated. This means it is also possible to use a
TTL/RS422 encoder. The pulse encoder simulation via the backplane bus of the SIMOVERT
MASTERDRIVES MC can also be used.
- encoder 2 for HTL (15V)- or TTL/RS422 encoder (5V)
 For each incremental encoder, a coarse pulse input to suppress the zero pulse, the coarse pulse input
(simultaneously) can also be used as binary input.
 The inputs/outputs are not electrically isolated
 2 absolute value encoders with SSI- or EnDat protocol (RS485) for positioning applications
Note: When using absolute value encoder 2, serial interface 2 (peer, USS) cannot be used, as the
same terminals are used for the two applications!
Serial interface 1 with RS232 or RS485 data transfer format;
The protocol can be selected using a switch on the module:
 Service protocol DUST1
for start-up (CFC test mode, service IBS (start-up), TELEMASTER) and downloading programs
with a 19.2 kbit/s baud rate at the RS232 interface
 USS protocol,
2 wire, with selectable RS232 or RS485 data transfer format;
max. baud rates, 38.4 kbit/s;
can be configured as slave for parameterization with OP1S (from OP1S, version V2.2),
or as master for the OP2 operator panel connection
Serial interface 2
with RS485 data transfer format, selectable baud rates of: 9.6; 19.2; 38.4; 93.75 and 187.5 kbit/s;
the required protocol is selected by appropriately configuring the function block:
 Peer-to-peer
for fast process coupling, 4 wire
 USS protocol (USS bus),
can be configured as slave for parameterization with SIMOVIS (2- or 4 wire),
as master for OP2 operator panel connection (2 wire) or to control drive converters;
max. baud rates, 38.4 kbit/s;
Low deadtimes can be achieved as a result of synchronization:
 Synchronization of the T400 on the basic drive converter modules (CUx) or second T400
 T400 supplies synchronizing signals for other modules (CUx, CBx or second T400)
Other features
•Lowest sampling time is 0.1 ms, 0.8 ms is the typical sampling time for a control loop
•As a result of the floating point arithmetic, not only is a high accuracy achieved, but configuring is also
simplified as normalization and value range limits are eliminated
•Operation without fan
•3 LEDs for operating status displays
•Hardlock-PAL: Plug-in socket for 28-pin EPLD device for copy protection of the user program
•Soldered-in flash memory (2 Mbyte) for the program code (compressed), which is downloaded from the PC
via the serial interface; no plug-in memory module is used!
•4 Mbyte DRAM as working memory for programs and data,
•32 Kbyte permanent change memory
•NOVRAM for data save at voltage-off for up to 10 configurable values (real type)
•Cache memory: 4 Kbyte program, 4 Kbyte data
•Clock cycle (external/internal): 32/32 MHz

Technical data
Siemens AG Edition 04.00 9
SIMADYN D Hardware Brief Description
3.2. General data
Grounding/ground
The grounds of the following terminals
•interfaces 1 and 2
•analog inputs/outputs
•binary inputs/outputs
•incremental encoders 1 and 2
are connected with the T400 electronics ground.
Slot assignment 1
Dimensions W x H x D [mm] 14 x 267 x 140
Weight Approx. 0.3 kg
Degree of protection IP00
Terminals MINI-COMBICON, Phönix
company
Humidity class F according to DIN 40040
Ambient temperature From 0°C , up to 55°C (without
fan)
Storage temperature From -25°C to 75°C
3.3. Power supply
The T400 requires the following voltages at the backplane bus connector X1:
Rated voltage Minimum Maximum Typical current drain
+5 V +4.75 V +5.25 V 1100 mA
+15 V +14.4 V +15.6 V 140 mA + encoder load (terminal 66)
(max. 100 mA, electronic. limited)
-15 V -14.55 V -15.45 V 140 mA
24 V (external) 20 V 30 V 150 mA + binary output currents
3.4. Inputs/outputs
Analog outputs
No. 2, non-floating
Output voltage range +/-10 V
Output current Max. +/- 10 mA
Resolution 12 bit (4.88mV)
Linearity error < 1 bit
Absolute accuracy +/- 3 bit
Short-circuit protection to
ground Yes
Voltage rate-of-rise of the
output Approx. 4.2 V/µs
Delay time 3.5 µs

Technical data
10 Edition 04.00 Siemens AG
SIMADYN D Hardware Brief Description
Analog inputs
No. 5
Version 2 differential inputs, 3 unipolar;
all non-floating
Input voltage range +/- 10 V
Input resistance 20 kohm
Input filter 3 dB transition freq. 25 kHz
Resolution 12 bit (4.88mV)
Measuring principle Sampling
Absolute accuracy +/- 3 bit
Linearity < 1 bit
Offset error +/- 3 bit
Conversion time 12 µs
Differential input resistance > 20 kohm
Hardware smoothing 4.7 µs
Binary outputs
No. 2
+ max. 4 bidirectional;
all non-floating
Power supply External
Nominal value 24 V DC
Permiss. range +15 V to 33 V including ripple
Briefly +35 V, max. 0.5 s
Current drain 20 mA + output currents
Output current for 1 signal Max. 50 mA / output
Short-circuit protection Electronically and thermally, continuous
short-circuit protection, limited to 220 mA
Inductive switch-off voltage
limiting Power supply voltage + 1 V
Switching frequency 5 kHz for ohmic loads
Signal level for 0 signal Max. 0.1 V
for 1 signal Power supply voltage - 0.3 V
Switching delay
(0V to 24V) Max. 70 µs

Technical data
Siemens AG Edition 04.00 11
SIMADYN D Hardware Brief Description
Binary inputs
No.
8
+ max. 4 bidirectional
+ 2 coarse pulse signals
all non-floating
Input voltage 24 V DC rated voltage
for 0 signal -1 V to +6 V or open-circuit inputs
for 1 signal +13 V to +33 V
Input currentfor 0-Signal 0 mA
for 1-Signal typ. 3 mA, max. 5 mA
Delay time 150 µs
3.5. Incremental encoder with coarse- and fine pulse evaluation
No. of encoders Total, max. 2
Version Encoder 1 HTL
Encoder 2 either HTL,TTL or RS422
3.5.1. Pulse encoder 1
Input voltage range HTL, 30 V
Input voltagefor 0 signal < 4 V
for 1 signal > 8 V
Input current Approx. 8 mA
Pulse frequency Max. 400 kHz (track frequency)
Phase difference of the track
signals Independent of the pulse frequency, min. 200 ns
Input filter Via software (function block NAV) can be
configured
Note:
The pulses for encoder 1 (tracks A, B, zero pulse) can also be retrieved from the basic drive, via the backplane
bus, if another module supplies these (e.g. incremental encoder simulation of the CUMC; as TTL signal level).
The pulse source selection is configured at the speed actual value block NAV.
Zero pulse evaluation
The zero pulse evaluation can be parameterized and is dependent on the direction of rotation, i.e. the same
encoder position is identified independent of the actual direction of rotation.

Technical data
12 Edition 04.00 Siemens AG
SIMADYN D Hardware Brief Description
3.5.2. Pulse encoder 2
2 pulse encoders with different signal levels can be connected at encoder input 2.
•RS422
•HTL, bipolar
•HTL, unipolar
•TTL

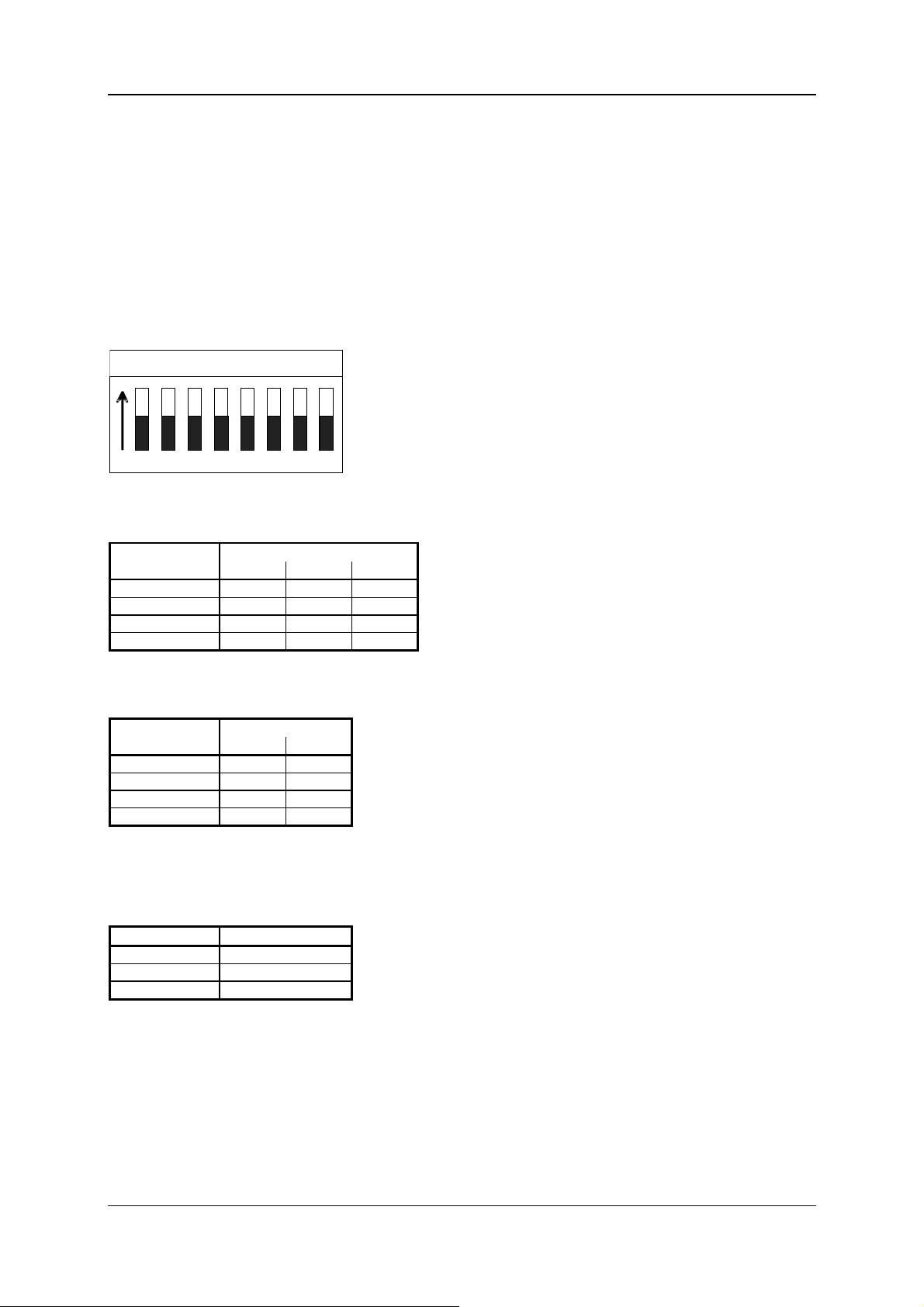

3.5.2.1. Pulse encoder type selection switches S2/1 - S2/8
The encoder type is selected using DIL switch S2/1 - S2/8
ON
23456781
The signal levels of track signals A and B are set according to the following table:
Significance Switch S2
123
TTL RS422 ON ON ON
HTL, bipolar OFF OFF ON
HTL, unipolar OFF OFF OFF
TTL ON ON OFF
The signal level of the zero pulse can be set independently of track A and B:
Significance Switch S2
45
TTL RS422 ON ON
HTL, bipolar OFF ON
HTL, unipolar OFF OFF
TTL ON OFF
Bus terminating resistors can be switched-in for RS422 using switches S2/6 to S2/8. This is always required, if
the T400 is connected at one end of an RS422 cable. If it is located in the center, then it is not permissible that
the terminating resistors are switched-in.
Significance Switch S2
Track A 6
Track B 7
Zero pulse 8
The terminating resistors are switched-out in the OFF position; they are switched-in in the ON position.
The switch settings can only be changed when the module is withdrawn. They are not accessible when the
module is inserted.

Technical data
Siemens AG Edition 04.00 13
SIMADYN D Hardware Brief Description
3.5.2.2. useable pulse encoder types
The following properties are valid for the settings for an HTL encoder with push-pull signals:
Input voltage range HTL, differential voltage +/-30 V
Input voltagefor 0 signal - 3V
for 1 signal +3 V
Input current Approx. 2 mA
Pulse frequency Max. 1.5 MHz (track frequency)
Input filter Can be configured per software (function
block)
The following properties are valid for settings for an HTL encoder without push-pull signals:
Input voltage range HTL, 30 V, unipolar
Input voltagefor 0 signal < 4 V
for 1 signal > 8 V
Input current Approx. 2 mA
Pulse frequency Max. 1.5 MHz (track frequency)
Input filter Can be configured per software (function
block)
If no push-pull signals are used for encoder 2, terminals
85, 86, 87 and 88 must be connected with one another.
The following properties are valid for the setting for a TTL encoder:
Input voltage range TTL, 5 V
Input voltagefor 0 signal < 0.8 V
for 1 signal > 2.3 V
Input current Approx. 2 mA
Pulse frequency Max. 1.5 MHz (track frequency)
Input filter Can be configured per software (function
block)
The following properties are valid for the RS422 setting:
Input voltage range RS422, 5V
Input voltagefor 0 signal < -0.2 V
for 1 signal > 0.2 V
Input current Approx. 2 mA
Pulse frequency Max. 1.5 MHz (track frequency)
Input filter Can be configured per software (function
block)

Technical data
14 Edition 04.00 Siemens AG
SIMADYN D Hardware Brief Description
3.6. Absolute value encoder
The T400 has up to 2 synchronous serial interfaces for absolute value encoders:
Input voltage range RS422, 5V
Encoders which can be
connected Single- or multi-turn encoders
SSI (synchronous-serial)
Protocols EnDat (accord. to the Heidenhain company)
Data transfer rate 100kHz to 2 MHz
Dual code
Grey codeData representation type Grey excess code
It is possible to simultaneously use the 2 serial interfaces and absolute value encoder 1 (terminals 76-79).
3.7. Serial interfaces
The T400 has 2 serial interfaces:
3.7.1. Service interface 1
Interface 1 has the two physical versions (they can only be used one at a time!):
•RS 232 for PC coupling (download, service, via the Dust1 protocol with 19.2 kbaud)
•RS 485 (2 wire) for USS to connect
-SIMADYN D OP2 operator panels
-MASTER DRIVES OP1 operator panels
-SIMOVIS
-or to the higher-level (master) / systems (e.g. SIMATIC)
The program is downloaded and service for start-up executed via interface 1. To realize this, the CFC is used in
the test mode or service-IBS V5 (service start-up) (DUST1 protocol, baud rate: 19.2 kbd).
3.7.1.1. Communications switch S1/8
The physical version of serial interface 1 can be selected using S1/8.In addition to the changeover, the
appropriate blocks must have been configured for the USS protocol. If the USS protocol is set, it is no longer
possible to realize online visualization with CFC or service-IBS (service-start-up)!
Switch S1 / 8
ON RS485 (2 wire) for USS protocol (bus termination, refer to 3.7.3)
OFF RS232 for service / start-up

Technical data
Siemens AG Edition 04.00 15
SIMADYN D Hardware Brief Description
3.7.1.2. Connecting cable to the PC
The connection between the T400 and the configuring-PC is via a serial link; this is established using the
following cable which the user must assemble. Switch S1/8 must be in the OFF position.
The cable can be ordered as SC400 with the order number 6DD1684-HF0.
PC T400
9-pole sub D socket
Pin Terminal
2←→ 68
3←→ 67
5←→ 69
3.7.2. Interface 2
Interface 2 is a mixed asynchronous and synchronous RS 485 interface:
•Peer-to-peer with full duplex, 4-wire connection
•USS protocol (master or slave) with half duplex, 2-wire connection
The function blocks @USS_M,@USS_S or @PEER are used to toggle between 2- and 4- wire operation. As soon
as one of these blocks is configured, terminals 72 to 75 can no longer be used for an absolute value encoder.
The following baud rates can be set:
Peer to Peer: 9.6 kbd, 19.2 kbd, 38.4 kbd, 93.75 kbd, 187.5 kbd
USS: 9.6 kbd, 19.2 kbd, 38.4 kbd
3.7.3. Bus termination switches S1/1 - S1/6
The bus terminating resistors for serial interfaces 1 and 2 must be switched-in via switches S1/1 - S1/6, if the
T400 is located at the beginning or end of the RS485 bus. If it located in the center, it is not permissible that the
terminating resistors are switched-in.
Terminals Switch S1
Serial interface 1 70 / 71 1, 2
Serial interface 2 (2-wire) 74 / 75 3, 4
Serialinterface2 (4-wire) 72/73/74/75 3,4,5,6
In the ON position, the terminating resistors are switched-in.
The switches can only be switched when the module is withdrawn. They
are not accessible when the module is inserted.
3.7.4. Download switch S1/7
Switch S1 / 7
ON User program inhibited, only download possible.
OFF Standard operation
This function will only be available from D7-SYS V4.0 R07/98, and version K of the T400.
ON
23456781

Technical data
16 Edition 04.00 Siemens AG
SIMADYN D Hardware Brief Description
3.8. Diagnostic LEDs
Three diagnostic LEDs are located on the T400.
LED H1 displays the status of the internal T400 monitoring
function. Under normal operating conditions it flashes slowly,
approximately every second (1.5 Hz).
If H1 starts to flash at a average rate (with 2.5 Hz) this indicates an
internal fault/error. Possible faults/errors are:
•user stop
•communications error
•computation time overflow
•hardware monitoring fault
The user stop can be initiated using the CFC- or the configured
software. If the T400 is inserted in an electronics box, generally, the
basic drive converter module signals a fault if the T400 is in the
user stop status.
If there is no user stop, the module must be accessed using the
CFC in the test mode or with Service-IBS V5, to precisely
determine the cause and to evaluate the internal fault fields.
If H1 flashes quickly (with 5 Hz), this indicates an initialization
error. The T400 program is either erroneous, or switch S1/7 is in
the ON setting.
If H1 goes into a steady light condition this indicates a system
error. The user program is not processed. The T400 is either
defective or has been incorrectly programmed.
The module must be accessed using the CFC in the test mode or
with the service-IBS V5 to precisely determine the cause, and to
evaluate the internal fault fields.
LEDs H2 and H3 indicate the coupling status to other modules. A
uniform flashing indicates an error-free coupling. The flash
frequency of H2 and H3 is determined by the configuring, i.e. the
sampling time of function block @DRIVE.
T400 in the SRT400:
SRT400
LED Function Color lefthand T400 righthand T400
H1 Internal T400
monitoring red
flashes slowly 1.25 Hz RUN, standard operation
flashes medium frq.2.50 Hz fault/error
flashes quickly 5 Hz initialization error
steady light system error
flashes: OK
H2 Data transfer to the
lefthand T400 yellow always dark dark or steady light: faulted
flashes: OK
H3 Data transfer to the
righthand T400 green dark or steady light: faulted always dark
T400 in the MASTERDRIVE or DC MASTER:
LED Function Color MASTERDRIVE / DC MASTER
H1 Internal T400
monitoring red
flashes slowly 1.25 Hz RUN, standard operation
flashes medium frq.2.50 Hz fault/error
flashes quickly 5 Hz initialization error
steady light system error
H2 Data transfer to the
basic drive yellow flashes: OK
H3 Data transfer to the
communications module green dark or steady light: faulted
T400
11pol X5
11pol X6
11pol X7
11pol X8
11pol X9
X137
X135
LED H1 ret
1S2
1S1
LED H2 yellow
LED H3 green

Troubleshooting
Siemens AG Edition 04.00 17
SIMADYN D Hardware Brief Description
4. Troubleshooting
Fault profile Cause Remedy
Switch S1/7 set to ON Switch S1/7 must be set to OFF for
operation
No configured software loaded Program the T400
T400 is not running,
MASTERDRIVES initialization
stops at 0002,
initialization of the DC MASTER
stops at 12.2 or F80,
H1 on the T400 flashes quickly
T400 defective Replace the T400
T400 completely overloaded S1/7 must be set to ON for
downloading and then set back to
OFF
Downloading not possible
T400 defective Replace T400
Switch S1/8 set to ON Set switch S1/8 to OFF, USS
operation is then disabled.
No connection can be established
to the T400 using service/IBS or
CFC Incorrect COM interface selected CFC:
Click on
START in the Windows
task bar, then on
SIMATIC,
STEP 7 and
on SIMADYN D
online interface
. Select the
interface
SERVICE/IBS:
Select under
Options, the
interface of the
ComPort
4.1. Hotline
A free-of-charge Hotline is available to support users:
Phone: [phone]
Fax: [phone]
email: [e-mail]
The SIMADYN D Hotline can be accessed from 8.00 to 17.00, Monday to Friday.
Outside these times, you can use the telephone answering machine, fax or email.

Parameterization
18 Edition 04.00 Siemens AG
SIMADYN D Hardware Brief Description
5. Parameterization
All parameters, which refer to the functions and settings of the T400 technology module, are called
technological parameters. They lie in parameter ranges between 1000 and 1999 and between 3000
and 3999 (if used).
Depending on the access type, thousands are represented directly, or as letter. In this case, there is
an additional differentiation between visualization and parameters which can be changed.
The number and the function of the individual technology parameters is dependent on the configuring.
Range Display Example Significance
1000 ... 1999 Hxyz H234 Parameter No. 1234 which can be changed
1000 ... 1999 dxyz d411 Visualization parameter No. 1411 (this cannot be
changed)
3000 ... 3999 Lxyz L234 Parameter No. 3234 which can be changed
3000 ... 3999 cxyz c521 Visualization parameter No. 3521 (this cannot be
changed)
The technological parameters can be read and changed (simultaneously) from several locations:
•PMU
•OP1, OP1S (the configured parameter names are displayed)
•CB1 (PROFIBUS)
•SCB2 with USS protocol
•Serial interfaces 1 and 2 of the CU
•PC/start-up program (SIMOVIS)
All parameter changes are stored in a EEPROM. This EEPROM allows a maximum of 100 000 write
accesses. This limitation must be taken into account, if frequent write accesses, e.g. from a PLC via
PROFIBUS or USS are used, e.g. with continuos commands to ‘store permanently in EEPROM’. For
continuos changes the command ‘store temporary in RAM’ should be use.
