Siemens Simatic S7-1500 Parts list manual

Diagnostics

SIMATIC
S7-1500, ET 200MP, ET 200SP,
ET 200AL, ET 200pro
Diagnostics
Function Manual
11/2019
A5E03735838
-AF
Preface
Function manuals
Documentation Guide
1
Overview of system
diagnostics
2
Quick start
3
Setting and determining
system diagnostics
4
System diagnostics by
means of the user program
5
Alarms
6
Diagnostics of the S7-
1500R/H redundant system
7

Siemens AG
Digital Industries
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E03735838-AF
Ⓟ
10/2019 Subject to change
Copyright © Siemens AG 2013 - 2019.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

Diagnostics
Function Manual, 11/2019, A5E03735838-AF 3
Preface
Purpose of the documentation
This function manual provides an overview of the diagnostics options for the automation
system SIMATIC S7-1500, for the CPUs 1513pro-2 PN and 1516pro-2 PN based on
SIMATIC S7-1500, and for the distributed I/O systems SIMATIC ET 200MP, ET 200SP and
ET 200AL.
The documentation covers the following:
●Illustration of the uniformity and consistency of system diagnostics
●Overview of the options for establishing system diagnostics information
Basic knowledge required
The following knowledge is required in order to understand the function manual:
●General knowledge in the field of automation technology
●Knowledge of the industrial automation system SIMATIC
●Knowledge of working with STEP 7 and WinCC
●Knowledge about the use of Microsoft Windows operating systems
Scope of the documentation
This documentation is the basic documentation for all products of the S7-1500, ET 200MP,
ET 200SP and ET 200AL systems, as well as for the CPUs 1513pro-2 PN
und 1516pro-2 PN. The product documentation is based on this documentation.

Preface
Diagnostics
4Function Manual, 11/2019, A5E03735838-AF
What's new in the Diagnostics function manual, Edition 11/2019 compared to Edition 10/2018
What's new?
What are the customer benefits?
Where can I find the infor-
mation?
Changed
contents
Updated restrictions for the
S7-1500R/H redundant
system
Functions with which you are familiar from
the SIMATIC S7-1500 automation system
are implemented for the S7-1500R/H
redundant system.
Section Diagnostics of the S7-
1500R/H redundant system
(Page 97)
What's new in the Diagnostics function manual, Edition 10/2018 compared to Edition 09/2016
What's new?
What are the customer benefits?
Where can I find the infor-
mation?
New contents Description of the diagnos-
tics of the S7-1500R/H re-
dundant system
You obtain information in compact form on
the special features of the diagnostics in
the S7-1500R/H redundant systems.
Section Diagnostics of the S7-
1500R/H redundant system
(Page 97)
Changed
contents
Scope of the function man-
ual expanded to include the
S7-1500R/H redundant
system
Functions with which you are familiar from
the SIMATIC S7-1500 automation system
are implemented for the S7-1500R/H
redundant system.
Redundant System S7-
1500R/H System Manual
(https://support.industry.sieme
ns.com/cs/ww/en/view/109754
833)

Preface
Diagnostics
Function Manual, 11/2019, A5E03735838-AF 5
What's new in the Diagnostics function manual, Edition 09/2016 compared to Edition 06/2014
What's new?
What are the customer benefits?
Where can I find the infor-
mation?
New contents Extended functionality of the
Web server
•You obtain information about:
–Know-how protection or copy pro-
tection of the PLC program
–Program/communication load and
cycle time
–F-collective signatures, cycle times
and runtimes of the F-runtime
group(s) (with an F-CPU)
•You can monitor statuses, errors,
technology alarms and the current val-
ues of technology objects (TOs) with
the Web server.
•You can read, view and save trace
recordings via the Web server and
thus obtain plant and project infor-
mation for diagnostics and mainte-
nance without STEP 7.
•You can set four additional languages
for the Web server interface.
Section Diagnostics infor-
mation using the web server
(Page 48),
Web server
(http://support.automation.siem
ens.com/WW/view/en/5919356
0) function manual,
Using the trace and logic ana-
lyzer function
(https://support.industry.sieme
ns.com/cs/ww/en/view/648971
28) function manual
Assignment of different
project languages extended
You can assign up to three different pro-
ject languages for comments and alarm
texts to the user interface languages of
display devices.
Section Editing alarms in the
alarm editor (Page 78)
Changed
contents
Scope of the function man-
ual expanded to include
CPU 1516pro-2 PN
Functions that you will be familiar with
from the SIMATIC S7-1500 CPUs are
implemented in the CPU 1516pro-2 PN
(degree of protection IP65, IP66 and
IP67).
Operating instructions CPU
1516pro-2 PN
(https://support.industry.sieme
ns.com/cs/ww/en/view/109482
416)
Security events added You know which types of events are regis-
tered as security events in the diagnostics
buffer and can configure group alarms for
them.
Section CPU diagnostics buffer
(Page 42)
Influence of the value status
explained
You know which factors influence the bit in
the value status and can take this into
account during configuration.
Section System diagnostics
using process image inputs
(Page 73)
Note added on the maximum configuration limits of program alarms. Section Creating alarms with
the "Program_Alarm" instruc-
tion (Page 77).

Preface
Diagnostics
6Function Manual, 11/2019, A5E03735838-AF
Conventions
STEP 7: We refer to "STEP 7" in this documentation as a synonym for the configuration and
programming software "STEP 7 as of V12 (TIA Portal)" and subsequent versions.
This document contains illustrations of the described devices. The illustrations may differ
slightly from the device supplied.
You should also pay particular attention to notes such as the one shown below:
Note
A note contains important information on the product, on the handling of the product or on
the section of the documentation to which particular attention should be paid.
Security information
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens’ products and solutions constitute one element of such a concept.
Customers are responsible for preventing unauthorized access to their plants, systems,
machines and networks. Such systems, machines and components should only be
connected to an enterprise network or the internet if and to the extent such a connection is
necessary and only when appropriate security measures (e.g. firewalls and/or network
segmentation) are in place.
For additional information on industrial security measures that may be implemented, please
visit (https://www.siemens.com/industrialsecurity).
Siemens' products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends that product updates are applied as soon as they are
available and that the latest product versions are used. Use of product versions that are no
longer supported, and failure to apply the latest updates may increase customers' exposure
to cyber threats.
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS
Feed visit (https://www.siemens.com/industrialsecurity).

Preface
Diagnostics
Function Manual, 11/2019, A5E03735838-AF 7
Siemens Industry Online Support
You can find current information on the following topics quickly and easily here:
●Product support
All the information and extensive know-how on your product, technical specifications,
FAQs, certificates, downloads, and manuals.
●Application examples
Tools and examples to solve your automation tasks – as well as function blocks,
performance information and videos.
●Services
Information about Industry Services, Field Services, Technical Support, spare parts and
training offers.
●Forums
For answers and solutions concerning automation technology.
●mySupport
Your personal working area in Industry Online Support for messages, support queries,
and configurable documents.
This information is provided by the Siemens Industry Online Support in the Internet
(https://support.industry.siemens.com).
Industry Mall
The Industry Mall is the catalog and order system of Siemens AG for automation and drive
solutions on the basis of Totally Integrated Automation (TIA) and Totally Integrated Power
(TIP).
Catalogs for all the products in automation and drives are available on the Internet
(https://mall.industry.siemens.com).

Diagnostics
8Function Manual, 11/2019, A5E03735838-AF
Table of contents
Preface ................................................................................................................................................... 3
1 Function manuals Documentation Guide............................................................................................... 10
2 Overview of system diagnostics ............................................................................................................ 12
2.1 Properties of system diagnostics ........................................................................................... 12
2.2 Benefits of innovative system diagnostics ............................................................................. 14
3 Quick start ............................................................................................................................................ 15
3.1 Using the display of the CPU ................................................................................................. 16
3.2 Using STEP 7......................................................................................................................... 18
4 Setting and determining system diagnostics.......................................................................................... 23
4.1 Configuring alarms for system diagnostics ............................................................................ 23
4.2 Options for displaying system diagnostics............................................................................. 25
4.2.1 Diagnostics information at the devices .................................................................................. 26
4.2.1.1 LEDs ...................................................................................................................................... 26
4.2.1.2 Display of the CPU................................................................................................................. 27
4.2.2 Diagnostics information in STEP 7 ........................................................................................ 29
4.2.2.1 Explanation of diagnostics symbols....................................................................................... 29
4.2.2.2 Accessible devices (without project) ...................................................................................... 31
4.2.2.3 Devices & networks ............................................................................................................... 33
4.2.2.4 Online & diagnostics .............................................................................................................. 36
4.2.2.5 "Diagnostics" tab in the Inspector window ............................................................................. 39
4.2.2.6 CPU diagnostics buffer .......................................................................................................... 42
4.2.2.7 "Online tools" task card.......................................................................................................... 45
4.2.2.8 Configuring the settings for I/O modules in STEP 7 .............................................................. 47
4.2.3 Diagnostics information using the web server ....................................................................... 48
4.2.4 Diagnostics information using the HMI diagnostics view....................................................... 59
4.2.4.1 Configuring system diagnostics ............................................................................................. 60
4.2.4.2 Different views of the HMI diagnostics view .......................................................................... 63
4.2.4.3 Inserting system diagnostics indicator ................................................................................... 66
4.2.4.4 Configuring button as system diagnostics indicator............................................................... 68
5 System diagnostics by means of the user program................................................................................ 71
5.1 Options of system diagnostics in the user program............................................................... 71
5.2 System diagnostics using process image inputs ................................................................... 73

Table of contents
Diagnostics
Function Manual, 11/2019, A5E03735838-AF 9
6 Alarms .................................................................................................................................................. 76
6.1 Creating alarms with the "Program_Alarm" instruction...........................................................77
6.2 Editing alarms in the alarm editor ...........................................................................................78
6.3 Display of program alarms......................................................................................................81
6.4 Output of the alarm state with the "Get_AlarmState" instruction ............................................82
6.5 Example program for program alarms ....................................................................................83
6.5.1 Task ........................................................................................................................................83
6.5.2 Example 1: Program alarm without associated values...........................................................84
6.5.3 Example 2: Program alarm with associated value..................................................................89
6.5.4 Displaying the alarm ...............................................................................................................96
7 Diagnostics of the S7-1500R/H redundant system................................................................................. 97
7.1 Online and Diagnostics view.................................................................................................100
7.2 "Online Tools" task card........................................................................................................103
7.3 Diagnostics view in the project tree and in the device view and network view ....................106
7.4 Diagnostics in the RUN-Redundant system state ................................................................111
7.5 Restrictions in the RUN-Solo system state...........................................................................117
7.6 System diagnostics by means of the user program..............................................................118
Glossary ............................................................................................................................................. 119
Index................................................................................................................................................... 123

Diagnostics
10 Function Manual, 11/2019, A5E03735838-AF
Function manuals Documentation Guide
1
The documentation for the SIMATIC S7-1500 automation system, for CPU 1516pro-2 PN
based on SIMATIC S7-1500, and for the distributed I/O systems SIMATIC ET 200MP,
ET 200SP and ET 200AL is divided into three areas.
This division allows you easier access to the specific information you require.
Basic information
System manuals and Getting Started manuals describe in detail the configuration,
installation, wiring and commissioning of the SIMATIC S7-1500, ET 200MP, ET 200SP and
ET 200AL systems; use the corresponding operating instructions for CPU 1516pro-2 PN.
The STEP 7 online help supports you in configuration and programming.
Device information
Product manuals contain a compact description of the module-specific information, such as
properties, terminal diagrams, characteristics and technical specifications.

Function manuals Documentation Guide
Diagnostics
Function Manual, 11/2019, A5E03735838-AF 11
General information
The function manuals contain detailed descriptions on general topics such as diagnostics,
communication, Motion Control, Web server, OPC UA.
You can download the documentation free of charge from the Internet
(https://support.industry.siemens.com/cs/ww/en/view/109742705).
Changes and additions to the manuals are documented in product information sheets.
You will find the product information on the Internet:
●S7-1500/ET 200MP (https://support.industry.siemens.com/cs/us/en/view/68052815)
●ET 200SP (https://support.industry.siemens.com/cs/us/en/view/73021864)
●ET 200AL (https://support.industry.siemens.com/cs/us/en/view/99494757)
Manual Collections
The Manual Collections contain the complete documentation of the systems put together in
one file.
You will find the Manual Collections on the Internet:
●S7-1500/ET 200MP (https://support.industry.siemens.com/cs/ww/en/view/86140384)
●ET 200SP (https://support.industry.siemens.com/cs/ww/en/view/84133942)
●ET 200AL (https://support.industry.siemens.com/cs/ww/en/view/95242965)
"mySupport"
With "mySupport", your personal workspace, you make the best out of your Industry Online
Support.
In "mySupport", you can save filters, favorites and tags, request CAx data and compile your
personal library in the Documentation area. In addition, your data is already filled out in
support requests and you can get an overview of your current requests at any time.
You must register once to use the full functionality of "mySupport".
You can find "mySupport" on the Internet (https://support.industry.siemens.com/My/ww/en).
Application examples
The application examples support you with various tools and examples for solving your
automation tasks. Solutions are shown in interplay with multiple components in the system -
separated from the focus on individual products.
You will find the application examples on the Internet
(https://support.industry.siemens.com/sc/ww/en/sc/2054).

Diagnostics
12 Function Manual, 11/2019, A5E03735838-AF
Overview of system diagnostics
2
2.1 Properties of system diagnostics
Introduction
In the SIMATIC environment, the term "system diagnostics" refers to diagnostics of devices
and modules.
All SIMATIC products have integrated diagnostic functions that you can use to detect and
remedy faults. The components automatically flag a potential fault in the operation and
provide detailed information. You can minimize unscheduled standstill times with plant-wide
diagnostics.
The SIMATIC automation system monitors the following states in the running plant:
●Device failure/recovery
●Insert/remove event
●Module fault
●I/O access error
●Channel fault
●Parameter assignment error
●Failure of the external auxiliary voltage
Properties ofSIMATIC system diagnostics
●Integrated as standard in the hardware
●System-wide across bus limits
●Automatic localization of the error source
●Automatic output of the cause of the error in plain text
●Plant-wide diagnostics of all components
●Archiving and logging of alarms
●Configurability of alarms

Overview of system diagnostics
2.1 Properties of system diagnostics
Diagnostics
Function Manual, 11/2019, A5E03735838-AF 13
Consistent diagnostics from the field level all the way to the management level
The various diagnostics media give you a uniform view of maintenance-related information of
every automation component in the plant: System status (module and network status, alarms
for system errors) are available plant-wide in a uniform display.
Figure 2-1 Overview of system diagnostics in a plant

Overview of system diagnostics
2.2 Benefits of innovative system diagnostics
Diagnostics
14 Function Manual, 11/2019, A5E03735838-AF
2.2 Benefits of innovative system diagnostics
System diagnostics is also possible in STOP
The system diagnostics is integrated in the firmware of the CPU and works independently of
the cyclic user program. This means it is also available in the STOP CPU operating mode.
Faults are detected immediately and signaled to the higher-level HMI devices, the Web
server and the display of the SIMATIC S7-1500 CPU, even in STOP mode. This makes
system diagnostics consistent with the actual plant state at all times.
Uniform display concept
All clients of a system are provided with diagnostics information by a uniform mechanism.
The same system diagnostics information is used regardless of the display medium.
Step
Description
①
The device detects an error and sends diagnostics data to the assigned CPU.
②
The CPU informs the connected display media. The display of the system diagnostics is
updated.

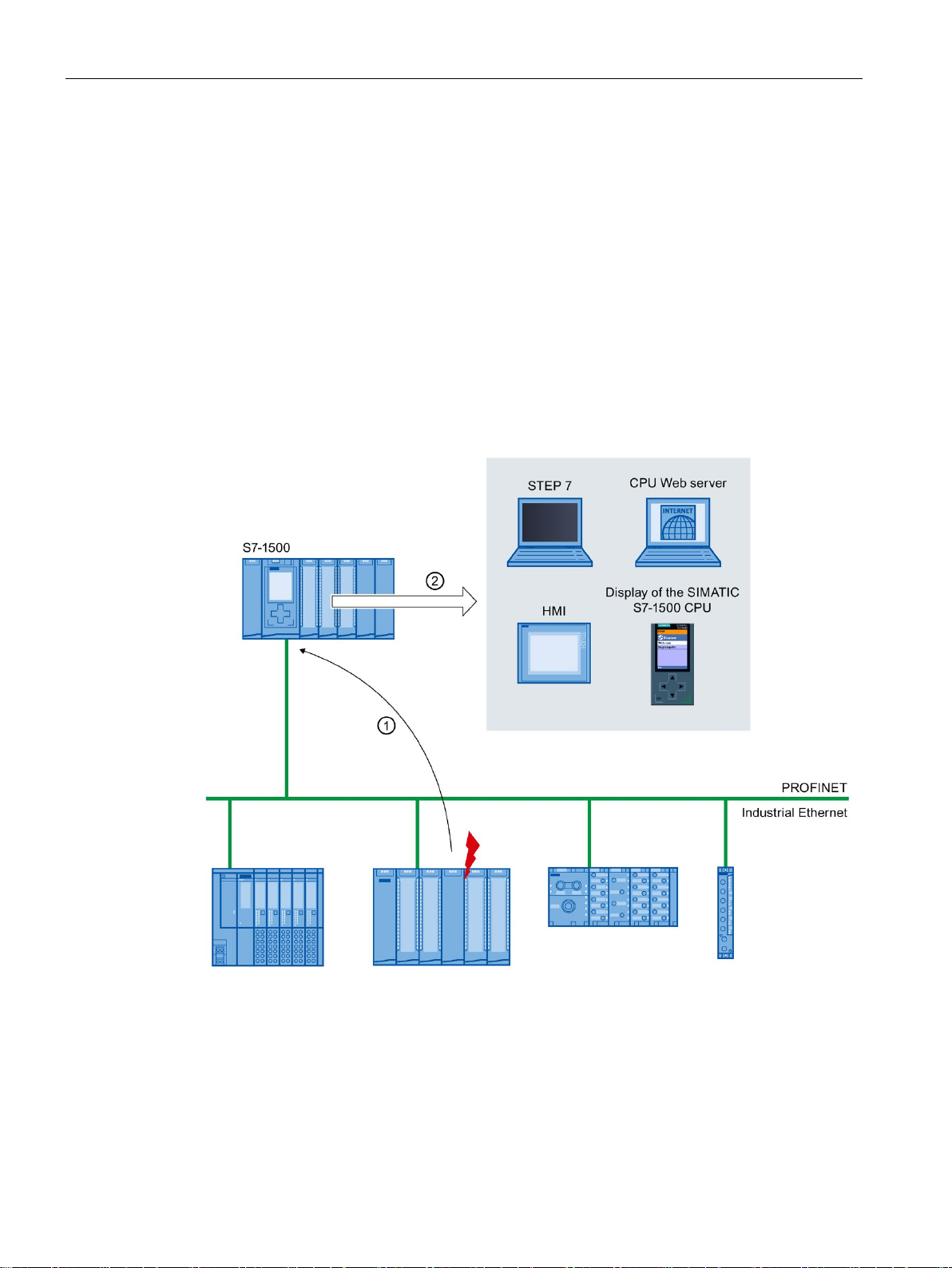

Figure 2-2 Sequence of the system diagnostics

Diagnostics
Function Manual, 11/2019, A5E03735838-AF 15
Quick start
3
Introduction
The following chapters of this documentation describe the different options for establishing
system diagnostics. All described options can be used independently of one another.
This chapter gives you an overview of the basic procedure to get initial diagnostics
information fast.
Note
System diagnostics is generally available for the devices of the SIMATIC series.

Quick start
3.1 Using the display of the CPU
Diagnostics
16 Function Manual, 11/2019, A5E03735838-AF
3.1 Using the display of the CPU
The display of the SIMATIC S7-1500 CPU offers a fast and direct option to get diagnostics
information. You can call up status information in different menus on the display.
Requirements
●A project has been created.
●The project has been downloaded to the CPU.
Determining diagnostics information using the display of the SIMATIC S7-1500 CPU
To determine diagnostics information using the display, follow these steps:
1. Select the "Diagnostics" menu on the display.
2. Select the "Diagnostics buffer" command from the "Diagnostics" menu.

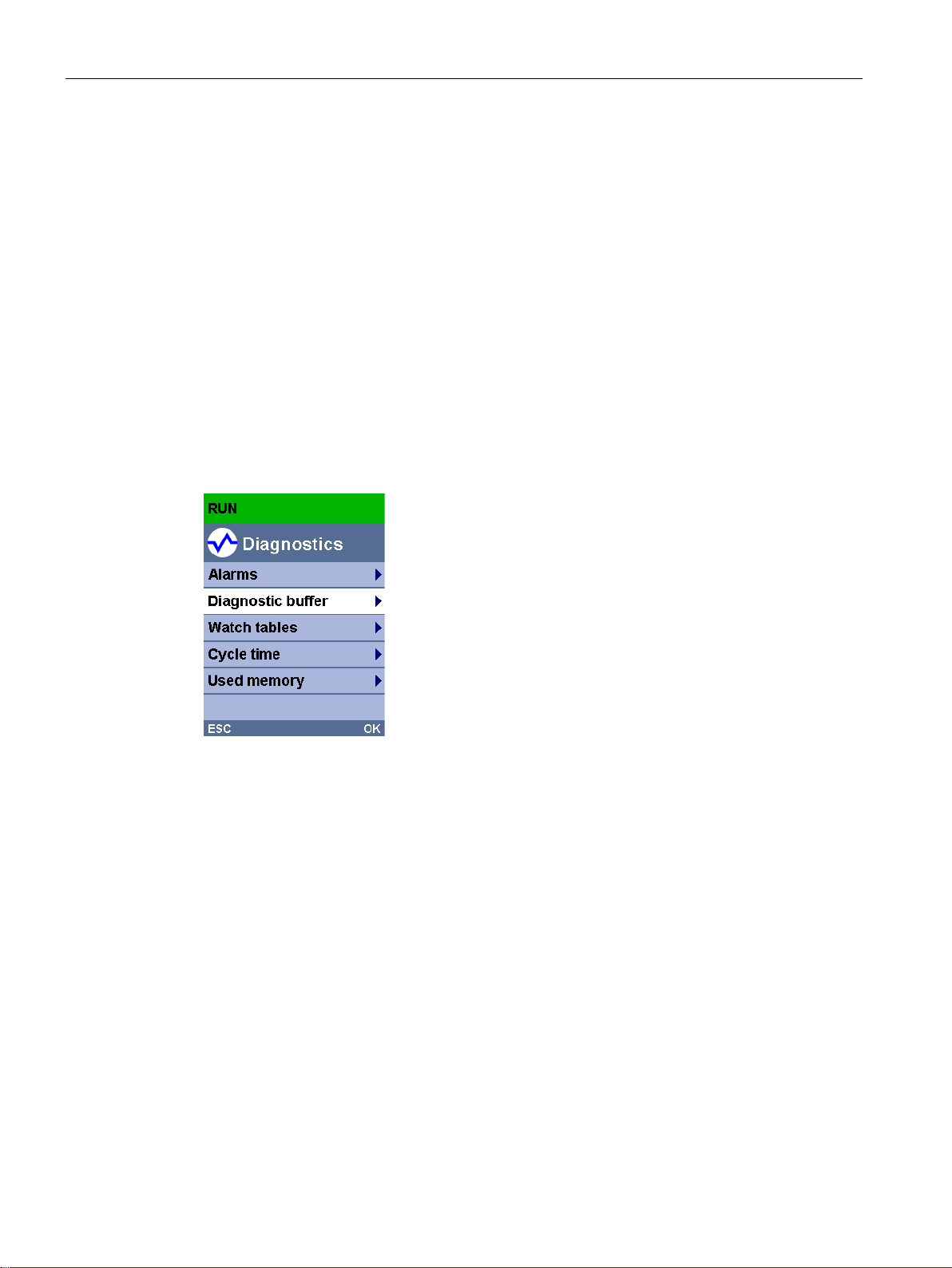

Figure 3-1 Display of SIMATIC S7-1500 CPU

Quick start
3.1 Using the display of the CPU
Diagnostics
Function Manual, 11/2019, A5E03735838-AF 17
Result
The diagnostics events are displayed in the diagnostics buffer in the sequence in which they
occur.

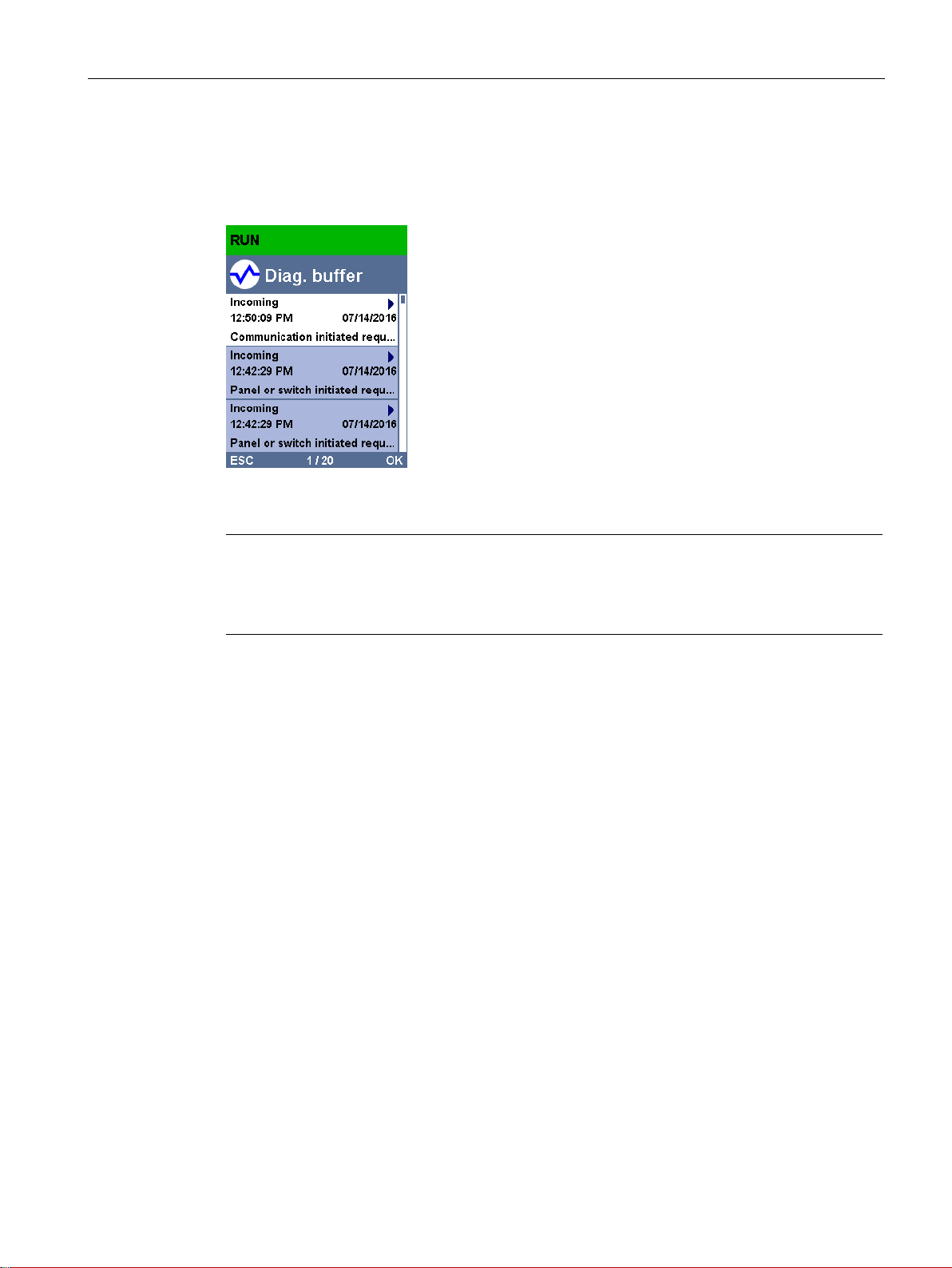

Figure 3-2 Display of the diagnostics buffer in the display of the SIMATIC S7-1500 CPU
Note
Automatic updating of diagnostics information
You set automatic up
dating of the diagnostics information under: "Display" >
"DiagnosticRefresh".
Additional information
You can find information about the configuration of alarms in the section Configuring alarms
for system diagnostics (Page 23).

Quick start
3.2 Using STEP 7
Diagnostics
18 Function Manual, 11/2019, A5E03735838-AF
3.2 Using STEP 7
Getting started with STEP 7 gives you fast access to detailed diagnostics information.
Requirements
●A project has been created.
●The project has been downloaded to the CPU.
●An error has occurred.
●The programming device must be able to establish a connection to the CPU via an
interface.
Determining diagnostics information using STEP 7
To determine diagnostics information using STEP 7, follow these steps:
1. Open the respective project in STEP 7.
2. Open the portal view of STEP 7.
3. Select the "Online & Diagnostics" portal.
4. Select the "Online status" action.
The "Select device" dialog opens. The dialog is an image of the configured devices in the
project.
Figure 3-3 Device selection for online connection in the portal view
5. Activate the "Go online" option button for the device that you want to use to establish an
online connection.
6. Click on the "Go online" button.

Quick start
3.2 Using STEP 7
Diagnostics
Function Manual, 11/2019, A5E03735838-AF 19
7. The "Go online" dialog opens.

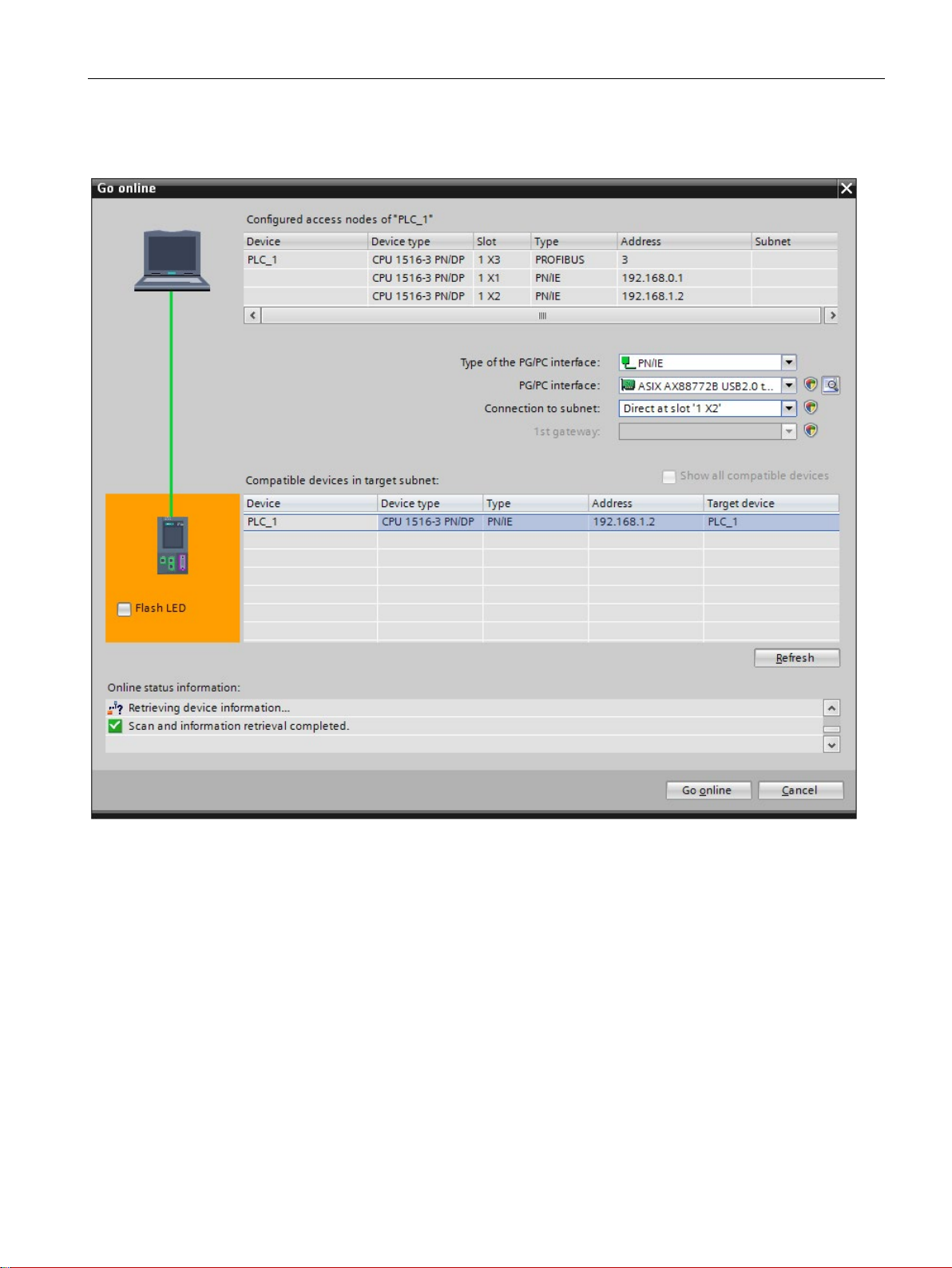

Figure 3-4 Establishing an online connection
8. Make the settings for the interface.
