Siemens SINAMICS G120P CU230P-2 Administrator guide

CU230P-2 Control Units
___________________
___________________
___________________
___________________
___________________
SINAMICS
SINAMICS G120P
CU230P-2 Control Units
Compact Operating Instructions
Edition 01/2016
01/2016
A5E37058917B AA
Fundamental safety
instructions
1
Scope of delivery
2
Installing
3
Commissioning
4
More information
5

Siemens AG
Division D
igital Factory
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E37058917B AA
Ⓟ
01/2016 Subject to change
Copyright © Siemens AG 2015 - 2016.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

CU230P-2 Control Units
Compact Operating Instructions, 01/2016, A5E37058917B AA 3
Table of contents
1 Fundamental safety instructions.............................................................................................................. 4
1.1 General safety instructions .......................................................................................................4
1.2 Industrial security ......................................................................................................................5
2 Scope of delivery .................................................................................................................................... 6
3 Installing ................................................................................................................................................. 7
3.1 Plugging the Control Unit onto the Power Module....................................................................7
3.2 Overview of the interfaces ......................................................................................................10
3.3 Terminal strips ........................................................................................................................12
3.4 Preassignment of the interfaces .............................................................................................16
4 Commissioning ..................................................................................................................................... 33
4.1 Tools to commission the converter .........................................................................................33
4.2 Commissioning with BOP-2 operator panel............................................................................34
4.2.1 Starting quick commissioning .................................................................................................34
4.2.2 Identifying the motor data and optimizing the closed-loop control .........................................38
4.3 Connecting the inverter to the fieldbus ...................................................................................39
4.3.1 PROFINET and PROFIBUS ...................................................................................................40
4.3.2 Modbus RTU...........................................................................................................................43
4.3.3 BACnet MS/TP........................................................................................................................44
4.4 Frequently required parameters .............................................................................................46
5 More information................................................................................................................................... 49
5.1 Overview of the manuals ........................................................................................................49
5.2 Technical support....................................................................................................................50
This manual describes how you install the CU230P-2 Control Unit of the SINAMICS G120P
inverter and commission it.
What is the meaning of the symbols in the manual?
Reference to further information in the manual
An operating instruction starts here.
This concludes the operating instruction.
Download from the Internet
DVD that can be ordered

CU230P-2 Control Units
4 Compact Operating Instructions, 01/2016, A5E37058917B AA
1
Fundamental safety instructions
1.1
General safety instructions
WARNING
Risk of death if the safety instructions and remaining risks are not carefully observed
If the safety instructions and residual risks are not observed in the associated hardware
documentation, accidents involving severe injuries or death can occur.
•Observe the safety instructions given in the hardware documentation.
•Consider the residual risks for the risk evaluation.
WARNING
Danger to life or malfunctions of the machine as a result of incorrect or changed
parameterization
As a result of incorrect or changed parameterization, machines can malfunction, which in
turn can lead to injuries or death.
•Protect the parameterization (parameter assignments) against unauthorized access.
•Respond to possible malfunctions by applying suitable measures (e.g. EMERGENCY
STOP or EMERGENCY OFF).

Fundamental safety instructions
1.2 Industrial security
CU230P-2 Control Units
Compact Operating Instructions, 01/2016, A5E37058917B AA 5
1.2
Industrial security
Note
Industrial security
Siemens provides products and solutions with industrial security
functions that support the
secure operation of plants, solutions, machines, equipment and/or networks. They are
important components in a holistic industrial security concept. With this in mind, Siemens’
products and solutions undergo continuous developme
nt. Siemens recommends strongly
that you regularly check for product updates.
For the secure operation of Siemens products and solutions, it is necessary to take suitable
preventive action (e.g. cell protection concept) and integrate each component into a
holistic,
state
-of-the-art industrial security concept. Third-party products that may be in use should
also be considered. For more information about industrial security, visit this address
(
http://www.siemens.com/industrialsecurity).
To stay informed about product updates as they occur, sign up for a product
-specific
newsletter. For more information, visit this address (
http://support.automation.siemens.com
).
WARNING
Danger as a result of unsafe operating states resulting from software manipulation
Software manipulation (e.g. by viruses, Trojan horses, malware, worms) can cause unsafe
operating states to develop in your installation which can result in death, severe injuries
and/or material damage.
•Keep the software up to date.
You will find relevant information and newsletters at this address
(http://support.automation.siemens.com).
•Incorporate the automation and drive components into a holistic, state-of-the-art
industrial security concept for the installation or machine.
You will find further information at this address
(http://www.siemens.com/industrialsecurity).
•Make sure that you include all installed products into the holistic industrial security
concept.

CU230P-2 Control Units
6 Compact Operating Instructions, 01/2016, A5E37058917B AA
2
Scope of delivery
The delivery comprises at least the following components:
●A CU230P-2 Control Unit ready for operation with installed firmware. Options for
upgrading and downgrading the firmware can be found on the Internet:
Firmware (http://support.automation.siemens.com/WW/news/en/67364620).
The fieldbus interface of the Control Unit depends on the Article No. The Article No., the
designation and the version of the hardware (e.g. 02) and firmware (e.g. 4.6) can be
found on the rating plate ①of the Control Unit.
Designation
Article number
Fieldbus
CU230P-2 HVAC 6SL3243-0BB30-1HA3 USS, Modbus RTU, BACnet
MS/TP, P1
CU230P-2 DP
6SL3243-0BB30-1PA3
PROFIBUS DP
CU230P-2 PN 6SL3243-0BB30-1FA0 PROFINET IO, EtherNet/IP
●Compact Operating Instructions in German and English
●The inverter contains open-source software (OSS). The OSS license terms are saved in
the inverter.
Reading the OSS license terms
The inverter contains open-source software (OSS). OSS comprises open source text and
satisfies special license terms. If you wish to read the license terms, you must transfer them
from the inverter to a PC.
Procedure
To transfer the OSS license terms from the inverter to a PC, proceed as follows:
1. Switch off the inverter power supply.
2. Insert an empty memory card into the card slot of the inverter.
Overview of the interfaces (Page 10)
3. Switch on the inverter power supply.
4. When you have switched on the power supply, wait 30 seconds.
During this time, the inverter writes the "Read_OSS.ZIP" file onto the memory card.
5. Switch off the inverter power supply.
6. Withdraw the memory card from the inverter.
7. Use a card reader and load the file to a PC.
You have then transferred the OSS license terms from the inverter to a PC, and you can now
read the license terms.

CU230P-2 Control Units
Compact Operating Instructions, 01/2016, A5E37058917B AA 7
Installing
3
3.1
Plugging the Control Unit onto the Power Module
Permissible Power Modules
You may operate the Control Unit with the following Power Modules:
•
PM230
•
PM240
•
PM240-2
•
PM250
•
PM260
•
PM330
Installing the Control Unit - General
Each Power Module has an appropriate holder for the Control Unit and a release
mechanism.
Inserting the Control Unit
Proceed as follows to plug the Control
Unit onto a Power Module:
1.
Place the two catches of the Control
Unit in the matching grooves of the
Power Module.
2.
Press the Control Unit onto the
Power Module until you hear that it
latches.
You have now plugged the Control Unit
onto the Power Module.
Removing the Control Unit
Remove the Control Unit from the Power Module by pressing the
release mechanism.

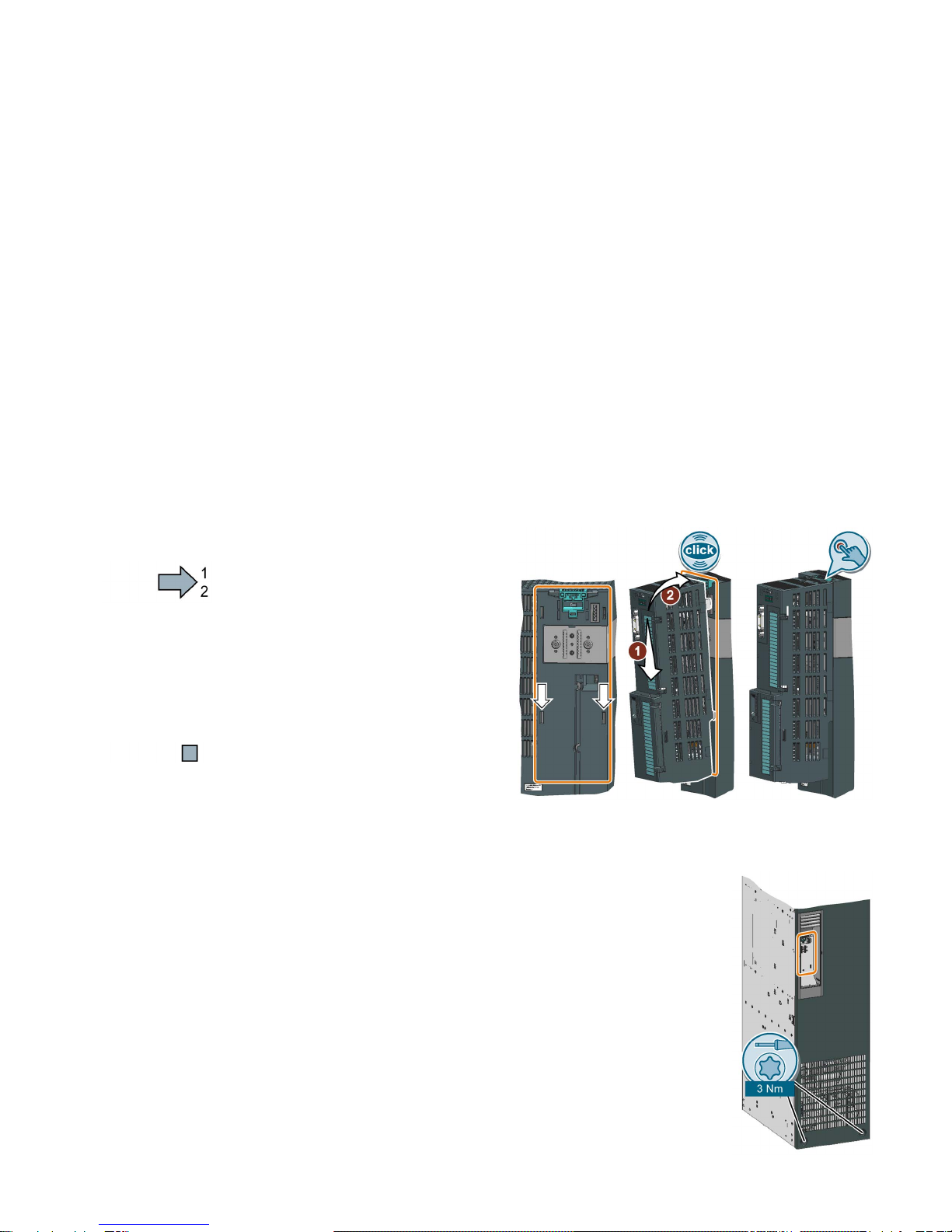

Special features for the PM240 FSGX Power Module
To insert or detach the Control Unit, you must release the two screws
at the front cover, slightly shif
t the front cover upwards and remove
towards the front.
Reattach the front cover before you commission the device.

Installing
3.1 Plugging the Control Unit onto the Power Module
CU230P-2 Control Units
8Compact Operating Instructions, 01/2016, A5E37058917B AA
Special features for the PM330 Power Module
To insert or detach the Control Unit, you must open the left
-
hand cover of the Power Module.
Close the cover before you commission the inverter.
Special features for the PM230 Power Module IP55, FSA … FSC
To insert or detach the Control Unit, you must
release eight or ten fixing screws of the cover
and then remove the cover.
The Power Module re
lease mechanism is
shown in the diagram.
Attach the cover again before you commission
the inverter. Do not damage the seal of the
cover when attaching it.
Special features for the PM230 Power Module IP55, FSD … FSF
To insert or detach the Control Unit, you must
open the front door of the Power Module.
Close the door before you commission the i
n-
verter. Check to ensure that the seals are not
damaged.

Installing
3.1 Plugging the Control Unit onto the Power Module
CU230P-2 Control Units
Compact Operating Instructions, 01/2016, A5E37058917B AA 9
Plugging on an operator panel
Procedure
To plug an Operator Panel on the Control Unit, proceed as follows:
1.
Locate the lower edge of the Operator Panel into the matching
recess of the Control Unit.
2.
Press the O
perator Panel onto the inverter until you hear the latching
mechanism engage.
You have plugged an operator panel onto the Control Unit.
The operator panel is ready for operation when you connect the inverter
to the power supply.
Mounting the operator panel or dummy cover on the IP55 Power Module
Note
For degree of protection IP55 and UL
-type 12, either an operator panel has to be inserted or
the dummy cover.
The Basic Operator Panel (BOP-2) and the Intelligent Operator Panel (IOP) are available as
operator panels.

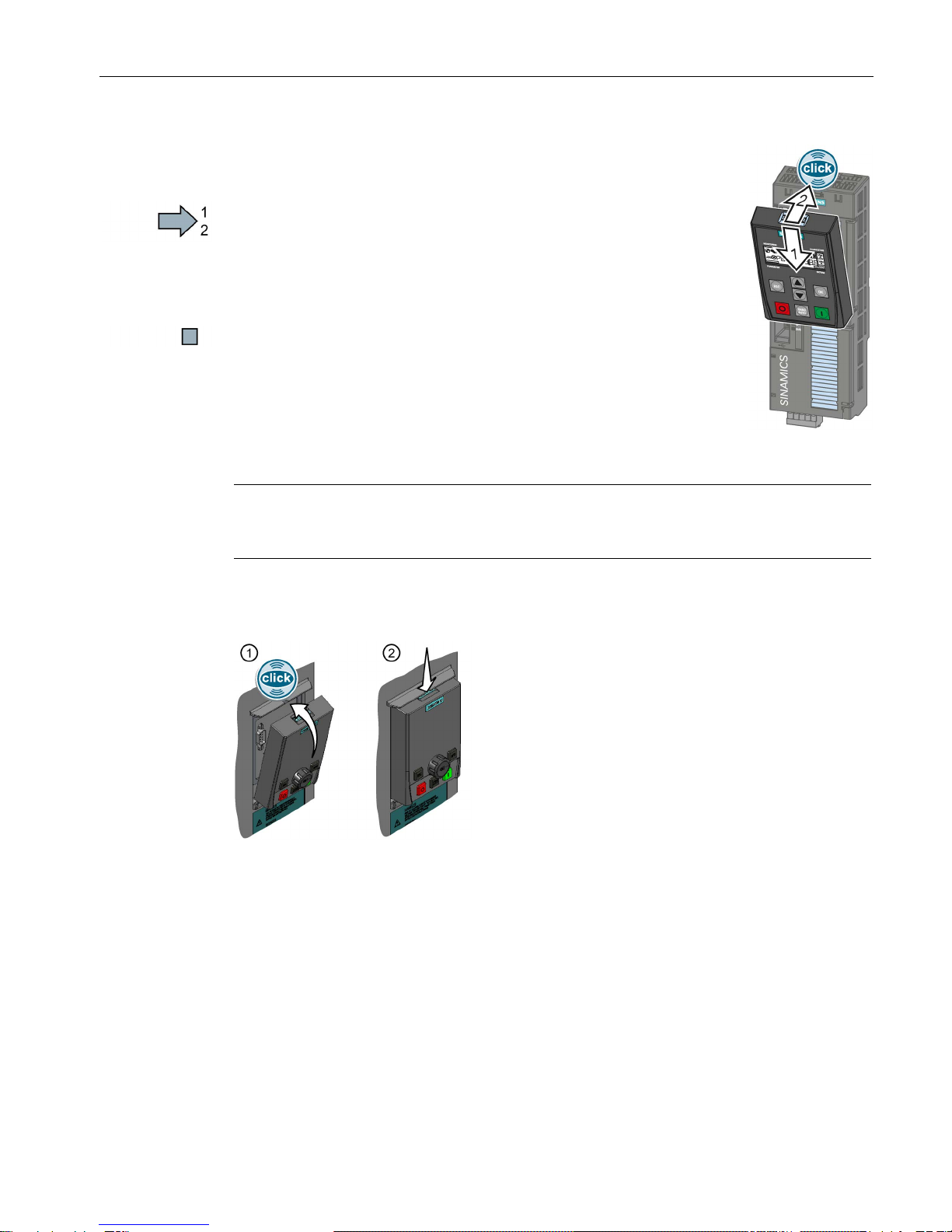

①
Plugging on an operator panel
: Press the operator
panel onto the inverter as shown until you hear it
engage.
②
Removing an operator panel:
Using a suitable
screwdriver, press the release element dow
n-
wards.
A dummy cover is plugged on and removed just the same as an operator panel.

Installing
3.2 Overview of the interfaces
CU230P-2 Control Units
10 Compact Operating Instructions, 01/2016, A5E37058917B AA
3.2
Overview of the interfaces
Interfaces at the front of the Control Unit
To access the interfaces at the front of the Control Unit, you must lift the Operator Panel (if
one is being used) and open the front doors.
①
Memory card slot
②
Selecting the fieldbus address:
•
CU230P-2 DP
•
CU230P-2 HVAC
•
CU230P-2 BT
③
Terminal strips
④
Fieldbus interfac
es at the lower side
⑤
Status LED
⑥
USB interface for connection to a PC
⑦
Switch for AI0 and AI1 (U/I)
•
I0/4 mA … 20 mA
•
U -10/0 V … 10 V
⑧
Switch for AI2
(current/temperature)
⑨
Connection to the operator panel
Table 3- 1 Number of inputs and outputs
Digital inputs DI
Digital outputs DO
Analog inputs AI
Analog outputs AO
Input for motor tem-
perature sensor
6
3
4
2
1

Installing
3.2 Overview of the interfaces
CU230P-2 Control Units
Compact Operating Instructions, 01/2016, A5E37058917B AA 11

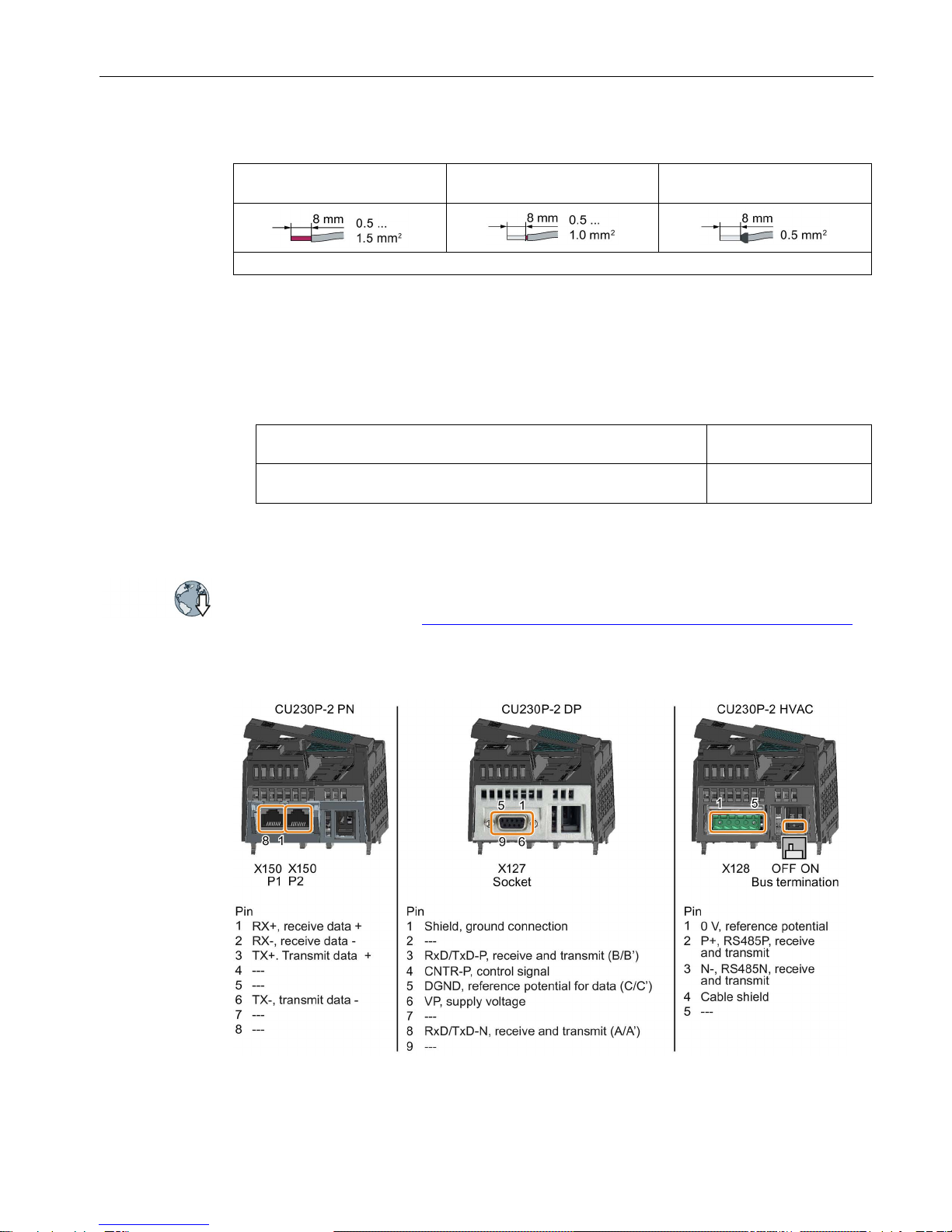

Permissible conductors and cross-sections
Solid or flexible conductors Finely stranded conductor with
non-insulated end sleeve
Finely stranded conductor with
partially insulated end sleeve
Cables with twin end sleeves are not permissible.
EMC-compliant wiring
Measures to ensure EMC-compliant wiring of the Control Unit:
●Use the shield connection kit of the Control Unit to connect the shield and provide strain
relief for cables/conductors.
Shield connection kit 1 for the CU230P-2 Control Units with all fieldbus
interfaces except for PROFINET.
6SL3264-1EA00-0FA0
Shield connection kit 3 for the CU230P-2 and CU240E-2 Control Units
with PROFINET interface.
6SL3264-1EA00-0HB0
●If you use shielded cables, then you must connect the shield to the mounting plate of the
control cabinet or with the shield support of the inverter through a good electrical
connection and a large surface area.
Additional information about EMC-compliant wiring is available on the Internet:
EMC installation guideline (http://support.automation.siemens.com/WW/view/en/60612658)
Interfaces at the lower side of the CU230P-2 Control Unit

Installing
3.3 Terminal strips
CU230P-2 Control Units
12 Compact Operating Instructions, 01/2016, A5E37058917B AA
3.3
Terminal strips
Terminal strips with wiring example
1)
The following applies to systems compliant with UL: Maximum current, 3 A 30 VDC or 2 A 250 VAC
All terminals labelled with reference potential "GND" are connected internally in the inverter.
Reference potential "DI COM" is electrically isolated from "GND". The Control Unit is delivered with a
jumper between terminals 28 and 69.
→ If, as shown above, you wish to use the 24-V supply from terminal 9 as supply for the digital inputs,
then it is mandatory that this jumper is used.
Terminals 31, 32 When an optional 24 V power supply is connected at terminals 31, 32, even when the Power Module is
dis
connected from the line supply, the Control Unit remains in operation. The Control Unit thus maintains
fieldbus communication, for example.
→ At terminals 31, 32, only connect a power supply that is in accordance with SELV (Safety Extra Low
Voltage) or PELV (Protective Extra Low Voltage).
→ If you also wish to use the power supply at terminals 31, 32 for the digital inputs, then you must con-
nect "DI COM" and "GND IN" with one another.
Terminals 3, 4
and 10, 11:
You may use the internal 10 V power supply or an external power supply for the analog inputs.
→ When you use the internal 10 V power supply, you must connect AI 0 or AI 1 with "GND".
Image 3-1 Wiring the digital inputs with p-switching contacts and an internal 24 V power supply (terminal 9)

Installing
3.3 Terminal strips
CU230P-2 Control Units
Compact Operating Instructions, 01/2016, A5E37058917B AA 13

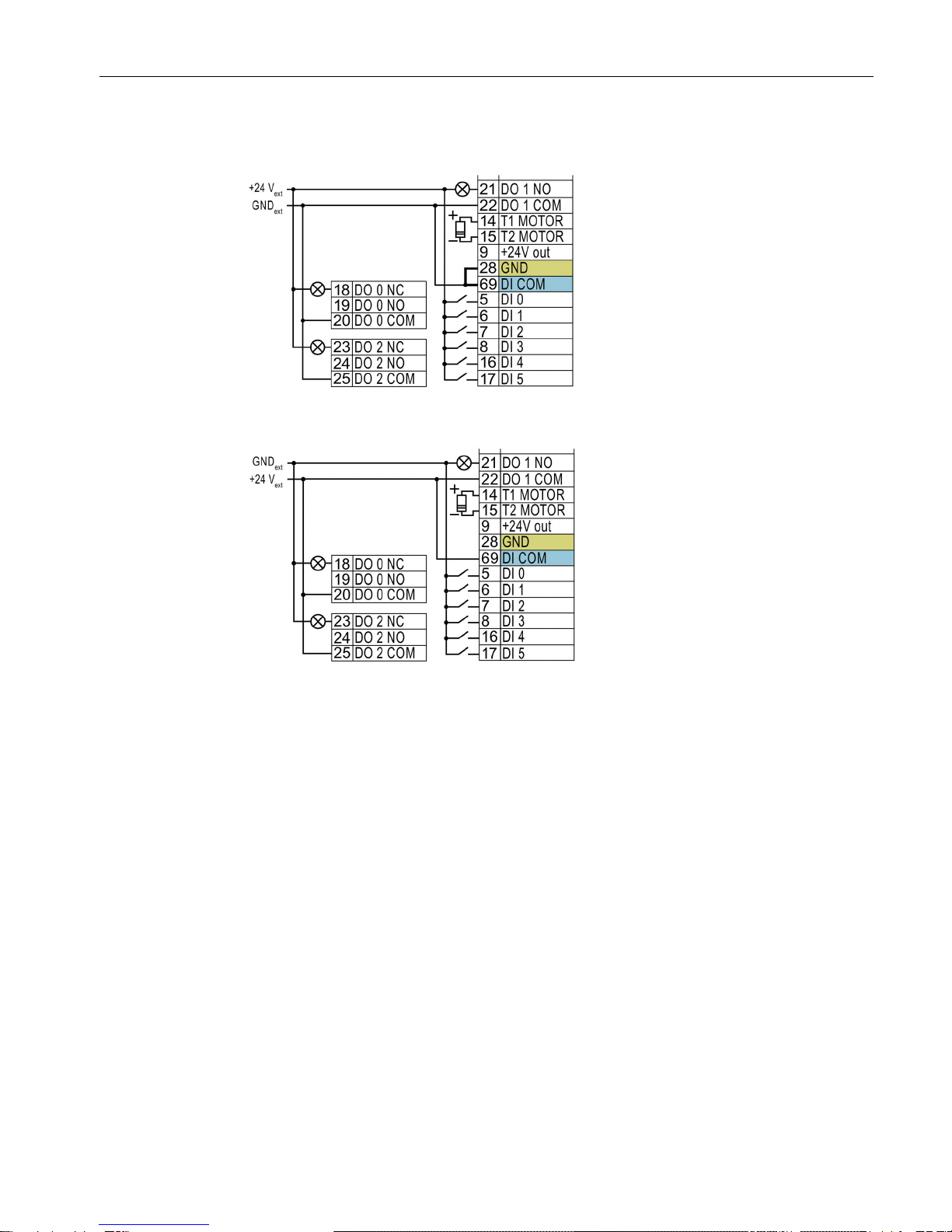

Additional options for wiring the digital inputs
Connecting P-switching contacts with an external
power supply
You must remove the jumper b
etween
terminals 28 and 69 if it is necessary to
have electrical isolation between the
external power supply and the internal
inverter power supply.
Connecting M-switching contacts with an external
power supply
Remove the jumper between term
inals
28 and 69.

Installing
3.3 Terminal strips
CU230P-2 Control Units
14 Compact Operating Instructions, 01/2016, A5E37058917B AA
Factory interface settings
The factory setting of the interfaces depends on the Control Unit.
Control Units with USS or CANopen interface
The fieldbus interface is not active.
--- No function.
DO x: p073x
AO 0: p0771[0]
DI x: r0722.x
AI 0: r0755[0]
Speed setpoint (main setpoint): p1070[0] = 755[0]
Image 3-2 Factory setting of the CU230P-2 HVAC and CU230P-2 CAN Control Units

Installing
3.3 Terminal strips
CU230P-2 Control Units
Compact Operating Instructions, 01/2016, A5E37058917B AA 15

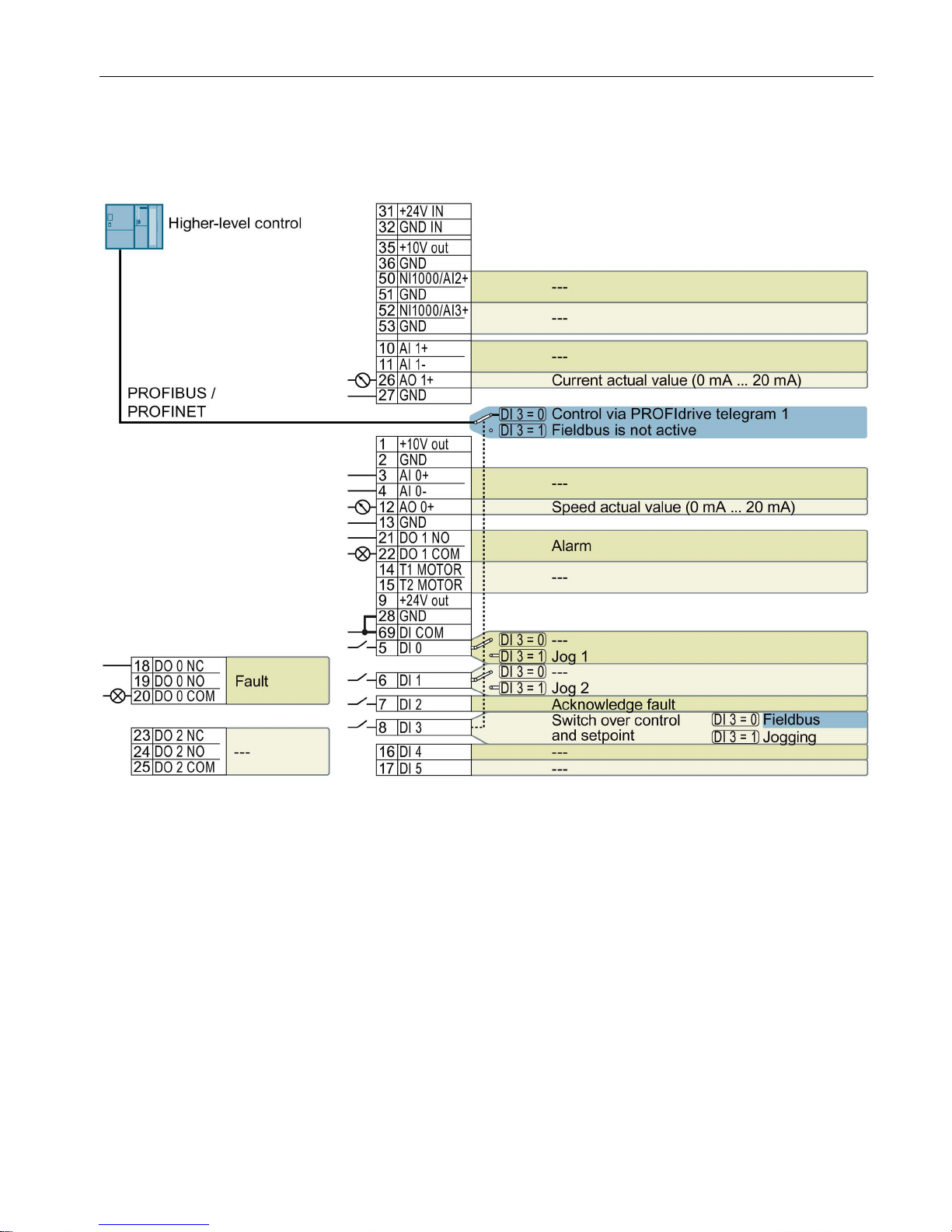

Control Units with PROFIBUS or PROFINET interface
The function of the fieldbus interface and digital inputs DI 0, DI 1 depends on DI 3.
--- No function.
DO x: p073x
AO 0: p0771[0]
DI x: r0722.x
Speed setpoint (main setpoint): p1070[0] = 2050[1]
Image 3-3 Factory setting of the CU230P-2 DP and CU230P-2 PN Control Units
Changing the function of the terminals
The function of the terminals marked in color in the two diagrams above, can be set.
In order not to have to successively change terminal for terminal, several terminals can be
jointly set using default settings ("p0015 Macro drive unit").
The terminal settings made in the factory described above correspond to the following
default settings:
●Default setting 12 (p0015 = 12): "Standard I/O with analog setpoint"
●Default setting 7 (p0015 = 7): "Fieldbus with data set switchover"

Installing
3.4 Preassignment of the interfaces
CU230P-2 Control Units
16 Compact Operating Instructions, 01/2016, A5E37058917B AA
3.4
Preassignment of the interfaces

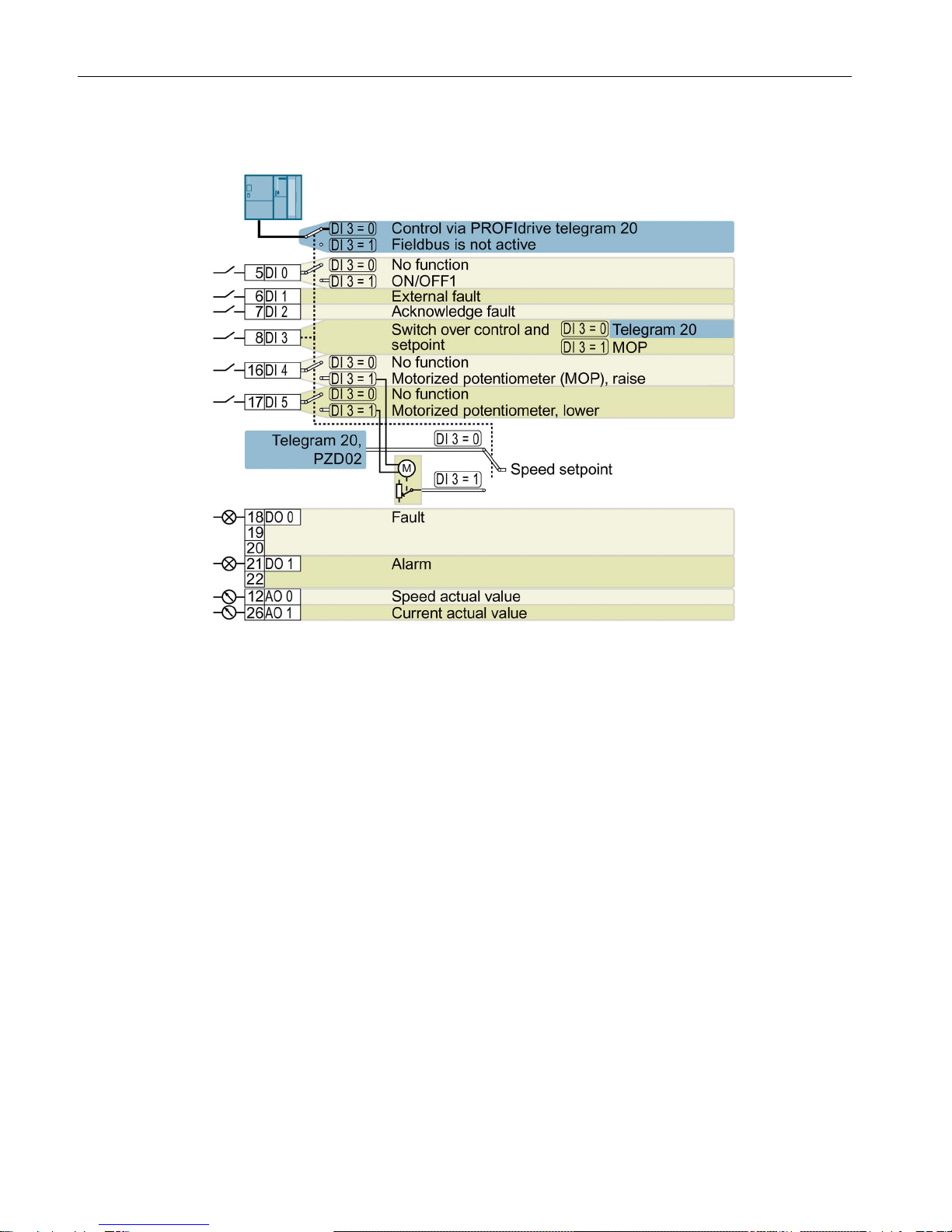

Default setting 7: "Fieldbus with data set switchover"
Factory setting for inverters with PROFIBUS or PROFINET interface
DO 0: p0730, DO 1: p0731
AO 0: p0771[0], AO 1: p0771[1]
DI 0: r0722.0, …, DI 3: r0722.3
Speed setpoint (main setpoint): p1070[0] = 2050[1]
Jog 1 speed setpoint: p1058, factory setting: 150 rpm
Jog 2 speed setpoint: p1059, factory setting: -150 rpm
Designation in BOP-2: FB cdS

Installing
3.4 Preassignment of the interfaces
CU230P-2 Control Units
Compact Operating Instructions, 01/2016, A5E37058917B AA 17

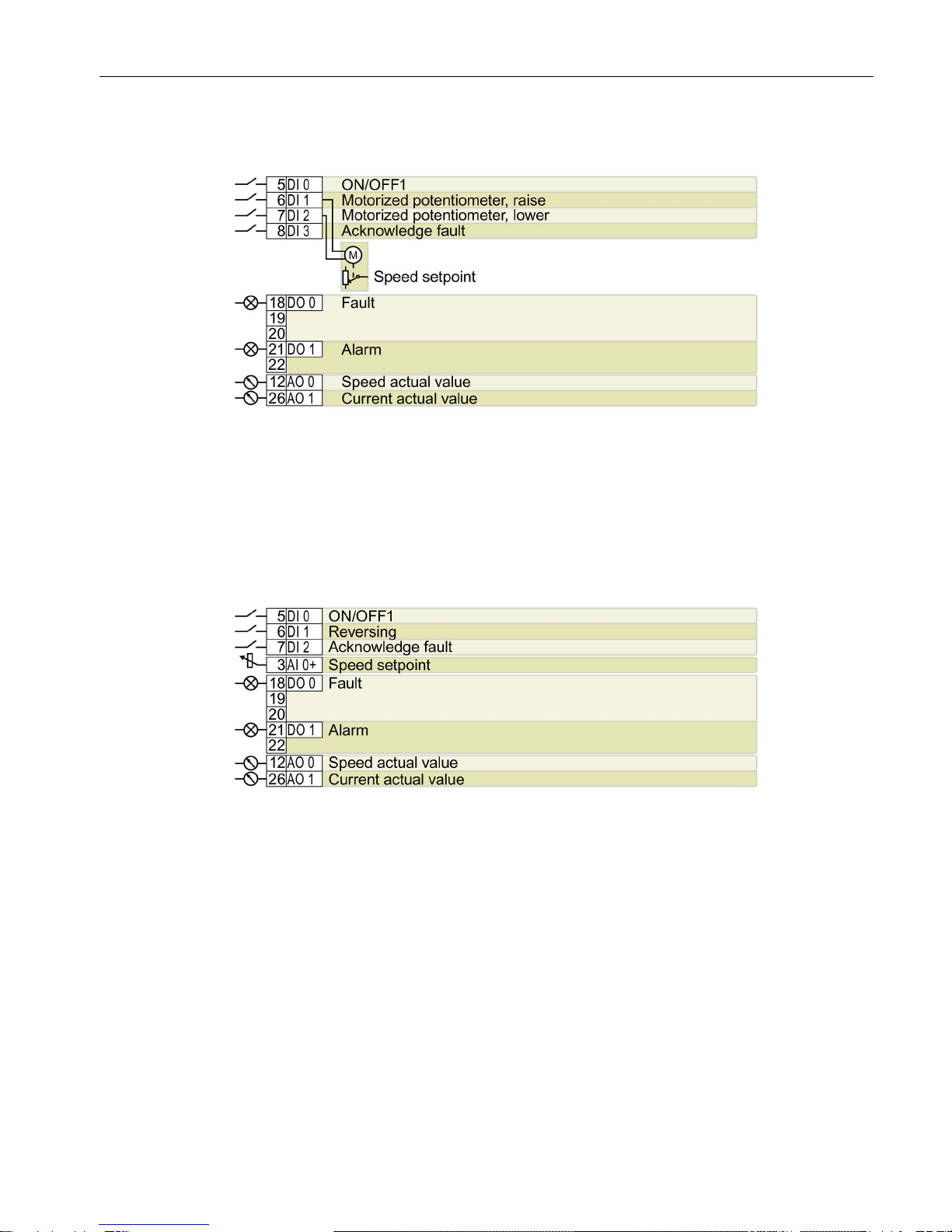

Default setting 9: "Standard I/O with MOP"
DO 0: p0730, DO 1: p0731
AO 0: p0771[0], AO 1: p0771[1]
DI 0: r0722.0, …, DI 3: r0722.3
Motorized potentiometer, setpoint after the ramp-function generator: r1050
Speed setpoint (main setpoint): p1070[0] = 1050
Designation in BOP-2: Std MoP
Default setting 12: "Standard I/O with analog setpoint"
Factory setting for inverters with USS, Modbus, BACnet, MS/TP or P1 interface
DO 0: p0730,
DO 1: p0731
AO 0: p0771[0], AO 1: p0771[1] DI 0: r0722.0, …, DI 2: r0722.2 AI 0: r0755[0]
Speed setpoint (main setpoint): p1070[0] = 755[0]
Designation in BOP-2: Std ASP

Installing
3.4 Preassignment of the interfaces
CU230P-2 Control Units
18 Compact Operating Instructions, 01/2016, A5E37058917B AA
Default setting 14: "Process industry with fieldbus"
DO 0: p0730, DO 1: p0731
AO 0: p0771[0], AO 1: p0771[1]
DI 0: r0722.0, …, DI 5: r0722.5
Motorized potentiometer, setpoint after the ramp-function generator: r1050
Speed setpoint (main setpoint): p1070[0] = 2050[1], p1070[1] = 1050
Designation in BOP-2: Proc Fb

Installing
3.4 Preassignment of the interfaces
CU230P-2 Control Units
Compact Operating Instructions, 01/2016, A5E37058917B AA 19

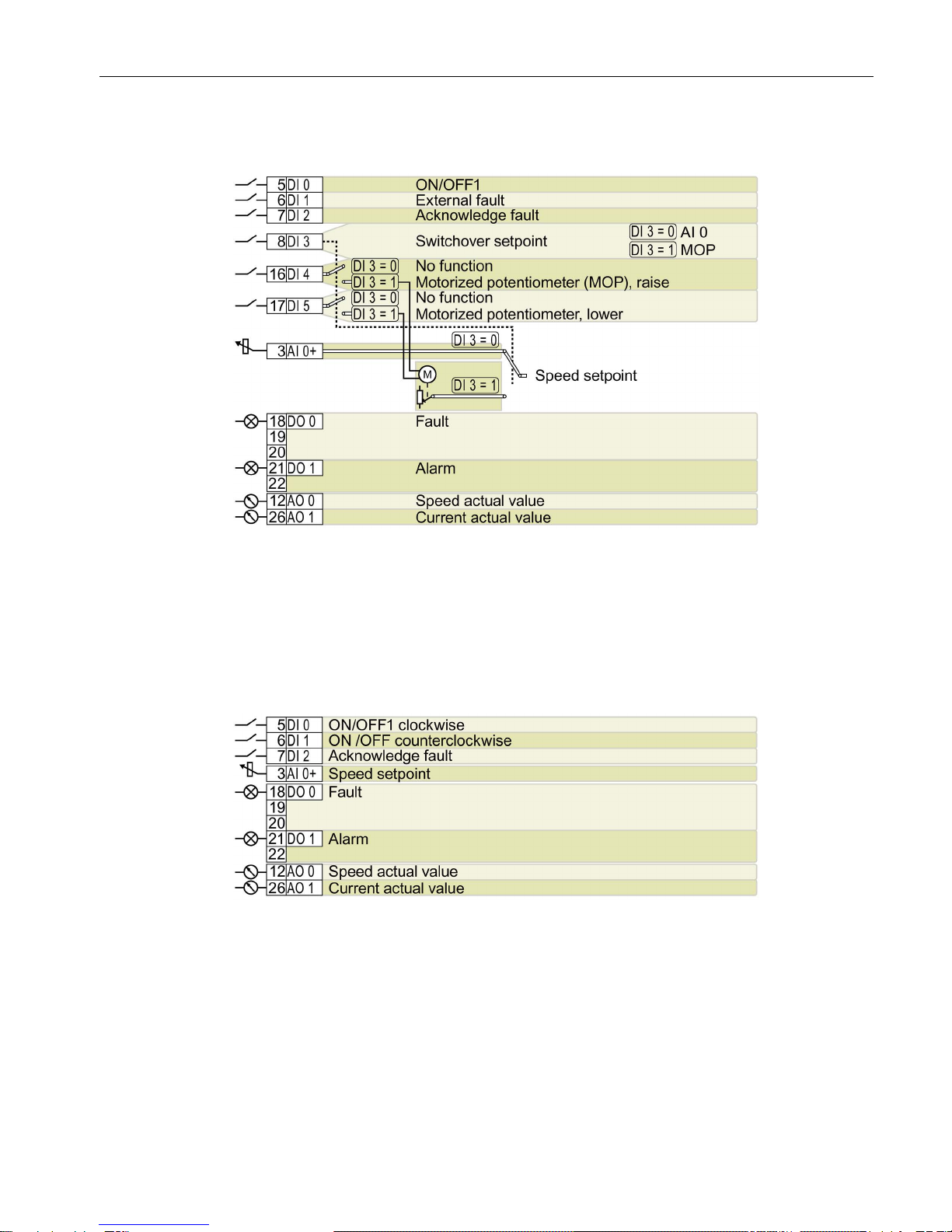

Default setting 15: "Process industry"
DO 0: p0730,
DO 1: p0731
AO 0: p0771[0], AO 1: p0771[1] DI 0: r0722.0, …, DI 5: r0722.5 AI 0: r0755[0]
Motorized potentiometer, setpoint after the ramp-function generator: r1050
Speed setpoint (main setpoint): p1070[0] = 755[0], p1070[1] = 1050
Designation in BOP-2: Proc
Default setting 17: "2-wire (forward/backward 1)"
DO 0: p0730,
DO 1: p0731
AO 0: p0771[0], AO 1: p0771[1] DI 0: r0722.0, …, DI 2: r0722.2 AI 0: r0755[0]
Speed setpoint (main setpoint): p1070[0] = 755[0]
Designation in BOP-2: 2-wIrE 1

Installing
3.4 Preassignment of the interfaces
CU230P-2 Control Units
20 Compact Operating Instructions, 01/2016, A5E37058917B AA
Default setting 18: "2-wire (forward/backward 2)"
DO 0: p0730,
DO 1: p0731
AO 0: p0771[0], AO 1: p0771[1] DI 0: r0722.0, …, DI 2: r0722.2 AI 0: r0755[0]
Speed setpoint (main setpoint): p1070[0] = 755[0]
Designation in BOP-2: 2-wIrE 2
Default setting 19: "3-wire (enable/forward/backward)"
DO 0: p0730,
DO 1: p0731
AO 0: p0771[0], AO 1: p0771[1] DI 0: r0722.0, …, DI 4: r0722.4 AI 0: r0755[0]
Speed setpoint (main setpoint): p1070[0] = 755[0]
Designation in BOP-2: 3-wIrE 1
Default setting 20: "3-wire (enable/on/reverse)"
DO 0: p0730,
DO 1: p0731
AO 0: p0771[0], AO 1: p0771[1] DI 0: r0722.0, …, DI 4: r0722.4 AI 0: r0755[0]
Speed setpoint (main setpoint): p1070[0] = 755[0]
Designation in BOP-2: 3-wIrE 2
