Line reactors
Operating Instructions, 03/2013, A5E00331462A 3
Table of contents
1 Safety information...................................................................................................................................... 5
1.1 Warnings........................................................................................................................................5
1.2 Safety and application instructions ................................................................................................6
2 General...................................................................................................................................................... 7
3 Mechanical installation............................................................................................................................... 9
4 Electrical installation ................................................................................................................................ 13
5 Technical specifications........................................................................................................................... 15

Table of contents
Line reactors
4 Operating Instructions, 03/2013, A5E00331462A

Line reactors
Operating Instructions, 03/2013, A5E00331462A 5
Safety information 1
1.1 Warnings
WARNING
Dangerous electrical voltage
Hazardous voltages are present when electrical equipment is in operation.
Severe personal injury or substantial material damage may result if these warnings are not
observed.
Only qualified personnel are permitted to work on or around the equipment.
These personnel must be thoroughly familiar with all the warnings and maintenance
procedures described in these operating instructions.
The successful and safe operation of this device is dependent on correct transport, proper
storage and installation, as well as careful operation and maintenance.
National safety guidelines must be observed.
DANGER
Five safety rules
When carrying out any kind of work on electrical devices, the "five safety rules" according to
EN 50110 must always be observed:
1. Disconnect the system.
2. Protect against reconnection.
3. Make sure that the equipment is de-energized.
4. Ground and short-circuit.
5. Cover or enclose adjacent components that are still live.
Note
Use of copper cables for a UL-approved system
For a UL-approved system use 60/75°C copper conductors only.

Safety information
1.2 Safety and application instructions
Line reactors
6 Operating Instructions, 03/2013, A5E00331462A
1.2 Safety and application instructions
DANGER
Dangerous electrical voltage
This equipment is used in industrial high-voltage installations. During operation, this
equipment contains live, bare parts. For this reason, they could cause severe injury or
significant material damage if the required covers are removed, if they are used or operated
incorrectly, or have not been properly maintained.
When the machines are used in non-industrial areas, the installation location must be
protected against unauthorized access (protective fencing, appropriate signs).
Preconditions
The persons responsible for the safety of the plant must ensure that the following conditions
are met:
● Basic planning work for the system and all work relating to transportation, assembly,
installation, commissioning, maintenance and repairs is carried out by qualified personnel
and checked by responsible, suitably skilled personnel.
● The Operating Instructions and machine documentation are always available.
● The technical specifications regarding the applicable installation, connection,
environmental, and operating conditions are always observed.
● The plant-specific assembly and safety guidelines are observed and personal protection
equipment is used.
● Unqualified personnel are forbidden from using these machines and working near them.
These Operating Instructions are intended for qualified personnel and only contain
information and notes relating to the intended purpose of the machines.
The Operating Instructions and machine documentation are written in different languages as
specified in the delivery contracts.
Note
Support by SIEMENS service centers
We recommend engaging the support and services of your local Siemens service center for
all planning, installation, commissioning and maintenance work.

Line reactors
Operating Instructions, 03/2013, A5E00331462A 7
General 2
Description
Line reactors limit low-frequency line-side harmonics to permissible values.
NOTICE
Maintain ventilation clearances
The 100 mm cooling clearances above and to the side of the components must be
observed.
Note
Cable lengths
The connecting cables to the Power Module must be kept as short as possible.
NOTICE
Use only approved line reactors
When using line reactors that have not been approved by SIEMENS for SINAMICS, the
following can occur:
The Power Modules could be damaged/destroyed.
Line harmonics may interfere with or damage other loads connected to the same line
supply.
CAUTION
Hot surfaces
The surface temperature of the line reactors may exceed 80 °C.
NOTICE
Component cooling
Provisions for component cooling must be made at the installation site. Power loss data is
given in the technical specifications.

General
Line reactors
8 Operating Instructions, 03/2013, A5E00331462A
Assignment of line reactor and Power Module
Table 2- 1 Assignment of line reactor and Power Module
Power Module Unit rating of the Power Module Suitable line reactor
Line voltage 380 – 480 V 3 AC
6SL3310-1GE32-1AAx 110 kW 6SL3000-0CE32-3AA0
6SL3310-1GE32-6AAx 132 kW 6SL3000-0CE32-8AA0
6SL3310-1GE33-1AAx 160 kW 6SL3000-0CE33-3AA0
6SL3310-1GE33-8AAx 200 kW 6SL3000-0CE35-1AA0
6SL3310-1GE35-0AAx 250 kW 6SL3000-0CE35-1AA0
6SL3310-1GE36-1AAx 315 kW 6SL3000-0CE36-3AA0
6SL3310-1GE37-5AAx 400 kW 6SL3000-0CE37-7AA0
6SL3310-1GE38-4AAx 450 kW 6SL3000-0CE38-7AA0
6SL3310-1GE41-0AAx 560 kW 6SL3000-0CE41-0AA0
Line voltage 500 – 600 V 3 AC
6SL3310-1GF31-8AAx 110 kW 6SL3000-0CH32-2AA0
6SL3310-1GF32-2AAx 132 kW 6SL3000-0CH32-2AA0
6SL3310-1GF32-6AAx 160 kW 6SL3000-0CH32-7AA0
6SL3310-1GF33-3AAx 200 kW 6SL3000-0CH33-4AA0
6SL3310-1GF34-1AAx 250 kW 6SL3000-0CH34-8AA0
6SL3310-1GF34-7AAx 315 kW 6SL3000-0CH34-8AA0
6SL3310-1GF35-8AAx 400 kW 6SL3000-0CH36-0AA0
6SL3310-1GF37-4AAx 500 kW 6SL3000-0CH38-4AA0
6SL3310-1GF38-1AAx 560 kW 6SL3000-0CH38-4AA0
Line voltage 660 – 690 V 3 AC
6SL3310-1GH28-5AAx 85 kW 6SL3000-0CH31-1AA0
6SL3310-1GH31-0AAx 90 kW 6SL3000-0CH31-1AA0
6SL3310-1GH31-2AAx 110 kW 6SL3000-0CH31-6AA0
6SL3310-1GH31-5AAx 132 kW 6SL3000-0CH31-6AA0
6SL3310-1GH31-8AAx 160 kW 6SL3000-0CH32-2AA0
6SL3310-1GH32-2AAx 200 kW 6SL3000-0CH32-2AA0
6SL3310-1GH32-6AAx 250 kW 6SL3000-0CH32-7AA0
6SL3310-1GH33-3AAx 315 kW 6SL3000-0CH33-4AA0
6SL3310-1GH34-1AAx 400 kW 6SL3000-0CH34-8AA0
6SL3310-1GH34-7AAx 450 kW 6SL3000-0CH34-8AA0
6SL3310-1GH35-8AAx 560 kW 6SL3000-0CH36-0AA0
6SL3310-1GH37-4AAx 710 kW 6SL3000-0CH38-4AA0
6SL3310-1GH38-1AAx 800 kW 6SL3000-0CH38-4AA0

Line reactors
Operating Instructions, 03/2013, A5E00331462A 9
Mechanical installation 3
Dimension drawing
0RXQWLQJKROH
KK
D
Q
Q
Q
K
Q
Q
G
O O
O
Q
D
D
D
D
8 9 :
8 9 :

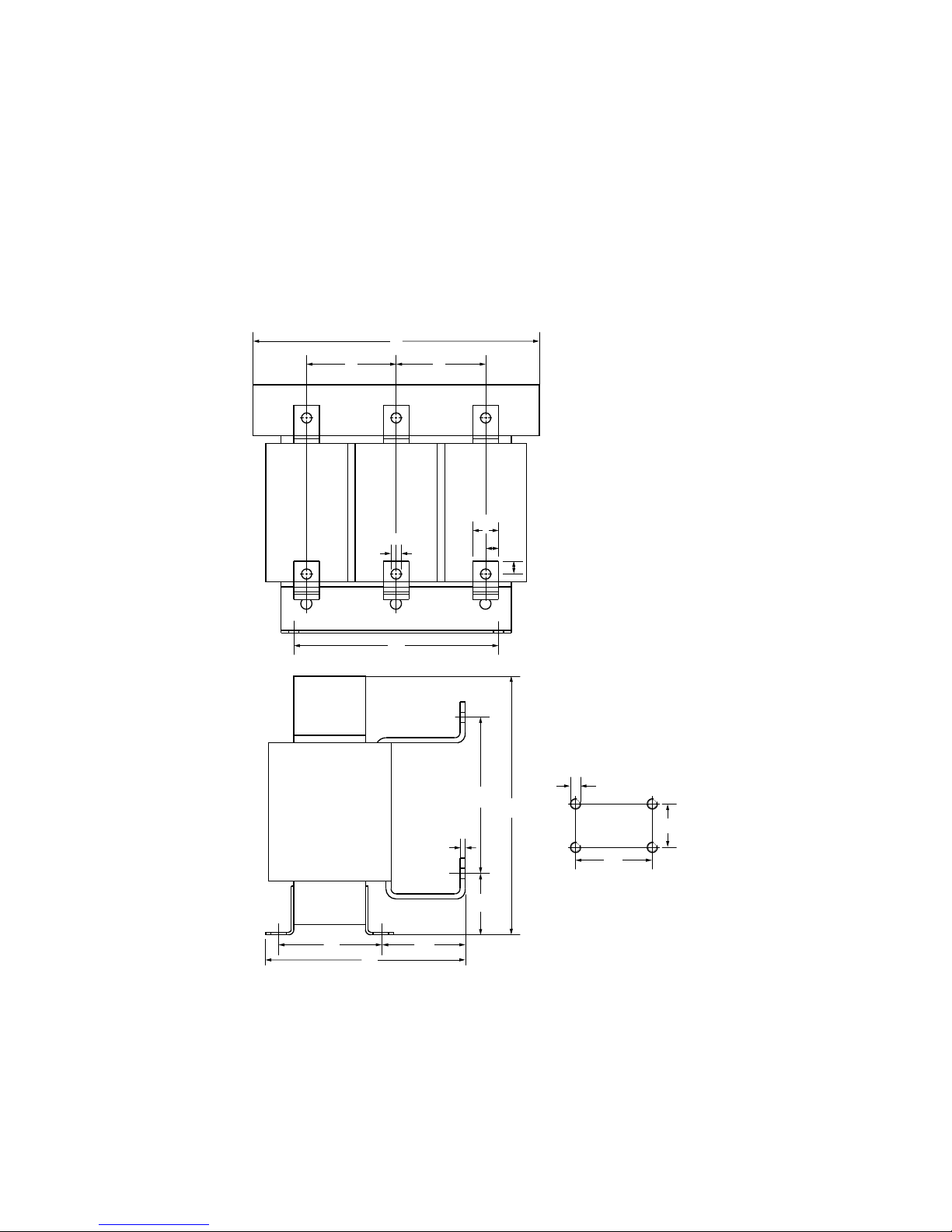

Figure 3-1 Dimension drawing of line reactor

Mechanical installation
Line reactors
10 Operating Instructions, 03/2013, A5E00331462A
Table 3- 1 Dimensions of line reactor, 380 V – 480 V 3 AC (all values in mm)
6SL3000- 0CE32-3AA0
0CE32-8AA0
0CE33-3AA0
0CE35-1AA0
0CE36-3AA0
0CE37-7AA0
0CE38-7AA0 0CE41-0AA0
a2 25 30 40 50
a3 5 6 8 8
a4 12.5 15 20 25
a5 11 14 14 14
I4 270 300 350 350
I5 88 100 120 120
h1 - - 392 397
h2 150 180 252 252
h3 60 60 120 120
h4 248 269 321 321
n1 1) 101 118 138 138
n2 1) 200 224 264 264
n3 200 212.5 211.5 211.5
n4 84.5 81 60 60
d3 M8 M8 M8 M8
1) Lengths n1 and n2 correspond to the drill hole spacing
Table 3- 2 Dimensions of line reactor, 500 V – 600 V 3 AC (all values in mm)
6SL3000- 0CH32-2AA0
0CH32-7AA0
0CH33-4AA0
0CH34-8AA0
0CH36-0AA0
0CH38-4AA0
a2 25 30 40
a3 5 6 8
a4 12.5 15 20
a5 11 14 14
I4 270 350 410
I5 88 120 135
h1 - - 392
h2 150 198 252
h3 60 75 120
h4 248 321 385
n1 1) 101 138 141
n2 1) 200 264 316
n3 200 232.5 224
n4 84.5 81 56.5
d3 M8 M8 M10
1) Lengths n1 and n2 correspond to the drill hole spacing

Mechanical installation
Line reactors
Operating Instructions, 03/2013, A5E00331462A 11
Table 3- 3 Dimensions of line reactor, 660 V – 690 V 3 AC (all values in mm)
6SL3000- 0CH31-1AA0
0CH31-6AA0
0CH32-2AA0
0CH32-7AA0
0CH33-4AA0
0CH34-8AA0
0CH36-0AA0
0CH38-4AA0
a2 25 30 40
a3 5 6 8
a4 12.5 15 20
a5 11 14 14
l4 270 350 410
l5 88 120 135
h1 - - 392
h2 150 198 252
h3 60 75 120
h4 248 321 385
n1 1) 101 138 141
n2 1) 200 264 316
n3 200 232.5 224
n4 84.5 81 56.5
d3 M8 M8 M10
1) Lengths n1 and n2 correspond to the drill hole spacing

Mechanical installation
Line reactors
12 Operating Instructions, 03/2013, A5E00331462A

Line reactors
Operating Instructions, 03/2013, A5E00331462A 13
Electrical installation 4
Important safety precautions
WARNING
Dangerous electrical voltage
The devices are operated with high voltages.
All connection work must be carried out when the cabinet is de-energized.
All work on the device must be carried out by trained personnel only.
Non-observance of these warnings can result in death, serious personal injury, or
substantial property damage.
Work on an open device must be carried out with extreme caution because external supply
voltages may be present. The power and control terminals may be live even when the
motor is not running.
Dangerously high voltage levels are still present in the cabinet up to five minutes after it has
been disconnected due to the DC link capacitors on the Power Module. For this reason, the
cabinet should not be opened until a reasonable period of time has elapsed.
The operator is responsible for ensuring that the line reactor and other components are
installed and connected in accordance with the recognized technical rules in the country of
installation and applicable regional guidelines. Special attention should be paid to cable
dimensioning, fuses, grounding, shutdown, disconnection, and overcurrent protection.
If an item of protective gear trips in a branch circuit, a leakage current may have been
disconnected. To reduce the risk of fire or an electric shock, the current-carrying parts and
other components in the cabinet unit should be inspected and damaged parts replaced.
When an item of protective gear trips, the cause of the trip must be identified and rectified.

Electrical installation
Line reactors
14 Operating Instructions, 03/2013, A5E00331462A
Connection
When connecting the line filter and line reactor, you must take into account the following
conditions to ensure that they function correctly:
● Use shielded control cables. The shield must be connected at both ends.
● With analog control cables, connecting the shield at both ends can result in coupled-in
noise. To prevent this, the shield must only be connected at one end on the Power
Module.
● Control cables must be routed separately from power cables. Power cables are motor
cables or connecting cables from the DC link of the Power Module (terminals
DCPA/DCNA) to other components (e.g. Braking Module). In particular, you must ensure
that control cables and power cables are not routed in parallel in a joint cable raceway,
even if all the cables are shielded.
● You must use shielded motor cables. The shield for the motor cable must be attached to
the shield plate and motor housing.
● The ground wire for the motor must be fed directly back to the Power Module.
Connection overview
1U1
1V 1
1W1
1U2
1V2
1W 2
U2
V2
W2
PE2
U1
V1
W1
PE1
L1
L2
L3
PE
L1'
L2'
L3'
PE'
/LQHUHDFWRUV 3RZHU0RGXOH
0DLQV
V\VWHP
0DLQV
V\VWHP
/RDG
0RXQWLQJSODWH
/LQHILOWHU
0RWRU
Figure 4-1 Connecting the line filter, line reactor, and Power Module

Line reactors
Operating Instructions, 03/2013, A5E00331462A 15
Technical specifications 5
General technical data
Table 5- 1 General technical data
Line frequency 47 to 63 Hz
Product standard EN 61800-5-1
Ambient conditions Storage Transport Operation
Ambient temperature -25 to +70 °C -25 to +70 °C 0 to +50 °C
Relative air humidity 1)
(condensation not
permissible) corresponds to
class
5 to 95 %
1K4 acc. to EN 60721-3-1
5 to 95% at 40 °C
2K3 to EN 60721-3-2
5 to 95%
3K3 to EN 60721-3-3
Mechanical strength Storage Transport Operation
Vibrational load 1)
- Displacement
- Acceleration
corresponds to class
1.5 mm at 5 ... 9 Hz
5 m/s² at > 9 ... 200 Hz
1M2 to EN 60721-3-1
3.5 mm at 5 ... 9 Hz
10 m/s² at > 9 ... 200 Hz
2M2 to EN 60721-3-2
0.075 mm at 10 ... 58 Hz
10 m/s² at >58 ... 200 Hz
-
Shock load 1)
- Acceleration
corresponds to class
40 m/s² at 22 ms
1M2 to EN 60721-3-1
100 m/s² at 11 ms
2M2 to EN 60721-3-2
100 m/s² at 11 ms
3M4 to EN 60721-3-3
Deviations from the specified classes are shown in italics .
1) The EN standards specified are the European editions of the international IEC standards
with the same designations.

Technical specifications
Line reactors
16 Operating Instructions, 03/2013, A5E00331462A
Detailed technical data
Table 5- 2 Technical data of line reactors, 380 V – 480 V 3 AC, part 1
Order number 6SL3000- 0CE32-3AA0 0CE32-8AA0 0CE33-3AA0 0CE35-1AA0
Suitable for Power Module 6SL3310- 1GE32-1AAx 1GE32-6AAx 1GE33-1AAx 1GE33-8AAx
Type rating of the Power Module kW 110 132 160 200
Rated voltage V 3 AC 380 –10% to 3 AC 480 +10% (-15% < 1 min)
Ithmax A 224 278 331 508
Power loss kW 0.274 0.247 0.267 0.365
Line/load connection
1U1, 1V1, 1W1, 1U2, 1V2, 1W2
M10 connecting
lugs
M10 connecting
lugs
M10 connecting
lugs
M12 connecting
lugs
Degree of protection IP00 IP00 IP00 IP00
Dimensions
Width
Height
Depth
mm
mm
mm
270
248
200
270
248
200
270
248
200
300
269
212.5
Weight kg 24.5 26.0 27.8 38.0
Table 5- 3 Technical data of line reactors, 380 V – 480 V 3 AC, part 2
Order number 6SL3000- 0CE35-1AA0 0CE36-3AA0 0CE37-7AA0 0CE38-7AA0
Suitable for Power Module 6SL3310- 1GE35-0AAx 1GE36-1AAx 1GE37-5AAx 1GE38-4AAx
Type rating of the Power Module kW 250 315 400 450
Rated voltage V 3 AC 380 –10% to 3 AC 480 +10% (-15% < 1 min)
Ithmax A 508 628 773 871
Power loss kW 0.365 0.368 0.351 0.458
Line/load connection
1U1, 1V1, 1W1, 1U2, 1V2, 1W2
M12 connecting
lugs
M12 connecting
lugs
M12 connecting
lugs
M12 connecting
lugs
Degree of protection IP00 IP00 IP00 IP00
Dimensions
Width
Height
Depth
mm
mm
mm
300
269
212.5
300
269
212.5
300
269
212.5
350
321
211.5
Weight kg 38.0 41.4 51.3 63.2

Technical specifications
Line reactors
Operating Instructions, 03/2013, A5E00331462A 17
Table 5- 4 Technical data of line reactors, 380 V – 480 V 3 AC, part 3
Order number 6SL3000- 0CE41-0AA0
Suitable for Power Module 6SL3310- 1GE41-0AAx
Type rating of the Power Module kW 560
Rated voltage V 3 AC 380 –10% to 3 AC 480 +10% (-15% < 1 min)
Ithmax A 1022
Power loss kW 0.498
Line/load connection
1U1, 1V1, 1W1, 1U2, 1V2, 1W2
M12 connecting
lugs
Degree of protection IP00
Dimensions
Width
Height
Depth
mm
mm
mm
350
321
211.5
Weight kg 69.6
Table 5- 5 Technical data of line reactors, 500 V – 600 V 3 AC, part 1
Order number 6SL3000- 0CH32-2AA0 0CH32-2AA0 0CH32-7AA0 0CH33-4AA0
Suitable for Power Module 6SL3310- 1GF31-8AAx 1GF32-2AAx 1GF32-6AAx 1GF33-3AAx
Type rating of the Power Module kW 110 132 160 200
Rated voltage V 3 AC 500 –10% to 3 AC 600 +10% (-15% < 1 min)
Ithmax A 230 230 270 342
Power loss kW 0.275 0.275 0.277 0.270
Line/load connection
1U1, 1V1, 1W1, 1U2, 1V2, 1W2
M10 connecting
lugs
M10 connecting
lugs
M10 connecting
lugs
M10 connecting
lugs
Degree of protection IP00 IP00 IP00 IP00
Dimensions
Width
Height
Depth
mm
mm
mm
270
248
200
270
248
200
270
248
200
270
248
200
Weight kg 31.1 31.1 27.9 38.9

Technical specifications
Line reactors
18 Operating Instructions, 03/2013, A5E00331462A
Table 5- 6 Technical data of line reactors, 500 V – 600 V 3 AC, part 2
Order number 6SL3000- 0CH34-8AA0 0CH34-8AA0 0CH36-0AA0 0CH38-4AA0
Suitable for Power Module 6SL3310- 1GF34-1AAx 1GF34-7AAx 1GF35-8AAx 1GF37-4AAx
Type rating of the Power Module kW 250 315 400 500
Rated voltage V 3 AC 500 –10% to 3 AC 600 +10% (-15% < 1 min)
Ithmax A 482 482 597 840
Power loss kW 0.478 0.478 0.485 0.618
Line/load connection
1U1, 1V1, 1W1, 1U2, 1V2, 1W2
M12 connecting
lugs
M12 connecting
lugs
M12 connecting
lugs
M12 connecting
lugs
Degree of protection IP00 IP00 IP00 IP00
Dimensions
Width
Height
Depth
mm
mm
mm
350
321
232.5
350
321
232.5
350
321
232.5
410
385
224
Weight kg 55.6 55.6 63.8 98
Table 5- 7 Technical data of line reactors, 500 V – 600 V 3 AC, part 3
Order number 6SL3000- 0CH38-4AA0
Suitable for Power Module 6SL3310- 1GF38-1AAx
Type rating of the Power Module kW 560
Rated voltage V 3 AC 500 –10% to 3 AC 600 +10% (-15% < 1 min)
Ithmax A 840
Power loss kW 0.618
Line/load connection
1U1, 1V1, 1W1, 1U2, 1V2, 1W2
M12 connecting
lugs
Degree of protection IP00
Dimensions
Width
Height
Depth
mm
mm
mm
410
385
224
Weight kg 98
