Installation Instruction
s
Document No. 538-586
Rev. 3, December, 2001
Fiber Optic Trunk Interface
Page 1 of 3

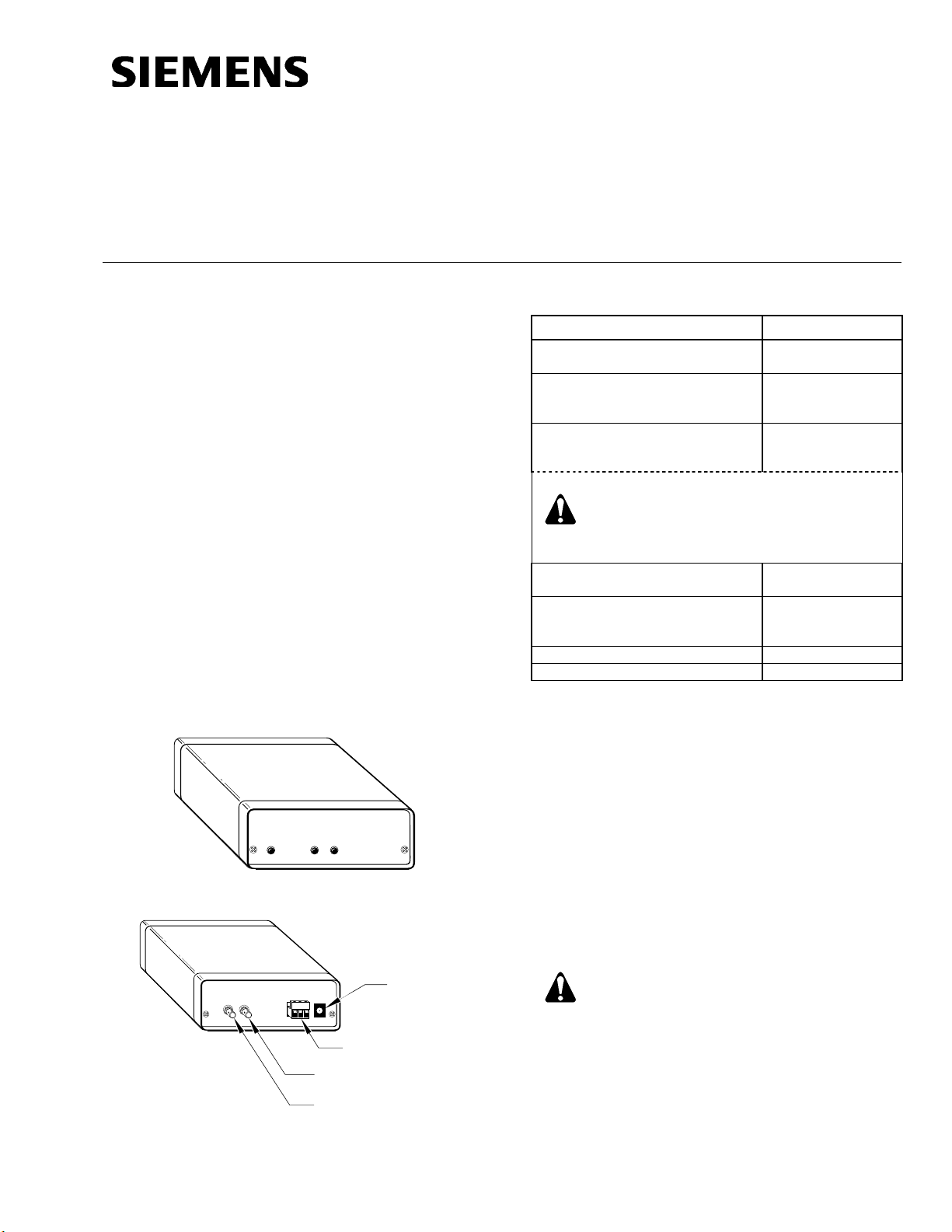

Product Description
The Fiber Optic Trunk Interface (refer to Figure 1)
converts the building level network (BLN) and floor
level network (FLN) trunk electrical signals (RS-485)
into light energy for transmission over a fiber optic
cable and converts the light energy from a fiber
cable back to RS-485 signals. The device is
designed to work with either the BLN or FLN trunk at
speeds of 300 bps to 230K bps, with a link budget of
11.5 dB.
There are no internal settings or user-serviceable
parts in the Fiber Optic Trunk Interface. The
interface requires a duplex fiber cable between
interfaces (one fiber for transmit and one for
receive). ST style port connectors are included.
The Fiber Optic Trunk Interface is housed in a 1.5” ×
4” × 4” metal enclosure. It contains one power input
receptacle, one three-position trunk port, one fiber
transmit port, and one fiber receive port (refer to
Figure 2). The interface is powered by a 6 Vdc
external power pack (included). All circuits are
supervised and power limited.
Power TX1 RX1
NT0281R1
FIBER OPTIC
TRUNK INTERFACE
s
Figure 1. Fiber Optic Trunk Interface (Front View).
538-735 Fiber to Trunk
TRUNK
S - +
Operating Temp. 0-50 C (32-122 F)
PWR
6Vdc
150ma
NT0220R1
POWER INPUT
RECEPTACLE
TRUNK PORT
RECEIVE
PORT
TRANSMIT
PORT
TX1 RX1
Figure 2. Fiber Optic Trunk Interface (Rear View).
Product Numbers
Description Product Number
Fiber Optic Trunk Interface with ST
port connectors 538-735(115 Vac) 538-735E (230 Vac
)
115 Vac 60Hz (14W) input 6 Vdc
600mA output power pack for use
with P/N 538-735 (included)
538-757
230 Vac 50 Hz (14W) input 6 Vdc
1000 mA output power pack for
use with P/N 538-745E (included)
538-747
CAUTION:
Use only the plug-in transformer shipped
with this device.
120 Vac transient protected duplex
outlet for 538-735 (not included) 529-804
Three 250V Metal Oxide Varistors
(MOVs) included with P/N 538-
735E
527-969
Optional wall mounting kit (4”) 538-708K
Optional rack mounting kit (4”) 538-716K
Required Tools
• Slotted screwdriver
• 19-inch rack position available if using the
rack mounting kit
• Wire cutters or wire strippers
• 7/16-inch (11.1mm) nutdriver
Expected Installation Time
15 minutes
Prerequisites
CAUTION:
Avoid mounting the interface in a position
that forces the fiber to make turns tighter
than a three-inch radius. The mounting
surface must also be vibration free.
• Fiber cable installed and terminated with
proper connector.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Document No. 538-586
Installation Instructions
Rev. 3, November, 2001
Page 2 of 3 Siemens Building Technologies, Inc.
• Individual fibers identified as Transmit and
Receive.
• A report from the fiber installer showing the
loss of optic power per section of fiber cable,
including all connectors. The loss must be
less than the required link budget.
• Source of transient protected for 115 Vac or
230 Vac. All field panel outlets are protected
or an MOV protected 120 Vac duplex outlet
(P/N 529-804), or three 250 V operation
(refer to Figure 7) can be ordered.
• The BLN or FLN trunk has been checked for
opens, shorts, and proper shielding.
• The mounting bracket (if used), or other
locally fabricated bracket, is available.
Instructions
1. If wall or rack mounting brackets are being
used, refer to the installation instructions for the
brackets (P/N 538-718).
2. Remove the protective cap from the transmit
port and transmit fiber, and connect the fiber to
the port labeled “TX” (refer to Figure 2). Do not
use any tools to tighten the connectors.
3. Remove the protective cap from the receive
port and receive fiber, and connect the fiber to
the port labeled “RX” (refer to Figure 2). Do not
use any tools to tighten the connectors.
4. Connect the BLN or FLN trunk to the trunk
connector. Then plug the connector into the
port labeled “Trunk” on the interface.
5. Connect the earth ground wire (2’ green wire,
included) from the trunk shield connection to
earth ground. The ground can be either the field
panel chassis using the nutdriver to put the
ground terminal under the chassis mounting nut
or the electrical box which powers the interface.
6. Connect the power connector into the interface
and plug the power pack into a transient
protected source.
The installation is now complete.
NT0214R1
BRACKET
FACE
BRACKET
INTERFACE
MOUNTING
SCREW
INTERFACE
BACK
END BEZEL
Figure 3. Rack Mount of Fiber Optic Interface (Side View).
FIBER OPTIC
TRUNK INTERFACE
Power TX1 RX1
DUAL FIBER OPTIC
TRUNK INTERFACE
Power TX1 RX1 TX2 RX2
FIBER OPTIC
TRUNK INTERFACE
Power TX1 RX1
FIBER OPTIC
RS232 INTERFACE
Power TX1 RX1
NT0212R2
RACK MOUNTING BRACKET
SPACER SPACER
II I I
Figure 4. Multiple Unit Rack Mounting Installation.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Document No. 538-586
Installation Instructions
Rev. 3, November, 2001
Information in this publication is based on current specifications. The company reserves the right to make changes in specifications and
models as design improvements are introduced. Other product or company names mentioned herein may be trademarks of their respective
owners. © 2001 Siemens Building Technologies, Inc.
Siemens Building Technologies, Inc.
1000 Deerfield Parkway
Buffalo Grove, IL 60089-4513
U.S.A.
Your feedback is important to us. If you have
comments about this document, please send
them to [e-mail]
Document No. 538-586
Printed in the U.S.A
.
Page 3 of 3
NT0280R1
FIBER OPTIC
TRUNK INTERFACE
Power TX1 RX1
MOUNTING
BRACKETS
MOUNTING
SCREWS
VERTICAL
SURFACE
s
Figure 5. Single Unit Wall Mounting.
Figure 6. Field Panel Mounting.
NT0226R1
(AC HOT)
OUTLET BOX (COUNTRY DEPENDENT) AC. LINE
* MAX AC. (RMS) WHEN USING
527-969 (250 V) MOVS = 250 VAC (RMS)
METAL OXIDE VARISTORS
(P/N 527-969*)
(AC NEUTRAL)
(EARTH)
Figure 7. MOV Connections.
