Siemens Sitrans F Series User manual

©Siemens AG 2012 - 2013. All rights reserved
A5E03922778-006, 12/2013 1
SITRANS F
Coriolis Flowmeters
SITRANS FCT030 transmitter
Quick Start
Before installing, including in hazardous areas, refer to the Operating Instructions on the internet or on the SITRANS F
documentation CD-ROM which is included in the product package. They contain detailed safety regulations, information and
specifications which must be observed when installing. Documentation and approvals can be found on the internet:
Flow documentation (http://www.siemens.com/flowdocumentation)
CAUTION
Proper handling
Correct, reliable operation of the device requires proper transport, storage, positioning and assembly. The device must be
carefully operated and maintained. Only qualified personnel should install or operate this device.

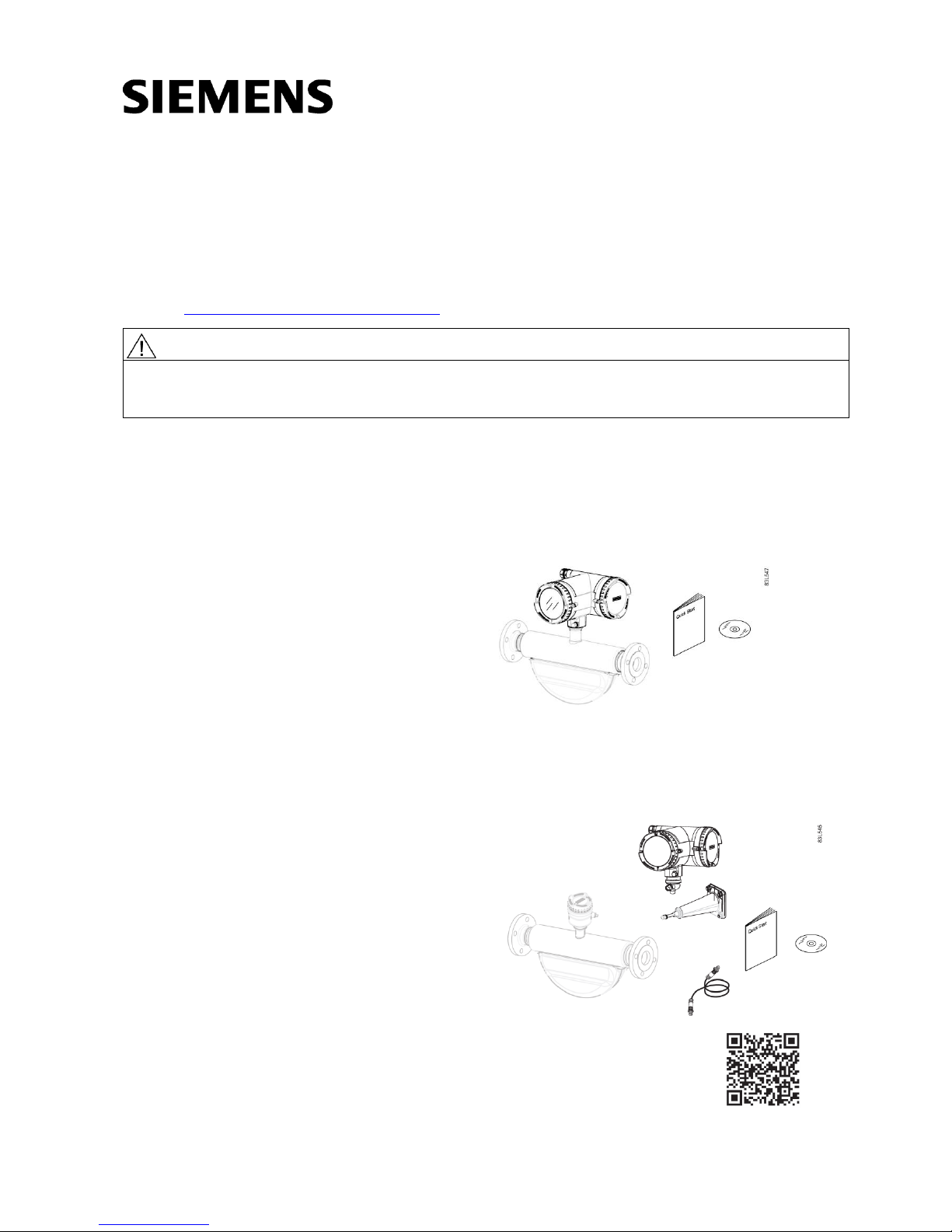

Items supplied
Compact system
●SITRANS FC430 sensor and compact mounted
transmitter
●Packet of cable glands
●Quick Start guide
●CD containing software, certificates and device manuals
Remote system
With M12 connection
●SITRANS FCS400 sensor
●SITRANS FCT030 transmitter with M12 socket assembled
●Mounting bracket and cushion pad
●Sensor cable with M12 connector
●Packet of cable glands
●Quick Start guide
●CD containing software, certificates and device manuals
How to install

SITRANS FCT030 transmitter
2A5E03922778-006, 12/2013
With terminal housing
●SITRANS FCS400 sensor
●SITRANS FCT030 transmitter with terminal housing
assembled
●Mounting bracket and cushion pad
●Sensor cable
●Packet of cable glands
●Quick Start guide
●CD containing software, certificates and device manuals
Note
Supplementary information
Supplementary product and production specific certificates are included on the SensorFlash®SD card in the transmitter
socket.
Note
Scope of delivery may vary, depending on version and add-ons. The contents list in the product package lists all included
parts.
Note
Sensor installation
The installation of the FCS400 sensor is described in the SITRANS FCS400 Quick Start (A5E03649755).
Remote mounting
Wall mounting

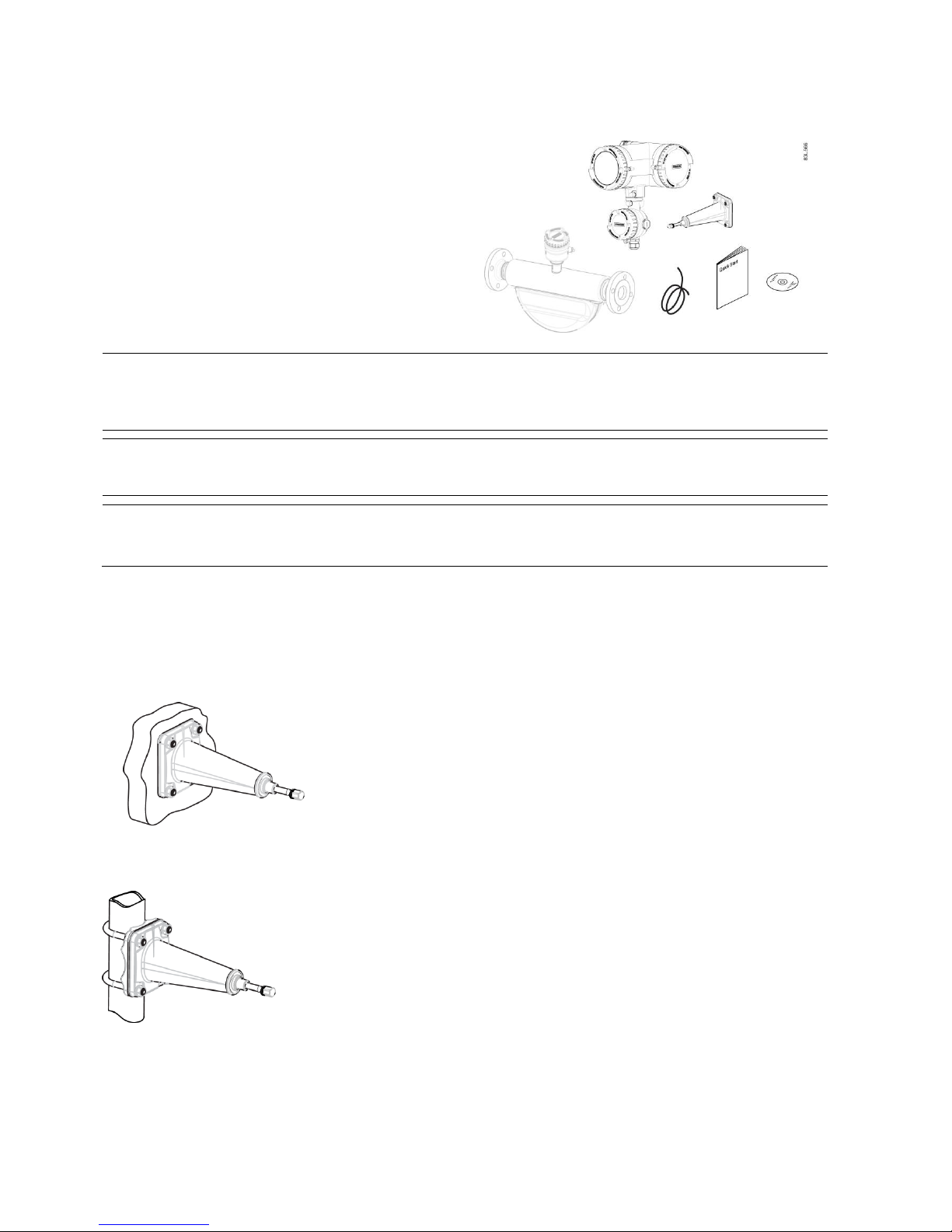

1. Prepare holes with aid of mounting bracket.
2. Fasten mounting bracket with cushion pad to wall (torque 10 Nm).
Pipe mounting
1. Mount mounting bracket with cushion pad on pipe using fastening brackets/U-bolts and supplied pipe adaptor. Note: U-
bolts and other miscellaneous hardware are not supplied with the flowmeter.
2. Tighten nuts (torque 10 Nm).

SITRANS FCT030 transmitter
A5E03922778-006, 12/2013 3
Note
Hygienic applications
If the device is wall or pipe-mounted in a hygienic application, always use domed nuts.
Mounting the transmitter
1. Remove screw from mounting bracket.
2. Mount transmitter on mounting bracket taking care that the flutes on the mating faces are correctly engaged.
3. Firmly tighten screw on mounting bracket (torque: 25 Nm).
Turning the transmitter
In a remote configuration, the transmitter can be turned horizontally and vertically. In a compact configuration, the transmitter
can be turned horizontally only.
Horizontal rotation
1. Unscrew cap from lock screw.
2. Loosen lock screw at transmitter pedestal using 5 mm Allen key.
3. Carefully rotate transmitter into desired position.
4. Firmly tighten lock screw (torque: 10 Nm).
5. Replace cap onto lock screw (torque: 10 Nm).

SITRANS FCT030 transmitter
4A5E03922778-006, 12/2013
Vertical rotation
1. Loosen locking cap at end of mounting bracket by three turns.
2. Carefully loosen and rotate transmitter into desired position (15° steps).
3. Firmly tighten locking cap (torque: 25 Nm).
Turning the local display
The local display can be turned in steps of 30° in order to optimize the viewing angle.
1. Remove lid lock screw of display cover.
2. Remove display cover.
3. Use a small screwdriver or blade to loosen the three retaining clips within the transmitter.
4. Carefully pull out local display.
5. Turn display into desired position.
6. Carefully push display back into housing. Use a small screwdriver or blade to open the three retaining clips within the
transmitter when pushing the LUI home.
7. Remove o-ring from lid.

SITRANS FCT030 transmitter
A5E03922778-006, 12/2013 5
8. Reinstate display cover until mechanical stop. Wind back lid by one turn.
9. Mount o-ring by pulling it over the display cover and turn display cover until you feel friction from the o-ring on both sides.
Wind display cover further by one quarter of a turn to seal on the o-ring.
10. Reinstate and tighten lid lock screw.
Connecting
WARNING
Access to terminal space
As long as the device is energized, the lid of the housing on the sensor connection area may only be opened by qualified
personnel.
Before removing the terminal cover, the auxiliary power must be switched off from all poles.
Following installation, the terminal cover must be screwed back on again.
1. Remove blind plugs where required and mount cable glands.
①
Input/output connection (channels 2 to 4)
②
Power supply connection
③
Current output/HART connection (channel 1)
2. Remove lid lock screw for terminal connections lid.
3. Remove lid for terminal connections.

SITRANS FCT030 transmitter
6A5E03922778-006, 12/2013
Application terminals
A label showing the configuration is placed at the back of the terminal connections lid.
①
Power supply connections
L/+
Terminal 1
N/-
Terminal 2
Terminal 3
②
Key to symbols
A
Configured as active input/output
P
Configured as passive input/output
NO
Connected as normally open contact
NC
Connected as normally closed contact
③
Updates (to be filled in on firmware and hardware updates)
④
Device configuration date
⑤
Initial firmware and hardware revisions
⑥
Configuration of channels 1, 2, 3 and 4
Figure 3-1 Configuration label

SITRANS FCT030 transmitter
A5E03922778-006, 12/2013 7
(1)
L/+
Line
(2)
N/-
Neutral
(3)
Ground
(4)
Ca+
Used in current output active configuration
(5)
C
Used in current output active and passive configuration
(6)
Cp-
Used in current output passive configuration
(7)
---
Not used
(8)
IO2+
Signal output channel 2 positive
(9)
IO2
Signal output channel 2 common
(10)
IO2-
Signal output channel 2 negative
(11)
IO3+
Input/output channel 3 positive
(12)
IO3
Input/output channel 3 common
(13)
IO3-
Input/output channel 3 negative
(14)
IO4+
Input/output channel 4 positive
(15)
IO4
Input/output channel 4 common
(16)
IO4-
Input/output channel 4 negative
Figure 3-2 Terminal layout
Wiring tool
Use the wiring tool for connecting the cables.
The wiring tool is located in the application terminal space.
Wiring tool location
How to use the wiring tool

SITRANS FCT030 transmitter
8A5E03922778-006, 12/2013
1. Insert wiring tool hook into receptor slot.
2. Press wiring tool wedge into top slot to spread clamp plates.
3. Insert wire.
4. Release wiring tool.
Power supply
1. Flip open power supply terminal protection cover.
2. Remove cap and ferrule from cable gland and slide onto cable.
3. Push cable through open gland and cable path.
4. Restore ferrule and tighten cap to lightly hold cable in place.
5. Connect ground to terminal and power to terminals L/+ and N/- using wiring tool in the manner shown below at right.
①
L/+
②
N/-
③

SITRANS FCT030 transmitter
A5E03922778-006, 12/2013 9

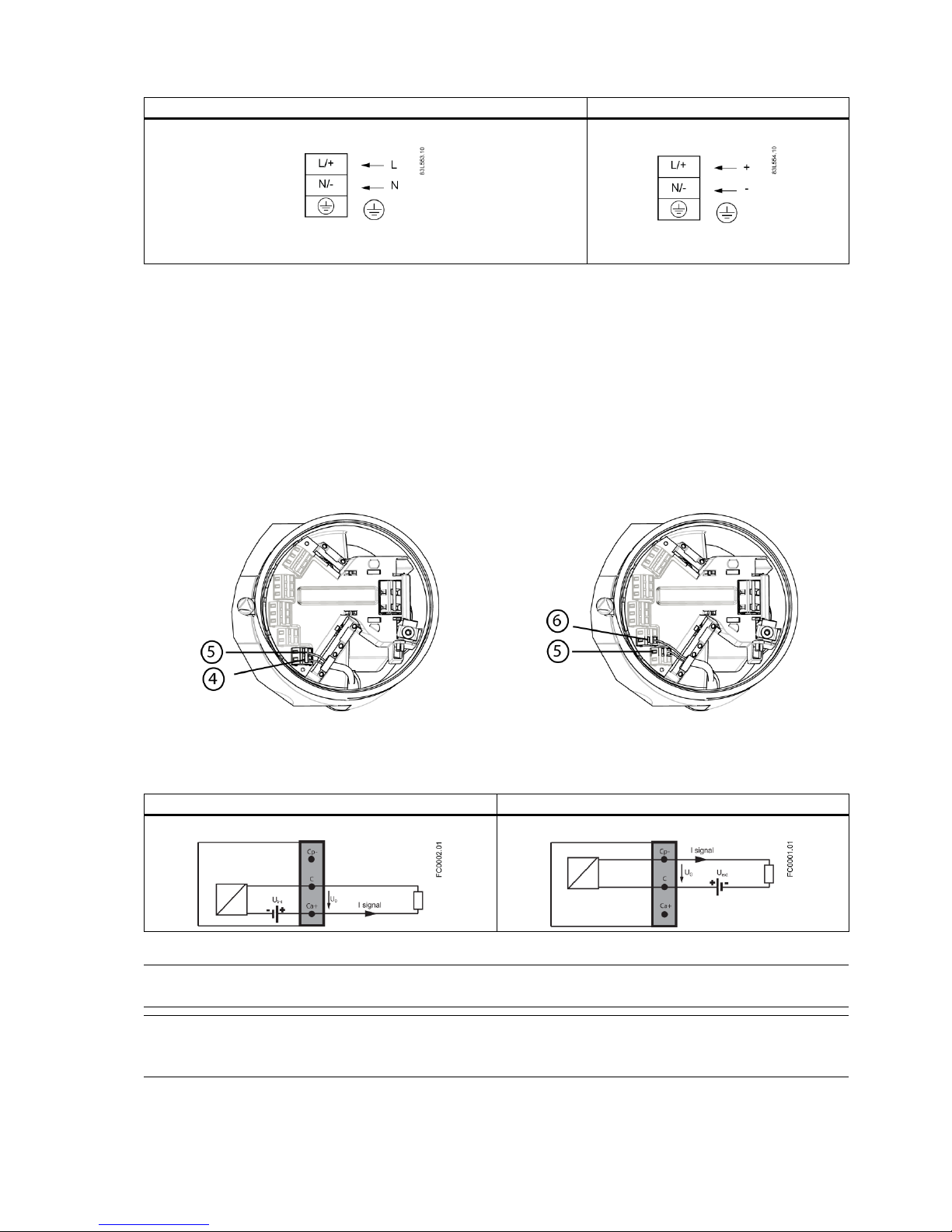

AC connection
DC connection
Power: 100 to 240 VAC +10/-15%, 47 to 63 Hz
Power: 20 to 27 VDC +10/-10%
6. Close and latch power supply terminal protection cover.
7. Tighten cable gland.
Current output/HART (channel 1)
1. Remove cap and ferrule from cable gland and slide onto cable.
2. Push cable through open gland and cable path.
3. Restore ferrule and tighten cap to lightly hold cable in place.
4. Signal cable screen is folded back over outer sheath and grounded beneath cable clamp.
5. Connect wires to terminals using wiring tool.
Active current output
Passive current output
⑤
C
⑥
Cp-
④
Ca+
⑤
C
Active current output
Passive current output
6. Tighten cable gland.
Note
Active or passive current output is preselected at ordering.
Note
Load
Current output (channel 1): < 500 Ω (HART ≥ 230 Ω)

SITRANS FCT030 transmitter
10 A5E03922778-006, 12/2013
Inputs and outputs (channels 2 to 4)
1. Remove cap and ferrule from cable gland and slide onto cable.
2. Push cable through open gland and cable path.
3. Restore ferrule and tighten cap to lightly hold cable in place.
4. Fold signal cable screen back over outer sheath and ground beneath cable clamp.
5. Connect wires to terminals using wiring tool.
Active current output
Passive current output
⑫
IO[3] (common)
⑬
IO[3]- (passive)
⑪
IO[3]+ (active)
⑫
IO[3] (common)
Termination example for channel 3
6. Tighten cable gland.

SITRANS FCT030 transmitter
A5E03922778-006, 12/2013 11
Note
Active or passive current output is preselected at ordering.
Factory
configuration
Software
configuration
Channel 2
Channel 3,
Channel 4
Signal output
Active
Current Output
Pulse Output
Frequency Output
Status Output
If Status Output:
Alarm Class
Alarm Item
Primary Valve
Dosing Control
Secondary Valve
Dosing Control
X
X
Signal output
Passive
Current Output
Pulse Output
Frequency Output
Status Output
If Status Output:
Alarm Class
Alarm Item
One Stage Dosing
Two Stage Dosing
X
X
Signal input
Active
Start Dosing
Stop Dosing
Reset Totalizer 1
Reset Totalizer 2
Reset Totalizer 3
Reset All Totalizers
Start Zero Point
Adjustment
Pause/Resume
dosing
Force Output
Freeze Output
X
Signal input
Passive
Start Dosing
Stop Dosing
Reset Totalizer 1
Reset Totalizer 2
Reset Totalizer 3
Reset All Totalizers
Start Zero Point
Adjustment
Pause/Resume
dosing
Force Output
Freeze Output
X
Relay output
Alarm Class
Alarm Item
One Stage Dosing
Two Stage Dosing
X
Normally open

SITRANS FCT030 transmitter
12 A5E03922778-006, 12/2013
Relay output
Alarm Class
Alarm Item
One Stage Dosing
Two Stage Dosing
X
Normally closed
Note
Load
Signal output: < 500 Ω at 14 to 24 VDC (active), 14 to 30 VDC (passive)
Relay output: 30 VAC/VDC, 100 mA
Passive signal input: 15 to 30 VDC, 2 to 15 mA
Connection check-up
1. Check individual wire installation by tugging firmly.
2. Firmly tighten cable glands and insert blanking plugs in unused cable entries.
3. Remove o-ring from lid.
4. Reinstate lid and screw in until mechanical stop. Wind back lid by one turn.
5. Mount o-ring by pulling it over the lid and tighten lid cover until you feel friction from the o-ring on both sides. Wind lid
further by one quarter of a turn to seal on the o-ring.
6. Reinstate and tighten lid lock screw.
7. Ensure that moisture does not penetrate to inside of electronics housing by creating a drip loop (bend cables downward)
immediately before cable glands.

SITRANS FCT030 transmitter
A5E03922778-006, 12/2013 13
Local user interface
①
Full graphical display
②
LED (for indication of key operation)
③
Capitance proximity keypad
Note
LUI timeout
If no key is pressed for 10 minutes, the display switches to show operation view.
Note
Operation does not require opening of the device. This means that the high degree of protection of IP67 and safety in
hazardous locations are guaranteed at all times.
Using the menu structure
There are three view types:
●Operation view
The operator view shows up to six operation views. The operation views are fully configurable to show different process
values in different operation view types. Depending on the operation view type configuration the view is either
measurement view or alarm view.
–Measurement view: Displays the measurement values.
–Alarm view: Displays the active alarms in a list.
–Operating view: Enables the totalizer reset and the dosing control.
–Diagnostic view: Displays six configurable measurement/diagnostic values.
●Navigation view
The navigation view shows the menus and parameters. The navigation view is used to navigate to the menus and
parameters in the device.
●Parameter view
The parameter view can be entered form the navigation view. The parameter view is used to view and edit the
parameters.

SITRANS FCT030 transmitter
14 A5E03922778-006, 12/2013
Navigating the views
Browse the views and menu items using the control buttons as follows:
Table 5-1 Measurement view
Key
Function
No functionality
Go to the previous menu in the operation view
Go to the next menu in the operation view
Enter the navigation view
Table 5-2 Parameter edit view
Key
Function
Select the next left position.
If the most left position is selected, exit the parameter edit view without confirming the changes. Keep
pressing the key to jump to the most left position.
Change the selected number/character.
Numeric characters: increase the number by one (for example from 7 to 8)
ASCII characters: select the previous character in the alphabet.
Change the selected number/character.
Numeric characters: decrease the number by one (for example from 8 to 7)
ASCII characters: select the next character in the alphabet.
Select the next right position.
If most right position is selected, confirm the change and exit the parameter edit view. Keep pressing the
key to jump to the most right position.
Commissioning
Initial start up
The first time the device is powered up, you will be prompted to set the language. The device always starts up showing
Language in English. When the language has been set, you will be prompted to set the date and time. After
confirming/changing the date and time you will be asked if you want to start the Quick Commissioning wizard. If you choose
Yes (recommended), the Quick Commissioning wizard will start. If you choose No, you accept the default values of the
device, and the next LUI view will be the operation view 1. Subsequent changes to parameter values require a user
password. Refer to the Operating Instructions for details.

SITRANS FCT030 transmitter
A5E03922778-006, 12/2013 15
View
no.
Text
Options/description
1
Language
Set the language: English, Deutsch, Français, Italiano, Español, Português,
РУССКИЙ, 汉语, Polski, Dansk, Svenska, Suomeksi
2
"About"
Information about the Quick Commissioning wizard
3
Set Date and Time
The set date and time (real time clock) is used for all time stamps of logged
information
4
Quick Commissioning
The Quick Commissioning wizard comprises the most important
parameters/menus for quick configuration of the flowmeter
Quick Commissioning wizard
The Quick Commissioning wizard includes zero point adjustment. Before entering the zero point wizard perform the following
steps in the plant:
1. Flush out any gases and obtain stable temperature conditions by running flow at operational conditions for minimum 30
minutes.
Figure 6-1 Best practice zero point adjustment with a by-pass line and two shut-off devices
2. Close the outlet shut-off valve while maintaining the system pressure. If bypass flow is necessary, open the bypass
valve. If the pressure can be increased by 1 to 2 bars with stopped flow, this should be applied.
3. Wait 1 to 2 minutes, for the system to settle, and then perform zero adjustment. Waiting longer can change the
temperature.
4. During the process a progress bar is visible in the LUI display.
5. At the end of the zero adjustment, the outcome is displayed as an offset and a standard deviation.

SITRANS FCT030 transmitter
16 A5E03922778-006, 12/2013
The Quick Commissioning wizard will guide you through configuration of parameters essential for your application. You
configure parameters essential for your application by selecting the configuration path and subwizards appropriate for your
application.
The Basic Configuration wizards guide you through setup of process values (Process Values wizard) and inputs and outputs
(Input/Outputs wizard) for your application.
View
no.
Text
Options/Description
2
Select a basic configuration
wizard
Process Values, Inputs/Outputs
3
Select an application wizard
Gas Application, Pulsating Flow, Dosing Application
4
Perform automatic zero point
adjustment
Yes, No
5-6
Set the identification
parameters
Long TAG, Location, Startup Date

SITRANS FCT030 transmitter
A5E03922778-006, 12/2013 17
Navigating the navigation view
The following graphic shows an example of how to navigate between measurement views and alarm views with
measurement views 1, 3, and 4 as well as alarm view 5 enabled.
①
Measurement view
②
Access level view
③
Measurement view
④
Measurement view
⑤
Alarm view - level 1
⑥
Alarm view - level 2
⑦
Alarm view - level 3
Siemens AG
Industry Sector
Postfach 48 48
90026 NÜRNBERG
SITRANS FCT030 transmitter
A5E03922778, 12/2013

©Siemens AG 2012 - 2013. 保留所有权利
A5E03922778-006, 12/2013 19
SITRANS F
科里奥利流量计
SITRANS FCT030 变送器
Quick Start
安装前，包括在危险区域中安装，请参见 Internet 上或产品包装内包含的 SITRANS F 文档 CD-ROM 上的操作说明。 这些操
作说明包含安装时必须遵守的详细安全法规、信息和规范。 相关文档和认证可在 Internet 上找到：
流量文档 (http://www.siemens.com/flowdocumentation)
小心
正确操作
运输、存储、放置和装配措施必须适当，才能确保设备正确可靠的运行。 操作和维护设备时务必小心。 只有合格人员才能
安装或操作本设备。
供货内容
紧凑型系统
●SITRANS FC430 传感器及紧凑型安装变送器
●电缆接头包
●快速入门指南
●包含软件、证书及设备手册的 CD
远程型系统
采用 M12 连接方式
●SITRANS FCS400 传感器
●装有 M12 插座的 SITRANS FCT030 变送器
●安装支架和垫片
●带有 M12 连接器的传感器电缆
●电缆接头包
●快速入门指南
●包含软件、证书及设备手册的 CD
安装方式

SITRANS FCT030 变送器
20 A5E03922778-006, 12/2013
带端子外壳
●SITRANS FCS400 传感器
●装有端子外壳的 SITRANS FCT030 变送器
●安装支架和垫片
●传感器电缆
●电缆接头包
●快速入门指南
●包含软件、证书及设备手册的 CD
说明
补充信息
补充产品和产品特定证书都包含在变送器插座中的 SensorFlash®SD 卡上。
说明
交付内容根据版本及附加件而有所变化。 产品包装内的内容列表会列出所有随附零件。
说明
传感器安装
FCS400 传感器的安装在 SITRANS FCS400 快速入门 (A5E03649755) 中有描述。
远程安装
墙式安装
1. 借助安装支架打孔。
2. 将带有垫片的安装支架固定到墙上（扭矩为 10 Nm）。
管道安装
1. 使用紧固支架/U 形螺栓和随附的管接头将带有垫片的安装支架安装到管道上。 注意： U 形螺栓和其它五金器具不随流量
计一并提供。
2. 紧固螺母（扭矩 10 Nm）。
