Siemens Sitrans LR200 Instruction manual

Radar Transmitters
Quick Start Manual 03/2013
SITRANS LR200 (HART)
SITRANS

IQ300IX.fm Page 5 Tuesday, October 2, 2001 1:43 PM

A5E31993614 SITRANS LR200 (HART) – QUICK START MANUAL Page EN-1
mmmmm
English
SITRANS LR200 (HART) Quick Start Manual
This manual outlines the essential features and functions of the SITRANS LR200 (HART). We
strongly advise you to acquire the detailed version of the manual so you can use your device to
its fullest potential. The complete manual can be downloaded from the SITRANS LR200
product page of our web site at: www.siemens.com/LR200. The printed manual is available
from your local Siemens Milltronics representative.
Questions about the contents of this manual can be directed to:
Siemens Milltronics Process Instruments
1954 Technology Drive, P.O. Box 4225
Peterborough, Ontario, Canada, K9J 7B1
Email: [email protected]om
MILLTRONICS is a registered trademark of Siemens Milltronics Process Instruments
Technical Support
Support is available 24 hours a day.
To find your local Siemens Automation Office address, phone number, and fax number, go to:
www.siemens.com/automation/partner:
• Click on the tab Contacts by Product then find your product group (+Process Automation
> +Process Instrumentation > +Level Measuring Instruments).
• Select the team Technical Support. Click on Next.
• Click on a continent, then a country, followed by a city. Click on Next.
For on-line technical support go to: www.siemens.com/automation/support-request
• Enter the device name (SITRANS LR200) or order number, then click on Search, and
select the appropriate product type. Click on Next.
• Enter a keyword describing your issue. Then either browse the relevant documentation,
or click on Next to email a description of your issue to Siemens Technical Support staff.
Siemens IA/DT Technical Support Center: phone [phone]
Copyright Siemens Milltronics
Process Instruments 2013.
All Rights Reserved
Disclaimer of Liability
We encourage users to purchase autho-
rized bound manuals, or to view elec-
tronic versions as designed and
authored by Siemens Milltronics Pro-
cess Instruments. Siemens Milltronics
Process Instruments will not be respon-
sible for the contents of partial or whole
reproductions of either bound or elec-
tronic versions.
While we have verified the contents of this man-
ual for agreement with the instrumentation
described, variations remain possible. Thus we
cannot guarantee full agreement. The contents of
this manual are regularly reviewed and correc-
tions are included in subsequent editions. We
welcome all suggestions for improvement.
Technical data subject to change.

Page EN-2 SITRANS LR200 (HART) – QUICK START MANUAL A5E31993614
mmmmm
English
Safety Guidelines
Warning notices must be observed to ensure personal safety as well as that of others, and to
protect the product and the connected equipment. These warning notices are accompanied by
a clarification of the level of caution to be observed.
FCC Conformity
US Installations only: Federal Communications Commission (FCC) rules
SITRANS LR200
SITRANS LR200 is a 2-wire 6 GHz pulse radar level transmitter for continuous monitoring of liq-
uids and slurries in storage and process vessels including high temperature and pressure, to a
range of 20 m (66ft).
The device consists of an electronic circuit coupled to the antenna and either a threaded or
flange type process connection.
SITRANS LR200 supports HART1) communication protocol and SIMATIC PDM software. Sig-
nals are processed using Process Intelligence.
Specifications
For a complete listing, see the SITRANS LR200 (HART) Instruction Manual. For Approvals
information see
Approvals on page 3.
WARNING symbol relates to a caution symbol on the product, and means that
failure to observe the necessary precautions can result in death, serious injury,
and/or considerable material damage.
WARNING symbol, used when there is no corresponding caution symbol on the
product, means that failure to observe the necessary precautions can result in
death, serious injury, and/or considerable material damage.
Note: means important information about the product or that part of the operating manual.
WARNING: Changes or modifications not expressly approved by Siemens
Milltronics could void the user’s authority to operate the equipment.
Notes:
• This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
• This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference to radio communications, in which case the user will
be required to correct the interference at his own expense.
WARNING: SITRANS LR200 is to be used only in the manner outlined in this manual,
otherwise protection provided by the equipment may be impaired.
Note: This product is intended for use in industrial areas. Operation of this equipment in a
residential area may cause interference to several frequency based communications.
1) HARTis a registered trademark of HART Communication Foundation.

A5E31993614 SITRANS LR200 (HART) – QUICK START MANUAL Page EN-3
mmmmm
English
Ambient/Operating Temperature
1)
Power
Approvals
•General CSA
US/C, FM, CE, C-TICK
• Radio Europe (R&TTE), FCC, Industry Canada
• Hazardous Intrinsically Safe 2) (Europe) ATEX II 1 G, EEx ia IIC T4
(International) IECEX TSA 04.0020X T4
US/Canada) FM/CSA: (barrier required)
Class I, Div. 1, Groups A, B, C, D
Class II, Div. 1, Groups E, F, G
Class III T4
(Australia) ANZEX Ex ia IIC T4
Notes:

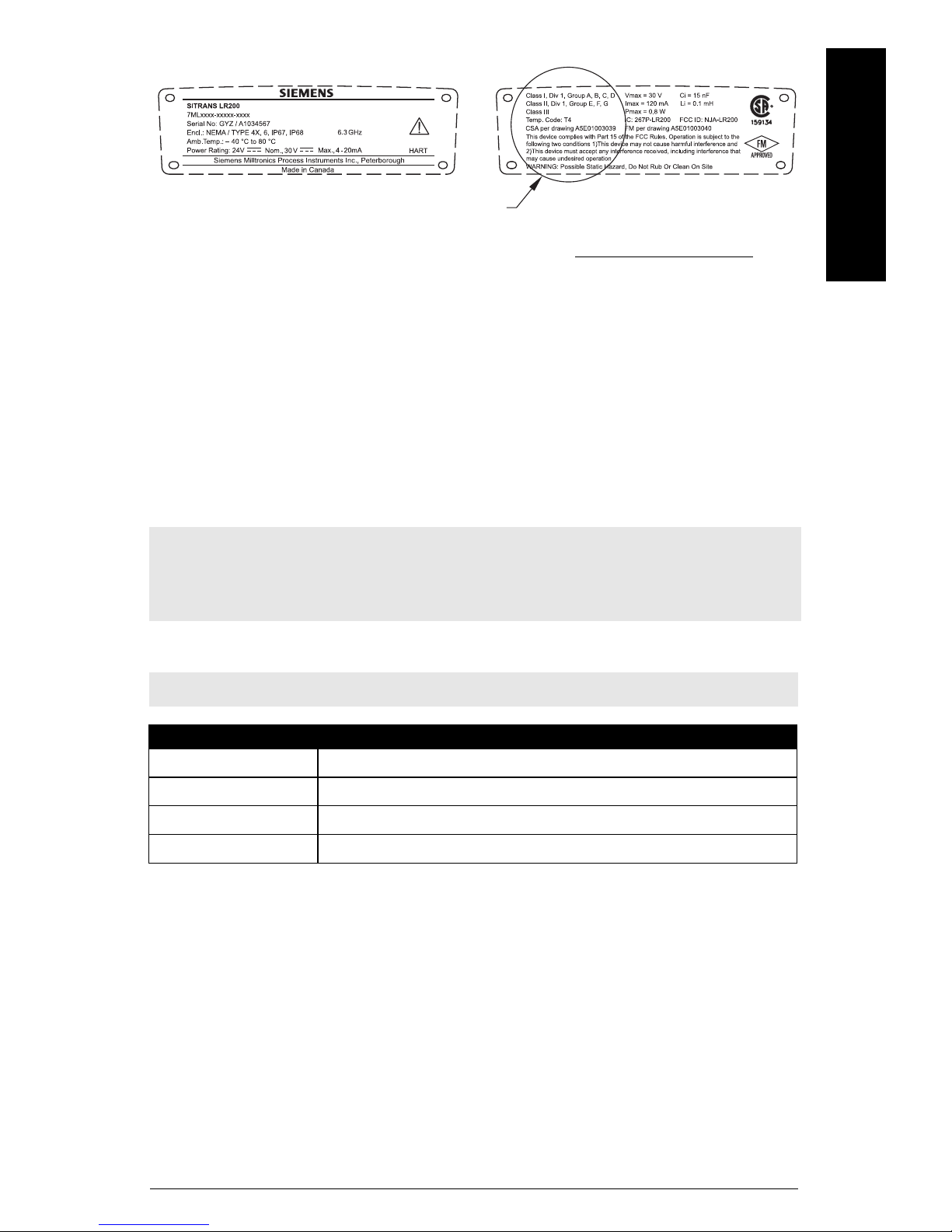

• Process temperature and pressure capabilities are dependent upon information on the
process device tag. The reference drawing listed on the tag can be downloaded from the
Siemens website at: www.siemens.com/LR200 under Support.
• Maximum temperature is dependent on the process connection, antenna materials, and
vessel pressure. See
Maximum Process Temperature Chart on page 20, for more details.
Process Pressure Temperature derating curves are available in the full manual.
1) Check the device nameplate for the characteristics of the device, and confirm the loop load.
General Purpose:
Intrinsically Safe:
Non-Sparking/Energy Limited
Non-incendive (FM/US only):
Nominal 24 V DC at
max. 550 Ohm loop
resistance1)
Flameproof:
Increased Safety:
Explosion-proof (FM/CSA US/Canada only):
Nominal 24 V DC at
max. 250 Ohm loop
resistance1)
Notes:
• Refer to the device nameplate and the process device tag to check the approval rating of
your device.
• Use appropriate conduit seals to maintain IP or NEMA rating.
2) See
Intrinsically Safe wiring on page 8.
process temperature PP rod:
–40 °C to +80 °C (–40 °F to +176 °F)
PTFE rod or SS horn:
–40 °C to +200 °C (–40 °F to +392 °F)
ambient temperature (surrounding enclosure)
–40 °C to +80 °C (–40 °F to +176 °F) device
nameplate
process
device tag

Page EN-4 SITRANS LR200 (HART) – QUICK START MANUAL A5E31993614
mmmmm
English
• Hazardous (continued) (Brazil) INMETRO DNV 12.0068X
Ex ia IIC T4 Ga
IP66/IP67/IP68
-40 ºC ≤T a ≤+80 ºC
DNV #OCP 0017
ABNT NBR IEC 60079-0:2008 e
ABNT NBR IEC 60079-11:2009
Non-Sparking/
Energy Limited 1) (Europe) ATEX II 3 G Ex nA/nL IIC T4 Gc
Non-Incendive 2) (US) FM:
Class I, Div. 2, Groups A, B, C, D, T5
Flameproof 3) (Europe) ATEX II 1/2 G, Ex dmbia IIC T4 Ga/Gb
Increased Safety 4) (Europe) ATEX II 1/2 G, Ex embia IIC T4 Ga/Gb
Explosion proof 5) (US/Canada) FM/CSA: (barrier not required)
Class I, Div. 1, Groups A, B, C, D
Class II, Div. 1, Groups E, F, G
Class III T4
• Marine Lloyd’s Register of Shipping
ABS Type Approval 6)
Installation
Note: Use appropriate conduit seals to maintain IP or NEMA rating.
1) See
Non-Sparking/Energy Limited wiring on page 10.
2) See
Non-incendive wiring (FM US only) on page 10.
3) See
Flameproof wiring on page 11.
4) See
Increased safety wiring on page 11.
5) See
Explosion-proof wiring (FM/CSA US/Canada only) on page 11.
6) The process pressure boundary assembly comprises the components that act as a barrier against
pressure loss from the process vessel: that is, the combination of process connection body and
emitter, but normally excluding the electrical enclosure.
WARNINGS:
• Installation shall only be performed by qualified personnel and in
accordance with local governing regulations.
• Materials of construction are chosen based on their chemical compatibility (or
inertness) for general purposes. For exposure to specific environments, check
with chemical compatibility charts before installing.
• Handle the device using the enclosure, not the antenna or the device tag, to avoid
damage.
Notes:
• The Process Device Tag shall remain with the process pressure boundary assembly6). In
the event the device package is replaced, the Process Device Tag shall be transferred to
the replacement unit.
• SITRANS LR200 units are hydrostatically tested, meeting or exceeding the requirements
of the ASME Boiler and Pressure Vessel Code and the European Pressure Equipment
Directive.

A5E31993614 SITRANS LR200 (HART) – QUICK START MANUAL Page EN-5
mmmmm
English
Pressure Application
Pressure Equipment Directive, PED, 97/23/EC
Siemens Level Transmitters with flanged, threaded, or sanitary clamp type process mounts
have no pressure-bearing housing of their own and, therefore, do not come under the Pressure
Equipment Directive as pressure or safety accessories, (see EU Commission Guideline 1/8).

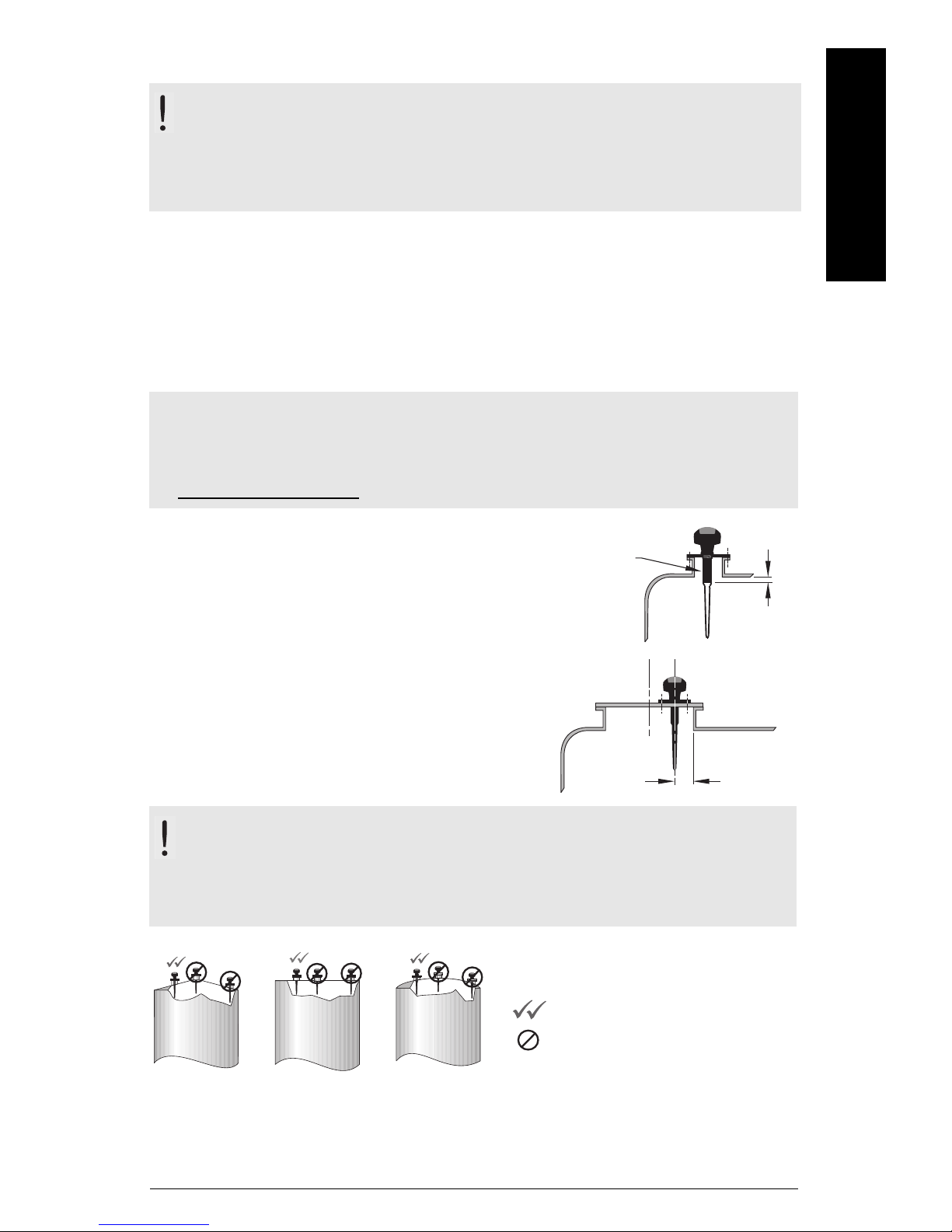

Nozzle design
• The end of the shield section should protrude a
minimum of 10 mm (0.4”) to avoid false echoes being
reflected from the nozzle.
Location on a manhole cover
• A manhole cover is typically a covered nozzle with a
diameter 610 mm (24”) or greater.
• For optimum signal conditions, locate the antenna
off-center, typically 100 mm (4") from the side.
Nozzle location
WARNINGS:
• Never attempt to loosen, remove, or disassemble process connection or instru-
ment housing while vessel contents are under pressure.
• Improper installation may result in loss of process pressure.
Notes:
• For nozzles 100 mm (4") in length or shorter use the 100 mm (4") shield.
• For nozzles 250 mm (10") in length or shorter use the 250 mm (10") shield.
• For horn and waveguide versions see the full manual which can be downloaded from
www.siemens.com/LR200.
WARNING: For vessels with conical or parabolic tops, avoid mounting the
instrument at the centre. (The concavity of the top can focus echoes into the centre,
giving false readings.)
Note: Under certain circumstances, it may be acceptable to mount the device at the centre of
a flat-topped tank. Please discuss this with your local Siemens representative.
10 mm
(0.4")
shield
100 mm (4")
Coni
Fl at
Parabolic
Conical undesirable
Flat preferred

Page EN-6 SITRANS LR200 (HART) – QUICK START MANUAL A5E31993614
mmmmm
English
Environment
• Provide an environment suitable to the housing rating and materials of construction.
• Provide a sunshield if the device will be mounted in direct sunlight.
Access for programming
• Provide easy access for viewing the display and programming via the hand programmer.
(continued on next page)
Nozzle location (continued)
Beam angle
• Beam angle is the width of the cone
where the energy density is half of the
peak energy density.
• The peak energy density is directly in front
of and in line with the antenna.
• There is a signal transmitted outside the
beam angle, therefore false targets may
be detected.
Emission Cone
• Keep emission cone free of interference
from ladders, pipes, I-beams or filling
streams.
• Locate the antenna away from the side
wall, to avoid interference from indirect
echoes.
• Make allowance for the emission cone spreading: beam angle depends on horn size.
Mounting instructions
Threaded Version
1) Before inserting the device into its mounting connection,
check to ensure the threads are matching to avoid
damaging them.
2) Screw the device into the process connection, and hand
tighten.
3) To rotate the enclosure, first loosen the three set-screws
securing the locking ring. After positioning the enclosure,
retighten the screws.
WARNING: For pressure applications, use PTFE tape or other appropriate thread
sealing compound, and tighten the process connection beyond hand-tight (max. torque
40 N·m (30 ft.lbs).
Notes:
• There is no limit to the number of times the device can be rotated.
• Orient the front or back of the device towards the closest vessel wall.
• Do not rotate the enclosure after programming and device configuration (a polarity shift
of the transmit pulse may cause an error).
min. 300 mm (1ft)
per 3 m (10’) of vessel
height
beam
angle
28o
emission
cone
locking ring
securedbythree
2mmAllenset-
screws
threaded
connection

A5E31993614 SITRANS LR200 (HART) – QUICK START MANUAL Page EN-7
mmmmm
English
Flanged Version
Wiring
Power
Connecting SITRANS LR200
1) Strip the cable jacket for approximately 70 mm (2.75") from the end of the cable, and
thread the wires through the gland. 1) 2)
2) Connect the wires to the terminal as shown: the polarity is identified on the terminal
block.
3) Ground the device according to local regulations.
4) Tighten the gland to form a good seal.
5) Close the lid and secure the locking ring before programming and device configuration.
Do not rotate the device after it has been configured, as this may cause an error.
WARNING: The user is responsible for the selection of bolting and gasket materials
which will fall within the limits of the flange and its intended use, and which are
suitable for the service conditions.
WARNINGS:
The DC input terminals shall be supplied from a source providing electrical
isolation between the input and output, in order to meet the applicable safety
requirements of IEC 61010-1.
All field wiring must have insulation suitable for rated voltages.
WARNINGS:
• Check the device nameplate and process device tag, to verify the approval rating.
• Use appropriate conduit seals to maintain IP or NEMA rating.
• Read Instructions specific to hazardous area installations on page 12.
Notes:
• For detailed wiring instructions, please refer to the full Instruction Manual.
• Use twisted pair cable: AWG 22 to 14 (0.34 mm2to 2.5 mm2).
• Separate cables and conduits may be required to conform to standard instrumentation
wiring practices, or electrical codes.
1) May be shipped with the device.
2) If cable is routed through conduit, use only approved suitable-size hubs for waterproof applications.
cable shield
(if used)
optional cable gland1) 2)
(or NPT cable entry2))
plug (IP 68)
Use a 2 mm Allen key to loosen
the lid-lock set screw.

Page EN-8 SITRANS LR200 (HART) – QUICK START MANUAL A5E31993614
mmmmm
English
Connecting HART: typical PLC/mA configuration
1)
Wiring setups for hazardous area installations
There are six wiring options for hazardous area installations. In all cases, check the device
nameplate and process device tag to verify the approval rating.
1. Intrinsically Safe wiring
1) See
Curve 1: General Purpose, Intrinsically Safe, Non-Sparking/Energy Limited/ Non-incendive on
page 21 or
Curve 2: Flameproof, Increased Safety, Explosion-proof on page 21.
Note: ATEX certificates and connection drawings listed below can be downloaded from the
product page of our website at: www.siemens.com/LR200.
active PLC
HART
modem
SITRANS
LR200
power
supply
HART
communicator
Notes:
• Depending on the system design,
the power supply may be separate
from the PLC, or integral to it.
• HART resistance (cable resistance
plus 250 Ohm [resistor]) must be
limited according to the allowable
operating area1).
• Do not connect more than one
HART programming device at a
time.
R = 250 
The ATEX certificate can be downloaded from the product
page of our website at: www.siemens.com/LR200. Go to Support > Approvals / Certificates.
The IECEx certificate listed on the nameplate can be viewed on the IECEx website. Go to:
http://iecex.iec.ch and click on Ex Equipment Certificates of Conformity then enter the
certificate number IECEx TSA 04.0020X.
Device nameplate (ATEX/IECEX/INMETRO/C-TICK)

A5E31993614 SITRANS LR200 (HART) – QUICK START MANUAL Page EN-9
mmmmm
English
• For power demands see Curve 1: General Purpose, Intrinsically Safe, Non-Sparking/
Energy Limited/ Non-incendive
on page 21.
• For wiring requirements: follow local regulations.
• Approved dust-tight and water-tight conduit seals are required for outdoor NEMA 4X /
type 4X / NEMA 6, IP67, IP68 locations.
• Refer to
Instructions specific to hazardous area installations on page 12 and the ATEX
certificate listed above.
• Recommended intrinsically safe barriers are listed under
Passive Shunt Diode Barriers
on page 9 and
Active barriers (repeating barriers) on page 10.
Passive Shunt Diode Barriers
How to select a passive barrier for SITRANS LR200
To make sure that the barrier safety description is suitable for the LR200 Intrinsically Safe (IS)
input parameters, carry out the following calculations:
Re-e = max. end-to-end resistance of the barrier
Rloop = loop resistance (total of cable resistance plus any additional series
resistance, for example, PLC inputs and/or displays)
Vbarrier = value of any non-linear voltage drops due to the barrier
1) Determine the value for Re-e from the data sheet.
2) Calculate the total value for Rloop.
Note: Selecting a suitable PLC input module, power supply, or barrier requires knowledge
about Intrinsic Safety and the application. It is the responsibility of the installer to ensure that
the intrinsically safe installation complies with both the apparatus approval requirements and
the relevant national code of practice.
Note: A well regulated supply voltage is required.
Manufacturer Part Number
MTL 787SP+ (Dual Channel)
MTL 7787P+ (Dual Channel)
Stahl 9001/01-280-100-10 (Single Channel)
Stahl 9002/01-280-110-10 (Dual Channel)
Device nameplate (FM/CSA)
FM Intrinsically Safe connection drawing
number A5E01003040 and CSA Intrinsically Safe connection drawing number A5E01003039
can be downloaded from the product page of our website at: www.siemens.com/LR200.
Go to Support > Installation Drawings > Level Measurement > Continuous - Radar.

Page EN-10 SITRANS LR200 (HART) – QUICK START MANUAL A5E31993614
mmmmm
English
3) Calculate Rworking = Re-e + Rloop.
4) Determine the value of Vbarrier from the barrier data sheet (for example, voltage drops
due to diodes).
5) Calculate Vworking = Vsupply – Vbarrier.
Use the values for Vworking and Rworking to confirm that operation is within the shaded area
of the graph Curve 1: General Purpose, Intrinsically Safe, Non-Sparking/Energy Limited/ Non-
incendive
on page 21.
Active barriers (repeating barriers)
2. Non-Sparking/Energy Limited wiring
• For power demands see Curve 1: General Purpose, Intrinsically Safe, Non-Sparking/
Energy Limited/ Non-incendive
on page 21.
• For wiring requirements follow local regulations.
3. Non-incendive wiring (FM US only)
• For power demands, see Curve 1: General Purpose, Intrinsically Safe, Non-Sparking/
Energy Limited/ Non-incendive
on page 21.
Manufacturer Part Number
MTL 706
MTL 7206
Siemens SITRANS I 7NG4122
Stahl 9001/51-280-110-14
MTL E02009
MTL E02010
The ATEX certificate listed on the nameplate
can be downloaded from the product page of our website at: www.siemens.com/LR200.
Go to: Support > Approvals / Certificates.
FM Class 1, Div 2 connection drawing
number 23650537 can be downloaded from the product page of our website at:
www.siemens.com/LR200. Go to Support > Installation Drawings > Level Measurement >
Continuous - Radar.

A5E31993614 SITRANS LR200 (HART) – QUICK START MANUAL Page EN-11
mmmmm
English
4. Flameproof wiring
• For power demands see Curve 2: Flameproof, Increased Safety, Explosion-proof on
page 21.
• For wiring requirements follow local regulations.
•Seealso
Instructions specific to hazardous area installations on page 12 and the ATEX
certificate listed above.
5. Increased safety wiring
• For power demands see Curve 2: Flameproof, Increased Safety, Explosion-proof on
page 21.
• For wiring requirements follow local regulations.
•Seealso
Instructions specific to hazardous area installations on page 12 and the ATEX
certificate listed above.
6. Explosion-proof wiring (FM/CSA US/Canada only)
• For power demands see Curve 2: Flameproof, Increased Safety, Explosion-proof on
page 21.
• For wiring requirements (North America only) see the connection drawing listed above,
which can be downloaded from the product page of our website at:
www.siemens.com/LR200.
The ATEX certificate can be downloaded
from the product page of our website at: www.siemens.com/LR200.
Go to: Support > Approvals / Certificates.
The ATEX certificate can be downloaded from
the product page of our website at: www.siemens.com/LR200.
Go to: Support > Approvals / Certificates.
FM/CSA Explosion Proof connection drawing number
23650597 can be downloaded from the product page of our website at:
www.siemens.com/LR200. Go to Support > Installation Drawings > Level Measurement >
Continuous - Radar.

Page EN-12 SITRANS LR200 (HART) – QUICK START MANUAL A5E31993614
mmmmm
English
Instructions specific to hazardous area installations
(Reference European ATEX Directive 94/9/EC, Annex II, 1/0/6)
The following instructions apply to equipment covered by certificate numbers
SIRA 06ATEX2378X, SIRA 05ATEX1001X, and SIRA 09ATEX4151X:
1) For use and assembly, refer to the main instructions.
2) The equipment is certified for use as Category 1G equipment per SIRA 06ATEX2378X,
Category 1/2 equipment per SIRA 05ATEX1001X, and Category 3G equipment per
SIRA 09ATEX4151X.
3) The equipment may be used with flammable gases and vapors with apparatus group IIC,
IIB, and IIA, and temperature classes T1, T2, T3, and T4.
4) The equipment is certified for use in an ambient temperature range of –40 C to +80 C.
5) The equipment has not been assessed as a safety related device (as referred to by
Directive 94/9/EC Annex II, clause 1.5).
6) Installation and inspection of this equipment shall be carried out by suitably trained
personnel in accordance with the applicable code of practice (EN 60079-14 and EN 60079-
17 in Europe).
7) The equipment is non-repairable.
8) The certificate numbers have an ‘X’ suffix, which indicates that special conditions for safe
use apply. Those installing or inspecting this equipment must have access to the
certificates.
9) If the equipment is likely to come into contact with aggressive substances, then it is the
responsibility of the user to take suitable precautions that prevent it from being adversely
affected, thus ensuring that the type of protection is not compromised.
Aggressive substances: for example, acidic liquids or gases that may attack
metals, or solvents that may affect polymeric materials.
Suitable precautions: for example, establishing from the material’s data sheet
that it is resistant to specific chemicals.
Programming SITRANS LR200
•See Quick Start Wizard via the handheld programmer on page 16.
•See
Quick Start Wizard via SIMATIC PDM on page 19.
Activating SITRANS LR200
Power up the device. SITRANS LR200 automatically starts up in Measurement mode. (To
change the language displayed see
Selecting a listed option on page 15.)
The LCD Display
Measurement mode 1) ((((normal operation)
1) In response to a key press request: see
Programming via the handheld programmer on page 14.
1 – toggle indicator for linear units or %
2 – selected operation: level, space, distance, or volume
3 – measured value (level or volume, space, or distance)
4 – units
5 – bar graph indicates level
6 – secondary region indicates on request1) electronics temperature,
echo confidence, loop current, or distance
7 – text area displays status messages
8 – device status indicator (for details please see the full manual)
678
1342
5

A5E31993614 SITRANS LR200 (HART) – QUICK START MANUAL Page EN-13
mmmmm
English
Fault present indicators
Navigation view
• A visible menu bar indicates the
menu list is too long to display all
items.
• A band halfway down the menu
bar indicates the current item is
halfway down the list.
• The depth and relative position of
the item band on the menu bar indicates the length of the menu list, and approximate
position of the current item in the list.
• A deeper band indicates fewer items.
Handheld Programmer (Part No. 7ML1930-1BK)
Ordered separately.
1) 2) 3)
Key Function in Measurement mode
Updates the loop current1).
Updates internal enclosure temperature reading1).
Updates echo confidence value1).
Updates distance measurement1).
Mode opens PROGRAM mode2).
RIGHT arrow opens PROGRAM mode3).
UP or DOWN arrow toggles between linear units and %
1) New value is displayed in LCD secondary region.
2) Opens the menu level last displayed in this power cycle, unless power has been cycled since exiting
PROGRAM mode or more than 10 minutes have elapsed since PROGRAM mode was used. Then top
level menu will be displayed.
3) Opens the top level menu
S: 0 LOE When a fault is present the fault code and an error message are
displayed in the text area (7), and a service-required icon appears in the
device status location (8)
current
item
number
current
item
current
menu
item
band
menu
bar
parameter
value/
selection
parameter
number
parameter
name
Edit viewParameter view
C

Page EN-14 SITRANS LR200 (HART) – QUICK START MANUAL A5E31993614
mmmmm
English
Programming via the handheld programmer
Parameter menus
1. Enter PROGRAM mode
• Point the programmer at the display (from a maximum
distance of 300 mm [1 ft.]).
•RIGHT arrow activates PROGRAM mode and
opens menu level 1.
•Mode opens the menu level last displayed in
PROGRAM mode within the last 10 minutes, or menu
level 1 if power has been cycled since then.
2. Navigating: key functions in Navigation mode
Notes:
• Press Mode to toggle between Measurement and Program Mode.
• While the device is in PROGRAM mode the output remains fixed and does not respond to
changes in the device.
• SITRANS LR200 automatically returns to Measurement mode after a period of inactivity in
PROGRAM mode (between 15 seconds and 10 minutes, depending on the menu level).
Note: For Quick Access to parameters via the handheld programmer, press Home , then
enter the menu number, for example: 2.7.1 (Volume).
Key Name Menu level Function in Navigation Mode
UP or DOWN
arrow
menu or
parameter Scroll to previous or next menu or parameter.
RIGHT arrow menu Go to first parameter in the selected menu, or open
next menu.
parameter Open Edit mode.
LEFT arrow menu or
parameter Open parent menu.
Mode menu or
parameter Change to MEASUREMENT mode.
Home menu or
parameter Open top level menu: menu 1.
Parameters are arranged in a 5-level menu structure.
For the complete list of parameters with instructions, see
the full manual.
1. QUICK START
2. SETUP
2.1. DEVICE
.............
2.7. LINEARIZATION
2.7.1. VOLUME
2.7.1.1. VESSEL SHAPE
display
handheld programmer
Max. 300 mm
(1 ft)

A5E31993614 SITRANS LR200 (HART) – QUICK START MANUAL Page EN-15
mmmmm
English
3. Editing in PROGRAM mode
Selecting a listed option
a) Navigate to the desired parameter.
b) Press RIGHT arrow to open parameter
view.
c) Press RIGHT arrow again to open Edit
mode. The current selection is highlighted.
Scroll to a new selection.
d) Press RIGHT arrow to accept it
The LCD returns to parameter view and displays
the new selection.
Changing a numeric value
a) Navigate to the desired parameter.
b) Press RIGHT arrow again to open Edit
mode. The current value is highlighted.
c) Key in a new value.
d) Press RIGHT arrow to accept it. The LCD
returns to parameter view and displays the new
selection.
Key functions in Edit mode
Key Name Function in Edit Mode
UP or
DOWN
arrow
Selecting options Scrolls to item.
Numeric editing - Increments or decrements digits
- Toggles plus and minus sign
RIGHT
arrow
Selecting options - Accepts the data (writes the parameter)
- Changes from Edit to Navigation mode
Numeric editing
- Moves cursor one space to the right
- or with cursor on Enter sign, accepts the data and changes
from Edit to Navigation mode
LEFT
arrow
Selecting options Cancels Edit mode without changing the parameter
Numeric editing
- Moves cursor to plus/minus sign if this is the first key
pressed
- or moves cursor one space to the left.
parameter name parameter
number
current
selection
current
value
parameter
number
parameter name

Page EN-16 SITRANS LR200 (HART) – QUICK START MANUAL A5E31993614
mmmmm
English
Quick Start Wizard via the handheld programmer
1. Quick Start
a) Point the programmer at the display from a maximum distance of 300 mm (1 ft), then
press RIGHT arrow to activate PROGRAM mode and open menu level 1.
b) Press RIGHT arrow twice to navigate to menu item 1.1 and open parameter view.
c) Press RIGHT arrow to open Edit mode or DOWN arrow to accept default
values and move directly to the next item.
d) To change a setting, scroll to the desired item or key in a new value.
e) After modifying a value, press RIGHT arrow to accept it and press DOWN arrow
to move to the next item.
f) Quick Start settings take effect only after you select Yes to Apply changes in step 1.8.
1.1. Language
Selects the language to be used on the LCD and takes effect immediately.
1.2. Material
1.3. Response Rate
Sets the reaction speed of the device to measurement changes in the target range.
Use a setting just faster than the maximum filling or emptying rate (whichever is greater).
Clear Numeric editing Erases the display.
Decimal
point Numeric editing Enters a decimal point.
Plus or
minus
sign
Numeric editing Changes the sign of the entered value.
to
o
Numeral Numeric editing Enters the corresponding character.
Options ENGLISH, DEUTSCH, FRANCAIS, ESPANOL
Options LIQUID
LIQUID LOW DK (low dielectric liquid)
Response Rate Fill Rate/Empty Rate
SLOW 0.1 m/min (0.32 ft/min)
MED 1.0 m/min (3.28 ft/min)
FAST 10.0 m/min (32.8 ft/min)
Key Name Function in Edit Mode (continued)

A5E31993614 SITRANS LR200 (HART) – QUICK START MANUAL Page EN-17
mmmmm
English
1.4. Units
Sensor measurement units.
1.5. Operating Mode
1.6. Low Calibration Point
Distance from sensor reference point to Low Calibration Point: usually process empty level.
1.7. High Calibration Point
Distance from sensor reference point to High Calibration Point: usually process full level.
1.8. Apply? (Apply changes)
In order to save the Quick Start settings it is necessary to select Yes to apply changes.
Press Mode to return to Measurement mode. SITRANS LR200 is now ready to operate.
Options M, CM, MM, FT, IN
Operation Description Reference point
NO
SERVICE
Measurement and associated loop current are not
updated, and the device defaults to Fail-safe modea).
a) For more details on Fail-safe Mode refer to the full manual.
LEVEL Distance to material surface Low Calibration Point
SPACE Distance to material surface High Calibration Point
DISTANCE Distance to material surface Sensor reference point
Values Range: 0.00 to 20.00 m
Values Range: 0.00 to 20.00 m
Options YES, NO, DONE (Display shows DONE when Quick Start is successfully
completed.)
high cal.
point
low cal.
point
level
space
distance
sensor
reference
point

Page EN-18 SITRANS LR200 (HART) – QUICK START MANUAL A5E31993614
mmmmm
English
SITRANS LR200 Communications: HART
• You will need the full manual to acquire the list of applicable parameters.
• We recommend that you use SIMATIC Process Device Manager (PDM) to program your
device.
• Application Guides for setting up HART devices with SIMATIC PDM can be downloaded
from the product page of our website at: www.siemens.com/LR200 under Support.
SIMATIC PDM
SIMATIC PDM is a software package used to commission and maintain SITRANS LR200 and
other process devices. Please consult the operating instructions or online help for details on
using SIMATIC PDM. (You can find more information at: www.siemens.com/simatic-pdm.)
Deactivate Buffers
This aligns SIMATIC PDM with the HART modem for Windows 2000and Windows XP®1)
operating Systems.
1) Click Start/Settings/Control Panel to begin configuration.
2) Double click System, select the Hardware tab, and click the Device Manager button.
3) Open Ports folder and double click the COM Port used by the system to open the
Communications Port Properties window.
4) Select the Port Settings tab and double click the Advanced button.
5) If the Use FIFO buffers radio box is selected, click to deselect.
Click OK to close out. Close all screens and then reboot.
Update Electronic Device Description (EDD)
• The EDD is located in Device Catalog, under Sensors/Level/Echo/Siemens Milltronics/
SITRANS LR200.
• Check the product page of our website at: www.siemens.com/LR200 to make sure you
have the latest version of SIMATIC PDM, the most recent Service Pack (SP) and the most
recent hot fix (HF). Go to Support > Software Downloads.
To install a new EDD:
1) Download the EDD from the product page of our website at: www.siemens.com/LR200
and save the files to your computer.
2) Extract the zipped file to an easily accessed location.
3) Launch SIMATIC PDM – Manage Device Catalog, browse to the unzipped EDD file and select
it.
1) Windowsis a registered trademark of the Microsoft Corporation
Notes:
• SIMATIC PDM operates only in the Windows XP Professional version, not in the Home
version.
• You need administrative rights on your operating system to deactivate buffers.
Notes:
• SIMATIC PDM Rev. 5.2 SP1 is supported only for basic configuration and troubleshooting.
• For advanced features such as the Quick Start wizard, Rev. 6.0 SP4 or higher is required.
