Sigma ROX 12.1 EVO User manual

12.07.23, 16:19
ROX 12.1 EVO SIGMA SPORT
https://alpha.sigmasport.com/product/rox-12-1-evo/?tab=service#resource-39195-technical-information-rox-12-1-evo
1/37
SERVICE
MANUAL

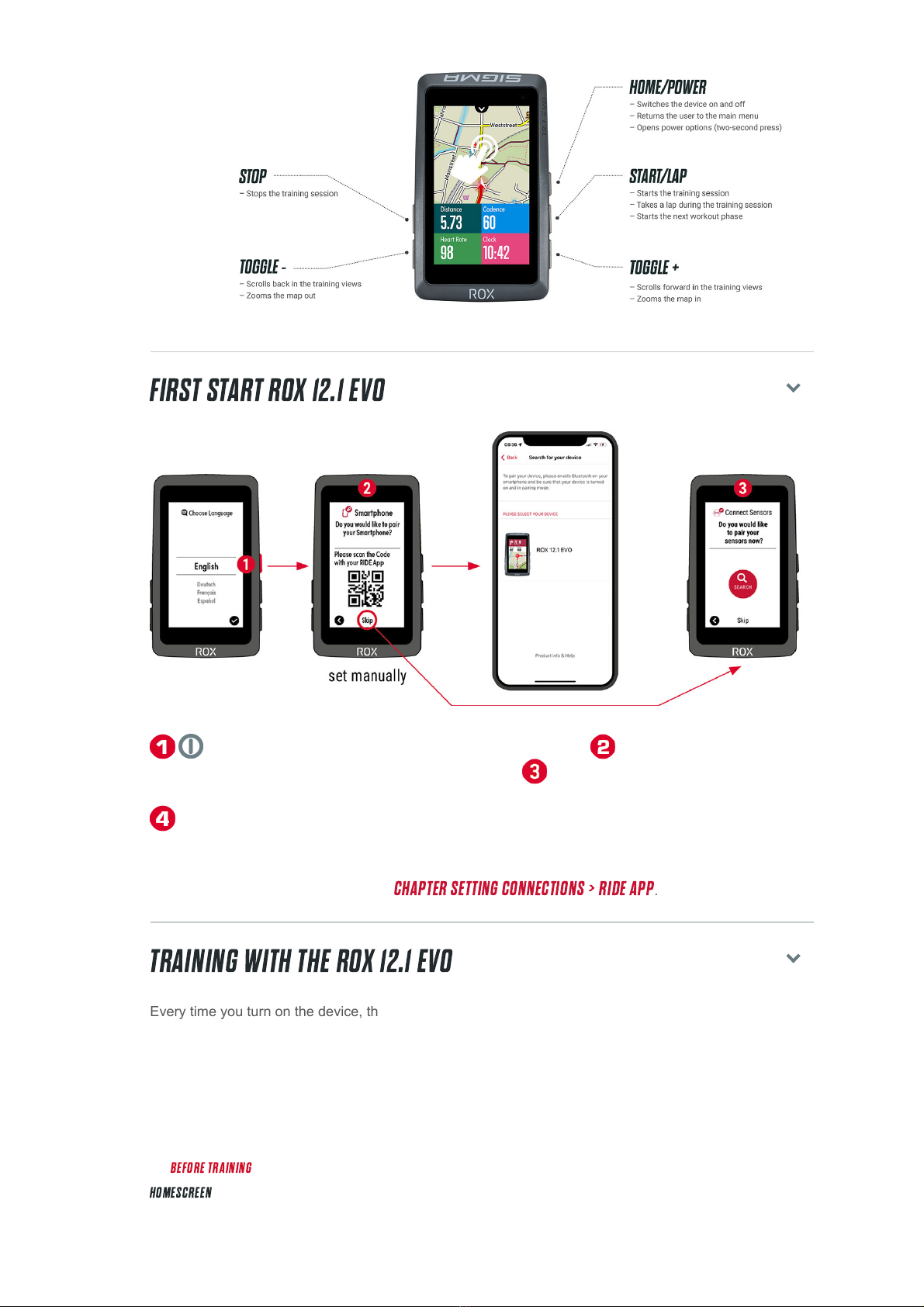

ASSEMBLY ROX 12.1 EVO
GPS MOUNT
LONG BUTLER
FIRST START SPEED / CADENCE TRANSMITTER
SPEED

12.07.23, 16:19
ROX 12.1 EVO SIGMA SPORT
https://alpha.sigmasport.com/product/rox-12-1-evo/?tab=service#resource-39195-technical-information-rox-12-1-evo
2/37
CADENCE TRANSMITTER
HEART RATE TRANSMITTER
BUTTONS ROX 12.1 EVO

12.07.23, 16:19
ROX 12.1 EVO SIGMA SPORT
https://alpha.sigmasport.com/product/rox-12-1-evo/?tab=service#resource-39195-technical-information-rox-12-1-evo
3/37
-Press and hold the RIDE button for 5 seconds to activate. Connect the RIDE app or
configure the general settings of your device manually. Select whether you want to add
sensors.
Finish the initial setup.
TIP: The APP offers you many functions for setting up and customizing the ROX 12.1. For more
information on the app’s functions, see CHAPTER SETTING CONNECTIONS > RIDE APP .
Every time you turn on the device, the ROX 12.1 EVO starts in the home screen. The last sport profile
used is always loaded. If you want to change the sport profile, you must do this before starting the
training.
If you have switched on GPS in the active sport profile (this is already the case with most profiles in the
delivery state), the ROX 12.1 EVO starts searching for GPS satellites directly after switching on.
HOMESCREEN
FIRST START ROX 12.1 EVO
TRAINING WITH THE ROX 12.1 EVO
BEFORE TRAINING

12.07.23, 16:19
ROX 12.1 EVO SIGMA SPORT
https://alpha.sigmasport.com/product/rox-12-1-evo/?tab=service#resource-39195-technical-information-rox-12-1-evo
4/37

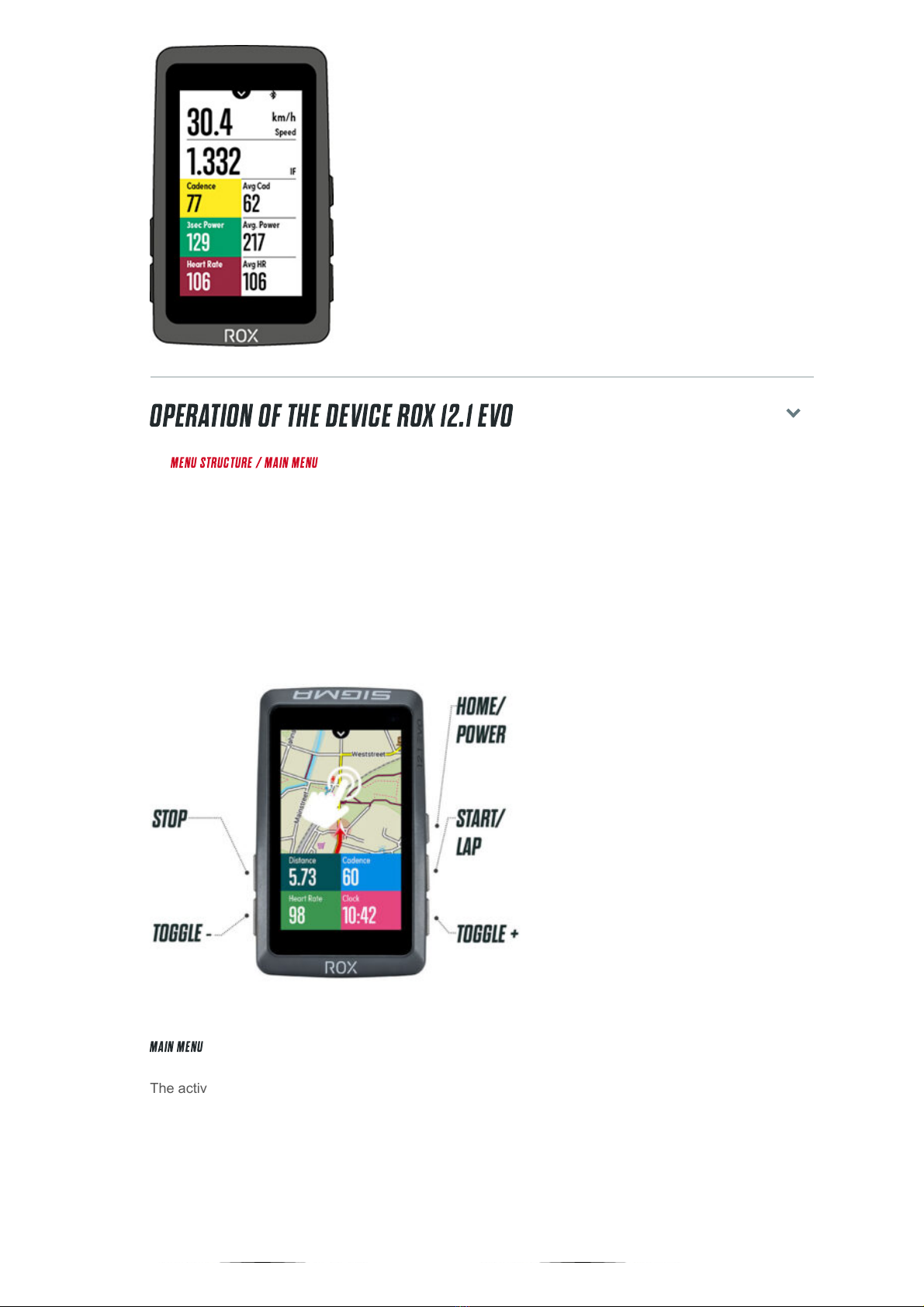

On the home screen you have access to all functions of the ROX 12.1 EVO.
From the start of the training, the navigation functions, the settings, Strava segments, the sport profile
selection, up to your best performances, you can see all important functions here.

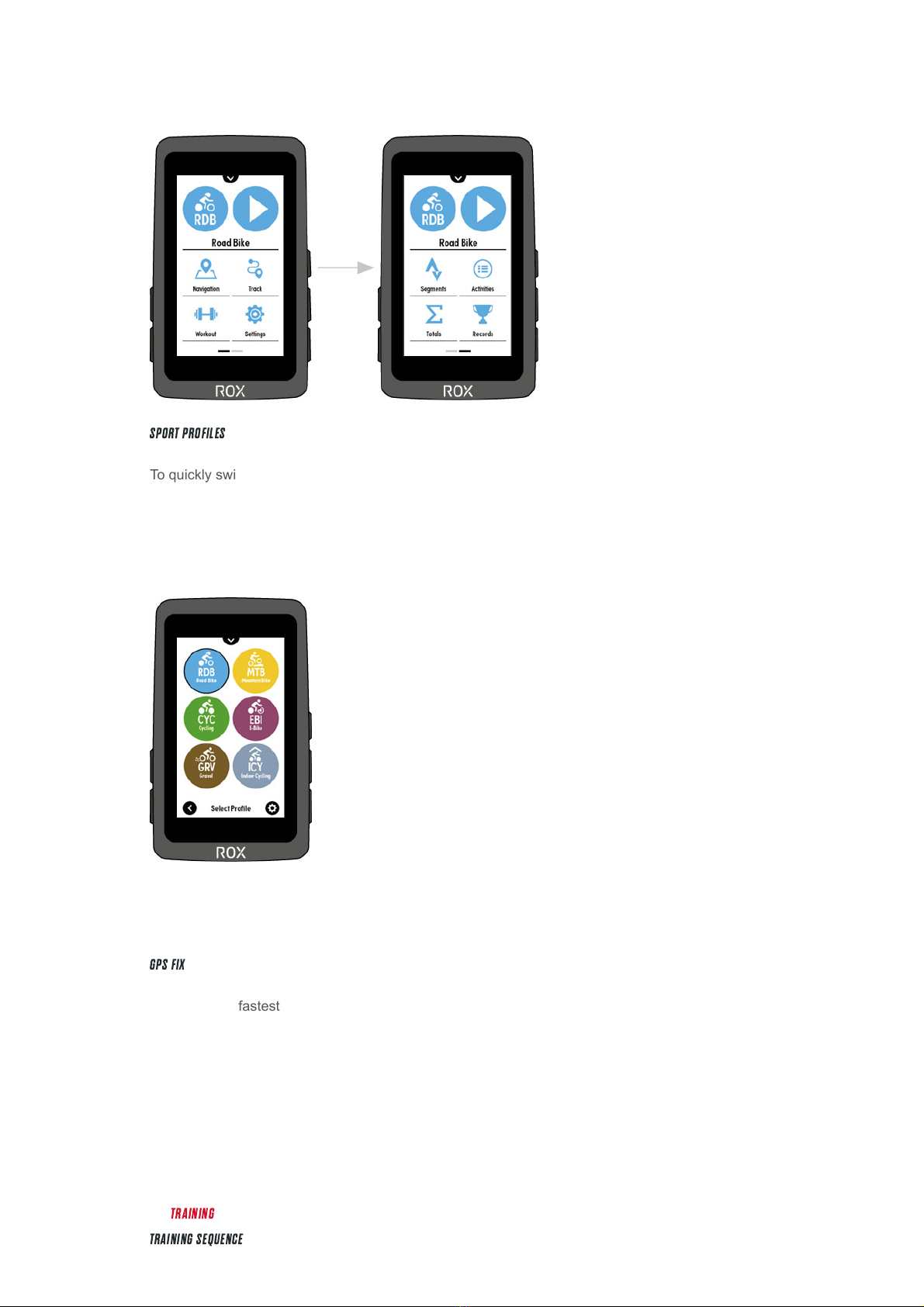

SPORT PROFILES
To quickly switch between the different sport profiles, you only need to click on the sport profile on the
home screen and the desired profile can be selected for the ride.
Under Settings->Sport Profiles, the various settings for the available sport profiles, such as bike
circumference, food and drink alarms, and many more can be made. Furthermore, new sport profiles can
be added via the “gear icon”.
These settings can also be made via the RIDE app. There is also the possibility of deleting the sport
profiles
GPS FIX
To enable the fastest possible connection of the ROX 12.1 EVO with GPS/GLONASS, please follow these
instructions:
› Locate a field that is as open as possible (no trees, houses or similar that interfere with reception).
› Don’t move around as much as possible for a fast connection.
• You can also use the dropdown menu to determine if a GPS fix has occurred. If yes, all bars of the GPS
symbol are there
› Synchronize the ROX 12.1 EVO as regularly as possible with the SIGMA RIDE app to always have the
latest GPS data on the device.
TRAINING SEQUENCE
TRAINING

12.07.23, 16:19
ROX 12.1 EVO SIGMA SPORT
https://alpha.sigmasport.com/product/rox-12-1-evo/?tab=service#resource-39195-technical-information-rox-12-1-evo
5/37
Every time you turn on the ROX 12.1 EVO, you start on the Home Screen. Before the workout, you can
select the sport profile. To do this, click on the currently active profile and then select the desired profile for
the workout.
Press the “play” button on the screen to enter the training screen of the selected sport profile. Pressing the
“play” button on the ROX will start a workout. If you want to pause your workout, press the “stop” button of
the ROX 12.1 EVO.
In the stopped state, you can choose to continue, save or delete the workout.
After successfully saving the training, personal successes and the evaluation of the training are displayed.
Pressing the Home/Power button will take you back to the Home screen.
At any time during the training you can start a navigation, change training views or add new sensors. To do
this, press the Home/Power button to get to the Home screen during the training. By clicking on the Play
button with the training time on the homescreen, you return to the active training.
Change values
To change the training values to be displayed, you have two options.
ROX 12.1 EVO: By long pressing on a value, you can change the color and function of this value to any. If
you want to change the layout, or add more training pages, you must select the desired sport profile under
Settings->Sport Profiles. Under Training Views you can now add more pages (up to 6 pages are possible),

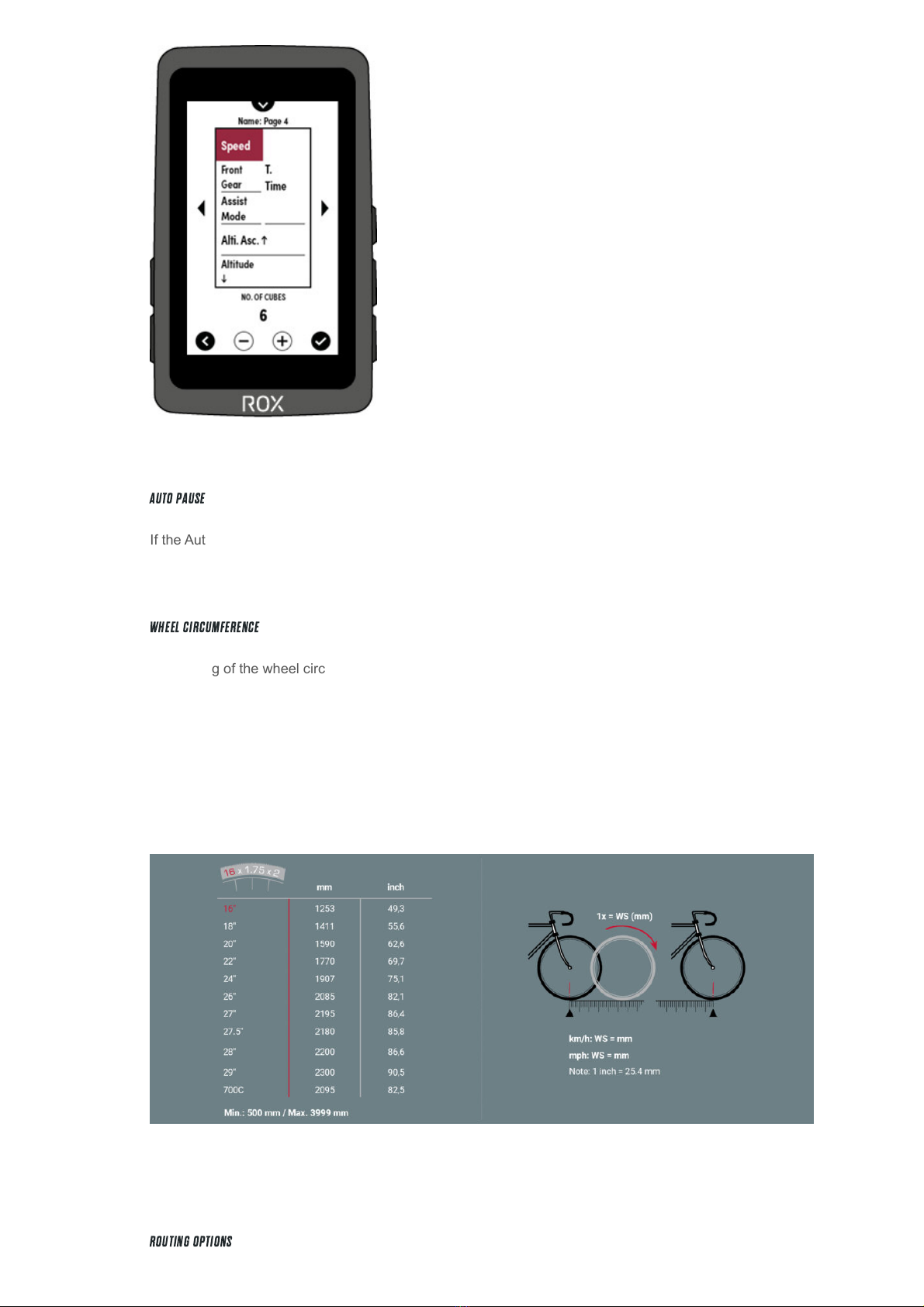

change the layout of the pages (up to 10 values can be displayed on one page at the same time) and also
customize special pages, like Auto Lap.
All mentioned settings can also be made comfortably with the RIDE app

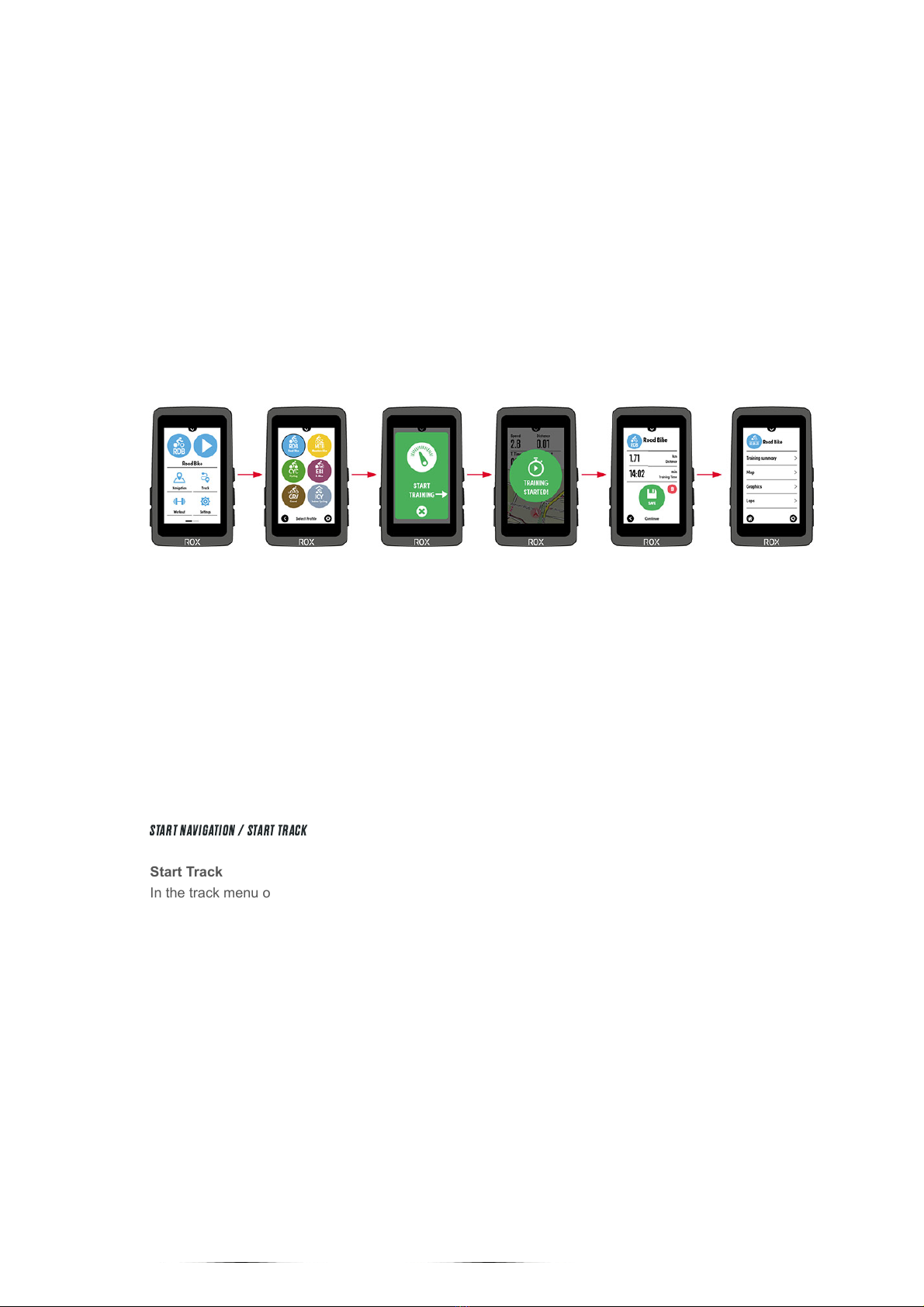

START NAVIGATION / START TRACK
Start Track
In the track menu of the ROX 12.1 EVO you can see all tracks that have been transferred to the ROX
12.1. By clicking on the track you can see the details of the track, via Select you can start the track. Here
you have the option to navigate to the starting point of the track or to the track point that is closest to your
current position.

12.07.23, 16:19
ROX 12.1 EVO SIGMA SPORT
https://alpha.sigmasport.com/product/rox-12-1-evo/?tab=service#resource-39195-technical-information-rox-12-1-evo
6/37
Start navigation
After successfully creating a route see “Navigating with the ROX” you have the option to customize it after
pressing “Show Route”. You can choose between three routing options: Recommended, Simple and Short.
By pressing “Start” the navigation is started.
As soon as a navigation or track navigation is active, the training page “Navigation” is automatically added
to the active training views.
START WORKOUT
MORE INFORMATION CAN BE FOUND IN THE CHAPTER WORKOUT

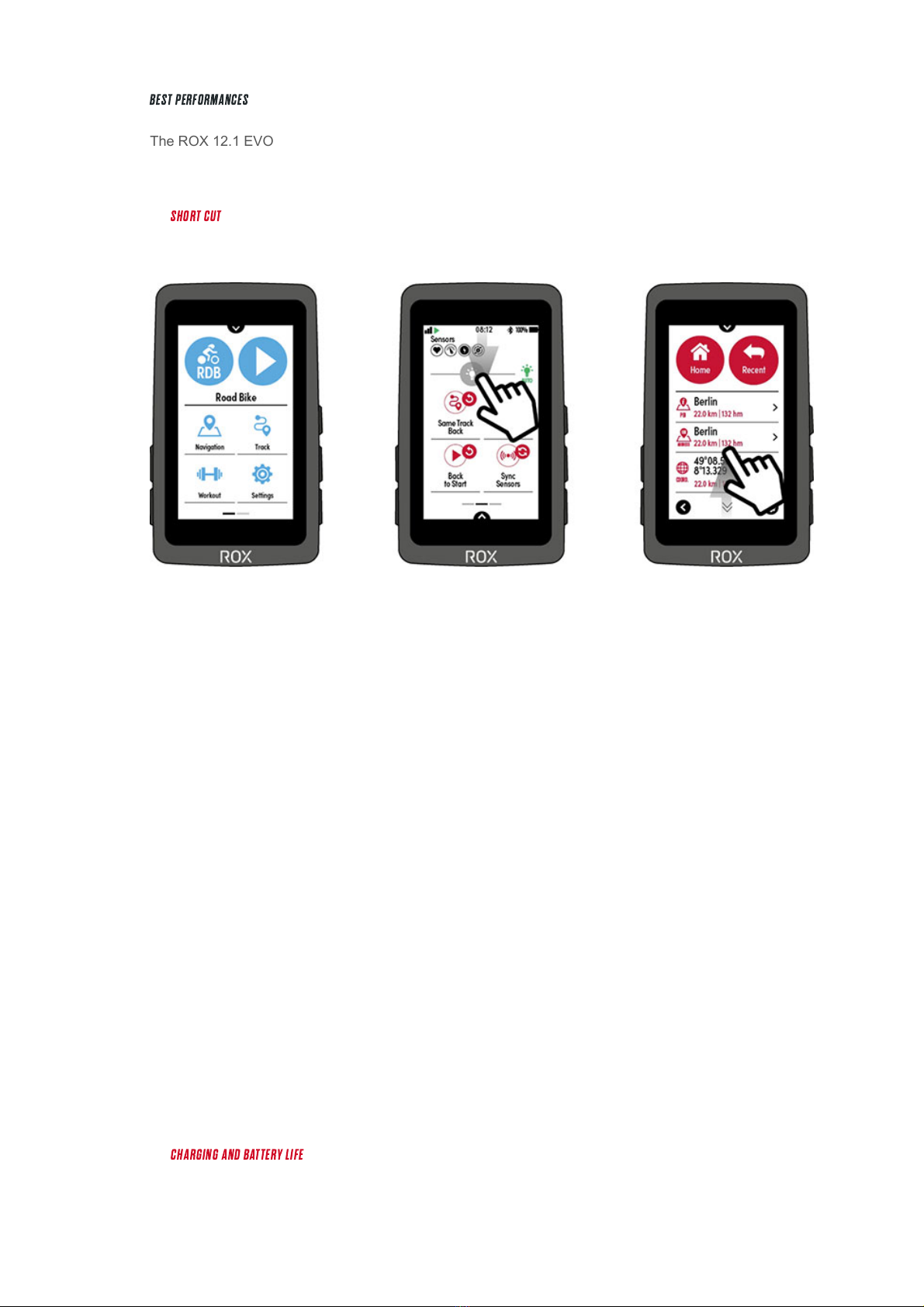

SHORTCUT
During the training you have access to the most important functions via the Shortcut menu
ShortCut Top
Swipe from top to bottom to open the Short Cut menu. Besides setting the display brightness, you can see
here which sensors are connected. Furthermore, the following functions are available, depending on
whether e.g. a navigation is currently active.
– Back to start
– Same track back
– Re-Routing
– Power meter Calibrate*

12.07.23, 16:19
ROX 12.1 EVO SIGMA SPORT
https://alpha.sigmasport.com/product/rox-12-1-evo/?tab=service#resource-39195-technical-information-rox-12-1-evo
7/37
– Sync. Sensors
– Cancel Workout*
– Cancel Navigation*
– Navigation instructions on/off*
– List turns*
– Mark position
– Altitude Calibration
– Auto Pause On/Off
– Auto Lap On/Off
– Strava Live Segments On/Off
– Smart Notification On/Off
ShortCut bottom
By swiping from bottom to top you get to a navigation shortcut menu. Here you can select your favorite
destinations, last destinations or even your home address as a navigation point and the ROX calculates
the route.
After pressing “Stop” to end the training, you can decide whether to save, continue or delete the training.
After clicking on Save, the personal achievements and then the evaluation of the training will appear. READ
MORE UNDER EVALUATION OF THE TRAINING ON THE DEVICE
CRASH ALERT
Crash Alert uses the acceleration data in the device to detect falls. You can store emergency contacts in
the SIGMA RIDE app, who will then be automatically notified in the event of a fall. If you have not stored
any emergency contacts, your emergency information will be displayed on the device after the fall – you
can also set this via the app.
The process for the crash alert is as follows:
1. fall is detected
2. device signals fall and offers user 30s time to react
3. if there is no reaction, the SIGMA RIDE app is informed (if connected and set up) and the emergency
information is shown on the display
4. emergency contacts (if set up) are informed via SMS and sent the current GPS position.
If you do not want to use the crash alert, you can switch it off in the device settings.
SMART TRAINER
SAVING AND EVALUATING
OTHER TRAINING FUNCTIONS

12.07.23, 16:19
ROX 12.1 EVO SIGMA SPORT
https://alpha.sigmasport.com/product/rox-12-1-evo/?tab=service#resource-39195-technical-information-rox-12-1-evo
8/37

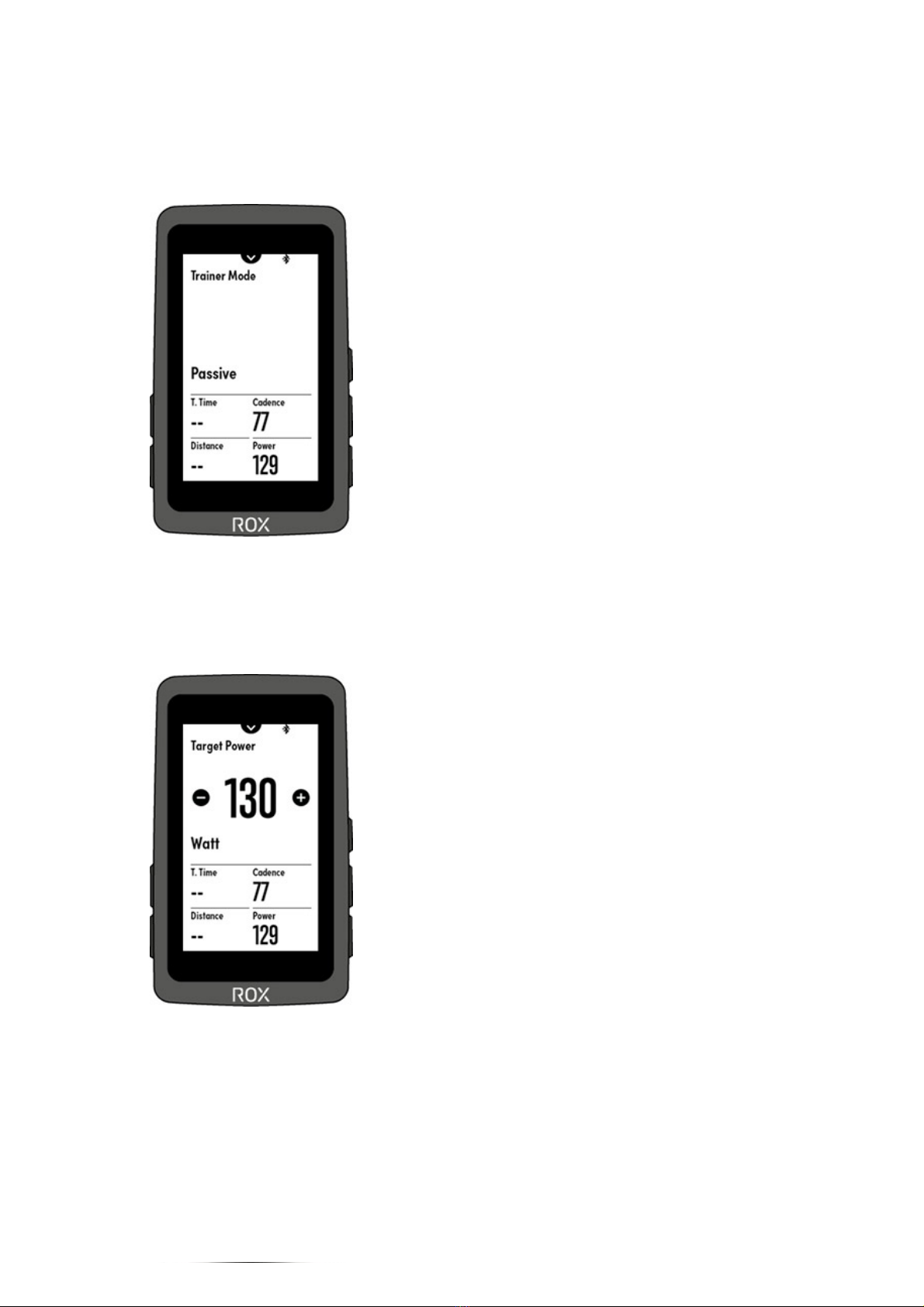

The ROX 12.1 EVO can be connected to a Smart Indoor Trainer via ANT+ FE-C. Here you have different
modes in which you can use the ROX 12.1 EVO together with the Smart Indoor Trainer.
Passive
Select this option if you want to use e.g. the ROX 12.1 EVO as a data logger, because you use e.g. Zwift,
Ruby or Bkool in parallel.
Target power
You can also control a workout with the ROX 12.1 EVO by entering a target power.
Here, the Smart Trainer automatically regulates the resistance depending on the cadence. You can
change the desired target power via + and -.

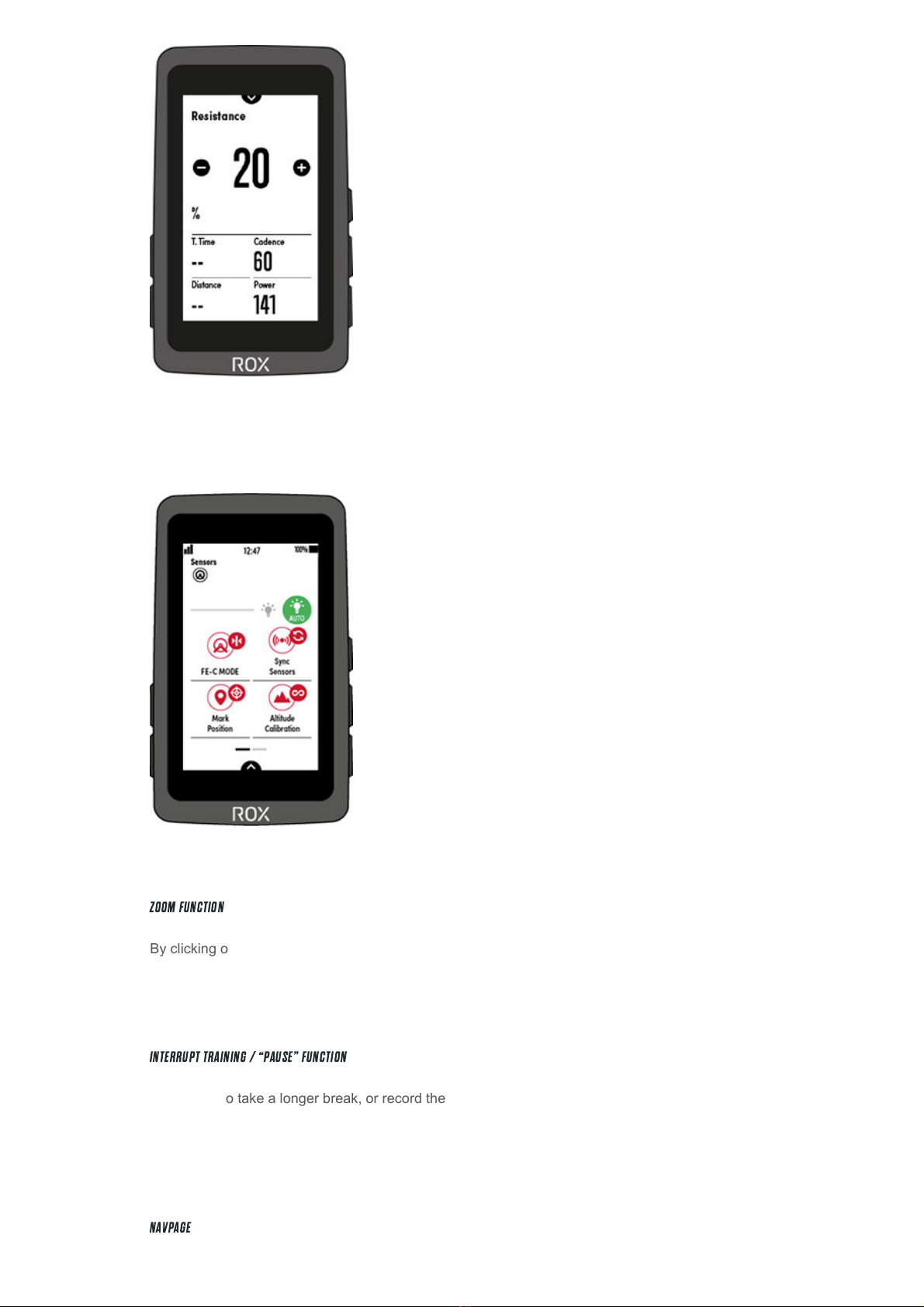

Resistance
Should you select the resistance mode, you can control the ‘braking effect’ of the Smart Trainer. This is
adjusted in 10% steps and can be conveniently set via the display.

12.07.23, 16:19
ROX 12.1 EVO SIGMA SPORT
https://alpha.sigmasport.com/product/rox-12-1-evo/?tab=service#resource-39195-technical-information-rox-12-1-evo
9/37
To change the mode, wait until the ROX 12.1 EVO has connected to the Smart Trainer and open the short
menu. Here, select the item FE-C mode to choose the desired mode. The mode can be changed at any
time.
ZOOM FUNCTION
By clicking on graphics like the map or the elevation profile, the zoom level of these can be adjusted. This
allows you to zoom in closer to the map or to select a larger section. The Auto Zoom function, which
automatically zooms the map to the next turn when navigation is active, can be set in the Map
management area.
INTERRUPT TRAINING / “PAUSE” FUNCTION
If you want to take a longer break, or record the round trip of a commute without creating two activities,
press the Stop button at the beginning of the break. Then press and hold the Home/Power button until the
Power menu appears. Here you have the option to set the ROX to “power save mode”. Here, all power-
intensive functions are reduced. To wake up the ROX 12.1 after the break, simply press the Home/Power
button.
NAVPAGE

12.07.23, 16:19
ROX 12.1 EVO SIGMA SPORT
https://alpha.sigmasport.com/product/rox-12-1-evo/?tab=service#resource-39195-technical-information-rox-12-1-evo
10/37
If you start a navigation or a track, the navigation training page is added automatically. On this page you
will see the map, arrival time and the distance to the destination. You can customize the layout and values
as you like. MORE ABOUT THIS UNDER SET SPORT PROFILES.
RADAR
The ROX 12.1 Evo is compatible with the ANT+ profile Rade. All devices that support this can be paired.
Under Settings->Connection->Connect Sensors->Connected Sensors, various settings for the radar can
be made after successful pairing.
During a training, approaching objects are represented by a dot. If the objects are approaching fast, the
bar changes from orange to red. If no vehicle is currently approaching, only the radar symbol is visible.
ALTITUDE PROFILE
If you have selected the altitude profile as a training value, the past profile is displayed here, or the future
profile in the case of active navigation/track.
By means of colored differentiation you can see how steep or flat the next section is.
By clicking on the field, the zoom level can be adjusted.
LAP PAGE /AUTO LAP
