SKF TKSA 71 User manual

Instructions for use
SKF TKSA 71 &
TKSA 71/PRO

1SKF TKSA 71 & TKSA 71/PRO
EU Declaration of conformity....................................................................................2
Safety recommendations..........................................................................................3
1. Introduction .....................................................................................................4
1.1 Shaft alignment overview............................................................................................. 4
1.2 Principle of operation.................................................................................................... 5
1.3 Case content................................................................................................................... 6
1.4 Pre-alignment................................................................................................................ 8
2. The measuring units ........................................................................................9
2.1 Description...................................................................................................................... 9
2.2 Handling the measuring units ...................................................................................10
2.3 Charging the measuring units ...................................................................................11
2.4 Setup techniques .........................................................................................................12
2.5 Setup .............................................................................................................................13
3. Technical specifications...................................................................................14
Table of contents
Original instructions

2 SKF TKSA 71 & TKSA 71/PRO
EU Declaration of conformity
We,
SKF Maintenance Products
Kelvinbaan 16
3439 MT Nieuwegein
The Netherlands
herewith declare that the following product:
SKF Shaft Alignment Tool
TKSA 71
has been designed and manufactured in accordance with:
RADIO EQUIPMENT DIRECTIVE 2014/53/EU as outlined in the harmonized norm
EN 61010:2010, EN 61326-1:2013, EN 55011:2009 +A1:2010
IEC 61000-4-2:2009, IEC 61000-4-3:2006 +A1:2008 +A2:2010
EN 301 489-1 v2.1.1, EN 301 489-17 v3.1.1, EN 300 328 v2.1.1
EUROPEAN ROHS DIRECTIVE 2011/65/EU
The laser is classified in accordance with the EN 60825-1:2007.
The laser complies with 21 CFR 1040.10 and 1040.11 except for
deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
The enclosed device complies with Part 15 of the FCC Rules.
47CFR: 2011 Part 15 Sub Part B Unintentional Radiators
Contains FCC ID: QOQBLE112. Certification Number: IC: 5123A-BGTBLE112
Manufacturer’s Name, Trade Name or Brand Name: bluegiga
Model Name: BLE112-A
Nieuwegein, The Netherlands,
August 2017
Sébastien David
Manager Product Development and Quality

3SKF TKSA 71 & TKSA 71/PRO
Safety recommendations
• The complete instructions for use are available on SKF.com and within the
SKF TKSA 71 app.
• Read and follow all warnings in this document before handling and
operating the equipment. You can be seriously injured, equipment and data
can be damaged if you do not follow the safety warnings.
• Always read and follow the operating instructions.
• The equipment should not be used in areas where there is a risk for
explosion.
• The tool uses two laser diodes with an output power below 1mW.
Still, never stare directly into the laser transmitter.
• Never aim the laser line into someone’s eyes.
• The Measuring Units contains Lithium Polymer battery.
Do not expose the device to extreme heat.
• Do not charge the Measuring units below +4 °C (+40 °F) or above
+45 °C (+113 °F).
• Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing, and gloves away from moving parts.
• Do not overreach. Keep proper footing and balance at all times to enable
better control of the device during unexpected situations.
• Use safety equipment. Non-skid safety shoes, hard hat or hearing
protection must be used for appropriate conditions.
• Never work on energized equipment unless authorized by a responsible
authority. Always turn off the power of the machine before you start.
• Do not expose the equipment to rough handling or impacts this will void
the warranty.
• Avoid direct contact with water, wet surfaces, or condensing humidity.
• Do not attempt to open the device.
• Use only accessories that are recommended by SKF.
• Device service must be performed only by qualified SKF repair personnel.
• We recommend calibrating the tool every 2 years.
WARNING
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
P ≤ 1mW l = 635nm

4 SKF TKSA 71 & TKSA 71/PRO
1. Introduction
1.1 Shaft alignment overview
Shaft misalignment is one of the most significant and most preventable contributors to
premature machine failure. When a machine is placed in service with less than optimal
shaft alignment, the following conditions are likely:
• Poor machine performance
• Increased power consumption
• Increased noise and vibration
• Premature bearing wear
• Accelerated deterioration of gaskets, packing, and mechanical seals
• Higher coupling wear rates
• Increased unplanned downtime
Proper alignment is achieved when the centerlines of each shaft are co-linear when the
machine is under load and at normal operating temperatures. This is often referred to
as shaft-to-shaft alignment. If the shafts of a machine train are not colinear, when the
machine is in operation, they are misaligned.
In essence, the objective is to have a straight line through the centers of all of the shafts of
the machines.

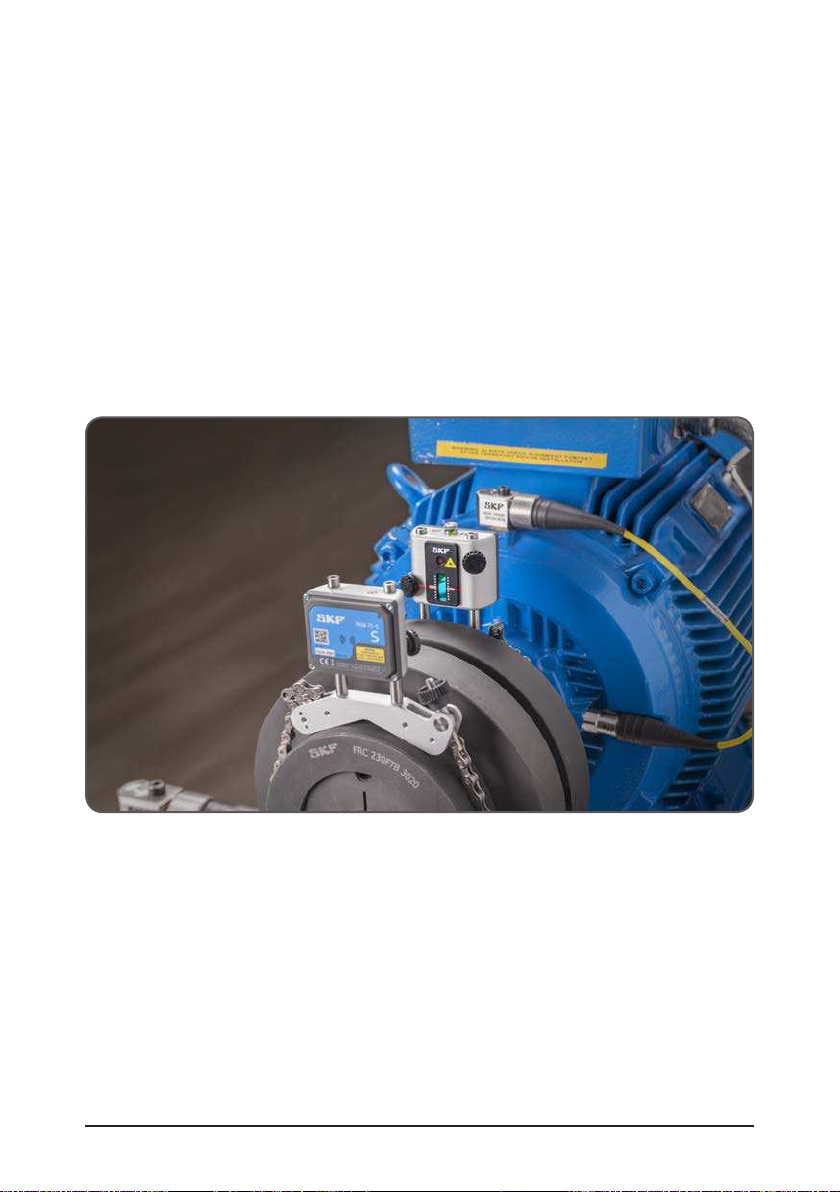

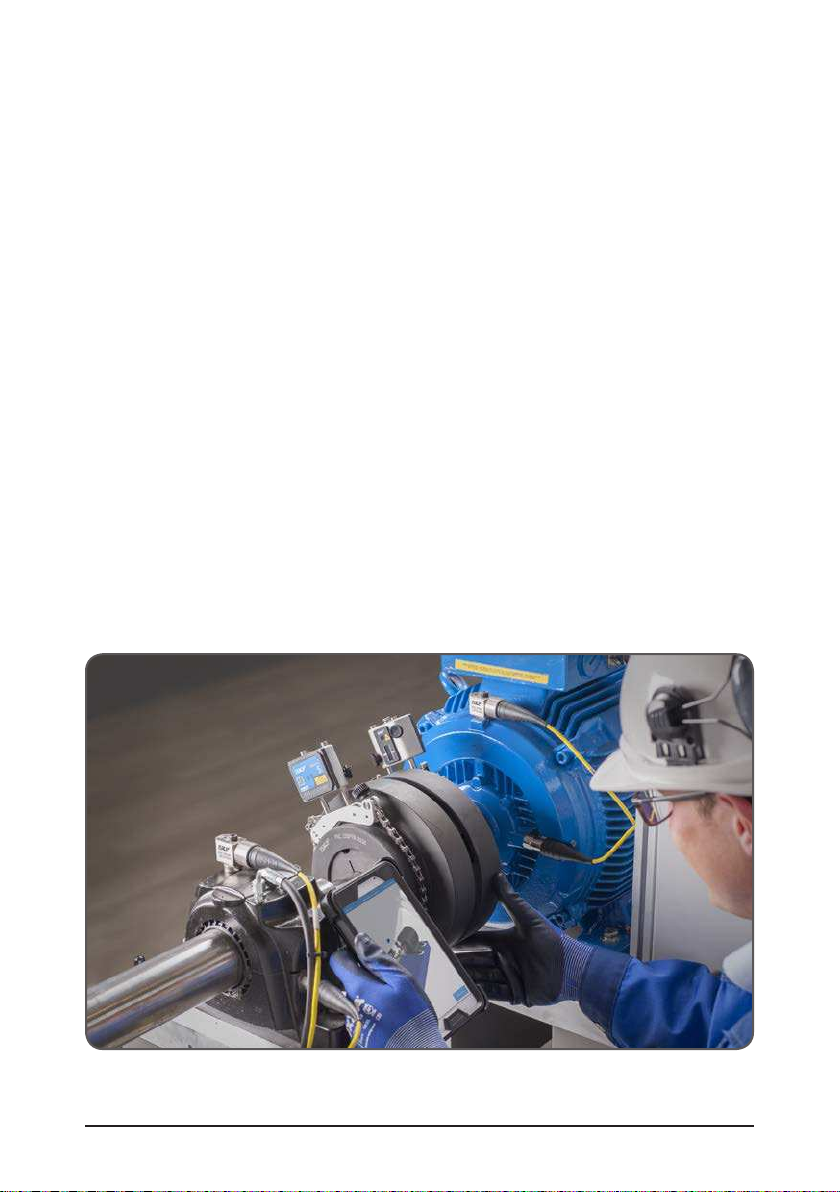

The SKF Shaft Alignment for TKSA 71 is a wireless shaft alignment tool that allows an easy
and accurate method for aligning the shafts of a driving machine (e.g. electric motor) and a
driven machine (e.g. pump).

5SKF TKSA 71 & TKSA 71/PRO
1.2 Principle of operation
The TKSA 71 is a Line Laser Shaft Alignment System and it has two measuring units
that are mounted on each shaft, or on each side of the coupling. After rotating the shafts
into different measuring positions, the system calculates offset and angular misalignment
values between the shafts. The values are compared with user defined tolerance limits and
adjustments of the machine can be made instantly.
During the measuring procedure, measurements are taken in three positions, each
separated by at least 20°. As the shafts are rotated through an arc, any parallel
misalignment or angular misalignment causes the detectors to measure the difference in
their positions relative to each other.
Positioning information from the measuring units is wirelessly communicated through
Bluetooth Low Energy to the displaying device, which calculates the amount of shaft
misalignment and advises corrective adjustments of the machine feet.
If the shafts of a machine train are not co-linear when the machine is in operation, they
are by definition misaligned. While the actual shaft positions can be illustrated in three-
dimensional space and the centerlines can be defined mathematically, it is easier to relate
the relationship between shafts at the coupling as an offset, an angle, or any combination
of the two in the vertical and horizontal axes.

6 SKF TKSA 71 & TKSA 71/PRO
1.3 Case content
The TKSA 71 case contains:
13
22
3
5 6
7
8
9
1110
1
12
4
1. 2 × TKSA 71 Measuring units 8. 2 × Wireless charging pads
2. 2 × Shaft brackets with chains 9. 1 × 3 m metric and imperial measuring tape
3. 2 × Extension chains 10. 1 × Certificate of calibration and conformance
4. 4 × Extension rods 11. 1 × Quick start guide (English)
5. 8 × Magnets 12. TKSA DISPLAY2 (TKSA 71D2 only)
6. 1 × Plastic box with bolts for
four magnets
13. 1 × Rugged IP 67 Carrying case
7. 1 × Micro USB to USB split
charging cable
The carrying case is prepared with space for the TKSA DISPLAY2 or other compatible
tablets.

7SKF TKSA 71 & TKSA 71/PRO

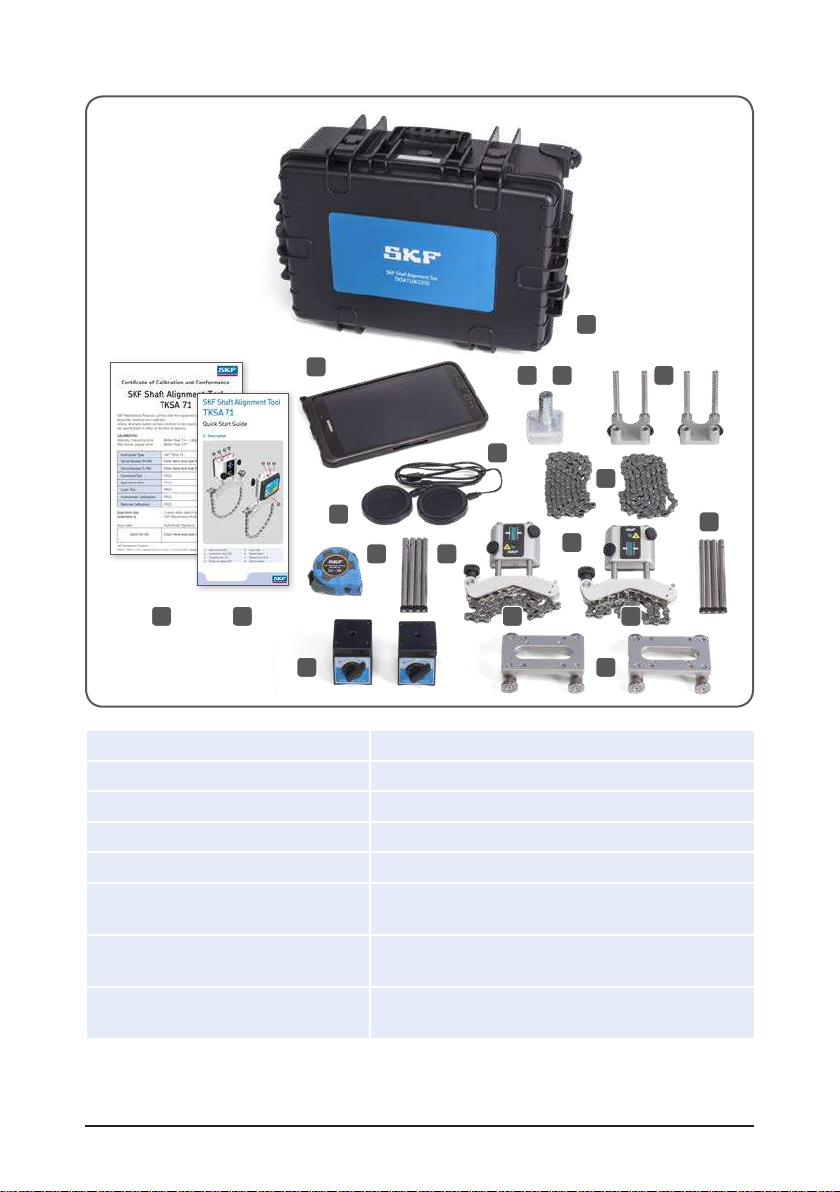

The TKSA 71/PRO case contains:
16
22
3
4
5 6
7
8
9
1110
1
12
13
4
14
15
1. 2 × TKSA 71 Measuring units 9. 1 × 5 m metric and imperial measuring tape
2. 2 × Shaft brackets with chains 10. 1 × Certificate of calibration and conformance
3. 2 × Extension chains 11. 1 × Quick start guide (English)
4. 8 × Extension rods 12. TKSA DISPLAY2 (TKSA 71D2/PRO only)
5. 8 × Magnets 13. 2 × Magnetic base
6. 1 × Plastic box with bolts for
magnets
14. 2 × Sliding brackets
7. 1 × Micro USB to USB split
charging cable
15. 2 × Offset brackets
8. 2 × Wireless charging pads 16. 1 × Industrial Rugged Trolley
Carrying Case IP 67
The carrying case is prepared with space for the TKSA DISPLAY2 or other compatible
tablets.

8 SKF TKSA 71 & TKSA 71/PRO
1.4 Pre-alignment
Ensure that all precautions are taken to prevent the machine from accidentally being
started. Lock out / tag out all machines before use.
Check:
• Shim size
• Required tolerances
• Coupling play
• Pipe strain
• Mechanical looseness
• Soft foot

9SKF TKSA 71 & TKSA 71/PRO
2. The measuring units
2.1 Description
The measuring unit marked S (stationary) should be mounted on the stationary machine
and the unit marked M (movable) on the movable machine.
1234
5 6 7
8
1. Measuring unit S 5. Laser pitch
2. Connection blue LED 6. Power button
3. Charging red LED 7. Measuring unit M
4. Power on green LED 8. Serial number
The color functions of the Light Emitting Diodes:
• Green: Power on
• Red: Charging
• Blue: Connected

10 SKF TKSA 71 & TKSA 71/PRO
2.2 Handling the measuring units
• Switch on the units by pressing
the power button shortly at the back
of each unit.
• Press the power button until the LED
switches off to turn a unit off.
• The Status LED will turn green when a
unit is switched on.
• The Connection LED will turn blue
when a unit is connected via
Bluetooth to the app.

11SKF TKSA 71 & TKSA 71/PRO
2.3 Charging the measuring units
• Plug the charging pods into a
standard USB charger or a
computer USB port (slower).
• A Red LED shows the charging pod
is connected and operational.
• Place each measuring unit in the center of a charging pod.
The red LED on a Measuring unit indicates:
• ON = Charging correctly
• OFF = Measuring Unit battery is
fully charged
The LED on the charging pod indicates:
• Red = Connected and receiving USB power
• Blue = Connected ready to charge
• Blue Slow Flashing = Charging
• Leave charging until the Red LED on the
measuring unit turns OFF
(about 3 hours for an empty battery).
• Charging the measuring units for
10 minutes will allow for 1 hour usage.

12 SKF TKSA 71 & TKSA 71/PRO

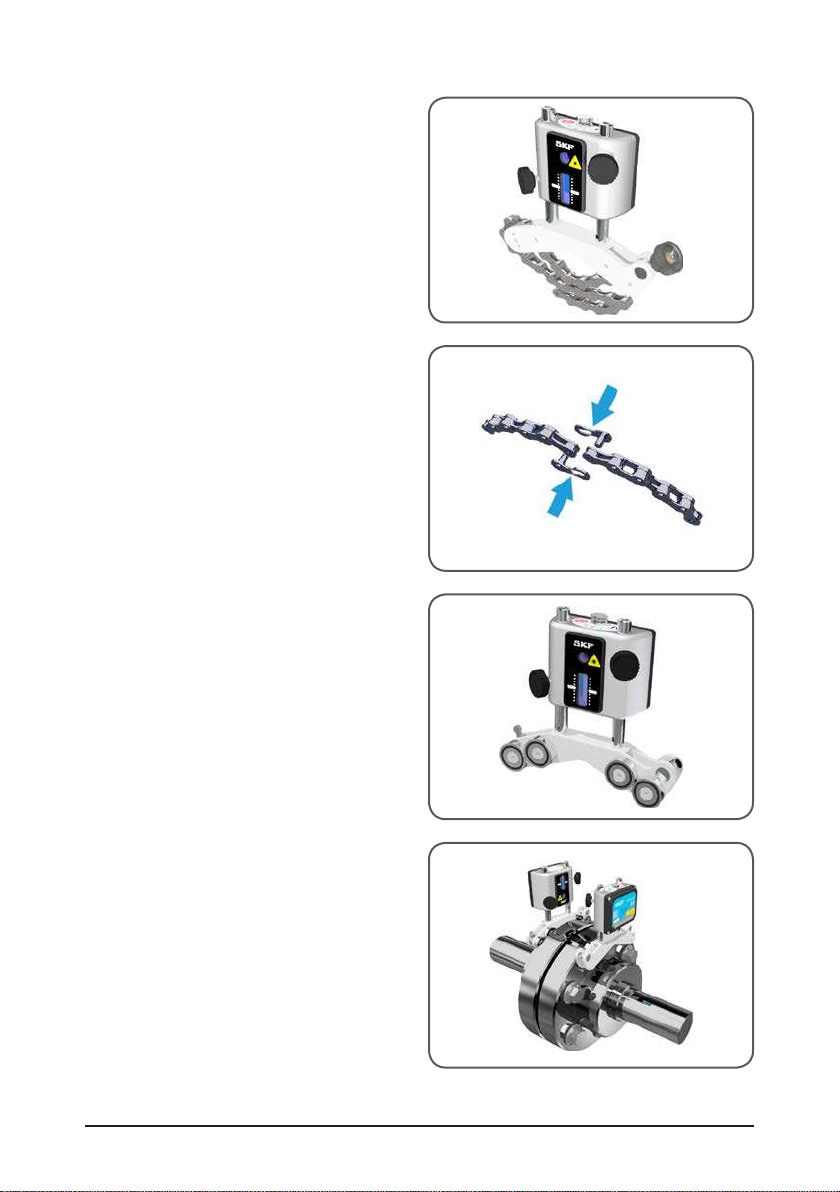

2.4 Setup techniques
Measuring unit M on its shaft bracket.
The chain is hooked from the inside for shafts
with diameter < Ø40 mm (< Ø1.5 inch).
Use the extension chain for shafts
> Ø150 mm (> Ø6.0 inch).
Press both halves of the link connector
together and lock in place by pulling the
chain taut.
Mount the four neodymium magnets and
the shaft bracket can be used as a magnetic
bracket.
Align both fixtures tangentially on the
coupling by using the shaft brackets, or the
magnetic surface of the magnets.

13SKF TKSA 71 & TKSA 71/PRO
2.5 Setup
The measuring unit marked S should be mounted on the stationary machine and the unit
marked M on the movable machine.
Remove the slack of the chains, let the units face each other and tighten them firmly with
the tensioning knobs.
Turn on each measuring unit by pressing the power button and start a new alignment in
the app according to section 3.3 (Main menu). This will activate the laser beams.
Now adjust the position of measuring unit S, on the rods, until its laser line hits the center
of the M target. Tighten the measuring units and brackets in place with the four locking
knobs.
The laser of the M unit can be adjusted with the adjustment knob at the top of the unit,
to the center of the S target.

14 SKF TKSA 71 & TKSA 71/PRO
3. Technical specifications
Technical data
Designation TKSA 71 TKSA 71/PRO
Description SKF Shaft Alignment Tool TKSA 71
Measuring unit(s) TKSA 71 TKSA 71/PRO
Sensors &
communication
20 mm (0.8 in) 2nd gen. PSD with line laser Class 2,
Inclinometer ±0,1°; Bluetooth 4.0 LE
System measuring
distance
0,04 m to 10 m
(0.13 ft to 32.8 ft)
Measuring errors < 1% +/- 10 µm
Housing material Anodized aluminum front and PC/ABS plastic back cover
Operating time ~8 hours, rechargeable Li-ion battery,
charging 10 min. for 1 h usage
Dimensions
(H x W x D)
52 × 64 × 33 mm
(2.1 × 2.5 × 1.3 in.)
Weight 130 g (0.3 lbs)
Operating device TKSA 71 TKSA 71/PRO
Operating device TKSA DISPLAY2, Galaxy Tab Active 2
and iPad Mini recommended,
iPad, iPod Touch, iPhone SE, Galaxy S6 or above
(all not included)
Software/
App update
Apple AppStore or on Google Play Store
Operating system
requirements
Apple iOS 9 or Android OS 4.4.2 (and above)

15SKF TKSA 71 & TKSA 71/PRO
Complete System TKSA 71 TKSA 71/PRO
Alignment method Alignment of horizontal and vertical machines,
machine trains, spacer shafts. 3 position free measurement with
min. 40° rotation, automatic measurements,
chock arrangement, soft foot and values
Live correction
values
Vertical and horizontal
Extra features Target values, Screen flip (plus portrait on tablets),
automatic .pdf report
Fixture 2× V-brackets with chains, width 15 mm (0.6 in.)
Shaft diameters 20 to 150 mm diameter (0.8 to 5.9 in.)
(450 mm (17.7 in.) with extension chains supplied)
Max. recom.
coupling height
45 mm (1.8 in.) with standard rods plus 120 mm (4.7 in.)
per set of extension rods
Power adapter Wireless charging via supplied charging pads,
Micro USB to USB split charging cable supplied,
compatible with 5V USB chargers (not included)
Operating
temperature
0 °C to +45 °C
(32 °F to +113 °F)
IP rating IP 67
Size and weight TKSA 71 TKSA 71/PRO
Carrying case
dimensions
365 × 295 × 170 mm
(14.4 × 11.6 × 6.7 in)
610 × 430 × 265 mm
(24 × 16.9 × 10.4 in.)
Total weight
(incl. case)
3,9 kg
(8.6 lbs)
12,5 kg
(27.6 lbs)

16 SKF TKSA 71 & TKSA 71/PRO
Case contents TKSA 71 TKSA 71/PRO
Calibration
certificate
Supplied with 2 years validity Supplied with 2 years validity
In the case 2× TKSA 71 Measuring Units 2 × TKSA 71 Measuring Units
2× Shaft brackets with chains
and magnets
2× Shaft brackets with chains
and magnets
4× 120 mm extension rods 8 × 120 mm extension rods
-2× Magnetic Base
TKSA MAGBASE
-2× Sliding brackets
TKSA 51-SLBK
-2× Offset brackets
TKSA 51-EXT50
2× Extension chains of 1 m
for shaft up to 450 mm
diameter
2× Extension chains of 1 m
for shaft up to 450 mm
diameter
1× Micro USB to USB split
charging cable
1× Micro USB to USB split
charging cable
2× Wireless charging pads 2 × Wireless charging pads
1× 5 m metric and imperial
measuring tape
1× 5 m metric and imperial
measuring tape
1× Printed certificate
of calibration and
conformance
1× Printed certificate
of calibration and
conformance
1× Printed Quick Start Guide
(English)
1× Printed Quick Start Guide
(English)
1× Industrial Rugged
Carrying Case IP 67
1× Industrial Rugged Trolley
Carrying Case IP 67

17SKF TKSA 71 & TKSA 71/PRO
Spare parts and accessories
Designation Description
TKSA 51-VBK 1× Standard chain bracket incl. 80 mm (3.2 in.) threaded rods &
1× standard chain 480 mm, incl. 4 × magnets
TKSA 51-EXTCH 2× Extension chains of 1 m (3.3 ft)
for shaft up to 450 mm (17.7 ft) diameter
TKSA 51-ROD120 4× Threaded 120 mm (4.7 in.) extension rods
TKSA 51-ROD80 4× Threaded 80 mm (3.2 in.) extension rods
TKSA 51-SLDBK 1× Sliding adjustable bracket (no rods) for use
with shaft > 30 mm or bore > 120 mm
TKSA 51-EXT50 1× 50 mm (2 in.) offset bracket with 2 × rods 80 mm (3.2 in.)
TKSA 71-WPODS 2× Wireless charging pods for TKSA 71 and 71/PRO
incl. split USB cable
TKSA 71-M 1× TKSA 71 M Measuring Unit (incl. Calib. Certif.)
TKSA 71-S 1× TKSA 71 S Measuring Unit (incl. Calib. Certif.)

skf.com | mapro.skf.com | skf.com/mount | skf.com/alignment
® SKF is a registered trademark of the SKF Group.
© SKF Group 2017
The contents of this publication are the copyright of the publisher and may not be reproduced (even
extracts) unless prior written permission is granted. Every care has been taken to ensure the accuracy
of the information contained in this publication but no liability can be accepted for any loss or damage
whether direct, indirect or consequential arising out of the use of the information contained herein.
MP5464 EN · 2018/02
