Slime 40028 User manual

PART #40028
ALL-PURPOSE INFLATOR
CORDLESS AND RECHARGEABLE FOR RAFTS AND TIRES
ATTENTION! READ ALL INSTRUCTIONS CAREFULLY
FAILURE TO FOLLOW WARNING INSTRUCTIONS CAN RESULT IN FIRE,
PERSONAL INJURY OR PROPERTY DAMAGE.
!
RECHARGEABLERECHARGEABLERECHARGEABLE
BC

CAUTION: HOT • DO NOT HOLD IN HAND WHILE OPERATING. PLACE INFLATOR ON
A HARD, CLEAN SURFACE
1. DO NOT use inflator continuously for more than 10 minutes. Allow unit to cool
approximately 25 minutes between uses. Do not leave inflator unattended.
2. DO NOT run vehicle while inflator is operating. Engine must be turned OFF.
3. DO NOT operate the inflator with a beverage in the cup holder.
4. ALWAYS use a pressure gauge to check actual tire pressure. DO NOT OVERINFLATE!
5. Keep inflator out of reach of children.
6. For use with 12-volt DC power outlets rated 15 amps or higher. Do not use with older 8
amp cigarette lighter receptacles.
TECH SPECS
IDEAL USES RAFTS, INFLATABLES, TIRES, MATTRESSES
TIRE INFLATION TIME 6 MIN*
MATTRESS INFLATION TIME 1 MIN**
CFM 1.0 (28 LPM)
HIGH PRESSURE AIR HOSE LENGTH 24” (60cm)
POWER SOURCE 1 12 VOLT ACCESSORY OUTLET ADAPTER
POWER SOURCE 2 120 VOLT WALL ADAPTER (RECHARGE ONLY)
POWER SOURCE 3 12 VOLT RECHARGEABLE BATTTERY (OPERATE ONLY)
GAUGE DIGITAL GAUGE WITH INFLATE-RIGHT™
LIGHT LONG-LASTING LED
* (0-35 Psi, Standard Tire-P195/65 R15) ** Twin air mattress

Ball Raft Raft Raft &
Mattress
Raft &
Mattress
Raft &
Mattress
Rubber bumpers
Two built-in cup holders
Carrying handle
Bright LED
light
Protective brushed
aluminum faceplate
On/Off buttons
Light •
High pressure motor •
High volume motor •
Inflate/deflate portals
• For rafts and mattresses
120 volt
wall adapter
12 volt accessory
power adapter
Rubberized feet
• For added stability
High volume air hose
• For inflatables
High pressure air hose
• For tires
Storage compartments
• For air hose and inflatable adapters
Digital gauge with
Inflate-Right™
• Choose & set
pressure
• Inflator stops
when set pressure
is reached
High durability
motor
Built-In
Rechargeable battery
Battery level
indicator

HOW TO INFLATE TIRES:
1. Attach air hose to tire by fully screwing the
connector onto the tire valve.
2. Plug power cord into power accessory outlet or
leave unplugged to run from battery.
NOTE: The unit will not run unless the gauge is
turned on by pressing the “set” button.
3. To set the Inflate-Right™ system, press either arrow
button under the display for 3 seconds until the
target pressure blinks.
4. Use the up and down arrow buttons to reach your
target pressure. The inflator will store this pressure
automatically after a few seconds.
5. To inflate, press the button with the tire symbol.
Once your target pressure is reached, the inflator
will shut off. The inflator can be manually shut off
by pressing the tire symbol button again.
6. Unplug power cord (if necessary) and disconnect
the air hose.
NOTE: Correct tire pressure can be found in vehicle’s
owner manual or driver’s side door jamb.
TO TOGGLE PRESSURE UNITS (PSI/kPa/BAR):
Press the “Set” button at the base of the gauge.
HOLD FOR 3 SECONDS
TARGET PRESSURE

HOW TO USE RAFT PUMP:
The raft air pump is used for inflatables only (more
specifically, high volume/low pressure applications)
and cannot be used for tires and balls which require
higher pressure.
1. Attach raft hose to desired inflation adapter, and
make sure connection is tight.
2. Connect hose to the inlet or outlet on the front of
the inflator. The “+” side is used for inflation
and “–“ for deflation.
3. Press button with the raft symbol to activate the
raft pump. Once desired pressure is reached, turn
power off and remove all connections.
CAUTION:
1. While operating, never block the inflator input or output.
2. Soft inflatables (i.e. rafts, balls, etc.) may not have recommended pressure
markings. Be careful not to inflate items beyond their capacity.
3. Never operate the inflator with a beverage in the cup holder.
BATTERY:
· Your unit has been initially charged. However, it is
always good to top it off prior to use for full
performance.
· Note: It takes 16 hours to fully charge your battery
from the wall (AC outlet).
· Note: It takes 6 hours to fully charge from your car
power outlet (DC outlet).
· The unit should be charged every 4 months to keep
the battery at peak performance.
BATTERY LEVEL INDICATOR

TROUBLESHOOTING:
Inflator fails to operate when plugged in:

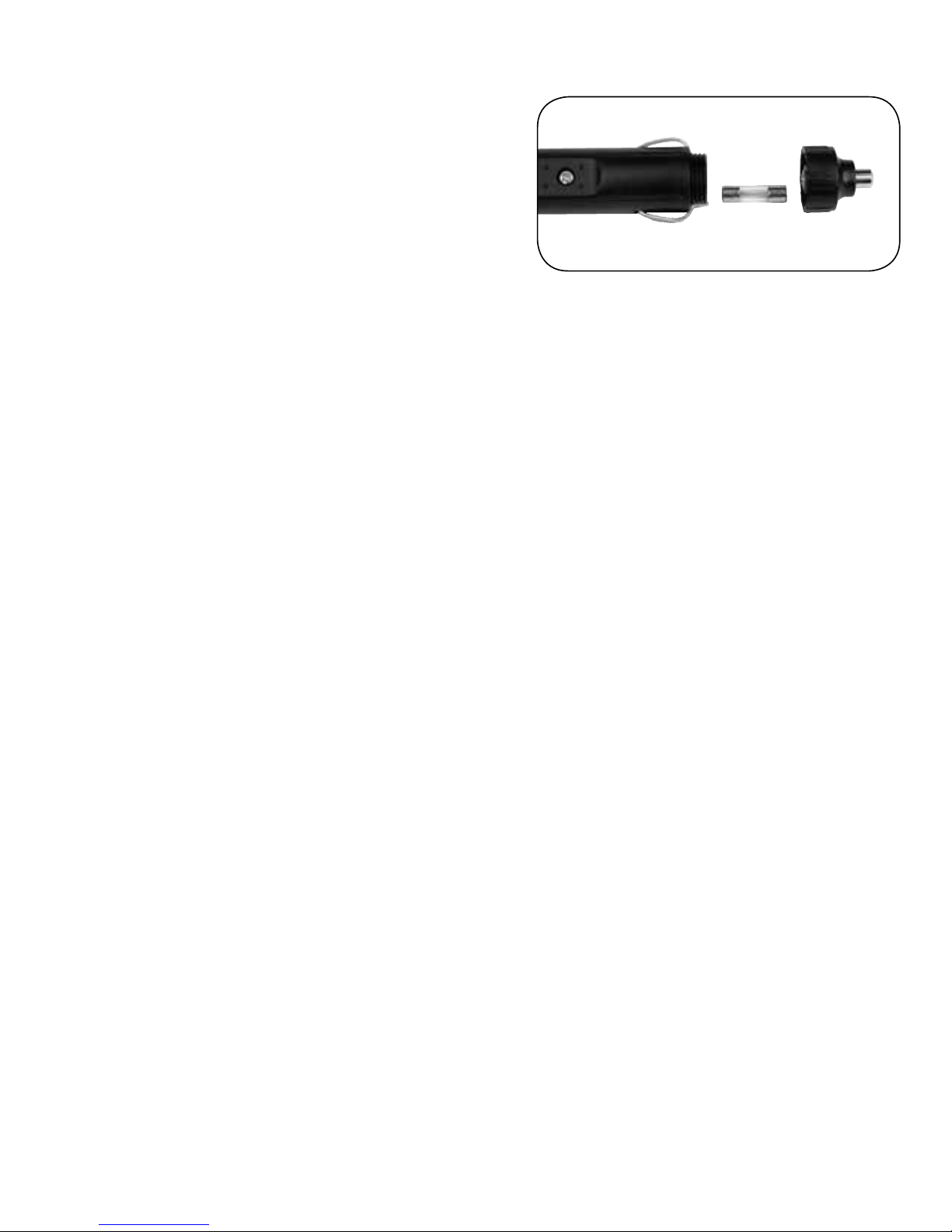

1. The fuse, located in the plug adapter, may
have blown.
2. Unscrew the tip of the plug adapter, remove
fuse and inspect. If necessary, replace fuse
with one of the same amperage.
Inflator does not start or blows fuses:
1. Push the power plug firmly into the receptacle and twist it back and forth (if using DC
adapter plug).
2. Check receptacle and plug terminals for dirt and debris. (Use a non-conductive probe,
not fingers or metal.)
3. Check vehicle’s power outlet fuse. It should be 15 amps minimum.
4. The Inflate-Right™ pressure may be set below the desired pressure. Reset.
Inflator runs but does not inflate:
1. Be sure the connector is fully threaded on the tire valve.
2. Check tire for leaks, and check hose for breaks and leaks at fittings.
Inflator runs slowly:
1. Possibly overheated from excessive use. Shut it off and allow to cool for 25 minutes.
2. Voltage may be too low. Check condition of vehicle battery.
NOTE: If tire is totally deflated, it is possible that the tire could separate from the rim
allowing air to leak out when trying to inflate. In the event this situation occurs, you
will have to jack up the tire prior to inflation.
BATTERY DISPOSAL: This product contains a rechargeable sealed lead-acid
battery. The environmental laws in some counties require retailers to accept returns of
rechargeable batteries for proper disposal. Check the county laws before disposing this
product.
