Chapter 1: Installing your interactive flat
panel
What’s included 2
Installation hardware 2
Accessories 2
Documentation 2
Components of your interactive flat panel 3
Front view 3
Back view 3
Side view 4
Wall-mounting your interactive flat panel 5
Important mounting considerations for trained installers 5
Choosing a mounting location 6
You require a team of professional installers equipped with a lifting device to install your
SMARTBoard® 8070i interactive flat panel.
This chapter provides additional considerations and details for installing your interactive flat
panel.
I M P O R T A N T
Because the connection points might not be accessible after wall-installation, consider
connecting cables for speakers, computers and peripheral devices while the interactive flat
panel is still in its packaging or is suspended from a lifting device. For more information, see
Connecting computers and peripheral devices on page 7.
Chapter 1
1|1017752 Rev 01

What’s included
The following items are included with your interactive flat panel.
Installation hardware
lFive large clamps
lTen small clamps
lCable cover with seven machine bolts
lTwo M8 bolts
lTwo M12 eyebolts
lPower cable with a clamp
lUSB cable
lVGA cable
Accessories
lTwo speakers with mounting screws
lInfrared remote control with two batteries
lTwo pens with eight replacement pen nibs
lEraser
lSMARTGoWire™ auto-launch cable (SMARTBoard 8070i-SMP interactive flat panels
only)
lCAT 5 USB extender (SMARTBoard 8070i-SMP interactive flat panels only)
lSMARTNotebook™ collaborative learning software DVD (SMARTBoard 8070i interactive
flat panels only)
Documentation
lInstallation guide
lImportant information document
lWarranty card
lRegistration card
lSMARTGoWire cable installation guide (SMARTBoard 8070i-SMP interactive flat panels
only)
lCAT 5 USB extender installation guide (SMARTBoard 8070i-SMP interactive flat panels
only)
lSMARTBoard 8070i interactive flat panel cable installation guide (SMARTBoard 8070i-
SMP interactive flat panels only)
C H A P T E R 1
Installing your interactive flat panel
2|1017752 Rev 01

Components of your interactive flat panel

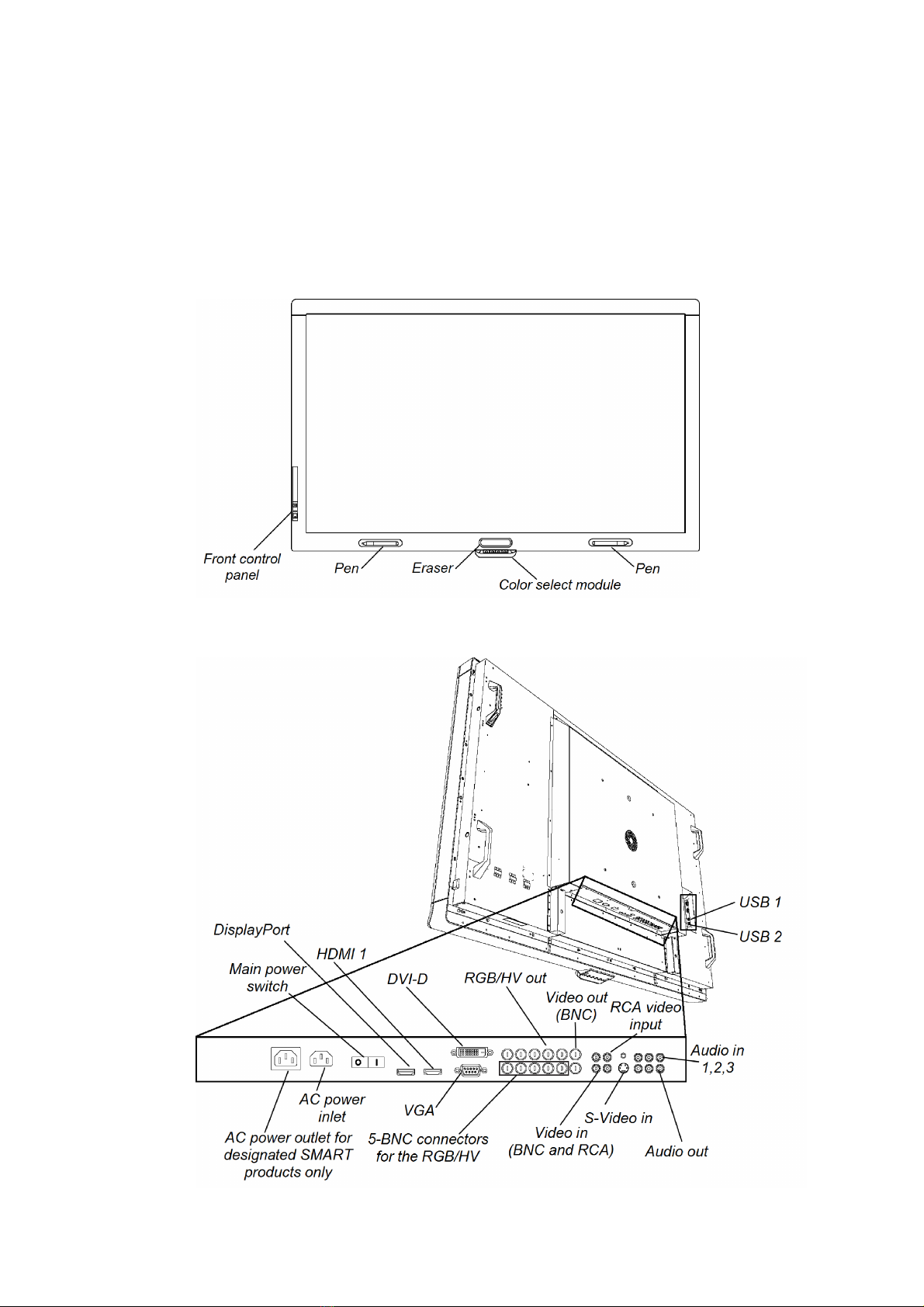

The following images identify the components of your interactive flat panel.
Front view
Back view
C H A P T E R 1
Installing your interactive flat panel
3|1017752 Rev 01

Side view
C H A P T E R 1
Installing your interactive flat panel
4|1017752 Rev 01

Wall-mounting your interactive flat panel
Use a team of trained, professional installers equipped with a lifting device to install your
interactive flat panel.
WARNING
lImproper installation can result in personal injury or product damage.
lYour interactive flat panel weighs 262 lb. (119 kg). Refer to local building codes to
ensure your installation area can support this weight.
C A U T I ON
Do not allow the weight of the interactive flat panel to rest on the color select module because it
is not designed to support product weight. Attach other components while the interactive flat
panel is either still in its packaging or suspended from a lifting device to prevent the weight of
the interactive flat panel from damaging the color select module.
I M P O R T A N T
Save all product packaging so that it is available if you need to transport your interactive flat
panel. If your original packaging is not available, you can purchase new product packaging from
your authorized SMART reseller (smarttech.com/where).
Important mounting considerations for trained installers
Consider the following when mounting the interactive flat panel on a wall:

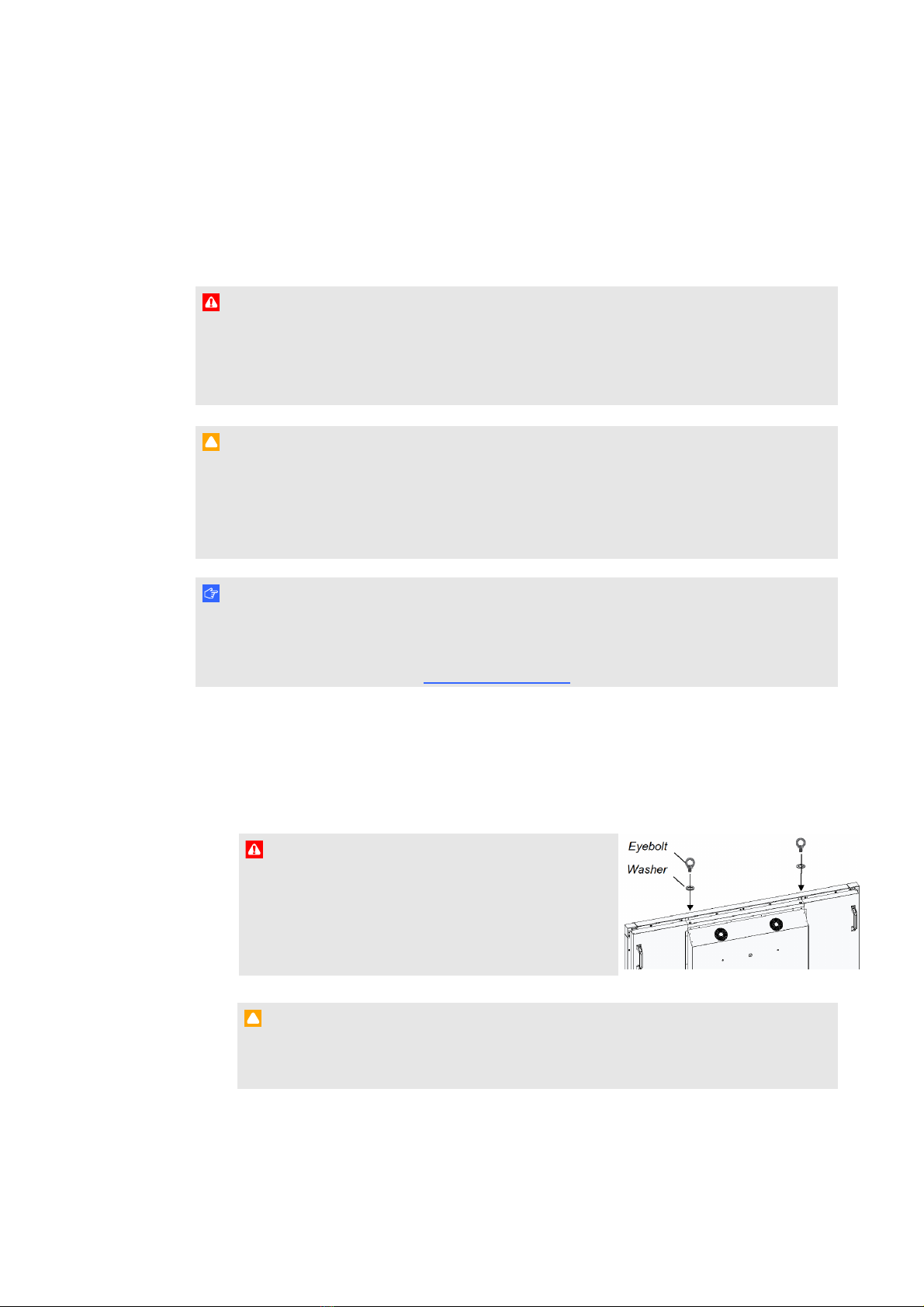

lAttach the included M12 eyebolts and washers to assist in mounting, and remove them
after you wall-mount the interactive flat panel.
WARNING
Do not attempt to mount or carry the interactive flat
panel using your own strength because it could fall and
cause personal injury. Attach a lifting device to the
included M12 eyebolts to lift and carry the interactive
flat panel.
C A U T I ON
Hand-tighten the M12 eyebolts. If you over-tighten the eyebolts and damage the threads,
you will be unable to remove the eyebolts.
C H A P T E R 1
Installing your interactive flat panel
5|1017752 Rev 01

ll Plan your workflow to include cabling because some cable connection points might not be
accessible after installation.
I M P O R T A N T
Attach the speakers and connect the speaker wires to the interactive flat panel before
you wall-mount it. For more information, see Installing the speakers on page 8.
lTo mount the interactive flat panel on a wall, you require a standard VESA 400 mm × 400
mm mounting plate (not included).
lUse M8 screws to fasten the wall bracket. The screws must be 14–15 mm long plus the
thickness of the bracket and the washer.
lThe recommended fasten force is 1125–1375 N·cm.
lRefer to the instructions included with the mounting equipment for more detailed
information.
Choosing a mounting location
Consider the following when you select a location for the interactive flat panel:
lThe wall must be strong enough to support the interactive flat panel and the mounting
equipment. The interactive flat panel weighs 262 lb. (119 kg).
lDo not install the interactive flat panel in a location where a door or gate could hit it.
lDo not install the interactive flat panel in an area where it will be subjected to strong
vibrations or dust.
lDo not install the interactive flat panel near where the main power supply enters the
building.
lEnsure adequate ventilation or provide air conditioning around the interactive flat panel so
that heat can flow away from the unit and the mounting equipment.
lIf you mount the interactive flat panel in a recessed area, leave at least 4" (10 cm) of space
between the interactive flat panel and the recess walls to enable ventilation and cooling.
C H A P T E R 1
Installing your interactive flat panel
6|1017752 Rev 01

Chapter 2: Connecting computers and
peripheral devices
Installing the speakers 8
Connecting a room control system 9
Interactive flat panel USB and video connections 10
The user’s view of computer connection options 10
Connecting computers to your interactive flat panel 11
Connecting to power and your room computer 11
Setting up a guest laptop connection location 12
Connecting a side laptop 14
Connecting peripheral devices to your interactive flat panel 15
Bottom terminal panel 15
This chapter includes information on connecting your interactive flat panel to computers and other
peripheral devices.
I M P O R T A N T
Because the cable connection points might not be accessible after wall-installation, consider
connecting these devices while the interactive flat panel is suspended from the lifting device.
Chapter 2
7|1017752 Rev 01

Installing the speakers
Your interactive flat panel comes with two 15 W speakers.
gTo install the speakers

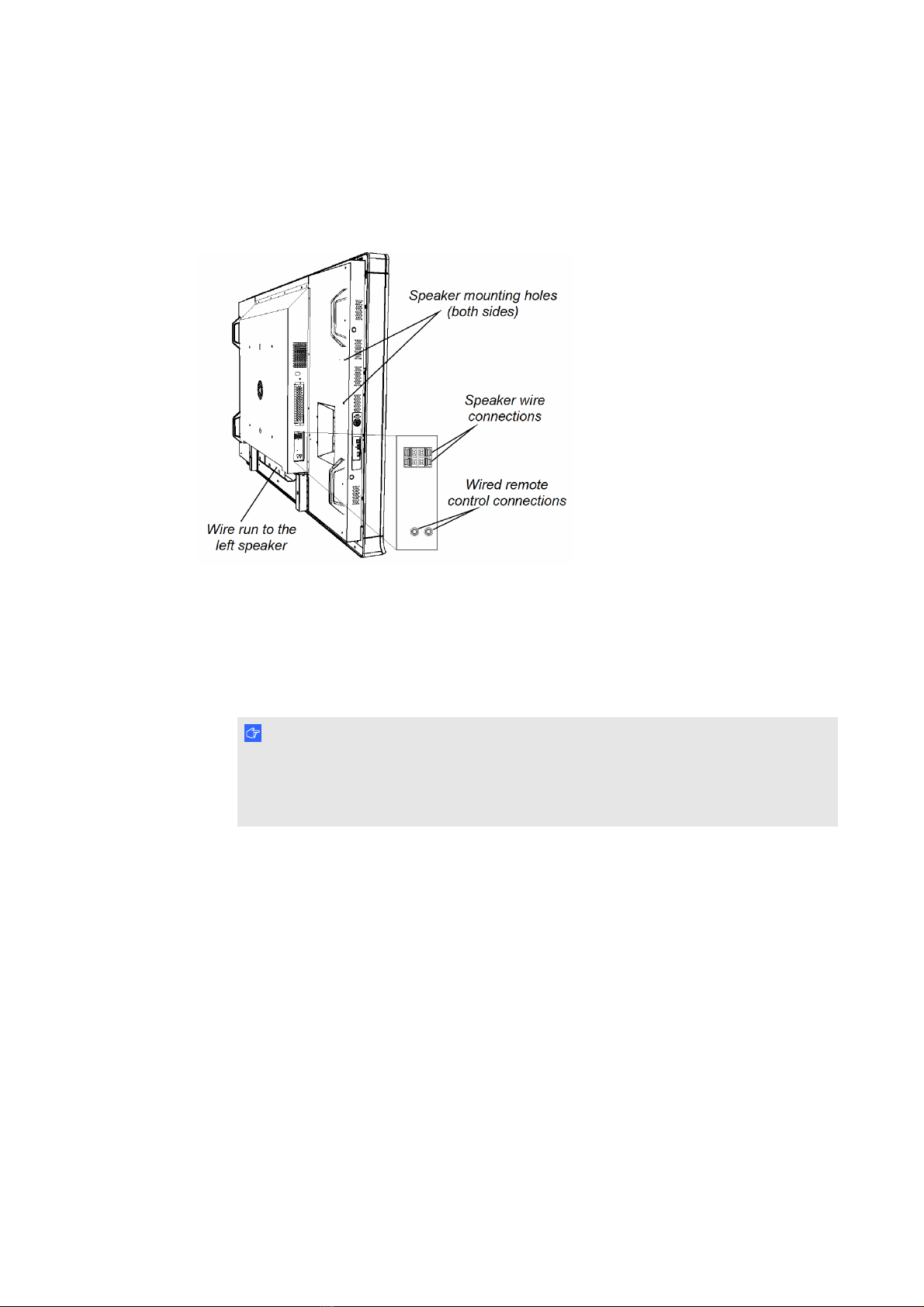

1. Attach the speakers to the speaker mounting holes on the side of the interactive flat panel
with the included screws.
2. Connect the speaker wires to the speaker wire connections.
I M P O R T A N T
Do not connect the speakers to the wired remote control 3.5 mm jacks. These are not
audio connections. The remote control is disabled while anything is inserted into these
jacks.
3. Run the speaker wire for the left speaker (when viewed from the back of the interactive flat
panel) below the bottom terminal panel and secure it with the included small clamps.
C H A P T E R 2
Connecting computers and peripheral devices
8|1017752 Rev 01

Connecting a room control system
You can control your interactive flat panel from a room control system.
gTo connect your interactive flat panel to a room control system
Connect an RS-232 cable from the room control input on the inside connection panel of the
interactive flat panel to the serial output on your computer or room control system.
I M P O R T A N T
Do not use a null modem cable.
For more information about setting up and programming an RS-232 connection, see Remotely
managing your SMARTBoard 8070i interactive flat panel (smarttech.com/kb/160469).
C H A P T E R 2
Connecting computers and peripheral devices
9|1017752 Rev 01

Interactive flat panel USB and video
connections
You can connect up to three computers simultaneously to your interactive flat panel:
lAn installed room computer connected to USB 1 and the VGA connection
lAn installed cable for the guest laptop connected to USB 2 and RGB/HV connection
lA side laptop connected to the USB 3 and HDMI 2 connection
N O T E
This document describes the default USB and video connections. To customize the USB and
video mapping, see Configuring the video and touch input for your SMART Board 8070i flat
panel (smarttech.com/kb/170065).
The user’s view of computer connection options
C H A P T E R 2
Connecting computers and peripheral devices
10|1017752 Rev 01

Connecting computers to your interactive flat
panel
Connect video cables to the bottom terminal panel and connect USB cables to the inside terminal
panel.
To further secure the video cables to the bottom terminal panel, use the included large clamps.
You can also cover the bottom terminal panel with the bottom terminal cover and secure the
cover with the included machine bolts.
Connecting to power and your room computer

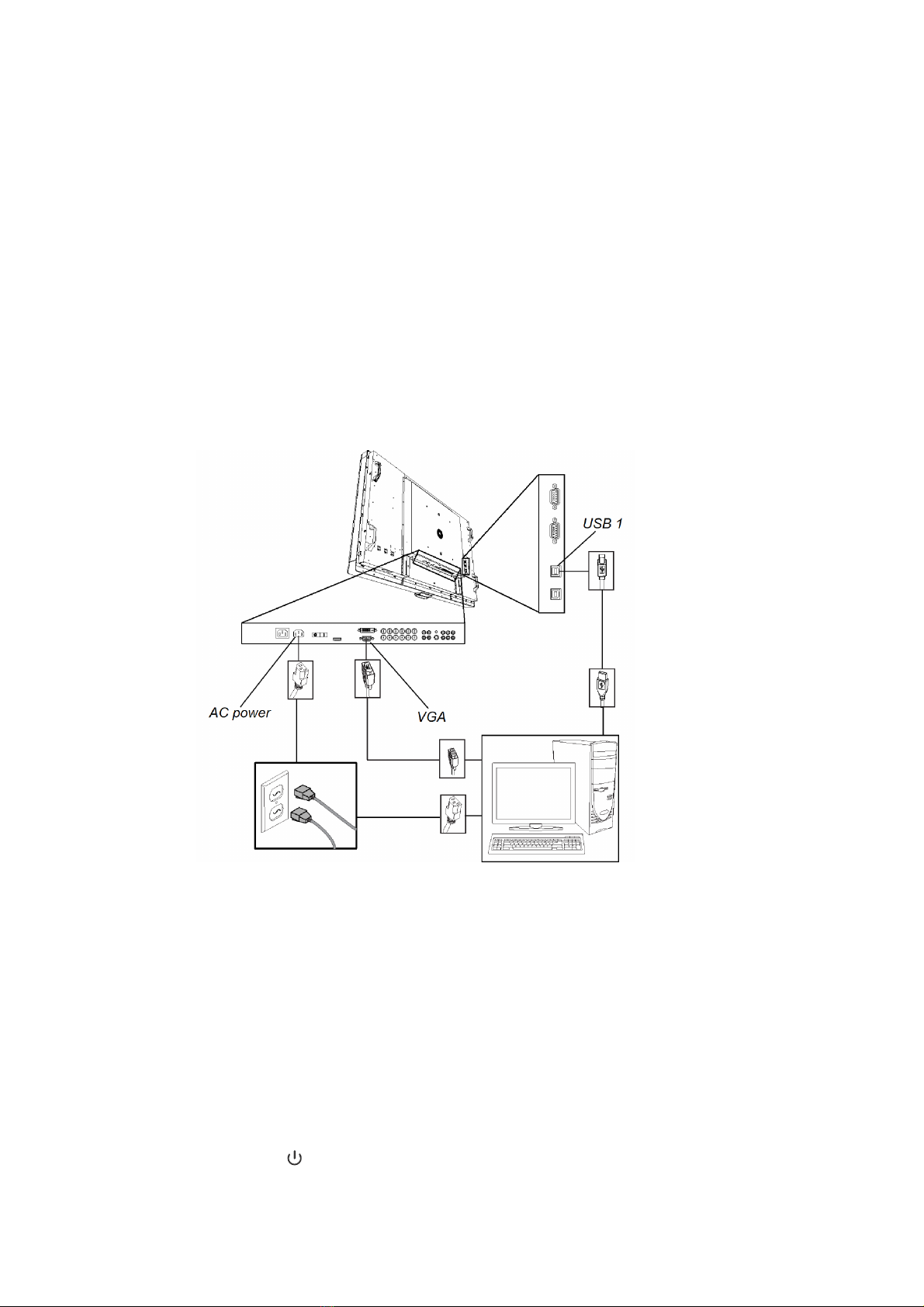

gTo connect your interactive flat panel to power and your room computer
1. Connect the included VGA cable from your computer to the VGA connection on the bottom
terminal panel.
2. Connect the included USB cable from the USB 1 receptacle on the inside terminal panel to
a USB receptacle on the computer.
3. Connect the included power cable from the AC In connector on the bottom terminal panel
to a power outlet.
4. Connect the power cable from your computer to a power outlet.
5. Turn on the main power switch on the bottom terminal panel, and then press the Power
button on the front control panel.
C H A P T E R 2
Connecting computers and peripheral devices
11|1017752 Rev 01

6. Select the VGA input source by pressing the VGA button on the remote control.
OR
Press the Input button on the front control panel until the source is VGA.
7. Turn on your computer.
Setting up a guest laptop connection location
You can install cabling that enables you to connect a second computer to your interactive flat
panel from another location in the room such as on a conference table. By setting up this
connection location, you make use of connection points that might not be accessible when your
interactive flat panel is wall-mounted.
You require a USB cable and a RGB/HV to VGA cable to set up the guest laptop connection
location. You can purchase a wire bundle (WMB-SBID) that includes these two connectors from
your authorized SMART reseller (smarttech.com/where). For ordering information see the
interactive flat panel specifications document (smarttech.com/kb/155318).
WARNING
Ensure that any cables extending across the floor to your SMART product are properly bundled
and marked to avoid a trip hazard.
gTo set up a guest laptop connection location

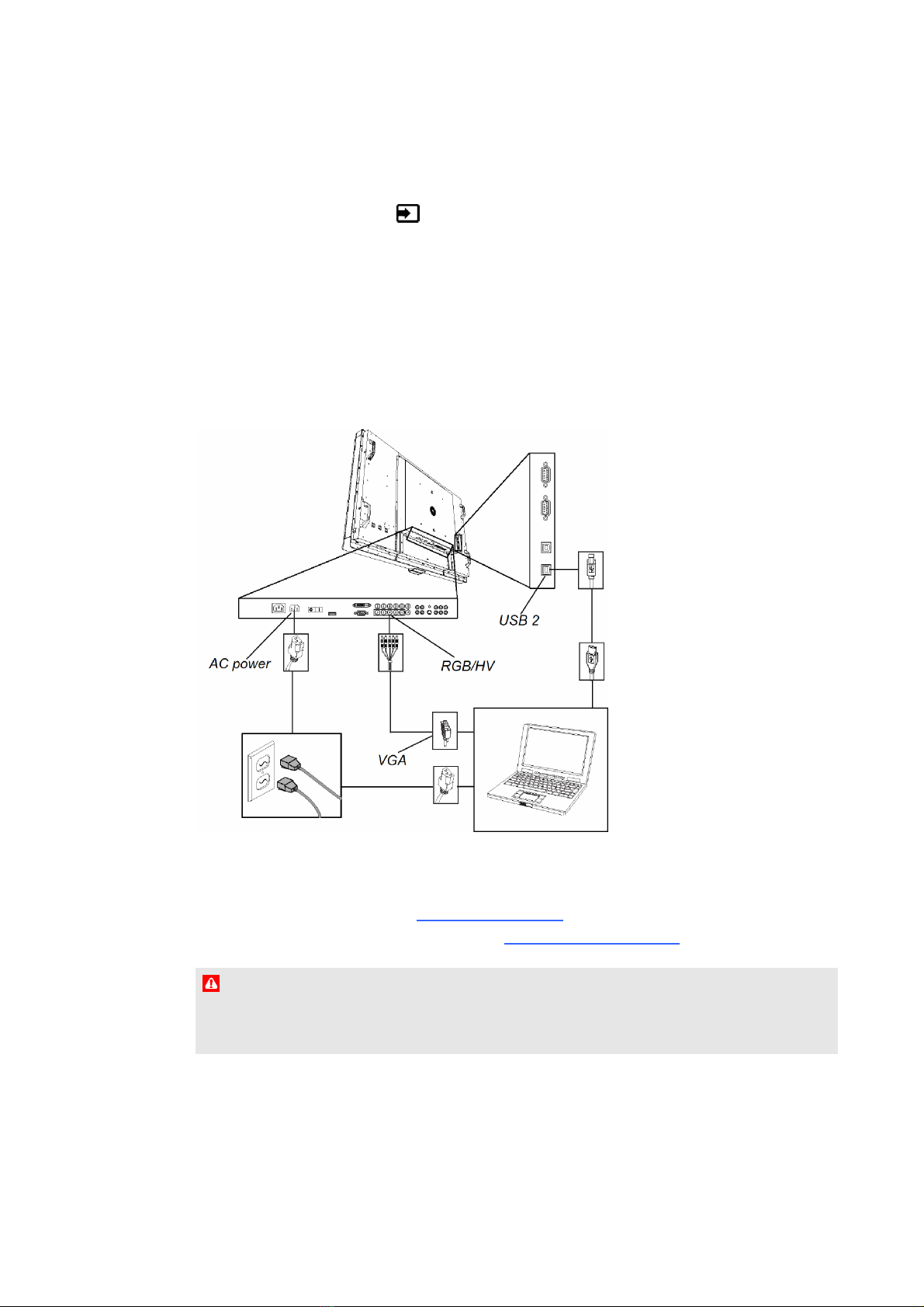

1. Connect a USB cable to the USB 2 receptacle on the inside terminal panel, and then run
the cable to the laptop connection location, such as a conference table.
C H A P T E R 2
Connecting computers and peripheral devices
12|1017752 Rev 01

2. Connect a 5-BNC to VGA video cable to the RGB/HV interactive flat panel bottom terminal
panel, and then run the VGA end of the cable to the remote connection location as above.
3. Bundle and cover the cables as appropriate to avoid a trip hazard.
gTo connect a laptop to the guest laptop connection location
1. Place the laptop beside the end of the wire bundle at the guest laptop connection location.
2. Connect the USB cable to a USB receptacle on the computer.
3. Connect the VGA cable to the laptop.
4. Turn on the laptop.
5. Select the RGB/HV input source by pressing the RGB/HV button on the remote control.
OR
Press the Input button on the front control panel until the source is RGB/HV.
gTo return to using the room computer
Select the VGA input source by pressing the VGA button on the remote control.
OR
Press the Input button on the front control panel until the source is VGA.
C H A P T E R 2
Connecting computers and peripheral devices
13|1017752 Rev 01

Connecting a side laptop
You can connect a guest laptop to the side terminal panel of the interactive flat panel. This
enables you to have touch control of the computer’s desktop from the interactive flat panel.
gTo connect a side laptop
1. Connect an HDMI cable from the laptop to the side terminal panel.
2. Connect a USB cable from the laptop to the side terminal panel.
I M P O R T A N T
The USB A receptacle is for USB drives only. Do not connect the laptop to this
receptacle.
3. Turn on the laptop.
4. Select the HDMI 2 input source by pressing the HDMI button twice on the remote control.
OR
Press the Input button on the front control panel until the source is HDMI 2.
gTo return to using the room computer
Select the VGA input source by pressing the VGA button on the remote control.
OR
Press the Input button on the front control panel until the source is VGA.
C H A P T E R 2
Connecting computers and peripheral devices
14|1017752 Rev 01

Connecting peripheral devices to your
interactive flat panel

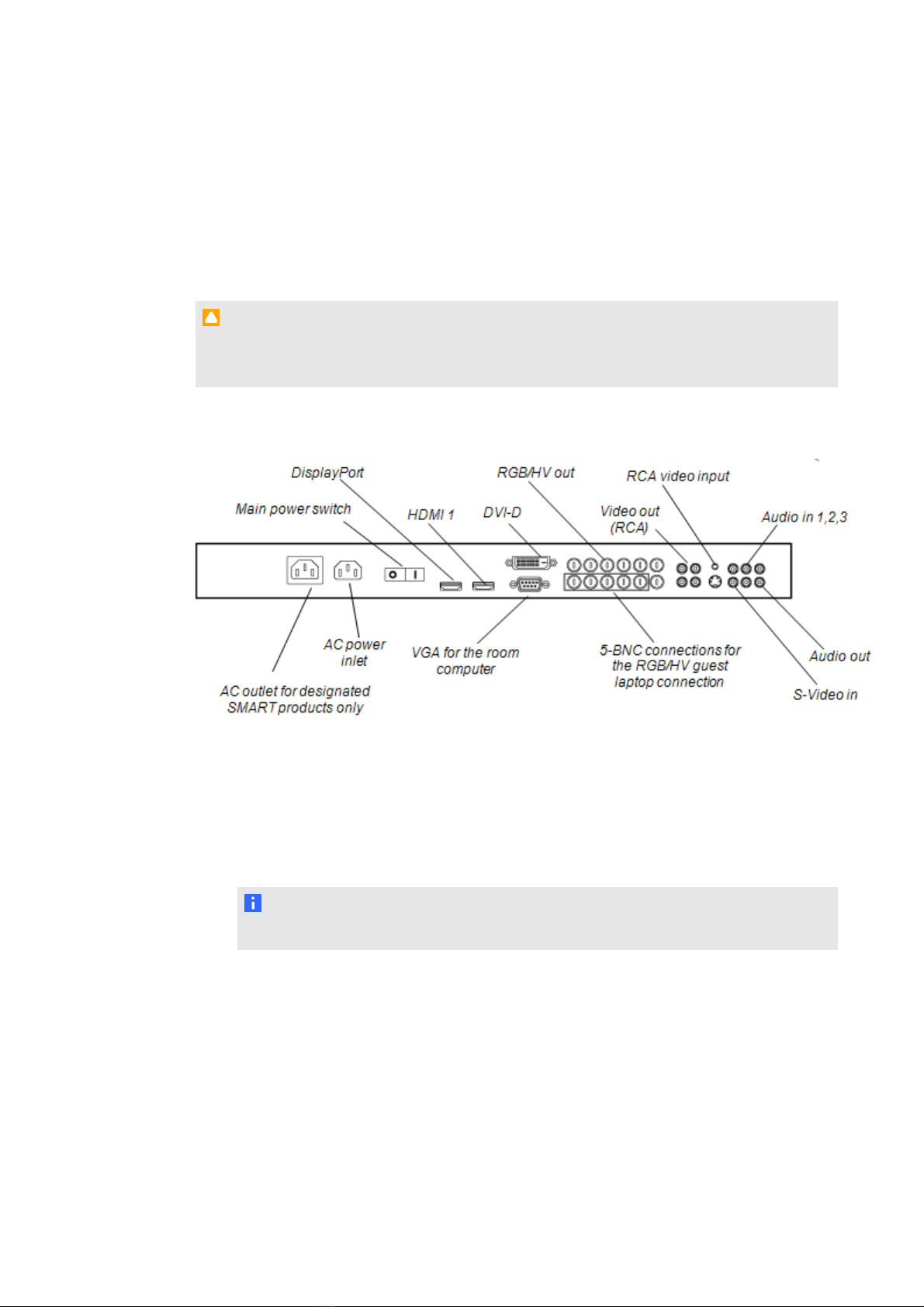

Connect peripheral devices to the bottom terminal panel.
C A U T I ON
The AC power outlet is designated for a component of the SMART Board 8070ie interactive flat
panel with appliance. Use this power outlet only as instructed by that product’s documentation.
Bottom terminal panel
gTo connect a peripheral device
1. Turn off the interactive flat panel and the peripheral device.
2. Connect the peripheral device’s input cables to the appropriate connectors on the bottom
terminal panel.
N O T E
You can secure these cables with the included large clamps.
3. Turn on the interactive flat panel, and then turn on the peripheral device.
C H A P T E R 2
Connecting computers and peripheral devices
15|1017752 Rev 01
