SMART SmartBoard 600 Series User manual

Configuration and User’s Guide
SMART Board™ 600i2
Interactive Whiteboard System

FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
manufacturer’s instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Trademark Notice
SMART Board, GoWire, Notebook, Unifi, smarttech and the SMART logo are trademarks or registered trademarks of SMART
Technologies ULC in the U.S. and/or other countries. All other third-party product and company names may be the trademarks of their
respective owners.
Copyright Notice
© 2008 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system or translated into any language in any form by any means without the prior written consent of
SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the
part of SMART.
Patent No. US5448263; US6141000; US6326954; US6337681; US6540366; US6741267; US6747636; US7151533; US7289113; 7283126; and
CA2058219. Other patents pending.
Printed in Canada. 04/2008
If you register your SMART product, we’ll notify you of new features and
software upgrades.
Register online at www.smarttech.com/registration.
Keep the following information available, in case you need to contact
Technical Support:
Serial Number
Date of Purchase
Registration Benefits

99-00850-21 A0 Important Information i
Important Information
Read This Section First
IMPORTANT
NOTE: If you own a SMART product other than a SMART Board™ 600i2 interactive whiteboard system, refer to
the installation manual that came with your product for relevant warnings and maintenance instructions.
In this document, “SMART Board 600i2 interactive whiteboard system” refers to the SMART Board 600 series
interactive whiteboard and its Unifi™ 45 projector, accessories and optional equipment. Read the safety
warnings and precautions that came with the peripheral products, such as the interactive whiteboard and
additional SMART accessories.
Before you install and use the SMART Board 600i2 interactive whiteboard system, read and understand the
safety warnings and precautions in this user’s manual, the installation guide and the warnings document. These
safety warnings and precautions describe the safe and correct operation of the SMART Board 600i2 interactive
whiteboard system and its accessories, helping you prevent injuries and equipment damage. You must always
ensure that the interactive whiteboard system is being used correctly.

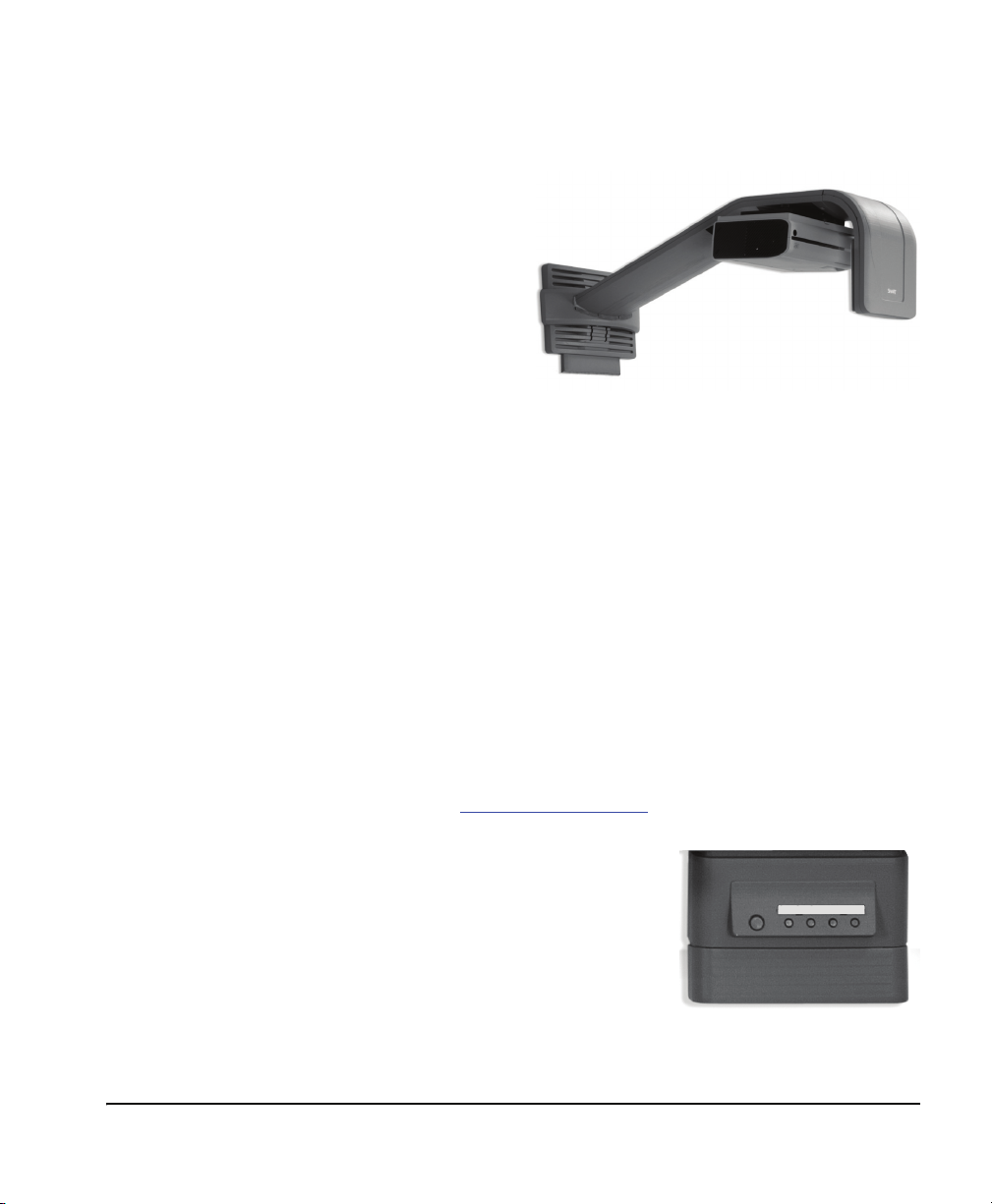

The Unifi 45 projector system included with your SMART Board 600i2 interactive whiteboard system is currently
designed to work only with certain SMART Board interactive whiteboard models. Contact your authorized
SMART reseller for more information.
SMART Technologies frequently updates this document to provide accurate support. For
the most recent version of this document, see document 118924 on the SMART technical
support website.

ii Important Information 99-00850-21 A0
Safety Warnings
WARNING • Do not stare into the beam of light created by the projector. Instruct children not to look in the
direction of, or stare at, this beam of light.
• Failure to follow the installation instructions included in this manual and other guides
packaged with the SMART Board 600i2 interactive whiteboard system could result in
personal injury or damage to the product.
• To reduce the risk of fire or electric shock, do not expose any component of the SMART
Board 600i2 interactive whiteboard system to rain or moisture.
• Two people are required to mount the projector and the interactive whiteboard on a wall
because they may be too heavy for one person to maneuver onto their wall-mounting
brackets.
• Do not climb (or allow children to climb) on any part of
the wall-mounted SMART Board 600i2 interactive
whiteboard system.
• Do not climb on, hang from or suspend objects from the
Unifi 45 projector’s arm.
• Climbing on the interactive whiteboard or projector arm
could result in personal injury or product damage.
• Do not attempt to service the projector other than
performing routine lamp replacement and cleaning the
mirror. Service should only be performed by an
authorized service provider. Aside from the lamp module,
there are no user serviceable parts inside the unit.
• Do not remove any screws other than those specified in
the lamp replacement instructions.
Other Precautions
To ensure operating safety and to avoid product damage, observe the following precautions.
• Do not set up or use the interactive whiteboard in an area with excessive levels of dust, humidity and
smoke.
• Do not add extra weight or apply pressure to the Unifi 45 projector arm, the wall-mounted interactive
whiteboard or its pen tray. SMART Technologies designed the brackets to support only the weight of the
components during normal use.
• To reduce the risk associated with leaking batteries:
– use only AA type batteries
– do not mix used and new batteries
– orient the battery’s plus (+) and minus (-) terminals according to the markings found on the remote
control
– do not leave the batteries in the remote control for an extended period
– do not heat, disassemble, short or recharge the batteries, or expose them to fire or high temperature
– avoid eye and skin contact if batteries have leaked

99-00850-21 A0 Important Information iii
– dispose of exhausted batteries and product components in accordance with applicable regulations
• If the interactive whiteboard system requires replacement parts, make sure the service technician uses
replacement parts specified by SMART Technologies, or parts with the same characteristics as the original.
Transporting the SMART Board 600i2 Interactive Whiteboard System
If you need to ship any part of your SMART Board 600i2 interactive whiteboard system, repack it with the original
packaging. If the original packaging is no longer available, you may purchase replacement packaging from your
authorized SMART reseller.
If you prefer to use your own packaging materials, make sure you adequately protect the unit. Ship the
interactive whiteboard in an upright position to deter shippers from placing heavy objects on it.

iv Important Information 99-00850-21 A0

99-00850-21 A0 Table of Contents v
Table of Contents
Important Information i
Read This Section First................................................................................................................................... i
Safety Warnings............................................................................................................................................. ii
Other Precautions .......................................................................................................................................... ii
Transporting the SMART Board 600i2 Interactive Whiteboard System .........................................................iii
Table of Contents v
About Your 600i2 Interactive Whiteboard System 1
SMART Board 600i2 Interactive Whiteboard System Features ..................................................................... 2
SMART Board 600 Series Interactive Whiteboard Features..........................................................................2
Unifi 45 Projector System Features ...............................................................................................................3
Standard Accessories .................................................................................................................................... 3
Optional Accessories ..................................................................................................................................... 4
Before Installing Your 600i2 Interactive Whiteboard System 7
Environmental Requirements......................................................................................................................... 7
Before Installing Your SMART Board 600i2 Interactive Whiteboard System ................................................. 8
After Installing Your 600i2 Interactive Whiteboard System ............................................................................ 9
Connecting Your 600i2 Interactive Whiteboard System 13
Installing Notebook Software ....................................................................................................................... 13
Connecting Your Computers to the Interactive Whiteboard System ............................................................ 14
Using Your 600i2 Interactive Whiteboard System 19
After Completing the Installation .................................................................................................................. 19
Using Your Extended Control Panel (ECP).................................................................................................. 19
Using Your Interactive Whiteboard............................................................................................................... 20
Using Your Unifi 45 Projector ....................................................................................................................... 20
Adjusting Your Projector Settings................................................................................................................. 21
Maintaining Your 600i2 Interactive Whiteboard System 25
Preventing Damage to Your Interactive Whiteboard .................................................................................... 25
Cleaning Your Interactive Whiteboard.......................................................................................................... 25
Cleaning the Pen Tray ................................................................................................................................. 26
Cleaning the Unifi 45 Projector System .......................................................................................................27
Preparing to Replace the Projector Lamp .................................................................................................... 27
Troubleshooting Your 600i2 Interactive Whiteboard System 31
System Warning Lights ................................................................................................................................ 31
Remote Management of Your 600i2 Interactive Whiteboard System 33
Programming Commands for Managing Your 600i2 Interactive Whiteboard System Settings .................... 33
Command Inventory..................................................................................................................................... 35

vi Table of Contents 99-00850-21 A0
Regulatory Compliance 39
Waste Electrical and Electronic Equipment Regulations..............................................................................39
Restriction of Certain Hazardous Substances (RoHS) Directives................................................................39
Customer Support 41
Online Support .............................................................................................................................................41
Training ........................................................................................................................................................41
Contacting SMART Technical Support .........................................................................................................41
General Inquiries.......................................................................................................................................... 41
Warranty.......................................................................................................................................................41
Registration ..................................................................................................................................................41
Index 43

99-00850-21 A0 About Your 600i2 Interactive Whiteboard System 1
About Your 600i2 Interactive Whiteboard System
In This Chapter
The SMART Board 600i2 interactive whiteboard system combines the SMART Unifi 45 wall mounted short-throw
projector with a SMART Board 600 series interactive whiteboard. These topics describe the features of the
components and some of the standard accessories and optional accessories you can use with your SMART
Board 600i2 interactive whiteboard system.
• SMART Board 600i2 Interactive Whiteboard System Features
– Interactive Whiteboard Features
– Unifi 45 Projector System Features
• Standard Accessories
– 600i2 Extended Control Panel (ECP) and Cable
– Remote Control
– SMART Board 600 Series Pens
– SMART Board 600 Series Eraser
• Optional Accessories
– USB Speakers (SBA)
– Height Adjustable Wall Mount (HAWM-600i2)
– Mobile Floor Stand (FS600i2)
– GoWire™ SMART Board Software Auto-launch Cable
– Active USB Extension Cables (USB-XT)
– Wireless Bluetooth® Connection (WC6)
– Cat 5 to USB Cable Extender (CAT5-XT)
– Serial Conversion Module (RS-232)

2About Your 600i2 Interactive Whiteboard System 99-00850-21 A0
SMART Board 600i2 Interactive Whiteboard System Features
The SMART Board 600i2 interactive whiteboard system uses the
Unifi 45 short throw, high-offset projector. Although the basic
operation is the same as in earlier models, SMART has made many
improvements to make the SMART Board 600i2 interactive
whiteboard system easier to install, use, service and upgrade.
When the Unifi 45 projector displays an image from a computer
onto the touch-sensitive interactive whiteboard, you can draw over
the image in digital ink using a pen tray pen or your finger. This
projector also supports video and audio connections from a variety
of devices, including DVD players, VCRs, document cameras and
digital cameras, and can project media from these sources onto the
interactive screen.
When you use the system with a computer, you can do everything
you can do at a computer workstation—open files, conference with
others, work on documents, visit websites, play video clips and
more—simply by touching the screen.
When you use SMART Notebook™ software with your 600i2 interactive whiteboard system, you can write over
any Ink Aware application in digital ink using a pen tray pen or your finger and then save these notes to a
Notebook file for future reference and distribution.
SMART Board 600 Series Interactive Whiteboard Features
The SMART Board 600 series interactive whiteboard includes many features of other SMART Board interactive
whiteboards, such as resistive touch screens and pen trays. The SMART Board 600 series has been chosen to
best perform with the Unifi 45 projector for exceptional color performance and input response.
Other features of the interactive whiteboard include:
• a SMART Pen Tray that automatically detects when
you pick up a pen tray pen or the eraser.
• pen tray buttons that activate Help functions and,
when used with a computer, activate the on-screen
keyboard and right-click functions.
• a durable hard-coated polyester surface that is
tear proof, optimized for projection, compatible with
dry-erase markers and cleans easily with
whiteboard cleaner.
• a standard USB interface to connect the SMART
Board interactive whiteboard to the host computer.
• a security device to prevent theft of the pen tray or
the interactive whiteboard.
