SMC Networks MHK2-12 Series User manual

Doc.No.MH*-OMF0058
PRODUCT NAME
Wedge cam operation slide guide Air gripper
MODEL / Series / Product Number
MHK2-12*
MHK2-16*
MHK2-20*
MHK2-25*
MHKL2-12*
MHKL2-16*
MHKL2-20*
MHKL2-25*

2
Contents
Safety instructions
1. Product specifications..............................................................................................................5
1-1. Specifications.......................................................................................................................5
2.Operating method or operation ................................................................................................6
2-1. Design precautions...............................................................................................................6
2-2. Selection ..............................................................................................................................6
2-3. Installation............................................................................................................................8
2-4.Piping..................................................................................................................................14
2-5. Lubrication..........................................................................................................................14
2-6. Air supply ...........................................................................................................................14
2-7. Operating environment.......................................................................................................14
3. Maintenance ............................................................................................................................15
3-1. Precautions ........................................................................................................................15

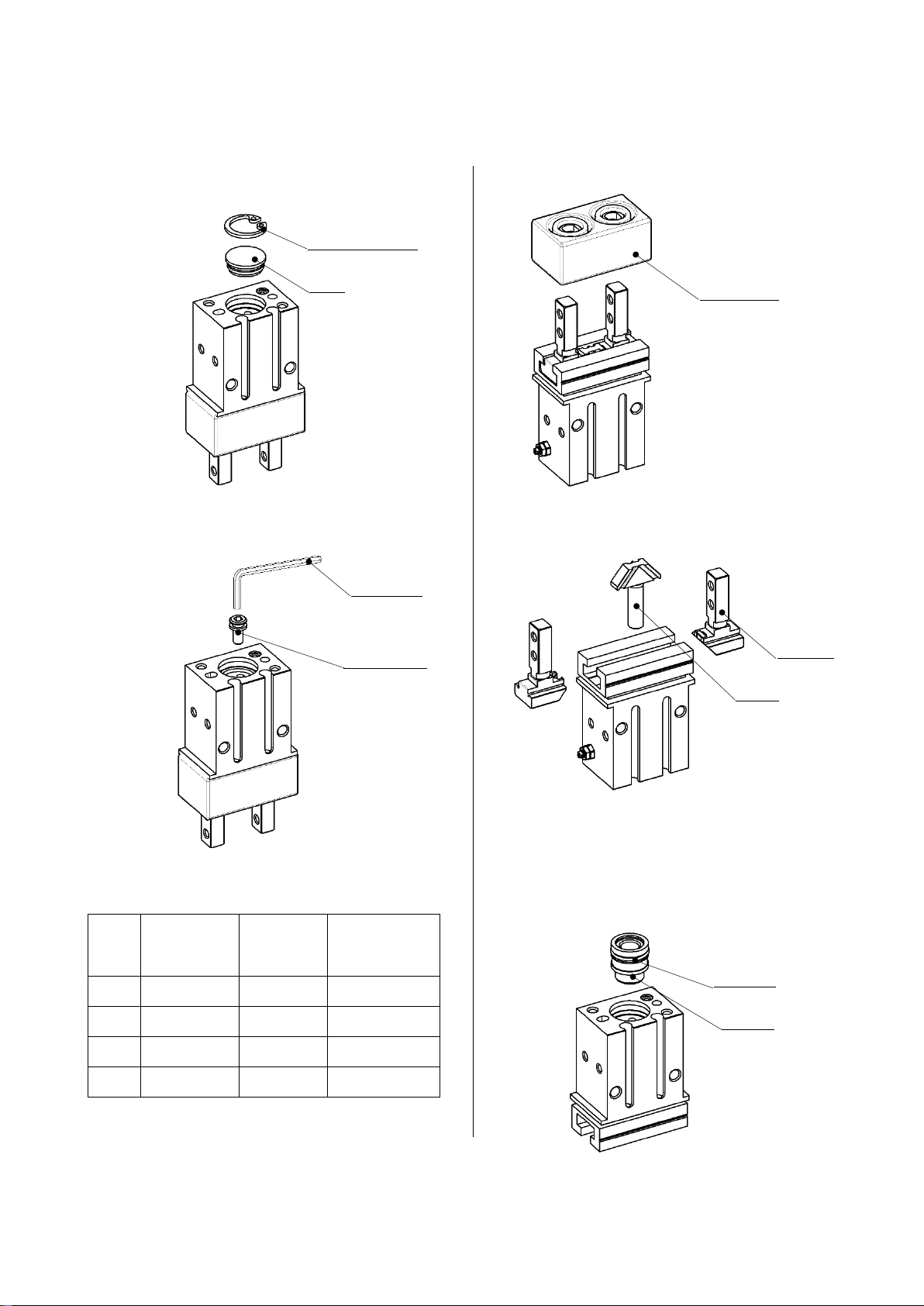

3-2. exploded view ....................................................................................................................16
3-3. Replacement Procedure.....................................................................................................16
3-4. Component Parts/Replacement Parts ................................................................................18

3
Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or equipment damage.
These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.”
They are all important notes for safety and must be followed in addition to International Standards
(ISO/IEC)*1) , and other safety regulations.
*1) ISO 4414: Pneumatic fluid power -- General rules relating to systems
ISO 4413: Hydraulic fluid power -- General rules relating to systems
IEC 60204-1: Safety of machinery -- Electrical equipment of machines (Part 1: General requirements)
ISO 10218: Manipulating industrial robots-Safety
JIS B 8370: General rules and safety requirements for systems and their components
JIS B 8361: General rules and safety requirements for systems and their components
JIS B 9960-1: Safety of machinery-Electrical equipment of machines (Part 1: General requirements)
JIS B 8433: Robots and robotic devices-Safety requirements for industrial robots (Part 1:Robots)
*2) Occupational Health and Safety Law, etc.
Caution
Caution indicates a hazard with a low level of risk which, if not avoided, could result
in minor or moderate injury.
Warning
Warning indicates a hazard with a medium level of risk which, if not avoided, could
result in death or serious injury.
Danger
Danger indicates a hazard with a high level of risk which, if not avoided, will result
in death or serious injury.
Warning
1. The compatibility of the product is the responsibility of the person who designs the equipment or
decides its specifications.
Since the product specified here is used under various operating conditions, its compatibility with specific
equipment must be decided by the person who designs the equipment or decides its specifications based on
necessary analysis and test results.
The expected performance and safety assurance of the equipment will be the responsibility of the person who
has determined its compatibility with the product.
This person should also continuously review all specifications of the product referring to its latest catalog
information, with a view to giving due consideration to any possibility of equipment failure when configuring the
equipment.
2. Only personnel with appropriate training should operate machinery and equipment.
The product specified here may become unsafe if handled incorrectly.
The assembly, operation and maintenance of machines or equipment including our products must be performed
by an operator who is appropriately trained and experienced.
3. Do not service or attempt to remove product and machinery/equipment until safety is confirmed.
1.The inspection and maintenance of machinery/equipment should only be performed after measures to
prevent falling or runaway of the driven objects have been confirmed.
2.When the product is to be removed, confirm that the safety measures as mentioned above are implemented
and the power from any appropriate source is cut, and read and understand the specific product precautions
of all relevant products carefully.
3. Before machinery/equipment is restarted, take measures to prevent unexpected operation and malfunction.
4. Contact SMC beforehand and take special consideration of safety measures if the product is to
be used in any of the following conditions.
1. Conditions and environments outside of the given specifications, or use outdoors or in a place exposed to
direct sunlight.
2. Installation on equipment in conjunction with atomic energy, railways, air navigation, space, shipping,
vehicles, military, medical treatment, combustion and recreation, or equipment in contact with food and
beverages, emergency stop circuits, clutch and brake circuits in press applications, safety equipment or
other applications unsuitable for the standard specifications described in the product catalog.
3. An application which could have negative effects on people, property, or animals requiring special safety
analysis.
4.Use in an interlock circuit, which requires the provision of double interlock for possible failure by using a
mechanical protective function, and periodical checks to confirm proper operation.

4
Safety Instructions
Caution
The product is provided for use in manufacturing industries.
The product herein described is basically provided for peaceful use in manufacturing industries.
If considering using the product in other industries, consult SMC beforehand and exchange
specifications or a contract if necessary.
If anything is unclear, contact your nearest sales branch.
Limited warranty and Disclaimer/Compliance Requirements
The product used is subject to the following “Limited warranty and Disclaimer” and “Compliance
Requirements”.
Read and accept them before using the product.
Limited warranty and Disclaimer
1.The warranty period of the product is 1 year in service or 1.5 years after the product is
delivered,whichever is first.
Also, the product may have specified durability, running distance or replacement parts. Please
consult your nearest sales branch.
2. For any failure or damage reported within the warranty period which is clearly our responsibility,
a replacement product or necessary parts will be provided.
This limited warranty applies only to our product independently, and not to any other damage
incurred due to the failure of the product.
3. Prior to using SMC products, please read and understand the warranty terms and disclaimers
noted in the specified catalog for the particular products.
Compliance Requirements
1.The use of SMC products with production equipment for the manufacture of weapons of mass
destruction(WMD) or any other weapon is strictly prohibited.
2.The export of SMC products or technology from one country to another is governed by the relevant
security laws and regulations of the countries involved in the transaction. Prior to the shipment of
an SMC product to another country, ensure that all local rules governing that export are known
and followed.

5
1. Product specifications
1-1. Specifications
Action
Model
Bore Size
Max.Operating
frequency
c.p.m.
Opening/closing
stroke mm
(L2-L1)
Closed dia. mm
(L1)
Open dia. mm
(L2)
Mass
Double
acting
MHK2-12D
12
120
4
9
13
75
MHK2-16D
16
6
14.6
20.6
113
MHK2-20D
20
10
16
26
235
MHK2-25D
25
14
19
33
440
Single
acting
normally
open
MHK2-12S
12
4
9
13
76
MHK2-16S
16
6
14.6
20.6
114
MHK2-20S
20
10
16
26
237
MHK2-25S
25
14
19
33
443
normally
closed
MHK2-12C
12
4
9
13
76
MHK2-16C
16
6
14.6
20.6
115
MHK2-20C
20
10
16
26
237
MHK2-25C
25
14
19
33
443
Double
acting
MHKL2-12D
12
90
11
9
20
104
MHKL2-16D
16
14
14.6
28.6
164
MHKL2-20D
20
18
16
34
312
MHKL2-25D
25
22
19
41
562
Single
acting
normally
open
MHKL2-12S
12
11
9
20
105
MHKL2-16S
16
14
14.6
28.6
165
MHKL2-20S
20
18
16
34
314
MHKL2-25S
25
22
19
41
565
normally
closed
MHKL2-12C
12
11
9
20
105
MHKL2-16C
16
14
14.6
28.6
165
MHKL2-20C
20
18
16
34
314
MHKL2-25C
25
22
19
41
565
Action
Double acting
Single acting
Normally open
Normally closed
Fluid
Air
Operating pressure (MPa)
0.1 to 0.6
0.25 to 0.6
Ambient and fluid temperature
-10 to 60℃
Repeatability (mm)
±0.01
Lubrication
Not required
Auto switch (Option)
Solid state auto switch(3-wire,2-wire)

6
2.Operating method or operation
2-1. Design precautions
Warning
1. The product is designed for use only in compressed air systems. Do not operate at pressures or
temperatures, etc., beyond the range of specifications, as this can cause damage or
malfunction. (Refer to the specifications.)
Please contact SMC if using for fluids other than compressed air. We do not guarantee against
any damage if the product is used outside of the specification.
2. Take safety measures (e.g. mounting protective covers) when workpieces pose a danger of
fingers being caught in a gripper, etc.
3. There is a danger of workpieces dropping if there is a decrease in gripping force due to a drop in
circuit pressure caused by a power failure, etc. It is necessary to take measures such as drop
prevention so that injury and damage to machinery or equipment can be prevented.
2-2. Selection
Warning
1. The gripping point should be set within the limited range.
When the gripping point distance becomes large, the gripper attachment applies an excessively
large load to the gripper sliding section, and causes adverse affects on the life of the gripper.
Refer to the catalog for details.
2.When using single acting type, use it within the allowable moment.
When a moment as shown in the figure below acts on a finger, the spring force may not allow the finger
to return to its original position, so use within the moment shown in the table below.
Model
Allowable moment
N･m
MHK2-12S,C
MHKL2-12S,C
0.05
MHK2-16S,C
MHKL2-16S,C
0.12
MHK2-20S,C
MHKL2-20S,C
0.25
MHK2-25S,C
MHKL2-25S,C
0.49
Good: "L" and "H" are appropriate
Not good: "L" is too long
Not good: "H" is too long
Gripping point
Gripping point
Gripping point
M ; Allowable moment
(M=WL)

7
3. Attachments should be designed to be as light and short as possible.
(1) A long or heavy attachment increases the inertia force required to open or close the fingers.
This may cause unsteady movement of fingers and have an adverse affect on the life of the
gripper.
(2) Design the attachment as short and light as possible even if the gripping point is within the
limited range. Refer to the catalog for details.
(3) Select a larger size gripper or used two or more grippers for handling a long and/or large
workpiece.
4. Provide a run off space in the attachment when using with a small or thin workpiece.
If a run off space is not provided within the finger part, gripping becomes unsteady, and it may
lead to gripping failure or slippage.
5. Select a model whose gripping force is compatible with the workpiece mass.
Incorrect selection may lead to the dropping of a workpiece, etc. Refer to the model selection
criteria of each series for the effective gripping force and the workpiece mass.
6. Do not use the product in applications where excessive external force or impact force is applied.
It may cause product failure. Please consult with SMC if necessary.
7. Select a model having a sufficient working finger opening/closing width.
< In case of insufficient width >
(1) Gripping becomes unsteady due to variations in opening/closing width or workpiece
diameter.

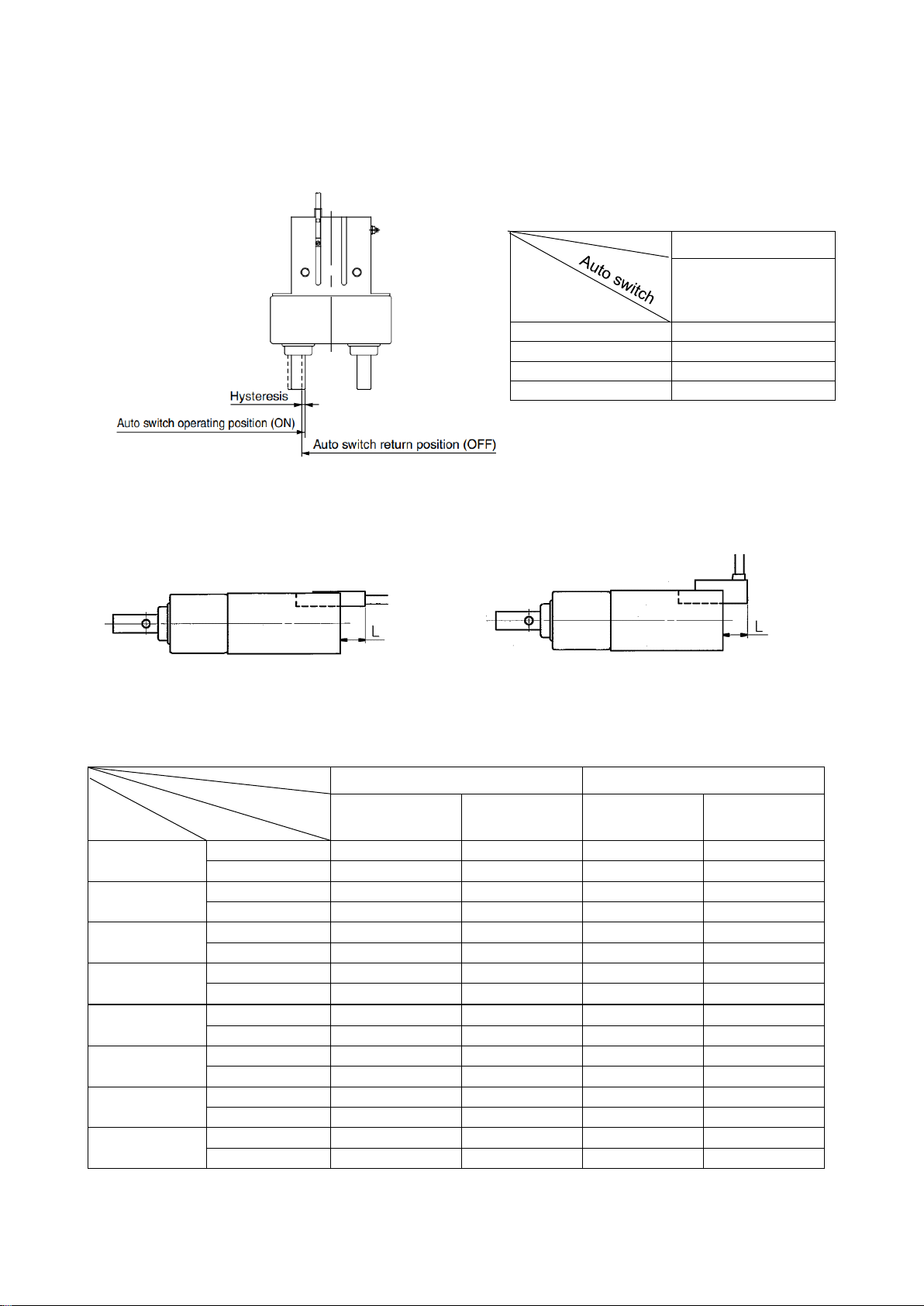

(2) When using an auto switch, the detection may not be reliable. Refer to the Auto Switch
Hysteresis section and set the stroke including the hysteresis length for a reliable switch
function. When using the water resistant 2-color indicator auto switch, the gripper stroke may
be limited by the setting of the indicator color during detection.
8. Please consult with SMC regarding a single acting, spring force only grip type.
In some cases, this can cause unstable gripping or return malfunction, due to faulty operation,
etc.
9. Do not disassemble or modify (including additional work) the product in any manner other than that
described in this manual.
Failure to do so may result in injury or accident.
10. When using with auto switch incorporated, please refer to Auto Switch/Common Precautions in the
catalog.
Gripping point
Runoff space
Thin sheet workpiece
Runoff space
Needle shaped workpiece

8
2-3. Installation
Warning
1. Install and operate the product only after reading the Operation Manual carefully and
understanding its contents. Also, keep the manual where it can be referred to as necessary.
2. Allow sufficient space for maintenance and inspection.
3. Tighten the screws to the recommended torque when installing.
4. Do not drop or hit the product when mounting to avoid scratches and dents.
Even slight deformation can cause the deterioration of accuracy and operation failure.
Mounting attachment to the finger
1) To mount the attachment to the finger, make sure to use a wrench to support the attachment so
as not to apply undue strain on the finger
2)The attachment should be mounted with the torque specified in the following table by
screwing the bolt into the female mounting thread of the finger.
5. Tighten the screw within the specified torque range when mounting the air gripper. Tightening
with a torque above the limit can cause malfunction, while insufficient tightening can cause
slippage and dropping.
Mounting Gripper
Axial mounting(Body tapped)
Model
Screw
Max. tightening
torque (N･m)
MHK2-12□
MHKL2-12□
M3x0.5
0.59
MHK2-16□
MHKL2-16□
MHK2-20□
MHKL2-20□
M4x0.7
1.4
MHK2-25□
MHKL2-25□
M5x0.8
2.8
Model
Screw
Max.
tightening
torque (N･m)
Maximum
screw-in
depth
(L mm)
MHK2-12□
MHKL2-12□
M3x0.5
0.88
6
MHK2-16□
MHKL2-16□
M4x0.7
2.1
8
MHK2-20□
MHKL2-20□
M5x0.8
4.3
10
MHK2-25□
MHKL2-25□
M6x1
7.3
12
Attachment

9
Vertical mounting(Body tapped)
Side mounting (Body tapped)
Horizontal mounting (Body tapped)
Caution
1. Avoid twisting the gripper when mounting an attachment.
Any damage to the gripper may cause malfunction and reduce the accuracy.
2. Avoid external force to fingers.
Fingers may be damaged by a continual lateral or impact load.
Provide clearance to prevent the workpiece or the attachment from striking against any object at
the stroke end.
Model
Screw
Max.
tightening
torque (N･m)
Maximum
screw-in
depth (L mm)
MHK2-12□
MHKL2-12□
M3x0.5
0.59
4
0.74
5
MHK2-16□
MHKL2-16□
M4x0.7
0.88
4
1.3
5
MHK2-20□
MHKL2-20□
M5x0.8
3.3
8
MHK2-25□
MHKL2-25□
M6x1
5.9
10
Model
Screw
Max.
tightening
torque(N･m)
Maximum
screw-in
depth
(L mm)
MHK2-12□
MHKL2-12□
M4x0.7
2.1
8
MHK2-16□
MHKL2-16□
MHK2-20□
MHKL2-20□
M5x0.8
4.3
10
MHK2-25□
MHKL2-25□
M6x1
7.3
12
Model
Screw
Max. tightening
torque (N･m)
MHK2-12□
MHKL2-12□
M3x0.5
0.88
MHK2-16□
MHKL2-16□
MHK2-20□
MHKL2-20□
M4x0.7
2.1
MHK2-25□
MHKL2-25□
M5x0.8
4.3

10
1. Stroke end when fingers are opened
2. Stroke end when gripper is moving
3.When turning over
Clearance
Clearance
With clearance
Without clearance
Impact load
✕ Without clearance
〇 With clearance
Clearance
Clearance
Inversion
Clearance
Impact load
Impact load

11
3. Adjust the gripping point so that an excessive force will not be applied to the fingers when
inserting a workpiece.
Confirm that the gripper can operate without receiving any shock by testing it in manual
operation mode or by low speed operation.
4. Control the opening/closing speed with the speed controller to avoid excessive high speed
operation.
If the finger opening/closing speed is greater than necessary, impact forces on the fingers
and other parts will increase. This can cause a loss of repeatability when gripping a
workpiece and have an adverse effect on the life of the gripper unit. It may be
difficult to adjust the speed using meter-out control depending on the piping condition. In
this case, adjust the speed using meter-in control or with dual speed controllers.
5. Auto Switch Fixing Method
To fix the auto switch, insert it into the auto switch mounting groove of the air chuck from the direction
shown in the figure below, set the mounting position, and tighten the supplied auto switch mounting
screw using a flat-blade watch driver.
Note) When tightening the auto switch mounting screws, use a watch driver with a grip diameter of
about 5 to 6 mm.
The tightening torque should be about 0.05 to 0.15 N-m.
Good: With clearance
Not good: No clearance
Impact load

12
6. Auto Switch Hysteresis
Auto switches have hysteresis similar to micro switches. Use the table below as a guide when
adjusting auto switch positions, etc.
7. Protrusion of Auto Switch from Edge of Body
• The amount of auto switch protrusion from the body’s end surface is as shown in the table below.
• Use the table as a guideline for mounting.
When using auto switch D-M9□ When using auto switch D-M9□V
Maximum pop-out amount of auto switch
Note) There is no protrusion if no values are entered in the table.
Air gripper
In-line electrical entry type
Perpendicular electrial entry type
D-M9□
D-M9□W
D-M9□A
D-M9□V
D-M9□WV
D-M9□AV
MHK2-12□
Open
―
―
―
―
Closed
3
5
―
3
MHK2-16□
Open
―
―
―
―
Closed
3
5
1
3
MHK2-20□
Open
―
―
―
―
Closed
1
3
―
1
MHK2-25□
Open
―
―
―
―
Closed
2
4
―
2
MHKL2-12□
Open
―
―
―
―
Closed
3
5
―
3
MHKL2-16□
Open
―
―
―
―
Closed
3
5
1
3
MHKL2-20□
Open
―
―
―
―
Closed
1
3
―
1
MHKL2-25□
Open
―
―
―
―
Closed
1
3
―
1
8.Auto Switch Installation Examples and Mounting Positions
Detection when Gripping Exterior of Workpiece
Air gripper
Max.hysteresis(mm)
D-M9□(v)
D-M9□A(v)
M9□W(v)
MHK□2-12
0.1
MHK□2-16
0.1
MHK□2-20
0.3
MHK□2-25
0.2
Lead wire type
Auto switch
Model
Finger position

13
Detection example
1)Confirmation of fingers in
reset position
2)Confirmation of workpiece
released
Position to be detected
Position of fingers fully opened
Position of fingers fully closed
Operation of auto switch
Auto switch turned ON when
fingers return. (Light ON)
When a workpiece is not held
(Abnormal operation): Auto
switch to turn ON (Light ON)
Detection combinations
One auto switch ∗ One
position, any of 1)and 2) can be
detected.
●
●
Two auto
switches
∗ Two positions
of 1)and 2) can
be detected
Pattern
A
●
●
B
－
●
C
●
－
How to determine auto
switch installation position
At no pressure or low
pressure, connect the auto
switch to a power supply,
and follow the derections.
Step 1) Fully open the fingers.
Step 1) Fully close the fingers.
Step 2) Slide the auto switch in
the direction of the arrow until
the indicator light illuminates.
Step 3) Slide the auto switch
further in the direction of the
arrow until the indicator light
goes out.
Step 4) Move the auto switch in
the opposite direction and fasten
it at a position 0.3 to 0.5 mm
beyond the position where the
indicator light illuminates.
Position where light turns ON
Step 2) Slide the auto switch in
the direction of the arrow until
the light illuminates and fasten it
at a position 0.3 to 0.5 mm in the
direction of the arrow beyond
the position where the indicator
light illuminates.
Position where light turns ON
0.3 to 0.5mm
Position to
be secured

14
2-4.Piping
Caution
1. Refer to the Fittings and Tubing Precautions (Best Pneumatics) for handling one touch fittings.
2. Before piping
Before piping is connected, flush thoroughly with air or wash to remove chips, cutting oil and other
debris from inside the pipe.
2-5. Lubrication
Caution
1. The non-lube type air gripper is lubricated at the factory, and can be used without any further
lubrication.
If a lubricant is used in the system, use turbine oil Class 1 (with no additive) ISO VG32.
Furthermore, once lubrication is applied, it must be continued.
If lubrication is later stopped, malfunction can occur due to loss of the original lubricant.
Refer to the Material Safety Data Sheet (MSDS) of the hydraulic fluid when supplying the fluid.
2-6. Air supply
Warning
1. Please consult with SMC when using the product in applications other than compressed air.
2. Compressed air containing a large amount of condensate can cause malfunction of pneumatic
equipment. An air dryer or water droplet separator should be installed upstream from filters.
3. If condensate in the drain bowl is not emptied on a regular basis, the condensate will overflow
and allow it to enter the compressed air lines. This will cause a malfunction of pneumatic
equipment. If the drain bowl is difficult to check and remove, installation of a drain bowl with an
auto drain option is recommended.
4. Use clean air.
Do not use compressed air that contains chemicals, synthetic oils including organic solvents,
salt or corrosive gases, etc., as it can cause damage or malfunction.
For detailed information regarding the quality of the compressed air described above, refer to
SMC's "Air Cleaning Systems".
Caution
1. When extremely dry air is used as the fluid, degradation of the lubrication properties inside the
equipment may occur, resulting in reduced reliability (or reduced service life) of the equipment.
Please consult with SMC.
2. Install an air filter.
Install an air filter upstream near the valve. A filtration degree of 5μm or less should be
selected.
3. Install an aftercooler, air dryer or drain catch before the filter and take appropriate measures.
Compressed air that contains excessive foreign material may cause malfunction of valves and
other pneumatic equipment.
Install an aftercooler, air dryer or drain catch before the filter and take appropriate measures.
4. Use the product within the specified fluid and ambient temperature range.
When operating at temperatures 5oC or lower, water in the circuit may freeze and cause
breakage of seals or malfunction. Measures should be taken to prevent freezing.
For detailed information regarding the quality of the compressed air described above, refer to
SMC's "Air Cleaning Systems".
2-7. Operating environment
Warning
1. Do not use in an environment where corrosive gases, chemicals, sea water, water or steam are
present.
Refer to the construction drawings regarding the air chuck materials.
2. Do not use in direct sunlight.
3. Do not operate in a location subject to vibration or impact.

15
4. Do not mount the product in locations where it is exposed to radiant heat.
5. Do not use this product in an area that is dusty, or in an environment in which water or oil
splashes on the cylinder.
3. Maintenance
3-1. Precautions
Warning
1. Maintenance should be performed according to the procedure indicated in the Operation
Manual.
If handled improperly, malfunction and damage of machinery of equipment may occur.
2. If handled improperly, compressed air can be dangerous. Assembly, handling, repair and
element replacement of pneumatic systems should be performed by a knowledgeable and
experienced person.
3. Remove drainage moisture from air filters regularly.
4. When components are removed, first confirm that measures are in place to prevent any
workpieces from dropping, run-away of equipment, etc. Then cut off the supply pressure and
electric power, and exhaust all compressed air from the system using the residual pressure
release function.
Turn off the power supply, stop the air supply and exhaust all compressed air from the system.
5. Do not allow people to enter or place objects in the carrying path of the air gripper.
This can cause an injury or accident.
6. Do not put hands, etc. in between the air gripper fingers or attachments.
This can cause an injury or accident.
7. When removing the air gripper, first confirm that no workpieces are being held and then release
the compressed air before removing the air gripper.
If a workpiece is still being held, there is a danger of it being dropped.

Doc.No.MH*-OMF0058
3-2. exploded view
Dust cover
Cam
Finger
Rod packing
O ring
Needle
Body
Piston
ASSY
Piston packing
Piston bolt
O ring
Cap
Type C retaining ring
O-ring for piston bolt

17
3-3. Replacement Procedure
Applicable
bolts
width
across
flats
Max.
tightening
torque N⋅m
φ12
M3x0.5
2.5
0.63
φ16
M3x0.5
2.5
0.63
φ20
M3x0.5
2.5
0.63
φ25
M5x0.8
4
3.0
・When assembling, follow the reverse procedure.
・Use dedicated grease. Grease pack part number: MH-G01 (30g)
hexagonal
wrench
Piston Bolt
Dust cover
Cap
Type C retaining
ring
Cam
Finger
1). Remove the C-shaped retaining ring
with the prescribed tool and remove the cap.
3). Remove the dust cover.
2). Remove the piston bolt.
4). Open the fingers and remove the cam.
5). Remove the piston and replace the packing.
Piston
Packing

18
3-4. Component Parts/Replacement Parts
Components
No.
Description
Material
Note
1
Body
Aluminum alloy
Hard anodized
2
Piston
Aluminum alloy
Hard anodized
3
Cam
Carbon steel
Heat treated, Specially treated
4
Finger
Carbon steel
Heat treated, Specially treated
Stainless steelSUS304
Option
5
Cap
Aluminum alloy
Hard anodized
6
Piston bolt
Stainless steel
7
Lever magnet
Synthetic rubber
8
Needle ASSY
9
N.O. spring
Piano wire
10
Plug
Brass
Electroless nickel plated
11
Exhaust plug
Brass
Electroless nickel plated
12
N.C. spring
Piano wire
13
Plug ASSY
Brass
Electroless nickel plated
14
Exhaust plug A
Brass
Electroless nickel plated
15
Type C retaining ring
Carbon steel
Nickel plated

19
No.
Description
Material
Note
16
Lod packing
NBR
17
Piston packing
NBR
18
Gasket
NBR
19
Gasket
NBR
20
Dust cover
CR
FKM
Silicone rubber
MHK2 replacement parts
Description
MHK2-12□
MHK2-16□
MHK2-20□
MHK2-25□
Main
parts
Packing set
MHK12-PS
MHK16-PS
MHK20-PS
MHK25-PS
⑯⑰⑱⑲
Piston ASSY
MHK-A1201
MHK-A1601
MHK-A2001
MHK-A2501
②⑥⑦
Cam
P3318103
P3318203
P3318303
P3318403
③
Finger
Carbon steel
P3318104
P3318204
P3318304
P3318404
④
Stainless
steel SUS304
P3318104-1
P3318204-1
P3318304-1
P3318404-1
Needle ASSY
MHK-A1206
⑧
Dust cover
CR
MHK2-J12
MHK2-J16
MHK2-J20
MHK2-J25
⑳
FKM
MHK2-J12F
MHK2-J16F
MHK2-J20F
MHK2-J25F
Silicone
rubber
MHK2-J12S
MHK2-J16S
MHK2-J20S
MHK2-J25S
MHKL2 replacement parts
Description
MHKL2-12□
MHKL2-16□
MHKL2-20□
MHKL2-25□
Main
parts
Packing set
MHK12-PS
MHK16-PS
MHK20-PS
MHK25-PS
⑯⑰⑱⑲
Piston ASSY
MHK-A1201
MHK-A1601
MHK-A2001
MHK-A2501
②⑥⑦
Cam
P3318111
P3318211
P3318311
P3318411
③
Finger
Carbon steel
P3318112
P3318212
P3318312
P3318412
④
Stainless
steel SUS304
P3318112-1
P3318212-1
P3318312-1
P3318412-1
Needle ASSY
MHK-A1206
⑧
Dust cover
CR
MHKL2-J12
MHKL2-J16
MHKL2-J20
MHKL2-J25
⑳
FKM
MHKL2-J12F
MHKL2-J16F
MHKL2-J20F
MHKL2-J25F
Silicone
rubber
MHKL2-J12S
MHKL2-J16S
MHKL2-J20S
MHKL2-J25S
*Order 2 pieces per one finger unit.
Replacement part/Grease pack part no.: MH-G01 (30 g)
Material
Material
Material
Material

20
Revision history
1. Layout change
4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN
Tel: + 81 3 5207 8249 Fax: [phone]
URL https://www.smcworld.com
Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
© 2023 SMC Corporation All Rights Reserved
