Getting Started
1
1-2
Handset Parts
1Earpiece
2Display
3Pressure Vent
4Microphone
5Small Light
6Sub Display
7Strap Eyelet
8External Device Port (with Port Cover)
9Charging Terminals
aInternal Antenna Location
bCamera (lens cover)
cInfrared Port
dSpeaker
eMobile Light
fmLogo
gBattery Cover
Keep handset closed when not in use.
Open handset to place or
answer calls, enter text, etc.
Parts & Functions
5
6
4
1
2
3
f
g
d
b
a
c
e
8
7
9.Do not cover or place stickers, etc. over
Pressure Vent or Internal Antenna area.
.Replace Port Cover after Port use.
.Avoid metallic straps; Antenna sensitivity
may be affected.
Handset Positions
Handset Closed
Handset Open

Getting Started
1
1-3
Handset Parts

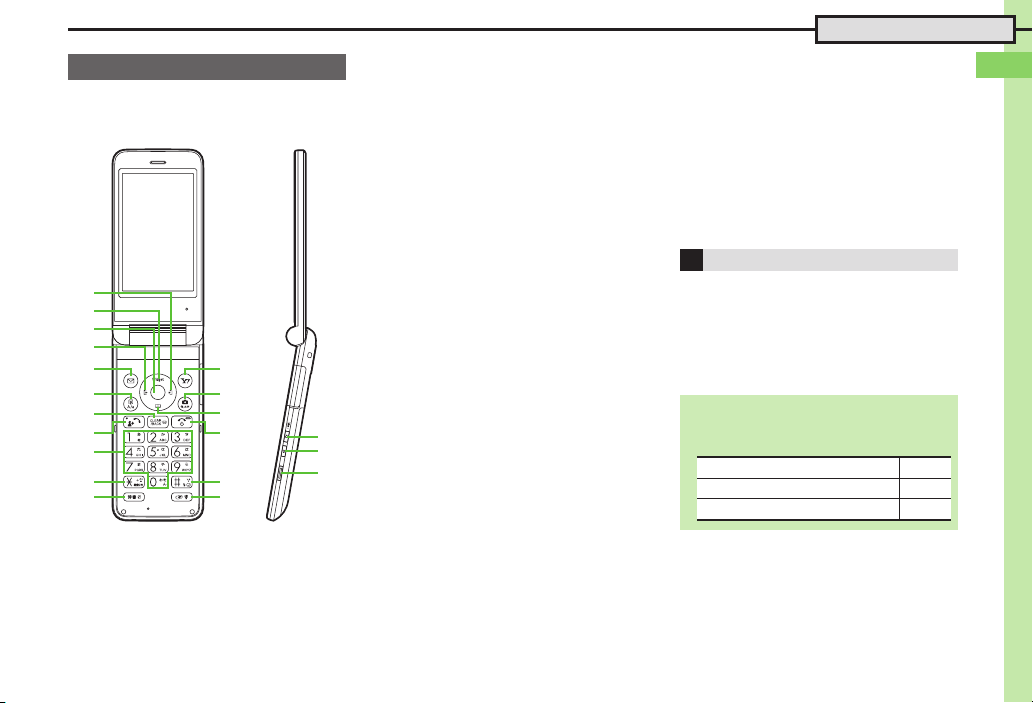

.Keys are indicated in this guide as shown.
.Change functions with *via Set Key
Shortcut as needed.
1Multi Selector (right) d
Open Call Log (Received). Long Press to
activate/cancel Infrared*.
2Multi Selector (up) a
Open Mobile Widget window. Long Press
to open PC Site Browser menu*.
3Center Key %
Open Main Menu. Long Press to activate/
cancel Keypad Lock.
4Multi Selector (left) c
Open Call Log (Dialed). Long Press to
activate/cancel Bluetooth®*.
5Mail Key B
Open Messaging menu. Long Press to
open S! Mail Composition window*.
6Shortcuts & A/a Key '
Open Shortcuts menu. Long Press to
show active indicators (Status Icon List).
7Clear/Back Key $
Play Answer Phone messages. Long
Press to activate/cancel Answer Phone.
8Start & Rakutomo Link Key !
Open Rakutomo Link window. Long Press
to open Double Number Mode menu.
9Keypad 0- 9
Enter numbers to place calls or access
functions (Quick Operations). Long Press
to open Phone Book.
anKey (
Enter
n , +, P, ?and -. Long Press to open
S! Friend's Status member list.
bDictionary Key ~
Open Dictionary. Long Press to activate/
cancel VeilView.
cYahoo! Keitai Key A
Open Yahoo! Keitai portal. Long Press to
open Yahoo! Keitai menu*.
dCamera & Text Key &
Activate mobile camera. Long Press to
open Change Menu window.
eMulti Selector (down) b
Open Phone Book. Long Press to open
Exchange Profile menu*.
fPower On/Off & End Key "
Toggle Standby display. Long Press to
power handset off.
g# Key #
Enter #. Long Press to activate/cancel
Manner mode.
hMulti Job & Manner Key )
Select handset mode. Long Press to
activate/cancel Manner mode.
iVolume Up Key E
Long Press to illuminate Mobile Light.
jVolume Down Key F
Open: Show/hide Softkeys.
kShutter Key I
Open: Long Press to activate mobile camera.
Closed: Toggle Clock view.
Handset Keys
1
2
3
4
5
d
h
e
f
g
c
6
8
7
9
a
b
k
j
i
Side Keys
Multi Selector
.In this guide, Multi Selector operations
are indicated as follows:
Press aor b e
Press cor d f
Press a, b, cor d g

Getting Started
1
1-4
Charging Battery
Battery must be inserted in handset to
charge it.
Together with Desktop Holder, use specified
AC Charger ZTDAA1 (sold separately) only.
.In this guide, ZTDAA1 is referred to as "AC
Charger."
.AC Charger and Desktop Holder are not
waterproofed or dustproofed. Do not
charge battery while handset is wet.
.Handset and AC Charger may warm while
charging. 1Insert Charger Connector
into Desktop Holder
.With arrows up, insert connector until
it clicks.
2Extend blades
and plug AC
Charger into AC
outlet
3Place handset onto Desktop
Holder
.Small Light illuminates red while
charging.
.Small Light goes out when battery is
full.
4Disconnect 841SH from
Desktop Holder
5Unplug AC Charger
.Squeeze Charger Connector release
tabs and pull straight out to remove.
Charging Battery
Charging Battery Outside Japan
.SoftBank Mobile is not liable for problems
resulting from charging battery abroad.
Desktop Holder
Important AC Charger Usage Note
.Fold back blades after charging. Do not
pull, bend or twist the cord.
Important Desktop Holder Usage Notes
.Do not subject to force/pressure.
.Do not attempt to open handset while
placed in Desktop Holder.
Connector
Port
Arrows
Release
Ta bs
AC 100VOutlet
Charger Connector
Small Light
AC Charger
Blades
When Small Light Flashes
.
Battery is unchargeable; may be defective
or simply at the end of its life; replace it.
Desktop Holder Materials
.Desktop Holder includes a part
containing plant-derived resin, a new
eco-friendly material which is expected to
reduce CO2emissions and oil usage in
the entire product life cycle compared to
conventional petroleum resin.

Getting Started
1
1-5
Charging Battery
Insert Charger Connector into External
Device Port.
Using Desktop Holder helps secure
External Device Port waterproofing and
dustproofing.
Connect handset (with power on) to PC
via USB Cable to charge battery.
.Download and install USB Cable driver
beforehand.
.Handset must be on to charge battery.
.Battery may not charge if handset is
connected through a USB hub.
In-Car Charger may be purchased separately.
1Open Port Cover
2Insert Charger Connector
.With arrows up, insert connector until
it clicks.
3Plug Charger into cigarette
lighter socket
4Start car engine
.Small Light illuminates red while
charging.
.
Small Light goes out when battery is full.
5Unplug Charger
6Disconnect handset
.Squeeze Charger Connector release
tabs and pull straight out to remove.
7Replace Port Cover
Charging with AC Charger Only
USB Charge
Port Cover
Small Light
Arrows
External Device
Port
Charger Connector
Release Tabs
AC Charger
Blades
AC 100VOutlet
In-Car Charger
Small Light
Cigarette Lighter Socket
In-Car
Charger
Plug
Arrows
Release Tabs
Port Cover
Charger Connector
External
Device Port
Important In-Car Charger Usage Notes
.
Disconnect Charger before leaving vehicle
to prevent charging with engine off.
.Do not use In-Car Charger with Desktop
Holder.
.Avoid charging battery inside extremely
hot vehicles.
Advanced
0(Disabling USB Charge (P.1-24)

Getting Started
1
1-6
Power On/Off
Follow these steps when powering on
841SH for the first time:
1"(Long)
.Waterproofing/dustproofing guidance
appears following Power On Graphic;
follow the steps below.
"S"S%SbS%S
設定
S%SLanguage S%SEnglish
S%S"(Long) S"(Long) S
Change Menu window opens
2Select option S%
Guide descriptions are based on
Standard Menu.
.My Details setup starts.
3Enter last name S%S
Enter first name S%
.Change Menu display option
confirmation appears.
4Yes or No S%
Standby
.Choose No to enter Standby
immediately after powering on.
.Hereafter, most screenshots omit
Mobile Widgets and Standby
Shortcuts.
Handset initiates Network Information
retrieval when %, a, Bor Ais
pressed for the first time.
Follow these steps to retrieve Network
Information to use Network-related
services and camera; retrieval
automatically sets Clock:
1Yes S%SRetrieval starts
2%
1"(Long)
.After Power Off Graphic, handset
shuts down.
Handset Power On/Off
Power On
When USIM Card is Not Installed
.Insert USIM Card appears; insert the
card to use handset.
Retrieving Network Information
Power Off

Getting Started
1
1-7
Display & Indicators
Indicators (signal strength, battery
strength, etc.) appear.
Check active indicators and their
descriptions. (Status Icon List)
1'(Long)
.Active indicators are enlarged;
description for selected indicator
appears.
.Use gto select indicators to view
their descriptions.
.Press %to open menu/window
(e.g., Battery Meter window from
battery strength indicator). May be
unavailable for some indicators.
Information window opens at the bottom
for Missed Calls, new mail, etc.
Information Window
Information label (e.g., Message, etc.)
and count appear in Information window.
Select an item and press %to open it.
Display
Standby Indicator Descriptions Information
Advanced
0(Handling Information list (P.1-24)

Getting Started
1
Display & Indicators
1-8
Functions/operations assigned to B, %
and Aappear at the bottom of Display.
Display goes dark after Display Saving
time elapses. Press any key (except "
during a call) to activate it.
Softkeys
%B A
Display Saving
Backlight
.Backlight turns off after Time Out time
elapses. Press 0- 9to illuminate it
(key press may affect active function).
.Display goes dark during a call.
(Backlight does not turn off first.)

Getting Started
1
1-9
Display & Indicators
In Dual Mode, line type appears bottom
right of some indicators.
[Basic Status
1The more bars the better.
2Battery strength % (appears when Display
activates, etc.) is an approximation.
[Function Status [Notifications
[Warnings
Indicators
Display Indicators
1
Within 3G range
Within GSM range
International roaming in progress
2Signal strength1
3Battery strength2
13
2
1
Active S! Application
Paused S! Application
Music playback in progress
2
Memory Card inserted
Accessing Memory Card
Reading Memory Card
Formatting Memory Card
3Music playback in progress (via
Bluetooth®)
4 Multiple functions (Multi Job) active
1
2 4
3
1Unread mail
Unread Delivery Report
2
Answer Phone active & message
recorded
Answer Phone canceled &
message recorded
3New Voicemail
4 Missed Call or new mail on idle line
5S! Appli Notification
6Contents Key received
7
Unread S! Information Channel info
Software Update result
Unread S! Quick News info
8 Unread S! Friend's Status notification
1Mail memory low
2Message delivery failure
3 Memory Card unusable/misinserted
5
7
8
1
3
4
6
2
1
2
3

Getting Started
1
Display & Indicators
1-10
[Transmissions
1Hidden while Mobile Widget is in use.
2Flashes while positioning.
[Settings
*Indicator does not appear when Call
Forwarding is set to Video Calls only, with
Voicemail unset.
1SSL browsing in progress1
Packet transmission protocol ready
2Receiving mail
Sending mail
3S! Friend's Status online
Positioning in progress2
4Software Update in progress
5
USB Cable connected
USB transmission in progress
Infrared transmission in progress
Infrared file transfer in progress
Bluetooth®transmission ready
Bluetooth®transmission in
progress ( appears for multiple
connections)
Bluetooth®talk in progress
IC Transmission in progress
S! Addressbook Back-up
transmission in progress
PC Site Browser in use
6
8
1
4
5
3
27
6RSS-compatible site
7Weather Indicator
8Infrared transmission ready
1Offline Mode active
2Answer Phone active
3
Call Forwarding or Voicemail active
(forwarding condition:
Always )
*
4Schedule/Task (Alarm set)
Schedule/Task (Alarm unset)
5Hour Minder active
6Alarm set
7
Manner mode active
Drive mode active
Original mode active
VeilView active
7
9
b
a
1
3
5
4
6
8
2
8Keypad Lock active
IC Card Lock active
9Auto Answer or Remote Monitor
active
a
Ringtone (Silent)
Ringtone (Increasing Volume)
Vibration for incoming Voice/
Video Calls active
bShow Secret Data active
Function Lock (Once) active

Getting Started
1
1-11
Display & Indicators
[Basic Status
*The more bars the better.
[Notifications
[Warnings
[Handset Status
Sub Display Indicators
1Signal strength*
2Battery strength
Missed Calls
Answer Phone message recorded
Missed Call Notification
New Voicemail
Unread mail
Unread Delivery Report
Contents Key received
Unread S! Information Channel info
Weather Indicator update
S! Appli Notification
Unread S! Friend's Status notification
Location Info request
1 2
Message delivery failure
S! Information Channel info reception
failure
IP Service connection failure
Weather Indicator update failure
Alarm
Schedule Alarm
Task Alarm
Activating Backlight
I
Sub Display Clock
.Press Ito toggle view.

Getting Started
1
1-12
Accessing Functions
Use the following methods as needed.
Accessing Functions
Use shortcuts
Enter numbers Select menu
items
Repeat menu item selection.
Enter numbers to access functions.
To activate functions, press the
correspondingkey.
Main Menu Quick Operations
LongPress B, gor Ato access
assigned functions (changeable).
■Key Shortcut
Save functions to Standby.
■Standby Shortcuts■Shortcuts
Access assigned functions
(changeable).
Access a function in Shortcuts menuwhile another is active, then toggle function windows as needed.

Getting Started
1
1-13
Accessing Functions
1%
.Main Menu opens.
2gSelect menu item S%
.Menu/window opens.
.If Sub Menu opens, use eto select
an item and press %.
Main Menu
Menu Item Selection Tabs
.Menus/lists in a single window appear on
separate tabs; use fto toggle tabs.
Reverse Navigation
.Press $. If a confirmation appears,
follow onscreen prompts.
Returning to Standby
.Press ". If a confirmation appears,
follow onscreen prompts.
Simple Menu
.Simplify menus and enlarge fonts; ideal
for users who use only basic handset
functions.
Tab
Main Menu Items
Messaging Open/create messages, etc.
Yahoo! Browse the Internet
S! Appli Use S! Applications
including games
Entertainment
Read e-Books, receive
news updates, etc.
Camera Capture images or record
video
Media Play/download media files
Tools
Manage schedules, set
Alarm, scan QR Codes, etc.
Data Folder Open files saved on
handset/Memory Card
Widget Use Mobile Widgets
Infrared Transfer files via infrared
Phone Search contacts, add
entries, etc.
Settings Customize handset
interface, sounds, etc.

Getting Started
1
Accessing Functions
1-14
Access assigned functions via Shortcuts
menu.
1'
Shortcuts Menu
2Select function S%
.Menu/window opens.
In Standby, Long Press B, gor Ato
access assigned functions.
Follow these steps to assign Calculator to
a(Long Press):
1%SSettings S%Sf
Phone/G
2Set Key Shortcut S%
3Long press S%
4From Appli S%
5Tools S%SIn PIM/Life
menu, Calculator S%
Function Shortcuts
Shortcuts Menu
Changing Default Shortcuts
In 2, select numbered function S
BSAssign Function S%S
Select menu item S%SSelect
new item S%
,To assign menu items, select one and
press B.
Assigning Files & Folders
In 2, select numbered function S
BSAssign Data S%SSelect
file/folder S%
,For folders, select Set this folder and
press %.
Key Shortcut
BOpen S! Mail Composition window
aOpen PC Site Browser menu
bOpen Exchange Profile menu
cActivate/cancel Bluetooth®
dActivate/cancel Infrared
AOpen Yahoo! Keitai menu
Changing Assigned Functions
Bookmark
In 4, From Bookmark S%S
Select title S%SYes S%
Infrared, Show Secret Data, Etc. On/Off
In 4, From Other S%SSelect
item S%
Canceling Assigned Function
In 4, Off S%
Advanced
0(Changing item order (Restoring default shortcuts (P. 1 -24)

Getting Started
1
1-15
Accessing Functions
Access a function in Shortcuts menu
while another is active.
Multi Job may not activate from some
menus/windows.
1In a function window, '
In text entry/dial windows, Long Press ' .
2Select function S%
.Menu/window opens.
3 To toggle active windows, )
4"SMulti Job ends
.If a confirmation appears, follow
onscreen prompts.
Toggling Active Functions (Multi Job)
Multi Job Feature
While browsing the Internet
Toggle windows
②
Jot down information
Open Scratch Pad
①
Using Multi Job

Getting Started
1
Accessing Functions
1-16
Paste shortcuts to functions, files, folders,
etc. to Standby for easy access.
1a
2gSelect (OPEN) S%
3f
4Select item S%
.Corresponding icon appears.
.>> appears when more items are
available.
5gSpecify target location
S%
1aSgSelect icon S%
.Menu/window opens or command is
executed.
Toggle sheets to use Standby Shortcuts
and widgets pasted on each sheet.
1aSA
.To toggle further, press Aor ).
.Sheet name appears at the top, then
disappears.
.Save Standby Shortcuts as needed;
corresponding icons appear on the
current sheet.
1aSgSelect icon SB
2Operation S%
3Remove S%
4Yes S%
Standby Shortcuts
Saving Shortcuts to Standby
Widget Tab
Standby Shortcut Tab
Saving from Menu/Window
.
In Options menu, select Set as StbyShortcut
(may not appear for some items) and
press
% ; select sheet as needed.
Using Pointer
.
After 1 , Long Press A to activate pointer
navigation; select widgets, etc. (To cancel
pointer navigation, Long Press
A .)
Using Shortcuts
Toggling Sheets
Using Locked Sheets
aSSelect S%SEnter
Handset Code S%
Removing Shortcuts from Standby
Advanced
0(Sorting icons (Moving icons (Moving icons to front/back (Removing multiple icons at once (Slowing pointer speed (Editing sheet names
(Locking sheets (P.1-24)

Getting Started
1
1-17
Accessing Functions
Activate Simple Menu to reduce available
handset functions and simplify menus.
.Fonts are enlarged and appear in bold.
.Clock is enlarged (Calendar is hidden).
[Menu Items
Key assignments are largely the same as
those in Standard Menu.
1&(Long)
2Simple Menu S%
Using Simplified Menus (Simple Menu)
Simple Menu Features
Messaging
Received Msg., Create Msg.,
Drafts, Templates, Sent
Messages, Unsent Msg.,
Create SMS
Phone
Phone Book, Add New Entry,
Call Log, Play Messages,
Answer Phone, Call Voicemail,
My Details, Rakutomo Link,
Speed Dial/Mail
Camera
Photo Camera, Video Camera,
Scan Barcode, Scan Card,
Kanji Grabber, Review
Convenient
Tool
Calendar, Exchange Profile,
Alarms, Calculator, Assignment,
Notepad, S! Friend's Status,
S! Circle Talk, Double Number,
Change Menu
Data
Folder Saved files
Dictionary -
Activating Simple Menu
While Using an Incompatible Function
.End the function before activating Simple
Menu.
Canceling Simple Menu
&(Long) SStandard Menu S%

Getting Started
1
1-18
Mobile Manners
Please use your handset responsibly. Use
these basic tips as a guide. Inappropriate
handset use can be both dangerous and
bothersome. Please take care not to
disturb others when using your handset.
Adjust handset use according to your
surroundings.
.Power it off in theaters, museums and other
places where silence is the norm.
.Refrain from using it in restaurants, hotel
lobbies, elevators, etc.
.Observe signs and instructions regarding
handset use aboard trains, buses, etc.
.Refrain from use that interrupts the flow of
pedestrian or vehicle traffic.
Mutes most handset function sounds.
1)(Long)
.Manner mode is set.
Temporarily suspends all transmissions.
1%SSettings S%Sf
Network
2Offline Mode S%
3On S%
.Offline Mode is set.
Mobile Manners
Manner Mode
When Manner Mode is Active
.Ringtones and other sounds are muted.
.
841SH vibrates for transmissions/alerts.
.Shutter click still sounds at fixed volume.
.To unmute Speaker temporarily while
playing music, etc., follow these steps:
During playback, aS%SYes or
No S%SAdjust volume
Canceling Manner Mode
)(Long)
Offline Mode
Canceling Offline Mode
In 3, Off S%
Advanced
0(Changing handset modes (Creating a custom mode (Resetting Mode Settings (Suppressing Manner mode audio output confirmation (P. 1 - 2 5 )

Getting Started
1
1-19
Security Codes
These codes are required for handset use.
.Write down Security Codes.
.Do not reveal Security Codes. SoftBank
Mobile is not liable for misuse or damages.
*Changeable on handset.
Enter four to eight digits.
1%SSettings S%Sf
Phone/G
2Locks S%
Locks Menu
3Chg. Handset Code S%
4Enter current Handset Code
S%
5Enter new Handset Code
S%
6Re-enter new Handset Code
S%
. To change Administrator Code
subsequently, choose
Yes and press % .
7No S%
1In Locks menu,
Administrator Setting S%
2Change Administrator Code
S%
3Enter current Administrator
Code S%
4Enter new Administrator
Code S%
5Re-enter new Administrator
Code S%
Security Codes
Handset
Code*
9999 by default; use or
change some functions
Administrator
Code*
9999 by default; required
for Reset Settings and
Reset All
Center
Access Code
(Network
Password)
Four-digit code selected at
contract; access Optional
Services via landlines,
change service options, or
set call restrictions
Incorrect Code Entry
.Message appears for incorrect code
entries; retry.
.
Incoming/outgoing call restriction settings
will be locked if incorrect code is entered
three times consecutively during the
setting. To resolve, Center Access Code
(Network Password) must be changed.
, If you have previously changed Network
Password on a SoftBank handset, enter
the latest code.
Changing Security Codes
Changing Handset Code
Changing Administrator Code

Getting Started
1
1-20
Basic Tools
1%S0
.Handset phone number and the
name entered at initial setup appear.
Activate VeilView to prevent peeking.
1~(Long)
Lock handset keys and prevent accidental
operation/function activation.
1%(Long)
.Keypad Lock activates.
."does not power handset off.
1E(Long)
.Mobile Light illuminates.
2Side Key SMobile Light
goes out
1%STools S%Sf
Clock/Gauge
2Battery Meter S%
. Approximate battery strength appears.
Access this handy guide to handset
settings and key functions/shortcuts.
1%STools S%Sf
Doc./Rec.
2Phone Help S%
3Select item S%
.For Indicators, select a category
and press %.
My Details & Basic Tools
My Number
Editing My Details
After 1, f(select tab) SSelect
item SASSelect item S%S
Edit SA
VeilView
Canceling VeilView
~(Long)
Keypad Lock
Incoming Calls while Keypad Lock is Active
.Keypad Lock is temporarily canceled;
press !to answer calls. Keypad Lock
reactivates after the call.
Canceling Keypad Lock
%(Long)
Pen Light
Important Pen Light Usage Note
.Do not shine Pen Light in eyes.
Battery Meter
Battery Strength %
.
100% may not appear even when battery
is full. This is by design; not a malfunction.
Phone Help
Advanced
0(Selecting My Details items to send (Clearing My Details (Toggling My Details in Dual Mode (Changing battery strength indicator pattern
(Changing VeilView pattern/density (P. 1 - 2 5 )
