SL-75LIV USER MANUAL v1.0

Product Model : SL-75LIV
Manual Revision : V1.0
Release Date : July 001
• AMD Athlon ThunderbirdTM, and DuronTM processors are trademarks of AMD Corporation.
• VIA, VT8 01A APOLLO PLE133 and VT82C 8 B are trademarks of VIA Corporation.
T
NOTICE
his Users Guide & Technical Reference is to help system manu-
facturers and end-users set up and install the mainboard.
Every effort has been made to ensure that the information in this
manual is accurate. Soltek Computer Inc. is not responsible for print-
ing or clerical errors. Information in this document is subject to
change without notice and does not represent a commitment on the
part of Soltek Computer Inc.
No part of this manual may be reproduced, transmitted, translated
into any language in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose
without the express written permission of Soltek Computer Inc.
Companies and products mentioned in this manual are for identifi-
cation purpose only. Product names appearing in this manual may
or may not be registered trademarks or copyrights of their respec-
tive companies.
Soltek Computer Inc. provides this manual “As is “ without warranty
of any kind, either express or implied, including but not limited to the
implied warranties or conditions of merchantability or fitness for a
particular purpose. In no event shall Soltek Computer Inc. be liable
for any loss or profits, loss of business, loss of use or data, interruption of
business, or for indirect, special, incidental, or consequential damages of
any kind, even if Soltek Computer Inc. has been advised of the possibility
of such damages arising from any defect or error in this manual or product.
Copyright © 2001 So tek Computer Inc. A Rights Reserved.

SOLTEK AROUND THE WORLD
SOLTEK COMPUTER INC.
Address : 7F, No. 30 -3, Ta-Tung Rd, Sec.1, Hsi-Chih, Taipei-
Hsien, Taiwan, R.O.C.
Telephone : [phone]
Fax : [phone]
E-mail : [email protected]
Web site : http://www.soltek.com.tw
SOUL TECHNOLOGY EUROPE B.V.
Address : Hongkongstraat 55, 3047 BP Rotterdam. The Neth-
erlands
Telephone : [phone]
Fax : [phone]
E-mail : [email protected]
Web site : http://www.soultech-europe.com

75LIV
4
C O N T E N T
CHAPTER 1 INTRODUCTION ................................................. 8
1-1 MAINBOARD SPECIFICATION .................................................. 9
1-1.1 PROCESSOR ....................................................................... 9
1-1.2 CHIPSET .............................................................................. 9
1-1.3 ADVANCED HIGH-PERFORMANCE DRAM CONTROLLER 9
1-1.4 INTEGRATED HIGH PERFORMANCE 2D/3D GRAPHICS . 9
CONTROLLER ..................................................................... 9
1-1.5 AWARD BIOS V .0 ............................................................... 9
1-1. SOUND CONTROLLER ..................................................... 10
1-1.7 MULTI-I/O FUNCTION ........................................................ 10
1-1.8 POWER MANAGEMENT ................................................... 10
1-1.9 HARDWARE MONITOR ..................................................... 10
1-1.10 EXPANSION SLOTS .........................................................11
1-1.11 FORM FACTOR .................................................................11
1-1.12 OTHERS ............................................................................11
1-2 MOTHERBOARD LAYOUT --- 75LIV ....................................... 12

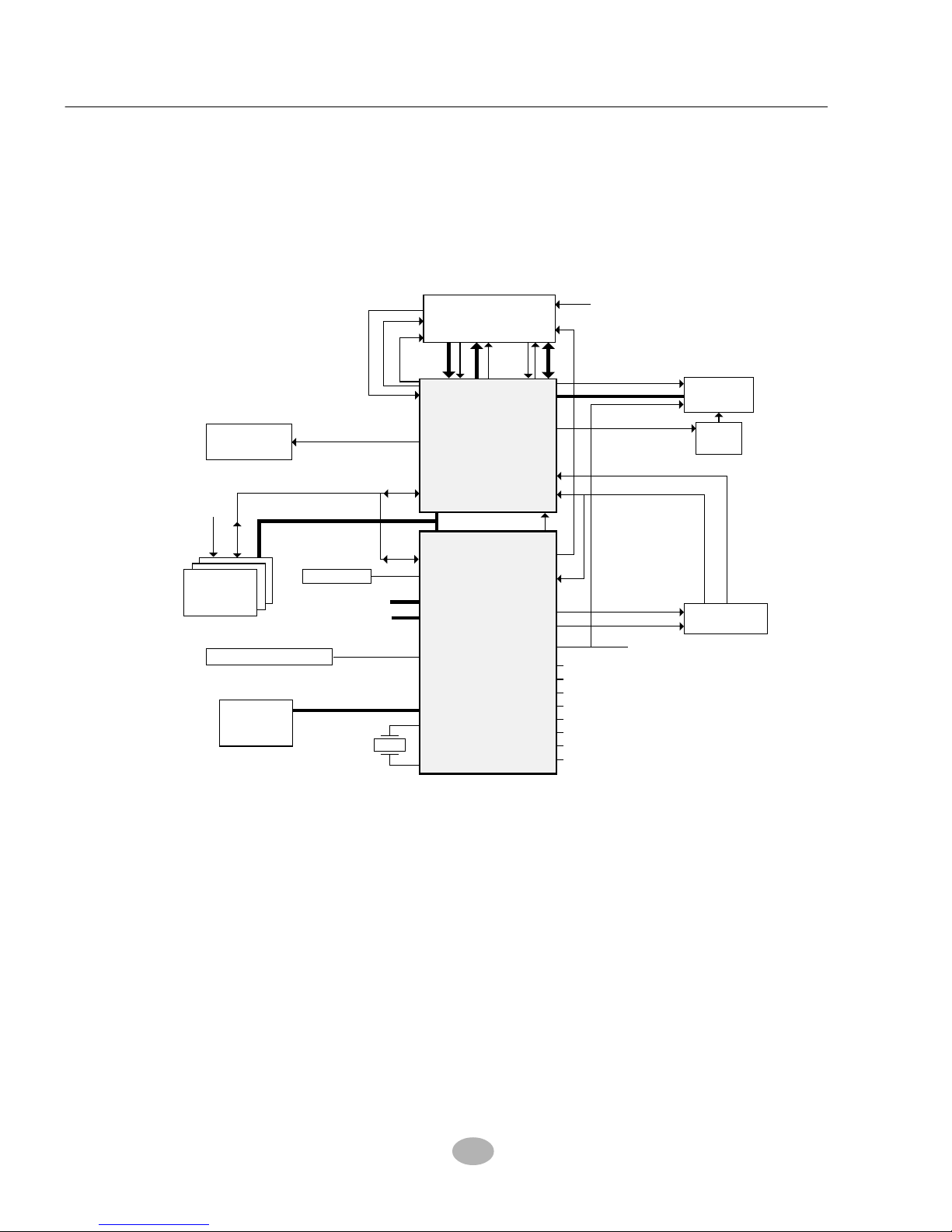

1-3 CHIPSET DIAGRAM--- 75LIV................................................... 13
CHAPTER 2 HARDWARE SETUP......................................... 15

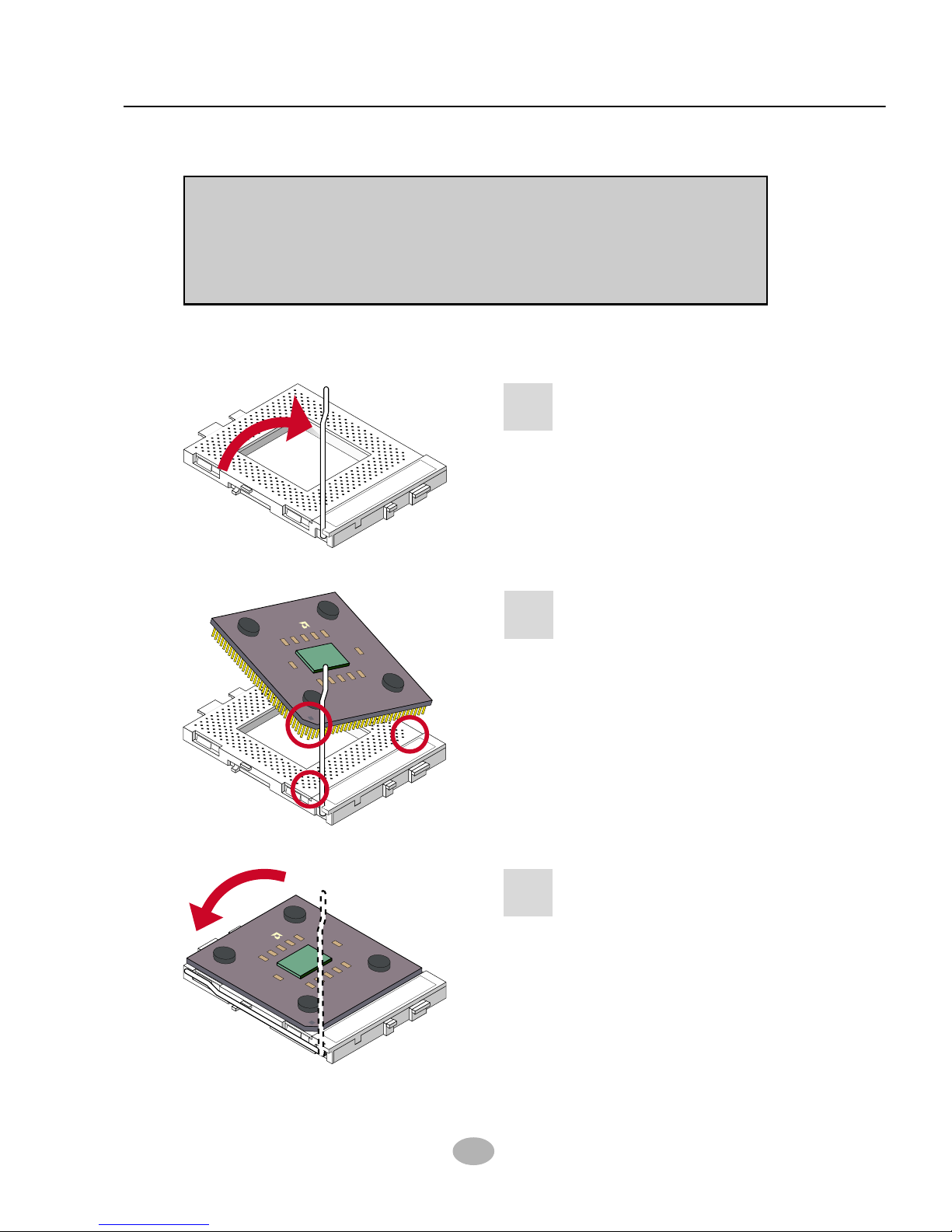

2-1 CPU INSTALLATION ................................................................ 1

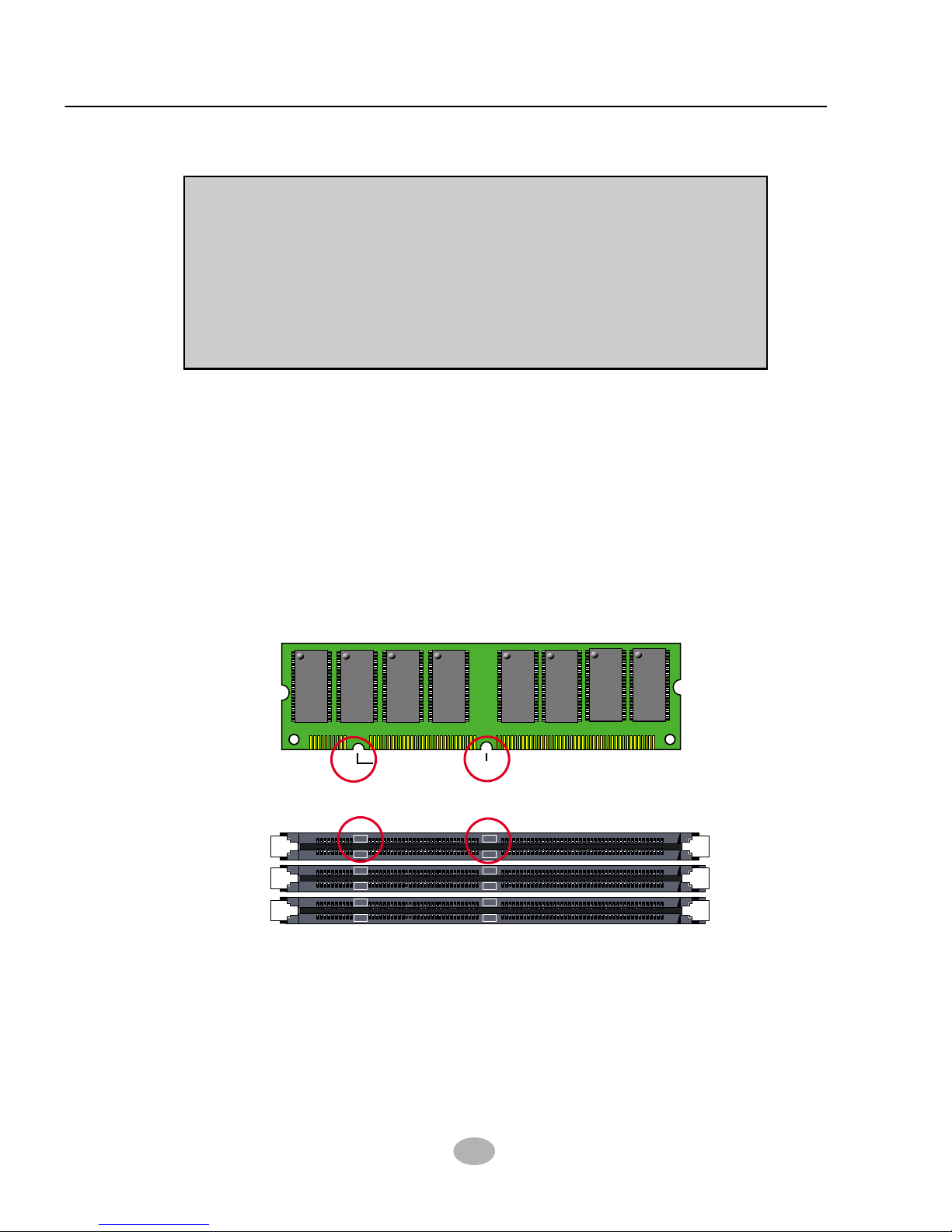

2-2 MEMORY INSTALLATION ........................................................ 17

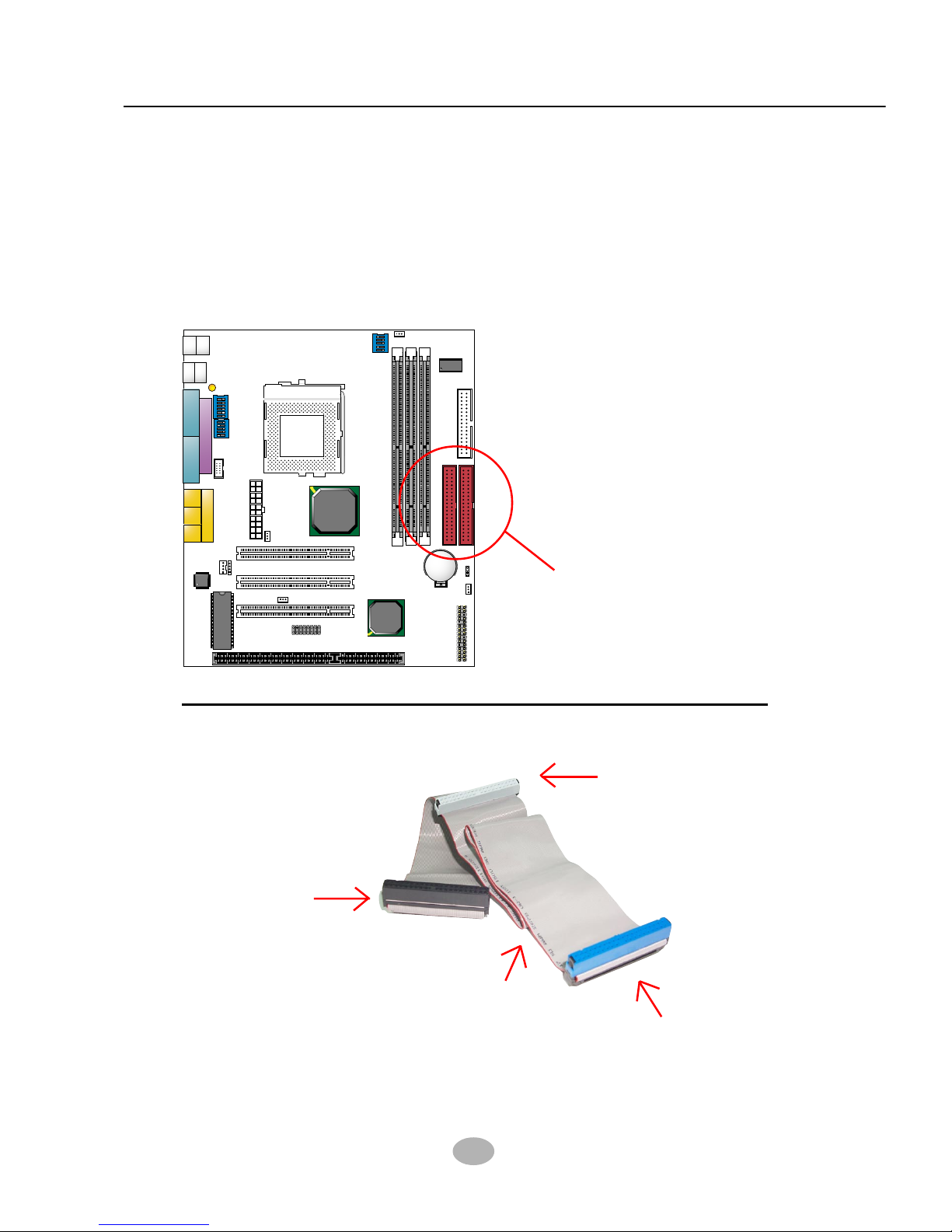

2-3 HDD/FDD INSTALLATION ........................................................ 18
2-4 SWITCH SETTING FOR CPU FREQUENCY AND VOLTAGE. 20

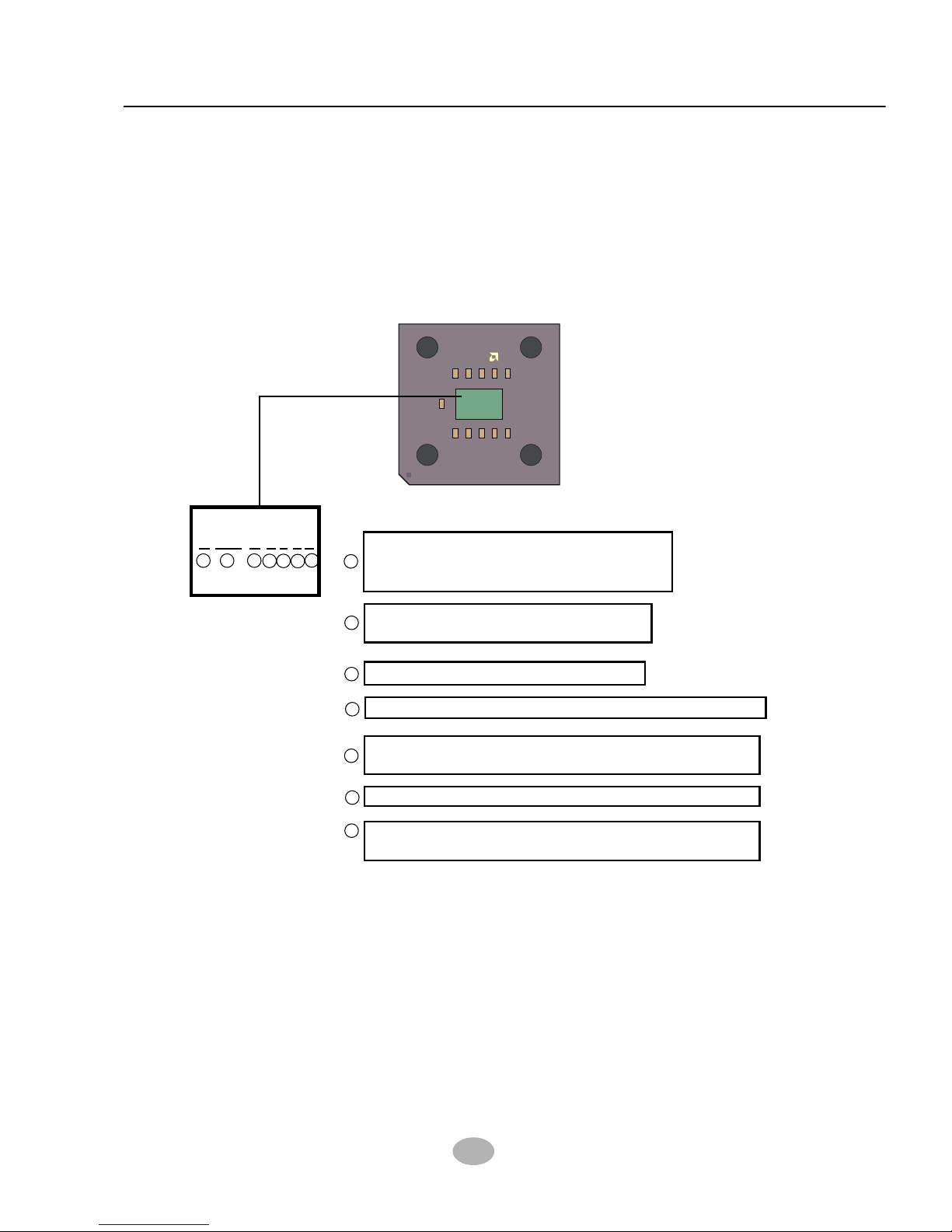

2-4.1 Information On AMD Socket 4 2 Processor ....................... 20
2-4.2 CPU External Frequency Setting (By SW1) ....................... 21
2-4.3 Processor Core Voltage Select (By SW2 DIP1-DIP ) ........ 22
2-4.4 Frequency Ratio Select (By SW3 DIP1-DIP4) .................... 23
2-5 JUMPER SETTING FOR DEVICES ON BOARD ..................... 24
2-5.1 JBAT1 For Clear CMOS Data ............................................. 24

5
2- CONNECTORS CONFIGURATIONS ....................................... 25
2- .1 On Board FAN Connector (FAN1, FAN2, FAN3) ................ 25
2- .2 WOL1 Wake On LAN .......................................................... 2
2- .3 CD-ROM Audio Connector (CD_IN1/CD_IN2) ................... 2
2- .4 Complex Header NJP1 ...................................................... 27
2- .5 Chassis Panel Connector .................................................. 28
2- . ATX Power Supply Connector............................................. 29
2- .7 PS/2 Mouse And PS/2 Keyboard ........................................ 29
2- .8 Serial Ports ......................................................................... 30
2- .9 USB2 Header...................................................................... 31
2-7 IRQ DESCRIPTION .................................................................. 32
CHAPTER 3 SOFTWARE SETUP ......................................... 34
3-1 VIA CHIPSET DRIVER INSTALLATION (4-IN-1 DRIVER) ....... 35
3-2 ONBOARD VGA DRIVER INSTALLATION ............................... 38
3-2.1 Install KLE133 VGA Driver For Windows 95/98/SE ............ 38
3-2.2 Install KLE133 VGA Driver For Windows NT4.0 ................. 38
3-2.3 Install KLE133 VGA Driver For Windows ME .................... 39
3-2.4 Install KLE133 VGA Driver Windows 2000 ........................ 39
3-3 AC’97 AUDIO CODEC INSTALLATION .................................... 40
CHAPTER 4 BIOS SETUP ..................................................... 42
4-1 WHAT IS BIOS SETUP............................................................. 43
4-2 HOW TO RUN BIOS SETUP .................................................... 43
4-3 WHAT IS CMOS ....................................................................... 43
4-4 WHAT IS POST ........................................................................ 43
4-5 BIOS UPGRADE....................................................................... 43
4-5.1 Before Upgrading BIOS ...................................................... 44
4-5.2 Upgrade Process ................................................................ 44

75LIV
6
4- BIOS SETUP --- CMOS SETUP UTILITY................................. 48
4- .1 CMOS SETUP UTILITY ...................................................... 48
4- .2 STANDARD CMOS SETUP................................................ 49
4- .3 ADVANCED BIOS FEATURES ........................................... 52
4- .4 ADVANCED CHIPSET FEATURES .................................... 57
4- .5 INTEGRATED PERIPHERALS ........................................... 3
4- . POWER MANAGEMENT SETUP....................................... 8
4- .7 PNP / PCI CONFIGURATION............................................. 75
4- .8 SMARTDOC ANTI-BURN SHIELD ..................................... 78
4- .9 FREQUENCY/VOLTAGE CONTROL ................................. 80
4- .10 LOAD OPTIMIZED DEFAULTS ........................................ 82
4- .11 SET SUPERVISOR / USER PASSWORD ........................ 83
4- .12 SAVE & EXIT SETUP ....................................................... 84
4- .13 EXIT WITHOUT SAVING .................................................. 84
APPENDICES ......................................................................... 86
APPENDIX-1 TECHNICAL TERMS ............................................... 87
APPENDIX-2 IDENTIFYING BIOS VERSION AND BIOS PART
NUMBER................................................................. 88
APPENDIX-3 IDENTIFYING MAINBOARD MODEL NUMBER ..... 90

7
Mainboard
Support CD
User’s Manual
Bundled Bonus Pack CD
Bundled Bonus Pack Manual
ATA /100 IDE Cable
RS232 Cable
FDD Cable
ITEMLIST CHECKUP

75LIV
8
CHAPTER 1
INTRODUCTION
• This chapter briefly introduces the characteristics of this mainboard.
It includes the information regarding the chipset, CPU types, built-in
functions and layout. Users will have more ideas about mainboards
after reading this chapter.
This chapter contains the fo owing topics :
1-1 MAINBOARD SPECIFICATION
1-2 MAINBOARD LAYOUT
1-3 CHIPSET DIAGRAM

Chapter 1 Introduction
9
1-1.1 PROCESSOR
• Supporting AMD AthlonTM Thunderbird processors up to 1.5GHz.
• Supporting AMD AthlonTM Duron processors up to 1.2GHz.
• Supporting processor VID (voltage ID) and FID (frequency ID) auto
detection.
• Supporting AMD AthlonTM processor with 200 and 2 MHz Front Side
bus.
• Supporting AMD AthlonTM 4 processors (Palomino).
1-1.2 CHIPSET
• North Bridge VIA VT83 1 (KLE-133) system controller High Performance
Athlon CPU Interface.
• South Bridge VIA VT82C 8 B PCI to ISA bridge.
1-1.3 ADVANCED HIGH-PERFORMANCE DRAM CONTROLLER
• Supporting PC133 and PC100 SDRAM up to 3 DIMMs.
• 4-bit data width and 3.3V DRAM interface.
• Supporting up to 7 8MB memory space.
• Supporting different DRAM types may be used in mixed combinations.
1-1.4 INTEGRATED HIGH PERFORMANCE 2D/3D GRAPHICS
CONTROLLER
• 4-bit Single Cycle 2D/3D Graphics Engine.
• Supporting 8 Mbytes of Frame Buffer.
• Integrated 24 bit 230MHz True Color DAC.
• Extended Screen Resolutions up to 1 00x1200.
• Extended Text Mode 80 or 132 columns by 25/30/43/ 0 rows.
• Supporting full AGP v2.0 capability.
1-1.5 AWARD BIOS V6.0
• Plug & Play V1.0.
• Flash Memory for easy upgrade.
• BIOS writing protection.
• Year 2000 compliant.
• SMARTDOC ANTI-BURN SHIELD.
• RedStorm Overclocking Tech.
1-1 MAINBOARD SPECIFICATION

75LIV
10
1-1.6 SOUND CONTROLLER
• SoundBlaster Pro Hardware and Direct Sound Ready AC97 Digital Audio
Controller with Codec onboard.
1-1.7 MULTI-I/O FUNCTION
• Two Ultra DMA 33/ /100 Master Mode PCI EIDE ports.
• Two UART’s for Complete Serial Ports.
• Dedicated IR connector:
-- Third serial port dedicated to IR function either through the two complete serial
ports or the third dedicated port Infrared-IrDA (HPSIR) and ASK (Amplitude Shift
Keyed) IR.
• Multi-mode parallel connector supporting:
-- Standard mode, ECP and EPP.
• Floppy Disk connector supporting:
-- Two FDDs connector with drive swap support .
• Universal Serial Bus connector supporting:
-- USB v1.1 and Intel Universal HCI v1.1 compatible.
-- 2 built-in USB connectors and one USB Header (USB2) which requires an optional
USB cable to provide 2 more optional USB ports.
• PS/2 Keyboard connector.
• PS/2 Mouse connector.
1-1.8 POWER MANAGEMENT
• ACPI 1.0 compliant (Advanced Configuration and Power Interface).
• APM V1.2 compliant (Legacy power management).
• Supporting ACPI POS mode (Power On Suspend).
• Supporting Wake On LAN (WOL) & Wake On Modem (WOM).
• Supporting real time clock (RTC) with date alarm, month alarm, and century
field.
1-1.9 HARDWARE MONITOR
• Programmable control, status, to provide monitoring and alarm for flexible
desktop management of hardware temperature (software provided in
support CD).
• 5-positive voltage.
• 2 Fan-speeds statuses monitoring.

Chapter 1 Introduction
11
1-1.10 EXPANSION SLOTS
• Three PCI bus Master slots.
• One ISA slot.
• Three DIMM slots.
1-1.11 FORM FACTOR
• ATX form factor 4-layer PCB.
• Mainboard size: 24.5cm x 21.0cm.
1-1.12 OTHERS
• Clock generator supporting 1 MHz linear clock setting.

75LIV
1

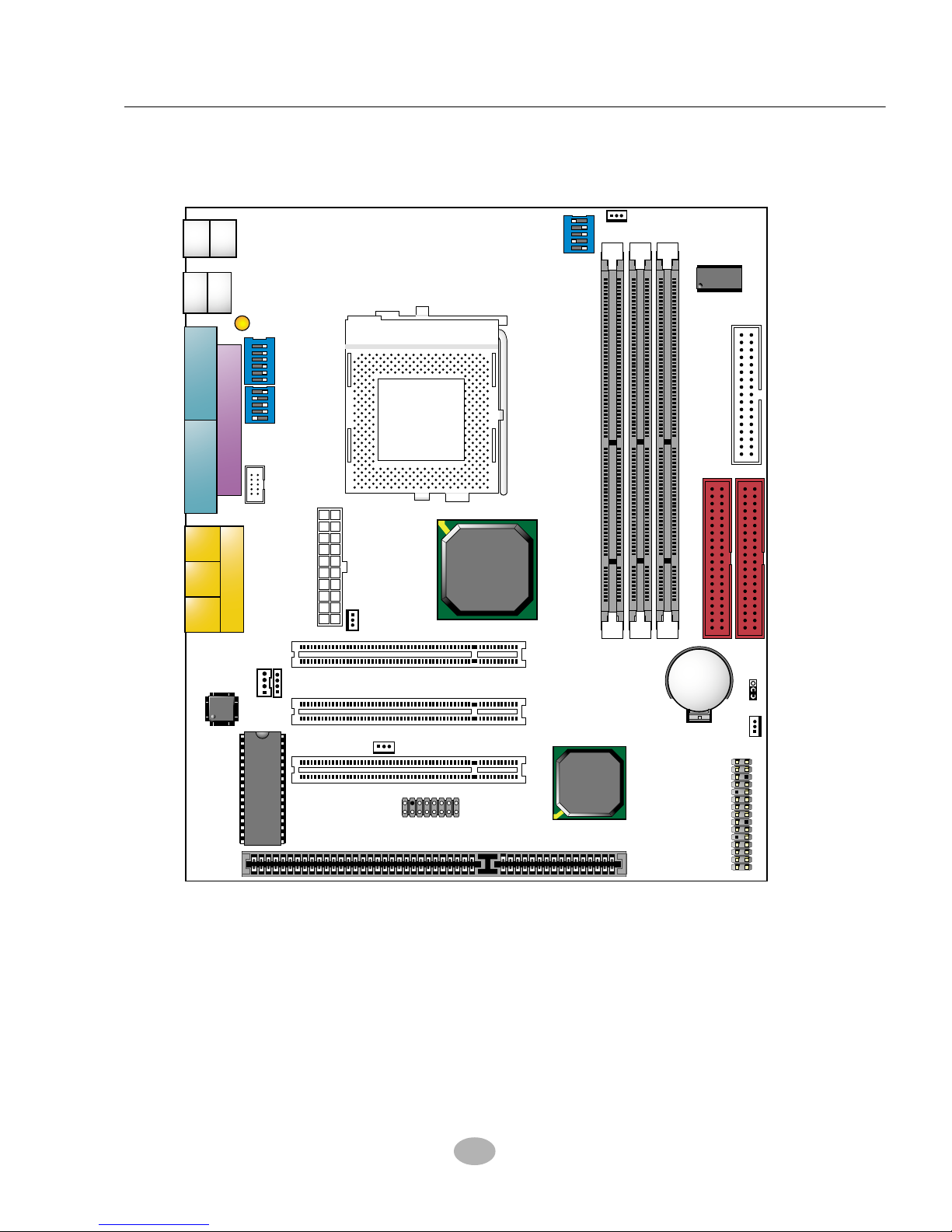

1-2 MOTHERBOARD LAYOUT --- 75LIV
• Default Setting: 100MHz CPU External clock.
3 1
SOCKET 462
DIMM1 DIMM2 DIMM3
FAN1
1 3
ON DIP
1 2 3 4 5
VIA
VT8361
VIA
VT82C
686B
PCI 1
PCI 2
PCI 3
ISA
FLASH BIOS
16
1
USB2
USB0
USB1
LPT1
COM1VGA
LINE OUT
LINE IN
MIC
PS/2 MOUSE
PS/2 K/B
upperupper
ower
ower
SW3
ON DIP
1 2 3 4 5
SW2
ON DIP
1 2 3 4 5 6
LED1
COM2
110
ATX POWER
C ock
Generator
IDE1
IDE2
FDD1
1
Li
Battery
NJP1
SAPK RST PLED G_LED
HDD/LED IR PWR
++
--
+-
16 30 1 15
AC'97
Codec
41 41
CD_IN1 CD_IN2
WOL1
FAN3
1 3
1 3
JBAT1
FAN2
SW1
1 3
1 1
Using non-compliant memory with higher bus clock (over-clocking) may
severely compromise the reliability of system.

Chapter 1 Introduction
13
1-3 CHIPSET DIAGRAM--- 75LIV
• The KLE-133 / VT82C 8 B chipset is a high performance, cost-effective
and energy efficient system controller for the implementation of AGP / PCI
/ ISA desktop personal computer system based on 4-bit Socket-A (AMD
Athlon) processors.
Diagram of KLE133 System Block with VT82C 8 B South Bridge
KLE133
VT8361
North Bridge
552 BGA
South Bridge
352 BGA
VT82C
686B Power P ane & Periphera Contro
GPIO and ACPI Events
Hardware Monitoring Inputs
Keyboard / PS2 Mouse
Seria Ports 1 and 2
Para e Port
F oppy Drive Interface
MIDI / Game Ports
RTC Crysta
PCLK
SMBus
C ock
Generator
PCISTP#
CPUSTP#
MCLK
In
Data
Address
Out
SDRAM
C ock
Buffer
CFWDRST CONNECT
PROCRDY
PCI Bus
SUSCLK,
SUSST1#
PCKRUN#
ATA 33/66/100
USB Ports 0 - 3
ISA
AC97 Link
Memory Bus
CKE
HCLK
PCLK
SYSCLK, SYSCLK#
INTR, NMI, SMI#, STPCLK#,
IGNNE#, FERR#, A20M#,
PWROK, INIT#, RESET#
Ath on
Host CPU
Monitor
AC97 Audio Codec
BIOS ROM

75LIV
14
MEMO
MEM
O

Chapter 2 Hardware Setup
15
CHAPTER 2
HARDWARE SETUP
2-1 CPU INSTALLATION
2-2 MEMORY INSTALLATION
2-3 HDD/FDD INSTALLATION
2-4 SWITCH SETTING FOR CPU FREQUENCY
AND VOLTAGE
2-5 JUMPER SETTING FOR DEVICES ON BOARD
2-6 CONNECTORS CONFIGURATION
2-7 IRQ DESCRIPTION
ATTENTION !!!
1. P ease refer to your processor insta ation or other
documentation attached to your CPU for more detai ed
insta ing instruction.
2. Insta ing a heat sink and coo ing fan is necessary for
proper heat dissipation from your CPU. Incorrect
insta ation may resu t in overheating and damage of
your CPU.
3. Before changing the setting of CPU Vcore from BIOS
program, user SHOULD make sure of correct speci-
fication both of CPU CLOCK and RATIO. Incorrect
setting may cause damage to your CPU.
This chapter contains the fo owing topics :

75LIV
16
2-1 CPU INSTALLATION
WARNING !!!
• Make sure that +5V DCV and +3.3 DCV capabilities of your power supply
are suitable for the processor.
• Any attempt to operate the AMD Athlon or Duron processor without
a suitable coolin Fan will dama e processor and other component.
SOCKET 462
AMD
2Take notice of the red circles
as shown here. While insert-
ing the CPU into the socket,
you can find out there is a
definite pin orientation for
CPU and socket.
SOCKET 462
1Pull out the lever from the
socket, and then raise the
lever up to a 90-degree angle.
AMD
SOCKET 462
3 Make sure that the CPU is
placed into the socket tightly.
Then lower down the lever
to complete the CPU insta-
llation.

Chapter 2 Hardware Setup
17
Removing DIMM
• Press down the holding clips on both sides of a DIMM socket and the
module will be released from it.
Insta ing DIMM
• Make sure you have the correct memory module type for your mainboard.
• Insert the module(s) as shown below, DIMMs have 1 8-pins and two
notches that will be matched by the onboard DIMM socket. Memory
modules are installed by inserting them straight into the slot until they
“click” in the right place. They only fit in one direction, so do not force
them in by a wrong direction.
WARNING!!!
• Make sure to unplu your power supply before addin or removin memory
modules or other system components. Failure to do so may cause severe
dama e to both your mainboard and expansion cards.
• Be careful when insertin or removin DIMM. Forcin a DIMM in or out
of a socket improperly may dama e the memory module or the socket.
Some DIMMs which contain EDO or FPM DRAM are incompliant with
the mainboard. The M/B supports 3.3V true SDRAM DIMMs only.
2-2 MEMORY INSTALLATION
168-Pin DIMM Notch Key Definitions(3.3V)
DRAM Key Position Vo tage Key Position
Unbuffered 3.3V

75LIV
18
3 1
SOCKET 462
DIMM1 DIMM2 DIMM3
FAN1
1 3
ON DIP
1 2 3 4 5
VIA
VT8361
VIA
VT82C
686B
PCI 1
PCI 2
PCI 3
ISA
FLASH BIOS
16
1
USB2
USB0
USB1
LPT1
COM1VGA
LINE OUT
LINE IN
MIC
PS/2 MOUSE
PS/2 K/B
upperupper
ower
ower
SW3
ON DIP
1 2 3 4 5
SW2
ON DIP
1 2 3 4 5 6
LED1
COM2
110
ATX POWER
C ock
Generator
IDE1
IDE2
FDD1
1
Li
Battery
NJP1
SAPK RST PLED G_LED
HDD/LED IR PWR
++
--
+-
16 30 1 15
AC'97
Codec
41 41
CD_IN1 CD_IN2
WOL1
FAN3
1 3
1 3
JBAT1
FAN2
SW1
1 3
1 1
2-3 HDD/FDD INSTALLATION
• To install HDD (Hard Disk Drive), you may connect the cable’s blue connector to
the mainboard’s primary (IDE1) or secondary (IDE2) connector, and then
connect the gray connector to your slave device and the black connector
to your master device. If you install two hard disks, you must configure the
second drive to Slave mode by setting its jumper accordingly. Please
refer to your hard disk documentation for the jumper settings.
Hard Disk Drive Connector:
Orient the red line on the
IDE ribbon cable to Pin1.
Gray connector
Blue connector
IDE Cab e
red line
Black connector

Chapter 2 Hardware Setup
19
3 1
SOCKET 462
DIMM1 DIMM2 DIMM3
FAN1
1 3
ON DIP
1 2 3 4 5
VIA
VT8361
VIA
VT82C
686B
PCI 1
PCI 2
PCI 3
ISA
FLASH BIOS
16
1
USB2
USB0
USB1
LPT1
COM1VGA
LINE OUT
LINE IN
MIC
PS/2 MOUSE
PS/2 K/B
upperupper
ower
ower
SW3
ON DIP
1 2 3 4 5
SW2
ON DIP
1 2 3 4 5 6
LED1
COM2
110
ATX POWER
C ock
Generator
IDE1
IDE2
FDD1
1
Li
Battery
NJP1
SAPK RST PLED G_LED
HDD/LED IR PWR
++
--
+-
16 30 1 15
AC'97
Codec
41 41
CD_IN1 CD_IN2
WOL1
FAN3
1 3
1 3
JBAT1
FAN2
SW1
1 3
1 1
• To install FDD (Floppy Disk Drive), you may connect the end with single
connector to the board , and connect the other end with two plugs to the
floppy drives.
Floppy Disk Drive Connector:
Orient the red line on the
floppy ribbon cable to Pin1.
FDD Cab e
To 1st Floppy Drive To mainboard
To 2nd Floppy Drive
red line

75LIV
0
AMD
XXXXXXXXXXX
XXXXXXXXXXXX
XXXXXXX
XXXXXXXXX
XXXXXXXXXXX
XXXX
AMD XXXX
A 0850
0850
A P T 3 B
T 3 B
Speed: 0850= 850MHz, 0900= 900MHz,
1000= 1000MHz, 1100= 1100MHz, etc.
Package Type: M= Card Modu e, A= PGA.
Operating Vo tage: S= 1.5V, U= 1.6V, P= 1.7V, M= 1.75V, N= 1.8V.
Case Temperature: Q= 60
0
C, X= 65
0
C, R= 70
0
C, Y= 75
0
C,
T= 90
0
C, S=95
0
C.
Size of L2 Cache: 1= 64Kbyte, 2= 128Kbyte, 3= 256Kbyte.
Max FSB: A= B= 200MHz, C or others= 266MHz. (For correct
FSB setting, p ease refer to next chapter)
Fami y/Architecture:
A= AMD Ath on™Mode 4 Processor Architure.
D= AMD Duron™Processor Architecture.
1234567 1
2
3
4
5
6
7
2-4.1 Information On AMD Socket 462 Processor
• On the AMD Socket 4 2 Processor, you can find a codified identification
marking which is to provide useful information about the CPU. The
marking is interpreted as below:
2-4 SWITCH SETTING FOR CPU FREQUENCY AND VOLTAGE
