SOMFY Sonesse ULTRA 30 WireFree RTS Li-ion Operating instructions

Copyright © Somfy SAS 8/2019 P-0038
Sonesse ULTRA 30 Wirefree (Li-Ion) RTS
Quick Programming Guide
NOTE: Steps 1-6 must be completed to ensure proper shade programming and functionality. Motor will exit programming mode aer 2 minutes of inactivity.
While in programming mode, the shade only operates when the UP or DOWN buttons are continuosly pressed. Releasing the buttons stops the shade.
INITIAL PROGRAMMING AND LIMIT SETTING
Step 2: Check the direction of operation.
Press the DOWN button and confirm the
shade lowers.
Step 5: PRESS &
HOLD the MY/STOP
button until the shade
jogs to confirm both
limit settings.
Step 3: Bring the shade to your desired
upper limit. PRESS & HOLD both the MY/
STOP and DOWN buttons until the shade
begins to move down, then release. Stop the
shade at the desired lower limit, adjust by
pressing the UP or DOWN buttons.
Step 6: To finalize BRIEFLY PRESS the
PROGRAMMING BUTTON on the back
of the control. The shade will jog and will
now operate in user mode. Brief press
of the UP or DOWN button will send the
shade to the respective limit.
Step 1: To initiate programming PRESS
& HOLD both the UP and DOWN buttons
at the same time until the shade jogs.
Step 4: PRESS & HOLD the UP
and MY/STOP buttons until the
shade begins to move up.
The shade will stop at the original
upper limit. Adjust if necessary.
Programming
Button
 
BEFORE YOU BEGIN: Check if you have a paired transmitter with the following directions:
1) BRIEFLY PRESS the PROGRAMMING BUTTON on the motor or plug in the charger.
The motor will jog once. (A jog is a brief up and down motion).
2) If the transmitter was supplied, press a directional button (UP or DOWN) and see if the shade operates. If a multi-channel
transmitter was supplied, try on each channel.
a) If the shade operates - the shade is already programmed.
b) If the shade does not operate - choose the transmitter channel on which you would like to control the shade.
PRESS & HOLD the PROGRAMMING BUTTON on the motor until it jogs once. Then BRIEFLY PRESS
the PROGRAMMING BUTTON on the transmitter. The shade will jog once. The shade is now programmed.
If the shade raises instead of closing, change the direction -PRESS
& HOLD the MY/STOP button until the shade jogs.
Confirm correct direction of operation before proceeding.
ADJUSTING THE LIMITS IN USER MODE
Adjusting the
lower limit:
Adjusting the
upper limit:
Step 4: PRESS & HOLD the
MY/STOP button until the
shade jogs, then release.
Check the new limit.
Step 3: Adjust to a new
limit position using the
UP or DOWN buttons.
Step 2: PRESS & HOLD both
UP and DOWN buttons
simultaneously until the shade
jogs, then release.
Step 1: Move the shade to
the current limit position you
wish to adjust and let it stop.
OR
OR
Programming
Button

www.somfysystems.com
Copyright © Somfy SAS 8/2019 P-0038

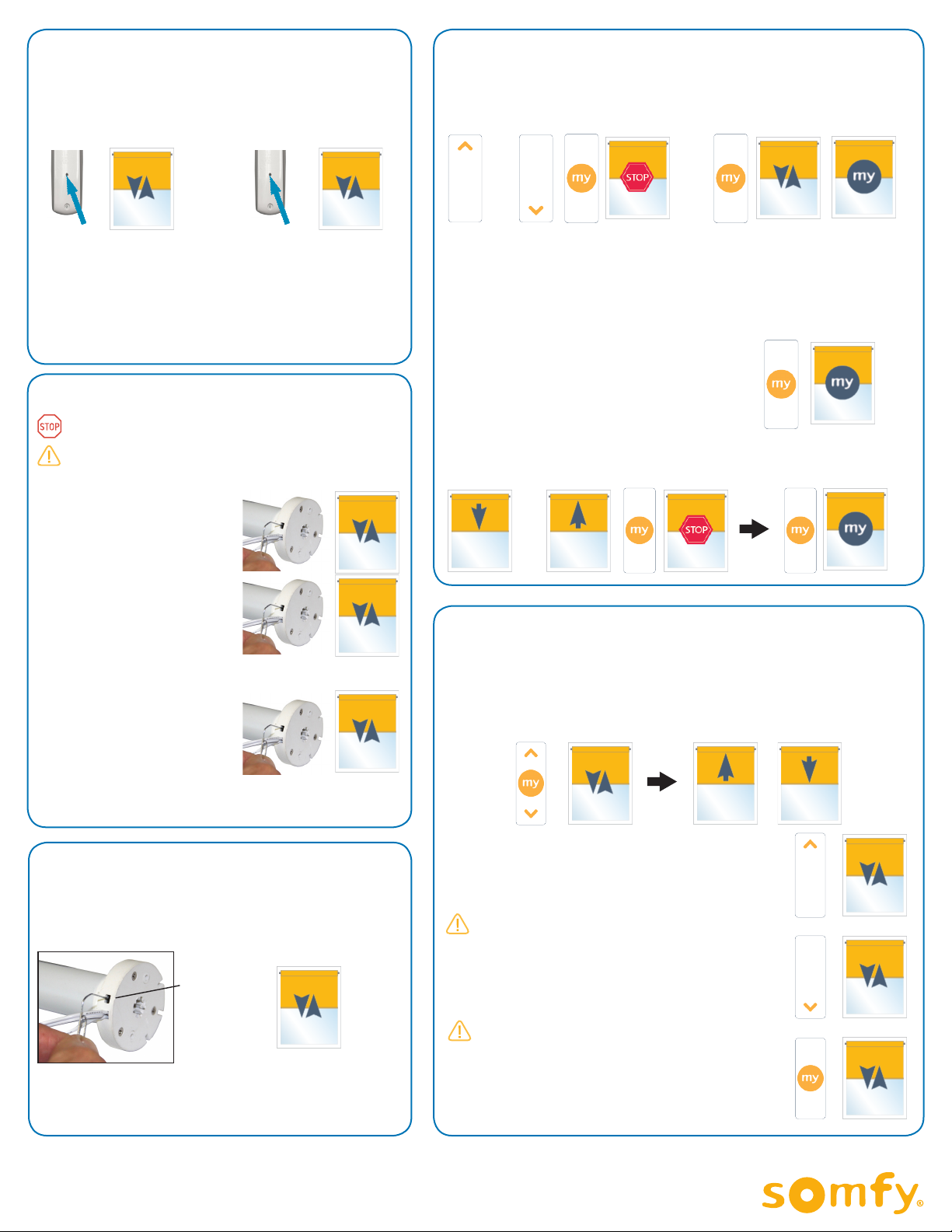

The procedure to delete an RTS control or sensor is the same.
a) PRESS & HOLD the
PROGRAMMING BUTTON
on the back of Control 1 until
the shade jogs.
b) BRIEFLY PRESS the
PROGRAMMING BUTTON
on the back of Control 2.
The shade jogs.
CONTROL 1:
Previously programmed
control - single channel or
the channel (1-5) of a multi-
channel transmitter.
CONTROL 2:
Second control to be added or
deleted - single channel or
the channel (1-5) of a multi-
channel transmitter.
ADD OR DELETE A CONTROL
The shade must be programmed.
This feature temporarily prevents the motor from
responding to any previously programmed transmitter
commands.
1)PRESS & HOLD the motor
head PROGRAMMING BUTTON
until the shade jogs.
2) BRIEFLY PRESS the motor
head PROGRAMMING BUTTON,
the shade jogs twice. Sleep Mode
is activated. ADJUSTING THE SPEED
LED blinks alternately in GREEN and YELLOW during the adjustment.
1) Move the shade away from the end limits. PRESS & HOLD the UP, MY/STOP
and DOWN simultaneously, until the shade jogs. The shade will move up and
down automatically in ten second cycles.
2) To increase the speed, PRESS & HOLD the UP button
until the shade jogs. Repeat as needed.
Maximum speed is achieved when the shade no
longer jogs when the UP button is pressed.
3) To decrease the speed, PRESS & HOLD the DOWN
button until the shade jogs. Repeat as needed.
Minimum speed is achieved when the shade no
longer jogs when the DOWN button is pressed.
4) To confirm the new speed, PRESS & HOLD the MY/STOP
button until the shade jogs.
10 Sec. 10 Sec.
RESETTING THE MOTOR TO FACTORY MODE
Using a paperclip, PRESS & HOLD the PROGRAMMING BUTTON
on the motor (shown below) for approximately 12 seconds during
which the shade will jog 3 separate times.
Programming
Button
All programmed remotes and limit settings will be erased.
Motor is now reset to factory mode. Motor limits will need
to be re-established.
To delete: First send the shade to the current “my” position, then PRESS & HOLD
the MY/STOP button for 5 seconds. The shade will jog to confirm deletion.
USING THE INTERMEDIATE “MY” POSITION
SETTING INTERMEDIATE "MY" POSITION
2) PRESS & HOLD the MY/STOP
button until the shade jogs.
The "my" favorite position is set.
If the shade is in motion, first stop it by pressing MY/STOP and then MY/STOP again
to send it to the “my” position.
While the shade is stationary, a simple press of the
MY/STOP button will move the shade to the “my”
intermediate position from any shade position.
OR
3) To set a NEW "my" position, repeat steps 1 and 2.
1) Move the shade to the desired position
and press MY/STOP button to stop the
shade.
ENABLING SLEEP MODE
NOTE: If step 3 is not performed, Sleep Mode will automatically
disable aer approximately 10 minutes.
2x
3X
DISABLING SLEEP MODE
3) BRIEFLY PRESS the motor head
PROGRAMMING BUTTON.
The shade jogs and the transmitter
commands are enabled.
OR
