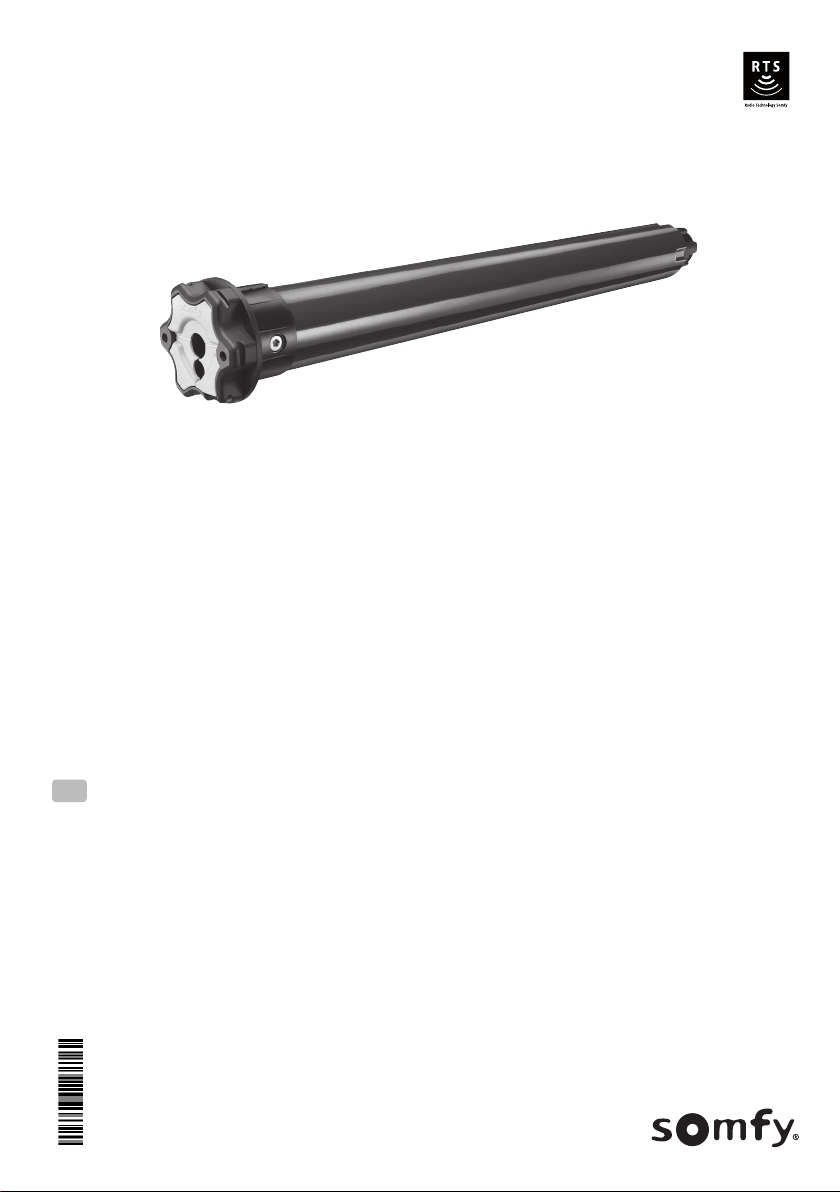

SOMFY MAESTRIA+ 50 RTS User manual

MAESTRIA+ 50 RTS
Ref. 5140607B
EN Instructions
www.somfy.com

Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. 3
EN
Non contractual images
1. Prior information 3
1. 1. Sphere of application 3
1. 2. Liability 3
2. Installation 4
2. 1. Assembly 4
2. 2. Wiring 5
2. 3. Set-up 5
2. 4. Tips and advice on installation 10
3. Operation and maintenance 12
3. 1. "Up" and "Down" functions 12
3. 2. STOP function 12
3. 3. Favourite (my) position 12
3. 4. Fabric tension 12
3. 5. Operation with sensors 13
3. 6. Tips and advice on operation 14
4. Technical data 14
1. PRIOR INFORMATION
1. 1. SPHERE OF APPLICATION
MAESTRIA+ 50 drives are designed to power all types of exterior vertical blinds.
The installer, a home motorisation and automation professional, must ensure that once the
driven product is installed, it respects the current standards in the country of installation,
notably standard EN 13561 relative to exterior blinds.
1. 2. LIABILITY
Before installing and using the drive, please read these instructions carefully. In addition to the instructions
provided in this guide, please also comply with the instructions set out in the enclosed Safety instructions
document.
The drive must be installed by a home motorisation and automation professional, in accordance with
Somfy's instructions and the applicable regulations in the country of installation.
Any operation of the drive outside the sphere of application described above is prohibited. Such operation
shall exclude Somfy from all liability and invalidate the Somfy warranty, as will any failure to comply with
the instructions given herein and in the enclosed Safety instructions document.
After installing the drive, the installer must inform his customers of the operating and maintenance
conditions for the drive and must pass the operating and maintenance instructions on to them, as well
as the enclosed Safety instructions document. Any After-Sales Service operation on the drive requires
intervention by a home motorisation and automation professional.
Should any doubt arise during installation of the drive or for additional information, consult a Somfy
contact or visit www.somfy.com.
Safety Warning! Warning! Information
1. CONTENTS
These instructions apply to all variations of the MAESTRIA+ 50 RTS, which are available in
the current catalogue.
ORIGINAL VERSION

4Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved.
EN
Non contractual images
2. INSTALLATION
These instructions are mandatory for the home motorisation and automation professional
installing the drive.
Never drop, knock or puncture the drive or immerse it in liquid.
Install an individual control point for each drive.
2. 1. ASSEMBLY
2. 1. 1. Drive preparation
Make sure that the inner diameter of the tube is at
least 47 mm.
1) Fit the accessories necessary to incorporate the drive
into the winding tube:
• either only the wheel aon the drive,
• or the ring band the wheel con the drive.
2) Measure the length (L1) between the inside edge of
the drive head and the end of the wheel.
2. 1. 2. Tube preparation
1) Cut the winding tube to the desired length depending
on the product to be motorised.
2) Deburr the winding tube and remove all chips.
3) For winding tubes that are smooth inside, cut a notch
to the following dimensions: d= 4 mm / 0.16 In; e=
28 mm / 1.1 In.
2. 1. 3. Drive-tube assembly
1) Slide the drive into the winding tube. For winding
tubes that are smooth inside, position the cut notch on
the protruding part of the ring.
2) The wheel must be locked in a straight line inside the
winding tube:
• either by securing the winding tube to the wheel
using 4 Ø 5 mm Parker screws or 4 Ø 4.8 mm steel
pop rivets located between 5 mm and 15 mm from
the outside edge of the wheel, irrespective of the
type of winding tube.
The screws or pop rivets must only be fastened on the wheel and not on the drive.
• or by using a wheel lock, for non-smooth tubes.
2. 1. 4. Mounting the tube-drive assembly
- Fit the tube end into the winding tube.
Star head drive
1) Fit and attach the tube-drive assembly to the end support fand the star head support for
the drive g.
Make sure that the tube-drive assembly is locked in
place on the end support. This prevents the tube-
drive assembly from coming out of the end support
xing.
2) Depending on the type of support, t the retaining ring h.
1)
L1
L1 = …
2)
Ø > 47 mmØ = 47 mm
a cb
3)
1) 2)
de
15 mm
5 mm
L1
1)
2)
1) 2)
f
g
h

Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. 5
EN
Non contractual images

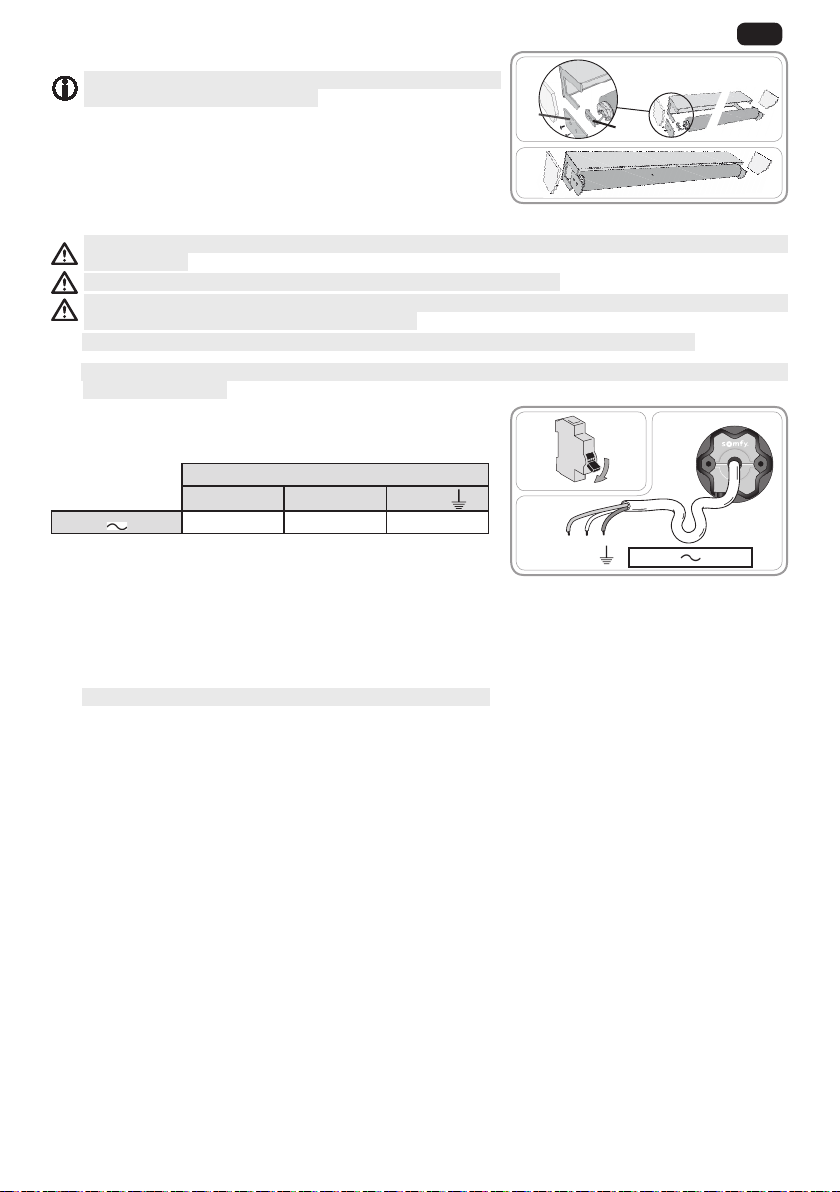

Round head drive
For drives greater than 25 Nm, use an adapted
support referenced by Somfy.
3) Install the support ion the drive head, then the
removable end caps k.
4) Slide the tube-drive-removable end cap assembly into
the head rail.
2. 2. WIRING
Cables routed through a metal internal wall must be protected and insulated by sleeving
or sheathing.
Secure the cables to prevent any contact with moving parts.
If the drive is used outdoors and if the power supply cable is of the H05-VVF type, run the
cable in a UV-resistant duct, e.g. trunking.
Leave the drive power supply cable accessible: it must be easily replaceable.
Always make a loop in the power supply cable on the outside to prevent water from
entering the drive.
1) Switch the power supply off.
2) Connect the drive according to the information
provided in the table below:
Cable
Neutral (N) Phase (L) Earth ( )
230 V 50 Hz Blue Brown Green-Yellow
2. 3. SET-UP
This guide describes only the commissioning using an RTS control point as Telis 1 RTS. For
commissioning using other RTS control point, refer to the corresponding guide.
2. 3. 1. Identication of the set-up steps already performed
Power must only be supplied to one drive at a time.
Three different reactions allow the drive status to be identied. Switch off the power for two
seconds on a single driven product to identify the drive's status:
Reaction 1:
The driven product moves up and down briey upon power-up.
The end limits have been set and no control point is programmed.
- See section "Preprogramming of the Somfy local control point" (§2. 3. 2) then section "Programming
of the Somfy local control point" (§2. 3. 6 A).
Reaction 2:
The driven product does not move up and down briey upon power-up and does not react
when the buttons on the control point are pressed.
The end limits have not been set and no control point is programmed.
- See section Preprogramming of the Somfy local control point (§2. 3. 2).
Reaction 3:
The driven product does not move up and down briey upon power-up but reacts when the
buttons on the control point are pressed.
The set-up procedure is complete.
- To modify the advanced settings, see section "Setting advanced sections" (§2. 3. 5).
1)
2)
i
k
230 V 50 Hz
LN
OFF
1) 2)

6Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved.
EN
Non contractual images

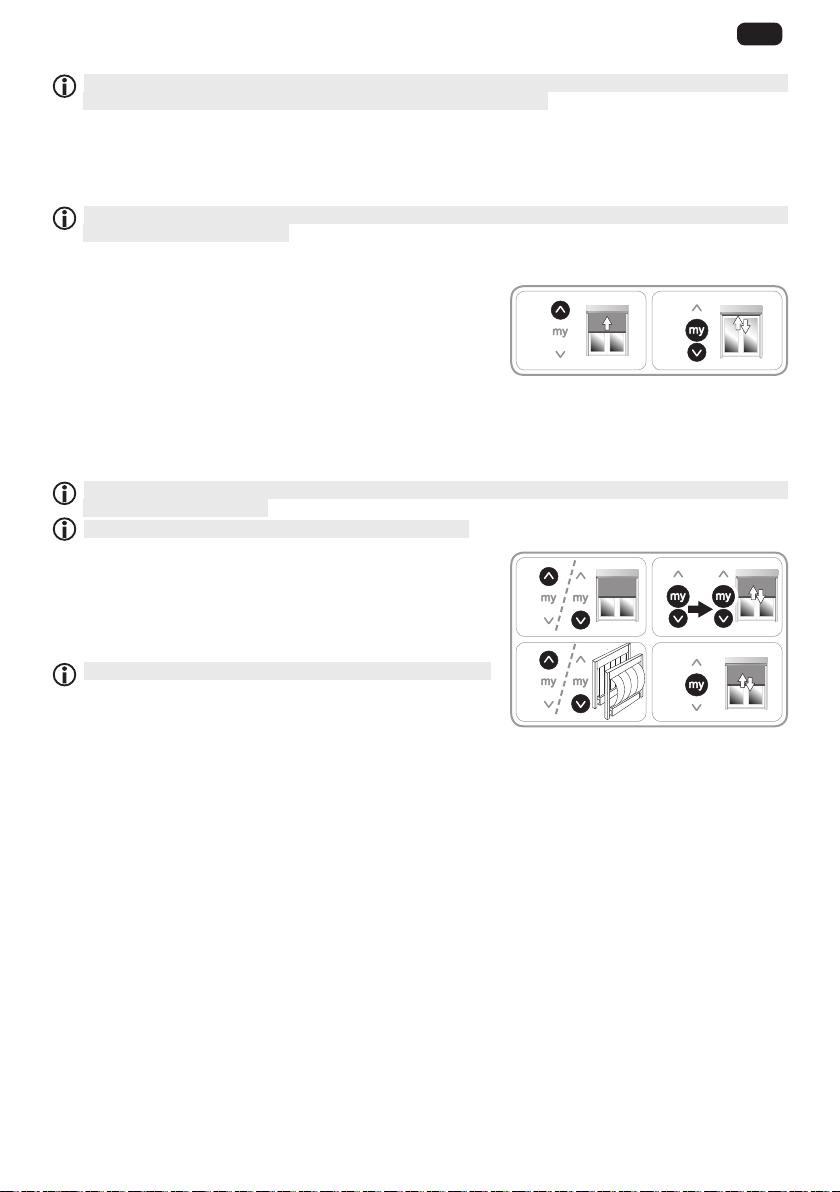

Follow the following steps for set-up:
1) Preprogramming of the Somfy local control point (§2. 3. 2)
2) Checking the rotation direction (§2. 3. 3)
3) Setting the end limits (§2. 3. 4)
4) Setting advanced functions (§2. 3. 5)
5) Programming of the Somfy local control point (§2. 3. 6)
2. 3. 2. Preprogramming of the Somfy local control point
- Simultaneously press the "Up" and "Down" buttons:
The driven product moves up and down briey.
This control point is now preprogrammed in the drive.
Preprogramming is lost if power to the drive is
switched off before the control point is registered.
2. 3. 3. Checking the rotation direction
1) Press the "Up" button:
• If the driven product raises, the rotation direction is
correct.
• If the driven product lowers, the rotation direction
is incorrect. Press the "my" button until the driven
product moves up and down briey: the rotation
direction has now been modied.
2) Press the "Up" button to check the rotation direction.
2. 3. 4. Setting the end limits
The procedure used to set the end limits depends on
the equipment of the driven product (see table below).
Pressing and holding the "Up" or "Down" buttons causes the driven product to raise or
lower continuously.
Pressing the "Up" or "Down" buttons briey causes the driven product to raise or lower
briey.
Available devices
a
Top
stop
b
Catching system at lower
end limit
c
Heavy
load
bar Steps to be
performed
None Manual *Auto.
-
٧ ٧
- - See E1
٧٧٧
- - See E2
٧ ٧
- -
٧
See E3**
٧
- -
٧
-See E4
---
٧
-See E5
*Automatic
** This step is especially suitable for "ZIP screens" or for any other specic driven product with
a heavy load bar and a top stop.
0.5 S
The rotation
direction is
correct
1)
2)
a
bc

Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. 7
EN
Non contractual images

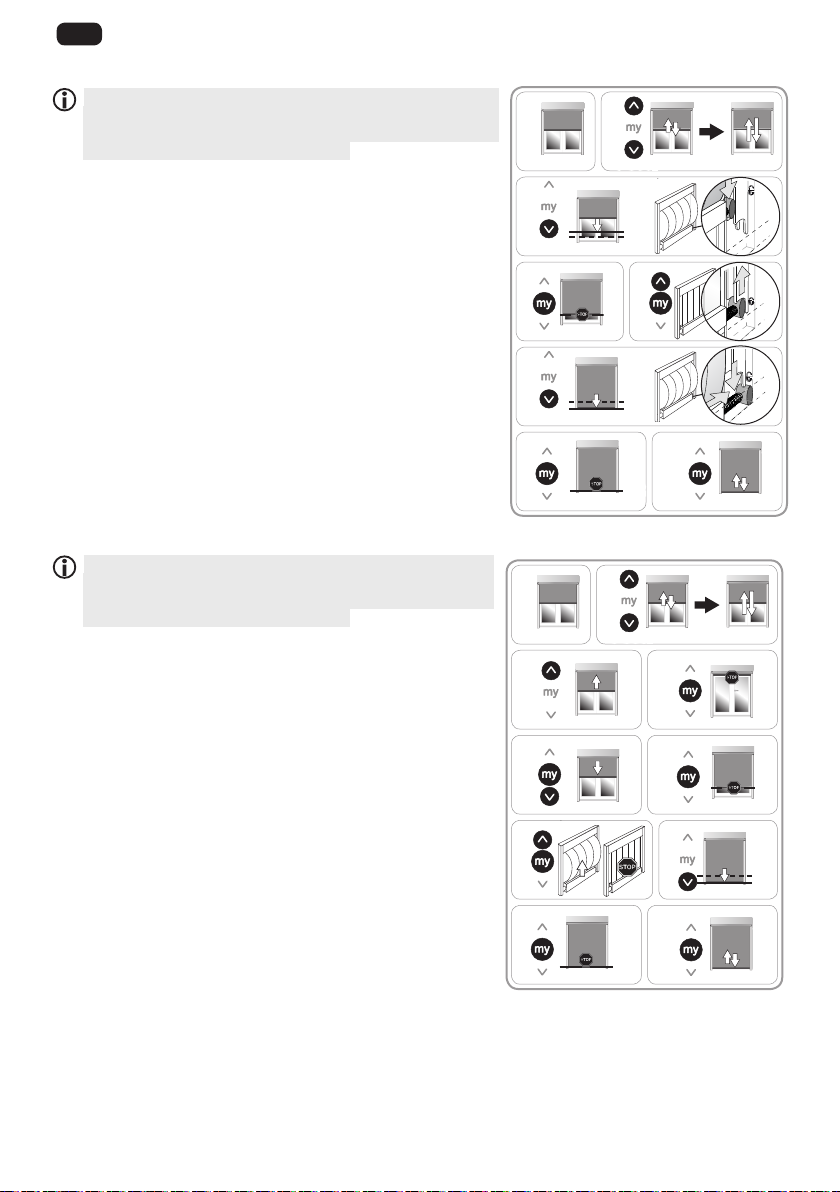

E1. MANUAL ADJUSTMENT OF THE UPPER END LIMIT AND THE LOWER END LIMIT
1) Position the driven product at its half-way position.
2) Press the "Up" button: the driven product raises.
3) Press "my" to stop the driven product at the upper
end limit position (if necessary, adjust the position of
the driven product using the "Up" or "Down" buttons).
4) Press the "my" and "Down" buttons simultaneously:
the driven product lowers.
5) Press "my" to stop the driven product at it's half-way
position.
6) Press the "Down" button: the driven product lowers.
7) Press "my" to stop the driven product at the lower end
limit position (if necessary, adjust the position of the
driven product using the "Up" or "Down" buttons).
8) Press the "my" and "Up" buttons simultaneously: the
driven product raises.
9) Press "my" to stop the driven product.
10)Press "my" until the driven product moves up and
down briey to validate the end limit setting.
E2. MANUAL ADJUSTMENT OF THE LOWER END LIMIT AND AUTOMATIC ADJUSTMENT OF THE UPPER END LIMIT
1) Position the driven product at its half-way position.
2) Press the "Down" button: the driven product lowers.
3) Press "my" to stop the driven product at the lower end
limit position (if necessary, adjust the position of the
driven product using the "Up" or "Down" buttons).
4) Press the "my" and "Up" buttons simultaneously: the
driven product raises.
5) Press "my" to stop the driven product.
6) Press "my" until the driven product moves up and
down briey to validate the lower end limit setting.
After pressing "my", the upper end limit is adjusted
automatically.
E3. END LIMIT AUTOMATIC SETTINGS
1) Position the driven product at its half-way position.
2) Briey press the "Up" and "Down" buttons
simultaneously: the driven product moves up and
down briey.
3) Press the "Down" button: the driven product lowers
until it detects the lower end limit, performs a brief
upward movement and returns to its lower end limit
position.
4) To validate the setting, press the "my" button until the
driven product moves up and down briey.
If the lower end limit is not set automatically after
several attempts, perform the step E2.
1)
3)
5)
2)
4)
7)
9) 10)
6)
8)
1)
3)
5) 6)
2)
4)
2)
3)
4)
1)

8Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved.
EN
Non contractual images

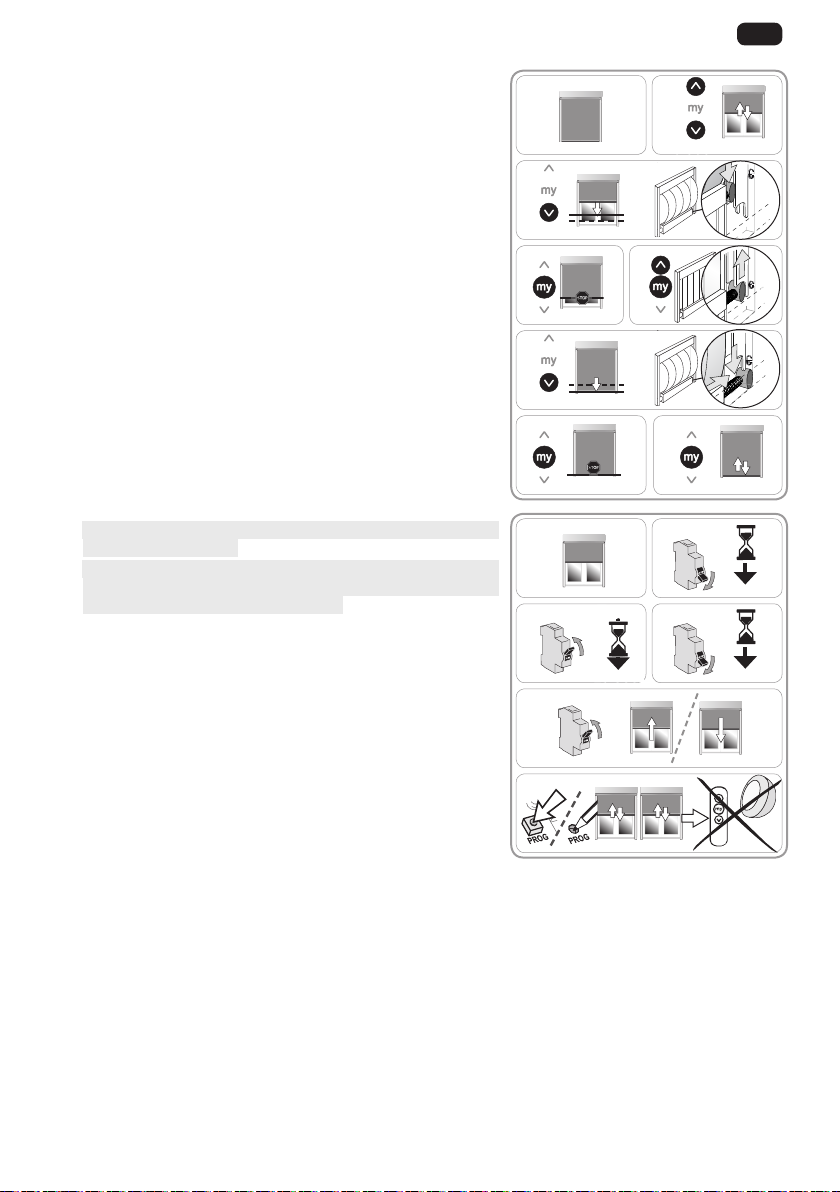

E4. MANUAL ADJUSTMENT OF THE LOWER END LIMIT AND AUTOMATIC ADJUSTMENT OF THE UPPER END LIMIT
WITH AUTOMATIC CATCHING SYSTEM
The catching system at the lower end limit my vary
depending on the driven product, but the procedure
for setting the entrance/exit positions of the catches
remains the same on all systems.
1) Position the driven product at its half-way position.
2) Press and hold the "Up" and "Down" buttons
simultaneously for 5 seconds: the driven product
performs an initial brief up and down movement, then
a second, slower up and down movement.
3) Press the "Down" button: the driven product lowers.
4) Press the "my" button to stop the product at position
(P1), which corresponds to the automatic catching
system's entrance point.
5) Press the "my" and "Up" buttons simultaneously: the
driven product raises and stops, putting tension on
the fabric.
6) Press the "Down" button: the driven product lowers.
7) Press the "my" button to stop the driven product at
position (P2), which corresponds to the automatic
catching system's exit point.
8) Press "my" until the driven product moves up and
down briey to validate the end limit setting.
E5. MANUAL ADJUSTMENT OF END LIMITS WITH THE AUTOMATIC CATCHING SYSTEM
The catching system at the lower end limit my vary
depending on the driven product, but the procedure
for setting the entrance/exit positions of the catches
remains the same on all systems.
1) Position the driven product at its half-way position.
2) Press and hold the "Up" and "Down" buttons
simultaneously for 5 seconds: the driven product
performs an initial brief up and down movement, then
a second, slower up and down movement.
3) Press the "Up" button: the driven product raises.
4) Press "my" to stop the driven product at the upper
end limit position (if necessary, adjust the position of
the driven product using the "Up" or "Down" buttons).
5) Press the "my" and "Down" buttons simultaneously:
the driven product lowers.
6) Press the "my" button to stop the product at position
(P1), which corresponds to the automatic catching
system's entrance point.
7) Press the "my" and "Up" buttons simultaneously: the
driven product raises and stops, putting tension on
the fabric.
8) Press the "Down" button: the driven product lowers.
9) Press the "my" button to stop the driven product at
position (P2), which corresponds to the automatic catching system's exit point.
10)Press "my" until the driven product moves up and down briey to validate the end limit
setting.
5 sec.
1) 2)
P1
P1
P2
P2
3)
4)
7) 8)
5)
6)
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
5 sec.
1) 2)
P1
P2
6)
7)
P1
P2
4)3)
5)
9) 10)
8)

Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. 9
EN
Non contractual images
2. 3. 5. Setting advanced functions
Set the advanced functions after having performed the end limit settings (§2.3.4) and
before programming the Somfy local control point (§2.3.6).
- To modify these advanced functions after the rst control point programming step, simply
switch off the power briey. Adjustment of the advanced functions of the driven product is
then possible during four complete raise/lower cycles.
A. "BACK-RELEASE" FUNCTION FOR DRIVEN PRODUCTS WITH TOP STOP ONLY
This function releases tension on the fabric after the driven product is closed at the top
stop against the head rail.
The Back Release function is deactivated by default.
- To activate or deactivate the function:
1) Place the driven product at its upper end limit.
2) Press the "my" and "Down" buttons simultaneously
until the driven product moves up and down briey.
• If the "Back release" function was deactivated, it is
now activated.
• If the "Back release" function was activated, it is now deactivated.
- In order to check the "Back release" function, position the driven product at its half-way
position, then press "Up" to raise the driven product to the top stop.
B. FABRIC TENSIONING FUNCTION WITH AUTOMATIC CATCHING SYSTEM AT LOWER END LIMIT
This function is used to adjust the fabric tension of the driven product on 3 threshold levels
(strong-medium-weak).
By default, fabric tension level is set on medium.
- To adjust the fabric tension:
1) Place the driven product at its half-way position.
2) Briey press the "my" and "Down" buttons
simultaneously, immediately followed by pressing and
holding the "my" and "Down" buttons simultaneously
until the driven product moves up and down briey.
The drive is now in set mode for ten seconds only.
3) Adjust the fabric tension using the "Up" or "Down"
buttons.
- To increase the tension on the fabric, press the "Up" button
until the driven product moves up and down slowly: the fabric tension of the driven product passes
to the upper threshold.
- To decrease the tension on the fabric, press the "Down" button until the driven product moves up and
down slowly: the fabric tension passes to the lower threshold.
4) To validate the setting, press the "my" button until the driven product moves up and down
briey.
1) 2)
1)
3) 4)
2)

10 Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved.
EN
Non contractual images
2. 3. 6. Programming of the rst Somfy local control point
Programming (nal) of the rst control point is possible only if the end limits of the driven
product are set.
A. PROGRAMMING OF THE PREPROGRAMMED SOMFY LOCAL CONTROL POINT
- Press the PROG button of the preprogrammed control
point: the driven product performs a brief up and down
movement; the control point is programmed denitively.
B. PROGRAMMING OF A NON-PREPROGRAMMED CONTROL POINT
1) Switch off the power supply (the pre-programmed
control point is deleted).
2) Switch the mains power supply back on. The driven
product moves up and down briey.
3) Simultaneously press the "Up" and "Down" buttons of
the control point to be programmed until the driven
product moves up and down briey.
4) Briey press the PROG button of this control point:
the driven product performs a brief up and down
movement; the control point is programmed.
2. 4. TIPS AND ADVICE ON INSTALLATION
2. 4. 1. Questions about the drive?
Observations Possible causes Solutions
The driven product
does not operate. The wiring is incorrect. Check the wiring and modify as required.
The drive's overheating protection
has tripped. Wait for the drive to cool down.
The cable used is not compliant. Check the cable and make sure that it has
3 conductors.
The Somfy control point battery is
low. Check the battery and replace it as required.
The control point is not compatible. Check the compatibility and replace the
control point as required.
The Somfy control point being used is
not programmed in the drive. Use a programmed control point or program this control point.
The driven product
stops too soon. The ring is not correctly installed. Secure the ring correctly.
The end limits are incorrectly
programmed. Reset the end limits.
2. 4. 2. Re-setting the end limits
The following steps apply only for end limits that are set manually.
A control point must be denitively programmed in order to carry out these steps.
A. READJUSTMENT OF END LIMITS SET IN MANUAL MODE
1) Place the driven product in its end limit position to be
modied.
2) Press and hold the "Up" and "Down" buttons
simultaneously for 5 seconds until the driven product
moves up and down briey.
3) Place the driven product in its new end limit position
using the "Up" or "Down" buttons.
4) To validate the setting, press the "my" button until the
driven product moves up and down briey.
PROG.
PROG.
1) 2)
3) 4)
OFF ON
1)
3) 4)
5 sec.
2)

Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. 11
EN
Non contractual images
B. READJUSTMENT OF THE AUTOMATIC CATCHING SYSTEM AT THE LOWER END LIMIT
1) Place the driven product at its lower end limit.
2) Press and hold the "Up" and "Down" buttons
simultaneously for 5 seconds: the driven product
moves up and down briey.
3) Press the "Down" button: the driven product lowers.
4) Press the "my" button to stop the product at position
(P1), which corresponds to the automatic catching
system's entrance point.
5) Press the "my" and "Up" buttons simultaneously: the
driven product raises and stops, putting tension on
the fabric.
6) Press the "Down" button: the driven product lowers.
7) Press the "my" button to stop the driven product at
position (P2), which corresponds to the automatic
catching system's exit point.
8) To validate the setting, press the "my" button again
until the driven product moves up and down briey.
2. 4. 3. Restoring the original conguration
Only switch off power (double cutout) for the driven
product to be reset.
This reset deletes all programmed control points,
sensors and end limit settings and resets the driven
product's favourite (my) position.
1) Position the driven product at its half-way position.
2) Cut the power supply for 2 seconds.
3) Switch the power supply back on for 5 to 15 seconds.
4) Cut the power supply for 2 seconds.
5) Switch the power supply back on: the driven product
moves for a few seconds.
6) Press the PROG button on the Somfy local control
point for ≈ 7 s until the driven product moves up
and down two times: the drive is reset to its original
conguration.
5 sec.
1) 2)
P1
P1
P2
P2
3)
4)
7)
5)
6)
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
8)
my
3)
1)
5)
6)
2)
4)
2 sec.
2 sec.
15 sec.
5 sec.
OFF
OFF
ON
ON

12 Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved.
EN
Non contractual images
3. OPERATION AND MAINTENANCE
This drive does not require any maintenance operation.
3. 1. "UP" AND "DOWN" FUNCTIONS
- Briey press the "Up" or "Down" button: the driven
product raises or lowers.
3. 2. STOP FUNCTION
The driven product is moving.
- Press the "my" button: the driven product stops.
3. 3. FAVOURITE (MY) POSITION
A slightly open position, referred to as the "favourite (my) position", other than the fully up
or fully down position, is programmed by default in the drive.
- To activate this function, the drive must have performed
one complete cycle.
3. 3. 1. To modify the favourite (my) position
1) Set the driven product to the desired favourite (my)
position.
2) Press the "my" button until the driven product moves
up and down briey: the new favourite (my) position
is programmed and the old favourite (my) position is
deleted.
Only one favourite position at the end limit positions is possible.
3. 3. 2. To use the favourite (my) position
The driven product must be stopped.
- Press the "my" button: the driven product moves to the
favourite (my) position.
3. 3. 3. To delete the favourite (my) position
If the Catching system is activate, it will not be possible to erase the "favourite (my)
position".
1) Press the “my” button: The driven product moves and stops in the favorite position (my).
2) Press the “my” button again until the driven product makes a movement: The favorite
position (my) has been deleted.
3. 4. FABRIC TENSION
Fabric tensioning is possible only at the lower end limit with driven products equipped with
catches.
3. 4. 1. Driven product with automatic catching system
Fabric tensioning is always active with a driven product equipped with an automatic
catching system.
To draw the fabric taut
- Press the "Down" button: the driven product lowers.
When it reaches the lower end limit, the driven product
raises automatically to draw the fabric taut.
1) 2)
my
my
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2

Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. 13
EN
Non contractual images
If the fabric is drawn too tightly or not enough, consult a home motorisation and automation
professional to adjust the fabric tension.
To raise the driven product at the upper end limit
- Press the "Up" button. The driven product starts by
moving downward to release tension on the fabric, then
raises to the upper end limit.
3. 4. 2. Driven product with manual catches
The fabric can be drawn taut when the driven product, equipped with manual catches, is
at the lower end limit. This function is deactivated by default.
Always check to determine whether or not the function is activated/deactivated before
activating the function and locking the catches. Failing to do so may lead to breakage of
the driven product.
To check whether or not the function is activated
1) Press the "Down" button: the driven product lowers to
the lower end limit.
2) Do not lock the catches.
3) Press the "my" button.
• If the driven product goes to the favourite (my)
position, the fabric tensioning function is not
activated.
• If the driven product lowers then raises briey, the
fabric tensioning function is activated.
To activate/deactivate the function
1) Perform a complete up and down cycle, all the way to
the driven product's upper and lower end limits.
2) Press the "Down" button to place the driven product at
the lower end limit.
3) Press the "my" and "Up" buttons simultaneously until
the driven product moves up and down briey.
• If the function was deactivated, it is now activated.
• If the function was activated, it is now deactivated.
To use this function
1) Press the "Down" button: the driven product lowers to
the lower end limit.
2) Lock the catches manually.
3) Press the "my" button: the driven product lowers then
raises to draw the fabric taut.
To raise the driven product at the upper end limit
1) Press the "Down" button: the driven product lowers to
the lower end limit.
2) Unlock the catches manually.
3) Press the "Up" button: the driven product raises to the
upper end limit.
3. 5. OPERATION WITH SENSORS
Refer to the corresponding guide.
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
3)
1) 2)
my
1)
2) 3)
1) 2)
3)
1) 2)
3)

14 Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved.
EN
Non contractual images
3. 6. TIPS AND ADVICE ON OPERATION
3. 6. 1. Questions about the drive?
Observations Possible causes Solutions
The driven product
does not operate. The drive's overheating protection has tripped. Wait for the drive to cool down.
The Somfy control point battery is low. Check the battery and replace it
as required.
If the driven product still does not operate, consult a home motorisation and automation
professional.
3. 6. 2. Obstacle detection
Obstacle detection is operational only with compatible driven products. Consult a home
motorisation and automation professional to nd out which products are compatible.
Automatic obstacle detection can be used to protect the driven product and remove any
obstacles.
• If the driven product encounters an obstacle when moving downwards, the driven
product stops automatically and raises slightly so the obstacle can be removed.
• If the driven product encounters an obstacle
when moving upwards, the driven product stops
automatically.
3. 6. 3. Frost protection
Frost protection functions in a similar way to obstacle detection:
• If the driven product detects any resistance, it stops automatically.
3. 6. 4. Adding/Deleting Somfy control points and sensors
Refer to the corresponding guide.
3. 6. 5. Replacing a lost or broken Somfy control point
To replace a lost or broken control point, consult a home motorisation and automation
professional.
4. TECHNICAL DATA
Radio frequency 433.42 MHz
Power supply 230 V 50 Hz
Operating temperature - 25 °C to + 60 °C
Protection rating IP 44
Maximum number of control points and
associated sensors 12
Safety level Class I
SOMFY ACTIVITÉS SA, F-74300 CLUSES as manufacturer hereby declares that the drive
covered by these instructions when marked for input voltage 230V~50Hz and used as intended
according to these instructions, is in compliance with the essential requirements of the
applicable European Directives and in particular of the Machinery Directive 2006/42/EC, and
the Radio Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at www.somfy.com/ce.
Antoine Crézé, Approval manager, acting on behalf of Activity director, Cluses, 01/2018.

SOMFY ACTIVITÉS SA, Société Anonyme, capital 35.000.000 Euros, RCS Annecy 303.970.230 - 01/2018
SOMFY ACTIVITÉS SA
50 avenue du Nouveau Monde
F - 74300 CLUSES
www.somfy.com
