SOMFY Sonesse 30 RS485 User manual

Sonesse 30 RS485
EN Instructions

EN Sonesse 30 RS485
2Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
ORIGINAL INSTRUCTIONS
These instructions apply to all Sonesse 30 RS485 drives, the different versions of
which are available in the current catalogue.
CONTENTS
1.
Prior information........................................................................................... 3
1.1. Field of application............................................................................ 3
1.2. Liability ............................................................................................... 3
2.
Installation...................................................................................................... 4
2.1. Assembly ............................................................................................ 5
2.2. Commissioning .................................................................................. 9
2.3. Tips and advice on installation......................................................... 10
3.
Use and maintenance .................................................................................... 11
3.1. Operation ........................................................................................... 11
3.2. PROG button..................................................................................... 12
3.3. LED feedback ..................................................................................... 12
4.
Tips and advice on operation ....................................................................... 13
4.1. Questions about the drive?.............................................................. 13
5.
Technical data ................................................................................................ 13

Sonesse 30 RS485 EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 3
GENERAL INFORMATION
Safety instructions
DANGER
Indicates a danger which may result in immediate death or
serious injury.
WARNING
Indicates a danger which may result in death or serious
injury.
PRECAUTION
Indicates a danger which may result in minor or moderate
injury.
CAUTION
Indicates a danger which may result in damage to or
destruction of the product.
1.PRIOR INFORMATION
1.1.Field of application
The drives are designed to drive all types of interior blinds and projection screens up
to 2 Nm except pantographs.
The installer, who must be a motorisation and home automation professional, must
ensure that the motorised product is installed in accordance with the standards in
force in the country in which it is installed such as EN13120 relating to interior blinds.
1.2.Liability
Before installing and using the drive, please read these instructions carefully.

EN Sonesse 30 RS485
4Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
In addition to the instructions provided in this guide, please also comply with the
instructions provided in the attached Safety instructions document.
The drive must be installed by a home motorisation and automation
professional, in accordance with Somfy’s instructions and the applicable
regulations in the country of installation.
Any operation of the drive outside the field of application described above is
prohibited. Such use, and any failure to comply with the instructions given in this guide
and in the attached Safety instructions document, absolves Somfy of any liability and
invalidates the warranty.
After installing the drive, the installer must inform his customers of the operating and
maintenance conditions for the drive and must provide them with the operating and
maintenance instructions, and the attached Safety instructions document. Any After-
Sales Service operation on the drive must be performed by a home motorisation and
automation professional.
Never begin installing without first checking the compatibility of this product with the
associated equipment and accessories. If in doubt when installing this product and/or
to obtain additional information, contact a Somfy representative or visit the website
www.somfy.com.
Using this drive with any power supply which is not listed in the attached
"Compatibility matrix" document or in the drive leaflet shall also render invalid any
Somfy warranty and release Somfy from any liability.
2.INSTALLATION
WARNING
• These instructions are mandatory for the home motorisation and
automation professional installing the drive.
• Comply with current standards and legislation in the country of installation.
CAUTION
• Never drop, knock or puncture the drive or immerse it in liquid.
• Install an individual control point for each drive.
• To insure optimized silent operation, the gaps between the drive, the
accessories, the tube and the tube end piece must be minimized.

Sonesse 30 RS485 EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 5

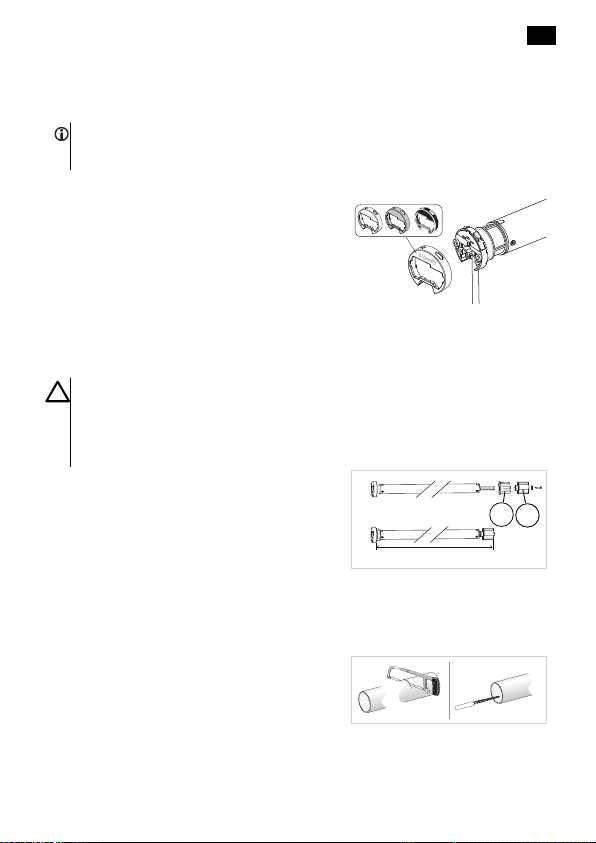

2.1.Assembly
2.1.1.Replace the head cover with a different color (Optional)
NOTICE
Head has interchangeable covers to fit with the fabric.
1] Unclip the cover.
2] Clip the new cover on the head.
2.1.2.Preparing the drive
CAUTION
• Sonesse 30 RS485 : interior diameter of the tube has to be Ø27.7 mm or
greater.
• The crown is mandatory.
1] Fit the accessories required to integrate
the drive into the tube:
ð Fit the crown (a) and the wheel (b) to
the drive.
2] Measure the length (L) between the inner
edge of the drive head and the rim of the
wheel.
L
1]
2]
ab
2.1.3.Preparing the tube
1] Cut the tube to the required length.
2] Deburr the tube and remove the debris.
1] 2]

EN Sonesse 30 RS485
6Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
2.1.4.Assembling the drive-tube
1] Slide the drive into the tube. For tubes
with a smooth interior, position the cut
notch on the crown.
2] The wheel must be locked in place to
prevent any movement in the tube.
1]
2]
L
▪ This can be achieved by fastening the tube to the wheel using self-tapping
screws, or steel pop rivets, placed between 5mm and 15mm from the outer
edge of the wheel, regardless of the tube.
▪ or by using a wheel lock, for non-smooth tubes.
CAUTION
The screws or pop rivets must only be fastened on the wheel and not on the
drive.
2.1.5.Installing the drive-tube assembly
CAUTION
• The motorised product must not be compressed between the brackets.
• Do not use the plastic cross without the metal bracket adapter.
▪ The drive can be fixed directly onto the drive bracket (the screw holes are
spaced 29mm apart). Use 2screws (3.5 x 9mm). A manual tightening torque of
1Nm is recommended.
▪ Drive plates are also available in the current
catalogue (Select the correct drive plate
adapted to the bracket and check the
torque requirements in the system). Use
the 2 screws (3 x 6mm) delivered with the
motor plate. A manual tightening torque of
0,3Nm is recommended.

Sonesse 30 RS485 EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 7
1] Screw the bracket adapter to the drive
head.
2] Install and fix the drive-tube assembly
onto the end bracket (c) and onto the
drive bracket (d).
dc
CAUTION
• Do not let the tube hanging by the head side only.
• Ensure that the drive-tube assembly is secured onto the end bracket. This
operation prevents the tube-drive assembly from coming out of the end
bracket attachment.
• Light gap reduced: Do not pinch cable or be careful they are not in contact
with moving parts.
2.1.6.Compatible power supplies (for US only)
For USA and CANADA, use only SOMFY power supply listed in the leaflet. For other
countries, see Compatibility Matrix document for appropriate power supply.
References Designations
1870259 Somfy Power Panel
2.1.7.Wiring
2.1.7.1.Power wiring
CAUTION
• The product is intended for being supplied by Class II output of an external
power supply.
• Do not use an extension cord. If the power supply cord is too short, have a
qualified electrician install an outlet near the motorised product.
Connect the drive to the power supply:
▪ Black wire: -
▪ Red wire: +

EN Sonesse 30 RS485
8Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.

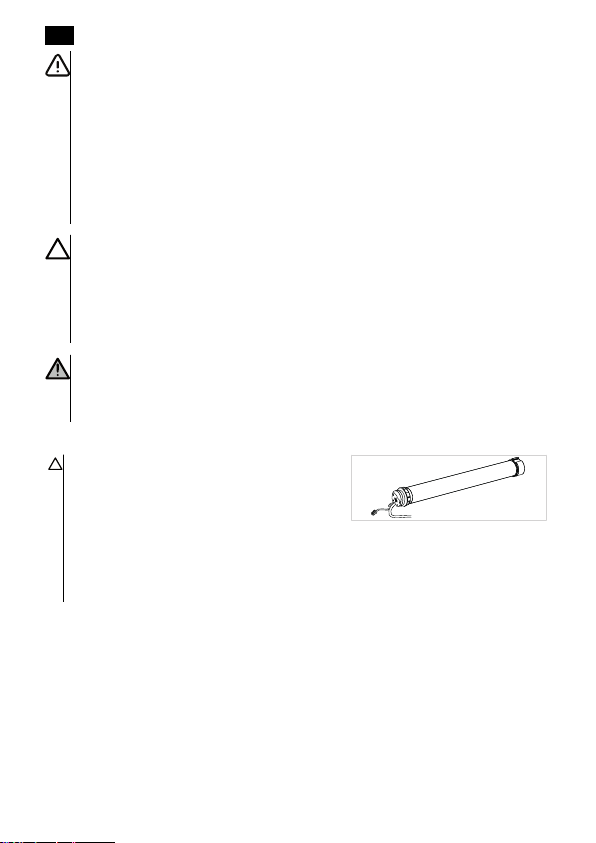

PRECAUTION
• Cables routed through a metal wall must be protected and insulated by
sleeving or sheathing.
• Secure the cables to prevent any contact with moving parts.
• If the drive is used outdoors and if the power supply cable is of the H05-VVF
type, run the cable in a UV-resistant duct, e.g. trunking.
• The drive cable cannot be removed. If it is damaged, return the drive to the
After-Sales department.
CAUTION
• Leave the drive power supply cable accessible: the product must be easily
replaceable.
• Always make a loop in the power supply cable to prevent water from
entering the drive.
WARNING
To ensure electrical safety, this Class III drive must be powered by a “class 2”
power source (SELV -Safety Extra Low Voltage) + LPS (Limited Power Supply).
2.1.7.2.Data wiring
CAUTION
• For RJ45 connector version, there is a RJ45
female to female coupler provided with the
drive to add easily an extension cable.
• Make sure the data cable is not pinched or
damaged during the installation of the drive/
tube onto the end bracket.

Sonesse 30 RS485 EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 9

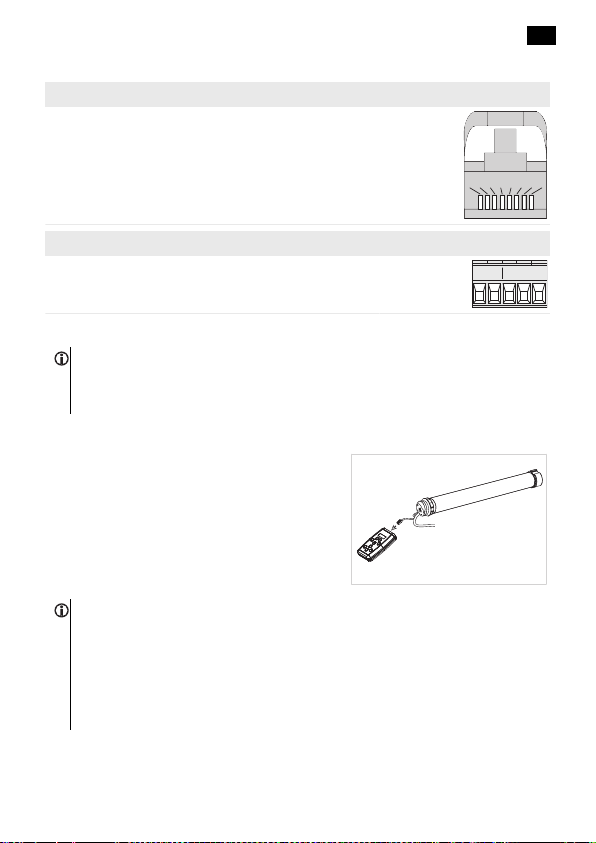

Connect the data cables to the drive according to the information in the tables below.
RJ45 connector
1: +RS485
5: Not
connected*
2: -RS485
6: Not
connected*
3: Not
connected*
7: Not
connected*
4: Not
connected*
8: Ground
1 2 3 4 5 6 7 8
Weidmuller connector
1: Power (+) 2: Power (-) 3: Data (+) 4: Data (-) 5: Data
Ground
1 2 3 4 5
* If connected, the drive can be damaged.
NOTICE
The wiring guide is available for download at https://www.somfy.com/projects/
downloads
2.2.Commissioning
Two tools are available to set the drive.
▪ RS485 SETTING TOOL: Connect the RS485
SETTING TOOL to the drive switch on and
follow the instruction on the RS485
SETTING TOOL.
NOTICE
• For Weidmuller connection, use the setting cable ref 9019873.
• The SDN Config Tool is available for download at https://www.somfy.com/
projects/downloads
• When setting end limits, take care that the load bar remains free at upper
end Limit.
▪ SDN Config Tool: Somfy Digital Network Configuration Tool.

EN Sonesse 30 RS485
10 Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
NOTICE
These instructions apply to all Sonesse 30 RS485 drive, the different versions of
which are available in the current catalogue..
2.3.Tips and advice on installation
2.3.1.Questions about the drive?
Observations Possible causes Solutions
The motorised
product does
not work.
"Power" or "datas" wiring are
incorrect.
Check the wiring and modify it if
necessary.
The drive is in thermal
protection mode. LED
Red=ON then lightsOFF.
Wait for the drive to cool down
to restart the drive.
Do not touch the drive: risk of
burns.
An incorrect Data cable has
been used
Check the Data cable.
End-limits are not properly
adjusted.
Adjust the end-limits.
The motorised
product is
noisy.
The wheel and the crown are
not adapted to the used tube.
Change the wheel and the crown.
The mechanical plays between
drive, accessories, tube and end
of tube are too high.
The mechanical plays between
drive, accessories, tube and end
of tube must be decreased to the
minimum.
The wheel is not properly fixed
to the tube.
Fix the wheel properly to the tube.
The equipment is constrained
between the brackets.
Decrease the constraint between
the brackets.
The length of the notch is not
adapted to the drive hook or to
the used crown.
Adapt the length of the notch to
the drive hook or to the used
crown.
Debris, screws or other are in
the tube.
Empty the tube.

Sonesse 30 RS485 EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 11
Observations Possible causes Solutions
The temperature of the
environment is not in
conformity with the operating
temperature.
Change the environment
temperature.
The motorised
product stops
too soon or
too late.
The end limits of the motorised
product slip.
Re-set the end limits.
The motorised product does
not fall within the
recommended weight limits.
Check the compatibility of the
motorised product. Consult a
Somfy contact or visit
www.somfy.com.
3.USE AND MAINTENANCE
NOTICE
This drive does not require any maintenance operations.
CAUTION
• For the safety of goods and people, Somfy drives are equipped with thermal
protection that will trigger the drive stops in the event of overheating.
• Repeated activation of this protection can degrade drive performance.
• If the drive goes to thermal protection, please check your installation and
check that the drive is rated for the intended use.
• A normal installation is not expected to trigger this protection.
NOTICE
When some functions require a power cut, the power cut is only taken into
account if it lasts more than 10 seconds.
3.1.Operation
To control the drive, please refer to the installation instructions of the used control
point.

EN Sonesse 30 RS485
12 Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
3.2.PROG button
In user mode, control drive UP / Stop /
Down / Stop
Short press (< 1,5 s)
Post node ID on the network Press until first feedback (about 2 s)
Reset drive to factory Press until third feedback (about 12 s)
3.3.LED feedback
LED colors Feedbacks Possible causes
Green lights fixed ON for 2 seconds at
Power ON.
Power is ON.
blinks 5 times. Validation setting is done.
lights ON then lights OFF shortly. Bus communication. (It could be
disable by SDN order).
Orange lights fixed ON Drive not set.
blinks 2 times. Push node ID to the SDN
network.
Red lights fixed ON The drive has detected an
obstacle.
lights ON then lights OFF. The crown does not turn.
Wait for the drive to cool down
to restart the drive.
Do not touch the drive: risk of
burns.
blinks 2 times. Drive position is out of limits.
flashes in 3 sets of 3 blinks. Setting is impossible.

Sonesse 30 RS485 EN
Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 13
4.TIPS AND ADVICE ON OPERATION
4.1.Questions about the drive?
Observations Possible causes Solutions
The motorised product
does not work.
The drive is in thermal
protection mode.
Wait for the drive to cool
down to restart the drive.
Do not touch the drive: risk
of burns.
NOTICE
If the motorised product still does not work, contact a drive and home
automation professional.
5.TECHNICAL DATA
Power supply 24 V
Operating temperature 0°C to 60°C
Index protection rating IP30
Safety level Class III
Power wiring Open leads
Datas wiring Weidmuller
connector
Duty cycle Time ON: 4 min
Time OFF: 15 min
NOTICE
For additional information on the technical data for this drive, contact your
Somfy representative.
We care about our environment. Do not dispose of the appliance with usual
household waste. Give it to an approved collection point for recycling.

EN Sonesse 30 RS485
14 Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved.
SOMFY ACTIVITES SA, 74300 CLUSES FRANCE as manufacturer hereby
declares that the drive covered by these instructions when marked for
input voltage 230V~50Hz and used as intended according to these
instructions, is in compliance with the essential requirements of the
applicable European Directives and in particular of the Machinery Directive
2006/42/EC and EMC Directive 2014/30/EU.
The full text of the EU declaration of conformity is available at
www.somfy.com/ce.
Philippe Geoffroy, Approval manager, acting on behalf of Activity director,
Cluses, 01/2022.
Somfy limited, Yeadon LS19 7ZA UK hereby declares that the drive covered
by these instructions when marked for input voltage 230V~50Hz and used
as intended according to these instructions, is in compliance with UK
legislation of Machinery safety regulations S.I.2008 N°1597. The full text of
the UKCA declaration of conformity is available at www.somfy.co.uk.
Steven MONTGOMERY, Managing Director Somfy Ltd UK & Ireland,
Yeadon, 01/2022.

Copyright© 2022 SOMFY ACTIVITES SA. All rights reserved. 15

SOMFY ACTIVITES SA
50 avenue du Nouveau Monde
74300 CLUSES FRANCE
www.somfy.com
5xxxxxxA
SOMFY ACTIVITES SA, Société Anonyme, capital 35.000.000 Euros, RCS Annecy, 303.970.230 - 01/2022 - Images not contractually binding
