SOMFY Sonesse Ultra 50 User manual

Sonesse Ultra 50
Sonesse Ultra 50 RH
Ref. 5120788A
EN Instructions
FR Notice

EN
3
Copyright © 2014 Somfy SAS. All rights reserved. Images not contractually binding
CONTENTS
ORIGINAL GUIDE
1. PREREQUISITE INFORMATION
1.1 FIELDS OF APPLICATION
The Sonesse 50 drive is designed to drive all types of indoor awning
(Roller blinds and projection screens), excluding pantographs.
The Sonesse 50 drive is designed to drive multi-banding roller blinds.
The Sonesse 50 drive is designed to drive several roller blinds simultaneously, where these are
interconnected by a drive bracket.
The Sonesse 50 drive is not designed to be used with a compensating spring.
Any use outside the elds of application is prohibited, in particular:
The Sonesse 50 drive is not designed for outdoor awnings (e.g. outdoor vertical blinds, roller
shutters, etc.)
The Sonesse Ultra 50 drive has been developed to meet indoor awning drive requirements.
Its quiet operation ensures user comfort and well-being.
For more information, and to optimise the acoustic performance of your indoor awning, please
contact a Somfy adviser.
1. Prerequisite information 8
1.1 Fields of application 8
1.2 liability 9
2. Installation 9
2.1. Installation 9
2.2. Wiring 10
2.3. Commissioning 11
2.4. Tips and recommendations for
installation 12
3. Use and maintenance 13
3.1. Up and Down buttons 13
3.2. STOP function 13
3.3. Tips and recommendations for use 13
4. Technical data 13
These instructions applies to all Sonesse Ultra 50 and Sonesse Ultra 50 RH drive irrespective
of torque and speed variations.

EN
4Copyright © 2014 Somfy SAS. All rights reserved.Images not contractually binding
1.2 LIABILITY
Before installing and using the drive, please read operating and installation guide care-
fully. In addition to following the instructions given in this guide, the instructions detailed in the
attached Safety instructions document must also be observed.
The drive must be installed by a drive and home automation professional, according
to instructions from Somfy and the regulations applicable in the country in which it is
commissioned.
It is prohibited to use the drive outside the elds of application described above. Such use,
and any failure to comply with the instructions given in this guide and in the attached Safety
instructions document, absolves Somfy of any liability and invalidates the warranty.
The installer must inform its customers of the operating and maintenance conditions for the
drive and must provide them with the instructions for use and maintenance, and the attached
Safety instructions document, after installing the drive. Any After-Sales Service operation on
the drive must be performed by a drive and home automation professional.
If in doubt when installing the drive, or to obtain additional information, contact a Somfy adviser
or go to the website www.somfy.com.
2. INSTALLATION
Instructions which must be followed by the drive and home automation professional
installing the Sonesse 50 drive.
Never drop, knock, drill or submerge the drive.
Install a separate control point for each drive.
Never connect two control points to a single motor.
Never connect two motors to a single control point.
To optimize silence, the mechanical plays between motor, accessories, tube and end of
tube must be decreased to the maximum.



Safety warning! Information ΛUp VDown
Caution!


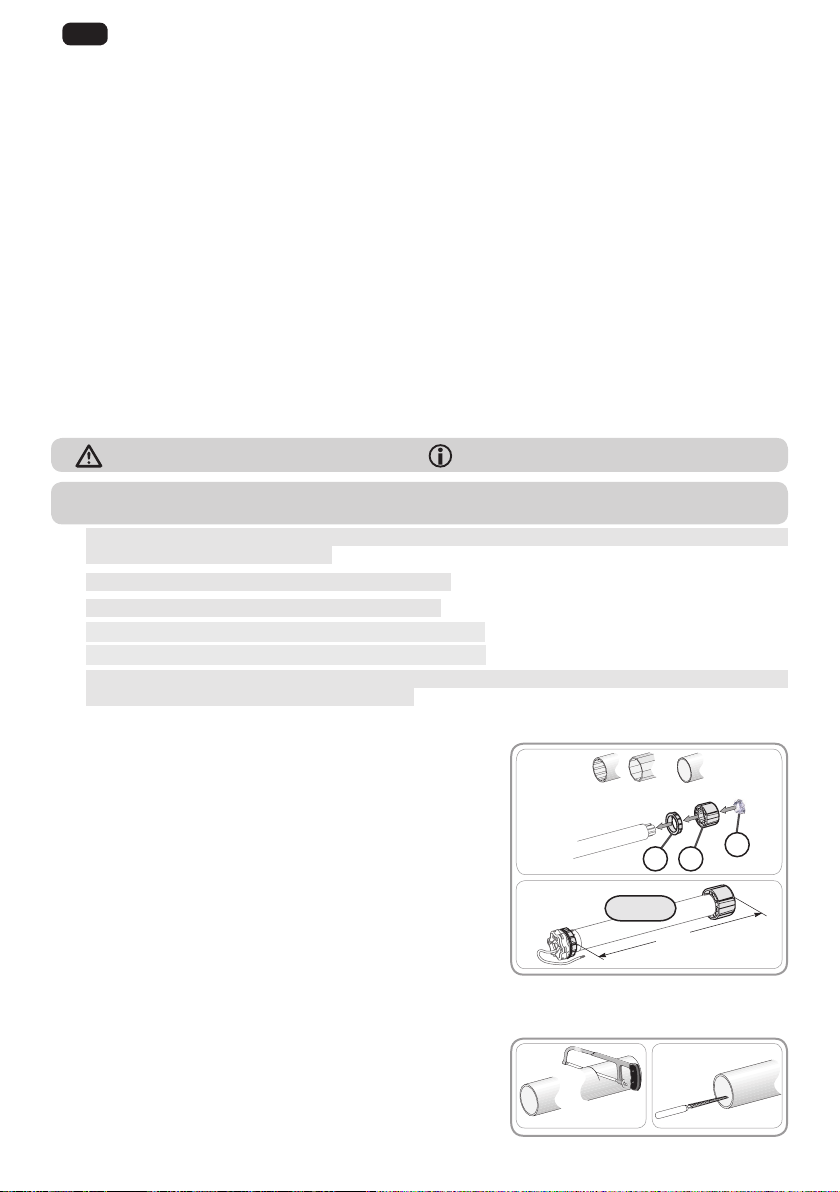

2.1. INSTALLATION
2.1.1. Preparing the drive
Check that the inner diameter of the tube greater than
47mm.
1) Fit the accessories required to integrate the drive in the
roller tube:
• Fit the crown a, the drive wheel band the stop wheel c
on the drive.
The stop wheel must be screwed with a torque ranging
between 1.5 and 1.8 Nm.
2) Measure the length (L1) between the inner edge of the
drive head and the rim of the drive wheel.
2.1.2. Tube preparation
1) Cut the roller tube to the required length, depending on
the motorised product.
2) Deburr the roller tube and remove the swarf.
1) 2)

1)
L1
L1 = …
2)
Ø > 47 mm
ba
c

EN
5
Copyright © 2014 Somfy SAS. All rights reserved. Images not contractually binding
2.2. WIRING
Cables which pass through a metal wall must be protected and isolated using a sheath
or sleeve.
Attach cables to prevent any contact with moving parts.
The cable on the Sonesse 50 can be removed. If it is damaged, replace it with an identical
cable.
Leave the drive power supply cable accessible: it must be possible to replace it easily.
- Switch off the power supply.
- Connect the drive according to the information in the table below:

Neutral
(N)
Live
(L1)
Live
(L2)
Earth
( )
120V -60 Hz White Black Red Green
L1L2N
2.1.3. Drive/tube assembly
1) Slide the drive into the roller tube.
For roller tubes which are smooth inside, position the notch
previously cut on the boss on the crown.
2) The drive wheel must be locked in place to prevent it
moving along the roller tube:
• This can be done either by xing the roller tube to the
drive wheel using 4 x Ø 5 mm self-tapping screws,
or by using 4 x Ø 4.8 mm steel pop rivets placed 5
mm to 15 mm from the outer rim of the drive wheel,
regardless of the roller tube.
The screws or pop rivets must only be attached to the
drive wheel and not to the drive.
3) Slide the end cap into the roller tube.
2.1.4. Installing the drive/tube assembly
The motorised product must not be compressed between the brackets
1) Install and x the drive/tube assembly onto the end
bracket fand onto the drive bracket g:
Ensure that the drive/tube assembly is secured onto
the end bracket. This operation prevents the drive/
tube assembly from coming out of the end bracket
mounting when the roller blind reaches the lower end
limit position.
2) Depending on the type of bracket, t the stop ring hin
place.
1)
2)
h
g
ab
Ø>47mm
ehe
h
f
ab
Ø>47mm
ehe
h


15 mm
5 mm
20 mm
L1
1)
2)
3)


EN
6Copyright © 2014 Somfy SAS. All rights reserved.Images not contractually binding
2.3. COMMISSIONING
2.3.1. Checking the direction of rotation
1) Remove the protective housing.
Press the white and yellow buttons simultaneously.
2) Switch the power back on.
3) Press the Λ button on the control point:
a) If the motorised product rises (a), the direction
of rotation is correct: Move onto the section entitled
“Setting the end limits”.
b) If the motorised product lowers (b), the direction of
rotation is incorrect: Move onto the next step.
4) Switch off the power supply.
Reverse the 2 phase wires on the control point.
5) Switch the power back on.
Press the Λbutton on the control point to check the
direction of rotation.
2.3.2. Setting the end limits
The end limits can be set in any sequence.
Setting the upper end limit
1) Press the Λbutton on the control point to raise the
motorised product to the upper end limit.
2) Press the Stop button on the control point when the
motorised product reaches the desired upper end limit.
Looking from the point of view of the motor head:
• If the motorised product rises on the left-hand side of
the motor head, press the yellow button to unlock it:
the upper end limit is set.
• If the motorised product rises on the right-hand side
of the motor head, press the white button to unlock it:
the upper end limit is set.
2)
3)
5)
4)
a
b
=
=
a
b
=
=
a
b
=
=
a
b
=
=
a
b
=
=
1)
1)
2)

EN
7
Copyright © 2014 Somfy SAS. All rights reserved. Images not contractually binding
Setting the lower end limit
1) Press the Vbutton on the control point to lower the
motorised product to the lower end limit.
2) Press the Stop button on the control point when the
motorised product reaches the desired lower end limit.
Looking from the point of view of the motor head:
• If the motorised product lowers on the left-hand
side of the motor head, press the white button to
unlock it: the lower end limit is set.
• If the motorised product lowers on the right-hand
side of the motor head, press the yellow button to
unlock it: the lower end limit is set.
Ret the protective housing.
The end limits are set.
2.4. TIPS AND RECOMMENDATIONS FOR INSTALLATION
2.4.1. Questions about the Sonesse Ultra 50?
Observations Possible causes Solutions
The motorised product
does not operate.
The wiring is incorrect. Check the wiring and modify it if necessary.
The drive is in thermal protection. Wait until the motor cools down.
The control point is not compatible. Check for compatibility and replace the control
point if necessary.
The motorised product
is noisy:
The drive wheel and the crown are not
suitable for the tube. Replace the drive wheel and the crown
The motorised product is compressed
between the brackets Increase the play between the brackets
The tube contains swarf and screws. Clean the roller tube.
The motorised product
stop to soon or to late.
The end-limits of the motorised product
drift. Readjust the end-limits
1)
2)

EN
8Copyright © 2014 Somfy SAS. All rights reserved.Images not contractually binding
3. USE AND MAINTENANCE
3.1. UP AND DOWN BUTTONS
Pressing the Λor Vbutton fully raises or lowers the
motorised product.
3.2. STOP FUNCTION
The motorised product is moving.
Pressing the Stop button stops the motorised product.
3.3. TIPS AND RECOMMENDATIONS FOR USE
3.3.1. Questions about the Sonesse Ultra 50?
If the motorised product still does not work, contact a drive and home automation professional.
Observations Possible causes Solutions
The motorised product does
not operate. The drive is in thermal protection. Wait until the motor cools down.
4. TECHNICAL DATA
Power supply 230V~50 Hz 120V~60 Hz 220V~ 60 Hz 100V~
50/60 Hz
Operating temperature 0°C to + 60°C
Index protection rating IP 31
Safety level Class I
1)
2)
Somfy hereby declares that the drive covered by these instructions when marked for input voltage 230V 50Hz when used as
intended according to these instructions, is in compliance with the essential requirements of the Machinery Directive 2006/42/EC
and the EMC Directive 2004/108/EC.
An EC declaration of conformit y detailing standards and specications used and stating all par ticulars for identication of the drive,
name and address of the person(s) authorised to compile the technical le and empowered to draw up the declaration including place and date of
issue can be found at the Internet address www.somfy.com/ce.
This drive is maintenance-free
For the safety of goods and people, Somfy motors are equipped with thermal protection
that will trigger the motor stops in the event of overheating.
Repeated achieving this protection can degrade engine performance.
If the motor goes to thermal protection, please check your installation and check that the
motor is rated for the intended use.
A normal installation is not expected to trig this protection.
To avoid the drift of the end limits, do not cut the power supply more than 1 week.

