SOMFY Sonesse Ultra 50 User manual

Sonesse Ultra 50
Sonesse Ultra 50 RH
Ref. 5120788A
EN Instructions
FR Notice
IT Manuale
ES Manual
ZH 说明

EN
3
Copyright © 2014 Somfy SAS. All rights reserved. Images not contractually binding
CONTENTS
ORIGINAL GUIDE
1. PREREQUISITE INFORMATION
1.1 FIELDS OF APPLICATION
The Sonesse 50 motor is designed to operate indoor applications (Roller blinds and projection
screens).
The Sonesse 50 motor is designed to operate multi-banding roller blinds.
The Sonesse 50 motor is designed to operate multiple roller blinds simultaneously, where these are
interconnected by an intermediate bracket.
The Sonesse 50 motor is not designed to be used with a compensating spring.
Any use outside the elds of application is prohibited, in particular:
The Sonesse 50 motor is not designed for outdoor applications (e.g. outdoor vertical blinds,
roller shutters, etc.)
The Sonesse Ultra 50 motor has been developed for indoor use.
Its quiet operation ensures user comfort and well-being.
For more information, and to optimise the acoustic performance of your indoor application,
please contact a Somfy adviser.
1. Prerequisite information 3
1.1 Fields of application 3
1.2 liability 4
2. Installation 4
2.1. Installation 4
2.2. Wiring 5
2.3. Commissioning 6
2.4. Tips and recommendations for
installation 7
3. Use and maintenance 8

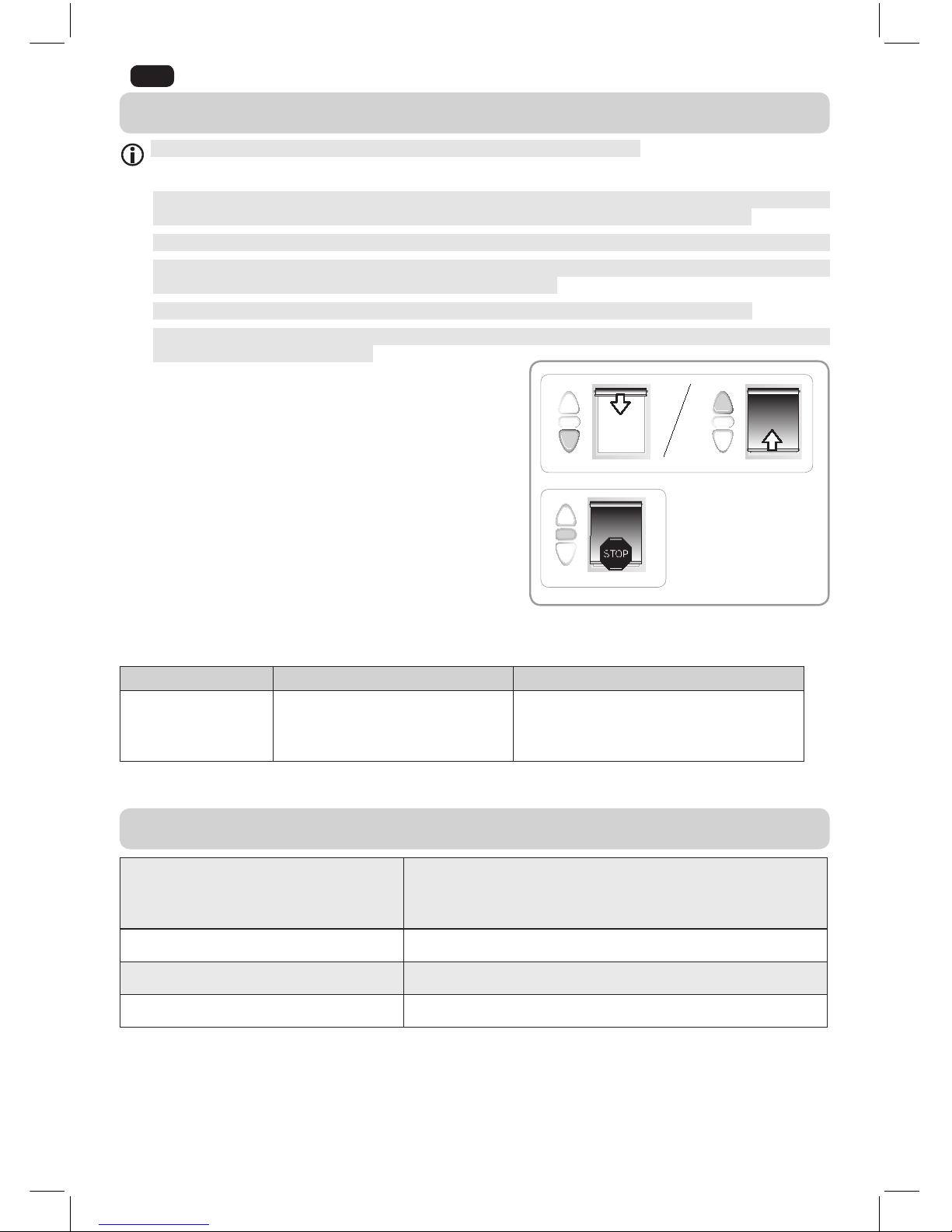

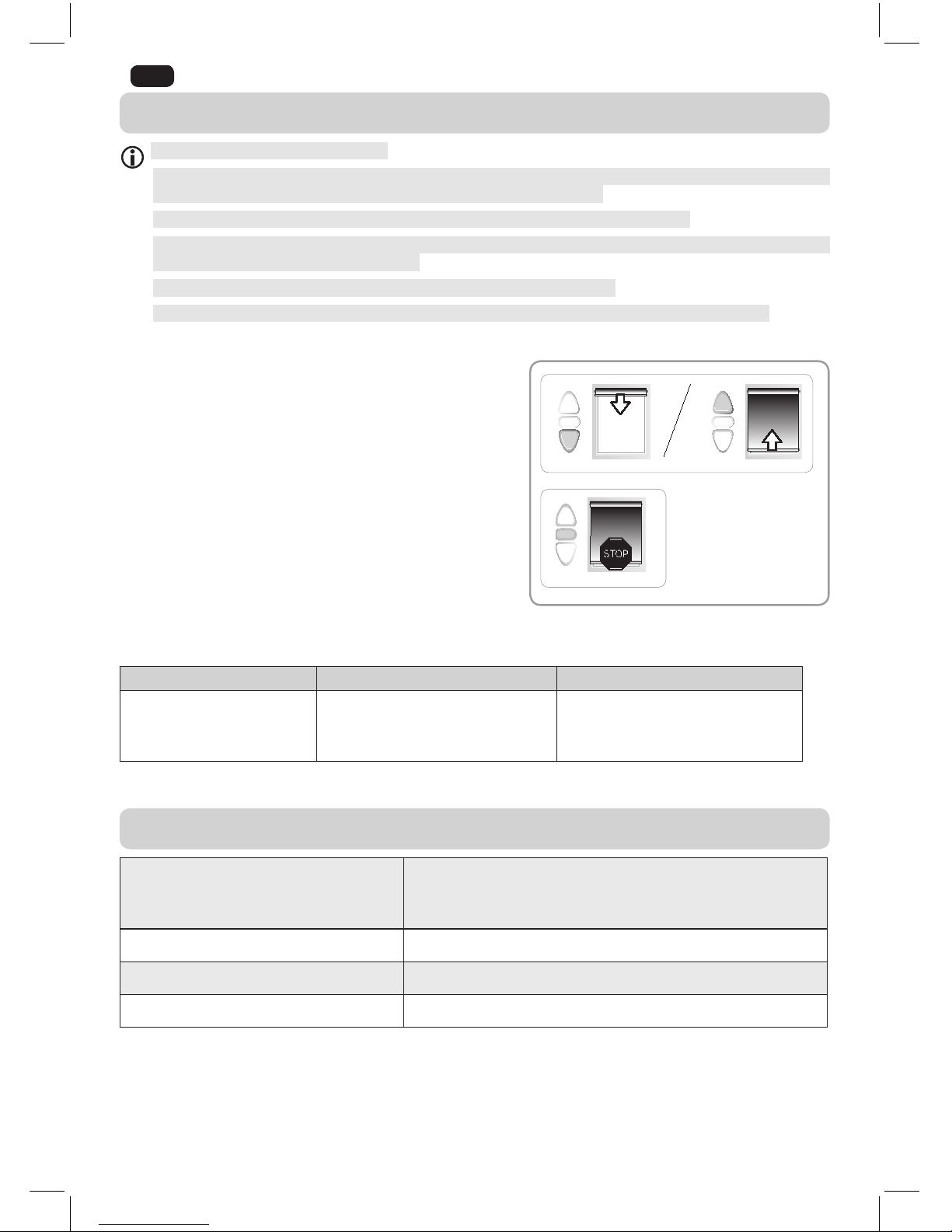

3.1. Up and Down buttons 8
3.2. STOP function 8
3.3. Tips and recommendations for use 8
4. Technical data 8
These instructions applies to all Sonesse Ultra 50 and Sonesse Ultra 50 RH drive irrespective
of torque and speed variations.

EN
4Copyright © 2014 Somfy SAS. All rights reserved.Images not contractually binding
1.2 LIABILITY
Before installing and using the motor, please read operating and installation guide care-
fully. In addition to following the instructions given in this guide, the instructions detailed in the
attached Safety instructions document must also be observed.
The motor must be installed by a motor and home automation professional, according
to instructions from Somfy and the regulations applicable in the country in which it is
commissioned.
It is prohibited to use the motor outside the elds of application described above. Such use,
and any failure to comply with the instructions given in this guide and in the attached Safety
instructions document, absolves Somfy from any liability and invalidates the warranty.
The installer must inform its customers of the operating and maintenance conditions for the
motor and must provide them with the instructions for use and maintenance, and the attached
Safety instructions document, after installing the motor. Any After-Sales Service operation on
the motor must be performed by a motor and home automation professional.
If in doubt when installing the motor, or to obtain additional information, contact a Somfy adviser
or go to the website www.somfy.com.
2. INSTALLATION
Instructions which must be followed by the motor and home automation professional
installing the motor.
Never drop, knock, drill or submerge the motor.
Install a separate control point for each motor.
To optimize ultra quiet operation, the mechanical plays between motor, accessories, tube
and end of tube must be decreased to the maximum.

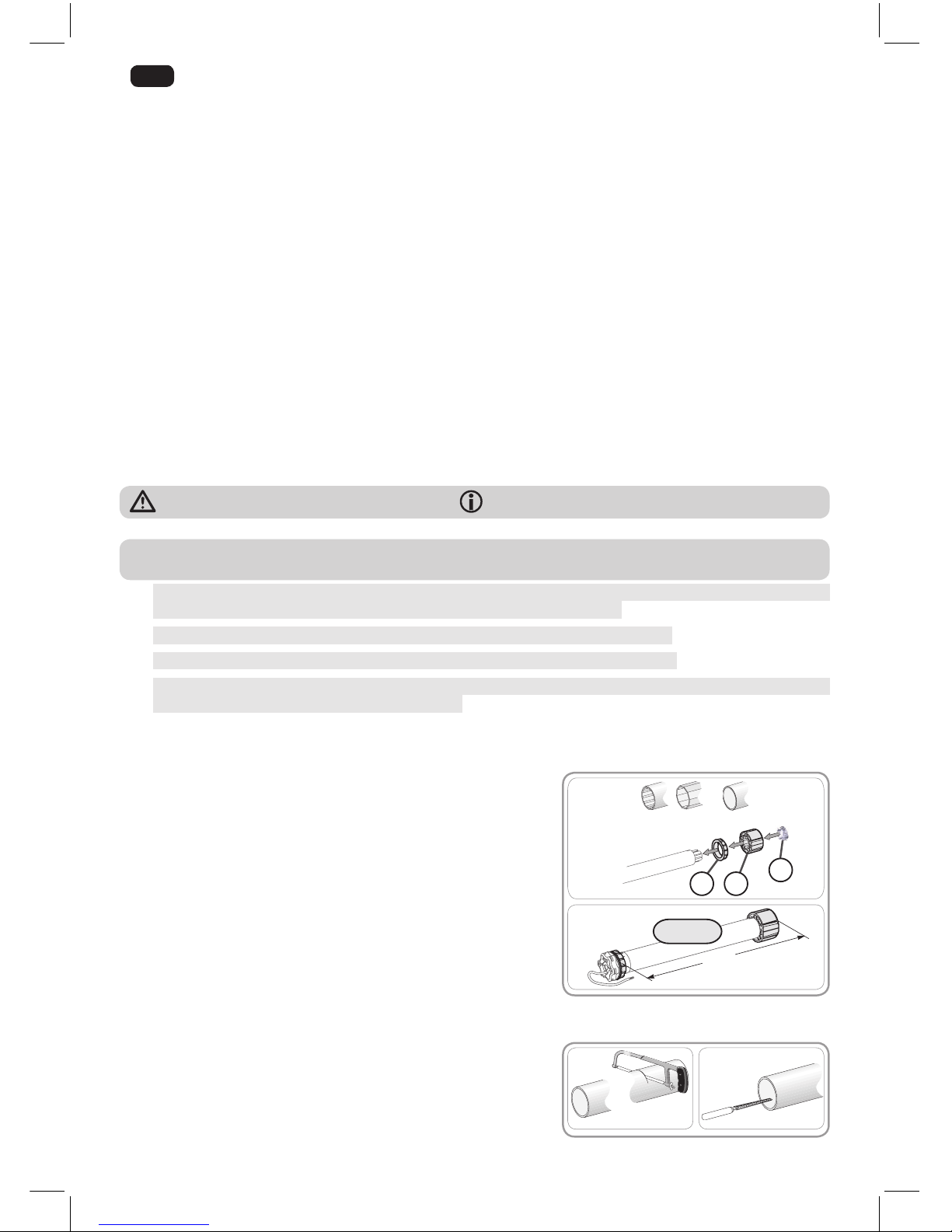

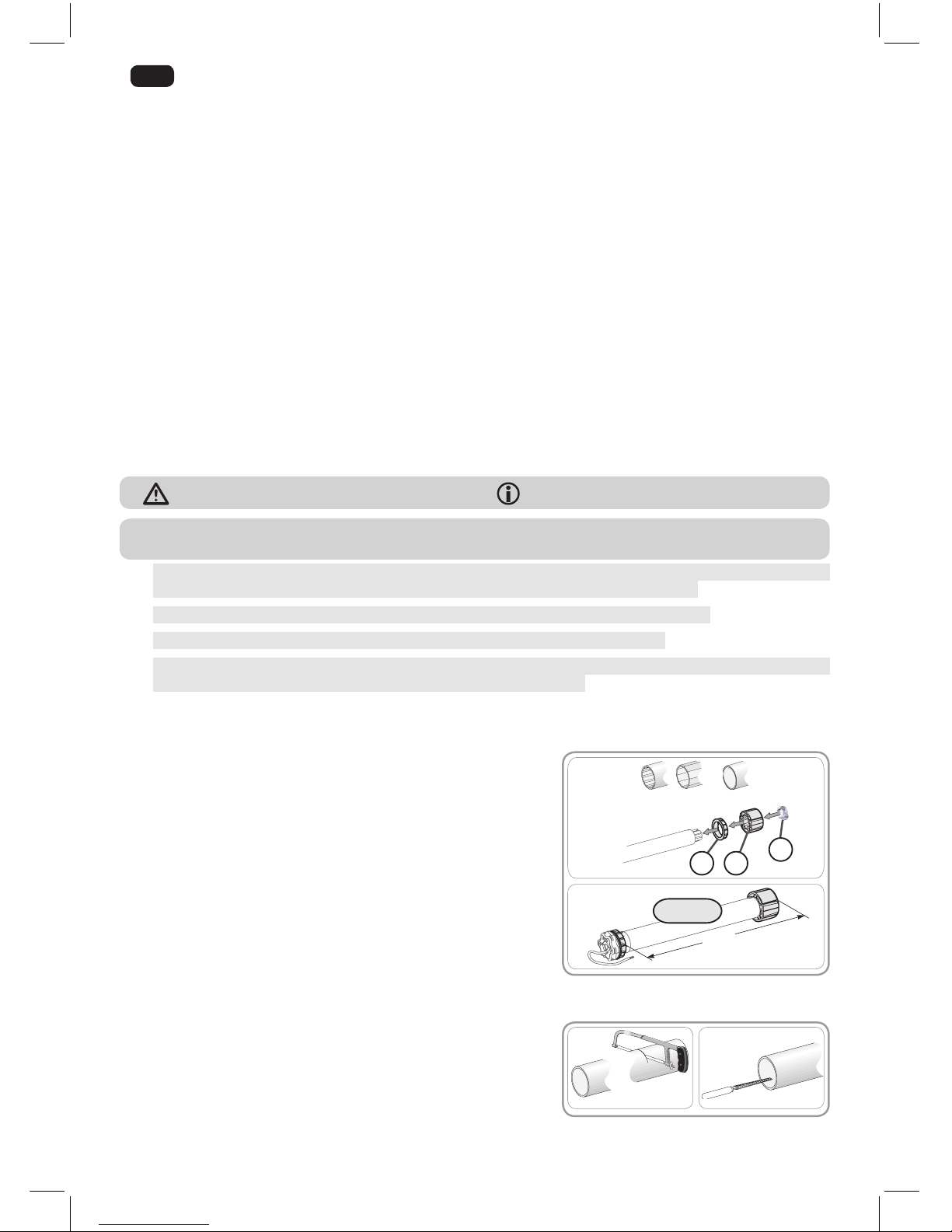

2.1. INSTALLATION
2.1.1. Preparing the motor
Check that the inner diameter of the tube greater than
47mm.
1) Fit the accessories required to integrate the motor in the
roller tube:
• Fit the crown a, the motor wheel band the stop wheel c
on the motor.
The stop wheel must be screwed with a torque ranging
between 1.5 and 1.8 Nm.
2) Measure the length (L1) between the inner edge of the
motor head and the edge of the motor wheel.
2.1.2. Tube preparation
1) Cut the roller tube to the required length, depending on
the motorised product.
2) Deburr the roller tube and remove the swarf.
1) 2)



Safety warning! Information ΛUp VDown
Caution!

1)
L1
L1 = …
2)
Ø > 47 mm
ba
c

EN
5
Copyright © 2014 Somfy SAS. All rights reserved. Images not contractually binding
Neutral
(N)
Live
(L1)
Live
(L2)
Earth
( )
120V -60 Hz White Black Red Green
L1L2N

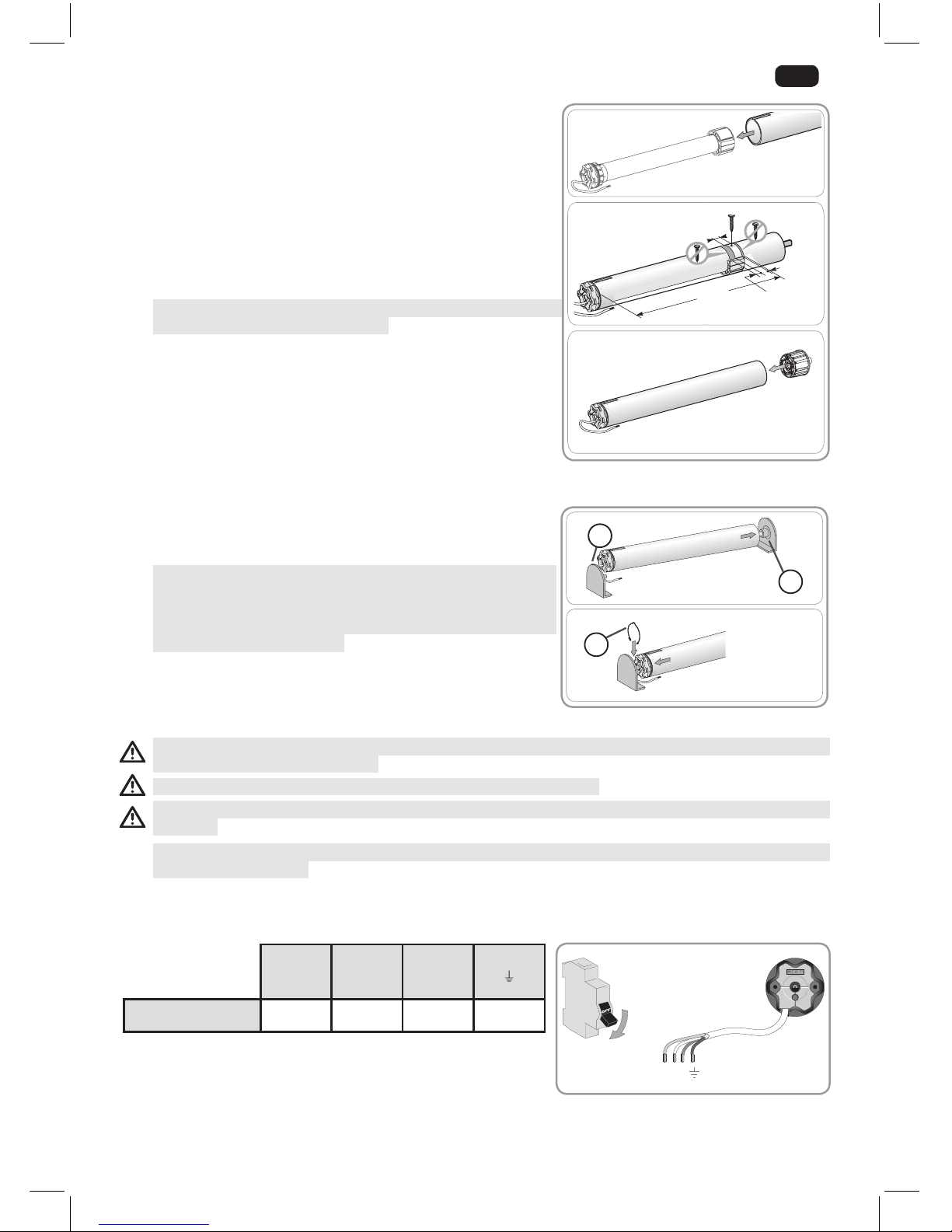

2.1.3. Motor/tube assembly
1) Slide the motor into the roller tube.
2) The motor wheel must be locked in place to prevent
movement inside the roller tube:
• This can be done either by xing the roller tube to the
motor wheel using 4 x Ø 5 mm self-tapping screws,
or by using 4 x Ø 4.8 mm steel pop rivets placed 5
mm to 15 mm from the outer edge of the motor wheel,
regardless of the roller tube.
The screws or pop rivets must only be attached to the
motor wheel and not to the motor.
3) Slide the end cap into the roller tube and locked it if
necessary.
2.1.4. Installing the motor/tube assembly
The motorised product must not be compressed between the brackets
1) Install and x the motor/tube assembly onto the end
bracket fand onto the motor bracket g:
Ensure that the motor/tube assembly is secured onto
the end bracket. This operation prevents the motor/
tube assembly from coming out of the end bracket
mounting when the roller blind reaches the lower end
limit position.
2) For star head motors, ensure the stop ring hin place.
1)
2)
h
g
ab
Ø>47mm
ehe
h
f
ab
Ø>47mm
ehe
h


15 mm
5 mm
20 mm
L1
1)
2)
3)

2.2. WIRING
Cables which pass through a metal wall must be protected and isolated using a grommet
or sleeve.
Attach cables to prevent any contact with moving parts.
The cable on the Sonesse Ultra 50 can be removed. If it is damaged, replace it with an
identical cable.
Leave the motor power supply cable accessible: it must be possible to replace it easily.
- Switch off the power supply.

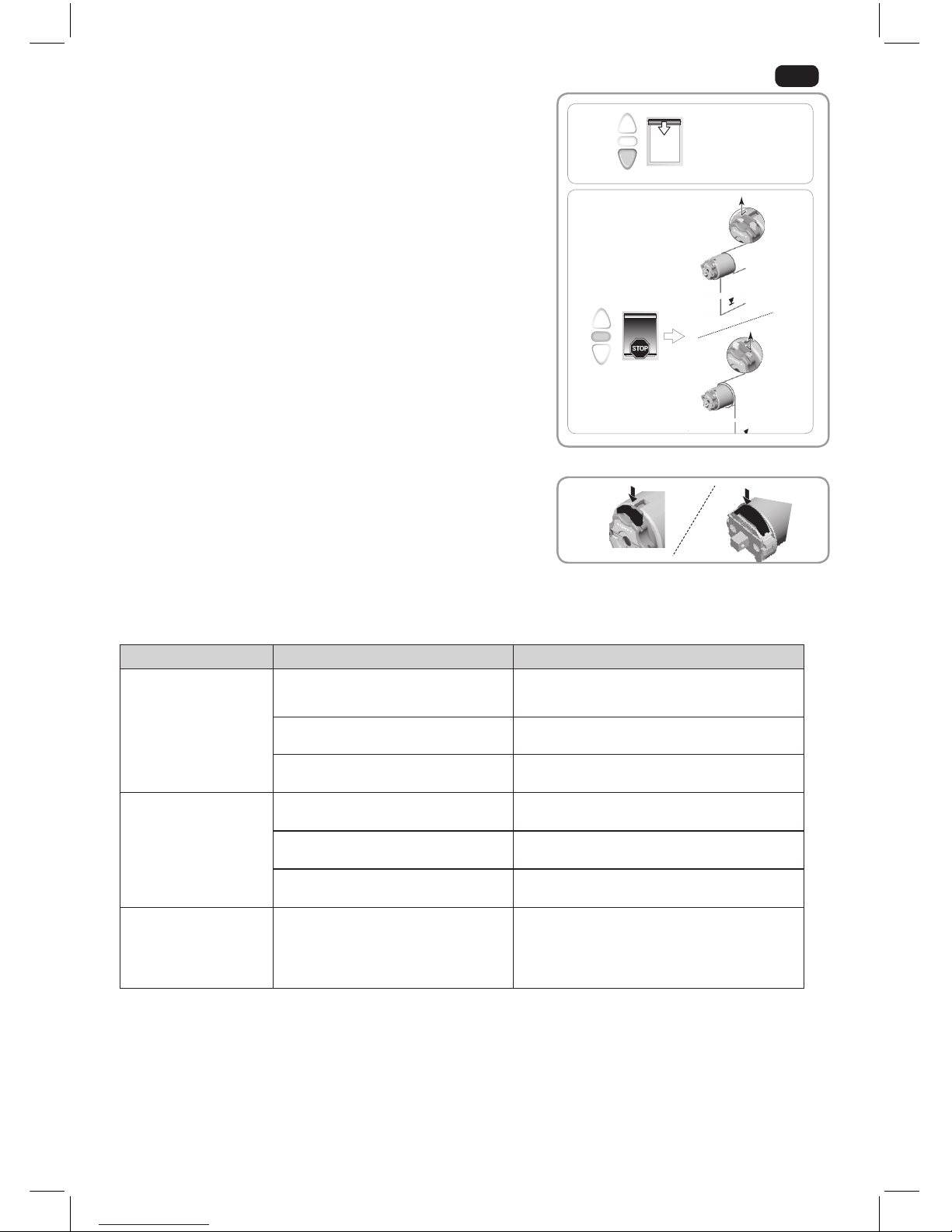

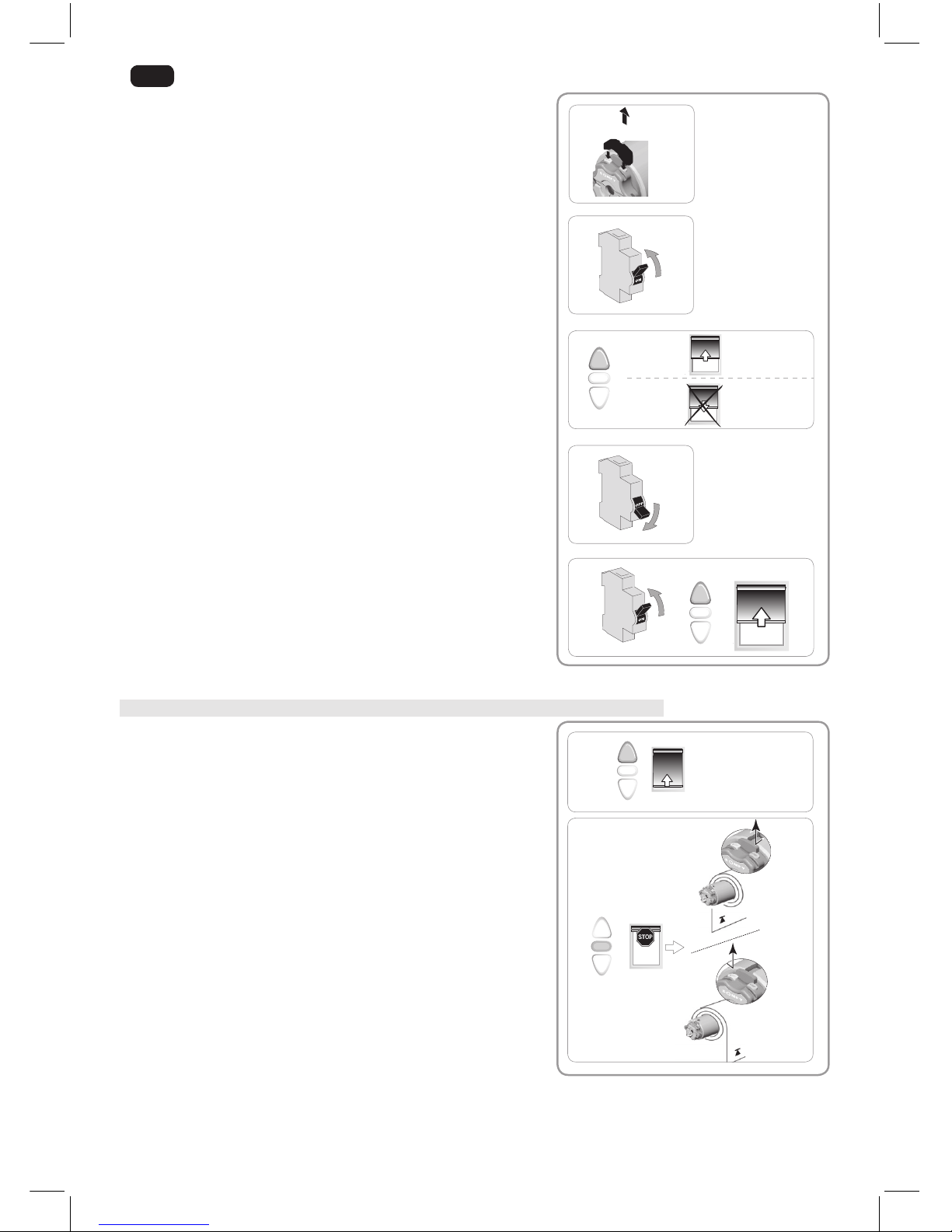

- Connect the motor according to the information in the table below:

