SOMFY Sonesse Utra 50 DC User manual

Ref. 5123105A
EN INSTRUCTIONS
Sonesse Utra 50 DC
RTS
www.somfy.com

3
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Images not contractually binding
CONTENTS
1. Prerequisite information 3
1.1 Fields of application 3
1.2 liability 4
2. Installation 4
2.1. Installation 4
2.2. Wiring 5
2.3. Commissioning 6
2.4. Tips and recommendations for
installation 7
3. Use and maintenance 9
3.1. Up and Down buttons 9
3.2. STOP function 9
3.3. Favourite position (my) 10
3.4. Additional settings 10
3.5. Tips and recommendations for use 10
4. Technical data 11
ORIGINAL GUIDE
1. 1. PREREQUISITE INFORMATION
The Sonesse ULTRA 50 DC RTS motor has been developed for interior use.
Its ultra quiet operation ensures user comfort and well-being.
For more information, and to optimise the acoustic performance of your interior application, please contact a Somfy adviser.
These instructions apply to all Sonesse ULTRA 50 DC RTS irrespective of torque and speed variations.
1.1 FIELDS OF APPLICATION
The Sonesse ULTRA 50 DC motor is designed to operate interior Roller blinds applications.
The Sonesse ULTRA 50 DC motor is designed to operate multiple roller blinds simultaneously (multi-banding), where these are interconnected by an
intermediate bracket.
The Sonesse ULTRA 50 DC motor is not designed to be used with a compensating spring.
Any use outside the fields of application is prohibited, in particular:
The Sonesse ULTRA 50 DC motor is not designed for outdoor applications (e.g. outdoor vertical blinds, roller shutters, etc.)

4
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Images not contractually binding
1.2 LIABILITY
Before installing and using the motor, please read operating and installation guide carefully. In addition to following the instructions
given in this guide, the instructions detailed in the attached Safety instructions document must also be observed.
The motor must be installed by a motor and home automation professional, according to instructions from Somfy and the
regulations applicable in the country in which it is commissioned.
It is prohibited to use the motor outside the fields of application described above. Such use, and any failure to comply with the instructions
given in this guide and in the attached Safety instructions document, absolves Somfy from any liability and invalidates the warranty.
The installer must inform its customers of the operating and maintenance conditions for the motor and must provide them with the
instructions for use and maintenance, and the attached Safety instructions document, aer installing the motor. Any Aer-Sales Service
operation on the motor must be performed by a motor and home automation professional.
If in doubt when installing the motor, or to obtain additional information, contact a Somfy adviser or go to the website www.somfy.com.
1. 2. INSTALLATION
Instructions which must be followed by the motor and home automation professional installing the motor.
Never drop, knock, drill or submerge the motor.
Install a separate control point for each motor.
To optimize ultra quiet operation, the mechanical plays between motor, accessories, tube and end of tube must be decreased to the
maximum.
2.1. INSTALLATION
2.1.1. Preparing the motor
Check that the inner diameter of the tube greater than 47mm.
1) Fit the accessories required to integrate the motor in the roller tube:
• Fit the crown a, the motor wheel b and the stop wheel c on the motor.
The stop wheel must be screwed with a torque ranging between 1.5 and 1.8 Nm.
2) Measure the length (L1) between the inner edge of the motor head and the edge of
the motor wheel.
3) Screw the bracket interface on the motor head.



Safety warning! Information
Caution!

1)
L1
L1 = …
2)
Ø > 47 mm
ba
3)

5
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Images not contractually binding

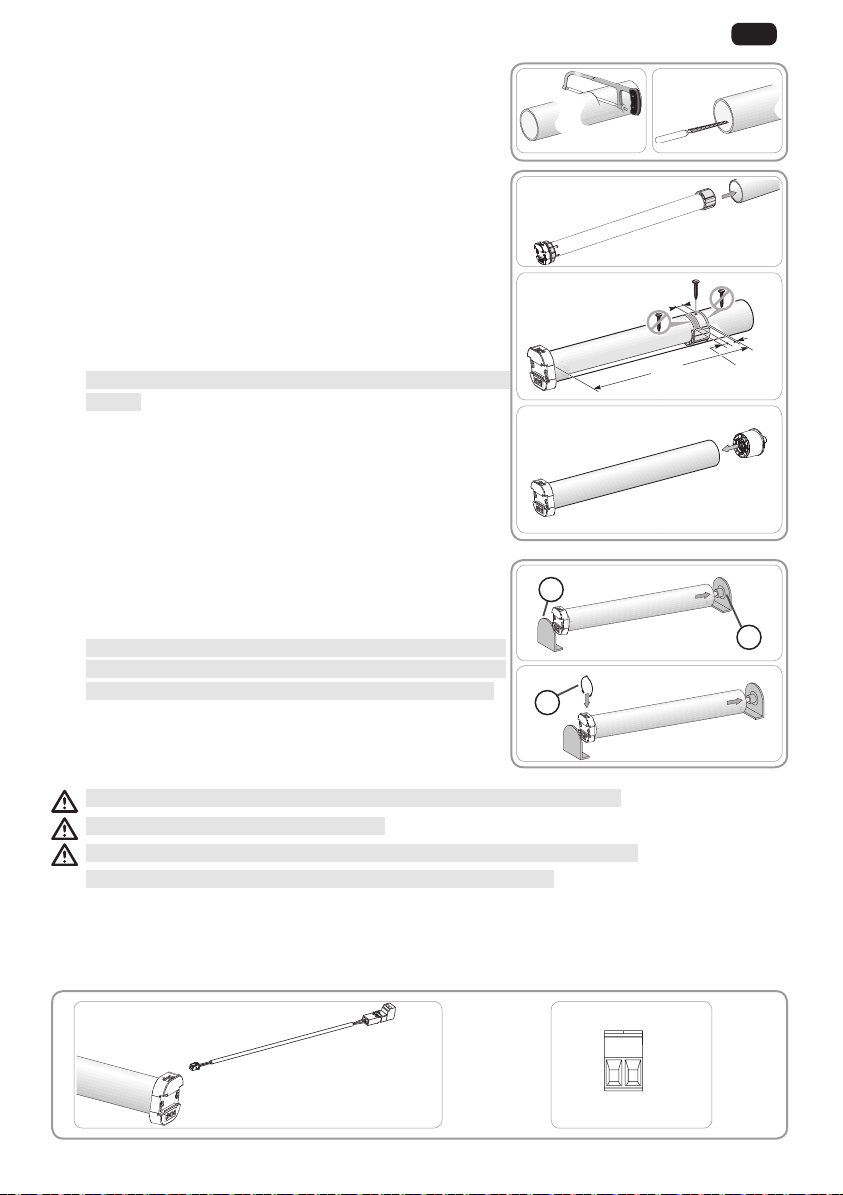

2.1.2. Tube preparation
1) Cut the roller tube to the required length, depending on the motorised product.
2) Deburr the roller tube and remove the swarf.
2.1.3. Motor/tube assembly
1) Slide the motor into the roller tube.
2) The motor wheel must be locked in place to prevent movement inside the roller
tube:
• This can be done either by fixing the roller tube to the motor wheel using 4 x Ø 5
mm self-tapping screws, or by using 4 x Ø 4.8 mm steel pop rivets placed 5 mm
to 15 mm from the outer edge of the motor wheel, regardless of the roller tube.
The screws or pop rivets must only be attached to the motor wheel and not to
the motor.
3) Slide the end cap into the roller tube and locked it if necessary.
2.1.4. Installing the motor/tube assembly
The motorised product must not be compressed between the brackets
1) Install and fix the motor/tube assembly onto the end bracket fand onto the motor
bracket g:
Ensure that the motor/tube assembly is secured onto the end bracket. This
operation prevents the motor/tube assembly from coming out of the end
bracket mounting when the roller blind reaches the lower end limit position.
2) For star head motors, ensure the stop ring hin place.
2.2. WIRING
Cables which pass through a metal wall must be protected and isolated using a grommet or sleeve.
Attach cables to prevent any contact with moving parts.
The cable on the Sonesse ULTRA 50 can be removed. If it is damaged, replace it with an identical cable.
Leave the motor power supply cable accessible: it must be possible to replace it easily.
- Switch off the power supply.
- Connect the cable to the motor head.
1)
2)
h
g
f


15 mm
5 mm
20 mm
L1
1)
2)
3)
1) 2)

V+
V-
V+
V-


6
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Images not contractually binding

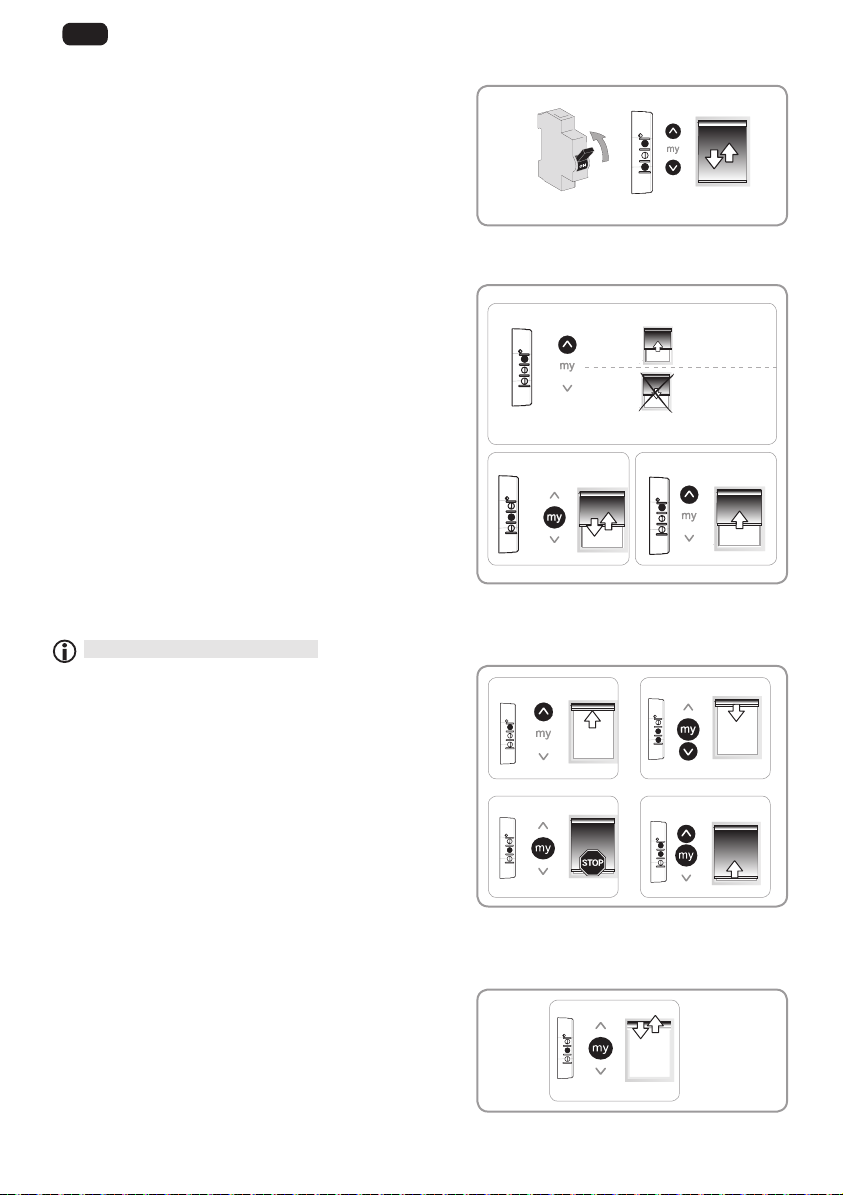

2.3. COMMISSIONING
2.3.1. Start the commissioning process
1) Switch on the power supply.
The Led switches ON.
2) Press the Up and Down buttons on the RTS control point / Motor head at
the same time: The motorised product moves up and down (fast raising and
lowering), and the commissioning process beging.
The RTS control point is pre-programmed in the motor.
2.3.2. Checking the direction of rotation
1) Press the Up button on the RTS control point / Motor head :
a) If the motorised product rises (a), the direction of rotation is correct:
Move onto the section entitled “Setting the end limits”.
b) If the motorised product lowers (b), the direction of rotation is
incorrect: Move onto the next step.
2) Press the my / stop button on the RTS control point / Motor head until
the motorised product moves up and down: The direction of rotation has
been modified.
3) Press the Up button on the RTS control point / Motor head to check the
direction of rotation.
2.3.3. Setting the end limits
The end limits can be set in any order.
1) Raise the motorised product to the desired position by pressing the Up
button.
2) Press the my / stop and Down buttons at the same time until the
motorised product moves.
The upper end limit is memorised.
3) Press the my / stop button when the motorised product reaches the
desired lowered position. If necessary, adjust the position of the motorised
product using the Up and Down buttons.
4) Press the my / stop and Up buttons at the same time until the motorised
product moves.
The lower end limit is memorised. The motorised product rises and stops in the raised position.
2.3.4. Validation of the setting
To confirm the end limits, press the my / stop button until the motorised
product moves up and down.
The end limits are programmed and the Led switches OFF.
UP STOP DWN
UP STOP DWN
21
a
b
=
=
UP STOP DWN UP STOP DWN
UP STOP DWN
a
b
=
=
UP STOP DWN UP STOP DWN
UP STOP DWN
a
b
=
=
UP STOP DWN UP STOP DWN
UP STOP DWN
1)
2) 3)
1) 2)
3) 4)
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN

7
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Images not contractually binding
2.3.5. Recording the RTS control point
The motorisation is in programming mode:
-- Quickly press the PROG button on the RTS control point to be programmed:
→The motorised product moves up and down: this RTS control point is
programmed in the motorisation.
If the motorisation is no longer in programming mode, repeat Step 2.3.1 then perform Step 2.3.4.
2.3.6. Adjusting the roller speed
1) Press the Up, my and Down buttons simultaneously, until the motorised
product moves up and down once. The motorised product moves up and
down automatically, in 5 second cyles.
2) While the motorised product is moving, briefly press the Up button, to
increase the speed, or Down button, to decrease the speed.
3) To confirm the new speed, press and hold the my button until the
motorised product moves up and down.
PROG.
5s 5s
5s 5s
5s 5s
1)
2)
3)

8
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Images not contractually binding
2.3.7. Adding/Deleting Somfy control points and sensors
With local control point:
Refer to the corresponding guide
With the Motor head buttons
Press and hold all the three buttons on the motor head until the motorised
product moves up and down. Then press on the prog button of the control
points or sensor to add or delete.

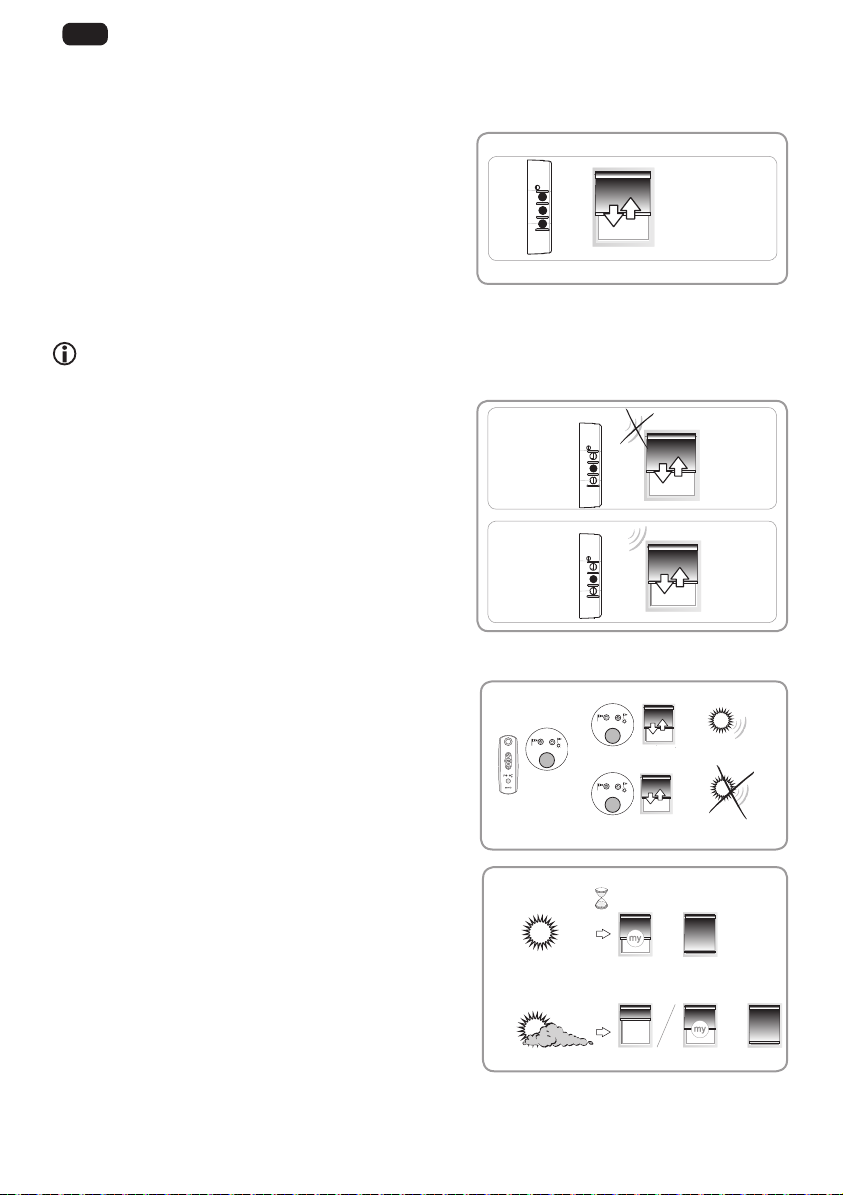

2.3.8. Sonesse ULTRA 50 DC RTS «sleeping» mode
This function allows to lock any transmitters orders during 5mn. Motor won’t react to any transmitters commands.
The «sleeping» mode is only possible if the motor is already set.
1) To put the motor into the «sleeping» mode, breafly press 2 times the Stop
button of the motor head.
The motorised product moves up and down and the motor head LED blink 2
times during 5 min.
2) To put the motor out of the «sleeping» mode, breafly press 2 times the
Stop button of the motor head.
The motorised product moves up and down and the motor head LED turns off.
The transmitters orders wil be executed.
2.3.9. Sun function
For this function, you need a Telis Soliris transmitter.
By default, the Sun function is not active.
1) To activate the Sun function, press the SELECT button on the Telis Soliris
transmitter, until the shade makes an Up and Down movement.
2) To deactivate the Sun function, press the SELECT button on the Telis Soliris
transmitter, until the shade an Up and Down movement.
When the intensity of the daylight exceeds the threshold set by the Soliris
sensor RTS, a CLOSURE order is sent to the shade aer 2 min.
The shade goes to the My position or to its down limit, if no My position has
been memorized.
When the intensity of the daylight falls below the threshold set by the Soliris
sensor RTS, the shade goes to the Sun disappearing position or stays at its
position (My or down limit), if no Sun disappearing position has been memorized.
The Wind function is not compatible with this motor.
OK
x2
UP STOP DWN
x3
UP STOP DWN
1)
2)
UP STOP DWN
UP STOP DWN
5 min
UP STOP DWN
UP STOP DWN
5 min

9
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Images not contractually binding
Sun disappearing position
A favourite position (my) must be already recorded before
recording the Sun disappearing position (see 3.3)

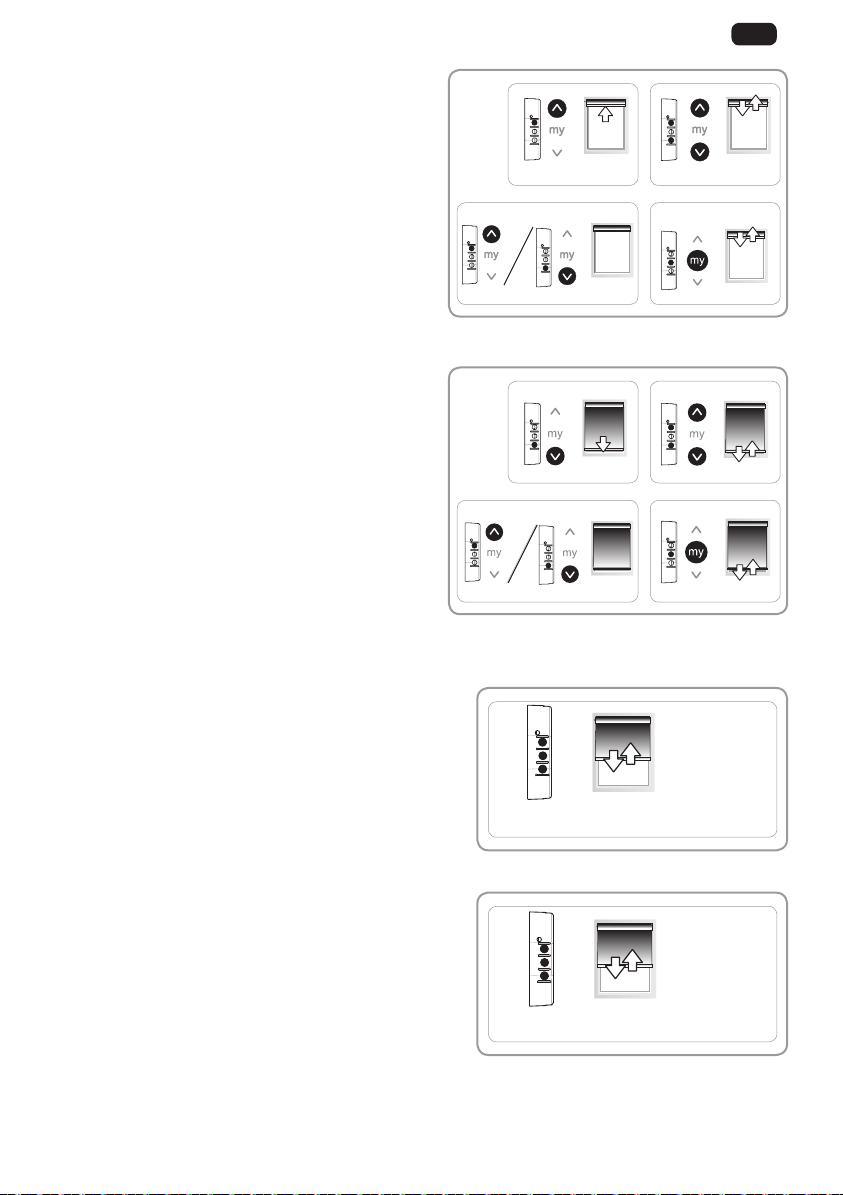

2.3.10. Recording Sun disappearing position
1) Press the my and Down buttons, until the motorised product moves.
2) Move the motorised product to the desired position with the Up and
Down buttons.
3) Press the my button, until the motorised product moves.
The Sun disappearing position is recorded.
2.3.11. Changing the Sun disappearing position
1) Press the my and Down buttons, until the motorised product moves.
2) Move the motorised product to the new desired position with the Up and
Down buttons.
3) Press the my button, until the motorised product moves.
The Sun disappearing position is changed.
2.3.12. Delete the Sun disappearing position
1) Press the my and Down buttons, until the motorised product moves.
2) Press the my button, until the motorised product moves.
The Sun disappearing position is deleted.
1)
2)
3)
1)
2)

2)
3)
1)

10
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Images not contractually binding

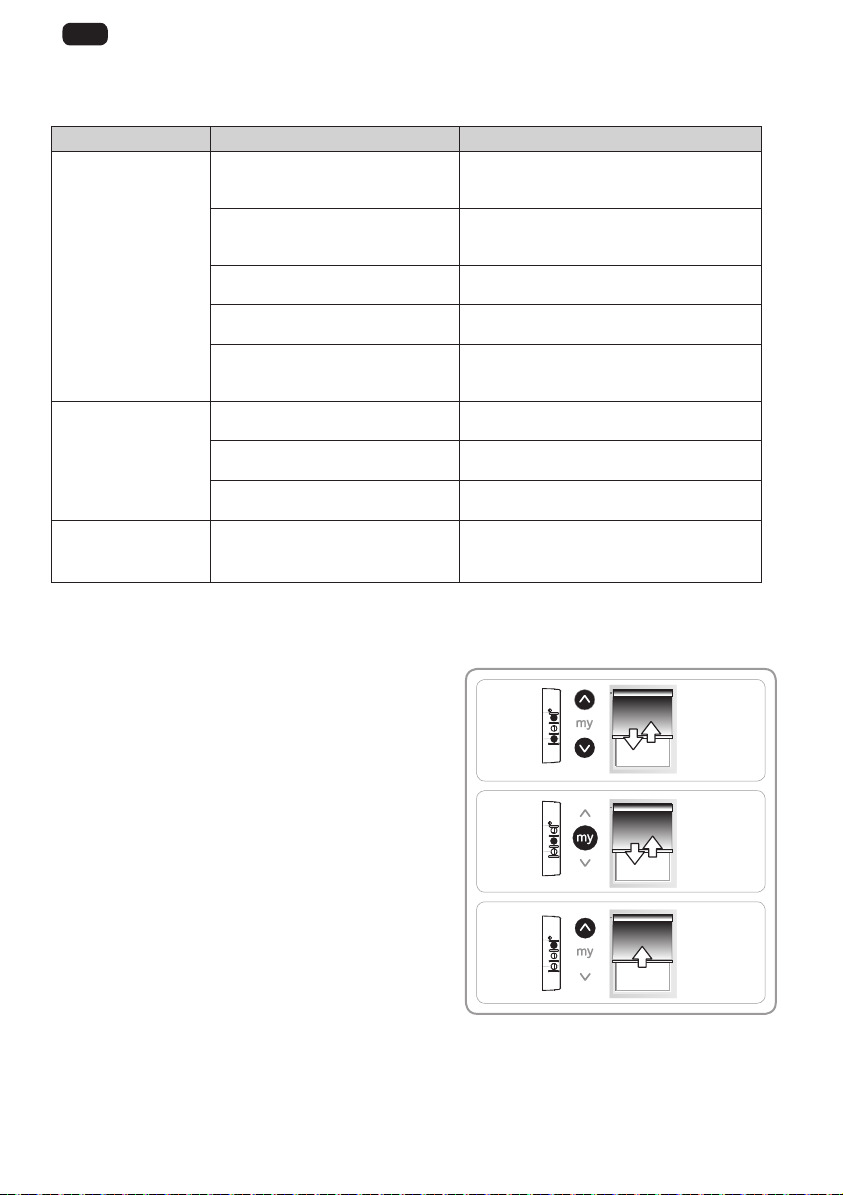

Observations Possible causes Solutions
The motorised product does not
operate.
The wiring is incorrect. Check the wiring and modify it if necessary.
The Motor is in thermal protection. Wait until the motor cools down.
The control point battery is weak. Check whether the battery is weak and replace it if necessary.
The control point is not
compatible. Check for compatibility and replace the control point if necessary.
The control point used has not been programmed into
the motor. Use a programmed control point or program this control point.
The motorised
product is noisy:
The motor wheel and the crown are not suitable
for the tube. Replace the motor wheel and the crown
The motorised product is compressed between
the brackets Increase the play between the brackets
The tube contains swarf and screws. Clean the roller tube.
The motorised product stop to
soon or to late. The end-limits of the motorised product dri. Readjust the end-limits
2.4.2. Readjusting the direction of rotation
Move the motorised product away from the end limits.
1) Press the Up and Down buttons simultaneously, until the motorised
product moves up and down.
2) Press the my button, until the motorised product moves up and down,
to reverse the rotation direction.
3) Press the Up button to check the new direction of rotation.
2.4. TIPS AND RECOMMENDATIONS FOR INSTALLATION
2.4.1. Questions about the Sonesse ULTRA 50 DC RTS?
UP STOP DWN
UP STOP DWN UP STOP DWN
1)
2)
3)
UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN UP STOP DWN
UP STOP DWN

11
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Images not contractually binding
2.4.3. Readjusting the end limits
Readjusting the upper end limit
1) Press the Up button to bring the motorised product to the end limit to
be readjusted.
2) Press the Up and Down buttons at the same time until the motorised
product moves up and down.
3) Press the Up or Down button to move the motorised product to the
new desired position.
4) To confirm the new end limit, press the my / stop button until the
motorised product moves up and down.
Readjusting the lower end limit
1) Press the Down button to bring the motorised product to the end limit
to be readjusted.
2) Press the Up and Down buttons at the same time until the motorised
product moves up and down.
3) Press the Up or Down button to move the motorised product to the
new desired position.
4) To confirm the new end limit, press the my / stop button until the
motorised product moves up and down.
2.4.4. Erasing all transmitters of the motor
To delete all the control points programmed, press and hold all the three
buttons on the motor head until the motorised product moves up and down
twice.
All the control points are deleted.
2.4.5 . Restoring the original configuration
To return the motor in the original configuration, press and hold all the three
buttons on the motor head until the motorised product moves up and down
three times.
All the settings are erased and the Led switches ON.
1) 2)
3) 4)
UP STOP DWN
UP STOP DWN UP STOP DWNUP STOP DWNUP STOP DWN
UP STOP DWNUP STOP DWN UP STOP DWN
UP STOP DWN UP STOP DWN
UP STOP DWN
UP STOP DWN UP STOP DWNUP STOP DWNUP STOP DWN
UP STOP DWNUP STOP DWN UP STOP DWN
UP STOP DWN UP STOP DWN
UP STOP DWN
UP STOP DWN UP STOP DWNUP STOP DWNUP STOP DWN
UP STOP DWNUP STOP DWN UP STOP DWN
UP STOP DWN UP STOP DWN
UP STOP DWN
UP STOP DWN UP STOP DWNUP STOP DWNUP STOP DWN
UP STOP DWNUP STOP DWN UP STOP DWN
UP STOP DWN UP STOP DWN
1) 2)
3) 4)
UP STOP DWN
UP STOP DWN UP STOP DWNUP STOP DWNUP STOP DWN
UP STOP DWNUP STOP DWN UP STOP DWN
UP STOP DWN UP STOP DWN
UP STOP DWN
UP STOP DWN UP STOP DWNUP STOP DWNUP STOP DWN
UP STOP DWNUP STOP DWN UP STOP DWN
UP STOP DWN UP STOP DWN
UP STOP DWN
UP STOP DWN UP STOP DWNUP STOP DWNUP STOP DWN
UP STOP DWNUP STOP DWN UP STOP DWN
UP STOP DWN UP STOP DWN
UP STOP DWN
UP STOP DWN UP STOP DWNUP STOP DWNUP STOP DWN
UP STOP DWNUP STOP DWN UP STOP DWN
UP STOP DWN UP STOP DWN
x2
UP STOP DWN
x3
UP STOP DWN
x2
UP STOP DWN
x3
UP STOP DWN

12
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Images not contractually binding

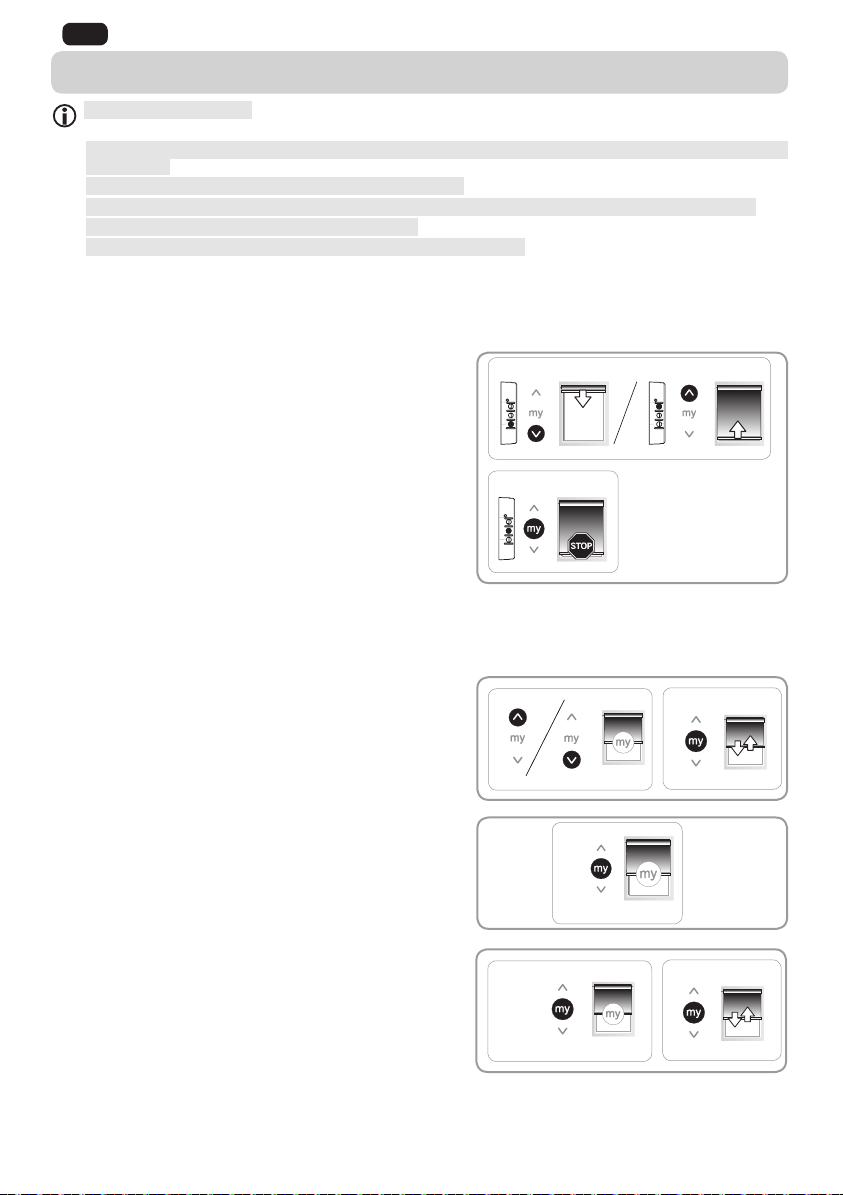

1. 3. USE AND MAINTENANCE
This motor is maintenance-free
For the safety of goods and people, Somfy motors are equipped with thermal protection that will trigger the motor stops in the event
of overheating.
Repeated activation of this protection can degrade motor performance.
If the motor goes to thermal protection, please check your installation and check that the motor is rated for the intended use.
A normal installation is not expected to trigger this protection.
To avoid the dri of the end limits, do not cut the power supply more than 1 week.
3.1. UP AND DOWN BUTTONS
Pressing the Up or Down button fully raises or lowers the motorised product.
3.2. STOP FUNCTION
The motorised product is moving.
- Briefly press the my button: the motorised product stops automatically.
3.3. FAVOURITE POSITION (my)
Besides the upper and lower positions, an intermediate position known as the “favourite position (my)” can be programmed in the Sonesse
ULTRA 50 DC RTS.
3.3.1. Record or Modify the favourite position (my)
1) Place the motorised product in the desired favourite position (my).
2) Press the my button for ≈5 seconds until the motorised productmoves up
and down: the desired favourite position (my) has been programmed.
3.3.2. Use the favourite position (my):
Briefly press the my button: the motorised product starts to move, and stops
in the favourite position (my).
3.3.3. Deleting the favourite position (my)
1) Press my: the motorised product starts to move, and stops in the favourite
position (my).
2) Press my again until the motorised product moves: the favourite position
(my) is deleted.
1)
2)
UP STOP DWN
UP STOP DWN
UP STOP DWN UP STOP DWN
UP STOP DWN
UP STOP DWN
UP STOP DWN UP STOP DWN

1) 2)
1) 2)
UP STOP DWN
UP STOP DWN
UP STOP DWN UP STOP DWN

13
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Images not contractually binding
3.4. TIPS AND RECOMMENDATIONS FOR USE
3.4.1. Questions about the Sonesse ULTRA 50 DC RTS?
If the motorised product still does not work, contact a motorisation and home automation professional.
3.4.2. Replacing a lost or broken Somfy control point
To replace a lost or broken control point, contact a motorisation and home automation professional.
Observations Possible causes Solutions
The motorised product does not
operate. The control point battery is weak. Check whether the battery is weak and replace it if necessary.
The motor is in thermal protection mode. Wait for the motor to cool down.
1. 4. TECHNICAL DATA
Power supply 24V dc
Radio frequency 433.42 MHz
Operating temperature 0°C to + 60°C
Index protection rating IP 31
Safety level Class III
Maximum number of control points 12
Maximum number of sensors 3
Manufacturer Model Ratings
CUI INC (E210311) EMSA240125 Input: 100 - 240 Vac, 50-60 Hz, 1.0 A
Output: 24 VDC, 1.25 A, LPS (#)
CUI INC (E210311) EMSA240167 Input: 100 - 240 Vac, 50-60 Hz, 1.0 A
Output: 24 VDC, 1.67 A, LPS (#)
1. 5. POWER SUPPLY
The Sonesse ULTRA 50 DC RTS is only compatible with the following power supplies:

14
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Images not contractually binding

Somfy SAS
50 avenue du Nouveau Monde
BP 152 - 74307 Cluses Cedex
France
www.somfy.com
Somfy SAS, capital 20.000.000 Euros, RCS Annecy 303.970.230 -01/2016
