SOMFY TaHoma Serenity User manual

Opening and shock sensor
EN
INSTALLATION GUIDE
NL Opening- en bewegingsmelder - INSTALLATIEGIDS
SE Öppning och chock sensor - INSTALLATIONSGUIDE
NO Åpning og sjokk detektor - INSTALLASJONSGUIDE
DK Åbning og shock detektor - INSSTALLATIONSVEJLEDNING
FI Ovi ja sokki anturi - ASENNUSOHJE
NLSENODKFI
Ref. 121255A EUROPE: NORTH 5125853A

More options for the connected home

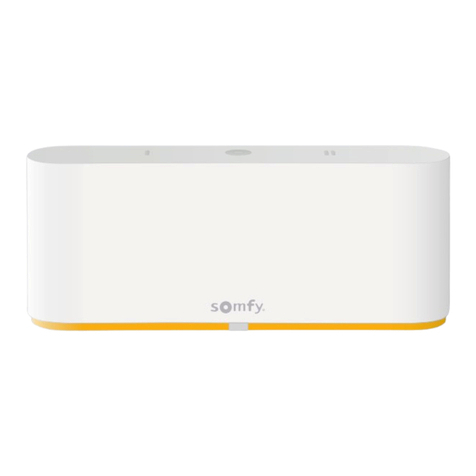

TaHoma® Box
NOTIFICATIONS
SMART
serenity
Detect intruders in your home
TaHoma® Box ACTIVE
PROTECTION
Security
base
BREAK-IN
SHOCK

3
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Thank you for choosing a Somfy product.
Who are Somfy?
Somfy develops, manufactures and sells motors and automatic
control devices for domestic equipment, as well as solutions
for smart homes. Motorisation systems for gates, garage doors
and roller shutters, alarm systems, lighting controls, heating
thermostats, smart home units and dedicated accessories; all
Somfy products are designed to meet your expectations in terms
of safety, comfort and energy efficiency. At Somfy, the pursuit
of quality is a continuous process of improvement. Somfy's
reputation has been built upon the reliability of its products
and the Somfy brand is synonymous with innovation and
technological expertise worldwide.
Assistance
Somfy's approach is to get to know you, listen to your needs and
meet your requirements. For more information on how to choose,
purchase or install Somfy products, please ask for advice at your
local DIY store or contact a Somfy advisor directly for help and
assistance.
Warranty
This product is guaranteed for 2 years from the date of purchase.

4
Copyright © 2016 Somfy SAS. All rights reserved.
Important information - safety
General information
Read this installation guide and the safety instructions carefully
before installing this Somfy product. All the instructions given
must be followed closely and this guide must be stored in a
safe place throughout the service life of your product.
These instructions describe how to install and commission this
product.
Any installation or use outside the field of application specified
by Somfy is forbidden.
This invalidates the warranty and discharges Somfy of all
liability, as does any failure to comply with the instructions
given herein.
Somfy cannot be held liable for any changes in standards which
come into effect aer the publication of these instructions.
General safety instructions
• This product is not designed to be used by persons (including
children) whose physical, sensory or mental capacity is
impaired, or persons with little experience or knowledge, unless
they are under supervision or have received instructions on
using this product by a person responsible for their safety.
• Do not let children play with this product.
• Do not immerse the product in liquid.
• Do not drop, drill or dismantle this equipment, as this will
invalidate the warranty.
• Do not expose this equipment to high temperatures or leave it
in direct sunlight.

5
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Introduction
Combined with the TaHoma®, this product:
- Detects an intrusion or attempted intrusions into the house
- Offers more options for the connected home (Smart automated
systems)
It detects whether the home's access points and opening
features are open, as well as any shocks they receive.
This product can therefore be used in two contexts:
- Connected security ( TaHoma®serenity anti-intrusion
protection)
- or Connected Home (TaHoma
®
Smart automated
functions).
As well as safety, TaHoma®serenity offers all the
advantages of a Smart Home.
In this case, it is important to avoid any conflicting
settings between the active alerts and Protection provided
by TaHoma®serenity and the Smart automated functions.
Contents
* 3 pre-glued bases.
2 replacements.
Description Qty
Opening and shock detector 1
CR123 battery 1
Adhesive strips 5*

6
Copyright © 2016 Somfy SAS. All rights reserved.
C P
Description Description
1Unit 4 Calibration button
2Magnet 5 Programming button
3Battery housing 6 Mode selector switch
C P
1
2
3
4
6
5

7
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Fitting the battery
To open the unit, press on the upper section of the opening and
shock detector unit to unclip the front of the case.
Insert the battery the correct way ("+" side on the "+" side and "-"
side on the "-" side).
Do not replace the front of the case before adding
the opening and shock detector to the TaHoma®and
configuring it.

8
Copyright © 2016 Somfy SAS. All rights reserved.
Adding to TaHoma®
On the TaHoma®interface, select the tab.
- Select the Configuration tab.
- Select the "IO" tab, then select "Add".
- Follow the procedure shown on the screen.
- AFTER pairing is complete, the green indicator light will
switch off.
Do not replace the front of the case until the opening and
shock detector has been configured.
Installation
Locations and usage scenarios.
Depending on the usage scenario (Connected Security or
Connected Home), there are several possible installation
configurations: Solutions A,B or C.
Solution A is recommended for a more flexible
application
For Connected Security (TaHoma®serenity):
• Opening detection
In order to be able to detect intrusion, install the opening and
shock detector as follows:
- A) Unit on the moving part and the magnet on the frame of the
door or window.
- B) Or the reverse depending on your installation.
- C) Unit installed on the moving part only, if the opening
element is not large enough for the magnet to be installed.

9
Copyright © 2016 Somfy SAS. All rights reserved.
EN
For solution C:
Detection is based only on the movement of the opening element, and not on the
current opening status (open/closed).
- You are alerted of an intrusion in the event of any movement.
- On the TaHoma®serenity interface, the sensor icon does not change and, as
a default, continues to show the status of the opening element before the
intrusion (closed).
OR
• Shock detection
In order to be able to detect attempted intrusion, install the
opening and shock detector as follows:
- A) Unit on the moving part and the magnet on the frame of the
door or window.
The Unit detects intrusion attempts (intrusion alert), and the Magnet makes
it possible to identify the actual opening status (detector status visible in the
interface) and so identify whether or not intrusion has taken place.
For Connected Home (TaHoma®):
• Opening detection only
In order to be able to detect openings, install the opening and
shock detector as follows:
- A) Unit on the moving part and the magnet on the frame of the
door or window.
- B) Or the reverse depending on your installation.

10
Copyright © 2016 Somfy SAS. All rights reserved.
Mounting
Easy installation using adhesive strips
• Clean the surface where the unit and the magnet will be
mounted.
• Affix the elements following the chosen installation method
(A, B or C).
Mounting with screws
• Press on the upper section of the
unit and magnet to unclip the front
panel.
• Place the back panel (of the unit or
magnet) into the chosen position and
the screw holes with a pencil.
• Use fixing screws (3.5mm diameter
and 19mm in length) and suitable
plugs (3.5mm diameter and 25mm in
length) to fix the opening and shock
detector to the surface.
• Firmly secure the back section
of the opening and shock detector
in place.

11
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Configuration
To use the opening and shock detector in the various settings
previously mentioned, use the following configurations.
Activation / Deactivation of magnet
The mode selector indicates the activation/deactivation of
the magnet.
For Connected Security (TaHoma®serenity):
• Opening detection
For solutions A or B, put the mode selector in the
Magnet activated position (default position). The
opening and shock detector is now operational.
For solution C, place the selector in the "Magnet
not activated" position, then carry out the opening
programming (see p12).
This step enables the unit to recognise opening or closing of the
window or door without requiring the magnet.
• Shock detection
For solution A, set the mode selector to the
"Magnet activated" position (default position), the
proceed to the shock "learning" mode (see p12).
This step enables the unit to recognise intrusion attempts.
C P
C P
C P
C P
C P
C P
Magnet activated
(Default position) Magnet deactivated
C P
C P
C P
C P
C P
C P
C P
C P
C P

12
Copyright © 2016 Somfy SAS. All rights reserved.
For Connected Home (TaHoma®):
• Opening detection
For solutions A or B, put the mode selector in the
Magnet activated position (default position).
The opening and shock detector is now operational.
Opening and shock "learning" mode
This enables the opening and shock detector to recognise:
- an intrusion: opening "learning"
OR
- an intrusion attempt: shock "learning"
Ensure the opening element has been closed.
Then all that is required are the following 3 steps:
1) Press the calibration button (C) and hold for
3 seconds.
2) The red indicator light will light up for 10 seconds: close the
unit cover whilst the light is on.
3) The red indicator light will blink rapidly: this is the learning
step.
- Opening "learning": open the window/door normally.
OR
- Shock "learning": force/shake the door/window to simulate
an intrusion attempt.
If there is an error, the red indicator light will blink twice
every five seconds. Return to step 1.
C P
C P
C P
C P
C P
C P

13
Copyright © 2016 Somfy SAS. All rights reserved.
EN
Carry out an intrusion test or intrusion attempt once this
stage is finished to check that the opening and shock
detector is functioning correctly. The indicator turns red
to indicate detection.
Deactivating the programming
To reset the opening and shock detector settings, unclip the
front panel of the unit and press the calibration (C) button for 10
seconds; the indicator light will come on then go out.
Resetting the opening and shock detector
To delete the opening and shock detector from the TaHoma,
unclip the front panel of the unit, and press the programming
button (P) for 10 seconds; the indicator light will come on then
go out.
Somfy hereby declares that this product is in
compliance with the requirements of Directive
2014/53/EU. The full text of the Declaration of
Conformity is available at www.somfy.com/ce.
Recycling
Do not dispose of this product with the household
waste. Please take it to a collection point or an
approved centre to ensure it is recycled correctly.
Ensure batteries are separated from other types
of waste and are recycled via your local recycling
centre.
The images contained in this booklet are for illustrative
purposes only.

14
Copyright © 2016 Somfy SAS. All rights reserved.
Technical data
Opening and shock detector
Type of battery CR 123 Battery life 3 years Index protection rating IP 20 (inside use, in a dry room) Frequency 868-870 MHz io homecontrol®, two-way Tri-band Frequency bands and maximum power used
868.000 MHz - 868.600 MHz e.r.p. <25 mW 868.700 MHz - 869.200 MHz e.r.p. <25 mW 869.700 MHz - 870.000 MHz e.r.p < 25 mW
Operating temperature 0°C to 60°C Dimensions of unit L x H x D in mm 118 x 38 x 24 Dimensions of magnet L x H x D in mm 118 x 12 x 14 Weight 52 g

15
Copyright © 2016 Somfy SAS. All rights reserved.
NL
Hartelijk dank dat u voor een product van Somfy hebt gekozen.
Wie is Somfy ?
Somfy ontwikkelt, produceert en verkoopt motoren en apparaten
voor het automatiseren van systemen van de woning, evenals
systemen voor gebruik rond het connected huis. Motorisaties
voor hekken, garagedeuren of rolluiken, alarmsystemen,
bediening van de verlichting, verwarmingsthermostaten,
connected huis-box met toebehoren, alle producten van
Somfy beantwoorden aan uw verwachtingen op het gebied
van veiligheid, comfort en energiebesparing. Bij Somfy is het
streven naar kwaliteit een proces van permanente verbetering.
De reputatie van Somfy is gebaseerd op de betrouwbaarheid van
de producten, en is daardoor in de gehele wereld synoniem met
innovatie en technologisch vernu.
Assistentie
Weten wie u bent, goed naar u luisteren, reageren op uw
wensen, zo werkt Somfy. Voor alle informatie over het kiezen,
kopen of installeren van producten van Somfy, kunt u terecht bij
uw verkooppunt of rechtstreeks contact opnemen met een Somfy
adviseur die voor u klaar staat en u zal begeleiden.
Garantie
Dit product wordt 2 jaar gegarandeerd gerekend vanaf de
aankoopdatum.

16
Copyright © 2016 Somfy SAS. All rights reserved.
Belangrijke informatie - veiligheid
Algemeen
Lees deze installatiegids en de bijgevoegde
veiligheidsvoorschrien aandachtig voordat u begint met de
installatie van dit Somfy product. Houd u nauwkeurig aan de
instructies die in deze handleiding worden gegeven en bewaar
deze handleiding gedurende de gehele levensduur van het
product.
Deze handleiding beschrij het installeren en het in bedrijf
stellen van dit product.
Elke installatie of vorm van gebruik dat buiten het door Somfy
gedefinieerde toepassingsgebied valt, is niet toegestaan.
Hierdoor en door het negeren van de instructies in deze
handleiding, vervallen iedere aansprakelijkheid en garantie van
Somfy.
Somfy is niet aansprakelijk voor veranderingen van normen en
standaards die van kracht zijn geworden na publicatie van deze
handleiding.
Algemene veiligheidsvoorschrien
• Dit product mag niet gebruikt worden door personen (inclusief
kinderen) met verminderde fysieke, zintuiglijke of verstandelijke
capaciteiten of personen zonder ervaring of kennis, behalve
als zij onder toezicht staan van iemand die verantwoordelijk is
voor hun veiligheid of toezicht, of die instructies vooraf over het
gebruik van het product hee gegeven.
• Laat kinderen niet met het apparaat spelen.
• Dompel het apparaat nooit in een vloeistof.
• Laat het apparaat niet vallen, boor er geen gaten in en
demonteer het niet op straffe van het vervallen van de garantie.
• Stel het apparaat niet bloot aan hoge temperaturen en plaats
het niet in direct zonlicht.

17
Copyright © 2016 Somfy SAS. All rights reserved.
NL
Presentatie
Gekoppeld met TaHoma®kan dit product:
- indringers in de woning of pogingen tot inbraak detecteren
- meer connected functies in de woning mogelijk maken (Smart
automatismen)
Het systeem detecteert of toegangspunten en deuren of vensters
geopend worden en of er schokken tegen plaatsvinden.
Dit product kan dan ook in een dubbele context worden
gebruikt:
- Connected veiligheid (anti-inbraakbeveiliging van
TaHoma®serenity )
- of connected huis (Smart automatismen van TaHoma® ).
Met TaHoma Serenity geniet u naast extra veiligheid ook
de voordelen van een connected huis.
Zorg in dat geval voor overeenstemmende instellingen
tussen de waarschuwingen en de actieve beveiliging
van de TaHoma®serenity aan de ene kant en de Smart
automatismen aan de andere kant.
Inhoud
* 3 standaard, voorgelijmd.
2 reserve.
Omschrijving Aant.
Schok- en openingsdetector 1
Batterij CR123 1
Zelfklevende strips 5*

18
Copyright © 2016 Somfy SAS. All rights reserved.
C P
Omschrijving Omschrijving
1Behuizing 4 Kalibratieknop
2Magneet 5 Programmeringsknop
3Batterijhouder 6 Modusschakelaar
C P
1
2
3
4
6
5

19
Copyright © 2016 Somfy SAS. All rights reserved.
NL
De batterij plaatsen
Druk om te openen op het bovenste deel van de behuizing van de
schok- en openingsdetector om de voorkant ervan los te maken.
Plaats de batterij in de juiste richting ("+"-pool bij "+" en "-"-pool
bij "-").
Plaats de voorkant pas terug als u de schok- en
openingsdetector hebt toegevoegd aan TaHoma®en hebt
geconfigureerd.

20
Copyright © 2016 Somfy SAS. All rights reserved.
Toevoegen aan Tahoma®
Selecteer op de TaHoma®-interface het tabblad .
- Klik op het tabblad Configuratie .
- Klik op het tabblad "IO" en daarna op "Toevoegen".
- Volg de aangegeven procedure.
- AAN het einde van de koppeling gaat de groene led "uit".
Plaats de voorkant pas terug als u de schok- en
openingsdetector hebt geconfigureerd.
Installatie
Plaatsen en gebruikssituaties.
Afhankelijk van de gebruikssituatie (connected veiligheid of
connected huis), zijn voor de installatie meerdere configuraties
mogelijk: Oplossing A, B of C.
Oplossing A wordt aanbevolen voor flexibelere
gebruiksmogelijkheden
Voor de connected veiligheid (TaHoma®serenity):
• Openingsdetectie
Om een inbraak te kunnen detecteren, installeert u de schok- en
openingsdetector als volgt:
- A) Behuizing op het beweegbare deel van de deur of het
venster en magneet op het kozijn.
- B) Of omgekeerd, afhankelijk van uw installatie.
- C) Of behuizing op alleen het mobiele deel, als op de deur of
het venster geen magneet geplaatst kan worden.
