SOMFY Connexoon Window RTS Operating instructions

Thank you !
for choosing
Need more information? Need assistance?
www.somfy.fr

3/47
Connexoon Window RTS app is a new way to pilot your motorized
solar shadings.
Enjoy the experience of piloting your RTS motorizations solutions from your smartphone,
and maximize the many benefits they provide : light management, privacy and
convenience.
Connexoon Window RTS
Compatible with RTS solar shading equipment. Available on Android and IOS smartphones

4/47
STAY IN CONTROL
Connexoon Window RTS, is a user friendly interface with 3 key
functions
CENTRALIZATION
Open and close your all your equipment with a simple click.
TIMER
Schedule the opening and closing of your equipment at the time and
date of your choice, and simulate your presence.
AMBIANCE REPLAY
Repeat in one click, a preset ambiance scenario that you have
programmed, for opening and closing rolling shutters and blinds,
linking with lights.

5/47

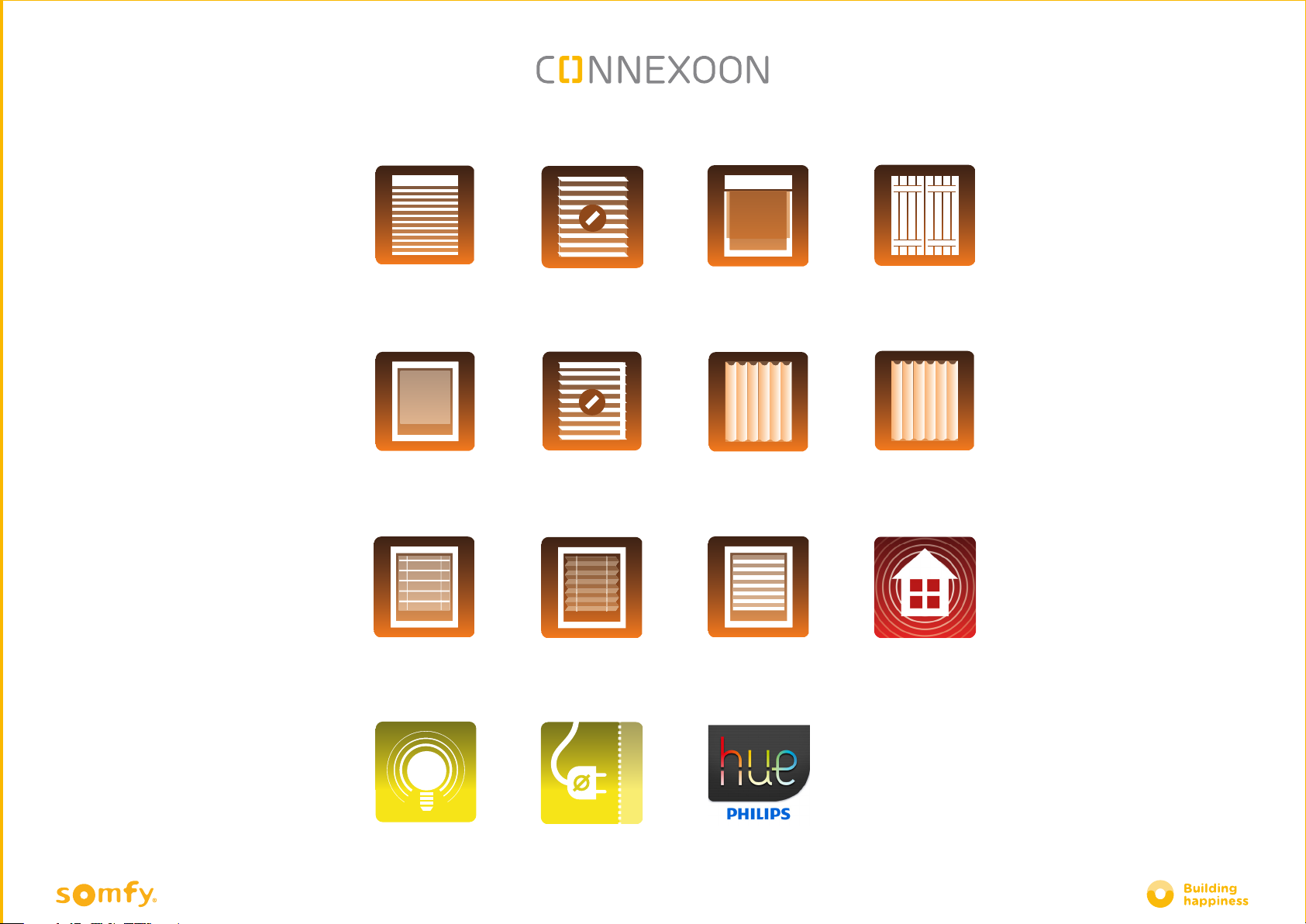

Connexoon window RTS is compatible with:
light plug Philips Hue
external
venetian blind
interior
venetian blind
interior roller
blind
roman blind cellular blind zebra shade alarm
external
vertical blind
roller shutter swinging shutter
dual curtains
single curtain

6/47
CONTENTS
Connexoon
•The Pack
•The Connexoon unit
Installing Connexoon
•Quickly registering RTS products in the Connexoon unit (prog-prog)
•Activating the Connexoon unit
•Downloading the Connexoon application
•Customising previously saved RTS products in the application from the unit
Using Connexoon Window
•The interface
• Controlling my products
•Simplify your life: modes and scenarios
•My timer
Managing my installation
•Control panel
•Messaging system
•Settings
•My account
•Help
•Legal notices
Advanced functions of the installation
•Renaming your products in the application
•Saving your RTS products via the application
•Deleting your RTS products via the application

7/47
< Back to Contents

8/47
< Back to Contents

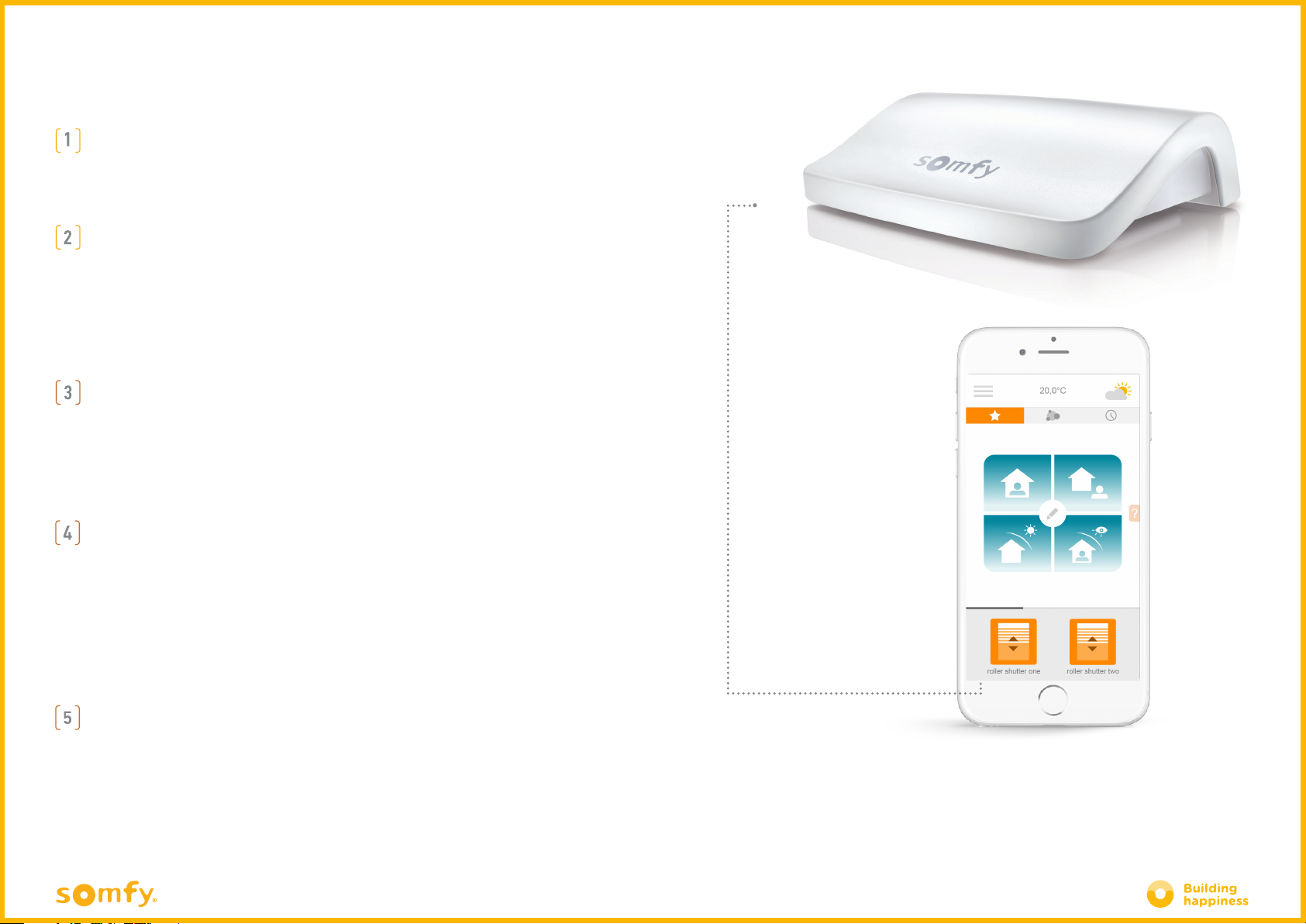

A. THE PACK
2
6
1
The pack contains
Connexoon RTS Unit
USB cable
Mains adapter
Ethernet cable
2 Quick installation guides (installer and end user)
Legal notices
1
2
3
4
5
6
43
5

9/47
< Back to Contents

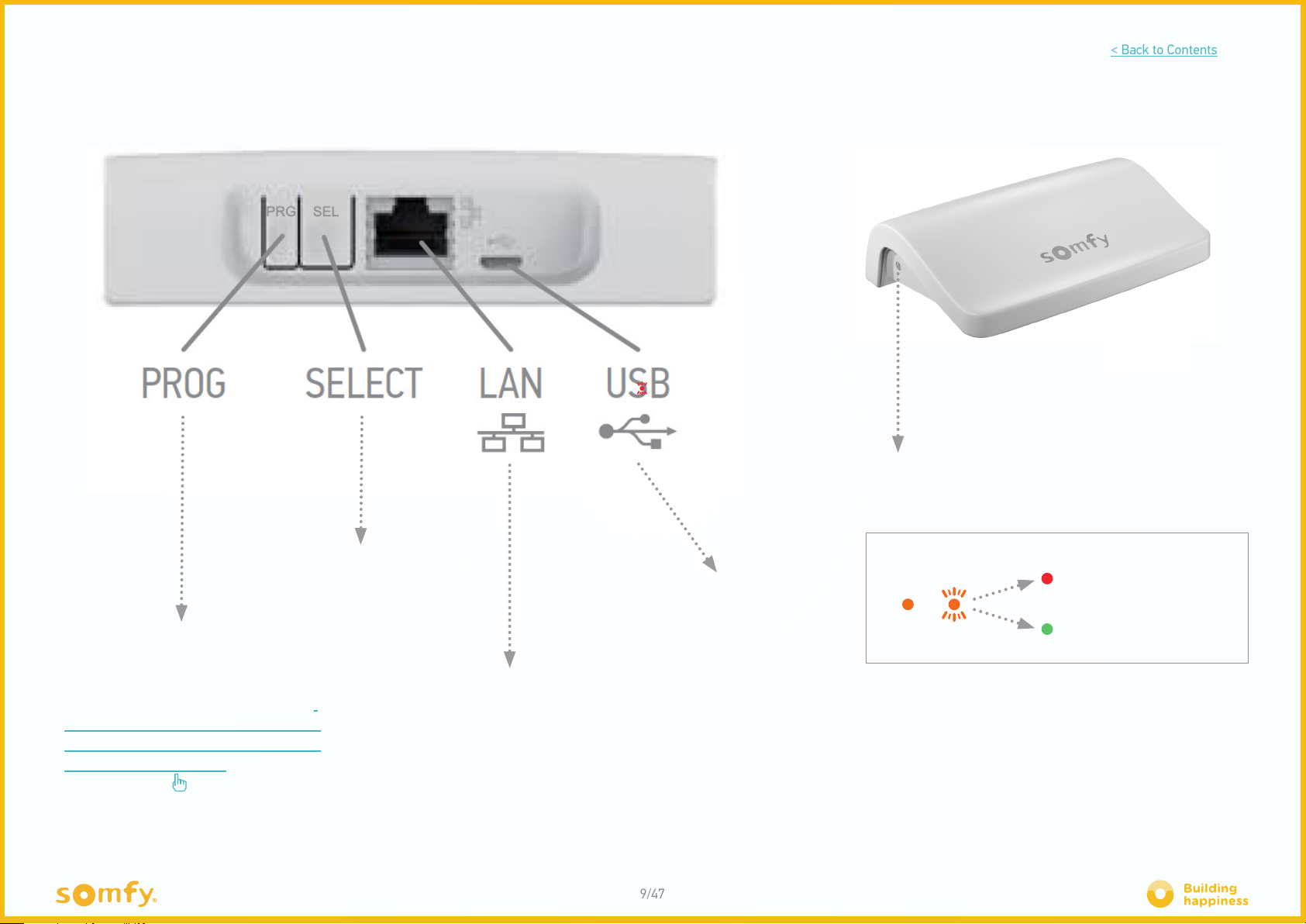

B. THE CONNEXOON UNIT
The PROG button enables your
motorised Somfy products to be
registered in your Connexoon RTS
unit, without an internet connection
voir page 12 - enregistrer rapidement
les produits RTS dans le boîtier
Connexoon (prog-prog)
The LAN socket enables the Connexoon unit
to be connected to the internet unit via an
ethernet cable.
The USB port enables the Connexoon
unit to be supplied via a power cable.

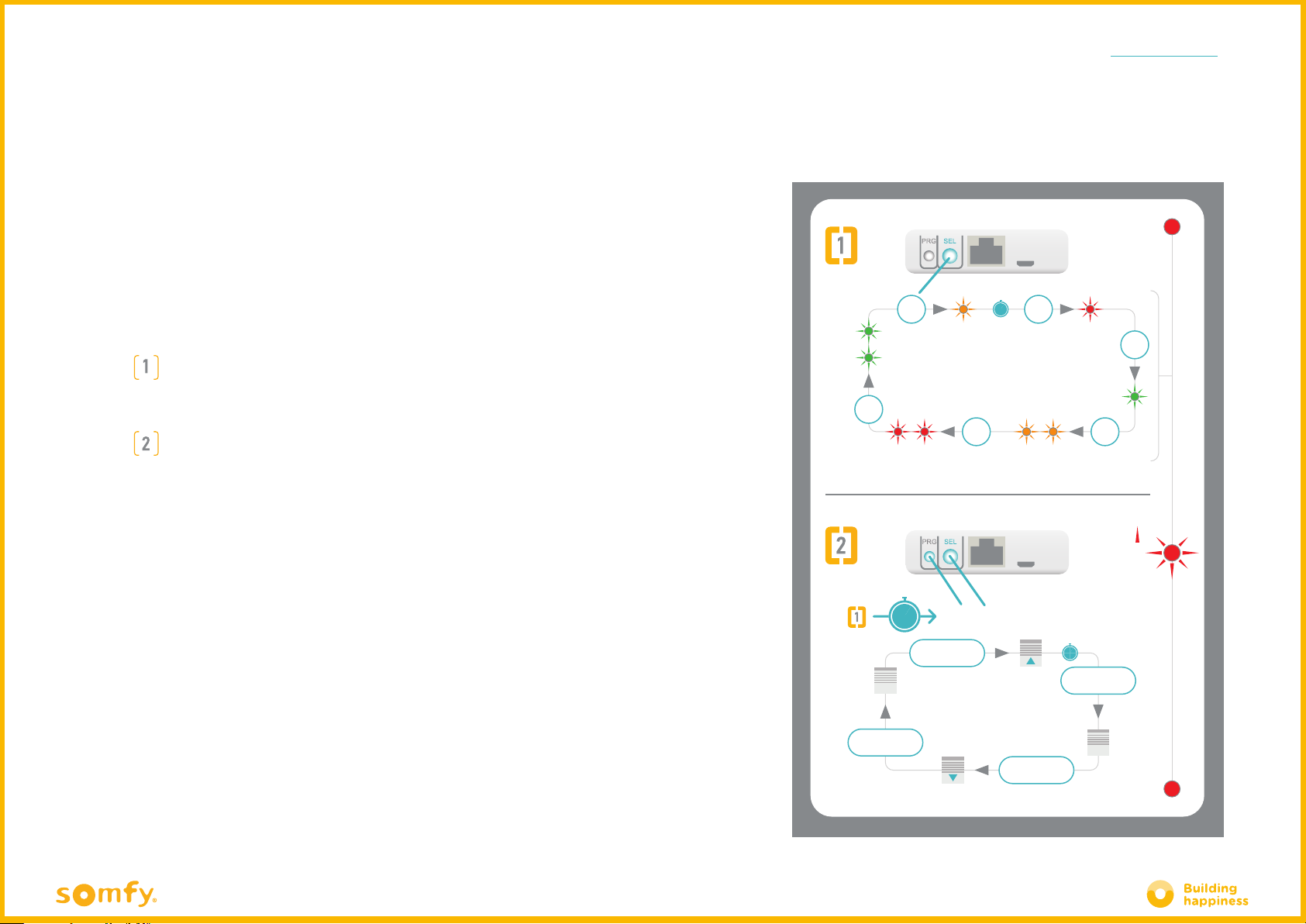

The LED indicator light shows the status of the unit,
as well as the actions in progress.

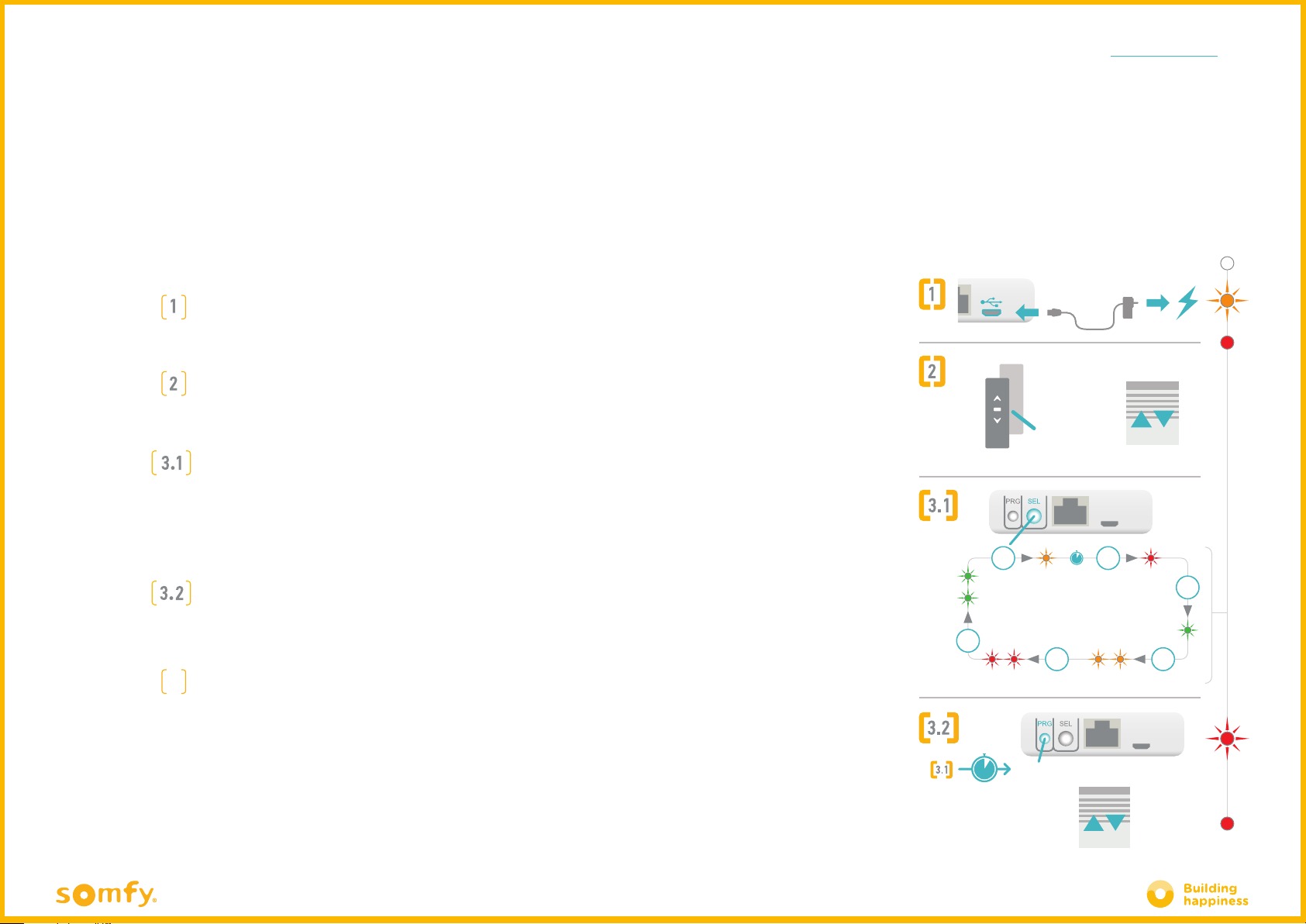

1. Start-up 2. Connection status
Internet connection
problem
Functional internet
connection
10 seconds13s
The SELECT button enables the channel
to be selected (6 available channels)

10/47
< Back to Contents
INSTALLATION
Customise
the registered
products
Enjoy!
Quickly registering
RTS products in
the Connexoon unit
(prog-prog)
Activate the
Connexoon unit.
Download the Connexoon
application
ABCD E

11/47
< Back to Contents
A. QUICKLY REGISTERING
RTS products in the Connexoon unit (prog-prog)
If your equipment to be connected is paired to a remote control without feedback
(Smoove, Keygo, Situo):
Pairing may be carried out without an internet connection and without having activated the account, using the following simplified procedure.
Switch on Connexoon
Press the equipment's individual control point Prog button
for 2 seconds
Select the channel on which you wish to register the
product (channel 1 to channel 6) by briefly pressing the
SEL button. The LED on the side of the unit indicates
which channel you are on.
Press the PROG (PRG) button on the Connexoon unit for
0.5 of a second.
Once the product has been saved it will then perform an
up and down movement.
Tip: to remove a product that has already been registered,
you just need to select the channel on which it has been
registered and follow the procedure (points 2 to 3.2)
described below.
4
CAUTION: Connexoon is not designed to control groups of products. It is
therefore strongly recommended to register a single product per channel.
Registering your products may be carried out without an internet connection and without
having activated the account, using the following simplified procedure.
PROG 0,5s
< 5s
@6
SEL
@5
SEL
@4
SEL
@3
SEL
SEL
@2
SEL
@1
< 5s
PROG 2s
LED

12/47
< Back to Contents
Select the channel on which you wish to carry out the
register test
Press the PROG and SEL buttons simultaneously for 0.5
of a second.
The registered product then performs a movement.
To stop this movement, press the PROG and SEL buttons
again briefly.
To make the movement in the reverse direction, press the
PROG and SEL buttons a third time, etc.
=> see cycle described opposite
To test that products have been correctly registered in your
Connexoon unit:
A. QUICKLY REGISTER
RTS products in the Connexoon unit (prog-prog)
PROG + SEL
STOP
PROG + SEL
PROG + SEL
PROG + SEL
STOP
< 5s
PROG + SELECT
< 5s
@6
SEL
@5
SEL
@4
SEL
@3
SEL
SEL
@2
SEL
@1
< 5s

13/47
< Back to Contents
B. ACTIVATING THE CONNEXOON UNIT

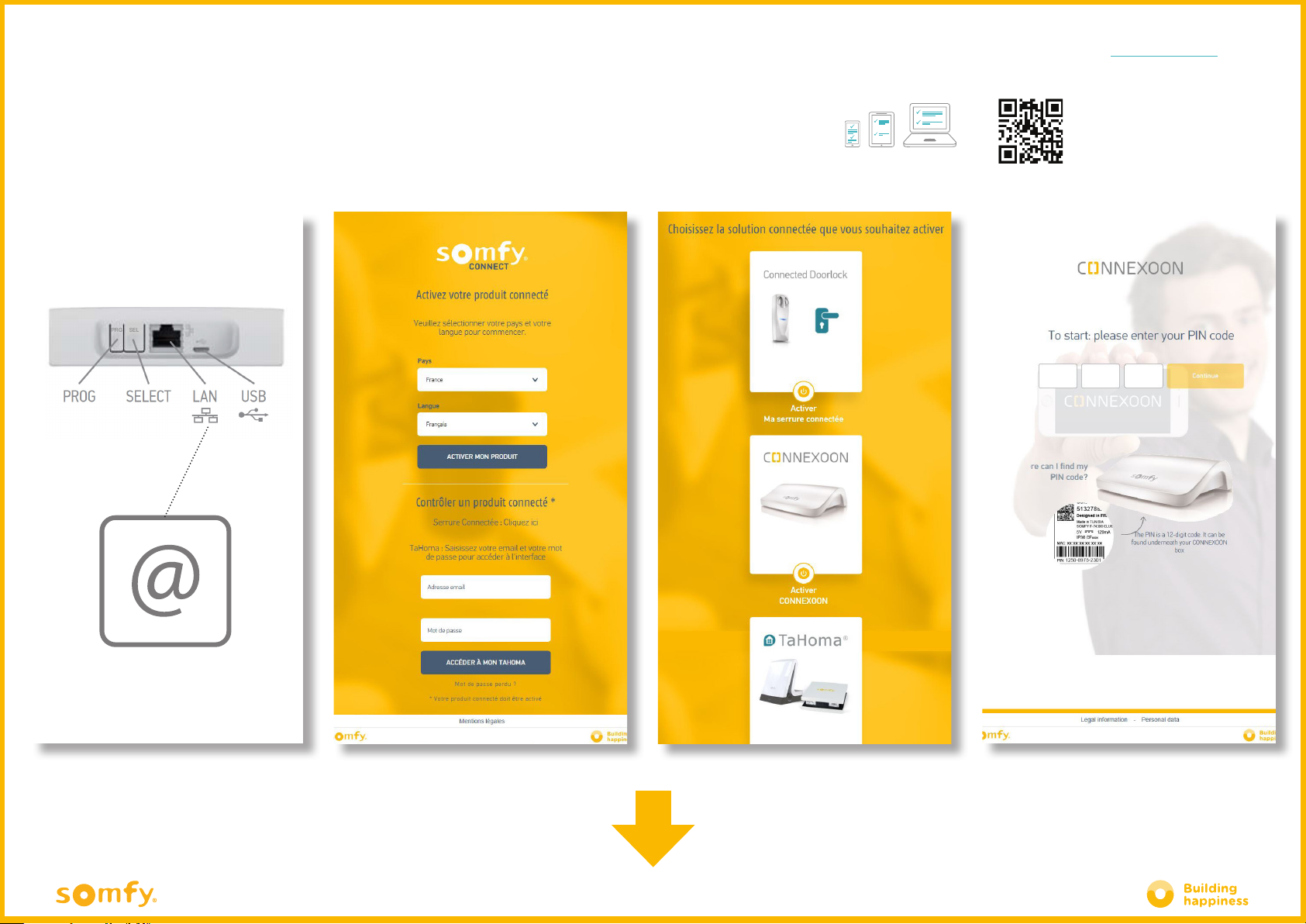

Connect to
somfy-connect.com
Enter your connection
information
Step 2
Choose your device
Step 3
Enter your PIN code
Step 4
www.somfy-connect.co m
Check that your Connexoon unit
and your internet box are correctly
connected, via the ethernet cable.
(Green LED
Step 1

14/47
< Back to Contents

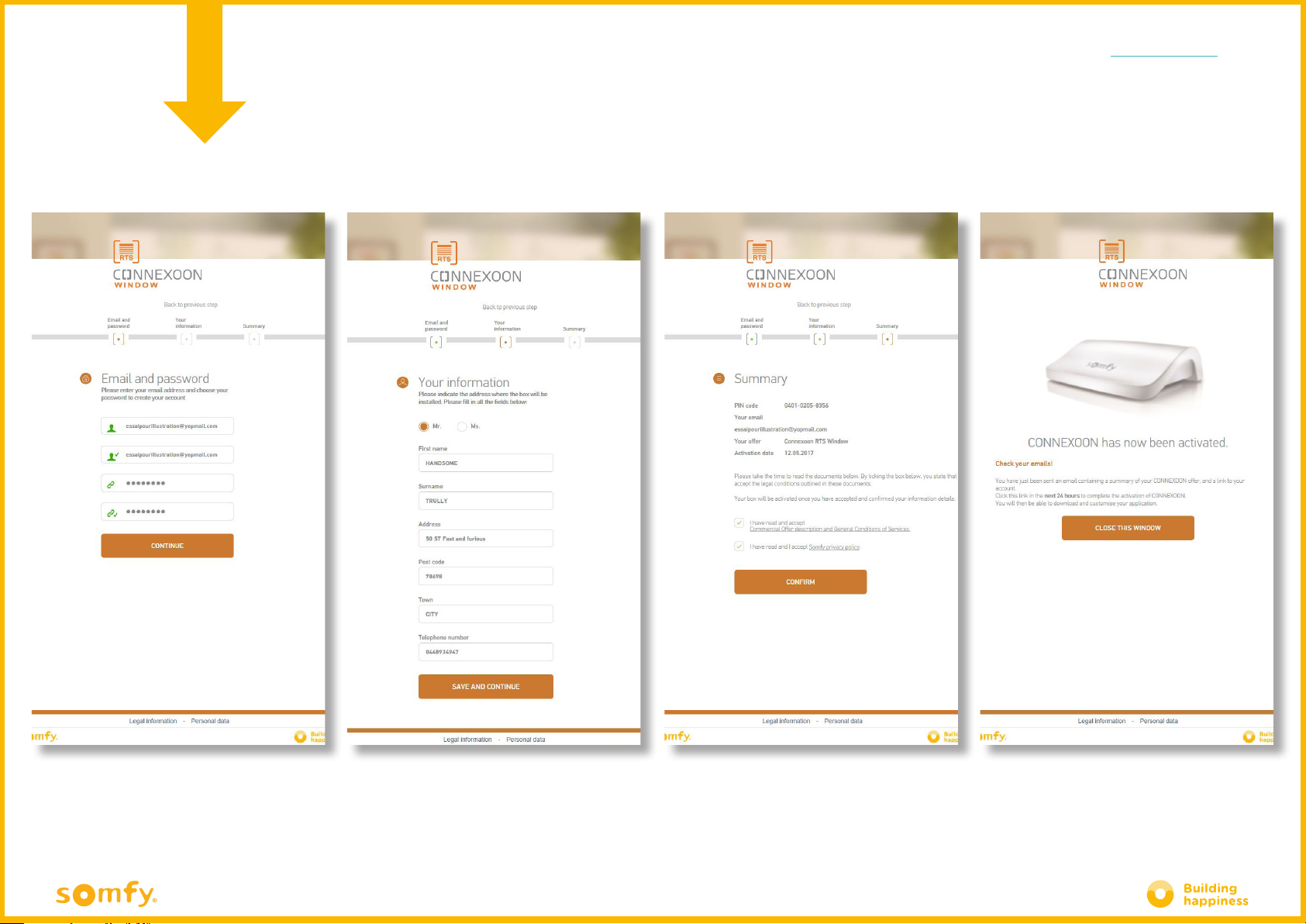

Enter your
personal information
Login and password Summary Confirmation
Connexoon Window activation steps
B. ACTIVATE THE CONNEXOON UNIT
Step 5 Step 6 Step 7 Step 8

15/47
< Back to Contents

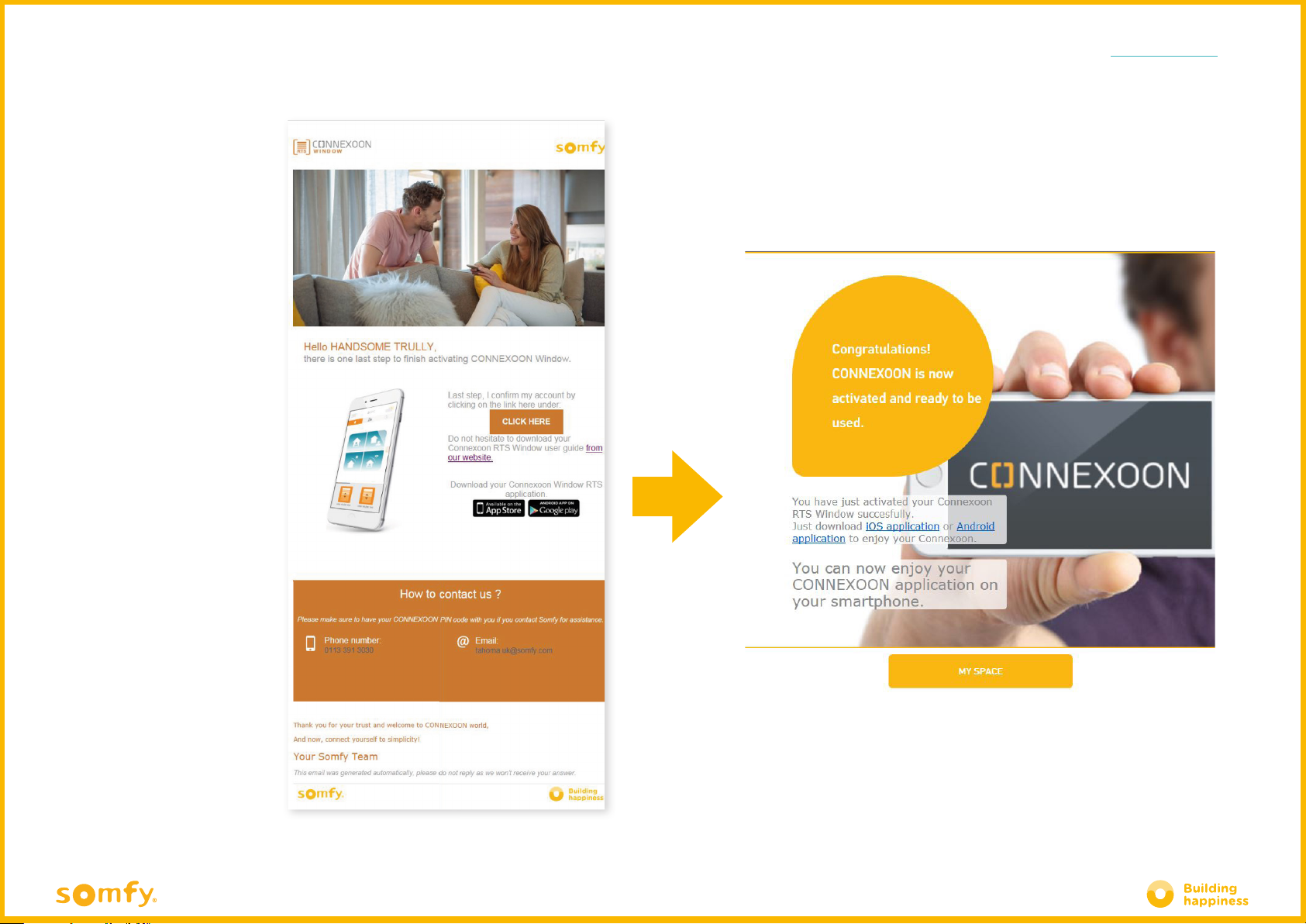

Receipt of the
confirmation email
Confirmation email
B. ACTIVATING THE CONNEXOON UNIT

16/47
< Back to Contents
Download the smartphone application
Connexoon Window available for IOS and Android.

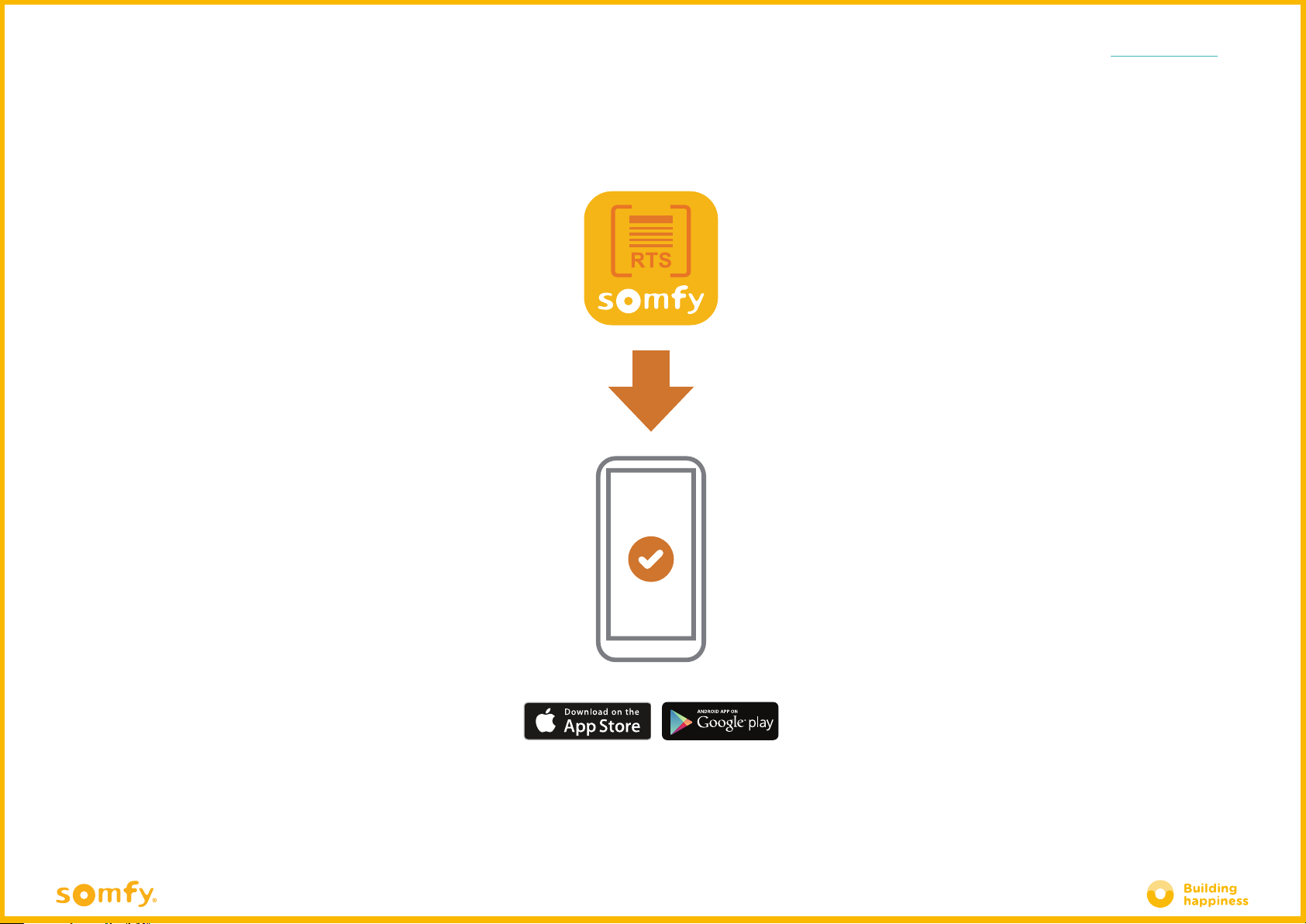

C. DOWNLOADING THE CONNEXOON
WINDOW RTS APPLICATION

17/47
< Back to Contents

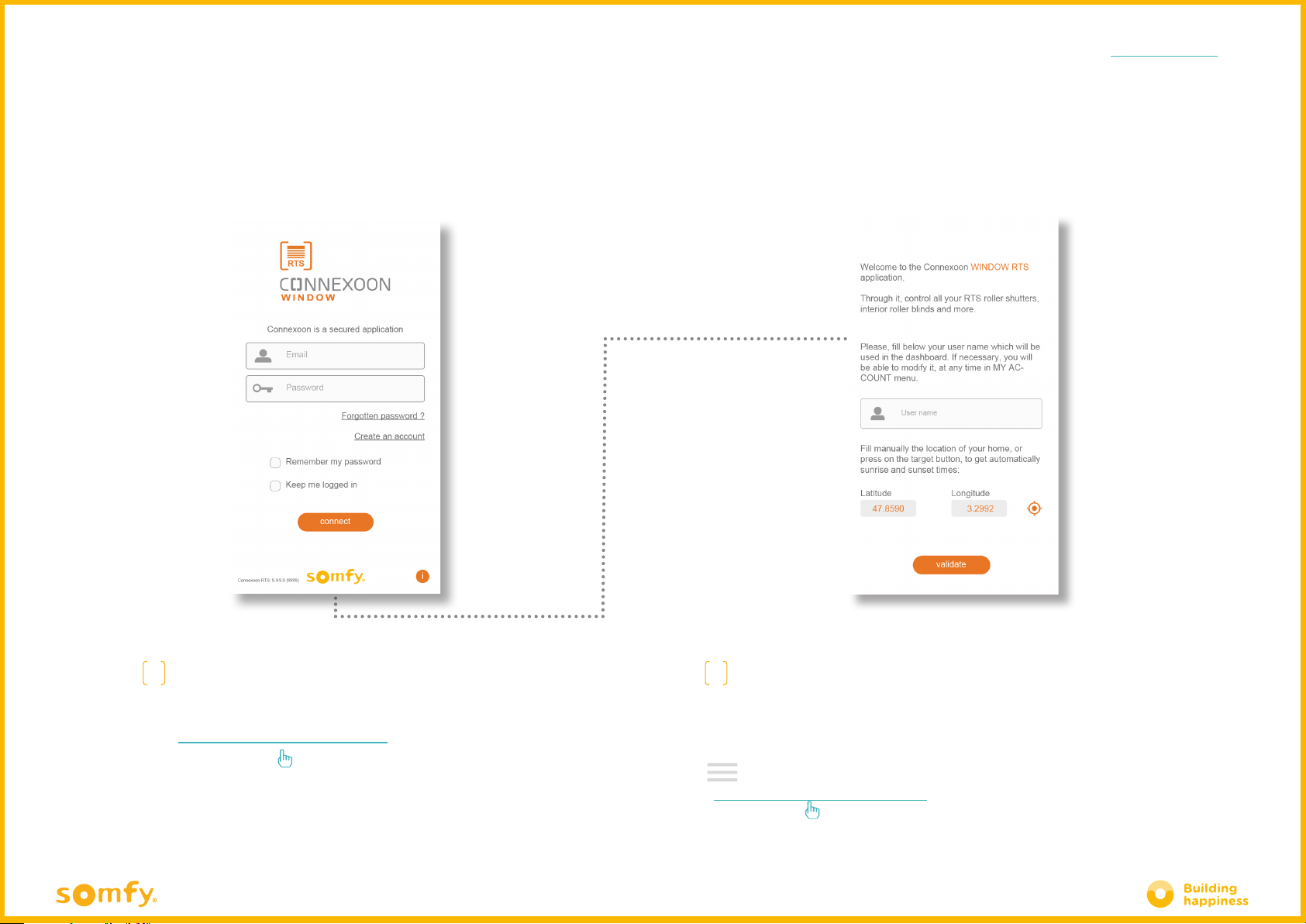

BDefine your identifier.
The identifier enables you to find out what actions have been performed
from your Smartphone.
You can change your identifier, at any time, in the "settings" tab in the
menu
( see page 36, my account menu )
AEnter the email address and password that you
have defined during activation of the RTS Connexoon
window unit
( see page 14, Activation screen )
C. DOWNLOADING THE RTS CONNEXOON WINDOW APPLICATION

18/47
< Back to Contents

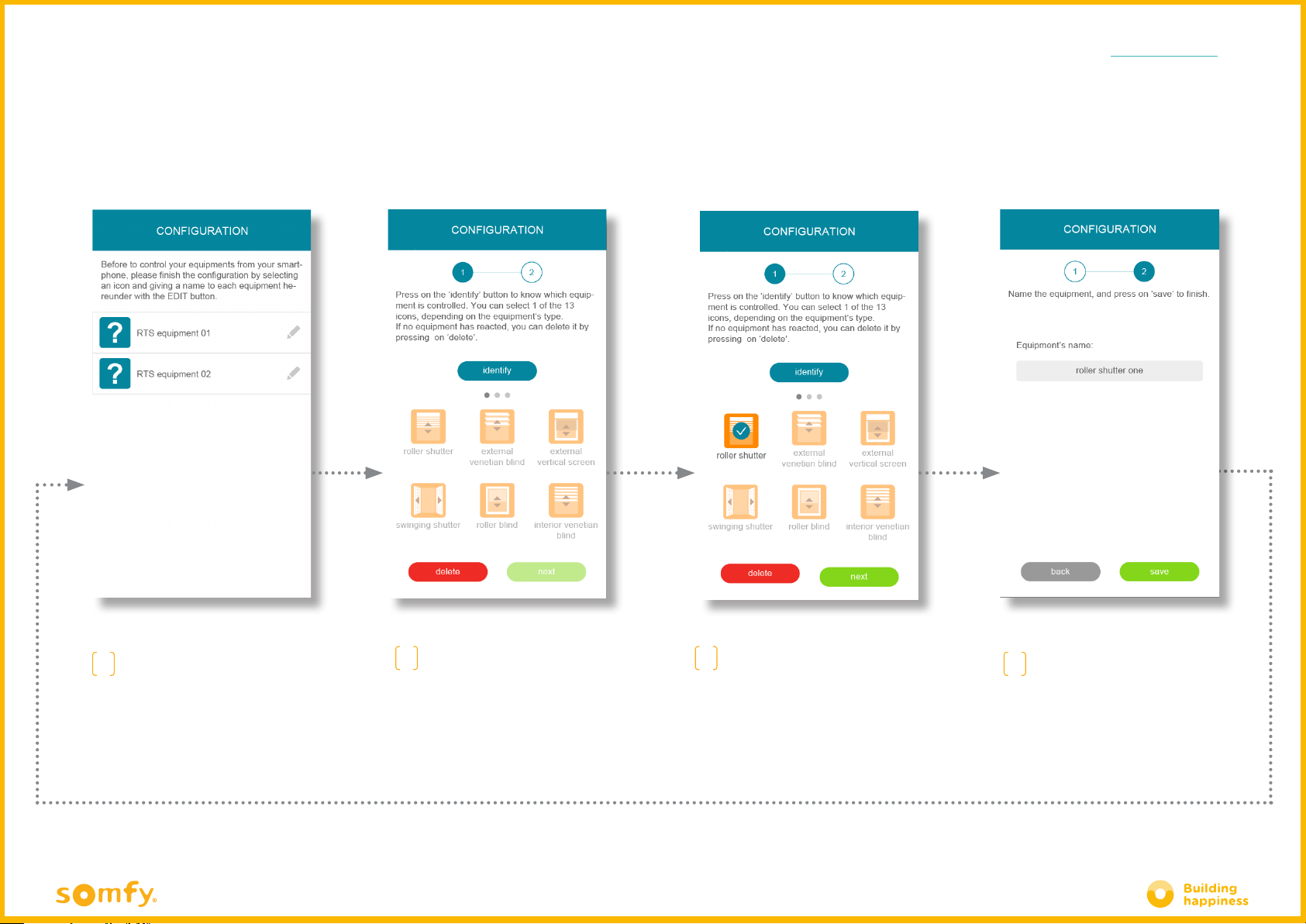

D. FIRST USE:
CUSTOMISING REGISTERED EQUIPMENT RAPIDLY VIA PROPROG
ATo complete your installation,
you need to customise the
registered equipment. Click on the
pencil positioned to the le of the
equipment to be customised.
B.1 Click "identifier" to display the
equipment concerned.
The equipment will then make an
up and down movement or flash
(lights).
CName your equipment in the
grey field, then press "save".
Do this again to customise all of your equipment
Select the icon for your
equipment from the 20 available
icons.
Click "next"
B.2

< Back to Contents
USE CONNEXOON WINDOW RTS
19/47

20/47

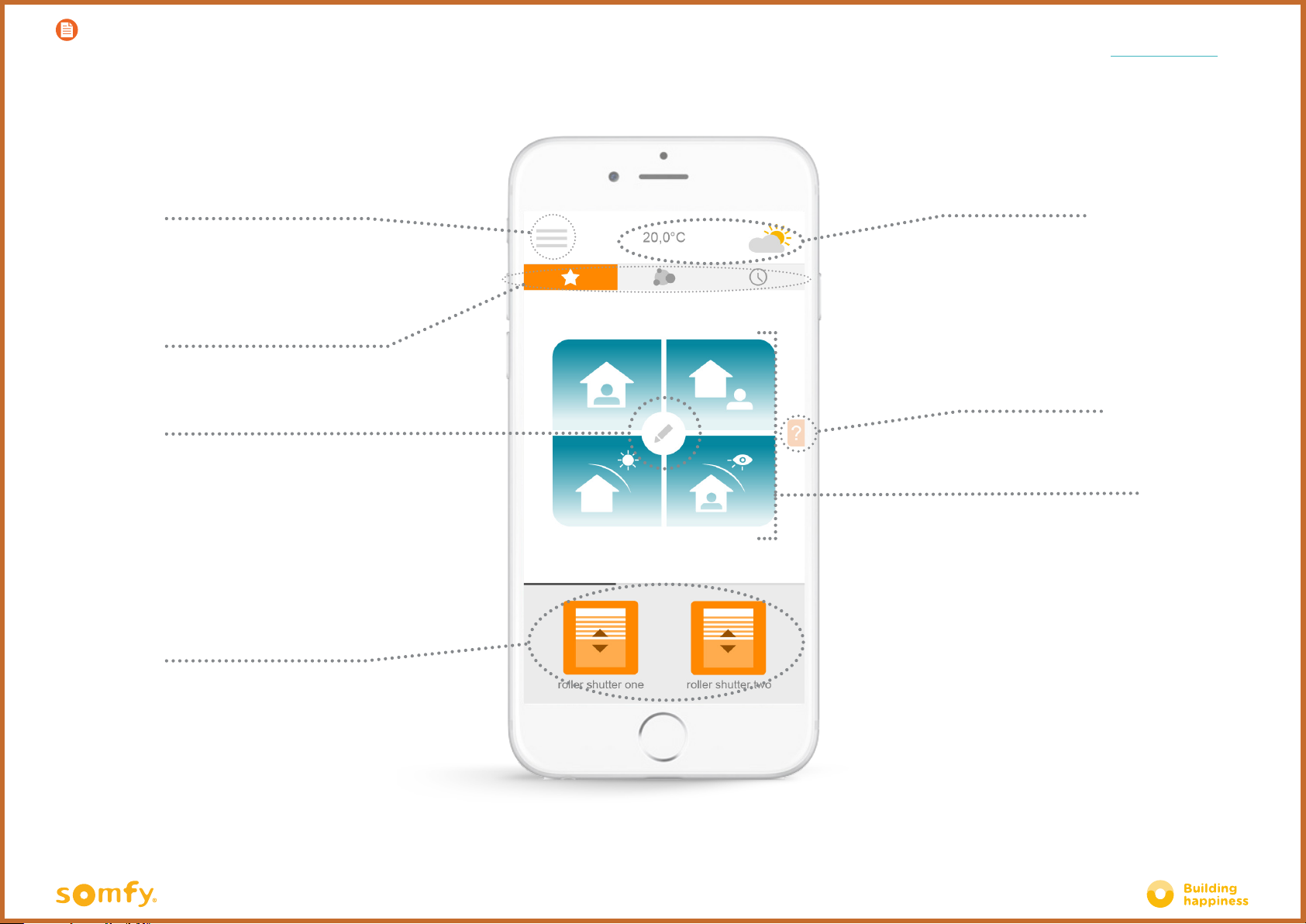

A. THE INTERFACE
Home page:
Modes
Scenarios
Prog. timer
Mode editor
Products registered
in Connexoon
Menu
Pre-set and customised modes
Weather
Need assistance?
Description
