ASYNCHRONOUS NETWORK I/F KIT
BKMA-7045
INSTALLATION MANUAL
1st Edition
Serial No. 10001 and Higher

BKMA-7045
!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.

1 (E)
BKMA-7045
Table of Contents
Manual Structure
Purpose of this manual ........................................................................................ 3 (E)
Related manuals................................................................................................... 3 (E)
Contents ............................................................................................................... 3 (E)
Trademark............................................................................................................ 3 (E)
1. Installation
1-1. Overview ...............................................................................................1-1 (E)
1-2. Board Installation ..................................................................................1-2 (E)
1-3. SCSI Setup ............................................................................................1-3 (E)
1-4. Names and Functions of Connectors/LED............................................1-4 (E)
1-5. Matching Connector and Cable.............................................................1-4 (E)
1-6. Installing the Software ..........................................................................1-4 (E)
2. Service Overview
2-1. Description of Internal Switches and Indicators ...................................2-1 (E)
2-1-1. IF-797 Board ........................................................................2-1 (E)
2-2. Specifications ........................................................................................2-4 (E)

3 (E)
BKMA-7045
Manual Structure
Purpose of this manual This manual is the installation manual of the BKMA-7045 Asynchronous Network
I/F Kit.
This manual is intended for use by trained system and service engineers, and
describes the information regarding installation.
Related manuals Besides this Installation Manual, the following manuals are available for the
BKMA-7045.
.MAV-70XGI/BKMA-7010/7020/7030/7040/7045/7050/7060/7070/PS70
Maintenance Manual Volume 1 (Available on request)
This manual describes the information that premise the service based on parts
replacement (diagnostics, parts replacement, electrical alignment, and circuit
descriptions, etc.).
If this manual is required, please contact your local Sony Sales Office/Service
Center.
.MAV-70XGI/BKMA-7010/7020/7030/7040/7045/7050/7060/7070/PS70
Maintenance Manual Volume 2 (Available on request)
This manual describes the information that premise the service based on parts
replacement (parts list, block diagrams, schematic diagrams, board layouts, etc.).
If this manual is required, please contact your local Sony Sales Office/Service
Center.
..
..
.“Semiconductor Pin Assignments” CD-ROM (Available on request)
This “Semiconductor Pin Assignments” CD-ROM allows you to search for
semiconductors used in Communication System Solutions Network Company
equipment.
Semiconductors that cannot be searched for on this CD-ROM are listed in the
maintenance manual for the corresponding unit. The maintenance manual contains
a complete list of all semiconductors and their ID Nos., and thus should be used
together with the CD-ROM.
Part number: 9-968-546-XX
Contents The following is a summary of all the section for understanding the contents of this
manual.
Section 1 Installation
Explains the overview of the BKMA-7045, how to install the BKMA-7045 to the
MAV-70XGI, and the connector and cable information for peripheral equipment
connections, etc.
Section 2 Service Overview
Explains the function and factory setting of the switches and LEDs on the board and
the specifications of the BKMA-7045.
Trademark Ethernet is a registered trademark of Xerox Corporation.

1-1 (E)
BKMA-7045
1-1. Overview
The BKMA-7045 asynchronous network I/F kit can be connected to the gigabit Ethernet by attaching the
MAV-70XGI.
n
The BKMA-7045 needs to be used with a gateway PC. For the PCs that can be connected, contact your
local Sony Sales Office/Service Center.
The BKMA-7045 consists of the following components.
.IF-797 board (1)
.Slot label (1)
.Installation guide (1)
.Installation manual (1)
.Install software package for gateway PC (CD-ROM) (1)
Section 1
Installation

1-2 (E) BKMA-7045
3. Insert the BKMA-7045 into the expansion slot, and
then push the board levers in the directions of arrow
1to connect the board to the mother board securely.
4. Secure the BKMA-7045 to the unit with the two
screws securing the blank panel.
5. Stick the label of the used expansion slot number
(supplied with the BKMA-7045).
n
When removing the board, push the board levers in the
direction of arrow 2, and pull out the board toward you.
1-2. Board Installation
General Information
.Attach the board to the MAV-70XGI expansion slot. The
board needs to be attached to a lower empty slot.
.Stick the slot label (supplied with the BKMA-7045) after
the board installation to prevent the incorrect insertion
when the board replacing.
.Do not open the slot to keep the air-cooled effect of
MAV-70XGI. Be sure to attach the blank panel to the
vacant slot.
.It is not necessary to adjust after board installation/
replacement.
Procedure
1. Turn off power switches A and B of the MAV-70XGI.
2. Remove the two screws of the expansion slot and
remove the blank panel.
n
Keep the removed blank panel.
MAV-70XGI (Rear side)
MAV-70XGI
Blank panel
BVTT3 x6
BVTT3 x6
BKMA-7045
Board lever Board lever
1
22
1
Install
Remove
BKMA-7045
Slot label
BVTT3 x 6
1-2. Board Installation

1-3 (E)
BKMA-7045
1-3. SCSI Setup
This section describes how to set the SCSI ID and SCSI termination on the MAV-70XGI menu.
Procedure
1. Open the “Service: Boards screen” menu. (Refer to the MAV-70XGI Operation Manual.)
2. Select “Select” using the and buttons and select the slot number into which the BKMA-7045
is inserted using the and buttons. Then press the [ENTER] button.
3. Select “SCSI ID” using the and buttons and select the SCSI ID using the and
buttons. Then press the [ENTER] button.
n
Perform a setting other than ones of other SCSI equipment connected to the same Gateway.
4. Select “TERMINATOR” using the and buttons and select either “ON” or “OFF” using the
and buttons. Then press the [ENTER] button.
n
Set “ON” only when either of two SCSI connectors is connected.
5. Select “Exit” using the and buttons and press the [ENTER] button.
1-3. SCSI Setup
>Select
-1- -2- -3- -4- -5- -6- *7*-8-
Rdy Rdy Non Non Rdy Rdy Rdy Rdy
Service : Boards Slot 7 SY MAIN
Exit
EXT232C
SCSI ID : [1]
: [OFF]
Service : Boards Slot 5 SCSI
> Exit
TERMINATOR

1-4 (E) BKMA-7045
BKMA-7045
SCSI
BUSY
I/F-BOARD
1 1 2

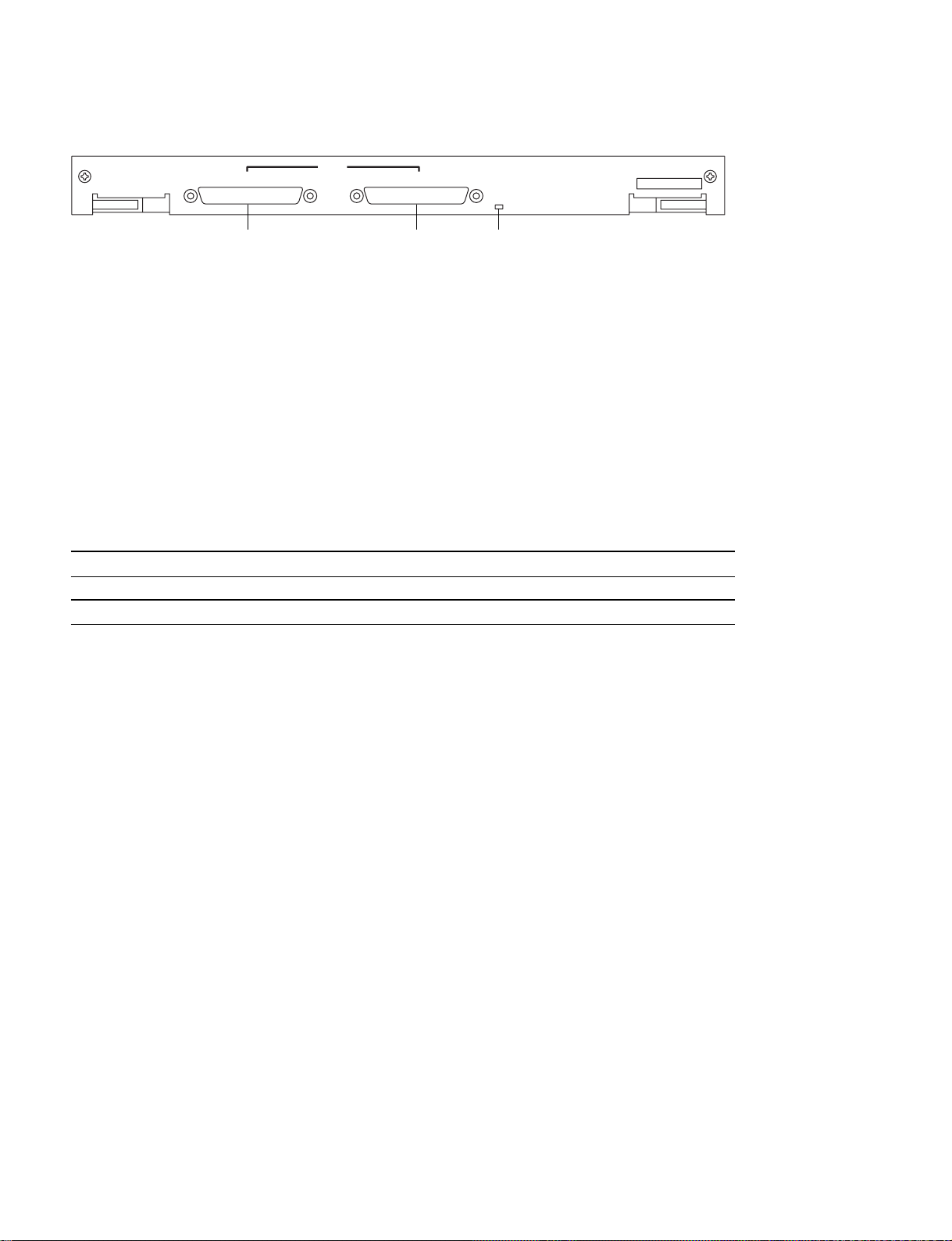

1-4. Names and Functions of Connectors/LED
1Gateway PC connection interface terminal : 68-pin wide SCSI connector
Dedicated interface for connecting a gateway PC and the MAV-70XGI
This is connected at the gateway PC and ULTRA2 (LVD) SCSI.
2Operation (busy) LED
SCSI busy LED
1-5. Matching Connector and Cable
When connecting cables to various connectors on the connector panel at the time of installing or servic-
ing, connect the following connector/cable or their equivalent.
BKMA-7045 Matching Connector/Cable
Panel Indication Connector/Cable Sony Part No.
SCSI Cable corresponding to ULTRA2 (LVD) SCSI 1-769-670-21
1-6. Installing the Software
Install the software in the CD-ROM supplied with the unit. (For the installing procedure, refer to the
“Readme” file in the CD-ROM.)
1-4. Names and Functions of Connectors/LED
1-5. Matching Connector and Cable
1-6. Installing the Software

2-1 (E)
BKMA-7045
2-1. Description of Internal Switches and Indicators
2-1-1. IF-797 Board
Switches
n
Do not change the setting of the switches described as “Factory use only”.
Ref. No. Address Function Factory Setting
S401 (D-7) Factory use
S402 (D-6) Factory use
S403 (C-7) Factory use
S404 (B-7) Factory use
Section 2
Service Overview
1
A
B
C
D
E
F
234567
S409
S408
ND401
S403
S1001
D1004
D1005
D1006
D1007
D1001
S407
S406
S405
S501
S401 S402
S404
D406
D405
D404
D204 D203 D202 D201
D301
D302
D303
D304
D305
D306
D307
D308
A side (Component side)
ON
1234
ON
12345678
ON
12345678
ON
12345678

2-2 (E) BKMA-7045
Ref. No. Address Function Factory Setting
S405 (F-7) Factory use _
S406 (F-7) Factory use _
S407 (F-7) Factory use _
S408 (B-6) Factory use
S409 (B-6) Factory use
S501 (C-7) S501-1, 2 : Program boot area selection
12
OFF OFF : Searches and boots in
the order of flash
bank1 →2 →0.
(auto selection)
ON OFF : Boots flash bank1.
(fixed selection)
If the data of the selected
area is damaged,
performs the code on
flash bank0.
OFF ON : Boots flash bank2.
(fixed selection)
If the data of the selected
area is damaged,
performs the code on
flash bank0.
ON ON : Performs the code on
flash bank0.
(fixed selection)
S501-3 to 8 : Factory use
S1001 (E-4) Factory use
[EXT] [INT]
ON
12
ON
12345678
[EXT] [INT]
2-1. Description of Internal Switches and Indicators

2-3 (E)
BKMA-7045
LEDs
Ref. No. Address Color Name Function Normal State
D201 (A-4) Green Power supply indicator Lights up when a voltage of +3.3 V is Lights up
supplied to the board.
D202 (A-4) Green Power supply indicator Lights up when a voltage of +5.0 V is Lights up
supplied to the board.
D203 (A-4) Green Power supply indicator Lights up when a voltage of +15 V is Lights up
supplied to the board.
D204 (A-4) Green Power supply indicator Lights up when a voltage of _15 V is Lights up
supplied to the board.
D301 (C-2) Orange AGZPLD indicator Lights up while IC301 is being reset. _
D302 (C-2) Orange AGZPLD indicator Lights up while IC101 is being reset. _
D303 (C-2) Orange AGZPLD indicator Lights up when IC502 requires IC301 _
to be reset.
D304 (C-2) Orange AGZPLD indicator Lights up while the CPU is executing _
the CPU I/F access of IC101.
D305 (C-2) Orange AGZPLD indicator Lights up while the CPU is executing _
the CPU I/F access of IC301.
D306 (C-2) Orange AGZPLD indicator Lights up while the CPU is executing _
the SDRAM access of IC101.
D307 (C-2) Orange AGZPLD indicator Lights up when IC301 requires IC101 _
to perform data transfer.
D308 (C-2) Orange AGZPLD indicator Lights up when IC101 responds to _
the data transfer request of IC301.
D405 (F-6) Red POR indicator Lights up when power-on reset is in Lights off
progress.
D406 (F-6) Red HRESET indicator Lights up when manual reset is in Lights off
progress.
D407 (F-6) Red NMI indicator Lights up when non-maskable Lights off
interrupt is in progress.
D1001 (F-3) Orange ACTIVITY indicator Lights up when data is sent or _
received on the SCSI bus.
D1004 (F-3) Red TERMINATOR indicator Lights up when fuse for terminator Lights off
power supply protection (F1001)
shuts off.
D1005 (F-3) Orange HVD indicator Lights up when the SCSI bus in the _
HVD mode
D1006 (F-3) Orange LVD indicator Lights up when the SCSI bus in the _
LVD mode
D1007 (F-3) Orange SE indicator Lights up when the SCSI bus in the _
SE mode
ND401 (B-6) Red 7SEG indicator Displays the operating state of _
the board by 2-digit number
2-1. Description of Internal Switches and Indicators

2-4 (E) BKMA-7045
2-2. Specifications
General
Operating temperature 5 dC to 40 dC
(41 dF to 104 dF)
Storage temperature _20 dC to +60 dC
(_4 dF to 140 dF)
Operating humidity 10% to 90% (without condensation)
Dimensions 311 x273 x27 mm (w/d/h)
(12 1/4x 10 3/4x 1 1/16 inches)
Mass approx. 800 g
(1 lb 12 oz)
Power requirements +5 V DC : 0.2 A
+3.3 V DC : 2.5 A
(supplied from the MAV-70XGI)
Power consumption 9.3 W
Input/Output
Gateway PC connection interface terminals (68-pin wide SCSI connector ) : 2
ULTRA2 (LVD) SCSI signal
80 Mbyte/s
Design and specifications are subject to change without notice.
2-2. Specifications

BKMA-7045
The material contained in this manual consists of
information that is the property of Sony Corporation.
Sony Corporation expressly prohibits the duplication of
any portion of this manual or the use thereof for any
purpose other than the operation or maintenance of the
equipment described in this manual without the express
written permission of Sony Corporation.
Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation.
Sony Corporation interdit formellement la copie de
quelque partie que ce soit de ce manuel ou son emploi
pour tout autre but que des opérations ou entretiens de
l’équipement à moins d’une permission écrite de Sony
Corporation.
Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind.
Die Sony Corporation untersagt ausdrücklich die
Vervielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck als
die Bedienung oder Wartung der in dieser Anleitung
beschriebenen Ausrüstung ohne ausdrückliche
schriftliche Erlaubnis der Sony Corporation.

Printed in Japan
Sony Corporation 2000. 7 16
Communication System Solutions Network Company ©2000
BKMA-7045 (SY) J, E
3-204-893-01
