Purpose of this manual This manual is the installation manual of the BKMA-7030 MPEG Decoder Board
and the BKMA-7060 D/A Converter Board.
This manual is intended for use by trained system and service engineers, and
describes the information regarding installation.
Related manuals Besides this Installation Manual, the following manuals are available for the
BKMA-7030/7060.
.MAV-70XGI/BKMA-7010/7020/7030/7040/7045/7050/7060/7070/PS70
Maintenance Manual Volume 1 (Available on request)
This manual describes the information that premise the service based on parts
replacement (diagnostics, parts replacement, electrical alignment, and circuit
descriptions, etc.).
If this manual is required, please contact your local Sony Sales Office/Service
Center.
.MAV-70XGI/BKMA-7010/7020/7030/7040/7045/7050/7060/7070/PS70
Maintenance Manual Volume 2 (Available on request)
This manual describes the information that premise the service based on parts
replacement (parts list, block diagrams, schematic diagrams, board layouts, etc.).
If this manual is required, please contact your local Sony Sales Office/Service
Center.
Contents The following is a summary of all the section for understanding the contents of this
manual.
Section 1 Installation
Explains the overview of the BKMA-7030/7060, how to install the BKMA-7030/
7060 to the MAV-70XGI, and the connector and cable information for peripheral
equipment connections, etc.
Section 2 Service Overview
Explains the function and factory setting of the switches and LEDs on the board and
the specifications of the BKMA-7030/7060.

1-1 (E)
BKMA-7030/7060
1-1. Overview
1-1-1. BKMA-7030
The BKMA-7030 MPEG Decoder Board inputs the playback data from the hard disk of MAV-70XGI and
decodes its data to the video/audio signals.
For video, the video signals are decoded with MPEG2 MP@ML or 4:2:2P@ML compressed video
format, and the two-channels SDI video signals and two-channels analog composite video signals (when
the BKMA-7060 is used) are output.
For audio, the audio signals are decoded into four-channels MPEG1 Layer 2 or Linear PCM compressed
audio format, and the SDI embedded audio signal, AES/EBU audio signal, and analog audio signal (when
the BKMA-7060 is used) are output.
The BKMA-7030 consists of the following components.
.DEC-98A board (1)
.Slot label (1)
.Installation guide (1)
.Installation manual (1)
1-1-2. BKMA-7060
The BKMA-7060 D/A Converter Board is mounted on the BKMA-7030 MPEG Decoder Board.
When this board is mounted, the analog composite video signal and two-channels analog audio signals
can be output from the BKMA-7030.
The BKMA-7060 consists of the following components.
.DA-134 board (1)
.Installation guide (1)
.Screws (4)
Section 1
Installation

1-2 (E) BKMA-7030/7060
1-2. Board Installation
General information
.The BKMA-7030 can be inserted into any slot exept slot
No.6 of MAV-70XGI.
.Stick the slot label supplied with the BKMA-7030 onto
the connector panel after the board installation to prevent
the incorrect insertion when the board replacing.
.Do not open the slot to keep the air-cooled effect of
MAV-70XGI. Be sure to attach the blank panel to
vacant slot.
.It is not necessary to adjust after board installation/
replacement.
Procedures
1. Install the BKMA-7060 (DA-143 board) to the
BKMA-7030 (DEC-98A board) by the four screws
supplied with the BKMA-7060.
n
Perform this procedure when the BKMA-7060 is used.
2. Turn off the power switches A and B of the MAV-
70XGI.
3. Remove the two screws, and remove the blank panel
of any slot.
n
Keep the removed blank panel.
1-2. Board Installation
PSW3 x 6
PSW3 x 6
BKMA-7060
BKMA-7030
MAV-70XGI
BVTT3 x6
BVTT3 x6
Blank panel
MAV-70XGI (Rear side)
Slot No.6

1-3 (E)
BKMA-7030/7060

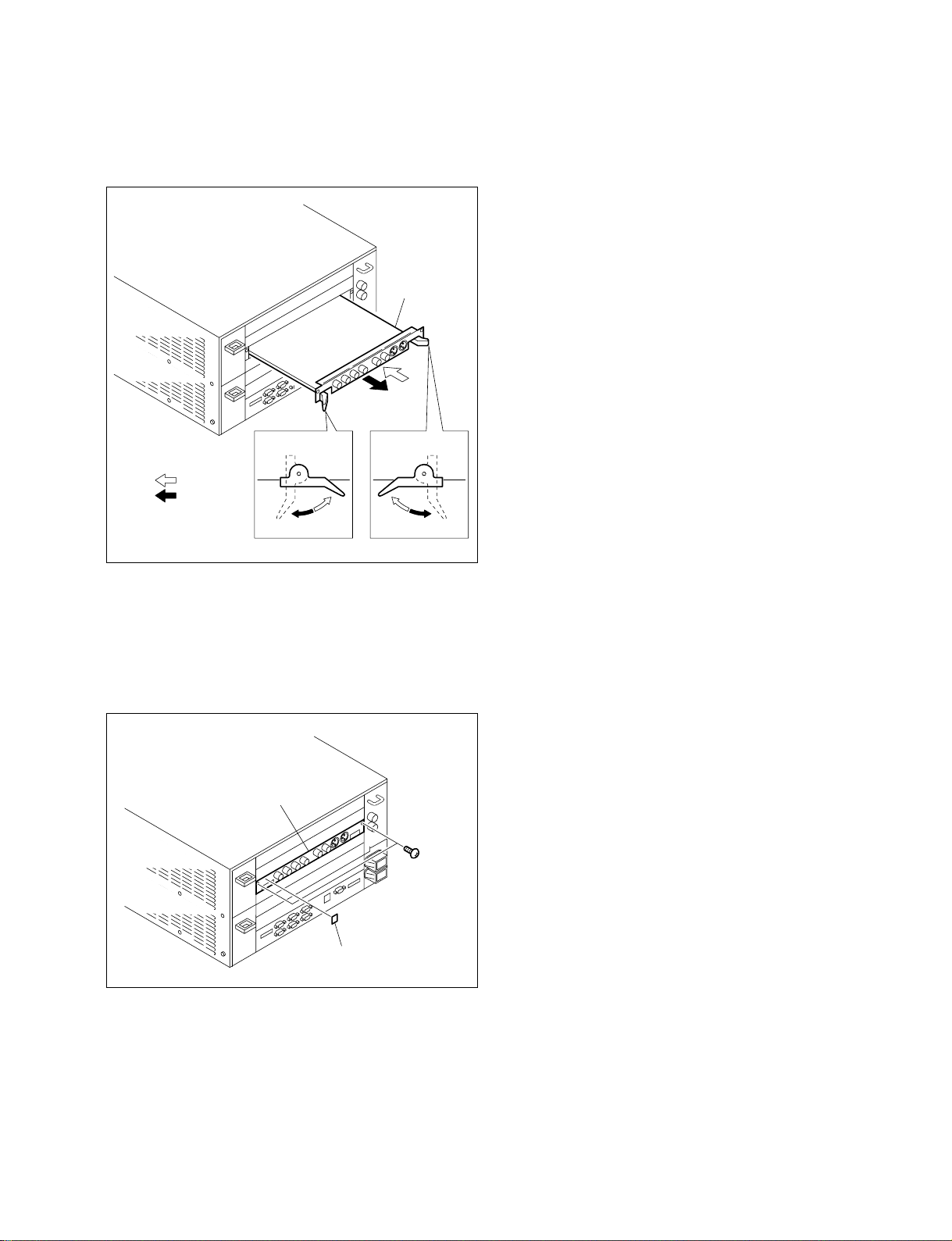

4. Insert the BKMA-7030 into the slot, and turn the board
levers in the direction of the arrow 1to connect the
board to the mother board securely.
5. Secure the BKMA-7030 with the two screws securing
the blank panel.
6. Stick the slot label supplied with the BKMA-7030
onto the connector panel.
The label’s number is the same as the slot number
which the board has inserted.
n
When removing the BKMA-7030, turn the board levers in
the direction of the arrow 2, and pull out the board
toward you.
1-2. Board Installation
Board lever Board lever
Install
Remove 1
22
1
BKMA-7030
Board lever Board lever
BKMA-7030
BVTT3 x 6
Slot label

1-4 (E) BKMA-7030/7060
1-3. Functions of Connectors

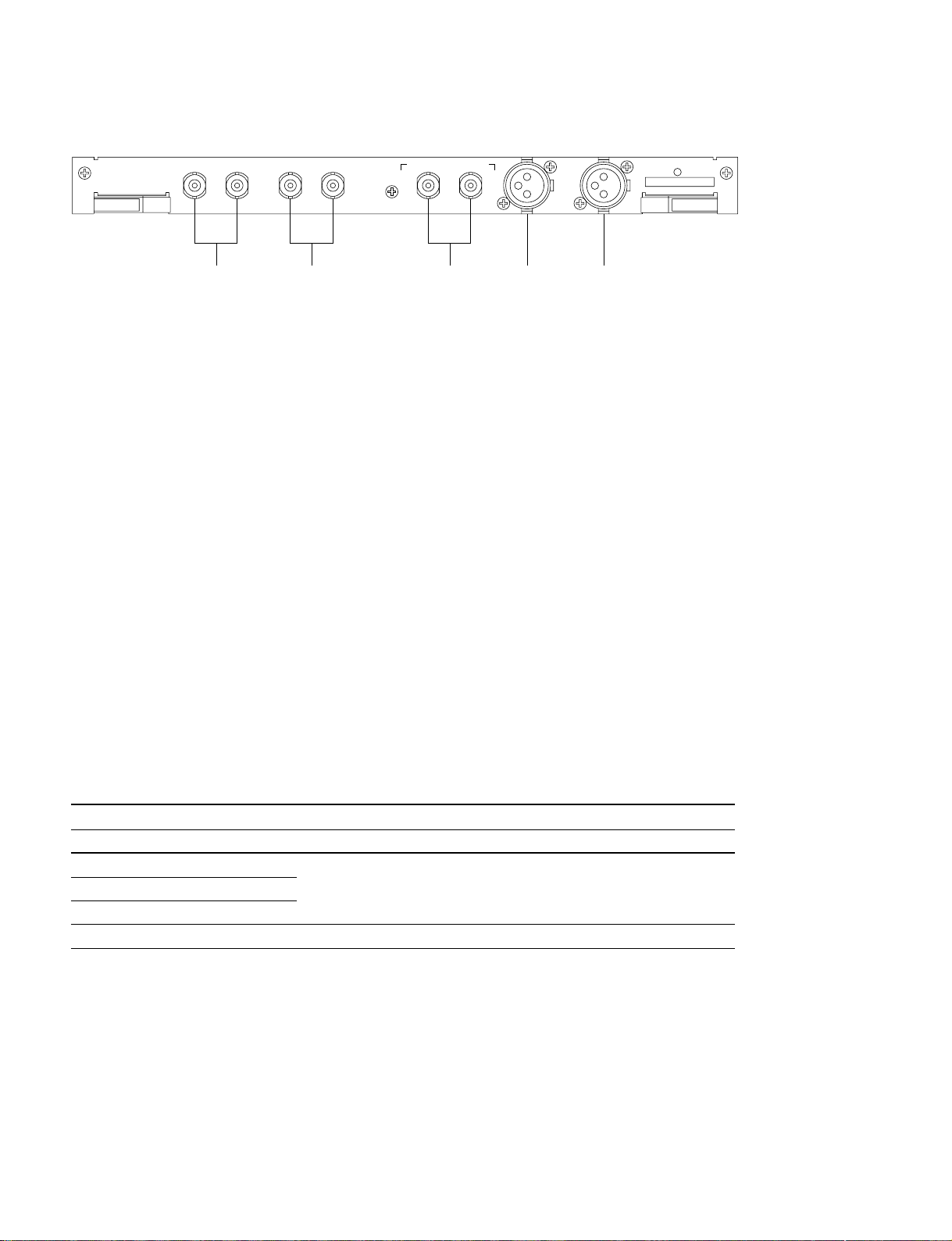

1SERIAL V/A OUTPUT (serial digital video/audio output) 1, 2 connectors : BNC type
Provides the serial digital interface signal (SDI).
The same signals are provided from 1 and 2 connectors.
2VIDEO OUTPUT (analog composite video output) 1, 2 connectors : BNC type
Provides the analog composite video signal when the BKMA-7060 is used.
The same signals are provided from 1 and 2 connectors.
3AUDIO OUTPUT AES/EBU (serial digital audio output) 1/2, 3/4 connectors : BNC type
Provides the serial digital audio signal (AES/EBU) CH-1/2 and CH-3/4.
4AUDIO OUTPUT (analog audio output) 1 connector : XLR type
Provides the analog audio signal CH-1 or CH-3 when the BKMA-7060 is used.
5AUDIO OUTPUT (analog audio output) 2 connector : XLR type
Provides the analog audio signal CH-2 or CH-4 when the BKMA-7060 is used.
1-4. Matching Connectors and Cables
When connecting cables to various connectors on the connector panel at the time of installing or servic-
ing, connect the following connectors/cable or their equivalent.
BKMA-7030 Matching Connector/Cable
Panel Indication Connector Connector/Cable Sony Part No.
SERIAL V/A OUTPUT 1, 2 BNC 75 Z, female BNC 75 Z, male 1-569-370-12
VIDEO OUTPUT 1, 2
AUDIO OUTPUT AES/EBU 1/2, 3/4 5C-2V coaxial cable*1––––––
AUDIO OUTPUT 1, 2 XLR 3-pin, male XLR 3-pin, female 1-508-083-11*2
*1 : 5C-2V coaxial cable (Max. 200 m) of Fujikura America Inc./Fujikura Europe Ltd. (FEL) or the equivalent
*2 : ITT Cannon XLR-3-11C or the equivalent
1-3. Functions of Connectors
1-4. Matching Connectors and Cables
BKMA-7030
SERIAL V/A OUTPUT VIDEO OUTPUT AUDIO OUTPUT AES/EBU
AUDIO
OUTPUT
1212 1/23/4
12
DECODER
12 34 5

2-1 (E)
BKMA-7030/7060
2-1. Description of Internal Switches and Indicator

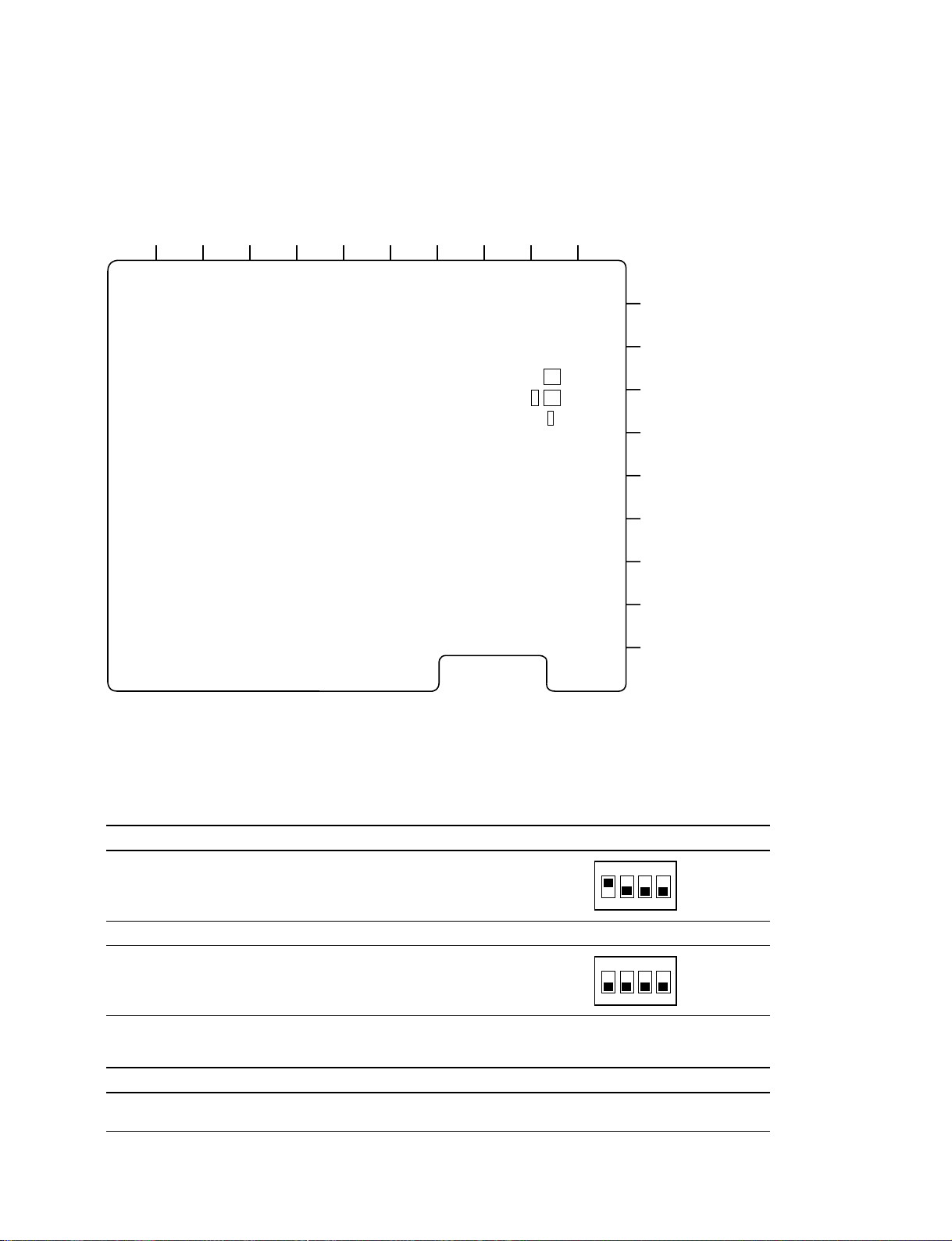

2-1-1. DEC-98A Board (BKMA-7030)
Switches
n
Do not change the setting of the switches described as “Factory use only”.
Ref. No. Address Name Function Factory Setting
S1101 (C-2) 232C mode select switch Factory use only
S1102 (D-2) Reset switch Initializes board ––––––
S1103 (D-2) Mode select switch Factory use only
LED
Ref. No. Address Color Name Function Normal State
D1101 (D-2) Green CPU RUN indicator Indicates that Lights up
CPU runs normally.
Section 2
Service Overview
A
B
C
D
E
F
G
H
J
K
S1103
D1101
S1102
S1101
1234567891011
A side (Component side)
1
ON
2 3 4
1
ON
2 3 4

2-2 (E) BKMA-7030/7060
2-1-2. DA-134 Board (BKMA-7060)
Switches
Ref. No. Address Name Function Factory Setting
S301 (E-3) CH-2 head room select Selects the head room of 20 dB
switch audio input CH-2
(Selects from 20, 18, 16 dB)
S302 (E-5) CH-1 head room select Selects the head room of 20 dB
switch audio input CH-1
(Selects from 20, 18, 16 dB)
S303 (E-1) CH-2 level select switch Selects the standard level of +4 dBm
audio input CH-2
(Selects from +4, 0, _3, _20 dBm)
S304 (E-3) CH-1 level select switch Selects the standard level of +4 dBm
audio input CH-1
(Selects from +4, 0, _3, _20 dBm)
2-1. Description of Internal Switches and Indicator
S303S304S302 S301
E
D
F
G
67854321
A side (Component side)

2-3 (E)
BKMA-7030/7060
2-2. Specifications
BKMA-7030
General
Operating temperature 5 dC to 40 dC
(41 dF to 104 dF)
Storage temperature _20 dC to +60 dC
(_4 dF to 140 dF)
Operating humidity 10% to 90% (without condensation)
Dimensions 311 x273 x27 mm (w/d/h)
(12 1/4x10 3/4x1 1/16 inches)
Mass approx. 1.0 kg
(2 lb 3 oz)
Power requirements +3.3 V DC : 2.75 A
+5 V DC : 2.1 A
+8 V DC : 0 A
_8 V DC : 0 A
+15 V DC : 0 A
_15 V DC : 0 A
(supplied from the MAV-70XGI)
Power consumption 19.6 W
Outputs
Serial digital video/audio (SDI) output
SERIAL V/A OUTPUT 1, 2 connector (BNC type) : 2
270 Mbps, 75 Z
Analog composite video output
VIDEO OUTPUT 1, 2 connector (BNC type) : 2
1.0 Vp-p, 75 Z sync negative
Serial digital audio (AES/EBU) output
AUDIO OUTPUT AES/EBU 1/2, 3/4 connector
(BNC type) : 2
AES/EBU format stereo mode
75 Z
Analog audio output
AUDIO OUTPUT 1, 2 connector (XLR type) : 2
Max. +24 dBm/600 Z(standard +4 dBm/600 Z)
BKMA-7060
General
Operating temperature 5 dC to 40dC
(41 dF to 104 dF)
Storage temperature _20 dC to +60 dC
(_4 dF to 140 dF)
Operating humidity 10% to 90% (without condensation)
Dimensions 239 x135 x15 mm (w/d/h)
(9 7/16 x5 5/16 x5/8inches)
Mass approx. 0.4 kg
(14 oz)
Power requirements +3.3 V DC : 0 A
+5 V DC : 0.5 A
+8 V DC : 0.2 A
_8 V DC : 0.2 A
+15 V DC : 0.2 A
_15 V DC : 0.2 A
(supplied from the BKMA-7030)
Power consumption 11.7 W
Design and specifications are subject to change without
notice.
2-2. Specifications

BKMA-7030/7060
The material contained in this manual consists of
information that is the property of Sony Corporation and
is intended solely for use by the purchasers of the
equipment described in this manual.
Sony Corporation expressly prohibits the duplication of
any portion of this manual or the use thereof for any
purpose other than the operation or maintenance of the
equipment described in this manual without the express
written permission of Sony Corporation.
Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation et
sont destinées exclusivement à l’usage des acquéreurs
de l’équipement décrit dans ce manuel.
Sony Corporation interdit formellement la copie de
quelque partie que ce soit de ce manuel ou son emploi
pour tout autre but que des opérations ou entretiens de
l’équipement à moins d’une permission écrite de Sony
Corporation.
Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind,
und ausschließlich zum Gebrauch durch den Käufer der
in dieser Anleitung beschriebenen Ausrüstung bestimmt
sind.
Die Sony Corporation untersagt ausdrücklich die
Vervielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck als
die Bedienung oder Wartung der in dieser Anleitung
beschriebenen Ausrüstung ohne ausdrückliche
schriftliche Erlaubnis der Sony Corporation.

Printed in Japan
Sony Corporation 2000. 8 16
Communication System Solutions Network Company ©2000
BKMA-7030 (SY)
BKMA-7060 (SY) J, E
3-200-849-11
