Specialized SPEEDZONE SPORT CYCLOCOMPUTER User manual

1
SPEEDZONE SPORT CYCLOCOMPUTER
Congratulations on your purchase! You are now the owner of the world’s
finest cyclocomputer. Your Specialized®SpeedZone®Sport features a revolution-
ary new display screen that allows you to view five functions simultaneously.
Additionally, it has been designed to provide the best combination of
performance, features, durability and ease of use.

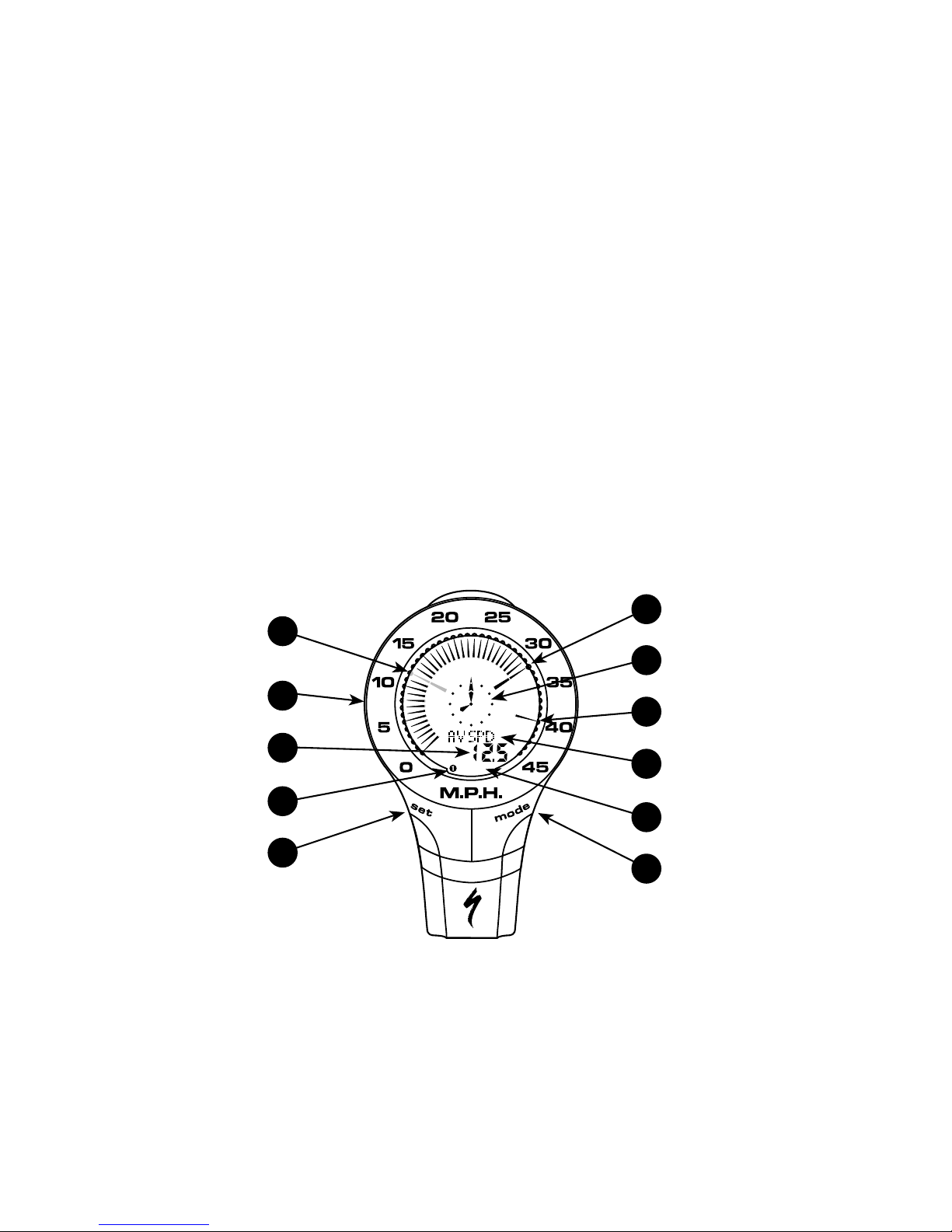

This illustration describes the screen display and buttons:
Km/h
Average Speed Needle
(Flashing)
Speed Indication Bezel
Digital Display Area
Wheel Indicator
SET Button
Current Speed Needle
Analog Clock
Maximum Speed Needle
Dot-Matrix Display Area
MPH or KM/H Indicator
MODE Button
11
8
5
6
2
9
3
10
4
7
1

The following functions are
available on your SpeedZone Comp:
• SPEED – Current Speed
• AVSPD – Average speed
• MXSPD – Maximum Speed
• ODO – Odometer (total distance)
• TRIP – Trip Distance
• ATM – Automatic Start/Timer
• Digital 12/24 Hour Clock
• Analog Clock
This computer also features:
• Five function LCD Display
• Easy Calibration Mode
• Heavy-duty abrasion resistant
pick-up wire
• Water resistant housing
• 1 Year Warranty

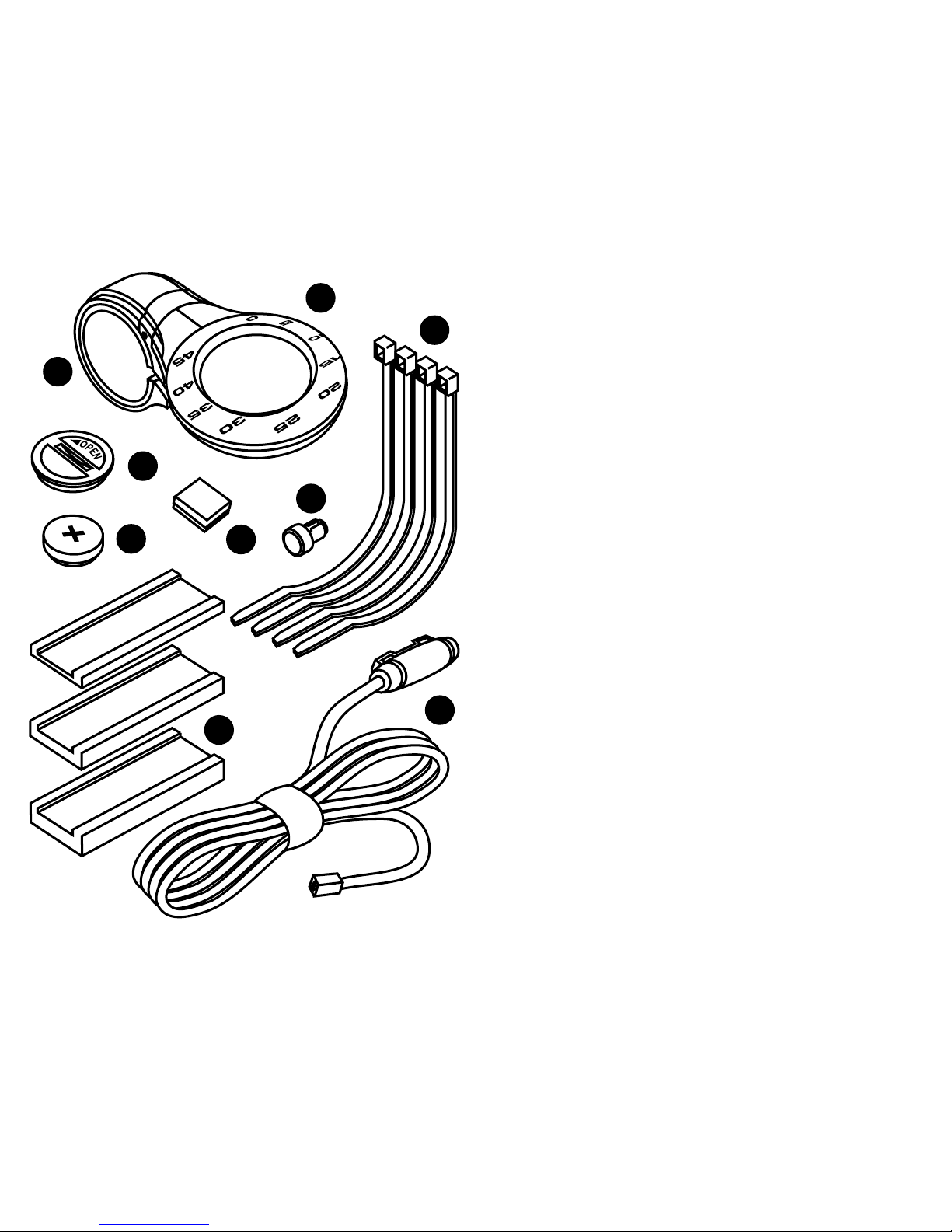

What is included in your
SpeedZone Sport package:
1. SpeedZone Computer (1)
2. SpeedZone CR-2032 Lithium
Battery (1)
3. SpeedZone Battery Door
4. Mounting bracket (1)
5. Speed Sensor Wire
6. Magnet with screw (1)
7. Adhesive backed magnet (1)
8. Cable tie wraps (4)
9. Mounting bracket sizing straps (3)
2

BATTERY INSTALLATION AND
REPLACEMENT
Before using your SpeedZone Sport
Computer you will need to install the
battery. Turn the computer over so the
display is facing downward. Use a
coin to unthread the battery cap from
the computer. Install the battery
(model CR2032, Specialized P/N
481-3004) with the positive pole (+)
facing upward. Carefully thread the
battery cap back onto the case with a
coin. (See Figure 3) If, after battery
replacement, the LCD display is blank
or shows incomplete digits, turn the
computer over and press the "AC"
button on the bottom of the case with
the tip of a pen or a paper clip. This
will clear all the data and re-start the
computer. If you need to replace the
3
1
2
3
95
8
6
7
4

battery, make
a note of your
odometer read-
ing and wheel
circumference
settings before
removing it.
You can then
re-enter the data
when you restart the computer.
MOUNTING
THE SPEEDZONE SPORT
The SpeedZone Sport sensor can
mount on the right or the left side
of the fork blade. Use the cable tie-
wraps provided to position the
sensor. Do not tighten until the final
placement of the sensor magnet is
correct. (See figure 4). Wheel
magnets have been
provided for both tra-
ditional round spokes
and bladed (flat)
aerodynamic spokes.
For wheels with
round spokes:
Attach the magnet to
a spoke across from
the transmitter with
the magnet screw. The
clearance between the
magnet and the transmitter should be
approximately 1/32"-1/16" (1-2mm).
Tighten the magnet and transmitter.
Do not over-tighten the magnet screw.
(See figure 5).
4
Cable
Tie
Wraps
Sensor
Brake
Cable
FIGURE 4.
SENSOR
PLACEMENT
CR2032 battery
FIGURE 3.

For wheels with
bladed spokes:
Use some isopropyl
(rubbing) alcohol or
a mild detergent to
thoroughly clean the
spoke that you plan
to attach the magnet
to. Remove the back-
ing from the adhesive
tape and firmly press
the magnet onto
spoke. The tape uses
a special pressure sensitive adhesive.
To ensure a strong bond, please wait
at least 12 hours for the adhesive to
cure before riding your bicycle.
Your SpeedZone Sport comes pre-
configured with a strap to fit standard
road and mountain bike handlebars.
Attach the mount to the handlebar
using the Philips head screw provid-
ed. Tighten so that the bracket cannot
rotate on the handlebar. There are
several sizing shims provided to fit
different diameter bars. If you are
using the new 31.8mm diameter
bars, you will need to purchase the
31.8mm Handlebar Mount Kit
(Specialized P/N 4812-3100) from
5
Sensor
Magnet
1/32-1/16 in.
1-2 mm
Sensor
Front
Wheel
FIGURE 5.
MAGNET
PLACEMENT
FIGURE 6. STRAP INSTALLATION

your Specialized dealer. To install the
31.8mm diameter strap onto your
SpeedZone Comp, remove the two
Philips head screws from the bottom
of the computer and push out the
retaining pin with a small screwdriver
or a straightened paperclip. (See fig-
ure 6) Use caution not to lose the pin
once you have removed it. Install the
other mounting strap and reinsert the
pin and screws. To test for proper
installation of the magnet, transmitter
and computer, activate the computer
by pushing the ‘MODE’ (right side)
button. Pick up the front of the bicycle
and spin the front wheel. The "wheel
option" indicator will flash. If it does
not flash, check the sensor and mag-
net alignment. Realign as necessary
until the "wheel option" indicator
flashes while spinning the wheel.
OPERATION AND
PROGRAMMING
When your SpeedZone Sport has not
detected any speed input for 30 min-
utes, it will enter sleep-mode in order
to conserve battery power. During
sleep mode only the analog and digi-
tal clocks are displayed. The computer
will wake up as soon as wheel speed
is detected. Additionally, you can
wake it up by pushing the "MODE"
or "SET" button once. In order to
operate your computer it must be
placed in various "modes" (i.e.
odometer mode, distance mode). The
computer can be cycled through these
6

modes by pressing the "MODE" but-
ton located on the right-hand side of
the housing. There are six cycling
modes available: 1) Speed Mode, 2)
Average Speed Mode, 3) Maximum
Speed Mode, 4) Odometer Mode, 5)
Trip Distance Mode and 6) Auto-timer
Mode. Once you familiarize yourself
with the mode selection operation you
will find it very easy to navigate. The
following flowchart outlines the
mode/side-mode sequence.
Once a particular mode has been
entered, its values can be reset or
adjusted by pressing and holding the
"SET " button for three seconds. Some
operations may require that you use a
combination of the "MODE" and
"SET" buttons.
1. Setting the Display Language
Your SpeedZone Sport can display
information on the dot-matrix display
area in six different languages:
English (ENGL), German (GER),
French (FR), Italian (ITA), Dutch
(NED), and Spanish (ESP). To select
your language, depress hold the
"MODE" and "SET" buttons simulta-
neously for three seconds. The select-
ed language will be displayed. Use
the "MODE" button to scroll through
the languages. When the selected lan-
guage is displayed (default language
is English), press the "SET" button
once to confirm your selection and
exit display language mode.
7

2. Miles or Kilometers selection
(English only)
Your SpeedZone Sport will record
distance and speed in either miles
(m & m/h) or kilometers (K & Km/h).
Please note that miles can only be
selected when the language setting is
English. All other languages display
only kilometers. (See "Setting the
Display Language" above). To enter
your selection of miles or kilometers,
push the "MODE" button until ODO
appears on the left side of the display
(This is called the odometer mode).
Note: if your display says TRIP, press
the "SET" button once to change to
ODO. Next, hold down the "SET"
button for three seconds. The "Km"
or "m" indicator will begin blinking.
You may now alternate between miles
and kilometers by pressing the
"MODE" button. When the correct
choice is flashing, select it by pressing
the "SET" button. You will now enter
the "Programmable Odometer" mode.
If the odometer setting is correct
push the "SET" button five times to
exit odometer mode. (Otherwise,
see "Setting the Programmable
Odometer" below).
Note: The Speed Indication Bezel will
indicate 0-45MPH on SpeedZone
Sport computers purchased in the
USA and the U.K. and 0-90 Km/h on
computers purchased in all other
countries. Cyclists in the USA and the
U.K. who would like to display their
speed and distance data in kilometers
will have to multiply the value of the
numbers on the face of the bezel by
8

two. For example, if the Speed needle
is pointing to the 20 on the bezel,
your actual speed is 40Km/h.
3. Setting the Programmable
Odometer
This mode is useful if you have
replaced the battery and would like to
retain the mileage you have already
ridden. To access the Programmable
odometer mode, first advance to the
Odometer Mode by pressing "MODE"
button until ODO appears on the left-
hand side of the screen. Note: if your
display says TRIP, press the "SET" but-
ton once to change to ODO. Hold
down the "SET" button for three sec-
onds (If you have selected English lan-
guage, the Km/h indicator will flash.
If the Km/h setting is correct press the
"SET" button once) and a five-digit
number will appear. You are now in
the programmable odometer mode.
To enter a mileage into the odometer,
press the "MODE" button until the
flashing digit is correct. (Note: The
"MODE" button may be held to scroll
to the correct digit.) Press the "SET"
button to select the next digit to the
9
Km/h
FIGURE 7. ODOMETER SCREEN

right. Repeat this process until all five
digits are entered as your existing
mileage. (See figure 7)
4. Wheel Circumference Selection
To set the circumference for the type
of tires you are using, you can use
Specialized’s "Easy Calibration
Mode" or measure your actual tire
circumference by the rollout method.
Two different tire diameters may be
entered by using the computer’s
"Second Wheel Option."
Easy Calibration Mode
Your SpeedZone Sport has been
preprogrammed with the following
14 Specialized tire sizes:
26 X 1.0 26 X 2.2
26 X 1.25 650c X 20
26 X 1.5 700c X 20
26 X 1.9 700c X 23
26 X 1.95 700c X 26
26 X 2.0 700c X 32
26 X 2.1 700c X 38
When using Easy Calibration Mode,
the SpeedZone Sport will display the
tire size on its LCD display screen.
(See figure 8) The Easy Calibration
Mode is accessed by entering the
Speed (SPEED) mode and holding
down the "SET" button for three sec-
onds. The display will now show the
10

currently selected tire size for wheel
option #1. To scroll through the pre-
programmed tire sizes tap both the
"MODE" and "SET" buttons simulta-
neously. When you reach the desired
tire size press the "SET" button once
to select it and enter Easy Calibration
Mode for wheel option #2. Follow the
same procedure to program the wheel
#2 tire size and tap the "SET" button
to exit Easy Calibration Mode.

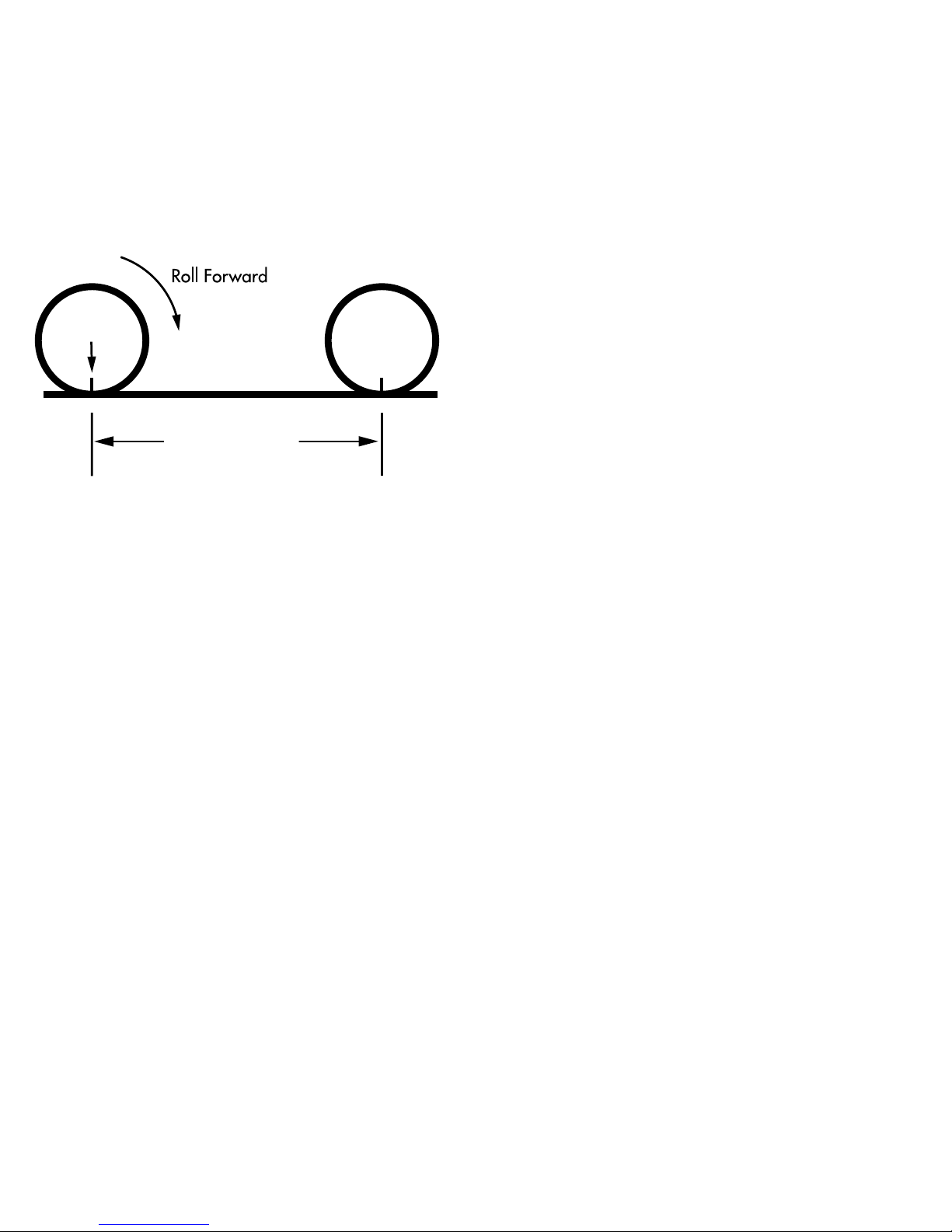

Roll Out Method
The roll out method will provide the
most accurate computer calibration
and can take into account variables
such as inflation pressure, rim width
and rider weight.
1. Extend a tape measure out to
3000mm (120 inches) and lock
it in place.
2. With your tire inflated to its
proper pressure, place the valve
at the 6:00 position (at the bottom)
directly over the start of the
measuring tape.
3. Roll the wheel one complete
revolution until the valve stem is
again at the 6:00 position. Read
11
Km/h
FIGURE 8. EASY CALIBRATION MODE

the tape directly under the valve
and note the distance in millime-
ters. (To convert inches to millime-
ters, multiply inches by 25.4).
Use this number to replace the
default (default values are 2073
for wheel one, and 2134 for
wheel two) when programming
your computer. (See figure 9).
You may also use the following
quick-reference chart:
Generic Tire Size Chart
This chart is for non-Specialized tires
26 X 1.75 2140
26 X 2.0 2074
26 X 2.1 2090
650C X 20 1945
700C X 26 2124
700C X 38 2170
Programming the circumference
To enter the tire circumference num-
ber, select the Speed (SPEED) mode
and hold down the "SET" button for
three seconds. The display will now
show the currently selected tire size
for wheel option #1. (See figure 10).
If necessary scroll through the prepro-
grammed tire sizes by tapping both
12
Wheel
Circumference
Stem
FIGURE 9. ROLL OUT ILLUSTRATION.

the "MODE" and "SET" buttons
simultaneously until the display shows
MM and four-digit number. This num-
ber represents your tire circumference
in millimeters. Press the "MODE" but-
ton until the flashing digit is correct.
(Note: The "MODE" button may be
held to scroll to the correct digit.)
Press the "SET" button to select the
next digit to the right. Repeat the
process until all four digits are
entered as your tire circumference.
Press the "SET" button once to select
it and enter the circumference for
wheel option #2. Follow the same
procedure to program the wheel #2
tire size and tap the "SET" button to
exit circumference programming
mode (See figure 10).
5. Setting the Clock
Your SpeedZone Sport features two
clock displays, one analog and one
digital. The hands of the analog
clock will be set automatically to
correspond to the digital one. To
access the "clock mode" from any
other mode, press and hold the
13
Km/h

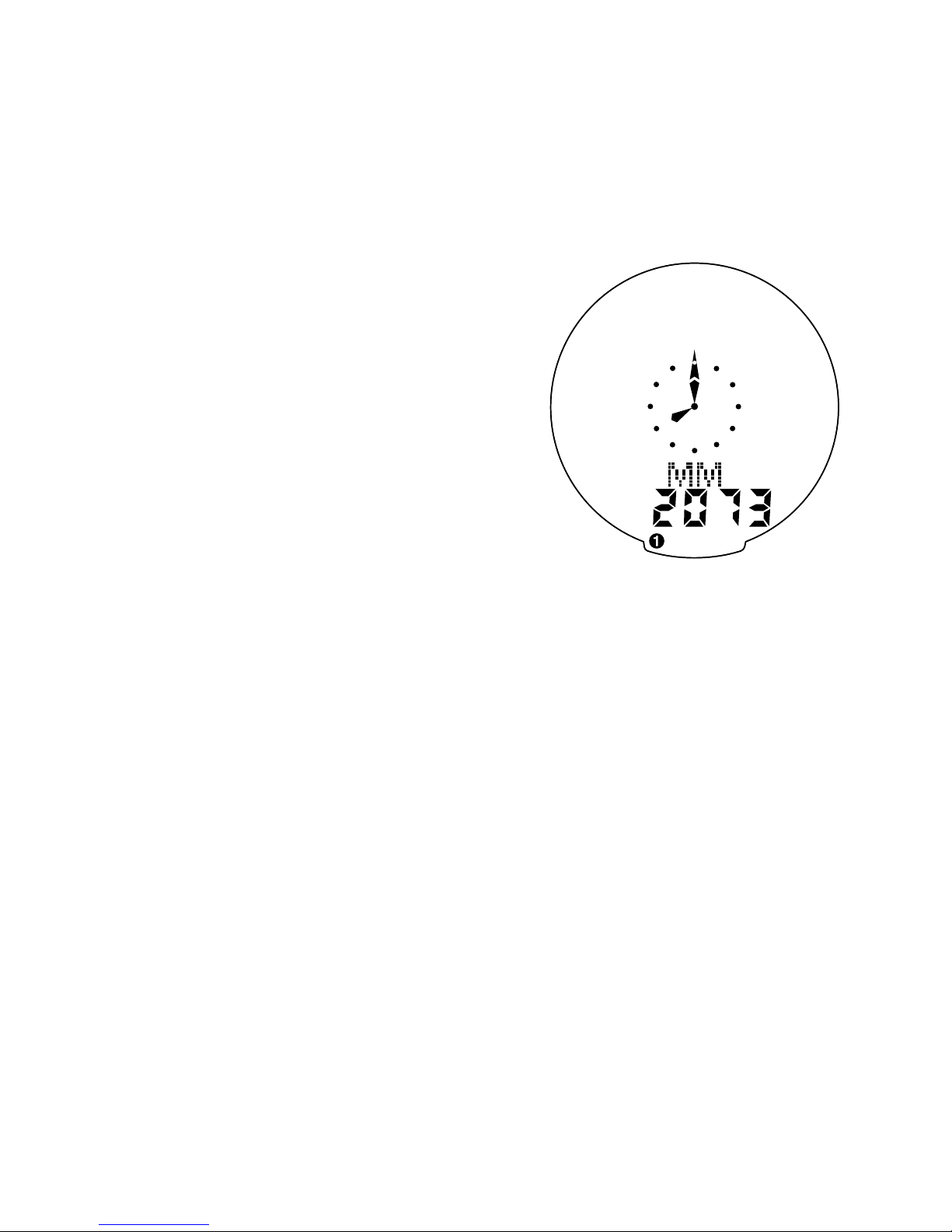

FIGURE 10. CIRCUMFERENCE
PROGRAMMING SCREEN

"MODE" button for three seconds.
To set the clock, press the "SET" but-
ton for three seconds. The display will
flash either twelve (12:) or twenty four
(24:). Select between 12: or 24:
mode by pressing the "MODE" but-
ton. Press the "SET" button to confirm
your selection. The hour digit will now
begin flashing. Press the "MODE"
button to adjust the hour digits.
AM/PM is selected by scrolling the
hour digit. Press the "SET" button to
accept the hour selection. The minutes
will flash and can be adjusted by
pressing the "MODE" button. (Hold
the "MODE" button to scroll through
the digits quickly) Press the "SET" but-
ton to set the minutes and return to
clock mode (See figure 11).
Note: The minute hand of the analog
clock has twelve segments and can
only display time in five-minute incre-
ments. The hand will not jump to the
next segment until the digital clock
reaches whole five-minute intervals.
(e.g. 12:05, 12:10, 12:15 etc.)
14
Km/h
FIGURE 11. CLOCK MODE

6. Automatic Start/Stop Timer (ATM)
The SpeedZone Sport has a ride-time
feature called Automatic Timer Mode
(ATM). The ATM selection allows you
to keep track of your actual riding
time. The timer only operates when
the wheel is rotating and cannot be
turned on or off manually.
Note: The average speed (AVSPD)
calculation is based upon the ATM
time.
COMPUTER FUNCTIONS
Speedometer (SPEED)
Your current speed is always shown by
the long needle on the LCD screen.
Each needle represents one M/h when
miles is selected and two Km/h when
kilometers is selected. The speed is also
shown on the Digital Display Area up
to 99.9 M/h (99.9 Km/h) with
a resolution of 0.1 M/h (0.1 Km/h)
Average Speed (AVSPD)
Average Speed is always shown by
the flashing long needle on the LCD
screen. The average speed is based
upon the ATM time. The resolution of
the average speed data on the Digital
15
Km/h

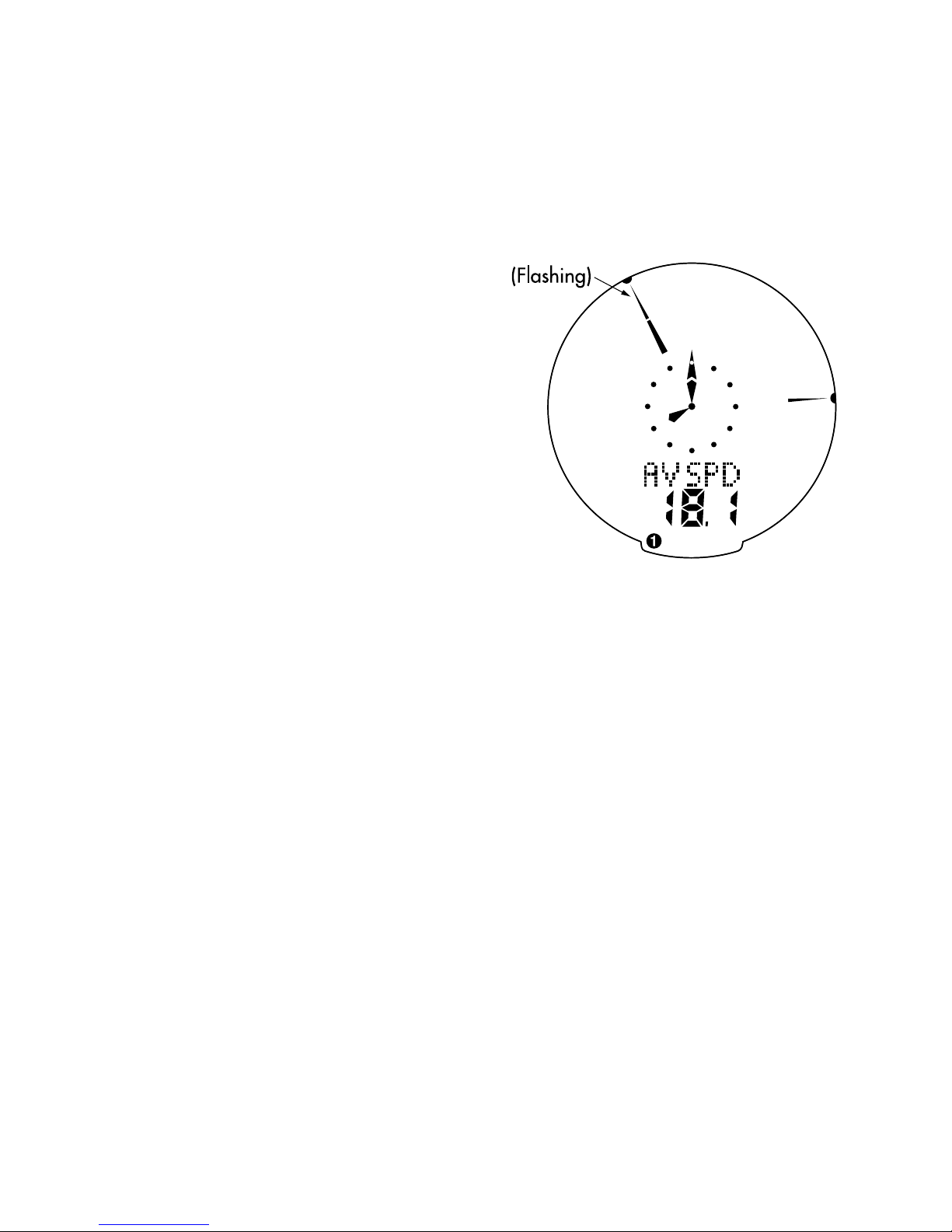

FIGURE 12. AVERAGE SPEED SCREEN

Display Area is shown in 0.1M/h or
Km/h increments. (See figure 12) The
Average Speed is also shown on the
Digital Display Area up to 99.9 M/h
(99.9 Km/h) with a resolution of 0.1
M/h (0.1 Km/h)
Maximum Speed (MXSPD)
The maximum speed is shown by a
short "Needle-Tip" that will usually be
above the current speed needle
(unless the current speed equals the
Maximum Speed). The maximum
speed is retained in memory and
updated when a higher speed is
maintained for three seconds. The
maximum speed can be reset by
pressing the "SET" button for three
seconds. (See figure 13) The
Maximum Speed is also shown on the
Digital Display Area up to 99.9 M/h
(99.9 Km/h) with a resolution of 0.1
M/h (0.1 Km/h)
Auto Start/Stop Timer (ATM)
In ATM mode the timer function
records the actual time spent riding.
16
Km/h
FIGURE 13. MAXIMUM SPEED SCREEN

It operates only when there is speed
input and is displayed In the Digital
Display Area of the screen.
Trip Distance (TRIP)
Trip distance mode will record up to
999.99 miles or kilometers and then
roll to zero. The trip distance SET can
be reset by pressing the "SET" button
for three seconds. The resolution is
0.01 miles (0.01 Kilometers). The trip
distance is shown on the lower line if
the screen. (See figure14)
Odometer (ODO)
The odometer will record the total
distance traveled up to 99,999 miles
or kilometers and then roll to zero.
17
Km/h

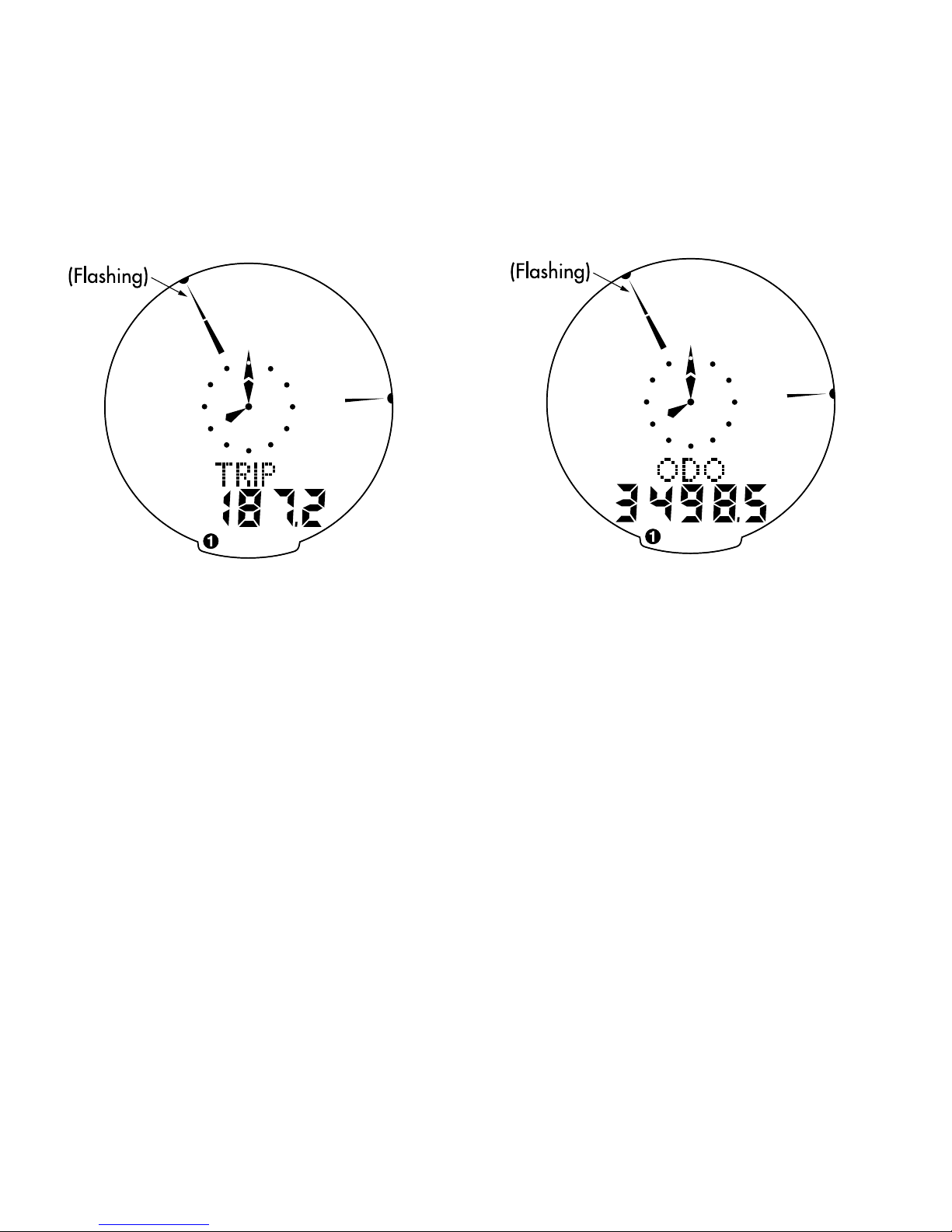

FIGURE 14. TRIP DISTANCE SCREEN
Km/h

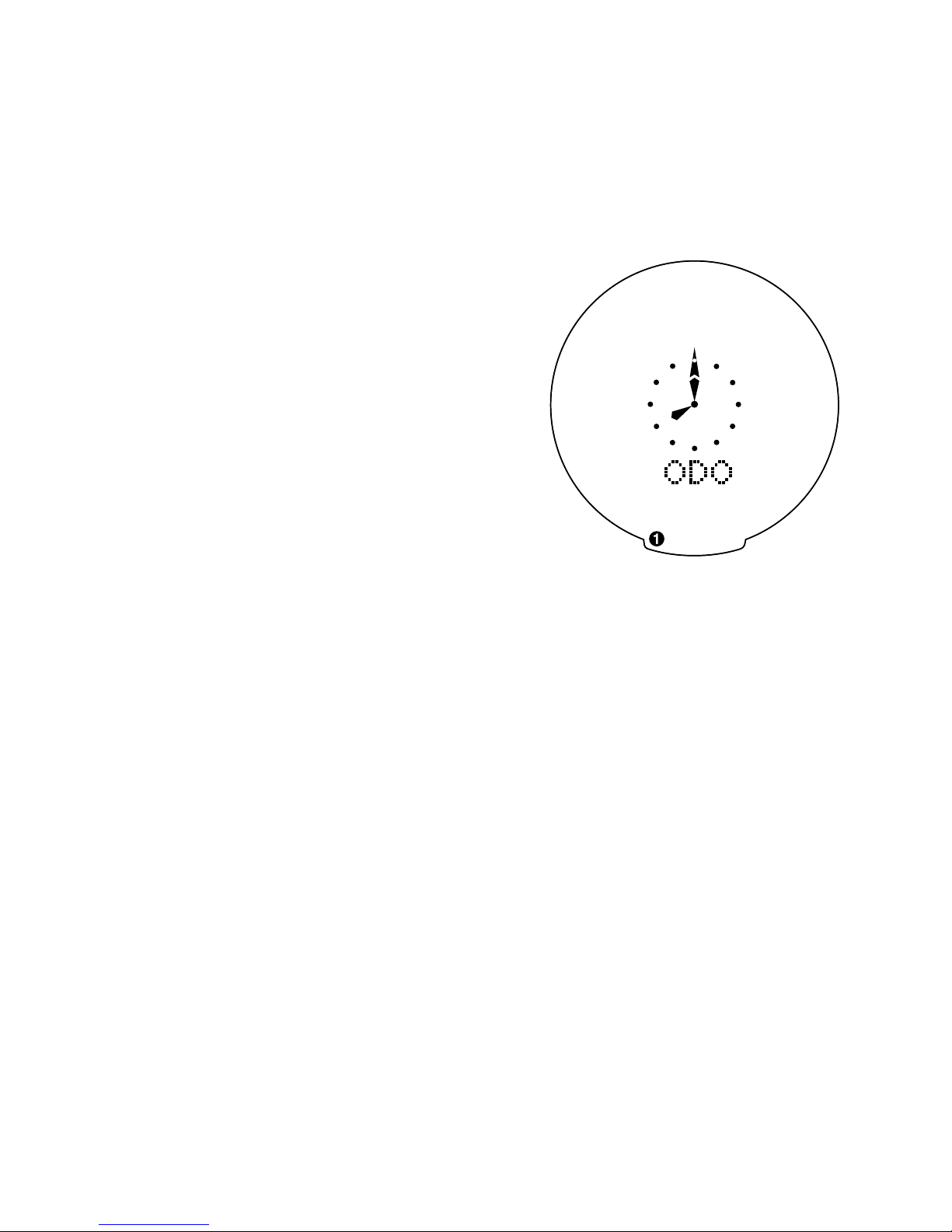

FIGURE 15. ODOMETER SCREEN

The odometer can be reset by
pressing the "SET" button for three
seconds. The total distance is shown
on the lower line if the screen.
(See figure 15)
Programmable Odometer
The odometer digits are programma-
ble. This is convenient for transferring
your hard-earned mileage that is
usually lost when changing batteries
or computers.
Clock
Your SpeedZone Sport is equipped
with a digital clock, which can be
accessed from any other mode by
pressing the "MODE" button for three
seconds. The clock can be set to oper-
ate in either 12 or 24-hour mode.
TROUBLESHOOTING
•Display is blank:
Change the battery or press the AC
button on the bottom of the case
•Display shows partial digits:
Press the AC button on the bottom
of the case.
•Speed/distance not recording:
Check sensor/magnet alignment.
Make sure that the sensor is no
more than 1/16" (2mm) from the
magnet.
•Entire screen is dark:
Did you leave the bike parked in
the hot direct sun when it was
parked? If so, move the bike to the
shade. The data will be OK.
•Computer moves on handlebar:
Tighten mount or add sizing straps
to improve fit on handlebar.
18

IMPORTANT!
• Pay attention to traffic and road
conditions at all times. Your first
obligation is to be attentive and
to ride safely.
• Keep your computer in good shape
and use it safely.
• Do not expose it to direct sunlight
except when you are riding.
• Do not disassemble your
SpeedZone. There are no user
serviceable parts inside.
• Make sure the magnet and
the transmitter are well aligned.
Check them regularly.
• Keep the computer and all of its
components tightly attached, and
check them regularly. If any of the
components come loose, it could
become tangled in your spokes
and cause an accident.
• See your authorized Specialized
dealer if you have any trouble
installing or maintaining your com-
puter.
• Clean the unit with a mild deter-
gent and a soft dry cloth. Never
use any kind of solvent or alcohol.
• The SpeedZone Sport computer is
intended for use on bicycles only
and should not be used on any
motorized vehicle.
19

SPECIFICATIONS
Current Speed
0.0 to 99.9 MPH
0.0 to 99.9 Km/H
Average Speed (AVS)
0.0 to 199.9 MPH
0.0 to 199.9 Km/H
Maximum Speed (MXS)
0.0 to 199.9 MPH
0.0 to 199.9 Km/H
Trip Distance (TRIP)
0 to 999.99 miles or Km
Odometer (ODO)
0 to 99,999 miles or Km
Automatic Timer (ATM)
0 to 9hrs, 59min, 59sec. recycling type
Operating Temperature
40°F to 104°F (4°C to 40°C)
The following replacement parts
are available from your Specialized
dealer or by visiting the Specialized
S-store at www.specialized.com
Description / Part#
• Standard Wheel Magnet / 480-3003
• CR-2032 SpeedZone Battery /
480-3004
• Second mounting kit / 4812-4020
• Adhesive Backed Wheel Magnet /
4800-3002
• 31.8mm Handlebar Mount Kit /
4812-3100
20
