SRAM code rsc 2018 User manual

GEN 0000000005248 Rev C
© 2017 SRAM, LLC
service
manual
2018 Code RSC / R

SRAM®LLC WARRANTY
EXTENT OF LIMITED WARRANTY
Except as otherwise set forth herein, SRAM warrants its products to be free from defects in materials or workmanship for a period of two years after
original purchase. This warranty only applies to the original owner and is not transferable. Claims under this warranty must be made through the
retailer where the bicycle or the SRAM component was purchased. Original proof of purchase is required. Except as described herein, SRAM makes
no other warranties, guaranties, or representations of any type (express or implied), and all warranties (including any implied warranties of
reasonable care, merchantability, or fitness for a particular purpose) are hereby disclaimed.
LOCAL LAW
This warranty statement gives the customer specific legal rights. The customer may also have other rights which vary from state to state (USA), from
province to province (Canada), and from country to country elsewhere in the world.
To the extent that this warranty statement is inconsistent with the local law, this warranty shall be deemed modified to be consistent with such law,
under such local law, certain disclaimers and limitations of this warranty statement may apply to the customer. For example, some states in the United
States of America, as well as some governments outside of the United States (including provinces in Canada) may:
Preclude the disclaimers and limitations of this warranty statement from limiting the statutory rights of the consumer
(e.g. United Kingdom).
Otherwise restrict the ability of a manufacturer to enforce such disclaimers or limitations.
For Australian customers:
This SRAM limited warranty is provided in Australia by SRAM LLC, 1000 W. Fulton Market, 4th Floor, Chicago, IL, 60607, USA. To make a warranty claim
please contact the retailer from whom you purchased this SRAM product. Alternatively, you may make a claim by contacting SRAM Australia, 6 Marco
Court, Rowville 3178, Australia. For valid claims SRAM will, at its option, either repair or replace your SRAM product. Any expenses incurred in making
the warranty claim are your responsibility. The benefits given by this warranty are additional to other rights and remedies that you may have under
laws relating to our products. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
LIMITATIONS OF LIABILITY
To the extent allowed by local law, except for the obligations specifically set forth in this warranty statement, in no event shall SRAM or its third party
suppliers be liable for direct, indirect, special, incidental, or consequential damages.
LIMITATIONS OF WARRANTY
This warranty does not apply to products that have been incorrectly installed and/or adjusted according to the respective SRAM user manual. The
SRAM user manuals can be found online at sram.com, rockshox.com, avidbike.com, truvativ.com, or zipp.com.
This warranty does not apply to damage to the product caused by a crash, impact, abuse of the product, non-compliance with manufacturers
specifications of usage or any other circumstances in which the product has been subjected to forces or loads beyond its design.
This warranty does not apply when the product has been modified, including, but not limited to any attempt to open or repair any electronic and
electronic related components, including the motor, controller, battery packs, wiring harnesses, switches, and chargers.
This warranty does not apply when the serial number or production code has been deliberately altered, defaced or removed.
This warranty does not apply to normal wear and tear. Wear and tear parts are subject to damage as a result of normal use, failure to service
according to SRAM recommendations and/or riding or installation in conditions or applications other than recommended.
Wear and tear parts are identified as:
Dust seals
Bushings
Air sealing o-rings
Glide rings
Rubber moving parts
Foam rings
Rear shock mounting hardware and
main seals
Upper tubes (stanchions)
Stripped threads/bolts (aluminium,
titanium, magnesium or steel)
Brake sleeves
Brake pads
Chains
Sprockets
Cassettes
Shifter and brake cables (inner and
outer)
Handlebar grips
Shifter grips
Jockey wheels
Disc brake rotors
Wheel braking surfaces
Bottomout pads
Bearings
Bearing races
Pawls
Transmission gears
Spokes
Free hubs
Aero bar pads
Corrosion
Tools
Motors
Batteries
Notwithstanding anything else set forth herein, the battery pack and charger warranty does not include damage from power surges, use of improper
charger, improper maintenance, or such other misuse.
This warranty shall not cover damages caused by the use of parts of dierent manufacturers.
This warranty shall not cover damages caused by the use of parts that are not compatible, suitable and/or authorised by SRAM for use with SRAM
components.
This warranty shall not cover damages resulting from commercial (rental) use.

SAFETY FIRST!
We care about YOU. Please, always wear your safety glasses
and protective gloves when servicing SRAM®products.
Protect yourself! Wear your safety gear!

TABLE OF CONTENTS
SRAM® CODE™BRAKE SYSTEMS SERVICE ....................................................................................................................................................5
SERVICE PROCEDURES.................................................................................................................................................................................................................................6
SRAM® CODE™BRAKES CALIPER SERVICE ...................................................................................................................................................7
PARTS, TOOLS AND SUPPLIES ...................................................................................................................................................................................................................7
CALIPER EXPLODED VIEW ...........................................................................................................................................................................................................................7
CALIPER BRAKE PAD REMOVAL.................................................................................................................................................................................................................8
CALIPER PISTON REMOVAL.........................................................................................................................................................................................................................9
CALIPER PISTON INSTALLATION ............................................................................................................................................................................................................. 13
CODE™RSC® LEVER SERVICE .........................................................................................................................................................................16
PARTS AND TOOLS NEEDED FOR SERVICE......................................................................................................................................................................................... 16
CODE RSC LEVER EXPLODED VIEW....................................................................................................................................................................................................... 16
LEVER BLADE REMOVAL............................................................................................................................................................................................................................. 17
PISTON ASSEMBLY REMOVAL .................................................................................................................................................................................................................20
PISTON ASSEMBLY INSTALLATION........................................................................................................................................................................................................ 22
LEVER BLADE INSTALLATION.................................................................................................................................................................................................................. 26
CODE™R® LEVER SERVICE ............................................................................................................................................................................. 30
PARTS AND TOOLS NEEDED FOR SERVICE........................................................................................................................................................................................30
CODE R LEVER EXPLODED VIEW............................................................................................................................................................................................................ 30
LEVER BLADE REMOVAL............................................................................................................................................................................................................................. 31
PISTON ASSEMBLY REMOVAL ................................................................................................................................................................................................................. 34
PISTON ASSEMBLY INSTALLATION........................................................................................................................................................................................................ 36
LEVER BLADE INSTALLATION...................................................................................................................................................................................................................37

5SRAM® Code™ Brake Systems Service
SRAM®Code™Brake Systems Service
We recommend that you have your SRAM Code components serviced by a qualified bicycle mechanic. Servicing SRAM components requires knowledge
of bicycle mechanics as well as the special tools and lubricants/fluids used for service.
SRAM brake systems need to be serviced periodically to optimize braking function. If brake fluid is leaking from any area of the brake there may be
damage or wear and tear to the internal moving parts. If the system has been contaminated with the wrong fluid there may be damage to all rubber
and plastic internal parts. If your brake was damaged in a crash there may be damage to the lever blade, pushrod, and housing assemblies. Inspect and
replace these parts to restore proper brake function.
Visit www.sram.com/service for the latest SRAM Spare Parts catalog and technical information. For order information, please contact your local SRAM
distributor or dealer.
For recycling and environmental compliance information, please visit www.sram.com.
Information contained in this publication is subject to change at any time without prior notice. Your product's appearance may differ from the pictures
contained in this publication.
SAFETY INSTRUCTIONS
Do not use mineral oil or DOT 5 fluid.
If the brake system has been contaminated with mineral oil or DOT 5 fluid, flush all of the parts with soapy water, rinse them with clean water, then allow all
the parts to dry prior to rebuilding. Install new seals, a new bladder, and replace the hose.
For best results, use only SRAM High-Performance DOT 5.1 fluid. If SRAM brake fluid is not available, only use DOT 5.1 or 4 fluid.
Use only DOT compatible grease.
Always wear safety glasses and nitrile gloves when working with DOT fluid.
Used DOT fluid should be recycled or disposed of in accordance to local and federal regulations.
Never pour DOT fluid down a sewage or drainage system or into the ground or a body of water.
Do not allow any brake fluid to come in contact with the brake pads. If this occurs, the pads are contaminated and must be replaced.
Place an oil pan on the floor underneath the area where you will be working on the brake.
Servicing your brakes removes all of the brake fluid from the system. You must bleed your brakes after you service the brake system. Consult the SRAM
MTB Disc Brake Hose Shortening and Bleed Manual at www.sram.com/service.
NOTICE
Before beginning service, thoroughly clean the exterior of the product to avoid contamination of internal sealing part surfaces.
DOT fluids will damage painted surfaces. If any fluid comes in contact with a painted surface (e.g. your frame) or printing on the brakes, wipe if off
immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT fluid is not covered under warranty.

6Service Procedures
Service Procedures
The following procedures should be performed throughout service, unless otherwise specified.
Clean the part with isopropyl alcohol and a clean, lint-free rag.
Clean the sealing surface on the part and inspect it for scratches.
Replace the o-ring or seal with a new one from the service kit.
Use your fingers, a ziptie, or a pick to pierce and remove the old seal or o-ring.
Apply DOT grease to the new seal or o-ring when instructed.
NOTICE
Do not scratch any sealing surfaces when servicing the product. Scratches can
cause leaks. Consult the spare parts catalog to replace the damaged part.
Use aluminum soft jaws when placing a part in a bench vise.
Tighten the part with a torque wrench to the torque value listed in the red bar.
When using a crowfoot socket and torque wrench, install the crowfoot socket
at 90 degrees to the torque wrench.
Specified torque value in N·m (in-lb)

7SRAM® Code™ Brakes Caliper Service
SRAM®Code™Brakes Caliper Service
Parts, Tools and Supplies
Parts
• SRAM Brake Pad Kit
• Caliper Piston Kit (includes 2-16 mm & 2-15mm caliper pistons, seals
& o-rings) - Code R B1/RSC A1
Safety and Protection Supplies
• Clean, lint-free rags
• Nitrile gloves
• Oil pan
• Safety glasses
Lubricants and Fluids
• Isopropyl alcohol
• SRAM High-Performance DOT 5.1 fluid. If SRAM fluid is not available,
only use DOT 5.1 or 4 fluid.
• SRAM DOT grease. If SRAM DOT grease is not available only use a
DOT compatible grease.
Bicycle Tools
• Bicycle work stand
• Bench vice
• Aluminum soft jaws
Common Tools
• 2.5 and 5 mm hex wrenches
• Needle nose pliers
• Pick with a 90 degree bent tip
• T25 TORX®wrench
• T25 TORX bit socket
• Torque wrench
• Digital caliper
SRAM Tools
• SRAM Brake Bleed Kit (includes: Bleed Block and Bleeding Edge™ Fitting)
• Pad Spreader Tool (1.8 mm) - Guide/Code Caliper
Caliper Exploded View
Pad retention bolt
Caliper body bolt
Outboard caliper
body
Caliper
o-ring
Piston seals
Caliper pistons
Pad H-Spring
Brake pads
Heat
shield
Caliper pistons
Piston seals
Banjo
bolt
E-clip
Caliper body bolt
Caliper
o-ring Inboard caliper body
Banjo
Banjo
o-rings

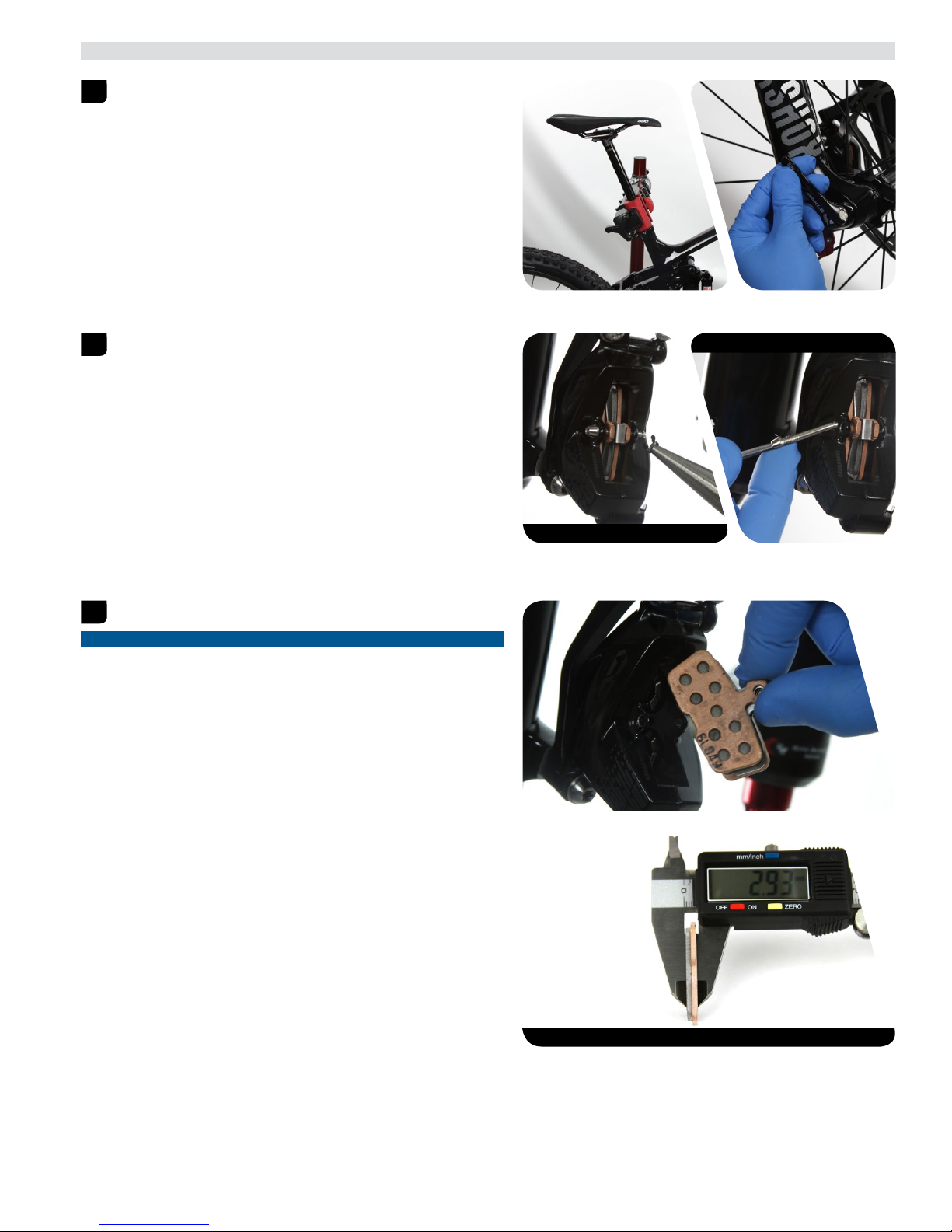

8Caliper Brake Pad Removal
Caliper Brake Pad Removal
Clamp the bicycle into a bicycle work stand and remove the wheel.
Remove the E-clip from the pad retention bolt.
Remove the pad retention bolt from the caliper.
Remove the brake pads and pad H-spring from the caliper.
NOTICE
If the brake pad thickness is less than 3 mm then replace the pads.
1
Needle Nose Pliers 15 mm Thru Axle
2.5 mm
2
3
Digital Caliper Torque Spec 22 mm

9Caliper Piston Removal
Caliper Piston Removal
NOTICE
DOT fluid will damage painted surfaces. If any fluid comes in contact with a painted surface (e.g. your frame) or printing on the brakes, wipe it off
immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT fluid is not covered under warranty.
Install the pad retention bolt.
Insert the pad spreader so that it snaps onto the pad retention bolt.
Squeeze the brake lever repeatedly to advance the pistons, and stop
when they contact the pad spreader.
Remove the caliper, mounting bolts, and hardware.
1
2.5 mm 15 mm Thru Axle
Pad Spreader Tool
2
3
T25 or 5 mm Torque Spec 22 mm

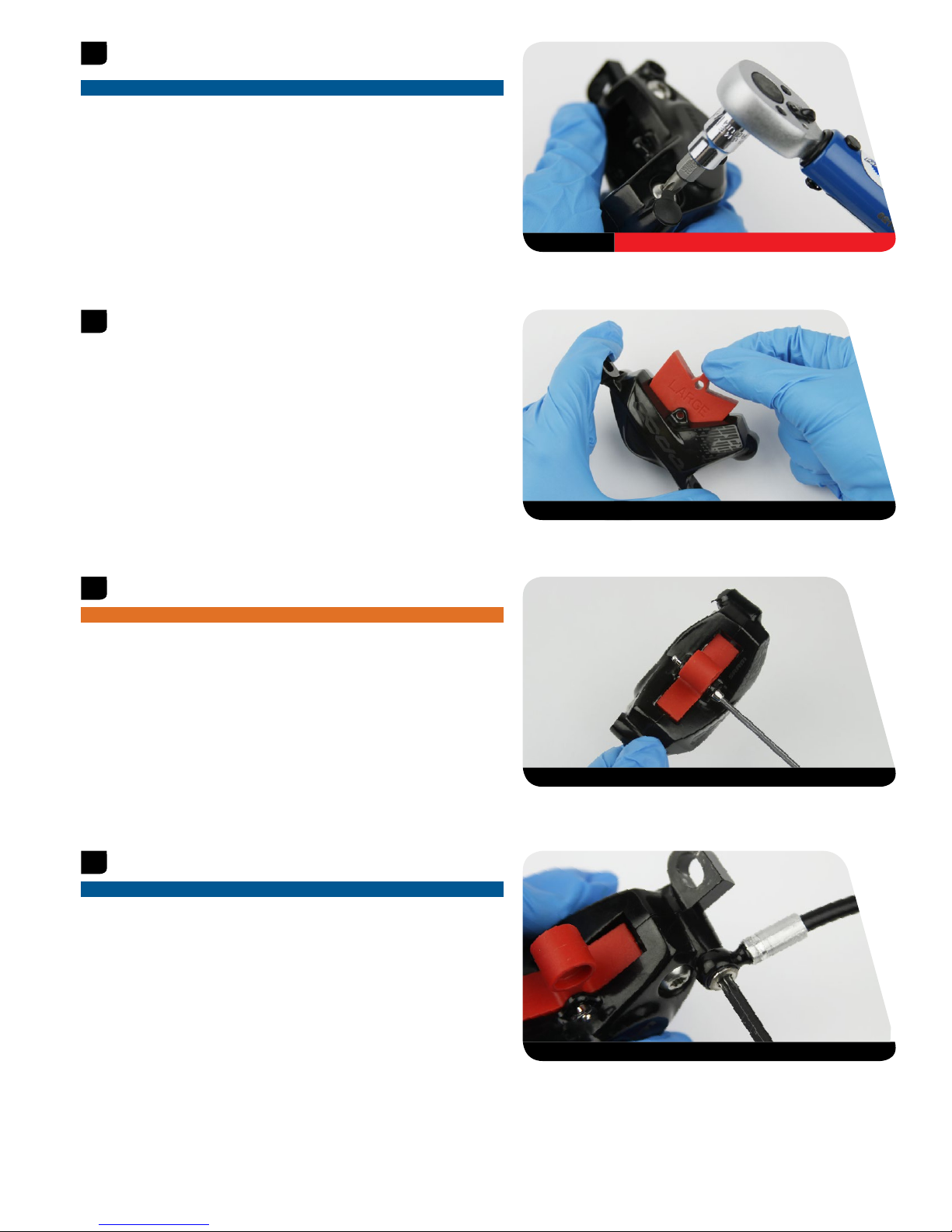

10Caliper Piston Removal
Remove the lever and clamp.
Remove the banjo bolt and hose, then remove the banjo bolt from the
banjo.
Remove the banjo bolt o-rings and replace with new o-rings.
Remove the pad spreader.
4
T25 Torque Spec 22 mm
T25 Torque Spec 22 mm
5
6
7

11Caliper Piston Removal
Remove the pad retention bolt.
Place the caliper in a vice with soft jaws, then remove each caliper
body bolt.
Separate the caliper body halves.
Set the heat shield aside.
Remove the caliper o-rings from the outboard side of the caliper.
8
2.5 mm Torque Spec 22 mm
T25 Torque Spec 22 mm
9
10
11

12Caliper Piston Removal
Remove the pistons from each caliper body half.
Remove the piston seals from each caliper body half, then clean the
caliper halves. Apply a small amount of SRAM®High-Performance DOT
5.1 fluid to new seals and install into each caliper body half.
⚠CAUTION
Do not scratch the seal gland with the pick. Scratches could cause fluid
to leak when the brake is applied, which will contaminate the brake
pads and could lead to a brake failure.
NOTICE
For the best braking performance, use only SRAM High-Performance
DOT 5.1 fluid. If SRAM fluid is not available, use only DOT 5.1 or 4 fluid.
Do not use grease. Grease will prevent the pistons from fully retracting
into the caliper bores, which will reduce braking performance.
12
13

13Caliper Piston Installation
Caliper Piston Installation
NOTICE
DOT fluid will damage painted surfaces. If any fluid comes in contact with a painted surface (e.g. your frame) or printing on the brakes, wipe it off
immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT fluid is not covered under warranty.
Inspect the caliper pistons for damage and replace the pistons if
necessary.
Apply a small amount of SRAM® High-Performance DOT 5.1 fluid to the
circumference of each piston. Install the pistons into the caliper bores.
NOTICE
For the best braking performance, use only SRAM High-Performance
DOT 5.1 fluid. If SRAM fluid is not available, use only DOT 5.1 or 4 fluid.
Do not use grease. Grease will prevent the pistons from fully retracting
into the caliper bores, which will reduce braking performance.
Add a small amount of DOT compatible grease onto the new caliper
o-rings, then install them into the caliper.
Align the caliper body halves, then thread each body bolt into the
caliper two full turns.
Install the heat shield so that the heat shield tabs are in the caliper
alignment holes on each side of the caliper.
1
DOT 5.1 Fluid 15 mm Thru Axle
SRAM DOT Grease Torque Spec 22 mm
2
T25 15 mm Thru Axle
3

14Caliper Piston Installation
Align the caliper body halves. Ensure the heat shield remains pressed
against the caliper. Tighten each body bolt.
NOTICE
Visually inspect the caliper to confirm the caliper o-rings are not
protruding. If an o-ring is visible, then remove the caliper body bolts
and reinstall. Pinched o-rings may cause leaks.
Insert the bleed block into the caliper.
Install the pad retention bolt.
⚠WARNING
You must bleed your brakes before reinstalling the brake pads.
Installing the brake pads prior to bleeding the brakes could
contaminate the brake pads and lead to a brake failure.
Install the banjo and hose, then hand tighten the banjo bolt.
NOTICE
Visually inspect the banjo bolt hole to confirm the o-ring is not pinched
or protruding. If the o-ring is visible, then remove the bolt and reinstall.
Pinched o-rings may cause leaks.
T25 9.8-11.8 Nm (87-104 in-lb) 22 mm
4
5
Bleed Block Torque Spec 22 mm
2.5 mm Torque Spec 22 mm
6
T25 Torque Spec 22 mm
7

15Caliper Piston Installation
Tighten the banjo bolt and hose.
Clean the caliper.
⚠CAUTION
Servicing your brakes removes all of the fluid from the system.
You must bleed the brakes after you service the brake caliper and/or lever.
For brake bleed and brake hose shortening instructions, visit www.sram.com/service.
8
T25 4.4-5.4 Nm (39-48 in-lb) 22 mm

16Code™ RSC® Lever Service
Code™RSC®Lever Service
Parts and Tools Needed for Service
Parts
• Lever Internals Guide™ - RSC/Ultimate/ Code RSC
• Hydraulic Disc Brake Hose Fitting Kit (includes 1 threaded hosebarb,
1 red comp fitting) Qty 1 - Stealthamajig
• Safety and Protection Supplies
• Clean, lint-free rags
• Nitrile gloves
• Oil pan
• Safety glasses
Lubricants and Fluids
• Isopropyl alcohol
• Loctite® Blue 242®
• SRAM®High-Performance DOT 5.1 fluid. If SRAM fluid is not
available, only use DOT 5.1 or 4 fluid.
• SRAM DOT grease. If SRAM DOT grease is not available only use a
DOT compatible grease.
Common Tools
• 2.5 & 4 mm hex wrenches
• Needle nose pliers
• Pick with a 90 degree bent tip
• T8, T10, & T25 TORX®wrench
• T8 & T10 TORX bit socket
• 8 mm flare nut wrench
• 8 mm flare nut crowfoot wrench
• Torque wrench
• Magnet
SRAM Tools
• SRAM Lever Internals Assembly Tool (for setting pushrod distance and
installing internals)
Code RSC Lever Exploded View
Reservoir bolts
Reservoir cap
Bladder
Hose
boot
Compression nut
Lever body
Contact adjust knob
Bleed port screws
SwingLink™ bushings
Detent
ball
Detent spring
Piston assembly Coupler
Sleeve
Lever return spring
Lever pivot
bolts
SwingLink
SwingLink
push rod
Pinch
bolt
Lever blade assembly
Hose
Pivot pin
Compression fitting
Hose barb

17Lever Blade Removal
Lever Blade Removal
NOTICE
DOT fluid will damage painted surfaces. If any fluid comes in contact with a painted surface (e.g. your frame) or printing on the brakes, wipe it off
immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT fluid is not covered under warranty.
Pull the hose boot away from the brake body to expose the
compression nut, then slide the boot down the brake hose.
Remove the hose compression nut.
Pull the brake hose and compression fitting from the brake lever body.
Remove the reservoir cap bolt nearest to the lever blade.
1
8 mm Flare Nut Torque Spec 22 mm
2
3
T10 Torque Spec 22 mm

18Lever Blade Removal
Use a magnet to remove the detent spring and ball.
Remove the remaining reservoir cap bolt, then remove the reservoir
cap and bladder.
Pour the brake fluid into an oil pan. Squeeze the lever blade to force
any remaining brake fluid out of the lever body.
Separate the bladder from the reservoir cap.
Clean the reservoir cap, then discard the bladder.
4
5
T10 Torque Spec 22 mm
Oil Pan Torque Spec 22 mm
6
7

19Lever Blade Removal
Remove the lever pivot bolts.
Remove the lever blade assembly from the lever body.
T10 Torque Spec 22 mm
8
9

20Piston Assembly Removal
Piston Assembly Removal
Remove the SwingLink™ pinch bolt.
Push out the SwingLink pivot pin.
Remove the SwingLink.
Remove the SwingLink bushings from both sides of the lever.
T8 Torque Spec 22 mm
1
T8 Torque Spec 22 mm
22
T8 Torque Spec 22 mm
3
4
