Streamline ECOSTREAM ECO255 User manual

These instructions identifies a risk situation
which could lead to serious injury. MUST
read before operating the ECOSTREAM®
tank system.
ECOSTREAM
™
INSTRUCTION MANUAL
ECO255
ECO375
ECO500
ECO700
Codes:
INSTR-ECO255-700
English

2W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
Contents 1Responsibilities
Responsibilities
General Responsibilities
Manufacturers Responsibilities
Personnel Responsibilities
These operating instructions allows you to use the ECOSTREAM™ tank system safely and
eciently. The instructional booklet must be read before setting up, starting or using your
STREAMLINE® equipment. It is an integral part of the product itself.
Please keep this booklet in a safe place near your Ecostream™ tank system for future consultation.
Your Ecostream™ tank system is constructed according to current safety standard and
regulations. The latest and current edition is illustrated in this manual.
The contents of this booklet should be bought to the attention of all users.
VARITECH SYSTEMS Ltd, the manufacturer of Streamline®, holds 12-months warranty on all
machines and equipment from the date of purchased (see Warranty section 2)
VARITECH SYSTEMS Ltd, the manufacturer of Streamline®, is in no case responsible for failures or
errors caused by modifications to the unit by customer or other persons.
The Ecostream™ tank system is designed and manufactured to be operated in industrial
applications. It is important that the operator(s) of the Ecostream™ tank system have read through
these operating instructions thoroughly, and understand all safety instructions and
regulations.
The Ecostream™ tank system is not intended for use by children, adolescents, persons under the
influence of alcohol / drugs or simply lacking experience and knowledge.
These operating instructions are designed to educate the user, informing t he operator how to carry
out the task at hand successfully, whilst avoiding potential dangers that might occur.
Please read the warning and instructions contained in this booklet carefully.
They provide important information on the safe use and maintenance of the
equipment. Pay particular attention to general safety instructions.
Important
If needed, training videos can be found on the Streamline® website: www.streamline.systems
8. Why Streamline®
9. Warranty Information
1. Responsibilities
2. Technical Specifications
3. Safety Regulations
4. Operating the ECOSTREAM® system
5. Malfunctions and Troubleshooting
6. Maintenance and Replacing Filters
7. Disposal of System and Filters
General Responsibilities
Manufacture Responsibilities
Personnel Responsibilities
De-ionising (DI) resin filter
Electrical Specifications & Safety
Safety Precautions
Personal Safety
System Safety
Technical Data
Controller Troubleshooting

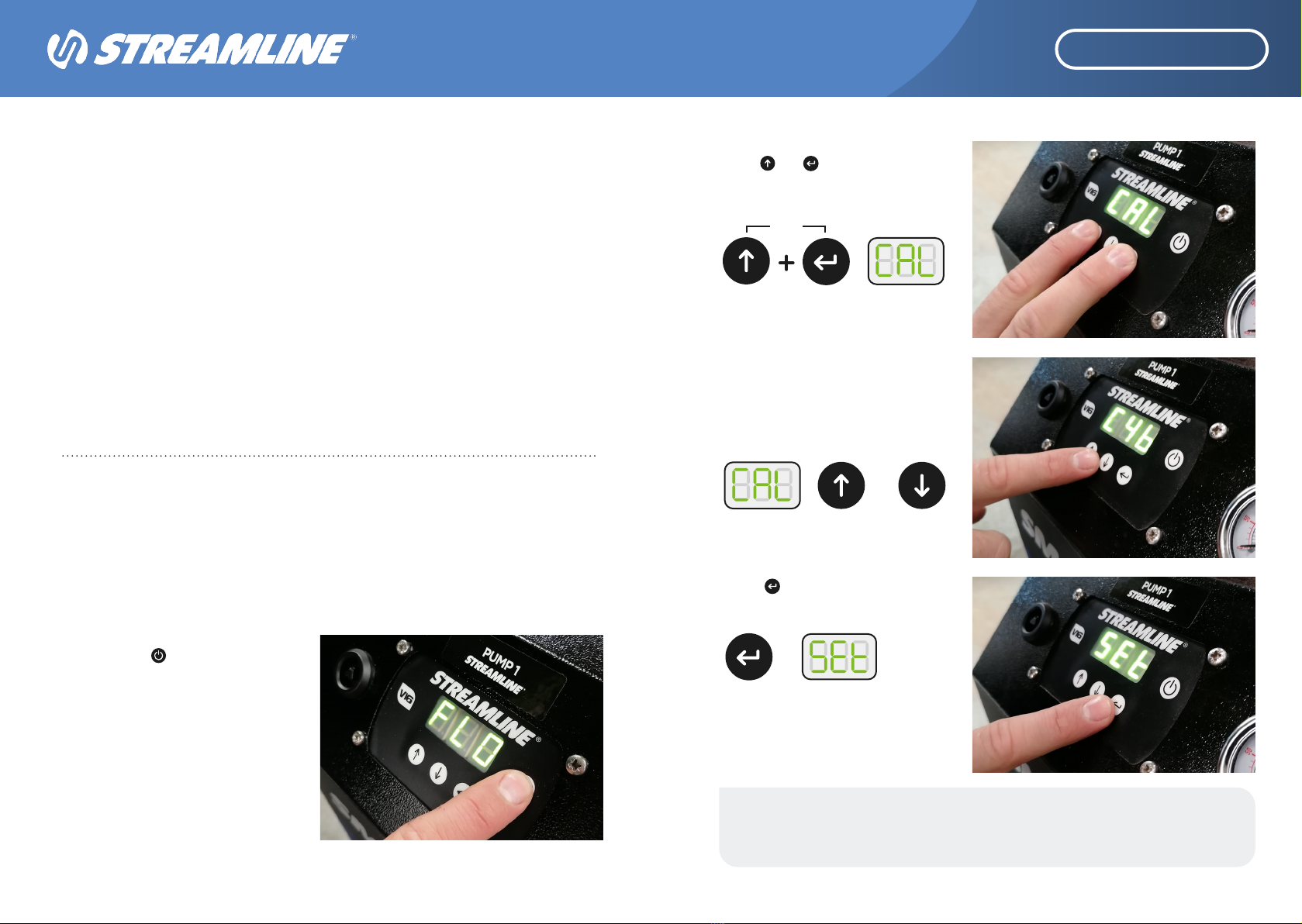

Adjusting the calibration on the controller
Unpacking your system
Storage of your system
About your system
Charging your battery
How to assemble your system

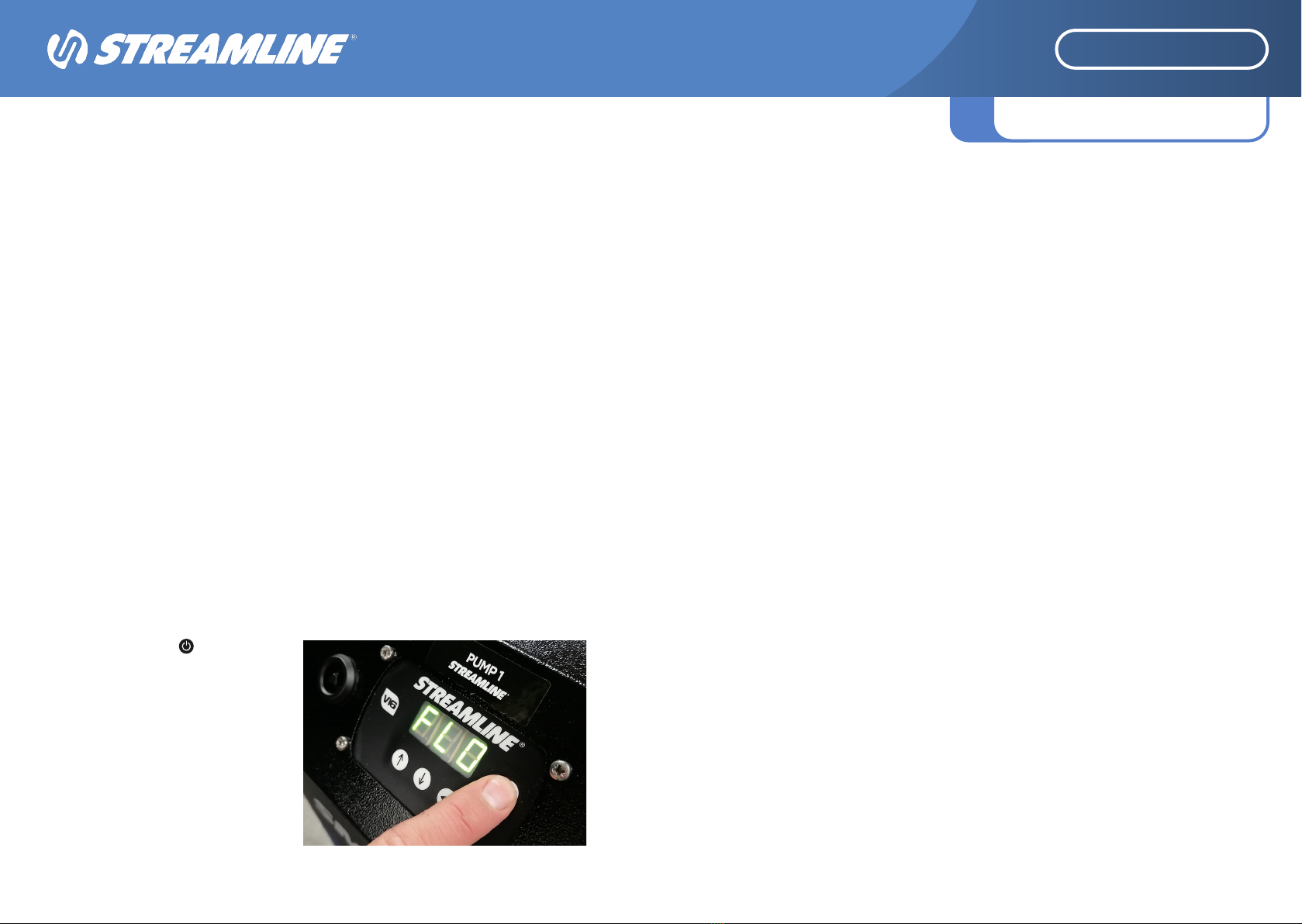

How to turn your system ON
Operating the Ecostream™ system
Turning your Ecostream™ system OFF
23
24
3
4
9
3
10
14
3
11
15
5
13
16
16
18
18 - 19
17
21
20
22
6
7
8
ECOSTREAM
™

4W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
2Technical Specifications
Technical Specifications
Specification Data
PRODUCT CODE ECO375 ECO500
Country of Origin United Kingdom United Kingdom
Maximum Height 781mm 781mm
Maximum Length 1113mm 1353mm
Maximum Width 913mm 913mm
Dry Weight 91.5kg 113kg
Wet Weight 446kg 614kg
Min. Inlet Pressure Requirement 2.8 bar / 40 bar 2.8 bar / 40 bar
Optimum Operating Pressure 6.9 bar / 100 bar 6.9 bar / 100 bar
Standard Water Inlet Connection (Male
hose lock) 3/4inch 3/4inch
Pure Water Outlet Connection
(Male hose lock) - -
Electrical Power Supply 12v Battery / 230V mains 12v Battery / 230V mains
Optimum Water Quality 000ppm 000ppm
Water Quality Range 000ppm – 1000ppm 000ppm – 1000ppm
Pure Water Flow
(optimum output) 3.8 Lpm Per Pump 3.8 Lpm Per Pump
Operating Time Approx. 10hrs Approx. 10hrs
Electrical Specifications and Safety
This applies to all Ecostream™ system configurations
Electrical connections must be carried out in respect of current
legislation (in compliance with the provisions of the IEC 60364-1
standard) and in accordance with the manufacturer’s instructions.
Please check that the installation and sockets are adequate for the
maximum power of the appliance indicated on the rating plate. If in
doubt, consult a qualified electrician. The correct plug should be
fitted by a qualified electrician.
- VARITECH SYSTEMS Ltd, the manufacturer of Streamline® declines all liability for
damage to persons, animals or things caused by faulty or incorrect connection.
- Before connecting the equipment, check that the specification given on the rating plate
corresponds to that of the mains electrical supply.
- If the equipment is connected via an extension, use cables with an adequate cross
section, never less than 1,5 mmq. The plug and socket must be watertight.
- The electrical safety of the equipment is guaranteed only when correctly and eciently
earthed as specified in current electrical safety legislation (in compliance with the
provisions of the IEC 60364-1 standard). This fundamental safety requisite should be
verified. If in doubt, ask a professionally qualified electrician to check the system
thoroughly. It is recommended that the electric supply to this machine should include a
residual current device that will interrupt the supply if the leakage current to earth
exceeds 30 mA for 30ms or a device that will prove the earth circuit.
- The equipment can be disconnected from the mains only by unplugging the plug from
the mains socket.
- When using any electrical appliance, certain fundamental rules should be respected:
VARITECH SYSTEMS Ltd, the manufacturer of Streamline®, declines all liability for damage caused
by faulty earthing of the appliance.
• Do not touch the appliance with wet hands or feet;
• Do not touch the appliance with bare feet or unsuitable clothing;
• Do not pull the power cable or appliance itself to unplug the plug from
the mains.
3Safety Regulations
Safety Regulations
ECOSTREAM
™

6W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]

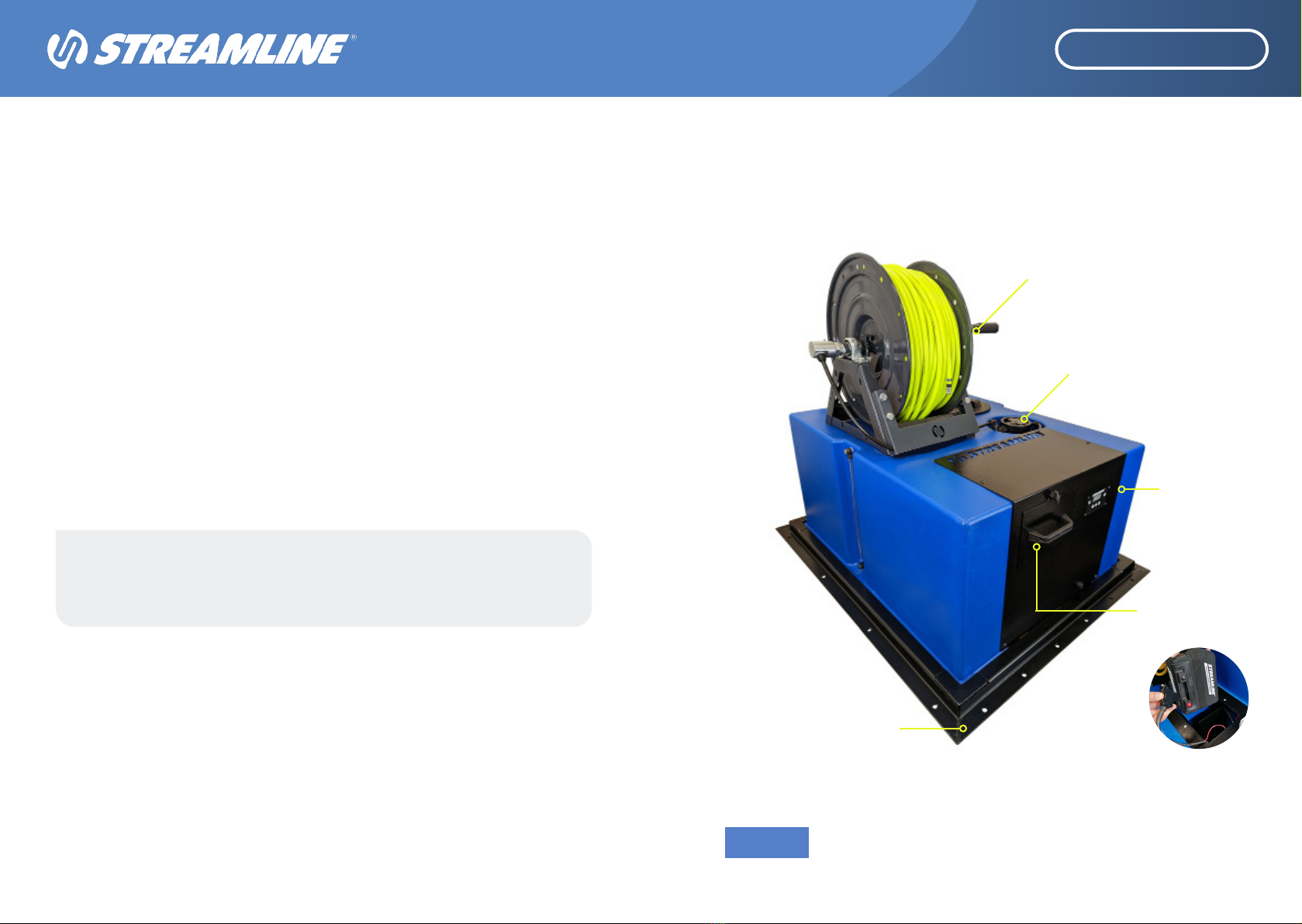

The innovative Ecostream™ is a vehicle mounted flat tank system designed to produce pure
000ppm water, through Reverse Osmosis and Deionising filtration, suitable for spot free cleaning.
The water tank is baed to restrict water movement in transit. With a height of less than 450mm
these tanks oer a safe, low centre of gravity tank system, while taking up minimal load space.
By installing the optional secondary floor, the van load area can still be utilised for a multitude of
purposes and the transport of other needed equipment.
With the equipment cabinet mounted at the front of the tank, at the door opening, operation has
never been easier… pumps, controllers and filters are easily accessible, via the opening of the
cabinet, maintenance and filter changes are simply and quickly achieved.
• It is always recommended to professionally install the Ecostream™by the
manufacturer or an approved installer. Speak to VARITECH SYSTEMS Ltd for
more details.
• If being installed in a vehicle or trailer, always ensure the vehicle/trailer has a suitable
payload for the Ecostream™ to be installed
• Do not use the Ecostream™ with telescopic poles in the vicinity of power lines,
junction boxes, power sockets – Please read Streamline® OVA8®operating instructions
• Do not attempt to modify the Ecostream™ as this could cause a safety hazard or
system breakdown
• Never use faulty components or if there is visible damage to the pole or fittings - replace
them immediately with original spare parts
Safety Precautions
Stay alert, watch what you are doing and use common sense when operating the
Ecostream™ tank system. Do not use the filtration system while you are tired or under the
influence of alcohol, drugs or medication. A moment of inattention while operating the filtration
trolley may result in serious personal injury.
- Additional protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing
protection may be required depending on the safety regulations in the operator surroundings.
Personal Safety
Additional protective equipment such as a dust mask, non-skid safety shoes, hard hat
or hearing protection may be required depending on the safety regulations in the
operator surroundings.
Use personal protective equipment to avoid personal injury:
Saftey Goggles Protective FootwareProtective Gloves
ECOSTREAM
™

8W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]

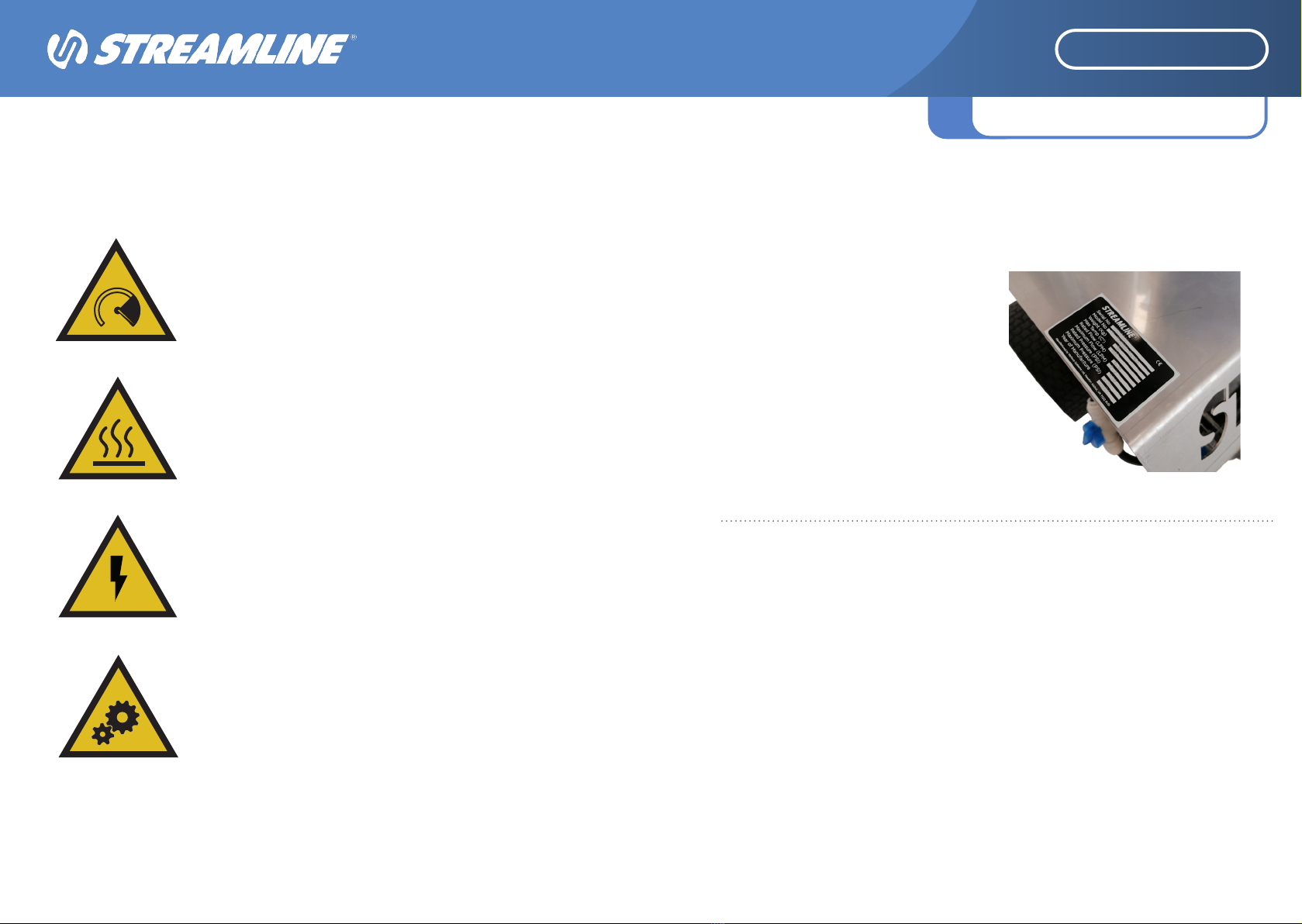

System Safety
The Ecostream™ tank system is manufactured with the safety of the operator in mind, including
some key features such as;
• If the water pressure in the Ecostream™ filtration system rises
above the maximum 100psi / 6bar pressure, the pressure switch
valve shuts on the pump closing the system down, and not letting
the pressure in the system rise any further.
• It is important to never open the filter vessels or membrane
housings during operation or whilst under pressure.
Over Pressure
• If the powerful booster pump overheats on the Ecostream™
system, an activation switch is triggered and the system will
automatically switch o.
• As the Ecostream™ system is powered by an electrical source, nev-
er use expose the equipment in the rain, snow or strong winds.
• Never use the filtration system to clean people and/or animals.
• Before each use, undertake a visual check on all electrical cables
for damage. Never use the Ecostream™ system with a
damaged cable.
• To avoid all mechanical hazards, ensure the Ecostream™ system is
safely secured in position before filling the water tank.
Over Heating
Electrical Hazards
Mechanical Hazards
Your Ecostream™ system has been carefully manufactured, checked through QC and packaged as
a kit.
If your Ecostream™ is installed in a vehicle or trailer, please move to STORAGE OF
Ecostream™ System.
Packaging (bags, boxes, nails, tape etc.) should be kept out of reach of children as they may
represent a potential hazard. Packaging can be recycled according to your local legislation.
Unpacking of the Ecostream® system
Use only original accessories that come with the Ecostream™ system, oering maximum quality
and security. Failure to use original accessories absolves VARITECH SYSTEMS Ltd, the manufacturer
from all liability.
When purchasing the product, make sure it has
an identification plate. If this is missing, notify
the distributor / manufacturer where you
purchased the unit from.
Use of an appliance without an identification
plate absolves the manufacturer from all liability.
Products without an identification plate should
be considered as anonymous and
potentially dangerous.
4Operating the Ecostream™ system
Operating the Ecostream™ system
Stay alert, watch what you are doing and use common sense when operating the Ecostream™ tank
system. Do not use the filtration system while you are tired or under the influence of alcohol, drugs
or medication. A moment of inattention while operating the filtration trolley may result in serious
personal injury.
ECOSTREAM
™

10 W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
The unit must be protected from freezing.
The following procedures should be followed to protect the unit from bacteria fouling and
damage from freezing;
Storage of your System

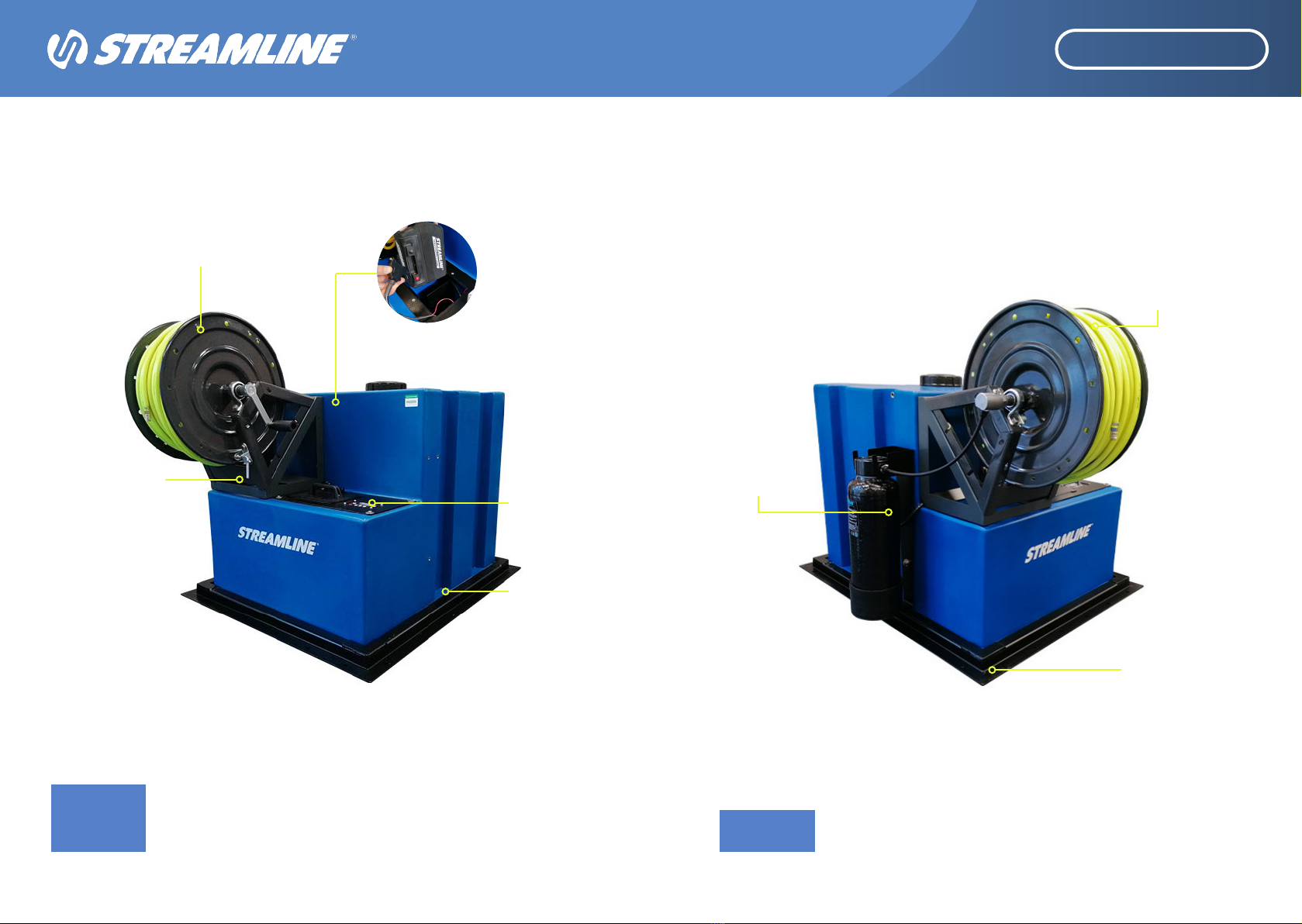

About your system
Important
Short term storage: 2-4 weeks of no use
Long term storage: 4 weeks plus of no use
i. Remove excess water.
ii. Remove the DI resin cartridge housing and pour out the excess water.
iii. Remove excess water.
iv. Remove the DI resin cartridge housing and pour out the excess water.
v. Remove all filters from the Ecostream™ system, wrap in individual plastic bags and seal.
ix. Remove all filters from the Ecostream™ system, wrap in individual plastic bags and seal.
x. Replace all filter housings and membrane caps without any filters inside.
xi. It is important to store the Ecostream™ system where it cannot freeze.
xii. It is important for all filters to not be allowed to dry out when not in use.
ECO255
1 x Fixed hose reel with either
50m or 100m of STREAMLINE®
hose and microbore couplings
1 x STREAMLINE® SFC16
Digital Controller with
battery voltage level
1 x 4 sided z-profile
securing flange
DI Filtration
1 x STREAMLINE®
Lithium-ion compact
removable battery with
USB port to charge
your phone
ECOSTREAM
™

12 W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
About your system
No Filtration
DI Filtration
ECO375DI-03
ECO500DI-03
ECO375-02
ECO375-03
ECO500-02
ECO500-03
1 x Fixed hose reel with either
50m or 100m of STREAMLINE®
hose and microbore couplings
1 x Fixed hose reel with either
50m or 100m of STREAMLINE®
hose and microbore couplings
DI Filtration
1 x STREAMLINE® SFC16
Digital Controller with
battery voltage level
1 x 4 sided z-profile
securing flange
1 x 4 sided z-profile
securing flange
1 x STREAMLINE®
Lithium-ion compact
removable battery with
USB port to charge
your phone
Lock mechanisum
ECOSTREAM
™

14 W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
The Ecostream™ Range includes a Lithium Ion Battery set up. This Battery is to be charged with the
charger supplied with the System. It is advised battery is charged after every day of use. Battery
can be discharged fully, but is advised to be charged fully prior to every use.
1. Remove the battery from the Ecostream™ and charge in dry/warm conditions.
2. Plug the Mains plug on the charger into 230v Mains and lights will appear on the charger
3. Plug the Battery connection from charger into the battery
4. Battery Charge will indicate on the charger with green light as charging
5. Full charge will indicate as full green bars
6. Unplug and refit into Ecostream™
7. The battery charging cycle is approx. 8 hours to full charge. The run time of the battery is
approx. 8 hours continual usage.
Charging your Battery
Only use the Ecostream™ charger supplied with your Ecostream™ system. If misplaced,
contact your dealer of manufacture immediately.
The charger will never over heat. This has a safety function to prevent the battery from
over charging.
You can operate the system and keep the battery on charge. Pay special attention to the
mains electrical supply when operating with water.
Important
2x Fixed hose reel with either
50m or 100m of STREAMLINE®
hose and microbore couplings
Water Filling
Location / Tank Lid
2x
STREAMLINE®
SFC16
Digital Controller
with battery
voltage level
Screws to remove front
plate and access DI
filtration area
(Show Below)
Tank Fill Guage
1 x 4 sided z-profile
securing flange Not
shown in image*
2x DI Filtration
2x Streamflo® Pump 12v 100psi
4.5lpm, 3/8 Female Ports
1 x STREAMLINE®
Lithium-ion compact
removable battery with
USB port to charge
your phone
ECO700
ECOSTREAM
™

16 W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
Filling the water tank on your Ecostream™ depending on what filtration specification.
When using the Ecostream™ with no filtration, is designed to be filled straight into tank lid and fast
filling with a transfer nozzle.
When using the Ecostream™ with DI filtration, you have the option of filling through the water inlet
port which is connected to a float or opening the tank lid and fast filling with a transfer nozzle.
How to assemble the system Turning your ECOSTREAM™system on
No Filtration
DI Filtration
Your Ecostream™ does not have any filtration, therefore the operator MUST fill the tank with
pure (000ppm) water.
Important
i. Switch the flow controller on by
pressing the button
ii. You can adjust the water flow rate by
increasing/decreasing the flow rate
number until a desired flow rate is
achieved. The average flow rate is
usually set between 40-50 on the
Streamline® controllers (approx.
2.5lpm). The pump MUST run
continuously. If the pump is
running intermittently whilst water is
flowing to the telescopic pole, decrease
the speed on the flow controller by
pressing the button until the
pump runs continuously.
You are now able to use your Ecostream™ system.
Please ensure you regularly check the water quality with the TDS meter provided.
Dierent cleaning applications may require dierent water flow rates, i.e. large glass areas
with lots of rinsing will need more water than a small window.
Important
ECOSTREAM
™

18 W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
Operating your ECOSTREAM™ system
Turning your ECOSTREAM® system OFF
The Ecostream™ system is designed for a single operator use only.
The water supply can sometimes be interrupted for short lengths of time i.e. when the operator
moves from window to window. However if the Ecostream™ system is interrupted for long periods of
time, it is best to switch o the pump to save overheating and/or over pressurising, and potentially
damaging the system.
If the operator is using 4x jets with the waterfed brush, it is advised to turn up the speed of the
controller, to give sucient water flow for quality cleaning and rinsing.
When cleaning windows, remember to pay special attention to the frames, especially if it is the first
time this method of window cleaning is being used.
The most important part of the cleaning process is to rinse the glass thoroughly, after the window
has been cleaned. To do this, lift the brush away from the glass and move the head from side to side
working from top to bottom motion, allowing the water remove all particles from the glass.
If you are cleaning windows on a warm day, the rinsing procedure must be done meticulously, as
warm, direct sunlight can cause spotting due to insucient rinsing.
Please see the filling instructions depending on what filtration specification you have on
your Ecostream™
i. Low water pressure or water supply at waterfed brush
a. Check for any blockages or kinks in hose
b. Disconnect all extension hose/hose reels and connect the Ecostream™
filtration system directly to the telescopic pole
c. Clean or replace the sediment filter
d. Contact service centre
ii. High pure water TDS
a. Check DI filter – replace resin beads in DI cartridge
b. Contact service centre
iii. Controller stating ‘DE’ or ‘PS’ constantly
a. Check for any blockages in hose or telescopic pole tubing
b. Check for any blockages in membrane
c. Raise the calibration on the controller
d. Contact service centre
iv. Controller flashing ‘BAT’ constantly
a. Plug in battery charger immediately before the battery is flat
b. Contact service centre
The Ecostream™ system is designed for a single or double operator use.
ii. Press and hold the button on
the STREAMLINE® flow controller,
switching o the Shurflo pump

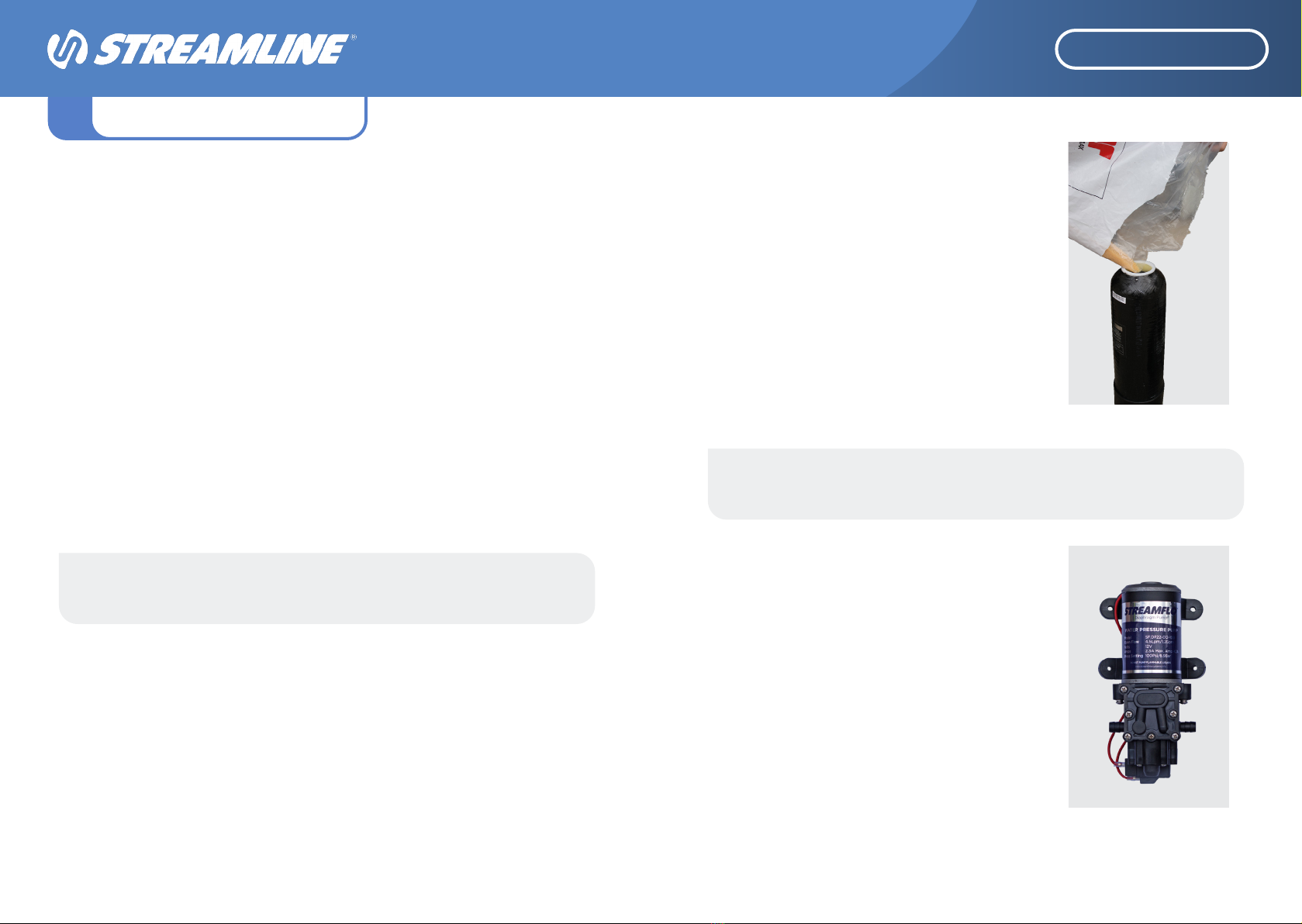

5Malfunctions & Troubleshooting
Malfunctions & Troubleshooting
ECOSTREAM
™
