1Responsibilities
Responsibilities
General Responsibilities
These operating instructions allows you to use the Streamflo® filtration system safely and
eciently. The instructional booklet must be read before setting up, starting or using your
Streamline® equipment. It is an integral part of the product itself.
Please read the warning and instructions contained in this booklet carefully.
They provide important information on the safe use and maintenance of the
equipment. Pay particular attention to general safety instructions.
Please keep this booklet in a safe place near your Streamflo® filtration system for
future consultation.
Your Streamflo® filtration system is constructed according to current safety standard and
regulations. The latest and current edition is illustrated in this manual.
The contents of this booklet should be bought to the attention of all users.
Manufactures Responsibilities
Personnel Responsibilities
VARITECH SYSTEMS Ltd, the manufacture of STREAMLINE®, holds 12-months warranty on all
machines and equipment from the date of purchased (see Warranty section 2)
VARITECH SYSTEMS Ltd, the manufacture of STREAMLINE®, is in no case responsible for failures
or errors caused by modifications to the unit by customer or other persons.
The Streamflo® filtration equipment is designed and manufactured to be operated in industrial
applications. It is important that the operator(s) of the Streamflo® filtration equipment have read
through these operating instructions thoroughly, and understand all safety instructions and regula-
tions.
The Streamflo® filtration equipment is not intended for use by children, adolescents, persons under
the influence of alcohol / drugs or simply lacking experience and knowledge.
These operating instructions are designed to educate the user, informing the operator how to carry
out the task at hand successfully, whilst avoiding potential dangers that might occur.
W: www.streamline-eu.com E: [e-mail] T: [phone] W: www.streamline-eu.com E: [e-mail] T: [phone]
STREAMFLO
®
ENGLISH

2Technical Specifications
Technical Specifications
PRODUCT CODE SF-TR25 SF-TR50 SF-TR120
Country of Origin United Kingdom United Kingdom United Kingdom
Maximum Height 115cm 115cm 80cm
Maximum Length 65cm 65cm 152cm
Maximum Width 45cm 50cm 70cm
Dry Weight 31kg 45kg 90kg
Wet Weight 56kg 95kg 210kg
Inlet Pressure Requirement n/a n/a n/a
Optimum Operating Pressure 6.9bar / 100psi 6.9bar / 100psi 6.9bar / 100psi
Standard Water Inlet
Connection (Male hose lock) n/a n/a n/a
Pure Water Outlet Connection
(Female hose lock) 3/4inch 3/4inch 3/4inch
Electrical Power Supply 12V Battery 12V Battery 12V Battery
Power Consumption kW kW kW
Optimum Water Quality 000ppm 000ppm 000ppm
Water Quality Range 000ppm – 100ppm 000ppm – 100ppm 000ppm – 100ppm
Pure Water Flow (optimum
output) 3.8Lpm 3.8Lpm 3.8Lpm
Waste Water Flow 0Lpm 0Lpm 0Lpm
Operating Time 12hours battery life 12hours battery life 12hours battery life
Specification Data

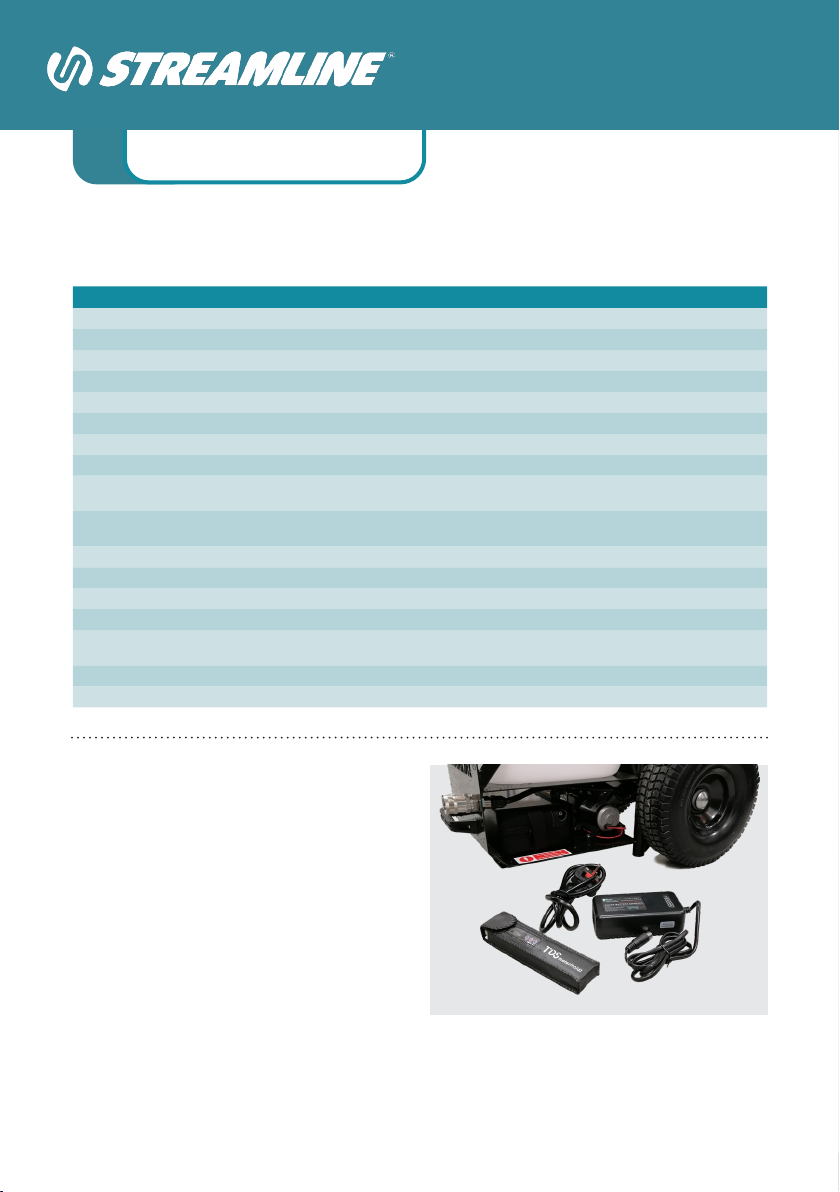

Parts and Accessories
- Handheld TDS meter for accurate
water readings
- 230V Mains Powered Battery Charger
- Instruction Manual
The Streamflo® filtration system will include
the following parts:
4W: www.streamline-eu.com E: [e-mail] T: [phone]

5
W: www.streamline-eu.com E: [e-mail] T: [phone]

3Safety Regulations
Safety Regulations
The Streamflo® filtration system is intended solely for the production of pure water used for
cleaning windows, vehicles, solar panels and other hard washable surfaces typically through
standard and optional accessories provided by STREAMLINE®.
The water cannot be used for human consumption.
Stay alert, watch what you are doing and use common sense when operating the Streamflo®
filtration system. Do not use the filtration system while you are tires or under the influence of
alcohol, drugs or medication. A moment of inattention while operating the filtration trolley may
result in serious personal injury.
Parts and Accessories
Additional protective equipment such as a dust mask, non-skid safety shoes, hard hat
or hearing protection may be required depending on the safety regulations in the
operator surroundings.
Use personal protective equipment to avoid personal injury:
Saftey Goggles Protective Footware Protective Gloves
6W: www.streamline-eu.com E: [e-mail] T: [phone]

Use only original accessories that come with the Streamflo® filtration system, oering maximum
quality and security. Failure to use original accessories absolves VARITECH SYSTEMS Ltd, the
manufacturer from all liability.
The Streamflo® filtration trolley is manufactured with the safety of the operator in mind, including
some key features such as;
System Safety
• If the pump overheats on the Streamflo® filtration system, an
activation switch is triggered and the system will automatically
switch o.
• As the Streamflo® filtration system is powered by an electrical source,
never use the equipment in the rain, snow or strong winds.
• Never use the filtration system to clean people and/or animals.
• Before each use, undertake a visual check on all electrical cables for
damage. Never use the filtration system with a damaged cable.
• To avoid all mechanical hazards, place the Streamflo® filtration trolley on
an even surface only, and ensure sucient stability.
Over Heating
Electrical Hazards
Mechanical Hazards
• If the water pressure in the Streamflo® filtration system is above the
standard 100psi / 6.8bar pressure, the pr essure switch will
automatically be activated and stop the pump from over pressurizing.
• It is important to never open the filter vessels during operation or whilst
under pressure.
Over Pressure
W: www.streamline-eu.com E: [e-mail] T: [phone] W: www.streamline-eu.com E: [e-mail] T: [phone]
STREAMFLO
®
ENGLISH

This applies to all Streamflo® filtration systems.
Electrical connections must be carried out in respect of current legislation (in compliance with the
provisions of the IEC 60364-1 standard) and in accordance with the manufacturer’s instructions.
Please check that the installation and sockets are adequate for the maximum power of the appliance
indicated on the rating plate. If in doubt, consult a qualified electrician. The correct plug should be
fitted by a qualified electrician.
VARITECH SYSTEMS Ltd, the manufactures of STREAMLINE®, declines all liability for damage
caused by faulty earthing of the appliance.
- VARITECH SYSTEMS Ltd, the manufacture of STREAMLINE® declines all liability for
damage to persons, animals or things caused by faulty or incorrect connection.
- Before connecting the equipment, check that the specification given on the rating
plate corresponds to that of the mains electrical supply.
- If the equipment is connected via an extension, use cables with an adequate cross
section, never less than 1,5 mmq. The plug and socket must be watertight.
- The electrical safety of the equipment is guaranteed only when correctly and
eciently earthed as specified in current electrical safety legislation (in compliance
with the provisions of the IEC 60364-1 standard). This fundamental safety requisite
should be verified. If in doubt, ask a professionally qualified electrician to check the
system thoroughly. It is recommended that the electric supply to this machine should
include a residual current device that will interrupt the supply if the leakage current
to earth exceeds 30 mA for 30ms or a device that will prove the earth circuit.
- The equipment can be disconnected from the mains only by unplugging the plug
from the mains socket.
- When using any electrical appliance, certain fundamental rules should be respected:
Electrical Specifications and Safety
• Do not touch the appliance with wet hands or feet;
• Do not touch the appliance with bare feet or unsuitable clothing;
• Do not pull the power cable or appliance itself to unplug the plug from
the mains.
8W: www.streamline-eu.com E: [e-mail] T: [phone]

When purchasing the product, make sure it has an
identification plate. If this is missing, notify the
distributor / manufacturer where you purchased the
unit from.
Use of an appliance without an identification plate
absolves the manufacturer from all liability. Products
without an identification plate should be considered
as anonymous and potentially dangerous.
Your Streamflo® Filtration System has been carefully manufactured, checked through QC and pack-
aged as a kit.
Carefully unpack your new Streamflo® Filtration System and carry out a thorough visual check on all
parts. If in doubt, do not use the system. Contact your dealer and/or manufacturer.
Packaging (bags, boxes, nails, tape etc.) should be kept out of reach of children as they may
represent a potential hazard. Packaging can be recycled according to your local legislation.
Short term and long term storage is an important issue. The Streamflo® filtration system must be
protected from algae and bacteria growth in the pressure vessels caused by stagnant water. The
de-ionising (DI) resin must not dry out wither.
Unpacking of the Streamflo® filtration system
Storage of the Streamflo® filtration system
Operating the Streamflo® Filtration Systems
Important
The unit must be protected from freezing.
You can transport or store the trolley system with the handles folded down. Loosed the
locking fixings, lift the handle and fold forwards.
4Operating the Streamflo® Filtration Systems
W: www.streamline-eu.com E: [e-mail] T: [phone] W: www.streamline-eu.com E: [e-mail] T: [phone]
STREAMFLO
®
ENGLISH

About your system
Trolley frame
Flow Controller
12v Lithium-Ion Battery
Solid Wheels
Pump
Outlet Water Connections
6 x 18 DI Filter
(On SF-TR25L-072
model only)
10 W: www.streamline-eu.com E: [e-mail] T: [phone]

To operate the Streamflo® filtration system, the operator needs to fill the storage tank with
standard mains tap water.
The water is then drawn from the storage tank by the 100psi pump, and pushed through the DI resin
vessel, reaching a 000ppm result before coming out to the telescopic pole
W: www.streamline-eu.com E: [e-mail] T: [phone]

The lithium-ion 12V battery is ready to be charged when received.
Charging your Battery

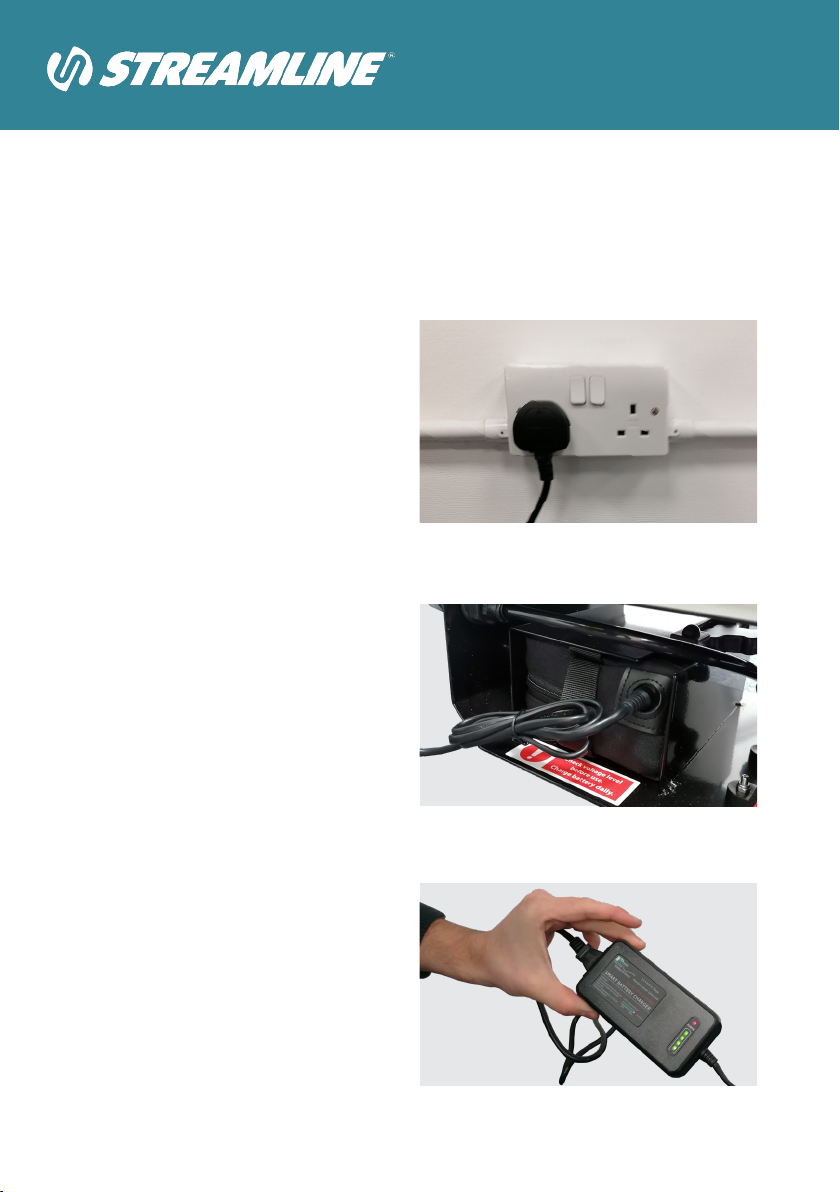

i. Plug charger into an electrical socket
ii. Insert the charger socket into the
lithium battery terminal, and switch
battery charger on
iii. RED and GREEN lights will indicate the
battery charging completion
12 W: www.streamline-eu.com E: [e-mail] T: [phone]

Assembling the System
i. Ensure the trolley system is safely
secure and stable on a level surface
Important
Only use the STREAMLINE® charger supplied with your Streamflo®
filtration system. If misplaced, contact your dealer of manufacture immediately.
The charger will never over heat. This has a safety function to prevent the
battery from over charging.
You can operate the system and keep the battery on charge. Pay special
attention to the mains electrical supply when operating with water.
W: www.streamline-eu.com E: [e-mail] T: [phone] W: www.streamline-eu.com E: [e-mail] T: [phone]
STREAMFLO
®
ENGLISH

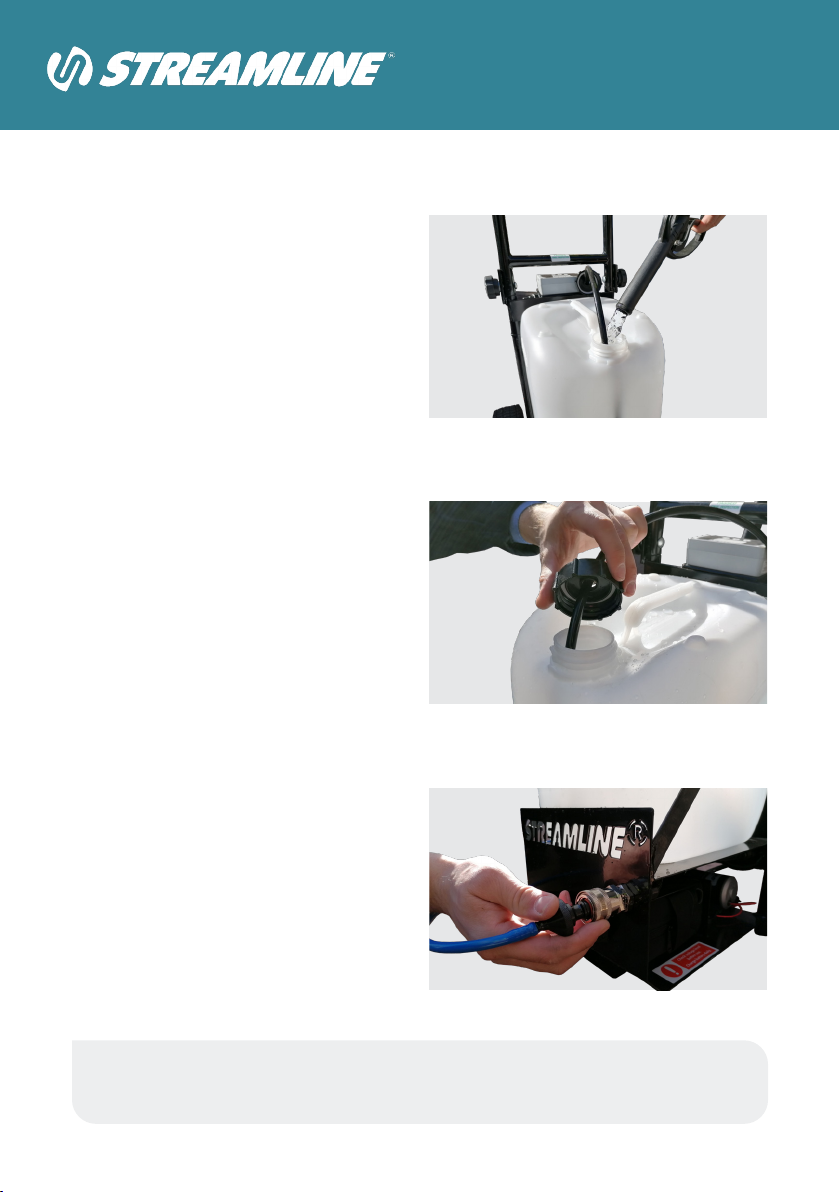

ii. Remove the container lids and riser tube and
fill the container with pre-filtered water.
If the trolley is fitted with a resin filter fill the
container with tap water
iii. Re-insert the riser tube and screw the
lids on securely
iv. Insert your telescopic pole hose
directly to the water outlet connection
(it is possible to add a 100mtr hose reel
in between your Streamflo® system
and the telescopic pole)
Important
If you have a 50ltr trolley system, it is important that the pump draws from both 25ltr
water tanks simultaneously.
14 W: www.streamline-eu.com E: [e-mail] T: [phone]

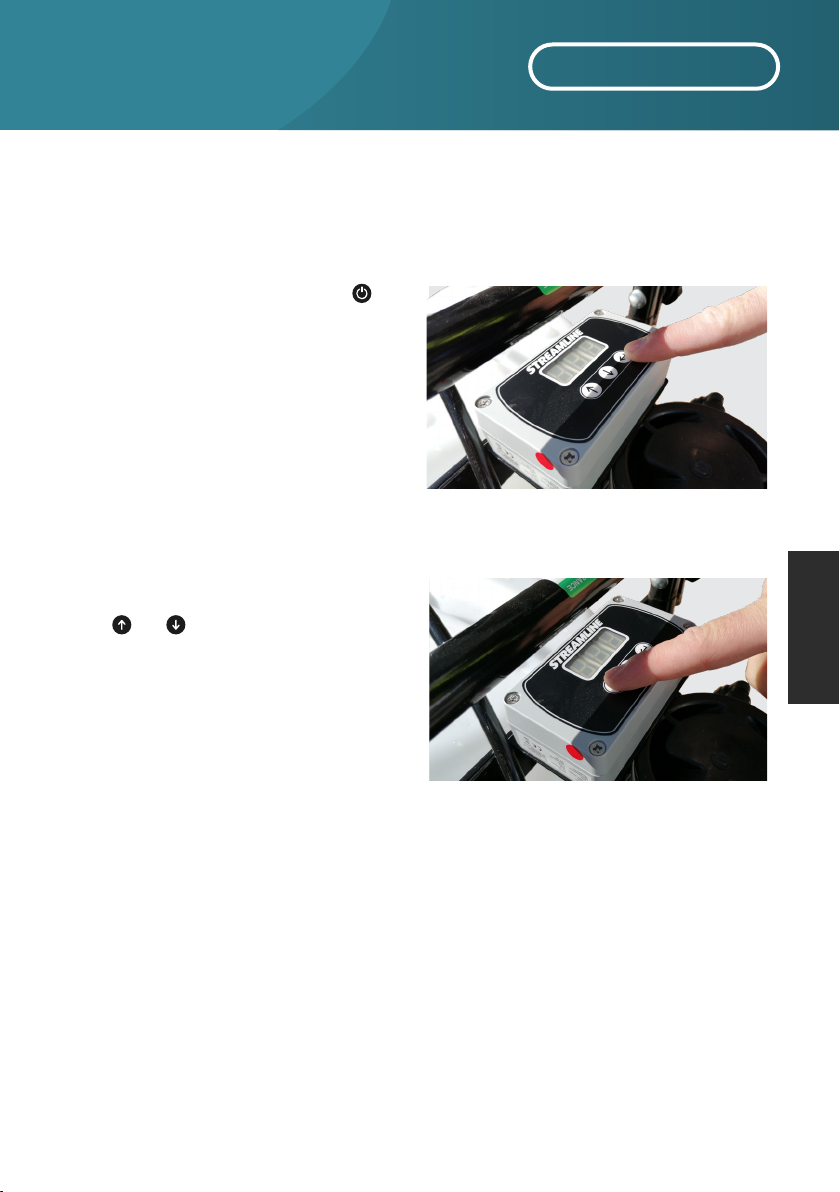

i. When in position, press the power
button on the flow controller and hold for
2-seconds
ii. Now you can adjust the speed of the water
flow through the 100psi pump by using the
and arrows on the flow controller
Turning your Streamflo® Filtration System ON
Please ensure you regularly check the water quality with the handheld TDS meter provided.
W: www.streamline-eu.com E: [e-mail] T: [phone] W: www.streamline-eu.com E: [e-mail] T: [phone]
STREAMFLO
®
ENGLISH

Operating your Streamflo® Filtration System
Turning your Streamflo® Filtration System OFF
The Streamflo® filtration system is designed for a single operator use.
The water supply can sometimes be interrupted for short lengths of time i.e. when the operator
moves from window to window, however if the Streamflo® filtration system is interrupted for long
periods of time, it is best to switch o the pump to save overheating and/or over pressurising, and
potentially damaging the system.
If the operator is using 4x jets with the waterfed brush, it is advised to turn up the speed of the
controller, to give sucient water flow for quality cleaning and rinsing.
Important
If you have a 50ltr trolley system, it is important that the pump draws from both 25ltr water
tanks simultaneously.
To switch o the Streamflo® filtration system after completing the cleaning task, simply:
i. Press and hold the button on
the Streamline® flow controller,
switching o the 100psi pump
ii. Disconnect the telescopic pole and all
hose lengths connected to the system
16 W: www.streamline-eu.com E: [e-mail] T: [phone]

To switch o the Streamflo® filtration system after completing the cleaning task, simply:
5Malfunctions and Troubleshooting
Malfunctions and Troubleshooting
a. Check for any blockages or kinks in hose
b. Disconnect all extension hose reels and connect the Streamflo® filtration
system directly to the telescopic pole
c. Increase water flow rate on flow controller
d. Contact service centre
a. Check DI resin quality – replace DI resin beads
b. Contact service centre
a. Plug in battery charger immediately before the battery is flat
b. Contact service centre
a. Check for any blockages in hose or telescopic pole tubing
b. Check for any blockages in membrane
c. Raise the calibration on the controller
d. Contact service centre
a. Check battery charge – see ‘12.1 How to charge your battery’
b. Check fuse on battery charger
c. Check fuse on mains power
d. Contact service centre
i. Low water pressure or water supply at waterfed brush
ii. High pure water TDS
v. Controller flashing ‘BAT’ constantly
iii. Pump will not start
iv. Controller stating ‘DE’ or ‘PS’ constantly
W: www.streamline-eu.com E: [e-mail] T: [phone] W: www.streamline-eu.com E: [e-mail] T: [phone]
STREAMFLO
®
ENGLISH

6Maintenance and Replacing Filters
Maintenance and Replacing Filters
Care and maintenance of your Streamflo® filtration system will ensure it is well looked after and
running smoothly every time.
It is recommended to run a weekly examination on the Streamflo® filtration system to ensure the
filters and connections are adequate and eective for producing pure 000ppm water quality.
Weekly inspection
• Keep a check on the pure water TDS by using the
handheld TDS meter. This measures in parts per
million (ppm). If the output reads higher than 3ppm,
it is recommended to change the de-ionising (DI)
filter, and make a note in the back of the
inspection booklet
• Keep a check on the battery voltage by running
through the controller function until you reach ‘BAT’.
A good healthy battery will read between 11V and
12.4V.
18 W: www.streamline-eu.com E: [e-mail] T: [phone]

The DI resin filter is the last polishing filter that the RO pure water will pass through.
Either monthly replacement or approx. 2,000ltrs* of pure water
* with starting TDS of 100ppm.
Usage
How do I change the DI resin cartridge?
De-ionising (DI) Resin Beads – usage and replacing
i. Make sure that the pump is
switched o and that the system
is de-pressurised
ii. Remove the inlet and outlet hose from
the DI filter
W: www.streamline-eu.com E: [e-mail] T: [phone] W: www.streamline-eu.com E: [e-mail] T: [phone]
STREAMFLO
®
ENGLISH

iii. Unscrew the filter bracket and remove
the DI filter from the trolley
iv. Remove the DI filter head and empty
the poor/spent DI resin
v. Refill the DI filter to the filling line and
reset the filter riser and head
20 W: www.streamline-eu.com E: [e-mail] T: [phone]
