Strong SRT 8205 User manual

User Manual
Manuel d'u lisa on
Uputstvo za upotrebu
Εγχειρίδιο χρήστη
Instrukcja obsługi
Руководство пользователя
Посібник користувача
Digital Terrestrial HD Receiver
SRT 8205
Picture similar

ANT
IN
Supplied by
STRONG Austria
5 V
50 mA max.
Model: Digital Terrestrial
HD Receiver SRT 8205

ANT
IN
Supplied by
STRONG Austria
5 V
50 mA max.
Model: Digital Terrestrial
HD Receiver SRT 8205
ANT
IN
Supplied by
STRONG Austria
5 V
50 mA max.
Model: Digital Terrestrial
HD Receiver SRT 8205

19 Feb 2018 14:18
Supplied by STRONG Austria
Represented by
STRONG Ges.m.b.H.
Franz-Josefs-Kai 1
1010 Vienna
Austria
Email: [email protected]
HOTLINE
BG [phone]
[e-mail]
DK [e-mail]
NL [e-mail]
AT 0820 400 150
[e-mail]
€ 0,12/Min. österr. Festnetz
DE 0180 501 49 91
[e-mail]
€ 0,14/Min. deutsches Festnetz
€ 0,42/Min. max. Mobilfunknetze
[phone]
[e-mail]
CEE
PL 801 702 017
[e-mail]
UA [phone]
[e-mail]
FR 0826 029 928
[e-mail]
€ 0,15 par mn poste fixe en France
IT 199 404 032
[e-mail]
Da rete fissa 24,8 cent. al min.
12,5 cent. scatto alla risposta
Da rete mobile max 49 cent. al min.
15,6 cent. scatto alla risposta

Licenses
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND
NONCOMMERCIAL USE OF A CONSUMERTO (i) ENCODE VIDEO IN COMPLIANCE WITHTHE AVC
STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A
VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED
FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE
HTTP://WWW.MPEGLA.COM
16 Jan 2018 16:12
1

TABLE OF CONTENTS
1.0 INTRODUCTION 3
1.1 Safety Instructions 3
1.2 Equipment Set-up 4
1.3 Accessories 5
1.4 Usage of external USB devices 5
2.0 YOUR RECEIVER 5
2.1 DEFAULT PIN: 1234 5
2.2 Front Panel 5
2.3 Rear Panel 6
2.4 Remote Control Unit (RCU) 6
2.5 Installing the batteries 7
2.6 Using the remote control 7
3.0 CONNECTION 7

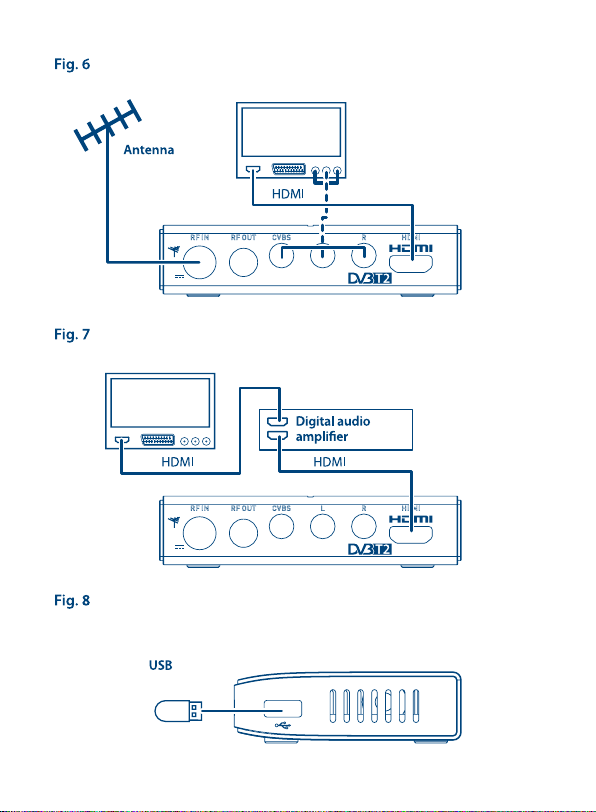

3.1 Connecting to a terrestrial antenna 7
3.2 Connecting to TV with HDMI cable 8
3.3 Connecting to TV with 3 RCA-3 RCA cable 8
3.4 Connecting to a Digital Audio Amplier and TV using HDMI 8
3.5 Connecting a USB storage device 8
4.0 STARTING UP FOR THE FIRSTTIME 8
5.0 QUICK GUIDE TO USING YOUR RECEIVER 9
6.0 OPERATION 9
6.1 Changing channels 9
6.2 Info Banner 10
6.3 Selection of audio language 10
6.4 Teletext 10
6.5 Subtitles 11
6.6 Timeshift 11
6.7 EPG (Electronic Programme Guide) 11
6.8 Quick Recording 12
7.0 MAIN MENU 12
7.1 Edit Channel 12
7.2 Installation 15
7.3 System Setup 16
7.4 Tools 18
7.5 Media Player 19
8.0 TROUBLESHOOTING 22
9.0 TECHNICAL SPECIFICATIONS 23
2

1.0 INTRODUCTION
1.1 Safety Instructions
Read all of the instructions before operating the device. Keep these instructions well for later use.
 Only use attachments/accessories specied or provided by the manufacturer (such as the
exclusive supply adapter, battery etc.).
 Please refer to the information on the product enclosure for electrical and safety information
before installing or operating the apparatus.
 To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
 The ventilation should not be impeded by covering the ventilation openings with items, such as
newspaper, table-cloths, curtains, etc.
 The apparatus shall not be exposed to dripping or splashing and no objects lled with liquids,
such as vases, shall be placed on the apparatus.
 This mark indicates a risk of electric shock.
 To prevent injury, this apparatus must be securely attached to the oor/wall in accordance with
the installation instructions.
 Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent
types.
 The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as
sunshine, re or the like.
 Excessive sound pressure from earphones and headphones can cause hearing loss.
Listening to music at high volume levels and for extended durations can damage one's hearing.
 In order to reduce the risk of damage to hearing, one should lower the volume to a safe,
comfortable level, and reduce the amount of time listening at high levels.
 The mains plug or appliance coupler is used as disconnect device, it shall remain readily operable.
When not in use and during movement, please take care of the power cord set, e.g. tie up the
power cord set with cable tie or something like that. It shall be free from sharp edges or similar
which can cause abrasion of the power cord set.When put into use again, please make sure the
power cord is not damaged. The absence of a light indication on the apparatus does not mean
that it is fully disconnected from the mains. To disconnect the apparatus completely, the mains
plug must be pulled out.
 Attention should be drawn to environmental aspects of battery disposal.
 No naked ame sources, such as lighted candles, should be placed on the apparatus.
 To prevent the spread of re, keep candles or other open ames away from this product at
all times.
 Equipment with this symbol is a Class II or double insulated electrical appliance. It has been
designed in such a way that it does not require a safety connection to electrical earth.
Precautions
 Never try to open the device. It is dangerous to touch the inside of the device due to high voltages
and possible electrical hazards. Opening the device will void the warranty of the product. Refer all
maintenance or servicing to suitably qualied personnel.
 When you are connecting cables, be sure that the device is disconnected from the mains
supply voltage. Wait a few seconds after switching o the device before you move the device or
disconnect any equipment.
3

 It is a necessity that you only use an approved extension and compatible wiring that is suitable
for the electrical power consumption of the installed equipment. Please ensure that the electrical
power supply corresponds with the voltage on the electrical identication plate at the back of the
device.
Operating Environment
 Do not install this equipment in a conned space such as a bookcase or similar unit.
 Do not use the set near damp, and cold areas, protect the set from overheating.
 Keep away from direct sunlight.
 Do not use the set near dust place.
 Do not place candles near the opening area, to avoid ammable foreign material from entering
the device.
WEEE Directive
Correct Disposal of this product. This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources.To return your used
device, please use the return and collection systems or contact the retailer where the
product was purchased. They can take this product for environmental safe recycling.
Storage
Your device has been carefully checked and packed before shipping. When unpacking it, make sure
that all the parts are included and keep the packaging away from children. We recommend that you
keep the carton during the warranty period, to keep your device perfectly protected in the event of
repair or warranty.
1.2 Equipment Set-up
The installation of your receiver does not require any special skills and can be done by yourself, as
described in chapter 4. In this case, please follow the instructions.
 Refer to the user manual of your TV.
 Make sure that the HDMI cable is in a good condition.
 Make sure that the 3 RCA or HDMI cable and outdoor components are in good condition and all
connections are well shielded and of good quality.
 Make sure the antenna cable is in good condition and the antenna is pointing to the nearest
digital TV transmitter.
This manual provides complete instructions for installing and using this receiver. If you are unable to
set up your receiver by yourself, please contact a qualied technician.
The symbols serve as follows.
WARNING: Indicates warning information.
Tips Indicates any other additional important or helpful information.
MENU Represents a button on the remote control or the receiver. (Bold characters)
Move to Represents a menu item within a window. (Italic characters)
4

1.3 Accessories
 Quick Installation Guide
 1 Power Supply
 1 Remote Control Unit
 2x batteries (AAA type)
NOTE: For the appropriate usage with this device, use only power adapters as
listed below (in case of a necessary exchange):
 Model: DYGK-5W-050100; Manufacturer: ShenZhen DongYuan HIGH-
Techelectronic Technology Co,.LTD
The usage of other power adapters may cause damage to the device. Such
damage is not covered under warranty.
WARNING: The batteries should not be recharged, disassembled, electrically short-
circuited, be mixed or used with other types of batteries. If rechargeable
accumulators instead of batteries are going to be used (e.g. NiMH), we
recommend using types with low self-discharge to ensure long time
operation of your remote control.
1.4 Usage of external USB devices
 It is recommended to use USB 2.0 storage devices or higher. If your device is not compatible to
USB 2.0 specications, recording, playback and other multimedia functions of the receiver might
not work properly.
 To ensure best performance of your USB storage device please format it via your receiver (through
the menu“Media Player/HDD Information”) to FAT32 system. Other le systems are not supported
by the receiver. However, it is possible to use already NTFS formatted disks.
 STRONG cannot guarantee compatibility with all types of USB storage devices.
 If you are going to use external USB HDDs (Hard Disk Drives), please consider that power
specications may exceed the supported output of your receiver (max. 5 V/800 mA). If so, please
connect your USB HDD to an according external power adapter.
 It is advised not to store important information on USB storage devices used with the receiver.
Always make backups of data on your USB storage device before using it with this receiver.
STRONG will not take responsibility for any loss of information or circumstances caused by loss of
information.
2.0 YOUR RECEIVER
2.1 DEFAULT PIN: 1234
2.2 Front Panel

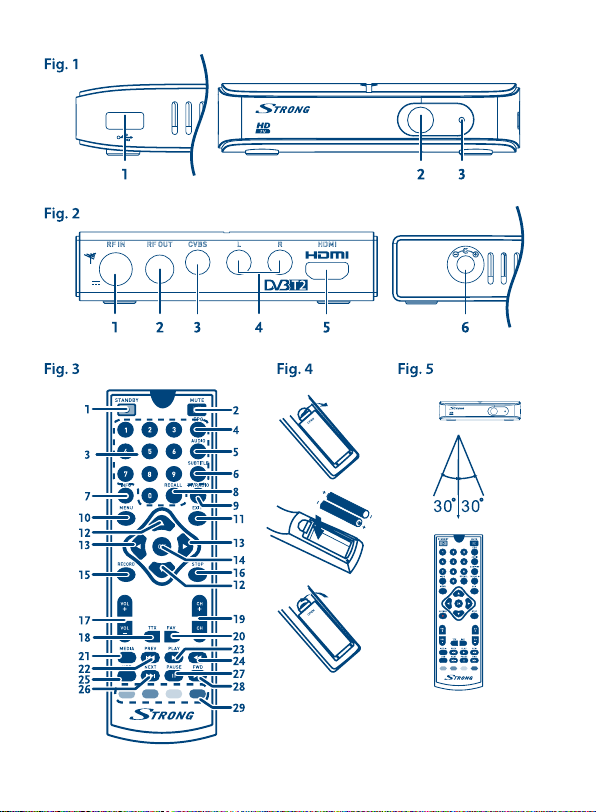

Fig. 1
1. USB (at side): Connector for USB storage devices (right side panel).
5

2. IR sensor: Point your RCU towards this sensor.
3. Mode indicator: RED indicates that the receiver is in STANDBY mode.
GREEN indicates that the receiver is in OPERATING mode
2.3 Rear Panel
Fig. 2
1. RF IN To connect to your antenna for reception of broadcasted signals.
2. RF OUT To connect your extra receiver
3. CVBS connector (output, yellow)
To connect your receiver to your TV set using corresponding
video input in your TV.
4. AUDO L/R connector (output, white/red)
To connect your receiver to your TV set using corresponding right
and left channels of audio inputs in your TV or stereo system.
5. HDMI To connect your receiver with your TV set using an HDMI cable
6. Power adapter connector (at side)
To connect power adaptor supplied with the receiver. Please, use
only original adapter.
2.4 Remote Control Unit (RCU)
Fig. 3
1. qSwitches the receiver On/Standby
2. !Mutes all audio outputs of the receiver
3. 0 ~ 9 Enters a channel number in viewing mode or a value inside the
respective menu
4. EPG Opens the EPG (Electronic Programme Guide) inTV mode
5. AUDIO Opens the audio language selection
6. SUBTITLE Shows a list of subtitle languages
7. INFO Opens the current channel information; 2x opens the current
event information and 3x the signal information
8. RECALL Back to previously watched channel
9. TV/RADIO Toggles between TV or RADIO mode
10. MENU Opens the main menu, in a menu you will get one step back
11. EXIT Exits from the menu or sub-menu
12.  Menu O: Change channel to next/previous.
Menu On: Moves the cursor up/down
13. Menu O: Decreases/increases the volume level
Menu On: Change settings for specic menus
14. OK Menu O: Displays the current channel list
Menu On: Activates the highlighted menu item
15. RECORD Records theTV programme to the connected USB storage device
16. 3Stops recording orTimeshift
17. VOL+/VOL Increases/decreases the volume level
18. TTX Displays Teletext on the OSD (On Screen Display)
19. CH+/CH Page up/down in channel list mode. Change channel to next/
previous in no menu state
6

20. FAV Opens the favourite group selection
21. MEDIA Enters to the list of records
22. 7Change media le to previous
23. Starts/resume playback of records and media les
24. 5Fast rewind playback
25. USB Opens the Media Player Video list
26. 8Change media le to next
27. 2Pauses playback
28. 6Fast forward playback
29. COLORED BUTTONS For Multimedia and Teletext functions
2.5 Installing the batteries
Fig. 4
Open the cover on the remote control and insert 2x AAA batteries into the compartment. Correct
position of the polar diagram shows the batteries inside the compartment.
1. Open the cover.
2. Insert the batteries.
3. Close the lid.
WARNING: The batteries should not be recharged, disassembled, electrically short-
circuited, be mixed or used with other types of batteries.
2.6 Using the remote control
Fig. 5
To use the remote control, point it towards the front of your receiver. The remote control supports a
range of up to 5 meters distance to the receiver at an angle of up to approx. 30 degrees.
NOTE: Managing the receiver will be limited or not possible if there are obstacles
between the remote control sensor (at the front panel of the receiver)
and the remote control. Direct sunlight or very bright light can reduce or
disturb the reception of the remote control signals.
3.0 CONNECTION
3.1 Connecting to a terrestrial antenna
Fig. 6
To receive broadcasted signals, your terrestrial indoor or outdoor antenna must be connected to
the RF IN connector on the back of the receiver. Use a properly shielded antenna cable and suitable
connectors.
The RF OUT connector allows you to loop the antenna signal to a second receiver orTV set.
Please consider that the looped signal might be too weak if you use an active antenna.
7

NOTE: If the signals at your location are too weak to receive proper signals with
an indoor antenna, we recommend using an outdoor antenna which can
be pointed towards the transmission tower. Ask your local dealer for more
information.
3.2 Connecting to TV with HDMI cable
Fig. 6
The TV set shall be connected with the receiver using a good quality HDMI cable. This connection
gives the highest possible quality.
3.3 Connecting to TV with 3 RCA-3 RCA cable
Fig. 6
Use a 3 RCA-3 RCA cable for connecting this receiver to older TVs that are not equipped with an HDMI
connector.
3.4 Connecting to a Digital Audio Amplier and TV using
HDMI
Fig. 7
By connecting your receiver to the latest digital ampliers or Home Cinema systems, preferable
with HDMI connections, you will enjoy the best possible sound quality and multi-channel audio
(depending on broadcast). Connect the HDMI output of the receiver to an input of your amplier,
and then connect the HDMI output of the amplier to your TV set. Select the correct input on your
amplier to watch and listen to programmes.
3.5 Connecting a USB storage device
Fig. 8
Connecting a USB device to the unit allows you to playback multimedia les. See chapter 7.5. Media
Player.
NOTE: It is recommended to use USB 2.0 storage devices or higher for recording
and play back of TV programmes or HD movies.
NOTE: Timeshift/recording and playback only works properly when a fast
USB storage device such as a USB2.0 HDD is connected to the receiver.
Timeshift/recording and playback of HD content requires a sucient read/
write speed of the used USB storage device.
4.0 STARTING UP FOR THE FIRST TIME
When you use your receiver for the rst time, please select your menu language using  and press
OK to conrm selection. You will follow to the Welcome “Easy install” menu.
8

Use  to move the highlight to the setting you wish to alter and use to change values.
Region: Select your region where this receiver is used.
Subtitle: Select Normal to display subtitles per default, select Hard of Hearing to show
HoH subtitles per default. Select O  to hide subtitles per default.*
Aspect Mode: Use this option to select the aspect ratio of your TV and the preferred
conversion method.The options are: Auto (automatic detection of aspect
ratio), 4:3 PS (Displays 16:9 widescreen broadcasts full screen on your 4:3TV),
4:3 LB (black bars on top and under the picture on a 4:3 TV) and 16:9 (use this
setting for 16:9 TV sets).
Scan Mode: Select Free or All to scan corresponded type of channels.
*Availability of DVB/HoH subtitles depends on the broadcast. If subtitles are not supported, they can be activated via Teletext, if available.
When all settings have been made, move the highlight to OK and press OK to continue.
The receiver will now advance to the Aerial Adjustment screen.
This part of the wizard is of great help when setting up your antenna system.
Use  to move the highlight to the setting you wish to alter and use to change values.
The following settings are available:
Antenna Power: Set to On if you use an active antenna. When set to On, 5 V will be present at
the RF IN connector of the receiver. Select O  for passive antennas.
Channel No.: Select a channel that is known to carry a broadcast in your region. The Signal
Strength and Signal Quality bars give a visual indication of the reception.
Adjust your antenna to obtain maximum signal strength and quality.
Beeper: Select On for an audible indication of signal reception. O  (default) turns the
beeper o.
When all settings have been made, press OK to start scanning.
The receiver will search for all available channels now. Once scanning is nished, the receiver switches
to viewing mode.
5.0 QUICK GUIDE TO USING YOUR RECEIVER
We at STRONG understand that you can't wait to enjoy your new digital terrestrial receiver.
The following chapter will make you familiar with the basic operation of this device.
We do, however, advice you to read all chapters of this manual to get the best performance from
your receiver.
 To turn your receiver ON or to Standby, use the qbutton on the remote control.
 Choose a channel with  on the remote control. Alternatively, you can digit the channel
number with the 0~9 buttons on the remote control or press OK in viewing mode to display the
channel list.
 The volume can be adjusted with or VOL+/VOL.
6.0 OPERATION
Your new receiver is equipped with several features to make watching TV a true pleasure. This
chapter describes these features.
Please also read chapter 7.0 to get familiar with the menu of your receiver.
6.1 Changing channels
Following ways are possible for changing channels with your new receiver:
9

 Via direct access using the 0~9 buttons.
 Via the channel list using OK
 Via the  or CH+/CH buttons.
6.1.1 Direct access via 0~9 buttons
To gain direct access to a certain channel, simply input its number with the 0~9 buttons on the
remote control.
Channel numbers can be up to four digits long. Entering a number with less than four digits is
possible.
Just wait a few seconds and your receiver will switch to the selected channel or press OK immediately
after selecting the channel number.
6.1.2 Channel list
Press OK in viewing mode to display the Channel List.
Use  in the channel list to highlight your channel of choice and press OK once to select the
highlighted channel.
Press OK again to leave the channel list mode.
Inside the channel list it is possible to use the CH+/CH buttons as well in order to scroll page-wise
through the list.
TIP:Use to toggle between the All Channel list and favourite list(s) or press
FAV in viewing mode for a list of the available favourite lists.
6.1.3 Using the  or CH+/CH buttons
or CH+ switches to the next channel.
or CH switches to the previous channel.
6.2 Info Banner
While watching TV you can press the INFO button at any time to access current information about
the channel and event*.
Press INFO twice for extended EPG details about the current channel.
Press INFO three times for technical details about the current channel.
*Event information is displayed when available. Availability depends on the broadcast.
6.3 Selection of audio language
Some channels support a choice of audio formats and/or languages.
To select another audio stream, press AUDIO in viewing mode. A list with available audio streams will
now be displayed.
Use  to select a stream and conrm with OK.
The audio channel as stereo, mono, left and right can be selected with the buttons.
6.4 Teletext
Your receiver includes a fully featured Teletext.
10

To access Teletext, press the TTX button in viewing mode and use the 0~9 buttons to input the
number of the page you wish to see.
The coloured buttons of the remote control allow you to jump to selected pages directly, as indicated
on the bottom of the Teletext screen.
Use the  buttons to select one page up or down, use the buttons to select subpages.
Press EXIT or TTX to get back to viewing mode.
6.5 Subtitles
Some channels support a choice of subtitle languages.
Press SUBTITLE in viewing mode to display a list of available subtitle languages.
Select your subtitle of choice with  and press OK to conrm.
Press EXIT to leave without making changes.*
*Availability of DVB/HoH subtitles depends on the broadcast. If subtitles are not supported, they can be activated via Teletext if available.
6.6 Timeshift
Timeshift allows you to pause live broadcasts and resume playback later.
To activate this function, set the Timeshift mode in the DVR Setting menu to on by selecting Pause. For
details, see 7.5.6.
Press 2in viewing mode to activate Timeshift.
The progress information banner appears on screen. Live TV keeps playing for moment and will then
pause.
Press to resume Timeshifted playback.
Press 3to return to live TV.
NOTE: Timeshift and its playback only work properly when a fast USB storage
device such as a USB2.0 HDD is connected to the receiver. Timeshift and
playback of HD content requires sucient read/write speed of the used
USB storage device.
6.7 EPG (Electronic Programme Guide)
The Electronic Programme Guide is a very useful function that allows you to view event schedules
and programme information and to mark events/movies for recording.
To access the EPG, press the EPG button in viewing mode.
Use  to select a channel and to select an event.
Press OK or INFO to display detailed information of the selected event.
Use EXIT to quit the detailed information screen.
Press RED to access further step functions. Use to select the desired step and OK to execute it.
Press EXIT to quit the step function.
Press GREEN to set a timer for a selected event.
Refer to section 7.3.4 for details of the timer function.
11

NOTE: Availability of EPG data depends on the broadcast.
6.8 Quick Recording
Your new receiver allows you to make a quick recording of the programme you are watching.
Simply press RECORD to start the recording.
To enter the duration for the recording, press RECORD again.
Use the 0~9 buttons to enter the recording time and press OK to conrm.
At the beginning of the recording a recording sign will be shown for a short while on the upper left
corner of your TV screen.
To stop the recording, press 3. Select Yes and press OK again to stop the recording.
You can access the Record Manager via the 3button to nd and to playback you made records.
If you can't nd your records, make sure that Record les is selected by pressing the button 1
(switching between Records/Video/Music/Image modes). See chapter 7.5.1 for details.
NOTE: Please connect an USB storage device with sucient free space before you
start a recording.
7.0 MAIN MENU
The main menu gives you access to channel lists, settings, timers and multimedia functions.
To access the main menu, press MENU in viewing mode.
The main menu consists of the following sub menus: Edit Channel, Installation, System Setup, Tools
and Media Player.
Throughout the main menu, MENU or EXIT can be used to get back to the previous screen.
Use  to select a required menu or sub-menu item and press OK or to select and enter.
Press EXIT or to get back to previous menu level.
7.1 Edit Channel
Use  to Select Edit Channel and press OK or to enter.
It consists of following sub menus: TV Channel List, Radio Channel List, Delete All and Rename Favourite
List.
7.1.1 TV Channel List
In the Edit Channel menu select TV Channel List and press OK to enter.
In this sub-menu, you can perform various actions with channels that are stored in TV channel list.
The list of possible functions:
 Adding channels to your Favourite lists
 Channels lock
 Skipping channels
 Moving channels
 Editing channels
The function is selected by specialized or coloured buttons, as shown in the menu screen.
12

When you select a specic function, its name will be shifted up relative to the names of other
functions, which indicates its activity.
To cancel the selected function, press the corresponding button again or press EXIT. The name will
return to the names of other functions again.
NOTE: If previously Favourite channel lists were created, use buttons if
necessary to change channel list.
Select the channel of choice with . Press OK to view the selected channel in the preview box.
7.1.1.1 Adding channels to favourite lists
Channels from the TV Channel List can be added to up to 8 dierent favourite groups.
Press FAV. The FAV sign on the top of the screen will move up.
Use  to select a channel you wish to add to a favourite group.
When the highlight is on the channel of your choice, press OK. A list with all available favourite lists
will now pop up.
Use  to select the favourite list you wish to add the channel to and press OK.
Press EXIT to nalize the process.
Favourite channels will be marked with a vsymbol.
When all changes have been made, press EXIT twice. A conrmation banner will pop up. Select Yes to
save the changes or No to discard.
7.1.1.2 Locking channels
Locked channels can only be watched after entering the PIN code.
DEFAULT PIN: 1234
To lock or unlock a channel, press RED.
Use  to select a channel and press OK to lock or unlock it. You are asked to input the PIN code.
Locked channels will be marked with the symbol.
Locking/unlocking multiple channels in one session is possible.
When all changes have been made, press EXIT twice. A conrmation banner will pop up. Select Yes to
save the changes or No to discard.
7.1.1.3 Skipping channels
Channels marked with 9will be skipped when zapping channels with the  buttons. These
channels will be still available from the channel list.
To mark channels for skipping, press GREEN while in TV Channel List.
Use  to select a channel and press OK to mark or unmark it for skipping.
Channels set for skipping will be marked with the 9symbol.
When all changes have been made, press EXIT twice. A conrmation banner will pop up. Select Yes to
save the changes or No to discard.
7.1.1.4 Moving channels
To enable the Move function, press YELLOW.
Use  to select a channel and press OK to select it. Now you can move the selected channel up or
down inside the channel list by using .
13

When the channel is on the position of your choice, press OK again. The channel is now xed on its
new position.
When all changes have been made, press EXIT twice. A conrmation banner will pop up. Select Yes to
save the changes or No to discard.
7.1.1.5 Editing channels
The Edit function allows you to Sort, Rename or Delete channels.
To enter the Edit menu, press BLUE. The Edit Channel menu will appear.
If you made changes in the previous menu, but haven't saved them yet, you will be asked to do so
now.
When all changes in selected functions have been made, press EXIT twice. A conrmation banner will
pop up. Select Yes to save the changes or No to discard.
Sort
Press RED to enter the Sort menu.
Use  to select sorting method and press OK to conrm.
Possible methods are:
Name (A-Z): Sorting in alphabetical order from A to Z.
Name (Z-A): Sorting in alphabetical order from Z to A.
Free/Scramble: First in the list will be Free-To-Air channels.
Lock: All unlocked channels will placed rst in the list.
Rename
Press GREEN to enable the Rename function.
Use  to highlight a channel and press OK to select it. A text eld will now pop up at the right of
the screen. Use  to select characters and enter them with OK.
When you have nished editing, press BLUE to conrm changes.
Delete
Press BLUE to enable the Delete function.
Use  to highlight a channel and press OK to mark it for deletion.
When you have marked all channels you wish to delete, press EXIT twice. A conrmation banner will
be displayed. Select Yes to delete the marked channels or No to cancel.
7.1.2 Radio Channel List
Basically, the operation of the Radio Channel List is the same as in the TV Channel List. The only
dierence is that in Radio Channel List there is no video information, so it will always display the radio
background on the preview screen.
7.1.3 Delete All
Use this menu to delete all stored channels.
Select Delete All with  and press OK. The receiver asks you to enter the pin code. (DEFAULT PIN:
1234).
Inside the conrmation window select Yes with and press OK to delete or select No to cancel.
14

WARNING: The Delete All function will permanently delete all current channels and
all favourite lists from your receiver and you will not be able to leave the
menu until you search for channels again.
7.1.4 Rename Favourite list
This menu allows you to personalize the names of the 8 available favourite lists.
Use  to select Rename Favourite List.
The names of all groups are now displayed.
Select a favourite group with  and press OK to edit its name.
A text eld will now pop up at the right of the screen. Use  to select characters and enter
them with OK.
When you have nished editing, press BLUE to save the changes.
When all changes have been made, press EXIT twice to leave this menu.
7.2 Installation
Use  to select Installation and press OK or to enter.
It consists of following sub menus: Auto Scan, Channel Scan, Antenna Power and LCN
7.2.1 Auto Scan
Select Auto Scan with  and press OK to enter.
Use to toggle between Yes or No.
When FTA Only is set to Yes, scrambled channels won't be stored in the channel list.
When T2 Signal Only is set to Yes, DVB-T channels won't be stored in the channel list.
When T2-Lite Support is set to No, DVB-T2-Lite channels won't be stored in the channel list.
Use  to highlight Search. Now press OK to start auto scan.
The receiver will store all found channels in the channel list.
7.2.2 Channel Scan
Use  to select Channel Scan and press OK to enter.
Use to toggle between available scan modes: By Channel and By Frequency.
If By Channel is selected, use the cursor buttons to select Scan Band and Channel No.
If By Frequency is selected, use the cursor buttons to select Frequency and Bandwidth.
Option Network Search select Yes or No. If set to Yes the receiver will use additional information
provided by the operator to optimize the searching process.
Highlight Search and press OK to start scanning.
Newly found channels will be added to the channel list.
7.2.3 Antenna Power
Use  to select Antenna Power and press OK to enter.
Set to On if you use an active antenna.
Select O  for passive antennas.
When set to On, 5 V will be present on the RF IN connector of the receiver.
15

NOTE: Before connecting your antenna to the receiver, please read the user
manual of the antenna regarding antenna powering. This parameter is
recommended to set to On only for active internal or external antennas
which require power supply via antenna cable with voltage of 5 V DC and
consume less than 50 mA. Otherwise, leave it O  .
7.2.4 LCN (Logical Channel Numbering)
If LCN (Logical Channel Numbering) is activated and an LCN signal is provided by the operator,
channels will be stored in an operator dened order.
Set LCN to On to activate operator dened channel numbering or O  to store channels in found
order.
This function only applies when a new channel search is performed.
7.3 System Setup
This menu allows you to manage the system settings of your receiver.
It consists of the following sub-menus: Language, TV System, Local Time Setting, Timer Setting, Parental
Lock, OSD Setting and Auto Standby.
7.3.1 Language
This menu allows you to set up your language preferences.
Language: Use to select the language for the On Screen Display.
First Audio: Use to select Audio language.
Second Audio: Use to select a language that will be played when the language selected
at First Audio isn't available.
Subtitle Language: Use to select the preferred subtitle language.
2nd Subtitle Language: Use to select the preferred 2nd subtitle language if the 1st preference is
not available.
Teletext: Use to select the preferred Teletext language (when available).
Subtitle: Use to select the preferred subtitle type to be displayed automatically.
Select Normal], {Hard of Hearing or O  *
*Availability of DVB/HoH subtitles depends on the broadcast. If subtitles are not supported, they can be activated via Teletext if available.
7.3.2 TV System
Use this menu to match your receiver to your TV set.
The following settings are available:
Video Resolution: Use this option to select the video resolution of your TV screen. The options
are: By Source (automatic detection of video resolution oered to the
receiver), By Native TV (automatic detection of maximal resolution of TV
screen), and manual selections 480i, 576i up to 1080p. Please use a setting that
matches the specications of your TV. After a selection is made, you will be
asked to conrm. Selection above 576i is only applicable on HDMI output.
Aspect Mode: Use this option to select the aspect ratio of your TV and the preferred
conversion method.The options are: Auto - automatic detection of aspect
16
