Model 4400 Infant Bassinet
OPERATIONS AND MAINTENANCE MANUAL
For Parts or Technical Assistance
1−800−327−0770 (Option 2)

Table of Contents
Introduction
Warning / Caution / Note Definition 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Tips and Guidelines 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Proper Bassinet Pushing Technique 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trendelenburg Positioning 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preventative Maintenance Checklist 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modern−Style Bassinet Assembly 8, 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shaker−Style Bassinet Assembly 10, 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Traditional−Style Bassinet Assembly 12, 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Euro−Style Bassinet Assembly 14, 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Knobs 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty
Obtaining Parts and Service 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supplemental Warranty Coverage 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Return Authorization 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Freight Damage Claims 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction
2
INTRODUCTION
The Stryker Infant Bassinet is intended for use as a support and transport surface for an infant in a health
care environment.
This manual is designed to assist you with the operation of the Stryker Infant Bassinet. Read it thoroughly
before using the equipment or beginning any maintenance on it.
WARNING / CAUTION / NOTE DEFINITION
The words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed.
WARNING
The personal safety of the patient or user may be involved. Disregarding this information could result in injury
to the patient or user.
CAUTION
These instructions point out special procedures or precautions that must be followed to avoid damaging the
equipment.
NOTE
This provides special information to make maintenance easier or important instructions clearer.
SPECIFICATIONS

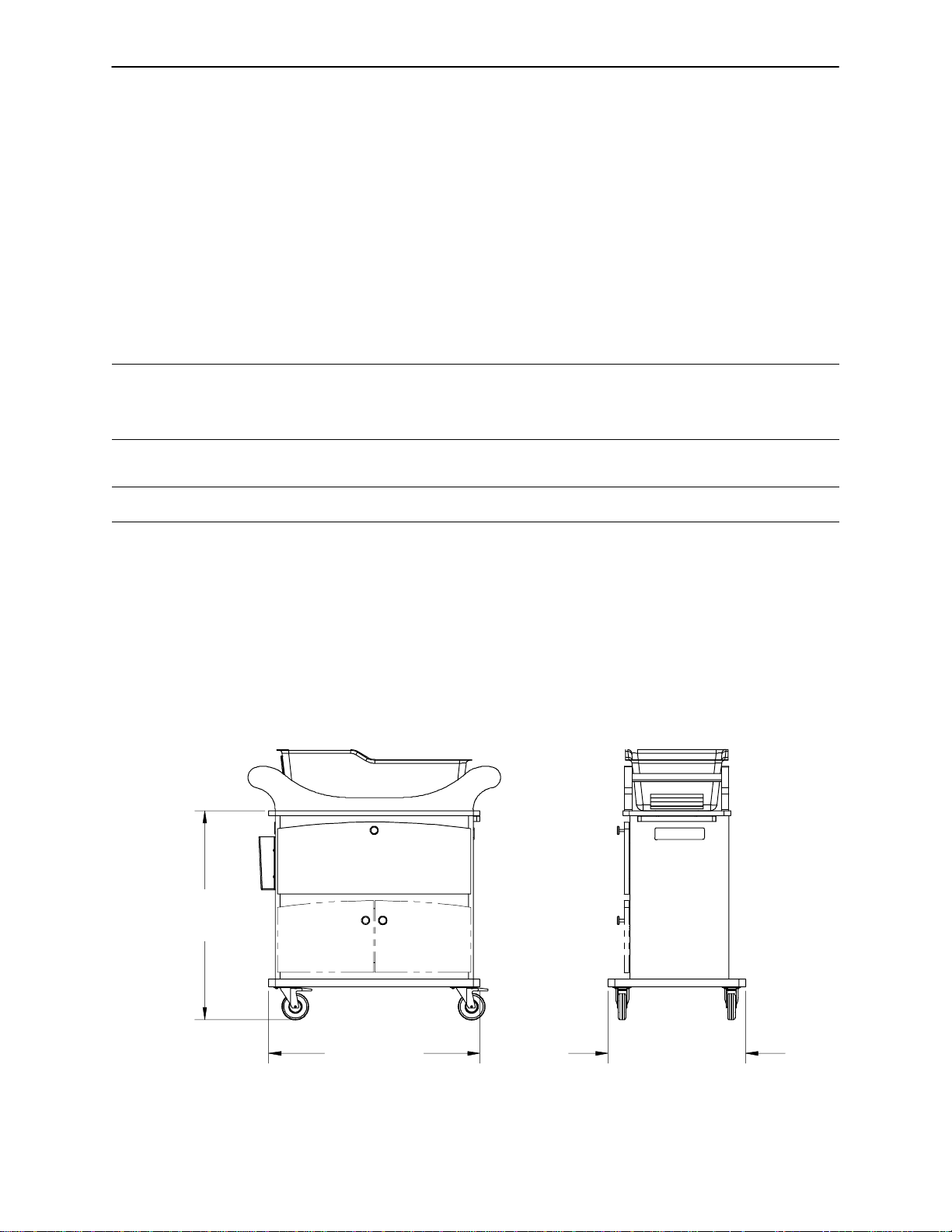

DIMENSIONS APPLY TO ALL STYLES (MODERN STYLE SHOWN)
33.00 $.12
32.00 $.19 20.85 $.19

Introduction
3
SAFETY TIPS AND GUIDELINES
Before operating the Stryker Infant Bassinet, it is important to read and understand all information in this
manual. Carefully read and strictly follow the safety guidelines listed on this page.
WARNING
To avoid risk of injury, never leave an infant unattended and do not leave sheets, blankets, pillows or other
items in the bassinet with the infant.
Use the pull−out chart board only as a writing surface. Do not sit or lean on it, or apply excessive weight to
it, or tipping of the bassinet could occur and injury could result.
To prevent the bassinet from tipping and causing injury, do not place more than 25 pounds (11 kilograms) in
the bassinet drawer.
Push the bassinet only from the ends. Do not push the bassinet from the sides or tipping of the bassinet could
occur and injury could result.
When putting the bassinet into Trendelenburg/Reverse Trendelenburg, verify the “C”hook is engaged and
secure before releasing the tub or injury could occur.

Bassinet Operating Instructions
4
PROPER BASSINET PUSHING TECHNIQUE
TOP VIEW OF BASSINET
DRAWER / DOOR SIDE
PUSH THIS DIRECTION
DO NOT PUSH
THIS DIRECTION
WARNING
Push the bassinet only from the ends as indicated by the illustrations above. Do not push the bassinet from
the sides or tipping of the bassinet could occur and injury could result.

Bassinet Operating Instructions
5
TRENDELENBURG POSITIONING

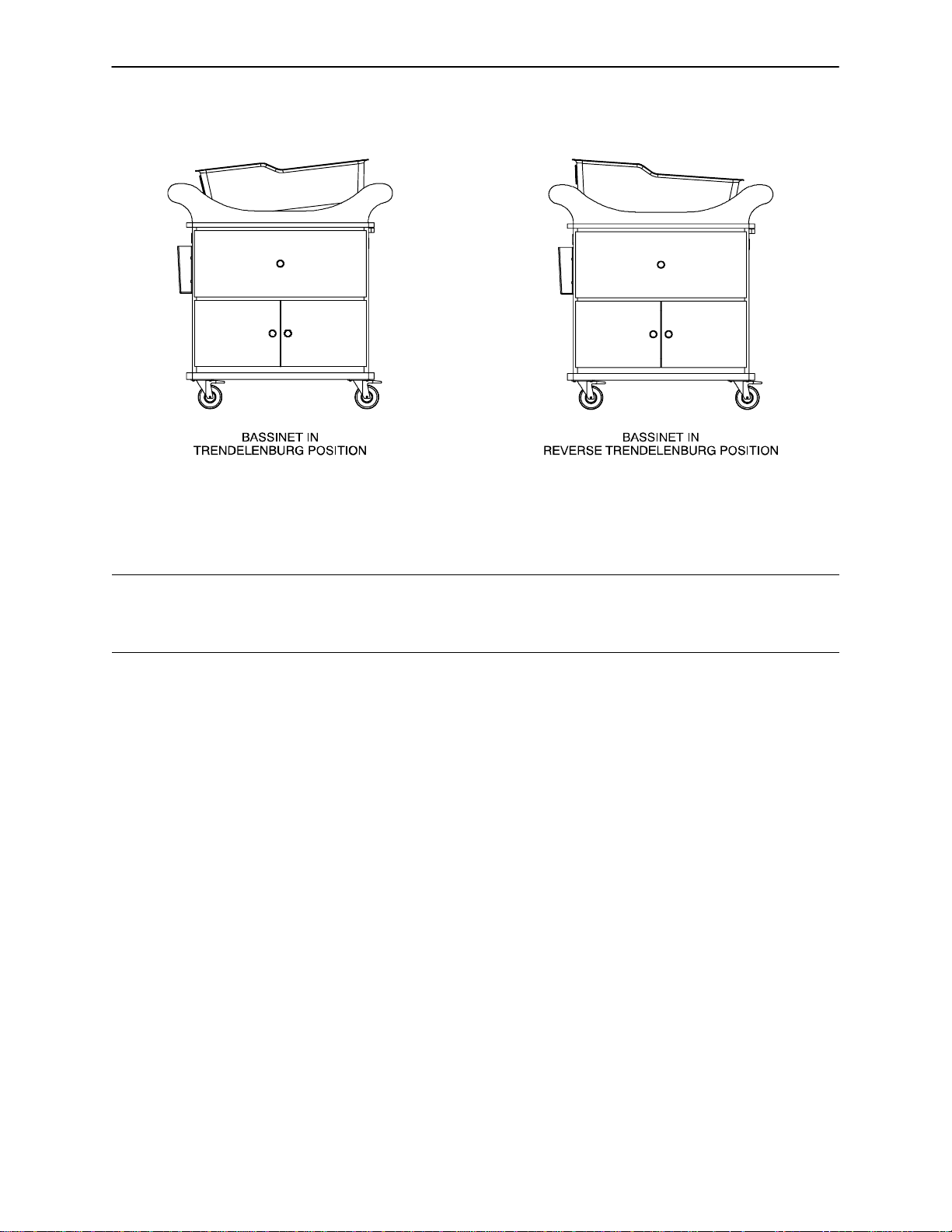

To put the bassinet into the Trendelenburg/Reverse Trendelenburg position, lift up on either end of the tub,
then lower it until the “C”hook engages securely with the end rail (see above).
WARNING
When putting the bassinet into Trendelenburg/Reverse Trendelenburg, verify the “C”hook is engaged and
secure before releasing the tub or injury could occur.
Tub with “C”Hooks −part number 4400−118−106
12 1/2”x 26”Mattress −part number 8800−346−300

Preventive Maintenance
6
MAINTENANCE CHECKLIST
All fasteners secure
All casters secure and swiveling properly
No debris in casters
Front casters hold when brakes are applied
Pull−out chart board intact and secure
Trendelenburg hook intact
Drawers intact and sliding smoothly
Doors intact and hinges operating smoothly
Warning labels intact and legible
Serial No.______________
______________
______________
Completed By:_________________________________ Date:_____________
CLEANING
To clean the bassinet cabinet, use a cleaner formulated especially for wood furniture. Do not use oils or am-
monia. Dilute the cleaner according to the manufacturer’s directions. Dampen, but do not saturate, a soft
cloth with the diluted cleaner and wipe the surface in the direction of the wood grain to remove dirt and finger
prints. Wipe the surface with a soft, dry cloth to remove any moisture. Spray wax may be applied sparingly
twice a year.
Clean the bassinet tub using a damp sponge or soft cotton cloth and a mild soap or detergent solution. Rinse
well with clean water and dry using a clean, soft cotton cloth. Do not expose bassinet tubs to temperatures
in excess of 140 degrees F. Use mineral spirits to remove grease, oil, or adhesive tape residue. Any residual
film should be washed off immediately as described above.
CAUTION
DO NOT USE window sprays, all−purpose surface cleaners, abrasive scouring cleaners or solvents such as
acetone, gasoline, benzene, toluene, chlorinated hydrocarbons, or lacquer thinner to clean the bassinet tub.
These cleaners will permanently damage the bassinet tub.
Use an automotive cleaner/wax to remove surface scratches on the tub. Apply the wax to the scratched area
with a clean, slightly damp, soft cotton cloth, working the compound into the surface with firm circular motions
until almost dry. Allow to dry completely, and buff with a clean, soft cotton cloth.

Notes
7

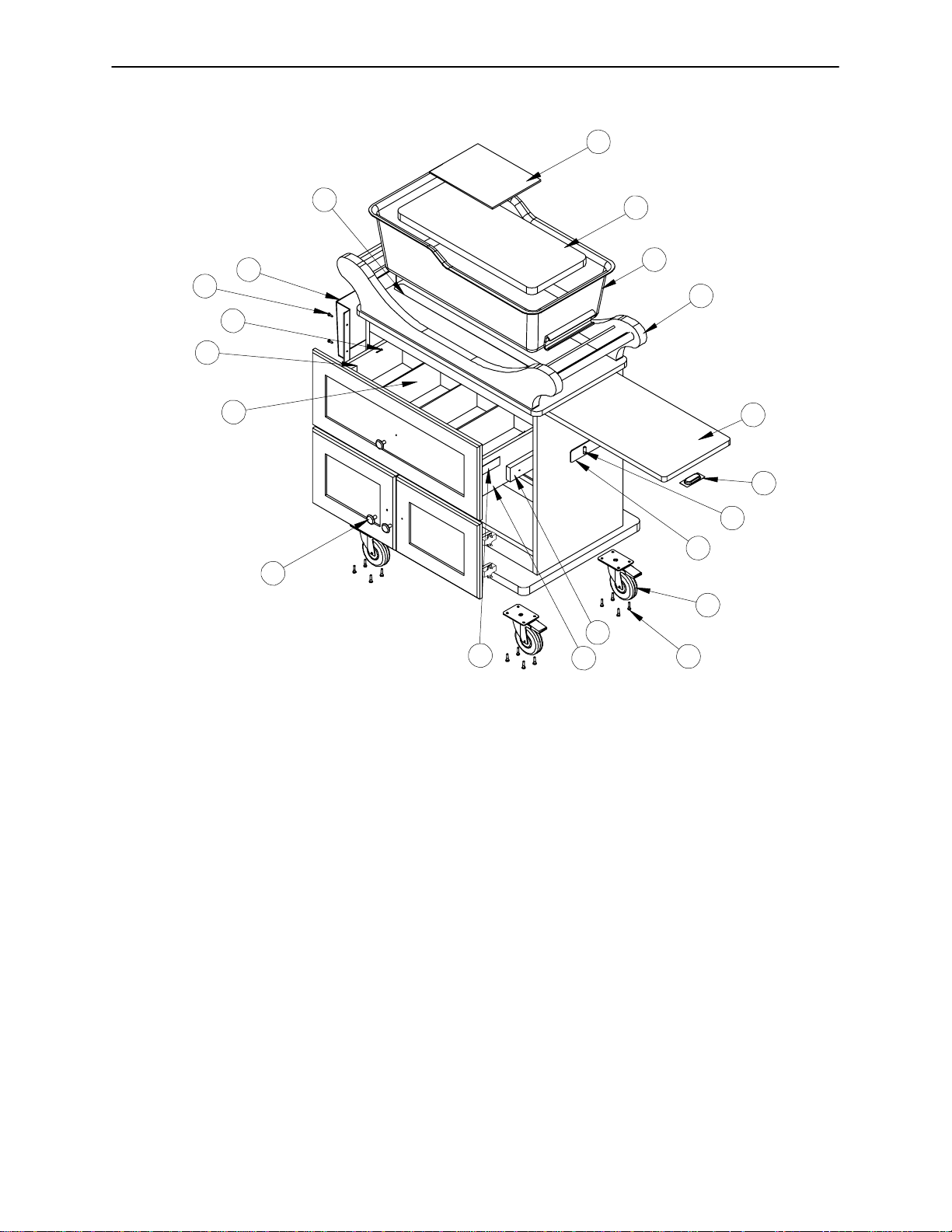

Modern−Style Bassinet Assembly
8
18
17
12
1
7
11
15
14
10 2
3
4
5
8
20
16
13
6
19
9
21

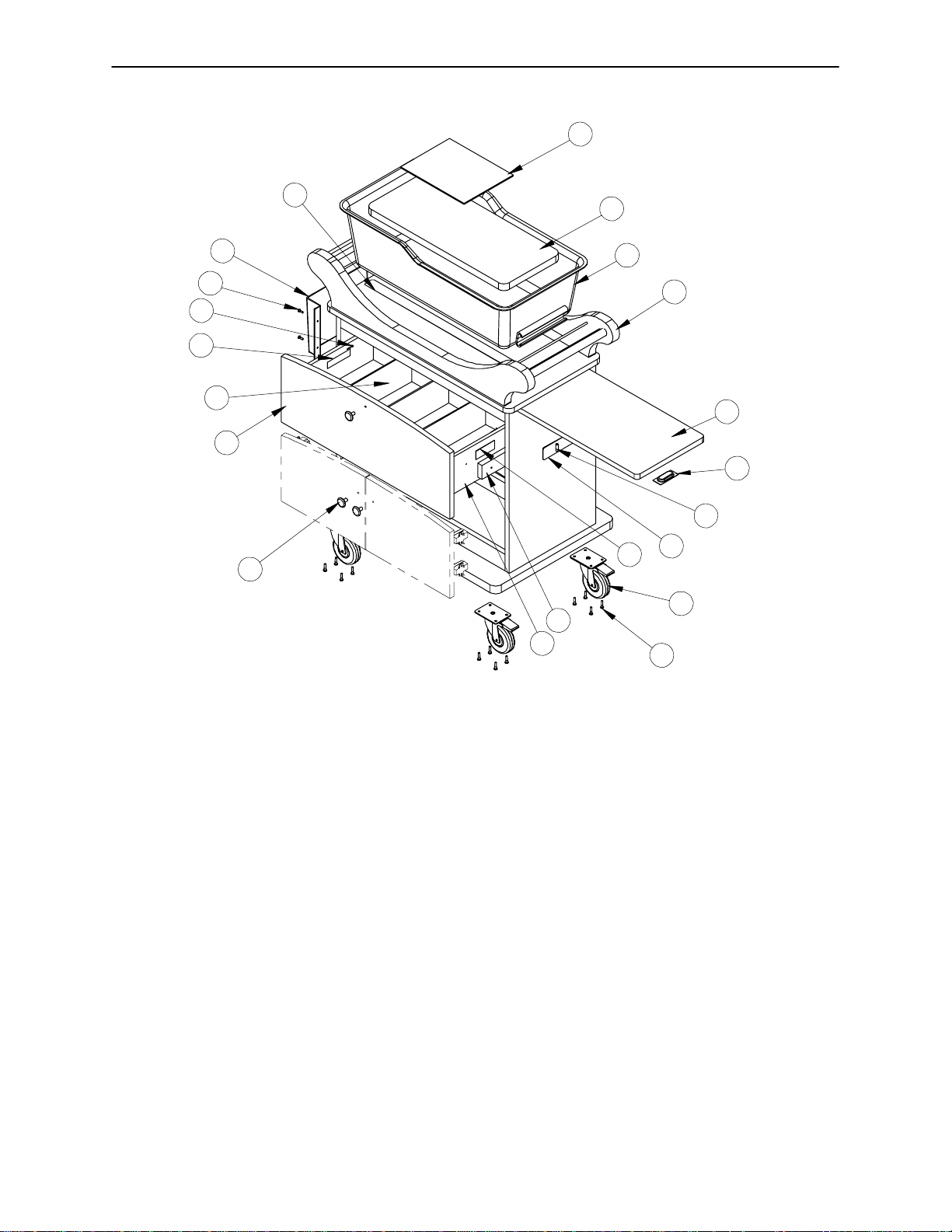

Assembly part number 4400−118−501 (reference only)
Item Part No. Part Name Qty.
1 4400−118−104 Bassinet Cabinet 1
2 4400−118−230 Locking Caster 4
3 4400−110−057 Wood Screw 16
4 4400−118−243 Modern Drawer Front 1
5 (page 16) Knob 3
6 8801−580−200 Grabber Screw 4
7 4400−118−244 Chartboard 1
8 4400−118−231 Chartholder 1
9 4400−118−232 Chartboard Pull 1
10 4400−118−233 Drawer Slide 2
11 4400−111−301 Dowel Pin 2
12 4400−118−106 Tub 1
13 8800−469−800 Pad 2
14 8801−410−100 Serial Number Label 1
15 4400−090−003 Push Direction Label 2
16 4400−110−901 Warning Label 2
17 8800−346−300 Mattress 1
18 4400−009−118 User Manual 1
19 4400−118−234 Drawer Box 1
20 4400−110−071 Pan Hd. Screw 4
21 4400−118−235 Drawer Divider 3

Modern−Style Bassinet Assembly
9

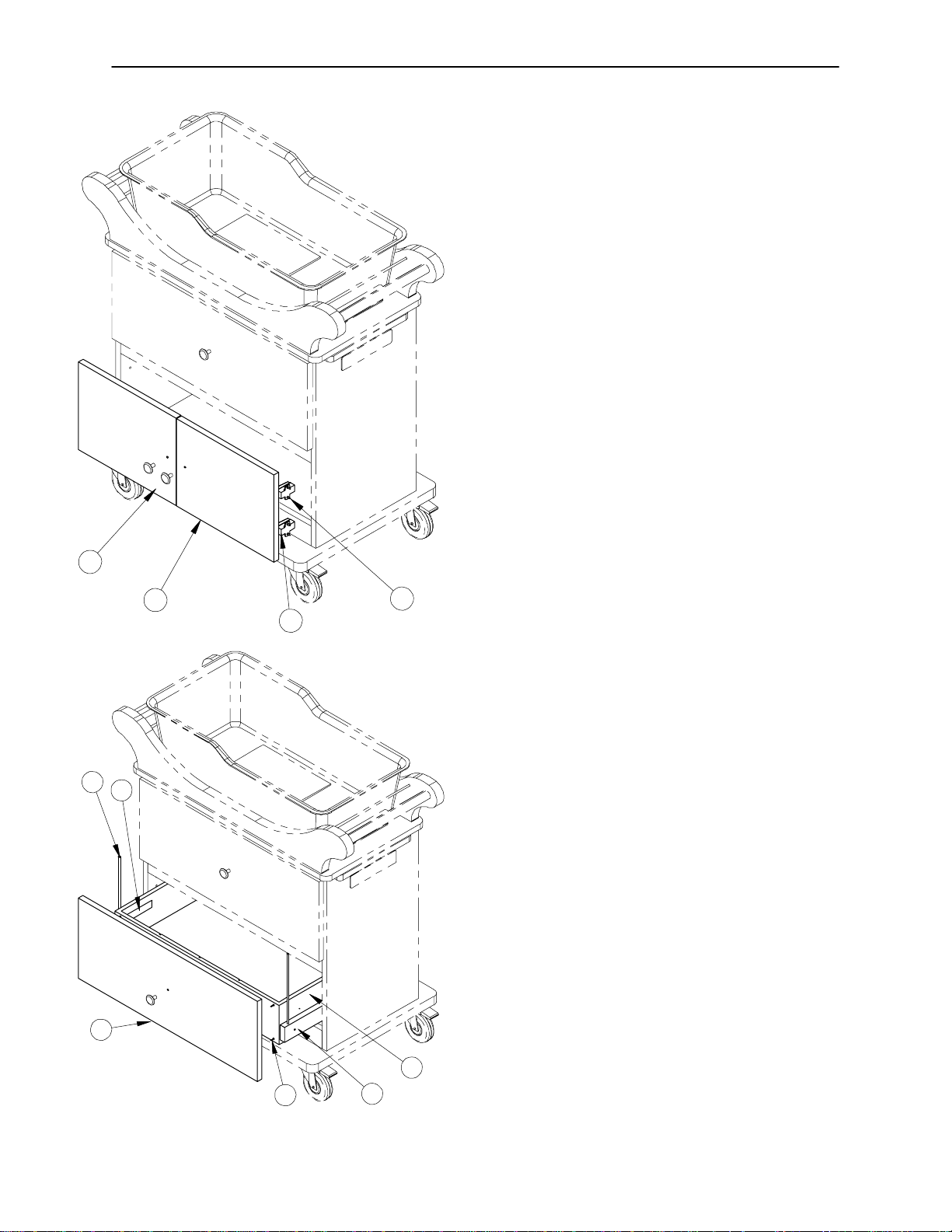

4400−099−461 Modern Bassinet Door Option
Item Part No. Part Name Qty.
1 4400−118−245 Left Door, Modern 1
2 4400−118−246 Right Door, Modern 1
3 4400−111−302 Hinge 4
4 0020−013−000 Wood Screw 16
4400−099−462 Modern Bassinet Drawer Option
Item Part No. Part Name Qty.
1 4400−118−243 Modern Drawer Front 1
2 4400−118−234 Drawer Box 1
3 4400−118−233 Drawer Slide 2
4 4400−118−236 Interlock Rod 2
5 4400−110−901 Warning Label 2
6 8801−580−200 Grabber Screw 4
2
3
4
45
1
23
6
1

Shaker−Style Bassinet Assembly
10
17
16
11
1
6
10
14
13 9
2
3
4
7
20
15
12
5
19
8
21
Assembly part number 4400−218−501 (reference only)
Item Part No. Part Name Qty.
1 4400−118−104 Bassinet Cabinet 1
2 4400−118−230 Locking Caster 4
3 4400−110−057 Wood Screw 16
4 (page 16) Knob 3
5 8801−580−200 Grabber Screw 4
6 4400−118−244 Chartboard 1
7 4400−118−231 Chartholder 1
8 4400−118−232 Chartboard Pull 1
9 4400−118−233 Drawer Slide 2
10 4400−111−301 Dowel Pin 2
11 4400−118−106 Tub 1
12 8800−469−800 Pad 2
13 8801−410−100 Serial Number Label 1
14 4400−090−003 Push Direction Label 2
15 4400−110−901 Warning Label 2
16 8800−346−300 Mattress 1
17 4400−009−118 User Manual 1
18 4400−218−207 Shaker Drawer Front 1
19 4400−118−234 Drawer Box 1
20 4400−110−071 Pan Hd. Screw 4
21 4400−118−235 Drawer Divider 3

Shaker−Style Bassinet Assembly
11
4400−099−463 Shaker Bassinet Door Option
Item Part No. Part Name Qty.
1 4400−218−205 Left Door, Shaker 1
2 4400−218−206 Right Door, Shaker 1
3 4400−111−302 Hinge 4
4 0020−013−000 Wood Screw 16
4400−099−464 Shaker Bassinet Drawer Option
Item Part No. Part Name Qty.
1 4400−218−207 Shaker Drawer Front 1
2 4400−118−234 Drawer Box 1
3 4400−118−233 Drawer Slide 2
4 4400−118−236 Interlock Rod 2
5 4400−110−901 Warning Label 2
6 8801−580−200 Grabber Screw 4
1
2
3
4
4
5
1
63
2

Traditional−Style Bassinet Assembly
12
17
16
11
1
6
10
14
13
92
3
4
7
20
15
12
5
19
8
21
Assembly part number 4400−318−501 (reference only)
Item Part No. Part Name Qty.
1 4400−118−104 Bassinet Cabinet 1
2 4400−118−230 Locking Caster 4
3 4400−110−057 Wood Screw 16
4 (page 16) Knob 3
5 8801−580−200 Grabber Screw 4
6 4400−118−244 Chartboard 1
7 4400−118−231 Chartholder 1
8 4400−118−232 Chartboard Pull 1
9 4400−118−233 Drawer Slide 2
10 4400−111−301 Dowel Pin 2
11 4400−118−106 Tub 1
12 8800−469−800 Pad 2
13 8801−410−100 Serial Number Label 1
14 4400−090−003 Push Direction Label 2
15 4400−110−901 Warning Label 2
16 8800−346−300 Mattress 1
17 4400−009−118 User Manual 1
18 4400−318−206 Traditional Drawer Front 1
19 4400−118−234 Drawer Box 1
20 4400−110−071 Pan Hd. Screw 4
21 4400−118−235 Drawer Divider 3

Traditional−Style Bassinet Assembly
13
4400−099−465 Traditional Bassinet Door Option
Item Part No. Part Name Qty.
1 4400−318−204 Left Door, Traditional 1
2 4400−318−205 Right Door, Traditional 1
3 4400−111−302 Hinge 4
4 0020−013−000 Wood Screw 16
4400−099−466 Traditional Bassinet Drawer Option
Item Part No. Part Name Qty.
1 4400−318−206 Shaker Drawer Front 1
2 4400−118−234 Drawer Box 1
3 4400−118−233 Drawer Slide 2
4 4400−118−236 Interlock Rod 2
5 4400−110−901 Warning Label 2
6 8801−580−200 Grabber Screw 4
1
23
4
1
5
4
23
6

Euro−Style Bassinet Assembly
14
17
16
11
1
6
10
14
13 9
2
3
4
7
20
15
12
5
19
8
21
Item Part No. Part Name Qty.
1 4400−118−104 Bassinet Cabinet 1
2 4400−118−230 Locking Caster 4
3 4400−110−057 Wood Screw 16
4 (page 16) Knob 3
5 8801−580−200 Grabber Screw 4
6 4400−118−244 Chartboard 1
7 4400−118−231 Chartholder 1
8 4400−118−232 Chartboard Pull 1
9 4400−118−233 Drawer Slide 2
10 4400−111−301 Dowel Pin 2
11 4400−118−106 Tub 1
12 8800−469−800 Pad 2
13 8801−410−100 Serial Number Label 1
14 4400−090−003 Push Direction Label 2
15 4400−110−901 Warning Label 2
16 8800−346−300 Mattress 1
17 4400−110−083 User Manual 1
18 4400−418−206 Euro Drawer Front 1
19 4400−118−234 Drawer Box 1
20 4400−110−071 Pan Hd. Screw 4
21 4400−118−235 Drawer Divider 3

Euro−Style Bassinet Assembly
15

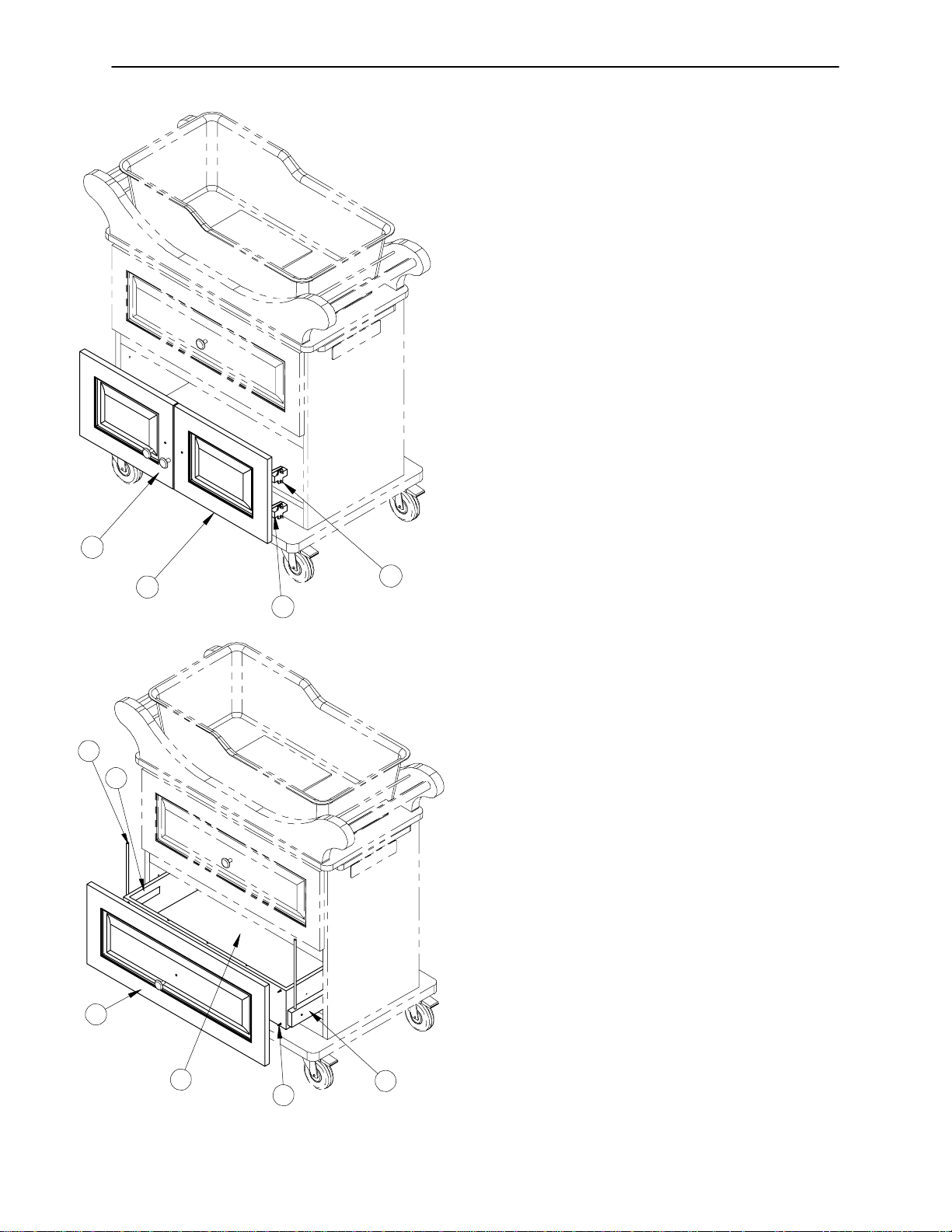

4400−099−467 Euro Bassinet Door Option
Item Part No. Part Name Qty.
1 4400−418−204 Left Door, Euro 1
2 4400−418−205 Right Door, Euro 1
3 4400−111−302 Hinge 4
4 0020−013−000 Wood Screw 16
4400−099−46 Euro Bassinet Drawer Option
Item Part No. Part Name Qty.
1 4400−418−206 Euro Drawer Front 1
2 4400−118−234 Drawer Box 1
3 4400−118−233 Drawer Slide 2
4 4400−118−236 Interlock Rod 2
5 4400−110−901 Warning Label 2
6 8801−580−200 Grabber Screw 4
1
234
45
63
1
2

Knobs −All Bassinets
16
KNOBS
Part Number Description
8100−000−003 Round Knob, Brushed Antique Brass
8100−000−004 Round Knob, Polished Brass
8100−000−005 Oval Knob, Polished Chrome
8100−000−010 Round Knob, Polished Chrome
8100−000−011 Round Knob, Brushed Stainless Steel
8100−000−012 Oval Knob, Polished Brass
8100−000−013 Oval Knob, Brushed Antique Brass
8100−000−014 Oval Knob, Brushed Stainless Steel

Warranty
17
Limited Warranty:
Stryker Medical Division, a division of Stryker Corporation, warrants to the original purchaser that its products
should be free from defects in material and workmanship for a period of one (1) year after date of delivery.
Stryker’s obligation under this warranty is expressly limited to supplying replacement parts and labor for, or
replacing, at its option, any product which is, in the sole discretion of Stryker, found to be defective. Stryker
warrants to the original purchaser that the frame and welds on its beds will be free from structural defects
for as long as the original purchaser owns the bed. If requested by Stryker, products or parts for which a
warranty claim is made shall be returned prepaid to Stryker’s factory. Any improper use or any alteration or
repair by others in such manner as in Stryker’s judgement affects the product materially and adversely shall
void this warranty. Any repair of Stryker products using parts not provided or authorized by Stryker shall void
this warranty. No employee or representative of Stryker is authorized to change this warranty in any way.
Stryker Medical stretchers are designed for a 10 year expected life under normal use conditions and appropri-
ate periodic maintenance as described in the maintenance manual for each device.
This statement constitutes Stryker’s entire warranty with respect to the aforesaid equipment. STRYKER
MAKES NO OTHER WARRANTY OR REPRESENTATION, EITHER EXPRESSED OR IMPLIED, EXCEPT
AS SET FORTH HEREIN. THERE IS NO WARRANTY OF MERCHANTABILITY AND THERE ARE NO
WARRANTIES OF FITNESS FOR ANY PARTICULAR PURPOSE. IN NO EVENT SHALL STRYKER BE
LIABLE HEREUNDER FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM OR IN ANY
MANNER RELATED TO SALES OR USE OF ANY SUCH EQUIPMENT.
To Obtain Parts and Service:
Stryker products are supported by a nationwide network of dedicated Stryker Field Service Representatives.
These representatives are factory trained, available locally, and carry a substantial spare parts inventory to
minimize repair time. Simply call your local representative, or call Stryker Customer Service at (800)
327−0770.
Service Contract Coverage:
Stryker has developed a comprehensive program of service contract options designed to keep your equip-
ment operating at peak performance at the same time it eliminates unexpected costs. We recommend that
these programs be activated before the expiration of the new product warranty to eliminate the potential of
additional equipment upgrade charges.
A SERVICE CONTRACT HELPS TO:
SEnsure equipment reliability
SStabilize maintenance budgets
SDiminish downtime
SEstablish documentation for JCAHO
SIncrease product life
SEnhance trade−in value
SAddress risk management and safety

Warranty
18
Stryker offers the following service contract programs:
SPECIFICATIONS GOLD SILVER PM* ONLY
Annually scheduled preventative maintenance X X
All parts,** labor, and travel X X
Unlimited emergency service calls X X
Priority one contact; two hour phone response X X X
Most repairs will be completed within 3 business days X X
JCAHO documentation X X X
On−site log book w/ preventative maintenance & emergency service records X
Factory−trained Stryker Service Technicians X X X
Stryker authorized parts X X X
End of year summary X
Stryker will perform all service during regular business hours (9−5) X X X
* Replacement parts and labor for products under PM contract will be discounted.
** Does not include any disposable items, I.V. poles (except for Stryker HD permanent poles), mattresses, or damage re-
sulting from abuse.
Stryker Medical also offers personalized service contracts.
Pricing is determined by age, location, model and condition of product.
For more information on our service contracts,
please call your local representative or call (800) 327−0770 (option #2).
Return Authorization:
Merchandise cannot be returned without approval from the Stryker Customer Service Department. An autho-
rization number will be provided which must be printed on the returned merchandise. Stryker reserves the
right to charge shipping and restocking fees on returned items.
SPECIAL, MODIFIED, OR DISCONTINUED ITEMS NOT SUBJECT TO RETURN.
Damaged Merchandise:
ICC Regulations require that claims for damaged merchandise must be made with the carrier within fifteen
(15) days of receipt of merchandise. DO NOT ACCEPT DAMAGED SHIPMENTS UNLESS SUCH DAMAGE
IS NOTED ON THE DELIVERY RECEIPT AT THE TIME OF RECEIPT. Upon prompt notification, Stryker
will file a freight claim with the appropriate carrier for damages incurred. Claim will be limited in amount to
the actual replacement cost. In the event that this information is not received by Stryker within the fifteen
(15) day period following the delivery of the merchandise, or the damage was not noted on the delivery receipt
at the time of receipt, the customer will be responsible for payment of the original invoice in full.
Claims for any short shipment must be made within thirty (30) days of invoice.
International Warranty Clause:
This warranty reflects U.S. domestic policy. Warranty outside the U.S. may vary by country. Please contact
your local Stryker Medical representative for additional information.

JH 12/054400−009−118 REV D
European Representative
Stryker EMEA RA/QA Director
Stryker France
ZAC Satolas Green Pusignan
Av. De Satolas Green
69881 MEYZIEU Cedex
France
6300 S. Sprinkle Road, Kalamazoo, MI 49001−9799
(800) 327−0770
www.strykermedical.com
