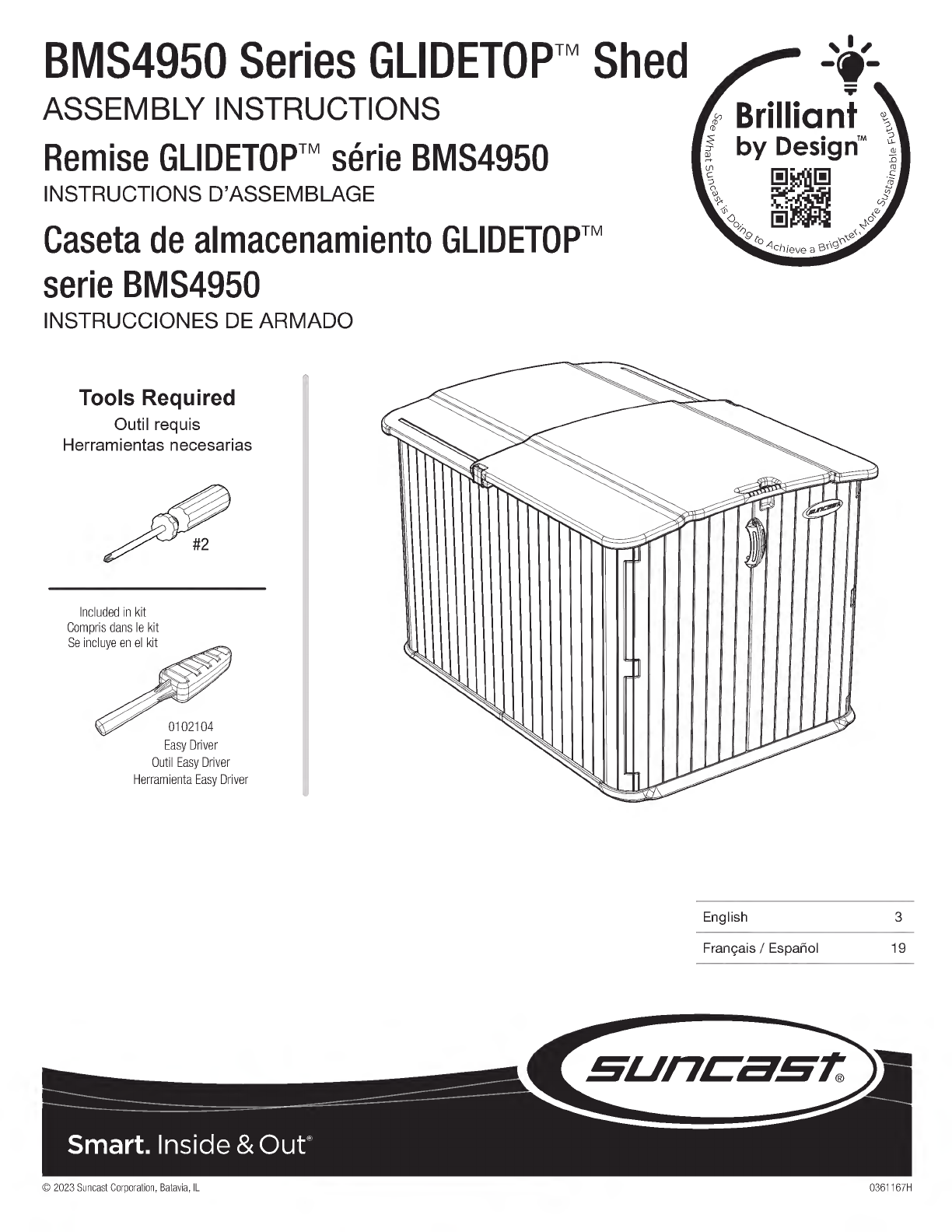

Suncast GLIDETOP BMS4950 Series User manual

BMS4950 Series GLIDETOPTm Shed
ASSEMBLY INSTRUCTIONS
Remise GLIDETOrm série BMS4950
INSTRUCTIONS D'ASSEMBLAGE
Caseta de almacenamiento GLIDETOPTm
serie BMS4950
INSTRUCCIONES DE ARMADO
Tools Required
Outil requis
Herramientas necesarias
Included in kit
Compris dans le kit
Se incluye en el kit
0102104
Easy Driver
Outil Easy Driver
Herramienta Easy Driver
Brilliant
by Design' un
English 3
Français / Espanol 19
C) 2023 Suncast Corporation, Batavia, IL 0361167H

Register your product for Limited Warranty!
Must register product within 90 days of purchase for limited warranty
Enregistrez votre produit au programme de garantie limitée
Vous devez enregistrer votre produit au programme de garantie limitée dans les 90 jours suivant votre achat.
¡Registre su producto para obtener una garantía limitada!
Debe registrar el producto dentro de los 90 días posteriores a la compra para obtener una garantía limitada
Scan for updated Limited Warranty
Scanner pour obtenir la grantie limitée à jour
Escanear para obtener garantía limitada actualizada
www.suncast.com/warranty or call US 1 ( 800) 846-2345
www.suncast.conn/warranty ou appelez-nous 1 ( 800) 846-2345
www.suncast.conn/warranty o Ilannenos 1 ( 800) 846-2345
Have Questions?
We are here to help. Check out our resource library along with helpful tips,
videos and FAQ's at https://support.suncast.com
You may call the Customer Care Center directly at: 1 ( 800) 846-2345 or write
Suncast Corporation, Customer Care Center, 701 N. Kirk Road, Batavia, IL 60510 ( USA)
Des questions?
Nous pouvons vous aider. Consultez notre bibliothèque de ressources où vous trouverez des conseils utiles,
des vidéos et une FAQ sur https://support.suncast.com.
Vous pouvez communiquer directement avec le centre d'appels au: 1-800-846-2345 ou écrire à
Suncast Corporation, Customer Care Center, 701 N. Kirk Road, Batavia, IL 60510 ( États-Unis)
¿Alguna pregunta?
Estamos aquí para ayudarle. Consulte nuestra biblioteca de recursos junto con sugerencias utiles,
videos y preguntas frecuentes en https://support.suncast.com.
Puede llamar al Centro de atención directamente al: 1 ( 800) 846-2345 o escribir a
Suncast Corporation, Customer Care Center, 701 N. Kirk Road, Batavia, IL 60510 ( EE.UU.)
To purchase Suncast replacement parts and learn about other Suncast products visit us online or call.
Pour acheter des pièces de rechange Suncast et pour plus d'informations sur d'autres articles Suncast, rendez-vous
sur notre site Internet ou appelez-nous.
Para comprar piezas de repuesto Suncast y obtener más información acerca de otros productos Suncast, visítenos
en línea o llámenos por teléfono.
`fc
vvvvvv.suncast.com
1-800-846-2345 or 1-630-381-6309.
1-800-846-2345 ou le 1-630-381-6309.
1-800-846-2345 o al 1-630-381-6309.
2

A Before You Begin...
• Consult your local authorities for any permits required to construct shed.
Prior to the construction of your shed, check with the local building code official to review any required
permits or building limitations.
• A level and sturdy foundation is required before shed construction can begin.
Site preparation information is available on later in this manual. A foundation that differs from the
specifications described within this manual could prevent proper assembly and may damage parts.
• Read instructions thoroughly prior to assembly.
This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence.
• Please follow instructions.
Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.
• Check for all parts before you begin assembly.
Using the provided parts check list, verify that you have all the parts required to construct your shed model.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE UNPACKING ALL PARTS.
• •
• Assistance is required during entire assembly. ple-A
A Caution
• Proper site preparation required.
• Shed not intended for storage of flammable or caustic chemicals.
• Hot items, such as recently used grills, blowtorches, etc., must not be stored in the shed.
• Shed not intended for use by children.
• DO NOT stand, sit, or store items on storage shed roof.
• Repair or replace broken parts immediately.
• Suncast is not responsible for damage caused by weather or misuse.
• At regular intervals, inspect your shed to make sure that assembly integrity has been maintained.
3

Assembly Day Tips
• Complete site preparation and foundation construction before unpacking parts and beginning assembly.
• Make sure you have assistance nearby to lift and secure parts in place.
• Once roof is assembled, a flashlight may be of use when assembling smaller components inside shed.
• DO NOT use a torque wrench or hand drill to tighten provided Easy Bolts. Use provided Easy Bolt Easy
Driver tool ONLY.
• For customer convenience, Suncast provides extra hardware. In some cases, there will be small fasteners
remaining, after assembly is complete.
Maintenance
• To maintain the look of your product, we recommend cleaning it at regular intervals with mild soap and
water. DO NOT use bleach, ammonia or other caustic cleaners, and DO NOT use stiff bristle brushes.
Failure to perform cleaning at regular intervals could result in permanent staining of the plastic. This type
of damage is not covered under warranty..
4

Site Preparation and Platform Construction
Materials NOT supplied with Shed Kit
Important:
• Site preparation is required for this shed. Placing the shed on a properly constructed, square,
flat and level foundation, as described below, is required. Without a properly constructed,
square, flat and level foundation, settling will eventually occur, causing distortion and damage
to the shed. Suncast is not responsible for replacing parts damaged or property lost due to
incorrect foundation construction. Warranty requires a properly constructed foundation as
described below.
• Complete the site preparation and foundation construction before unpacking parts and
beginning assembly. For tips on site preparation, go to www.suncast.com, consult retailer,
or local codes.
Site Preparation
1. Consult your local authorities for building codes and covenants before beginning foundation or erecting shed.
2. Before any digging, check with local utilities to determine location of buried cables, pipes, etc.
3. Decide which type of foundation is most suitable for your installation. The foundation surface must be square, flat and level.
Follow the below guidelines for foundation options:
Concrete Slab
• Construct a slab of at least 4" thickness.
• The use of reinforcement bar is recommended.
Wood Platform
• Use exterior grade wood.
• Set the wood platform on pier blocks or footing.
4. Complete the foundation preparations as follows:
• A vapor barrier may be applied over the foundation to prevent excessive condensation in the shed.
Follow local building codes for a proper vapor barrier.
• The ground should slope away from the foundation area to provide drainage.
Anchoring the Floor Panels to the Foundation
• Shed floor panels include flattened areas where anchors or lag screws are to be secured.
These flat areas must be drilled through prior to securing the floor panels to the foundation.
Concrete Slab
• Secure shed to concrete slab using 3/8" masonry anchors
with 1" washers. Masonry anchors and 1" washers are avail-
able at most local hardware retailers. 8 masonry anchors
are required for the Suncast BMS4950 Series Shed.
Shed Footprint
(for both concrete and wood)
Anchor section example
Wood Platform
• Secure shed to wood platform using 1/4" - 3/8" x 3" lag screws
with 1" washers. Lag screws and 1" washers are available at
most local hardware retailers. 8 lag screws are required for
the Suncast BMS4950 Series Shed.
Note: Shed floor fastening locations are designed to align with
the under- structure layout. Be sure the front of the base panels
are oriented correctly on the platform to ensure lag bolts
engage with the under- structure.
" Dimensions allow for shed to fit within the nearest 1" on each side.
5

Site Preparation and Platform Construction ( continued)
Materials NOT supplied with Shed Kit
Wood platform critical spacing
• Check all critical spacing measurements carefully.
Wood Platform Materials List
Item
Qty Size
A 1 48" X 54-1/2 X 3/4
B 1 30-1/2" x 54-1/2" x 3/4"
C 6 2" x 6" x 51-1/2"
D 4 2" x 6" x 14"
E 2 2" x 6" x 78-1/2"
• Please note, 2 x 6 dimensional lumber is actually 1/2"
smaller than noted sizes. Dimensions given presume
standard 1.5" x 5.5" actual size lumber. Lumber
dimensions can vary. Check lumber dimensions before
cutting and make appropriate adjustments to achieve
given dimensions. Cut sizes are actual size.
6

Parts
Names or letters are engraved on parts. (* Unless otherwise noted.)
OB00093
Front Roof Panel
o
OB00864
Front Left Side Panel
OB00099
Left Door
OB00090
Right Door
OB00095
Floor Panel
x2
o
OB00863
Rear Roof Panel
OB00097A
Back Panel
OB00867
Rear Right Side Panel
OB00865
Front Right Side Panel
7

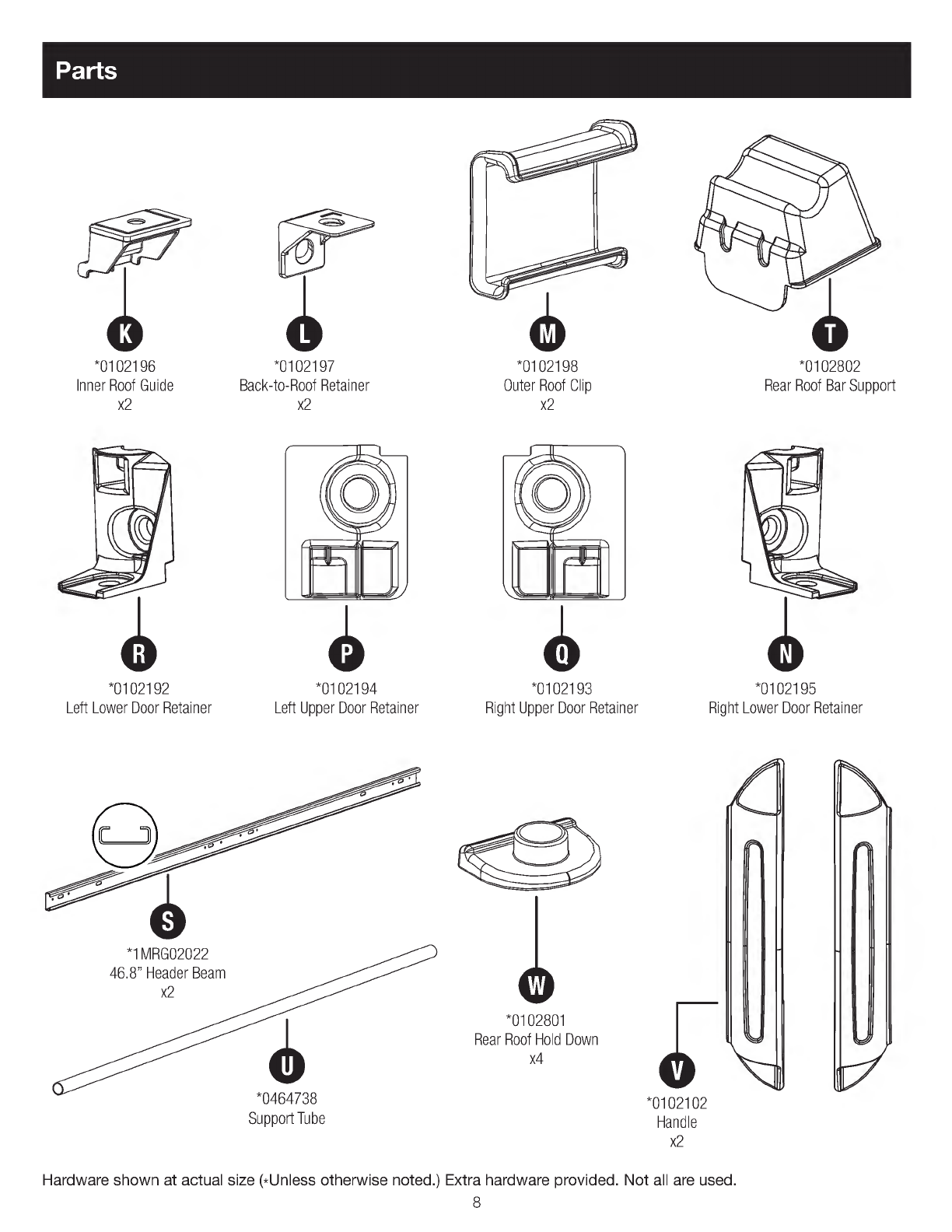

Pads
*0102196
Inner Roof Guide
x2
*0102192
*0102197
Back- to- Roof Retainer
x2
*0102194
*0102198
Outer Roof Clip
x2
*0102193
Left Lower Door Retainer Left Upper Door Retainer Right Upper Door Retainer
a
*1MRG02022
46.8" Header Beam
x2
*0464738
Support Tube
*0102801
Rear Roof Hold Down
x4
*0102102
Handle
x2
*0102802
Rear Roof Bar Support
*0102195
Right Lower Door Retainer
Hardware shown at actual size (* Unless otherwise noted.) Extra hardware provided. Not all are used.
8

Hardware
Hardware Bag
I'
*Easy Bolt®
x26
*Easy Driver®
0480564 - Hardware Bag
è
#10 x 1"
Fastener
x7
#8-10 x 3/4
Pan Head Screw
x5
#10 x . 625
Screw
x16
#8 Flat Washer
x5
9

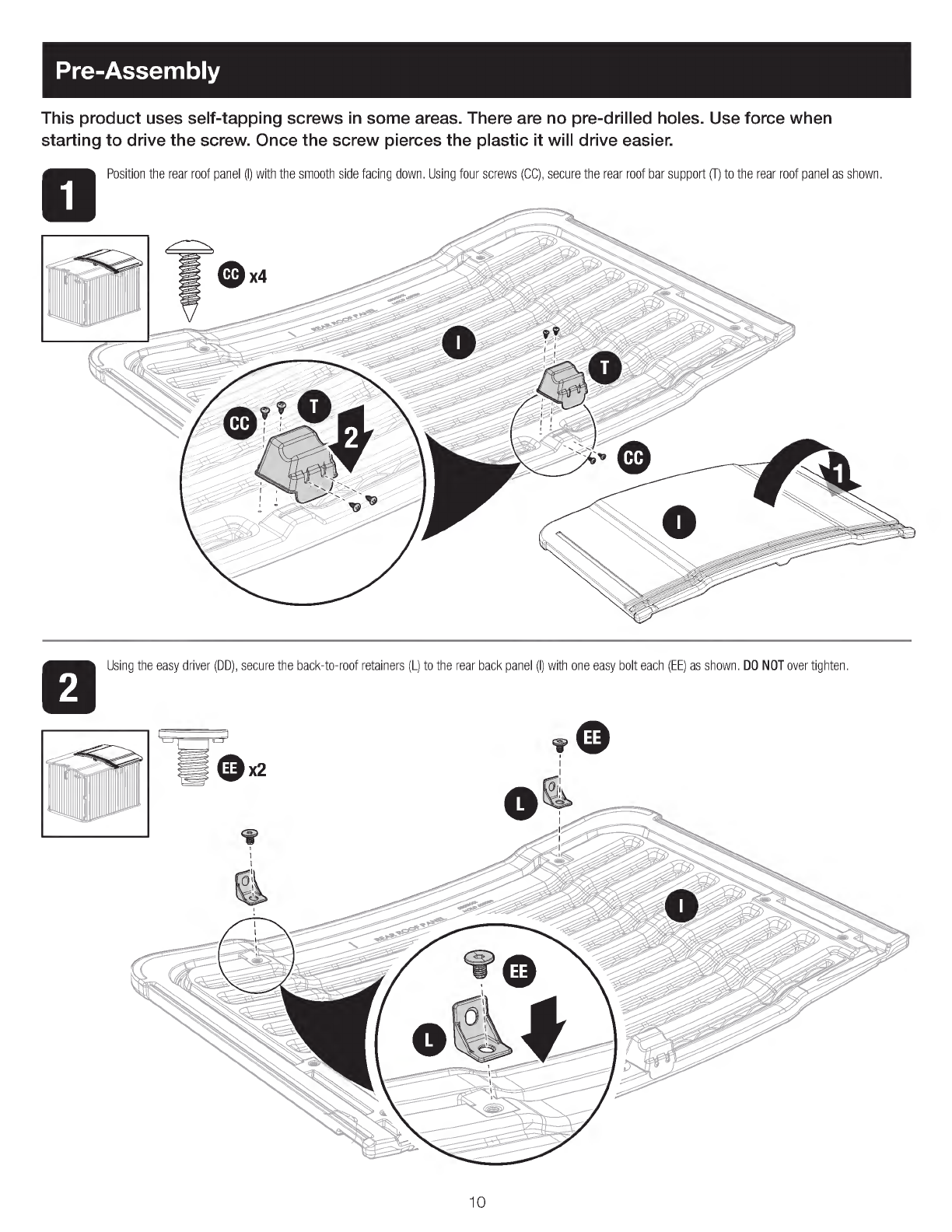

Pre- Assembly
ti Using the easy driver ( DD), secure the back- to- roof retainers ( L) to the rear back panel ( I) with one easy bolt each ( EE) as shown. DO NOT over tighten.
This product uses self- tapping screws in some areas. There are no pre- drilled holes. Use force when
starting to drive the screw. Once the screw pierces the plastic it will drive easier.
Position the rear roof panel ( I) with the smooth side facing down. Using four screws ( CC), secure the rear roof bar support ( T) to the rear roof panel as shown.
10

0
Postition the front roof panel ( J) with the smooth side facing down. Using the easy driver ( DD), secure the inner roof guides ( K) to the rear front panel with one easy
bolt each ( EE) as shown. DO NOT over tighten.
Assembly
4
huti
Place the floor panels ( A) against each other as shown. With the help of another person, push the floor panels FIRMLY together until they interlock.
—g-
-g— — 3— — 3-
-g— — 3— — 2— — 2-
-g— — 0— — 2— —8— — o-
-g — — R..-
-g— - — g— —g— _ g_
— — g— 9
u _
g— — g—
—g— — g— _ g_ — g— —g—
—g—
o_ . -- _g _ _ g_
a_ — 8—
a—a — g— — g—
u - ...
a_
—g— — g— — g— — g— — g—
a
_g-
- _ g_
_8_
—g— — a-
-8— — g— —g— — g-
-g— — 8— —3— — g-
-g— — g— — g-
-g— — g-
1 1

O
Using a phillips screwdriver, attach the floor panels ( A) together with six
screws ( AA).
Place and center the floor assembly onto the prepared foundation.
0x6
6
Insert the tabs on the front right side panel ( B) into the slots in the floor
panel ( A). Slide the front right side panel to lock in place.
NOTE: The edge of front right side panel with hinge tabs will be the front
of the shed.
Using the easy driver ( DD), attach the front and rear right side panels
(B, C) together with two easy bolts ( EE). DO NOT over tighten.
hinge tabs
Ell
Insert the tabs on rear right side panel ( C) into the slot in floor panel ( A).
Slide the rear right side panel to lock in place.
NOTE: The edge of the rear right side panel overlaps to the inside of the
front right side panel ( B).
8
12

9

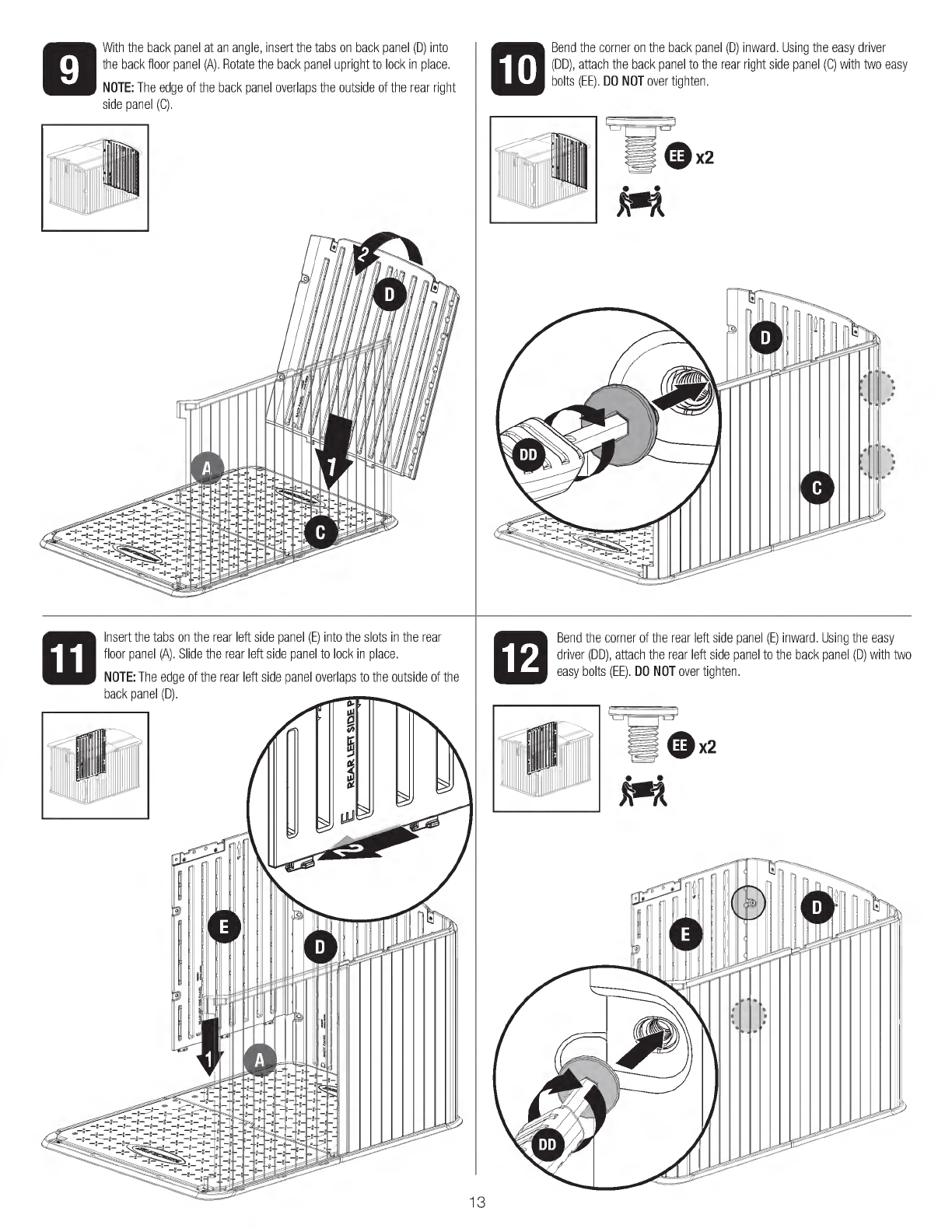

With the back panel at an angle, insert the tabs on back panel ( D) into
the back floor panel ( A). Rotate the back panel upright to lock in place.
NOTE: The edge of the back panel overlaps the outside of the rear right
side panel ( C).
Insert the tabs on the rear left side panel ( E) into the slots in the rear
floor panel ( A). Slide the rear left side panel to lock in place.
NOTE: The edge of the rear left side panel overlaps to the outside of the
back panel ( D).
13
10
Bend the corner on the back panel ( D) inward. Using the easy driver
(DD), attach the back panel to the rear right side panel ( C) with two easy
bolts ( EE). DO NOT over tighten.
all
Bend the corner of the rear left side panel ( E) inward. Using the easy
driver ( DD), attach the rear left side panel to the back panel ( D) with two
easy bolts ( EE). DO NOT over tighten.

mi
Insert the tabs on the front left side panel ( F) into the slot in the front
floor panel ( A). Slide the front left side panel to lock in place.
NOTE: The edge of the front left side panel overlaps the outside of the
rear left side panel ( E).
14
Using the easy driver ( DD), attach the front left side panel ( F) to the rear
left side panel ( E) with two easy bolts ( EE). DO NOT over tighten.
to
Insert the ends of the support tube ( U) across the side panels ( B, F).
Be sure the support tube rests in the curved recesses as shown.
--40 110 "-
16
Position and center the rear roof panel ( I) across the side panels ( C, D, E)
and over the roof support bar ( U). Be sure the rear roof bar support ( T)
rests securely on the support tube.
14

Slide the front roof panel ( J) to the rear and open position.
In
Using the easy driver ( DD), attach both back- to- roof retainers ( L) to the
back panel ( D) using one easy bolts each ( EE). DO NOT overtighten.
2
18
Place the front roof panel ( J) across the front left side panel ( F) and the
front right side panel ( B). Be sure the inner roof guides ( K) snap fully
over the side panels.
19 20
Position one of the header beams ( S) into the channel across the
front left side panel ( F) and the rear left side panel ( E). Using a
phillips screwdriver, secure the header beam with six screws ( CC).
Repeat for the remaining header beam across the front right side
panel ( B) and the rear right side panel ( C)
15

El
From the underside of rear roof panel ( I), use the easy driver ( DD) to attach two rear roof hold downs ( vv) using one easy bolts ( EE) each. DO NOT overtighten.
Be sure the rear roof hold downs attach onto the header beams ( S) as shown before tightening easy bolts.
Repeat for other side with the two remaining rear roof hold downs ( q.
4
EEI
Slide the front roof panel ( J) forward to the closed position. On the outside
of the shed, on both sides, snap one outer roof clamp ( M) over the front
roof panel and the rear roof panel ( I).
NOTE: Position the outer roof clamps with the text at the bottom.
16
Es11
Snap the left lower door retainer ( R) into place at the bottom of the front
left side panel ( F).

24
26
Using the easy driver ( DD), attach the left lower door retainer ( R) with
two easy bolts ( EE). DO NOT overtighten.
El
Insert the left door ( G) into the front left
side panel ( F).
Using the easy driver ( DD), attach the left upper door retainer ( P) with
one easy bolt ( EE). DO NOT overtighten.
Ea
Repeat steps 23 - 26 to install the right door using parts right lower
door retainer ( N), right door ( H) and right upper door retainer ( Q).
17

28
Attach the door handles ( V) to the left ( G) and right ( H) doors with two
screws ( BB) and two washers ( FF) each.
0 x4
1
_._____
II
Jpj
A
l it iiiitill
1 i 1111111111111
i ., in ..„................„,
4
29
To properly lock the unit, a 5/16" padlock is recommended.
NOTE: Lock not included. To maintain warranty coverage, the product
should be padlocked at all times when not in use.
18

A Avant de commencer...
• Consulter les autorités locales pour les permis nécessaires à la construction de la remise.
Avant de construire la remise, demander à un représentant des autorités locales chargées des codes et de
la réglementation afin de connaître les limitations des permis de construire.
• Il est obligatoire de construire des fondations robustes avec une surface à niveau avant de
commencer.
Les recommendations et les choix concernant les fondations sont indiqués aux pages 20 et 21 du manuel.
• Lire complètement les instructions avant de procéder à l'assemblage.
Ce kit comprend des pièces qui peuvent être endommagées si elles ne sont pas assemblées correctement
ou si elles ne sont pas assemblées dans le bon ordre.
• Suivre les instructions.
Suncast décline toute responsabilité en ce qui concerne le remplacement de pièces perdues ou
endommagées suite à un mauvais assemblage.
• Vérifier toutes les pièces avant de commencer.
Utiliser la liste de pièces fournies aux pages 18 et 19 et vérifier que toutes les pièces sont présentes afin
de construire la remise. EFFECTUER COMPLÈTEMENT LA PRÉPARATION DES FONDATIONS AVANT DE
DÉBALLER TOUTES LES PIÈCES.
• •
• Il est nécessaire de recevoir l'aide d'une autre personne pendant tout l'assemblage. MO
A it
A Attention
• Une préparation appropriée du site d'installation est requise.
• La remise n'a pas été conçue afin d'entreposer des produits chimiques inflammables ou caustiques.
• Ne pas placer d'appareils chauds dans la remise tels que les grils et barbecues, lampes à souder et
chalumeaux, etc. venant d'être utilisés.
• La remise ne doit pas être utilisée pas de enfants. La remise n'est pas un coffre à jouets.
• Ne pas se tenir debout, assis ni ranger d'articles sur le toit de la remise.
• Réparer ou remplacer immédiatement tout élément cassé.
• Suncast décline toute responsabilité en cas de dommages provoqués par les intempéries ou par tout
mauvais usage.
• Inspecter cet article régulièrement pour vérifier que le montage n'a pas pris de jeu.
19

Conseils pour le jour de l'assemblage
• Terminer complètement la préparation du site et les fondations avant de déballer les pièces et de com-
mencer l'assemblage.
• S'assurer que quelqu'un se trouve a proximité pour aider à soulever et mettre en place les pièces.
• Après que le toit soit monté, une lampe de poche pourra être utile pour monter les petites pièces à
l'intérieur de la remise.
• NE PAS utiliser de clé dynamométrique ni de perceuse pour serrer les boulons Easy BoltsTM. Utiliser
UNIQUEMENT l'outil spécial Easy Driver ( fourni).
• Suncast fourni des pièces supplémentaires telles que les petites pièces de boulonnerie pour vous faciliter
la vie. Dans certains cas, il restera des petites pièces de boulonnerie après avoir terminé l'assemblage.
Instructions d'entretien
• Pour préserver l'aspect de cet article, nous vous recommandons de le nettoyer régulièrement avec de l'eau
et du savon doux. NE PAS utiliser d'eau de Javel, d'ammoniaque ou tout autre nettoyant caustique, et NE
PAS utiliser des brosses à poils durs. Si le nettoyage n'est pas effectué régulièrement, le plastique pourrait
rester souillé de façon permanente. Ce type de dommage n'est pas couvert par la garantie.
20
