Suncast BMS6583 User manual

BMS6583 Storage Shed
ASSEMBLY INSTRUCTIONS
Tools Required
Easy Bolt Driver
%,,
Brilliant
by Design' ui
0361669B C) 2023 Suncast Corporation, Batavia, IL

Register within 90 days of purchase to activate Warranty!
Registration is not required for products with a warranty term of 90 days or less.
1. Verify warranty term of your product by visiting www/suncast.com/warranty
(products with a warranty term of 90 days or less do not require registration)
2. Complete registration: fill out the form and upload a copy of your receipt by
visiting https://support.suncast.com or scanning the OR code
Have Questions?
For product questions, assembly assistance, replacement parts and more:
du 1-800-846-2345
https://support.suncast.com 0 Suncast Corporation Customer Care, 701 N. Kirk Road, Batavia, IL 60510 % 7 1-630-381-6309
2

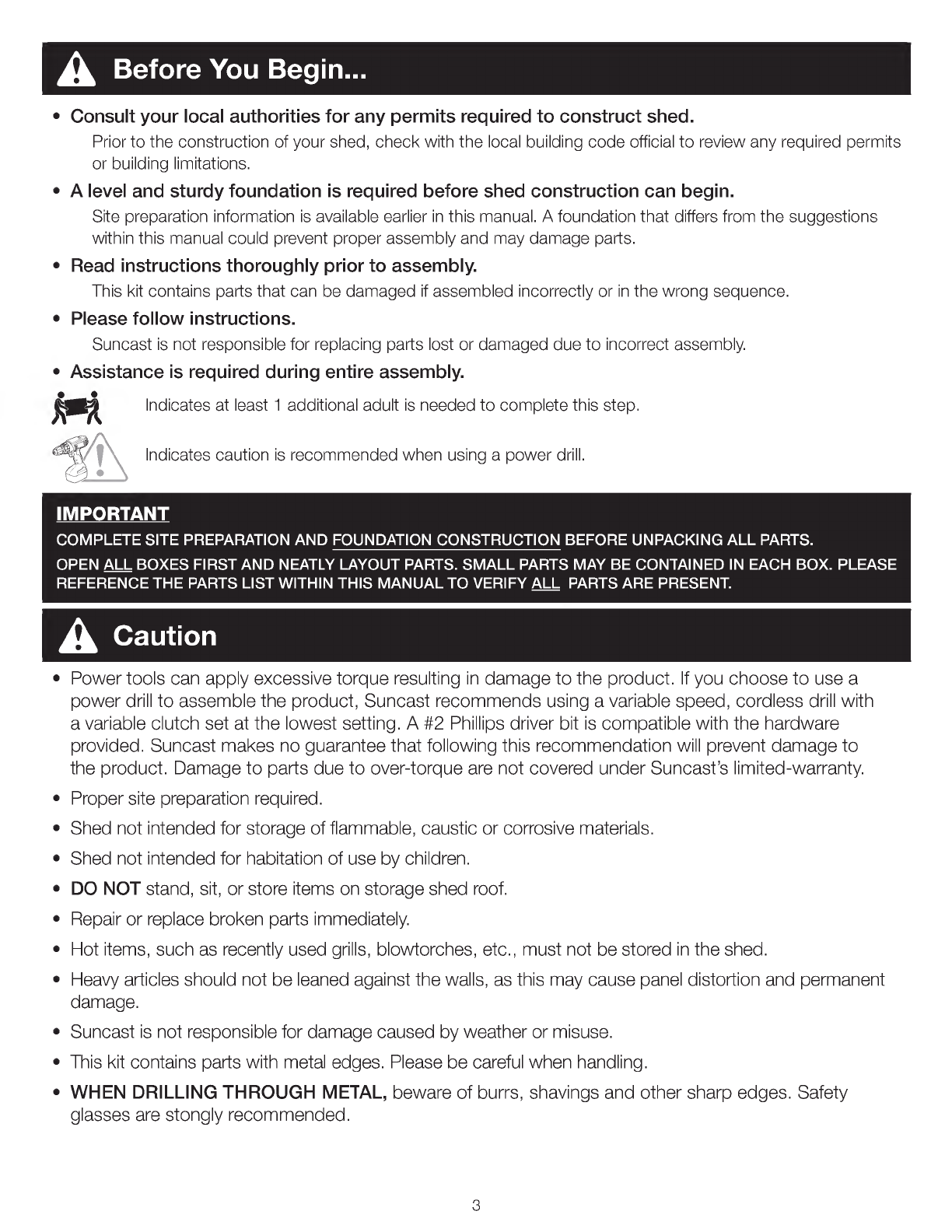

A Before You Begin...
• Consult your local authorities for any permits required to construct shed.
Prior to the construction of your shed, check with the local building code official to review any required permits
or building limitations.
• A level and sturdy foundation is required before shed construction can begin.
Site preparation information is available earlier in this manual. A foundation that differs from the suggestions
within this manual could prevent proper assembly and may damage parts.
• Read instructions thoroughly prior to assembly.
This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence.
• Please follow instructions.
Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.
• Assistance is required during entire assembly.
X ele i
Indicates at least 1 additional adult is needed to complete this step.
Indicates caution is recommended when using a power drill.
IMPORTANT
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE UNPACKING ALL PARTS.
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN EACH BOX. PLEASE
REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY ALL PARTS ARE PRESENT.
A Caution
• Power tools can apply excessive torque resulting in damage to the product. If you choose to use a
power drill to assemble the product, Suncast recommends using a variable speed, cordless drill with
a variable clutch set at the lowest setting. A # 2 Phillips driver bit is compatible with the hardware
provided. Suncast makes no guarantee that following this recommendation will prevent damage to
the product. Damage to parts due to over- torque are not covered under Suncast's limited- warranty.
• Proper site preparation required.
• Shed not intended for storage of flammable, caustic or corrosive materials.
• Shed not intended for habitation of use by children.
• DO NOT stand, sit, or store items on storage shed roof.
• Repair or replace broken parts immediately.
• Hot items, such as recently used grills, blowtorches, etc., must not be stored in the shed.
• Heavy articles should not be leaned against the walls, as this may cause panel distortion and permanent
damage.
• Suncast is not responsible for damage caused by weather or misuse.
• This kit contains parts with metal edges. Please be careful when handling.
• WHEN DRILLING THROUGH METAL, beware of burrs, shavings and other sharp edges. Safety
glasses are stongly recommended.
3

A Shed Care and Maintenance
• At regular intervals, inspect your shed to make sure that assembly integrity has been maintained.
• Periodically check that the location you have chosen to set your shed is still level.
• Keep roof clean of snow and leaves.
• To maintain the look of your product, we recommend cleaning it at regular intervals with mild soap and
water. DO NOT use bleach, ammonia or other caustic cleaners, and DO NOT use stiff bristle brushes.
Failure to perform cleaning at regular intervals could result in permanent staining of the plastic. This type
of damage is not covered under warranty.
A Assembly Day Tips
• Do not attempt to assemble on a day with strong winds.
• Do not attempt to assemble on days when temperature is below 32 degrees Fahrenheit.
• Set aside appropriate amount of time to completely assemble shed. An incomplete shed assembly may
pose a safety ha7ard.
• Make sure you have assistance nearby to lift and secure parts in place.
• Wear light duty work gloves while assembling shed.
• Once roof is assembled, a flashlight may be of use when assembling smaller components inside shed.
• Do not use a torque wrench or hand drill to tighten Easy bolts. Use provided Easy Bolt Driver ONLY.
• Suncast provides extra hardware for small fasteners for customer convenience. In some cases, there will
be extra small fasteners once the assembly is complete.
Note: This product contains parts that are used in different orientations to construct the shed. Please take
note of the orientation of the parts shown throughout this instruction manual. Failure to follow instructions
could result in damage to parts. Suncast is not responsible for replacing parts lost or damaged due to
incorrect assembly.
4

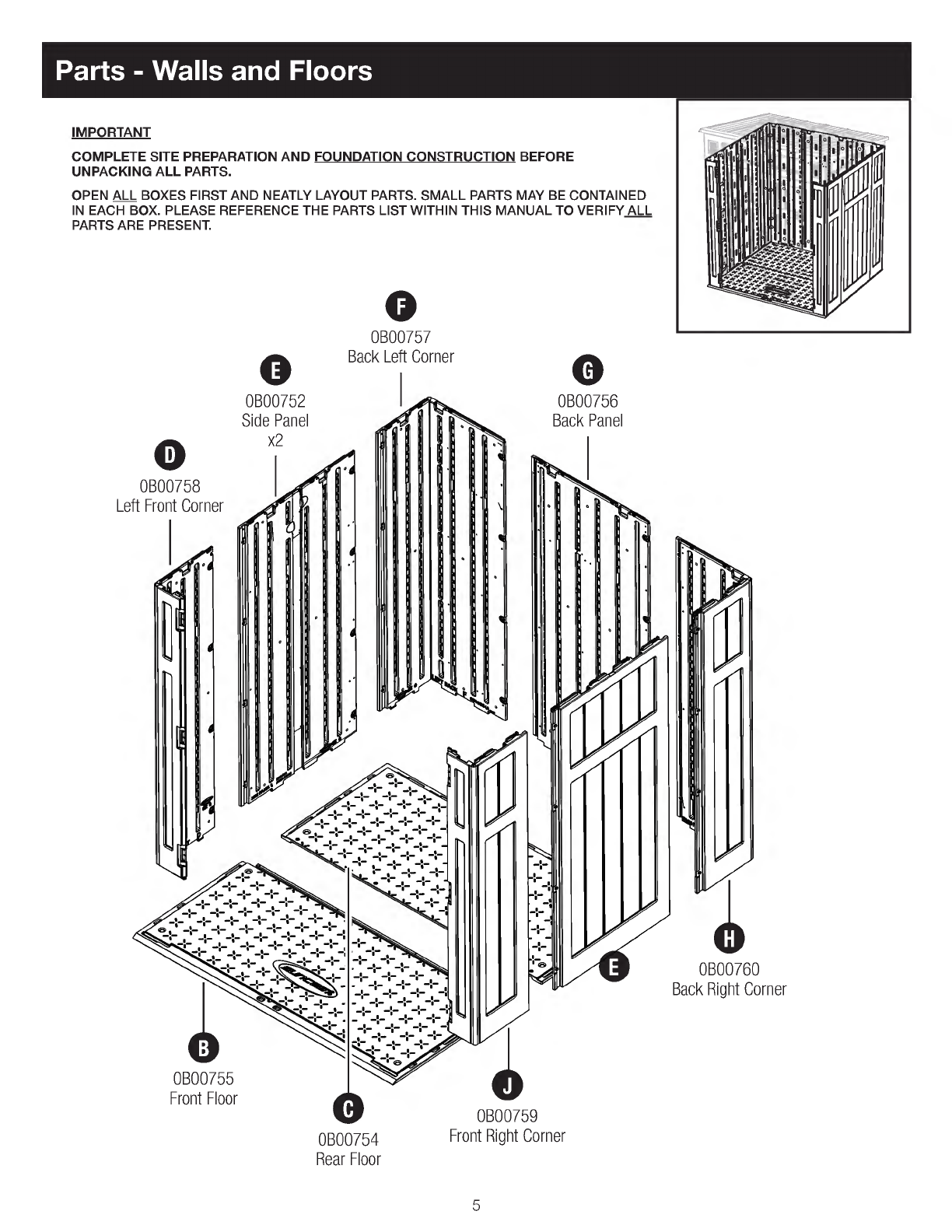

Parts - Walls and Floors
IMPORTANT
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED
IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY ALL
PARTS ARE PRESENT.
o
OB00758
Left Front Corner
1
OB00755
Front Floor
0
OB00752
Side Panel
x2
0
OB00757
Back Left Corner
OB00754
Rear Floor
o
OB00756
Back Panel
OB00759
Front Right Corner
OB00760
Back Right Corner
5

Parts - Doors
o
OB00616
Left Door
o
OB00617
Right Door
6

Parts - Roof / Headers / Windows
o
OB00594
Front Header
OB00597
Right Header OB00598A
Roof Panel
x2
o
0441012A
Front Window
x2
OB00595
Rear Header
o
0441011A
Side Window
x2
OB00596
Left Header
7

Parts - Steel
o
-
o
o
o
o
o
o
1MRG01014 1MRG02004 1MRG05007
70 1/4" Ridge Beam 62" Header Beam 62 11/16" Truss Leg
x3 x3
1MRG04004
Side Adapter
ir
BB
1r 1MRG04005
68 1/2" Side Adapter
x6
Kit # 0860033
8

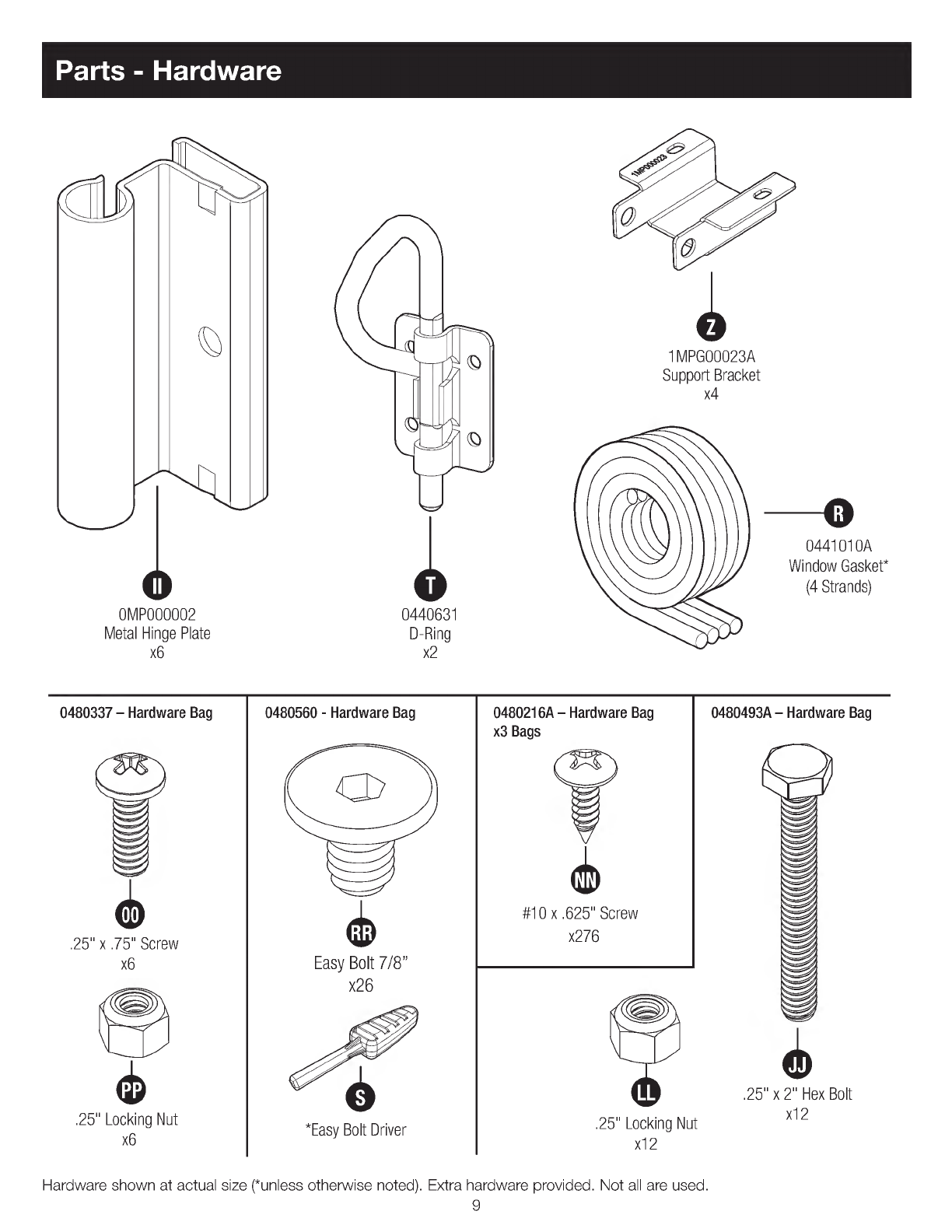

Parts - Hardware
OMP000002
Metal Hinge Plate
x6
4!)
0440631
D- Ring
x2
1MPG00023A
Support Bracket
x4
0441010A
Window Gasket*
(4 Strands)
0480337 — Hardware Bag
(1)
.25" x . 75" Screw
x6
.25" Locking Nut
x6
0480560 - Hardware Bag
Easy Bolt 7/8"
x26
*Easy Bolt Driver
0480216A — Hardware Bag
x3 Bags
#10 x . 625" Screw
x276
.25" Locking Nut
x12
0480493A — Hardware Bag
fib
.25" x 2" Hex Bolt
x12
Hardware shown at actual size (* unless otherwise noted). Extra hardware provided. Not all are used.
9

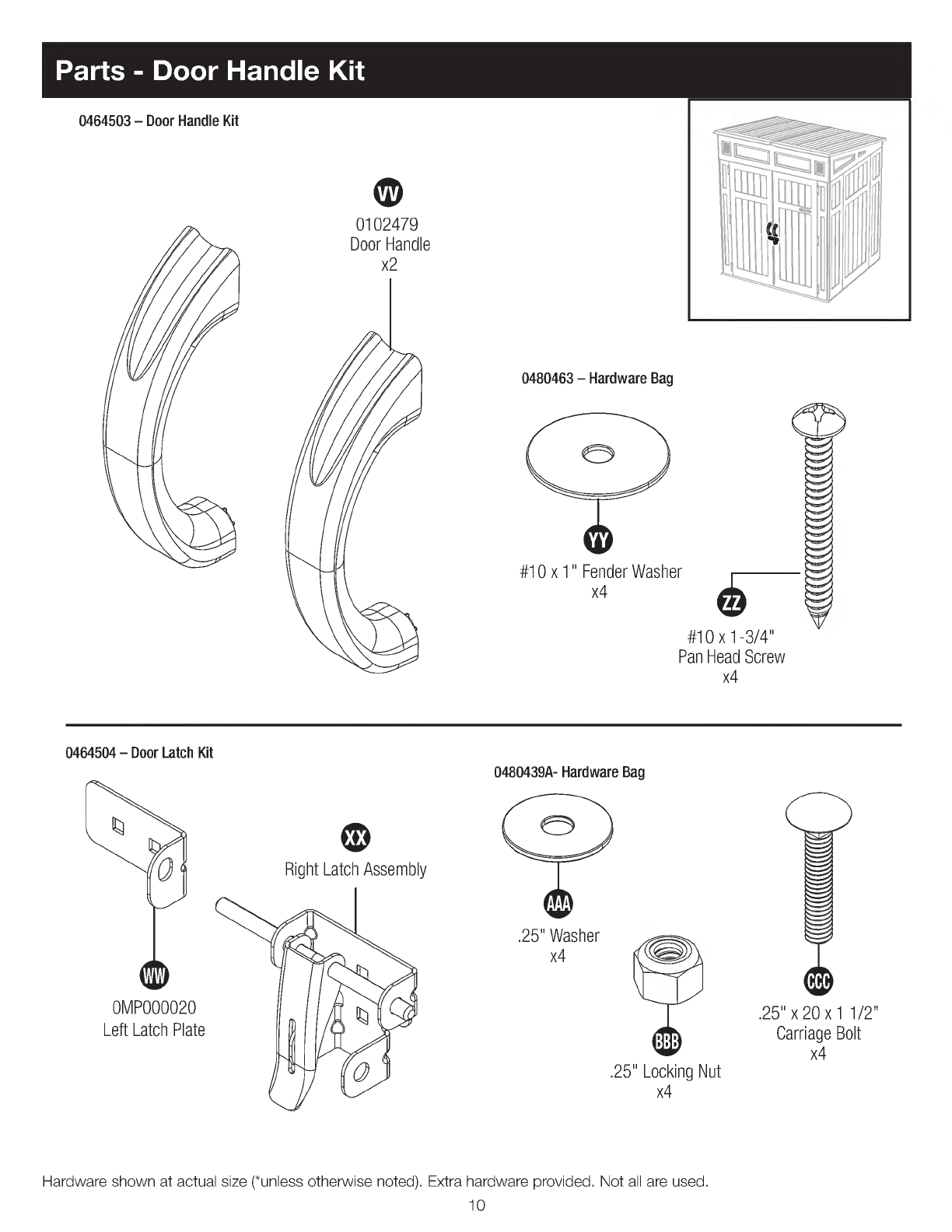

Parts - Door Handle Kit
0464503 — Door Handle Kit
0102479
Door Handle
x2
0480463 — Hardware Bag
#10 x 1" Fender Washer
x4
#10 x 1-3/4"
Pan Head Screw
x4
0464504 — Door Latch Kit
o
Right Latch Assembly
OMP000020
Left Latch Plate
.25" Washer
x4
0480439A- Hardware Bag
(C2)
BBB
.25" Locking Nut
x4
.25" x 20 x1 1/2"
Carriage Bolt
x4
Hardware shown at actual size (* unless otherwise noted). Extra hardware provided. Not all are used.
10

Site Preparation and Platform Construction
Materials NOT supplied with Shed Kit
Important:
• Site preparation is required for this shed. Placing the shed on a properly constructed, square, flat, smooth
and level foundation, as described below, is required. Without a properly constructed foundation, settling
will eventually occur, causing distortion and damage to the shed. Suncast is not responsible for replacing
parts damaged or property lost due to incorrect foundation construction or improper assembly. Warranty
requires a properly constructed foundation to which the shed must be anchored as instructed below.
• Complete the site preparation and foundation construction before unpacking parts and beginning
assembly. For tips on site preparation, go to www.suncast.com, consult retailer, or local code.
Site Preparation
1. Consult your local authorities for building codes and covenants before beginning foundation or erecting shed.
2. Before any digging, check with local utilities to determine location of buried cables, pipes, etc.
3. Decide which type of foundation is most suitable for your installation. The foundation surface must be square, flat, smooth and level.
Follow the below guidelines for foundation options.
4. Complete the foundation preparations as follows:
• A vapor barrier may be applied over the foundation to prevent excessive condensation in the shed.
Follow local building codes for a proper vapor barrier.
• The ground should slope away from the foundation area to provide drainage.
• Placing the shed on surfaces made of materials such as patio blocks or pavers is not acceptable for long-term support structure or
smooth surface. Use of these will void the warranty.
Concrete Slab
• Construct a slab of at least 4" thickness.
• The use of reinforcement bar is recommended.
• For foundations larger than specified below, the shed must rest on a
continuous, level portion of the concrete slab
" Dimensions shown are minimal for proper fit of the shed.
Wood Platform
• Use exterior grade wood.
• Set the wood platform on deck footing blocks
or full footing.
Anchoring the Floor Panels to the Foundation is required
after shed assembly is complete.
• Shed floor panels include flattened areas where anchors or lag screws are to be secured. These flat areas
must be drilled through prior to securing the floor panels to the foundation.
• The shed must be secured to a continuous concrete slab using
3/8" masonry anchors with 3/4" washers ( hardware not included).
8 masonry anchors are required for the Suncast BMS6583 Shed.
Anchor section example
• The shed must be secured to a wood platform using 1/4"-3/8" x 3"
lag screws with 3/4" washers ( hardware not included). 8 lag screws
are required for the Suncast BMS6583 Shed.
Note: Shed floor fastening locations are designed to align with
the under- structure layout. Be sure the front of the floor panels are
oriented correctly on the platform to ensure lag bolts engage with
the under- structure.
11

Site Preparation and Platform Construction ( continued)
Materials NOT supplied with Shed Kit
Wood platform critical spacing
• Check all critical spacing measurements carefully.
1 4
1/4"
651/4"
t
14 1/4"
27"
11 1/4"
(APPROXIMATE)
i
FRONT 1
Wood platform materials list
72"
Item Qty Size
a 1
24" x 65 1/4" x 3/4"
b 1 48" x 65" 1/4 x 3/4"
c 6
2" x 6" x 69"
d 4
2"x 6"x 11 1/4"
e 2 2" x 6" x 65 1/4"
• Please note, 2 x 6 dimensional lumber is actually 1/2"
smaller than noted sizes. Dimensions given presume
standard 1.5" x 5.5" actual size lumber. Lumber
dimensions can vary. Check lumber dimensions before
cutting and make appropriate adjustments to achieve
given dimensions. Cut sizes are actual size.
14 1/4"
27"
1
12

Pre- Assembly - Door and Header
Power tools can apply excessive torque resulting in damage to the product. If you choose to use a power drill to assemble
the product, Suncast recommends using a variable speed, cordless drill with a variable clutch set at the lowest setting. A # 2
Phillips driver bit is compatible with the hardware provided. Suncast makes no guarantee that following this recommendation
will prevent damage to the product. Damage to parts due to over- torque are not covered under Suncast's limited- warranty.
This item uses self- tapping screws in some areas. There are no pre- drilled holes. Use force when starting to drive the screw.
Once the screw pierces the plastic it will drive easier.
rj
II I
J
At top interior side of left door ( N), attach D- ring slide bolt ( T)
with four screws ( NN) through provided holes.
Place Front Header ( K) on flat surface, facing down. Starting
at the top- center of the window, press one end of the gasket
(R) into the channel and work around the window. DO NOT
STRETCH GASKET. Trim any excess gasket with scissors.
Lay one window pane ( EE) over each window opening.
Secure window panes with 20 screws ( NN).
At bottom interior side of left door ( N), attach D- ring slide bolt ( T)
with four screws ( NN) through provided holes.
Place Left Side Header ( Q) on flat surface, facing down. Starting
at the top- center of the window, press one end of the gasket ( R)
into the channel and work around the window. DO NOT STRETCH
GASKET Trim any excess gasket with scissors.
Place side window pane ( FF) over window opening. Secure window
pane with 17 screws ( NN).
Repeat for Right Side Header ( 0).
13

Pre- Assembly - Door and Header ( Continued)

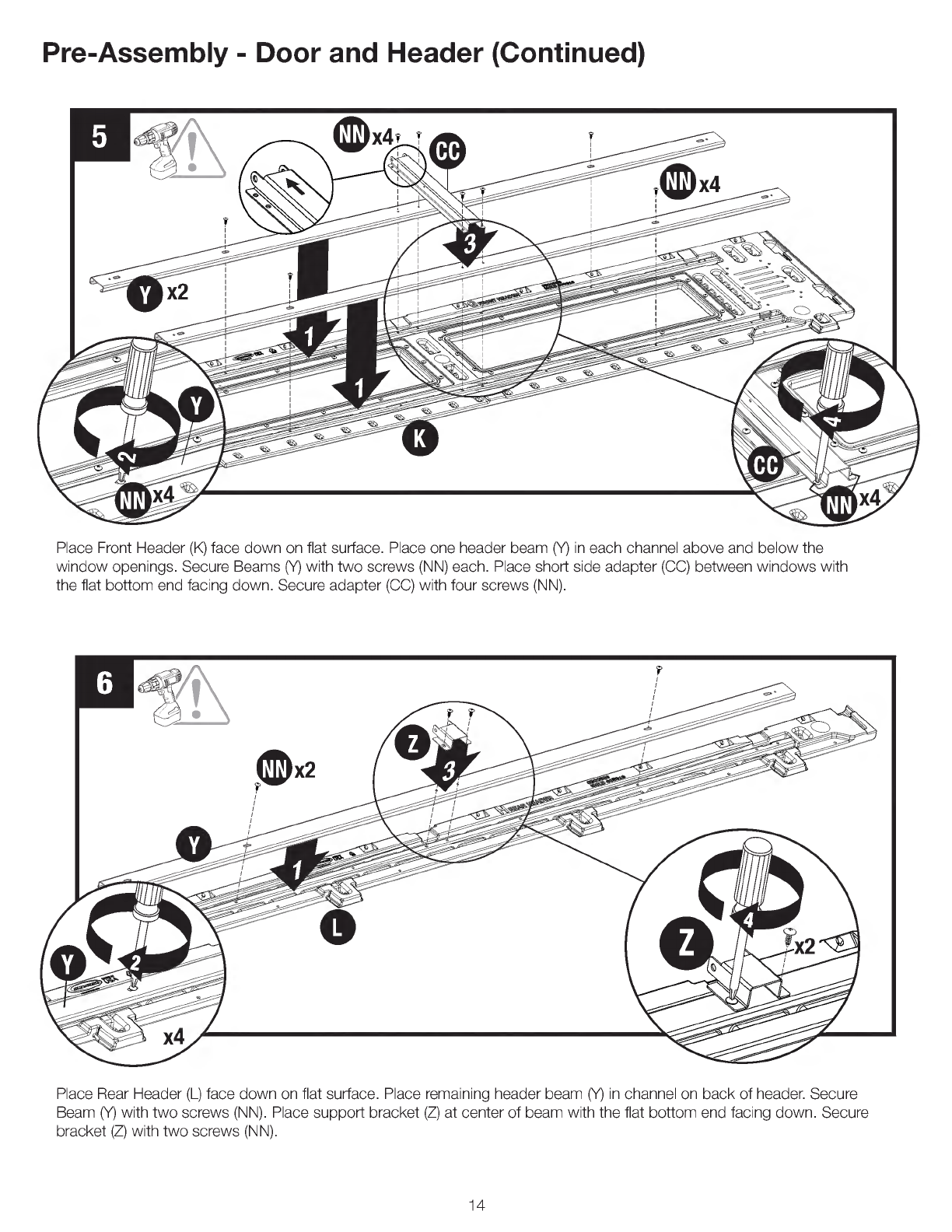

Place Front Header ( K) face down on flat surface. Place one header beam ( Y) in each channel above and below the
window openings. Secure Beams ( Y) with two screws ( NN) each. Place short side adapter ( CC) between windows with
the flat bottom end facing down. Secure adapter ( CC) with four screws ( NN).
Place Rear Header ( L) face down on flat surface. Place remaining header beam ( Y) in channel on back of header. Secure
Beam ( Y) with two screws ( NN). Place support bracket ( Z) at center of beam with the flat bottom end facing down. Secure
bracket ( Z) with two screws ( NN).
14

Assembly - Floors and Walls
-1- 1-1- - 1- - 1-
-1- - 14
-1-
-1- 1 - 1- -:- - 1- • ÷
÷ - 1- I-1- - 1- - 1- L-1- ÷
÷ ÷
1-1- ÷ -1-
-t- I
" - 11
-1- .1 -:- - 1-
Push front floor ( B) and rear floor ( C) panels together and
secure with four screws ( NN).
Note: Refer to ' Site Preparation' earlier in this manual for
information about how to secure floors to foundation.
Tip left front corner ( D) outward slightly and bend corner hinge.
Align tab on bottom right side of left front corner ( D) with
slot on front floor ( B). Lower panel into slot and lock in
place by sliding panel toward door opening.
7
Note: Use a rubber mallet to " push" left front
corner ( D) into locked position.
Tip left front corner ( D) back to vertical position and align
lower tabs on right side with slots in floor.
Note: You will hear a snap when tab is fully engaged.
15

Assembly - Floors and Walls ( Continued)

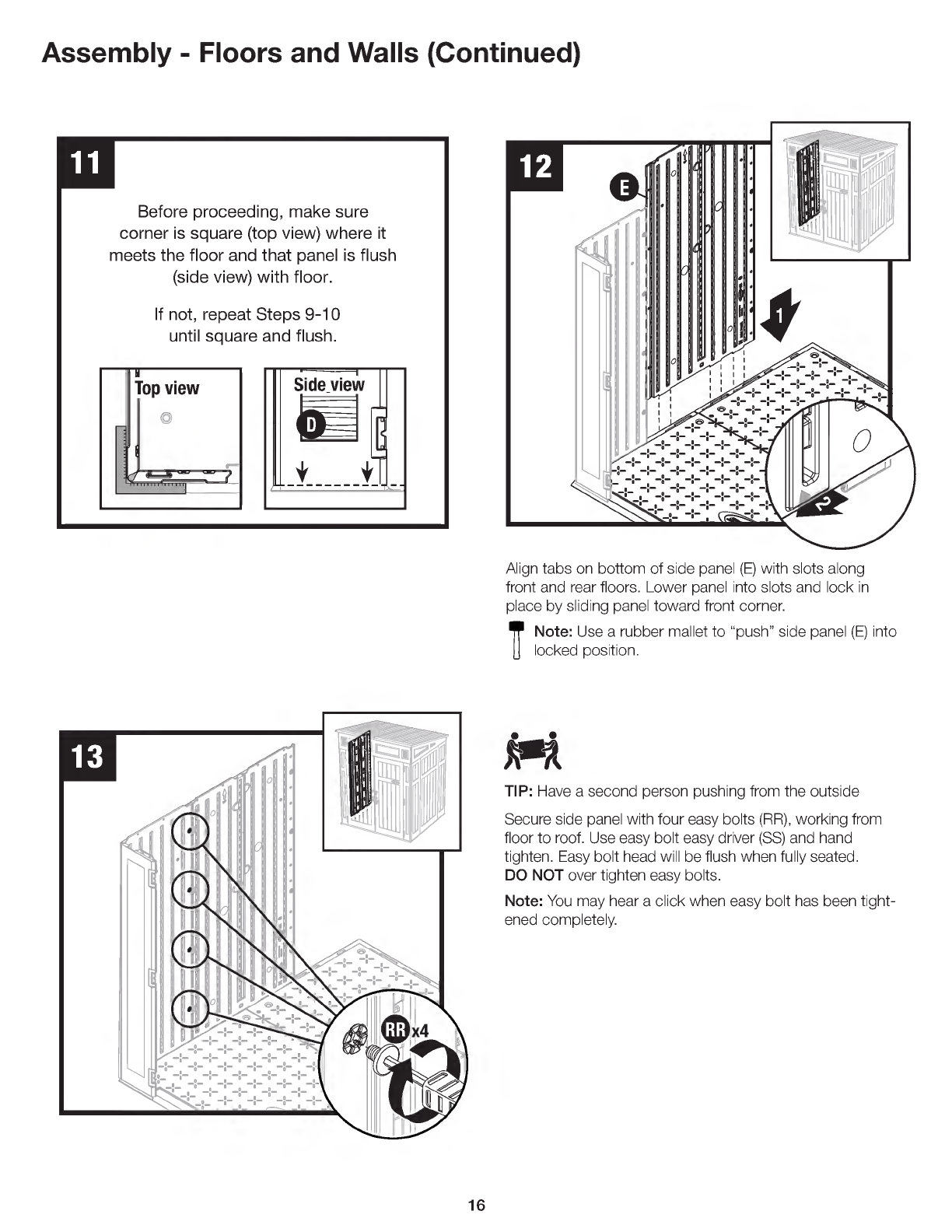

Before proceeding, make sure
corner is square ( top view) where it
meets the floor and that panel is flush
(side view) with floor.
12
o
o
e
Align tabs on bottom of side panel ( E) with slots along
front and rear floors. Lower panel into slots and lock in
place by sliding panel toward front corner.
7
Note: Use a rubber mallet to " push" side panel ( E) into
locked position.
TIP: Have a second person pushing from the outside
Secure side panel with four easy bolts ( RR), working from
floor to roof. Use easy bolt easy driver ( SS) and hand
tighten. Easy bolt head will be flush when fully seated.
DO NOT over tighten easy bolts.
Note: You may hear a click when easy bolt has been tight-
ened completely.
16

14
Hardware Needed
hui

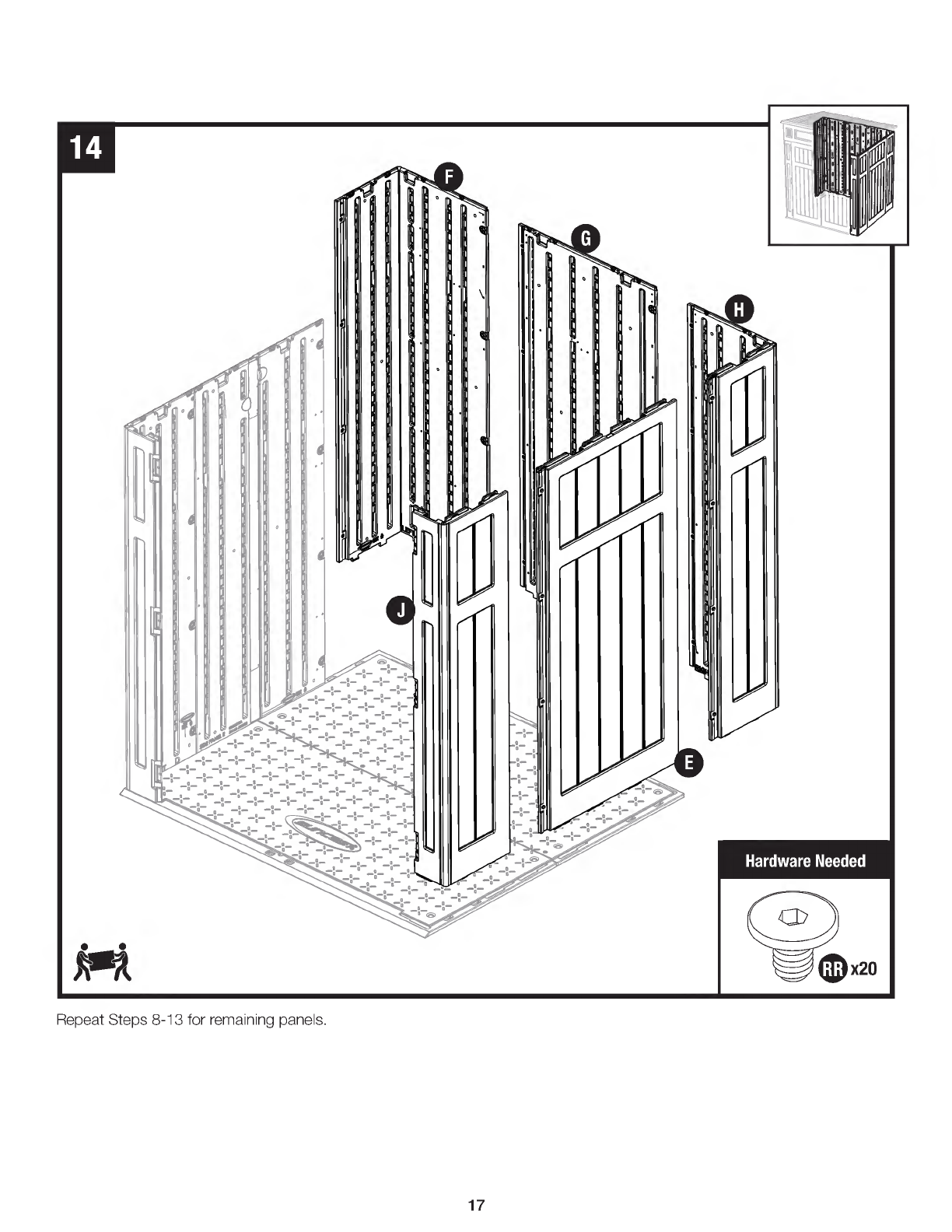

Repeat Steps 8-13 for remaining panels.
17

Assembly - Headers

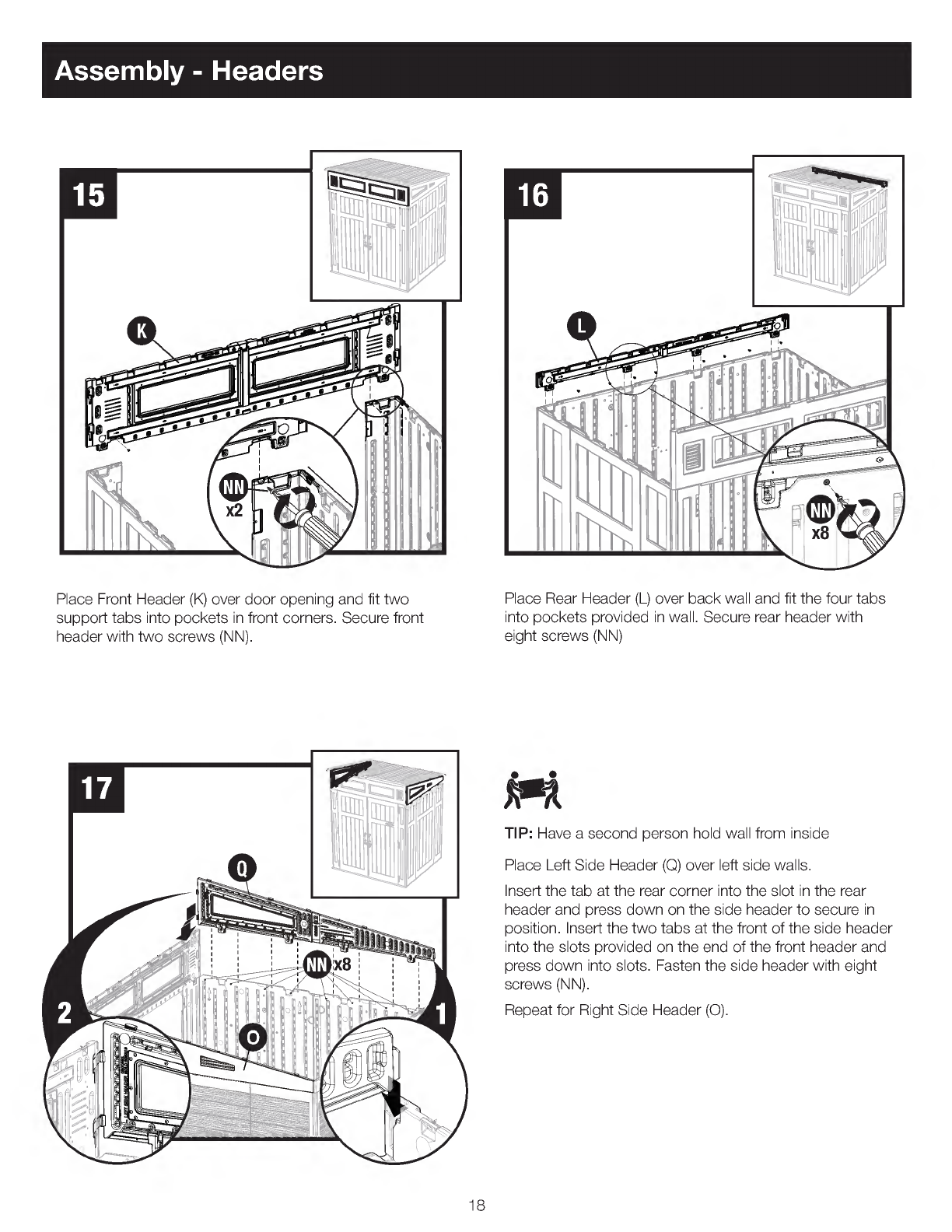

Place Front Header ( K) over door opening and fit two
support tabs into pockets in front corners. Secure front
header with two screws ( NN).
Place Rear Header ( L) over back wall and fit the four tabs
into pockets provided in wall. Secure rear header with
eight screws ( NN)
TIP: Have a second person hold wall from inside
Place Left Side Header ( Q) over left side walls.
Insert the tab at the rear corner into the slot in the rear
header and press down on the side header to secure in
position. Insert the two tabs at the front of the side header
into the slots provided on the end of the front header and
press down into slots. Fasten the side header with eight
screws ( NN).
Repeat for Right Side Header ( 0).
18

Assembly - Roof Steel
A CAUTION: Wear gloves when handling steel frame parts.
o
e
BB
BACK
x2
k(i
1
t; e
x12
o
Ii
Place one Side Adapter ( BB) in position on right side of interior door opening. Secure with 12 screws ( NN). Place one side
adapter ( BB) in position on back corner. Secure with 12 screws ( NN).
Note: Critical Orientation of bracket is shown and used in next steps. Repeat steps with the remaining two side
adapters ( BB) on left side of the shed interior.
Attach one wall adapter ( BB) to right side wall by sliding it in place from above. Secure with 14 screws ( NN).
Repeat steps with the remaining wall adapter ( BB) on left side of the shed interior.
19

Assembly - Roof Steel ( Continued)

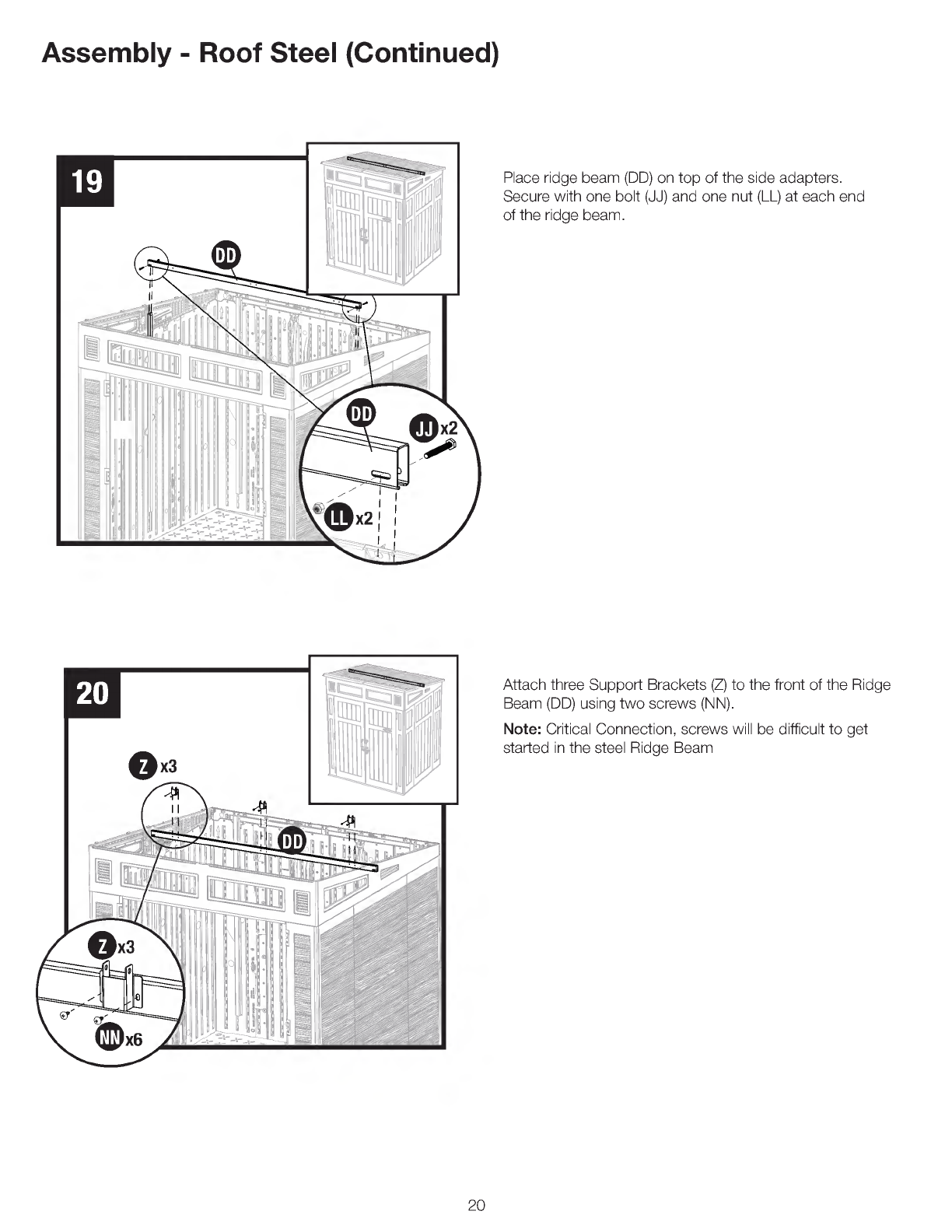

Place ridge beam ( DD) on top of the side adapters.
Secure with one bolt ( JJ) and one nut ( LL) at each end
of the ridge beam.
Attach three Support Brackets ( Z) to the front of the Ridge
Beam ( DD) using two screws ( NN).
Note: Critical Connection, screws will be difficult to get
started in the steel Ridge Beam
20
